Atlas VP14ENC User manual

1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: [phone]
FAX [phone] AtlasSound.com 1/2
©2007 Atlas Sound SL1-2006 ATS001141 RevD 9/07
VP14MB Features
• Attractive Design is Suitable for Use in a Variety of Surface-Mount
Vandal Proof Applications
• Durable All-steel Construction
• Impermeable Security Grille Protects Speaker
• Attractive Finish
• Includes High-Quality 8" Loudspeaker with 25/70.7V Line Transformer
• Transformer Factory Pre-Wired to Terminal Block
VP14ENC Features
• Wiremold™ 500 & 700 Series Compatible
• Durable All-steel Construction
• Attractive Finish
• 9.5˚ Sloped Design Offers Directional Sound Projection
VP14MB & VP14ENC General Description
More and more jobs in secured facilities are using surface mount
raceways due to continual building expansions and retrofits. To accom-
modate for this, the VP14ENC includes an adapter to comply with
Wiremold™ 500 and 700 series conduit. This adapter can be installed
securely through any of the knockouts that are included on all four sides
of the VP14ENC. This provides for a cleaner installation where surface
mount raceways are required. All knockouts are finished completely
flush before the enclosure is painted making them invisible to any
would-be perpetrator.
The VP14MB vandal resistant slanted wall mount baffle, finished in
attractive, neutral beige, is ideal for use in high-security areas such as
schools and correctional facilities. It’s sturdy, 14-gauge baffle construc-
tion and specially designed protective labyrinth screen protects the
enclosed speaker assembly against abuse. Each package contains a
high-quality 8" diameter loudspeaker with a 10-ounce ceramic magnet
and pre-assembled 25V/70.7V transformer with five power taps factoy
pre-wired to the terminal block.
VP14MB & VP14ENC
Architect And Engineer Specifications
The loudspeaker/transformer package shall be Atlas Sound Model
VP14MB. The loudspeaker shall be a 8" (203mm) dia., dual cone type
with frequency response of 50Hz to 18kHz (±10dB). Loudspeaker shall
include a factory-wired 25/70.7V transformer with power taps of .25, .5,
1, 2, and 4 watts.
The baffle shall be treated 14-gauge steel finished in baked white
powder epoxy. The system shall utilize an interior steel security screen
between the speaker and baffle opening. VP14ENC shall measure 11.40"
(290mm) high, 11.75" (298mm) wide and shall have a sloped depth of
5.29" (134mm) at the top down to 2.88" (73mm) depth at the bottom.
The enclosure shall include (1) 7⁄8" (22mm) planished knockout on each
side of the enclosure. Wiremold™ surface mount raceway shall be also
compatible with the VP14ENC via the included adaptor. The enclosure
shall be 16-gauge treated steel and shall be finished in baked powder
epoxy.

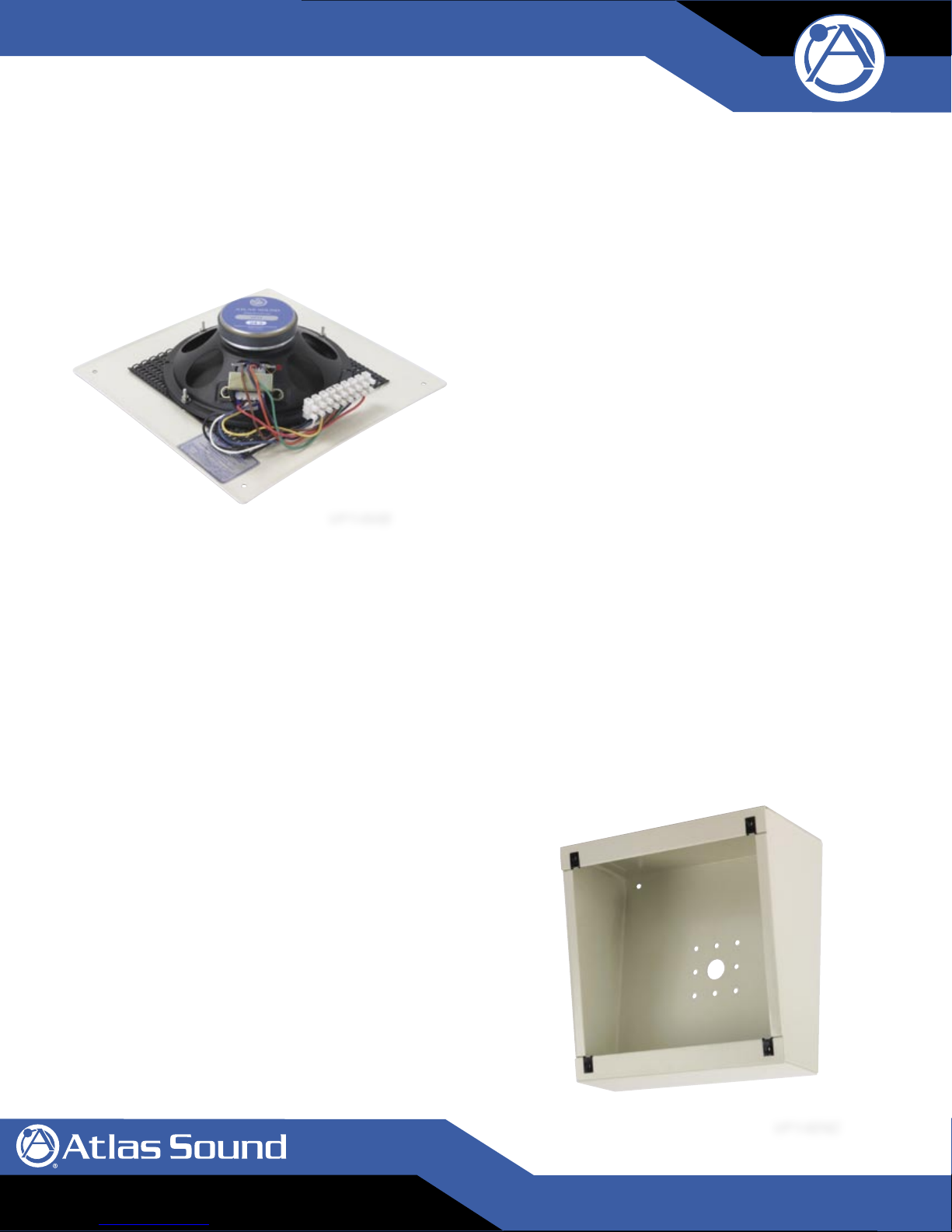

VP14MB
VP14MB & VP14ENC
Vandal Proof Loudspeaker System
VP14ENC

1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: [phone]
FAX [phone] ©2007 Atlas Sound SL1-2006 ATS001141 RevD 9/07 AtlasSound.com 2/2
VP14MB Loudspeaker Specifications
Size 8" (203mm)
Magnet Weight 10oz (142g) Ceramic
V.C. Diameter 1" (25mm)
Sensitivity 96dB 1W/1M
Watts (program) 15
Frequency Response 50Hz - 15kHz
VP14ENC Specifications
Slope 9.5º
Width 11.75 (298mm)
Height 11.40" (290mm)
Projects, Top 5.29" (134mm)
Projects, Bottom 2.88" (73mm)
Weight 5.5lbs (2.49kg)
VP14MB Transformer Specifications
Primary Volts 25/70.7
Secondary 8Ω
Core Size 1⁄2" x 5⁄8" (13mm x 16mm)
Taps 1⁄4, 1⁄2, 1, 2, & 4
Leads Color Coded, Stripped & Tinned
Transformer Setup
Tap Wattage 25V 70.7V
1⁄4 Blue Red
1⁄2 Brown White
1 Green Yellow
2 Violet Blue
4 Orange Brown
Common Black Black


 




 


 




















 



 



 
 

 


 

 


 



VP14ENC Knock-Out Mounting Hole Locations


 




 


 




















 



 



 
 

 


 

 


 



