Atlona AT-ANC-180D User manual

Atlona Manuals
Control & Management
AT-ANC-180D
Network Control Panel
8-Button

AT-ANC-108D
2
Version Release Date Notes
1 06/18 New format; updated to include AMS 2.0
Version Information

AT-ANC-108D
3
©2018 Atlona, Inc. All Rights Reserved. All trademarks are the property of their respective owners.
Atlona reserves the right to make changes to the hardware, packaging, and documentation without notice.
Thank you for purchasing this Atlona product. We hope you enjoy it and will take an extra few moments to register
your new purchase.
Registration only takes a few minutes and protects this product against theft or loss. In addition, you will receive
notications of product updates and rmware. Atlona product registration is voluntary and failure to register will not
aect the product warranty.
To register your product, go to http://www.atlona.com/registration
Sales, Marketing, and Customer Support
Welcome to Atlona!
Operating Notes
IMPORTANT: Visit http://www.atlona.com/product/AT-ANC-108D for the latest rmware updates
and User Manual.
Main Oce
Atlona Incorporated
70 Daggett Drive
San Jose, CA 95134
United States
Oce: +1.877.536.3976 (US Toll-free)
Oce: +1.408.962.0515 (US/International)
Sales and Customer Service Hours
Monday - Friday: 6:00 a.m. - 4:30 p.m. (PST)
http://www.atlona.com/
International Headquarters
Atlona International AG
Ringstrasse 15a
8600 Dübendorf
Switzerland
Oce: [phone]
Sales and Customer Service Hours
Monday - Friday: 09:00 - 17:00 (UTC +1)

AT-ANC-108D
4
Atlona, Inc. (“Atlona”) Limited Product Warranty
Coverage
Atlona warrants its products will substantially perform to their published specications and will be free from defects
in materials and workmanship under normal use, conditions and service.
Under its Limited Product Warranty, Atlona, at its sole discretion, will either:
• repair or facilitate the repair of defective products within a reasonable period of time, restore products to their
proper operating condition and return defective products free of any charge for necessary parts, labor and
shipping.
OR
• replace and return, free of charge, any defective products with direct replacement or with similar products
deemed by Atlona to perform substantially the same function as the original products.
OR
• refund the pro-rated value based on the remaining term of the warranty period, not to exceed MSRP, in cases
where products are beyond repair and/or no direct or substantially similar replacement products exist.
Repair, replacement or refund of Atlona products is the purchaser’s exclusive remedy and Atlona liability does not
extend to any other damages, incidental, consequential or otherwise.
This Limited Product Warranty extends to the original end-user purchaser of Atlona products and is non-transferrable
to any subsequent purchaser(s) or owner(s) of these products.
Coverage Periods
Atlona Limited Product Warranty Period begins on the date of purchase by the end-purchaser. The date contained on
the end-purchaser ‘s sales or delivery receipt is the proof purchase date.
Limited Product Warranty Terms – New Products
• 10 years from proof of purchase date for hardware/electronics products purchased on or after June 1, 2013.
• 3 years from proof of purchase date for hardware/electronics products purchased before June 1, 2013.
• Lifetime Limited Product Warranty for all cable products.
Limited Product Warranty Terms – Refurbished (B-Stock) Products
• 3 years from proof of purchase date for all Refurbished (B-Stock) hardware and electronic products purchased
on or after June 1, 2013.
Remedy
Atlona recommends that end-purchasers contact their authorized Atlona dealer or reseller from whom they
purchased their products. Atlona can also be contacted directly. Visit www.atlona.com for Atlona’s contact
information and hours of operation. Atlona requires that a dated sales or delivery receipt from an authorized dealer,
reseller or end-purchaser is provided before Atlona extends its warranty services. Additionally, a return merchandise
authorization (RMA) and/or case number, is required to be obtained from Atlona in advance of returns.
Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not
bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject
any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976
(US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com.
Exclusions
This Limited Product Warranty excludes:
• Damage, deterioration or malfunction caused by any alteration, modication, improper use, neglect, improper
packaging or shipping (such claims must be presented to the carrier), lightning, power surges, or other acts of
nature.

AT-ANC-108D
5
• Damage, deterioration or malfunction resulting from the installation or removal of this product from any
installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by
Atlona to make such repairs, or any other cause which does not relate directly to a defect in materials and/or
workmanship of this product.
• Equipment enclosures, cables, power supplies, batteries, LCD displays, and any accessories used in conjunction
with the product(s).
• Products purchased from unauthorized distributors, dealers, resellers, auction websites and similar unauthorized
channels of distribution.
Disclaimers
This Limited Product Warranty does not imply that the electronic components contained within Atlona’s products
will not become obsolete nor does it imply Atlona products or their electronic components will remain compatible
with any other current product, technology or any future products or technologies in which Atlona’s products may
be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty oering in
instances arising outside its normal course of business including, but not limited to, damage inicted to its products
from acts of god.
Limitation on Liability
The maximum liability of Atlona under this limited product warranty shall not exceed the original Atlona MSRP for
its products. To the maximum extent permitted by law, Atlona is not responsible for the direct, special, incidental or
consequential damages resulting from any breach of warranty or condition, or under any other legal theory. Some
countries, districts or states do not allow the exclusion or limitation of relief, special, incidental, consequential or
indirect damages, or the limitation of liability to specied amounts, so the above limitations or exclusions may not
apply to you.
Exclusive Remedy
To the maximum extent permitted by law, this limited product warranty and the remedies set forth above are
exclusive and in lieu of all other warranties, remedies and conditions, whether oral or written, express or implied.
To the maximum extent permitted by law, Atlona specically disclaims all implied warranties, including, without
limitation, warranties of merchantability and tness for a particular purpose. If Atlona cannot lawfully disclaim
or exclude implied warranties under applicable law, then all implied warranties covering its products including
warranties of merchantability and tness for a particular purpose, shall provide to its products under applicable law.
If any product to which this limited warranty applies is a “Consumer Product” under the Magnuson-Moss Warranty
Act (15 U.S.C.A. §2301, ET SEQ.) or other applicable law, the foregoing disclaimer of implied warranties shall not
apply, and all implied warranties on its products, including warranties of merchantability and tness for the particular
purpose, shall apply as provided under applicable law.
Other Conditions
Atlona’s Limited Product Warranty oering gives legal rights, and other rights may apply and vary from country to
country or state to state. This limited warranty is void if (i) the label bearing the serial number of products have been
removed or defaced, (ii) products are not purchased from an authorized Atlona dealer or reseller. A comprehensive
list of Atlona’s authorized distributors, dealers and resellers can be found at www.atlona.com.
Atlona, Inc. (“Atlona”) Limited Product Warranty

AT-ANC-108D
6
FCC Statement
FCC Compliance and Advisory Statement: This hardware device complies with
Part 15 of the FCC rules. Operation is subject to the following two conditions: 1)
this device may not cause harmful interference, and 2) this device must accept any
interference received including interference that may cause undesired operation. This
equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a commercial installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed or used in accordance with the instructions, may cause harmful interference
to radio communications. However there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following
measures: 1) reorient or relocate the receiving antenna; 2) increase the separation between the equipment and the
receiver; 3) connect the equipment to an outlet on a circuit dierent from that to which the receiver is connected;
4) consult the dealer or an experienced radio/TV technician for help. Any changes or modications not expressly
approved by the party responsible for compliance could void the user’s authority to operate the equipment. Where
shielded interface cables have been provided with the product or specied additional components or accessories
elsewhere dened to be used with the installation of the product, they must be used in order to ensure compliance
with FCC regulations.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this product near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install or place this product near any heat
sources such as radiators, heat registers, stoves, or
other apparatus (including ampliers) that produce
heat.
9. Do not defeat the safety purpose of a polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are
provided for your safety. If the provided plug does
not t into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
product.
11. Only use attachments/accessories specied by
Atlona.
12. To reduce the risk of electric shock and/or damage
to this product, never handle or touch this unit or
power cord if your hands are wet or damp. Do not
expose this product to rain or moisture.
13. Unplug this product during lightning storms or when
unused for long periods of time.
14. Refer all servicing to qualied service personnel.
Servicing is required when the product has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the product, the product has been
exposed to rain or moisture, does not operate
normally, or has been dropped.
CAUTION: TO REDUCT THE RISK OF
ELECTRIC SHOCK
DO NOT OPEN ENCLOSURE OR EXPOSE
TO RAIN OR MOISTURE.
NO USER-SERVICEABLE PARTS
INSIDE REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance instructions in the literature
accompanying the product.
The information bubble is intended to alert the user to helpful or optional opera-
tional instructions in the literature accompanying the product.
Important Safety Information

AT-ANC-108D
7
Introduction 8
Features 8
Package Contents 8
Panel Description 9
Installation 10

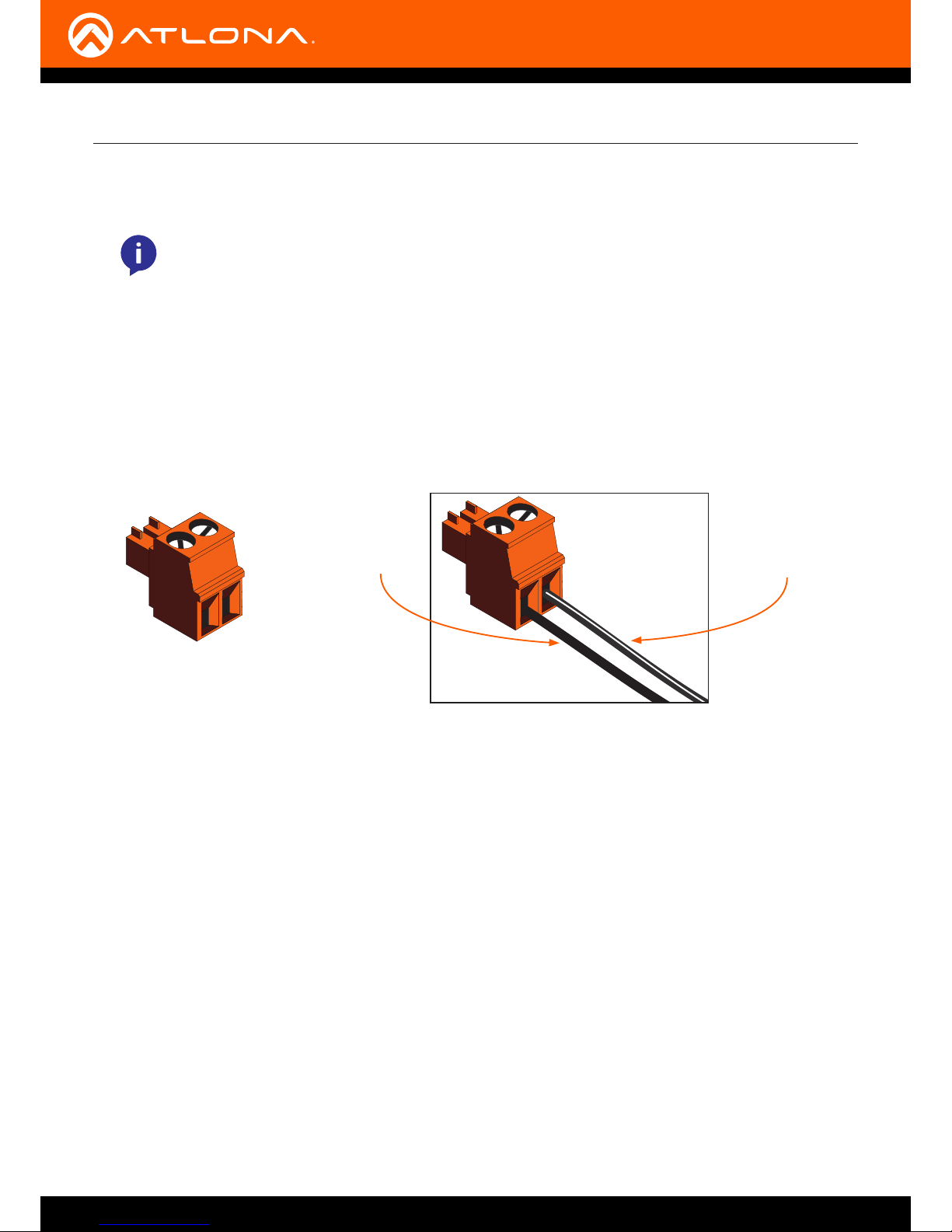

Power Connector 10
Connection Instructions 11

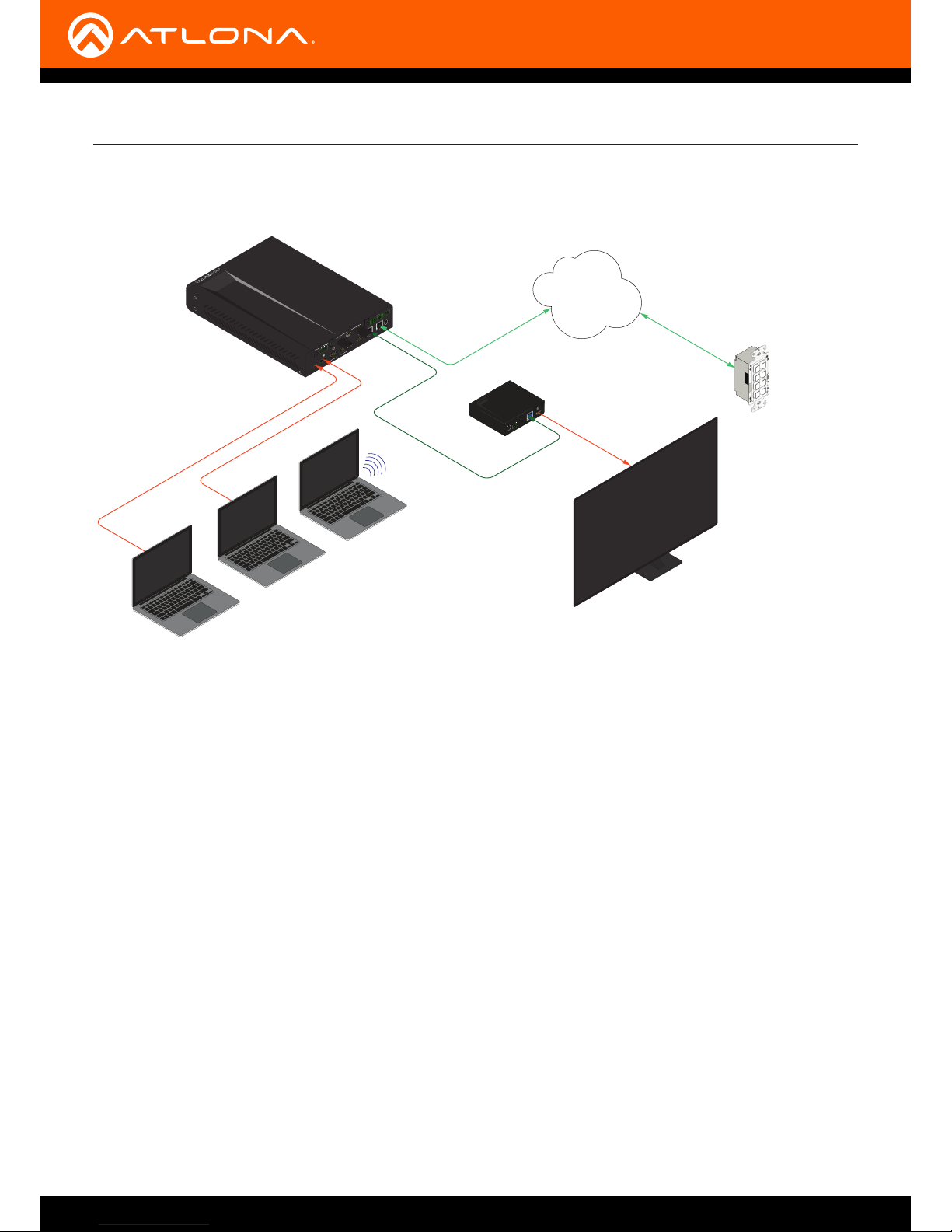

Connection Diagram 12
Wallplate Installation 13
Basic Operation 14
IP Conguration 14
Resetting to Factory Defaults 14

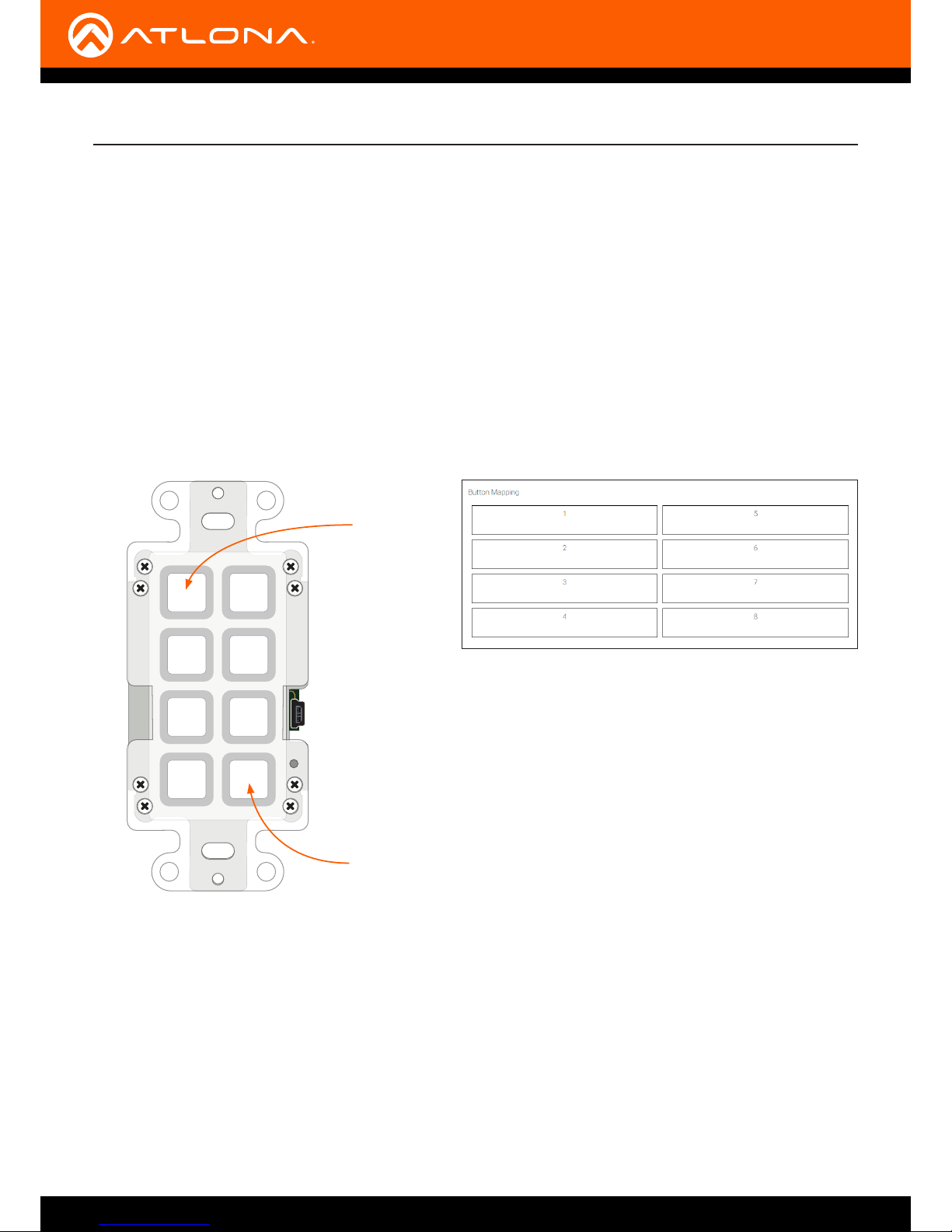

Button Mapping 15
Proper Orientation 15
Mapping a Device to the AT-ANC-108D 15
The AMS Interface 18
Discovery using AMS 18

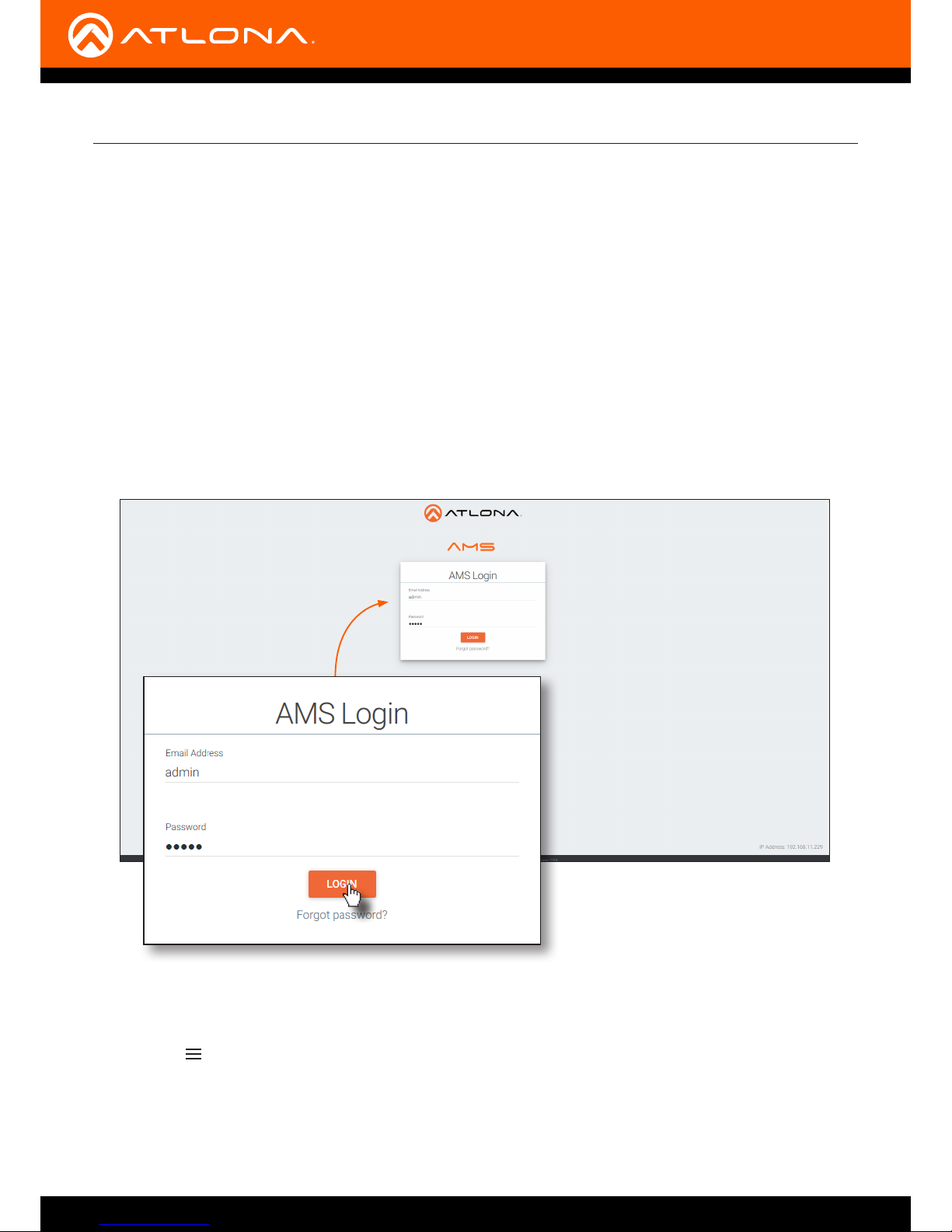

Accessing AMS 18
Device Info page 21
Network page 22

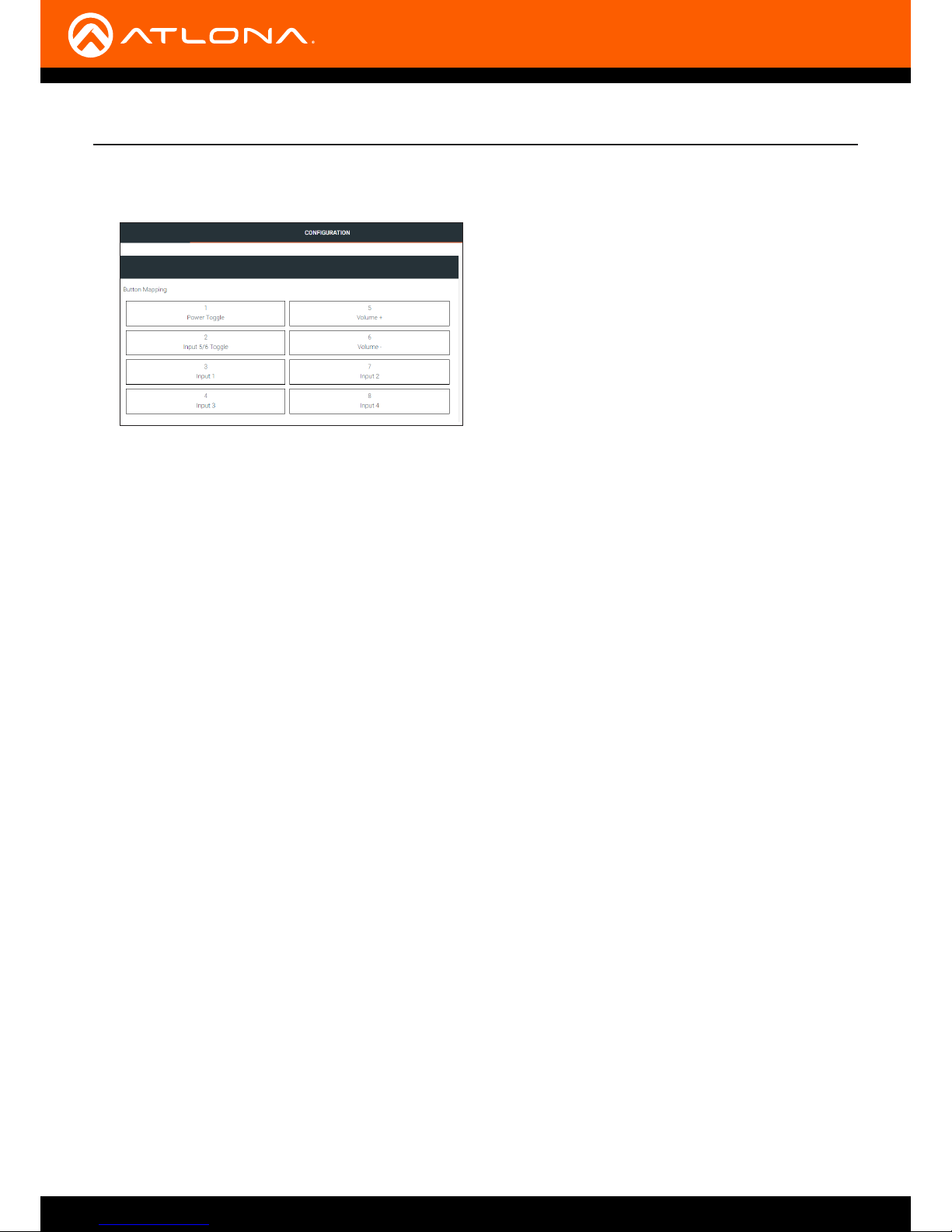

Conguration page 23
Appendix 24
Compatibility Table 24
Specications 25
Index 26
Table of Contents

AT-ANC-108D
8
The Atlona AT-ANC-108D is an 8-button network control panel for Atlona IP-based single output channel switchers.
It is designed for easy conguration using the free Atlona Management System (AMS) software resource. The ANC-
108D only requires a single category cable, from a PoE-equipped network switch, to deliver both control signal and
power, and provide fast, hassle-free installation. Conguration is also fast. Simply download a conguration le from
within AMS for Atlona single output switchers such as the HDVS-200 Series, HDVS-300 Kit, SW Series, AT-UHD-
CLSO-601, or AT-UHD-CLSO-612ED.
Even with automatic input switching and display control on many of our AV switchers, presenters still want a visual
means of changing inputs, operating displays and adjusting volume. The ANC-108D backlit panel provides a user-
friendly means of controlling the AV in a meeting room or classroom. System designers need an inexpensive point of
control to meet those needs without worrying about complex control system coding. The ANC-108D, working with
AMS, meets both of these demands. Regardless of the Atlona IP-based switcher designed into the meeting space or
classroom, with the ANC-108D the AV operator will always have a consistent control interface from room to room.
Combined with Atlona IP-controllable switching products for huddle spaces, classrooms and conference rooms, the
network control panel acts as a remote control to send IP commands to the switcher. The switcher in turns acts on
those commands or translates the IP commands into RS-232 commands to control external devices such as displays
to create a seamless AV system. The ANC-108D ts into a US one-gang junction box and is compatible with Decora-
style wallplates.
Introduction
Features
Package Contents
• Remote control panel for Atlona IP-based products
• Fast-installing, single-cable integration
• Easy to congure with AMS and downloadable templates
• Eight soft-touch, backlit buttons
• Remotely-powered via PoE (Power over Ethernet)
• Installer-customizable, pre-cut label sheets
• Fits US one-gang junction box with Decora™ wallplate
• Award-winning 10 year limited product warranty
1 x AT-ANC-108D
1 x White Decora faceplate
1 x Blank button template
1 x Pre-dened button template
1 x Installation Guide

AT-ANC-108D
9
LAN
AT-ANC-108D
DC 5V
- +
2
3
5
1
4
Front Rear
Panel Description
1 Push Buttons
This set of eight programmable push buttons can be dened using AMS.
2 Mini-USB
This port is used to updated the unit, manually. The preferred and recommended method for updating the AT-
ANC-108D is AMS. Refer to ## for more information.
3 Reset Button
Press this button to reset the unit. Refer to Resetting to Factory Defaults (page 14) for more information.
4 LAN
Connect an Ethernet cable from this port to the Local Area Network (LAN).
5 DC 5V
Connect the optional 5V DC power supply (not included) to this port, if necessary. If the AT-ANC-108D is
connected to a PoE-capable switch, the 5V DC power supply is not required.

AT-ANC-108D
10
Installation
Power Connector
NOTE: The DC 5V connector is only required if the AT-ANC-108D is not connected to a PoE-
capable network switch. If a PoE-capable switch is unavailable, refer to the instructions below to
connect the power supply. The power supply and captive screw connector are not included.
To purchase the power supply, contact Atlona.
Locate the included orange 2-pin captive screw terminal block and wire the included captive screw terminal block, as
shown below. Do not use high-torque devices, when securing the wires to the terminal block, as this may damage
the screws and/or the block.
1. Insert the wires into the correct terminal on the included captive screw terminal block, as shown below.
2. Tighten the screws to secure the wires. Do not use high-torque devices as this may damage the screws and/or
terminal block.
White (positive)
Black (negative)

AT-ANC-108D
11
1. Connect an Ethernet cable, from the LAN port, on the rear of the unit, to one of the following devices. Ethernet
cables should use EIA/TIA-568B termination:
a. PoE-compatible switch.
b. Atlona Power Over Ethernet Mid-Span Power Supply (AT-PS-POE). Use this option if the system endpoint is
not capable of supplying power to the AT-ANC-108D.
Connection Instructions
Installation
3. Complete the installation of the AT-ANC-108D into the electrical box or mud ring. Refer to the Wallplate
Installation (page 13) if necessary.
IMPORTANT: Stranded or patch cable is not recommended due to performance issues.
Sheilded cables are strongly recommended to minimize signal noise and interference.

AT-ANC-108D
12
Installation
Connection Diagram
LAN DC24V
HDBaseTOUT
HDMIOUTHDMIIN
DPIN
USB-CIN
23 4
1
RELAY RS-232
TRIGGERI/O
MIRACAST
WiFi AUX
AUDIO
OUT
LR
IN
USB
+
C1 COM C2
RXP TX
+
+
USB
USB
USB
DC48V RS-232 HDBaseTIN HDMIOUT
RXTX
AT-UHD-EX-100CE-RX-PSE
HDMI
UHD/HD Display
AT-ANC-108D
Network Control Panel
DisplayPort
HDMI
AT-UHD-SW-510W
Ethernet / PoE
HDBaseT
USB-C
Ethernet
LAN
Laptop
Laptop
Laptop

AT-ANC-108D
13
Installation
Wallplate Installation
1. Install the mud ring/electrical box (not shown in illustration) as required, then attach the AT-ANC-108D to the mud
ring/electrical box assembly.
2. Connect the HDBaseT cable to the LAN port on the rear of the AT-ANC-108D.
3. Install the AT-ANC-108D into the mud ring/electrical box, using the two included screws and secure it in place
with a regular screwdriver. Do not overtighten or use high-torque devices to secure the wallplate to prevent
damage to the wall plate and/or the AT-ANC-108D mounting plates.
Wall cross-section
Wallplate holes

AT-ANC-108D
14
IP Conguration
Resetting to Factory Defaults
The AT-ANC-108D is shipped with DHCP enabled. Once connected to a network, the DHCP server (if available), will
automatically assign an IP address to the unit. AMS is recommended to congure IP settings of the AT-ANC-180D.
If a static IP address is desired, the unit can be switched to static IP mode. The default static IP address of the AT-
ANC-108D is 192.168.1.50. Refer to Accessing AMS (page 18) for more information.
Resetting the AT-ANC-108D requires that the wallplate be removed. Refer to Wallplate Installation (page 13) for
more information. If no DHCP server is found after a factory-reset, then AT-ANC-108D will be assigned the default
static IP address of 192.168.1.50.
1. Remove the wallplate from the AT-ANC-108D.
2. Press and hold the upper-right button.
3. Press the Reset button, using the end of a paper clip
or other pointed object. The upper-right button will
ash twice.
4. Release the upper-right button and the Reset button.
5. Reattach the wallplate to the AT-ANC-108D.
Basic Operation
Reset button
Upper-right button

AT-ANC-108D
15
Button Mapping
Each button on the AT-ANC-108D will be assigned to a particular function, depending upon which device is selected
from the Device Type drop-down list, under the Conguration page (page 23) of AMS.
Before selecting the device to be mapped, make sure the AT-ANC-108D is in the proper orientation: Button 1 is in
the upper-left corner of the unit; Button 8 will be in the lower-right corner of the unit, as shown below. The mini-USB
port should be on the right side of the unit, as it faces forward.
The AMS button numbering, as displayed in the Conguration page of AMS (on the right), matches the numbering
scheme of each button on the AT-ANC-108D. The rst column of buttons is numbered 1 through 4, and the second
column of buttons is numbered 5 through 8.
Basic Operation
LAN
AT-ANC-108D
DC 5V
- +
Proper Orientation
Mapping a Device to the AT-ANC-108D
Button 1
AT-ANC-108D (front view) AMS Button Mapping
Button 8
1. Login to AMS. Refer to Accessing AMS (page 18), if necessary.
2. Click CONFIGURATION in the menu bar.
3. Click the Device Type drop-down list and select the device to be mapped to the AT-ANC-108D. Move the
mouse up or down the list until the desired device is highlighted. In the example, on the next page, the AT-UHD-
CLSO-612ED will be selected.
4. Click the highlighted device to select it.

AT-ANC-108D
16
Basic Operation
5. Click the Cong Files drop-down list to select the conguration le.
6. Click the Available Devices drop down list, to select the device to be mapped. Note that the number of
available devices (for that particular model), will be listed in parentheses. The IP address of the device will also
be listed next to the model name.
7. Click the UPLOAD button to upload the conguration le to the AT-ANC-108D.

AT-ANC-108D
17
Basic Operation
8. The Button Mapping section will be congured for the selected device. The example below, shows the AT-
UHD-CLSO-612ED mapped to the AT-ANC-108D.
1 Toggles power (on/o).
2 Toggles between Input
5 and Input 6.
3 Selects Input 1 as the
active input.
4 Selects Input 3 as the
active input.
5 Increases volume.
6 Decreases volume.
7 Selects Input 2 as the
active input.
8 Selects Input 4 as the
active input.

AT-ANC-108D
18
The AMS Interface
Discovery using AMS
It is recommended that the Atlona Management System (AMS) be used to congure and control the AT-ANC-108D.
AMS is free and can be downloaded from https://www.atlona.com/ams.
By default, the AT-ANC-108D is set to DHCP mode, allowing a DHCP server (if present) to assign the encoder an IP
address. Once an IP address has been assigned, the Atlona Management System (AMS) can be used to manage the
product on the network. Note that AMS will only be able to the AT-ANC-108D if they are on the same VLAN.
Accessing AMS
1. Launch a web browser and enter the IP address of AMS, in the address bar.
2. Enter the required login credentials.
3. Click the Login button.
4. The AMS Dashboard will be displayed.
5. Click the icon, in the upper-left corner of the AMS Dashboard.

AT-ANC-108D
19
The AMS Interface
6. Click Devices from the y-out menu.
7. Click the All option. AMS will identify all known devices in the AMS Device List window.
8. Click the icon, near the top-right portion of the screen.
9. Click Scan Network from the y-out menu.
Click to display y-out menu

AT-ANC-108D
20
10. The Scan Network dialog will be displayed. The time required to perform the scan will vary, depending on the
network Once the process is complete, the Scan Network dialog will close.
11. Click the AT-ANC-108D device, under the AMS Device List window.
12. The Device Info screen will be displayed, as shown.
If no AT-ANC-108D units are found, then verify that both the AT-ANC-108D and the computer that is running
AMS, are connected to the same network.
The AMS Interface
