Atlona AT-PCLink User manual

AtlonA
Wireless USB DisplayDock Set
AT-PCLink
User Manual

TABLE OF CONTENTS
1. What’s in the Package .................................................. 1
2. Positioning the Adapters .................................................. 2
2.1 Positioning the DisplayDock .................................................. 2
2.2 Positioning the PC Adapter .................................................. 3
3. Software Installation and First Connection .................................................. 4
3.1 Connect the PC Adapter to the PC .................................................. 7
3.2 Connect the DisplayDock .................................................. 7
3.2.1 Connecting Audio .................................................. 8
3.2.2 Connecting USB Keyboard and Mouse .................................................. 8
4. Wireless USB Manager User Interface .................................................. 8
4.1 Wireless USB Manager System Tray Icon .................................................. 8
4.2 Accessing the Wireless USB Manager .................................................. 9
4.3 Blocking or Disassociating a Device .................................................. 11

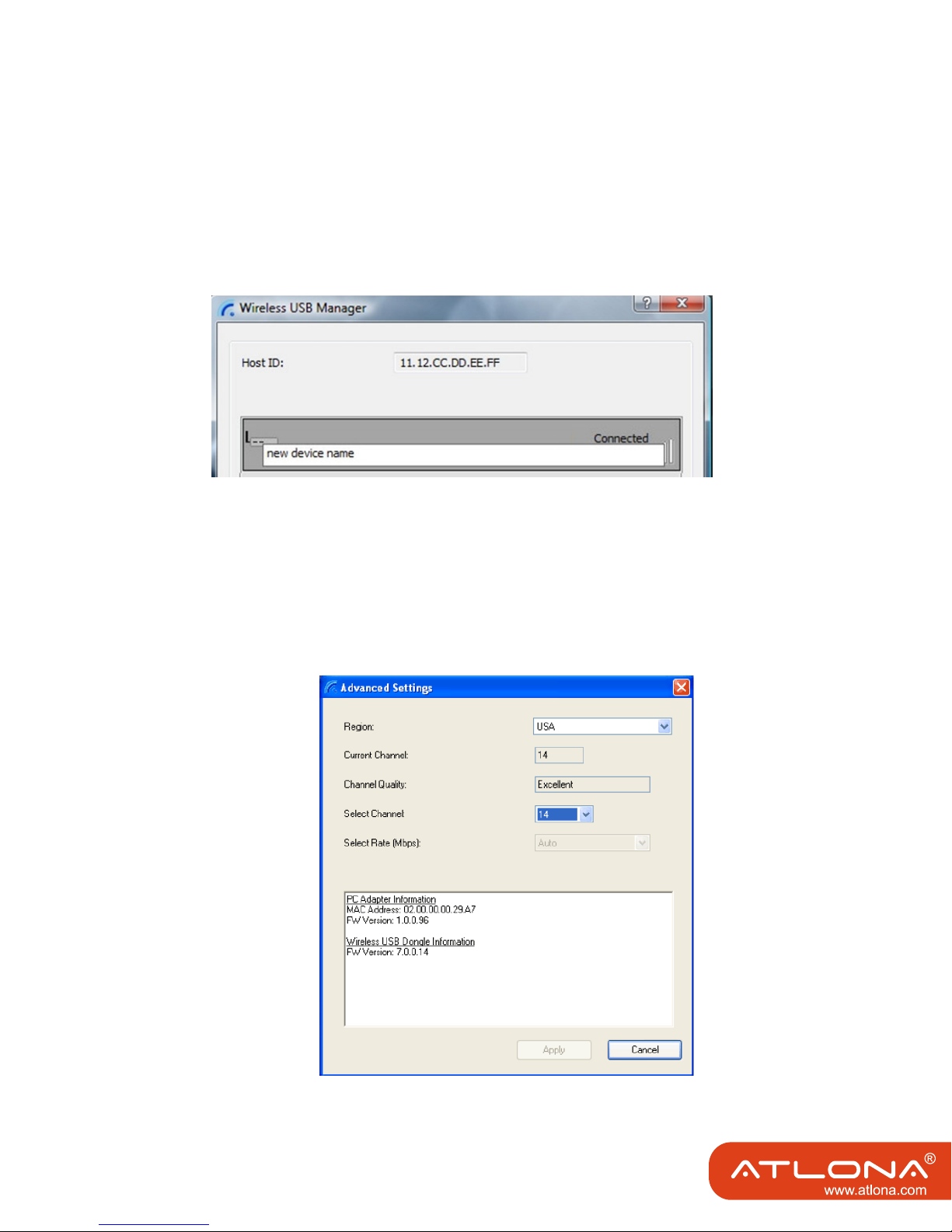

4.4 Changing Device Names in the Wireless USB Manager ..................................... 12
4.5 Advanced Settings .................................................. 12
5. Using and Conguring the DisplayDock .................................................. 13
5.1 Using the DisplayDock Video connection .................................................. 13
5.1.1 Using Mirror Mode . .................................................. 14
5.1.2 Using Extend Mode .................................................. 14
5.1.3 Laptop Operation with the Lid Closed .................................................. 15
5.1.4 External Display Only .................................................. 15
5.2 Conguring Display in Windows 7 .................................................. 15
5.2.1 Setting Mirror or Extend Mode in Windows 7 .............................................. 15
5.2.2 Congure Screen Options in Windows 7 .................................................. 16
5.3 Conguring Display in Windows XP/Vista
5.3.1 Conguring the Display via the Display
Icon Context Menu in Windows XP/Vista .................................................. 17
5.3.1.1 Setting Mirror Mode .................................................. 18
5.3.1.2 Setting Extend Mode .................................................. 19
5.3.2 Conguring the Display via Windows
Display Properties in Windows XP/Vista .................................................. 19
5.3.2.1 Selecting the Correct Display Monitor. ....................... 20
5.3.2.2 Setting the Display to Extend or Mirror Mode ....................... 20
5.3.2.3 Adjusting Screen Resolution ....................... 20
5.3.2.4 Adjusting Color Level ....................... 20
5.3.2.5 Setting the DisplayDock as the Primary Display ....................... 21
5.4 Optimizing Wireless Video Display .................................................. 21
5.4.1 Use Extend Mode .................................................. 22
5.4.2 Optimizing Internet Video Viewing .................................................. 22
5.4.3 Using Optimize for Video Mode .................................................. 23
5.4.4 Setting Aero Desktop Theme in Vista .................................................. 23
5.4.5 Recommended Media Player Applications .................................................. 24
5.4.6 Recommended Minimum System Requirements ....................... 24
5.5 Setting Audio Output Device .................................................. 25
6. LED Indications .................................................. 26
7. Appendix A: Troubleshooting Help .................................................. 27
8. Appendix B: Pairing Procedure .................................................. 31
9. Safety Information .................................................. 33
10. Warranty .................................................. 34
11. Product registration .................................................. 35

1. What’s in the Package
1
DisplayDock
Software CD
PC Adapter
Power Supply Unit
Device Adapter
Docking Base
USB DVI 3.5mm AudioPower

2
2. Positioning the Adapters
2.1 Positioning the DisplayDock
The Wireless USB DisplayDock is designed for two possible mounting options:
• Simple table placement – the Docking Base is placed on a at horizontal surface, and the Device Adapter
is connected at 90 degrees to the base so that it is vertical.
• Vertical mounting –the Docking Base is fastened to a wall, a projector, or behind a display screen, and
the Device Adapter is connected so that it is at with the mounting surface, with the Device Adapter point-
ing upwards.
Note: For best performance, it is recommended to always position the Device Adapter vertically so that it is point-
ing upwards.

2
2.2 Positioning the PC Adapter
To achieve best performance it is recommended to position the PC Adapter in the upright position.

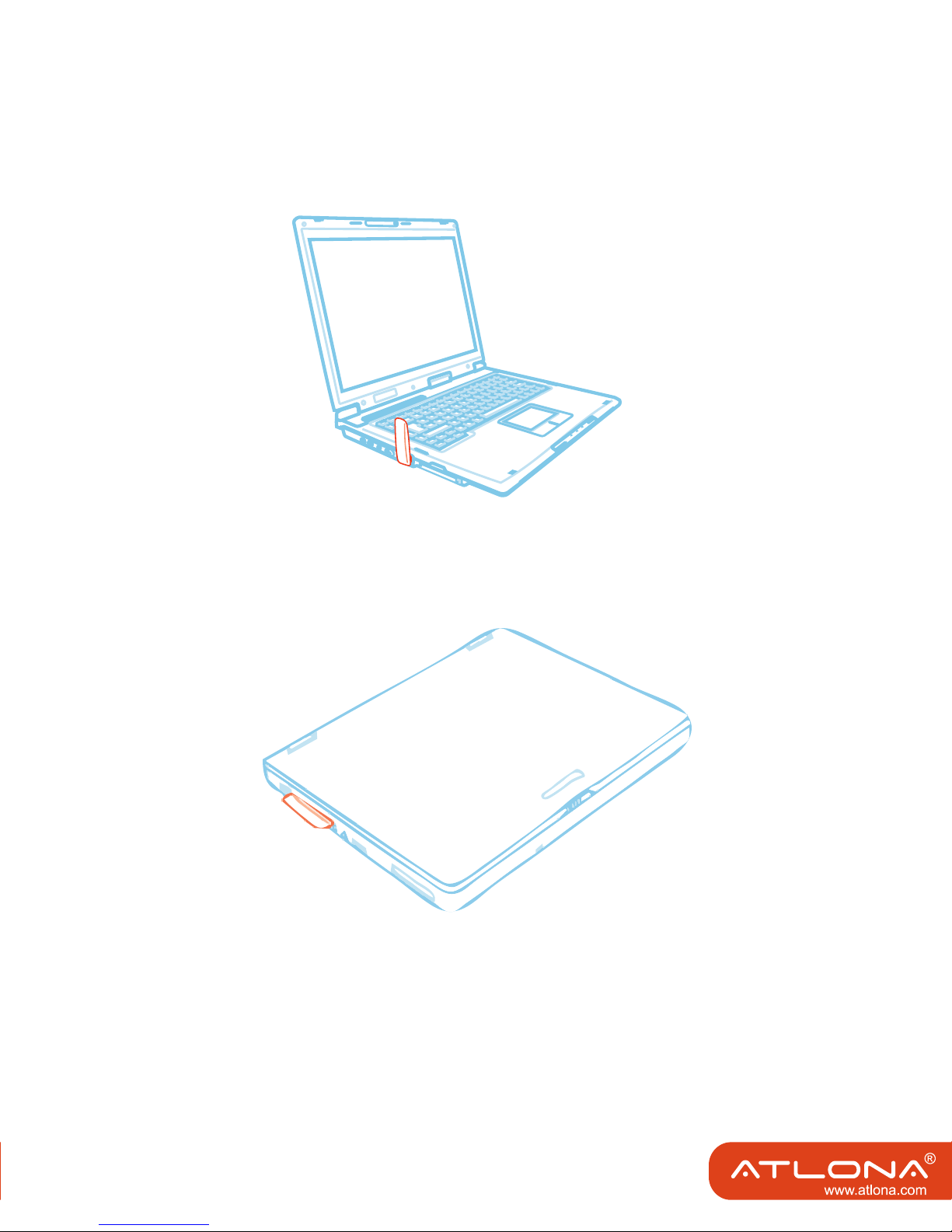

Figure 1: PC in working mode - PC Adapter in upright position
When the laptop is not in use, the PC Adapter can be rotated 90 degrees for storage, as seen in the fol-
lowing illustration:
Figure 2: Laptop inactive - PC adapter in horizontal position for storage.
3

Note: If your PC contains a previous Wireless USB Suite driver installation, please perform a proper
uninstall procedure using the Windows Control Panel.
1. Ensure that the PC Adapter is unplugged from the PC.
2. Insert the installation CD in the PC CDROM drive.
3. The installation CD Autoplay menu is displayed.
4. Select Install Wireless USB Software.
The installer offers two options:
• Option 1: Install Directly from CD - initiates the installation process from the CD.
• Option 2: Download latest software from the WEB - provides a link to a web address where you can
download software updates. If you choose this option, follow the instructions provided on the software
download page.
4
3. Software Installation and First Connection

5. If you select Option 1: Install Directly from CD, the install wizard begins installing the Wireless USB
software. The installation process may include more than one stage to accommodate different drivers
that are installed. Following the Wireless USB drivers, the Display drivers and application are
installed.
6. Choose your geographic region to comply with your local radio regulations. This setting can be
changed if needed once the software is installed.
7. Follow the onscreen instructions, and proceed by clicking Next> when prompted, or by approving
authorization requests to continue the installation.
54

8. When the Wireless USB Driver installation has completed, the Display driver installation begins.
Click I Accept to approve the end-user license agreement and continue installation.
6

6 7
9. When the installation procedure has successfully nished, you are automatically returned to the
opening screen of the Autoplay menu. You may be requested to reboot.
3.1 Connect the PC Adapter to the PC
• Connect the Wireless USB PC Adapter to a high speed PC USB port. The system will automatically
detect and install the drivers for the connected PC Adapter.
• System Tray icon turns red to indicate that the PC Adapter (Host) is ready to connect to any paired
device in range.
3.2. Connect the DisplayDock
1. Attach the DisplayDock to the remote display device (TV/Projector/Monitor), and ensure the PC (with
PC Adapter attached) is within 3 meter distance from the DisplayDock for the initial connection.
Ensure the two adapters have clear line-of-sight. Connect the provided power supply to the Docking
Base power receptacle.
Note: The PC Adapter and Device Adapter in this set are already paired and do not require performing a pairing pro-
cedure. If you should need to perform pairing manually for any reason (e.g. connecting to a new host PC Adapter, or
adding a Device Adapter that was not purchased in a set), please refer to Appendix B: Pairing Procedure
2. Wait for the System Tray icon to turn green , indicating that a wireless connection with the A/V
Adapter has been established. The Display icon is also displayed as soon as a connection is
established and the Display drivers are active.
Note: If you do not see the icon changing to green, or
do not see the Display icon, please see Appendix A:
Troubleshooting Help for suggestions.

8
3.2.1 Connecting Audio
Connect an audio cable with a 3.5mm (mini-stereo) plug to the audio jack on the Docking Base. Con-
nect the other end of the cable to the appropriate audio input jack on the TV/Projector/Monitor. The
audio output driver is activated automatically.
Note: If you need to set the audio output device manually Setting Audio Output Device.
3.2.2 Connecting USB Keyboard and Mouse
1. Attach the USB Keyboard or Mouse to one of the USB ports of the Docking Base. Wait for the PC to
recognize the USB device connection.
2. If needed, install the device drivers which were supplied with your Keyboard or Mouse.
3. Finally a popup balloon saying the new device is ready to use should appear.
Note: The DisplayDock is designed to work with USB Keyboard and Mouse. Other USB devices may not operate
properly when connected to the USB ports of the DisplayDock.
The Wireless USB Manager allows you to monitor and control the available Wireless USB devices and
connections that are within range of the PC.

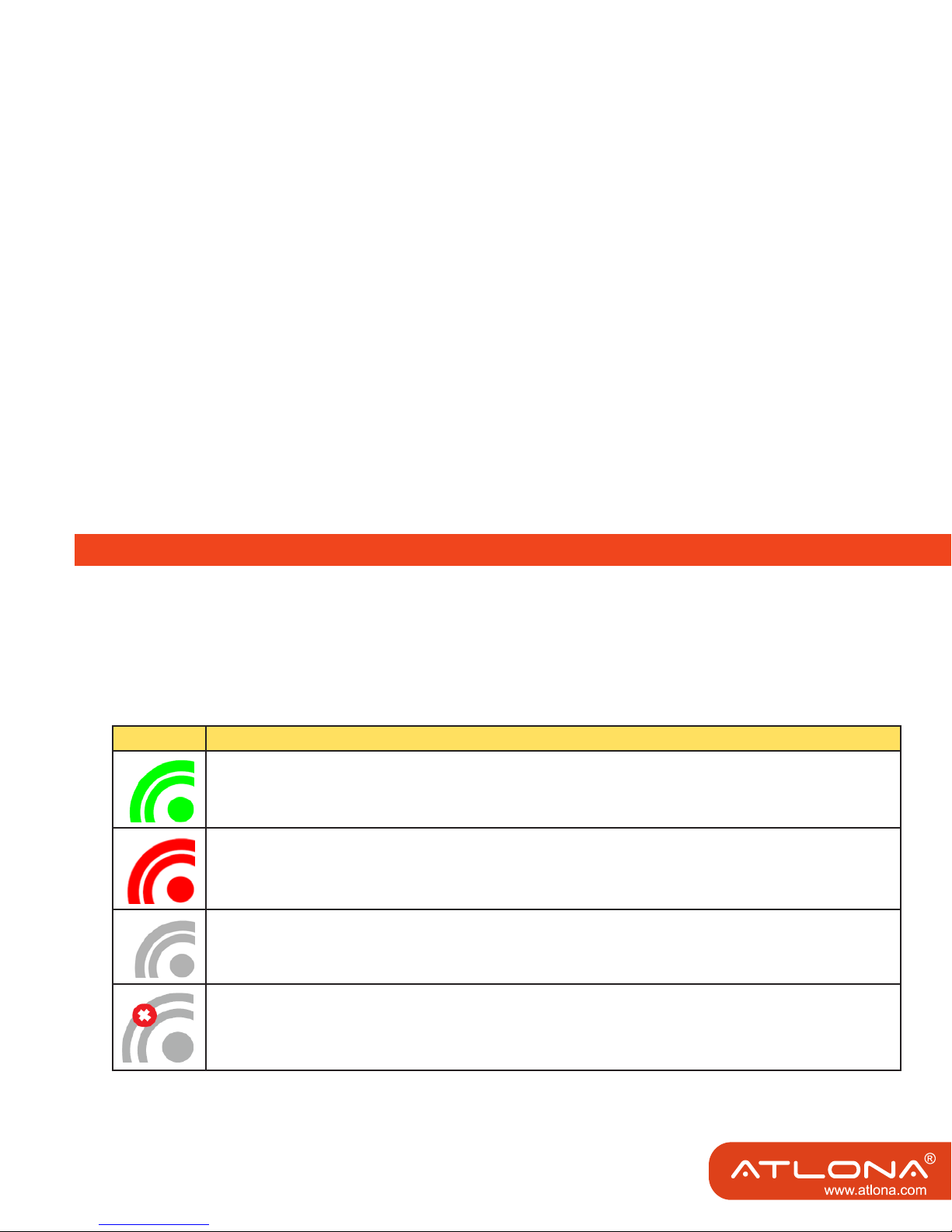

4.1 Wireless USB Manager System Tray Icon
The Wireless USB Manager icon is automatically displayed in the Windows System Tray whenever Win-
dows starts. The color and shape of the icon indicates the current activity state, as described in the fol-
lowing table:
Icon Color Status
Connected (green icon)
A wireless connection is established with a Wireless USB Device Adapter.
Host Hardware Enabled (red icon)
Wireless USB PC Adapter is connected to the PC (PC Adapter is enabled), but no wire-
less connection is detected.
Host Hardware Disconnected (gray icon)
Wireless USB PC Adapter is not connected.
Host Hardware Disabled (gray icon with X)
Wireless USB PC Adapter is disabled.
Note: Under the Japan regional setting, this icon is displayed whenever the AC power
source is disconnected from the PC.
4. Wireless USB Manager User Interface

9
Icon Color Status
Wireless USB Channel is Busy (green icon with exclamation)
Low channel quality detected, but at least one Wireless USB device is still connected. To
improve connection quality, see Appendix A: Troubleshooting Help for suggestions.
Wireless USB Channel is not available (red icon with exclamation)
No available channel detected. To improve connection quality, see Appendix A: Trouble-
shooting Help for suggestions.
4.2 Accessing the Wireless USB Manager
To access the Wireless USB Manager:
• Right click the Wireless USB Manager System Tray icon and select Wireless USB Connections
to display the Wireless USB Manager screen.
Figure 3: System Tray Icon - Context menu
Table 1: Context menu options
Menu Option Description
Wireless USB
Manager
Displays the main user interface, which displays a list of Wireless USB devices that
are available, and their connection status (Connected, Not Connected, Blocked)
Help Opens the help/troubleshooting le (HTML format) in a browser
About Displays the About screen, containing version information for the drivers and soft-
ware.
Exit Closes the Wireless USB Manager application
Figure 4: Wireless USB Manager– remote device connected
8

10

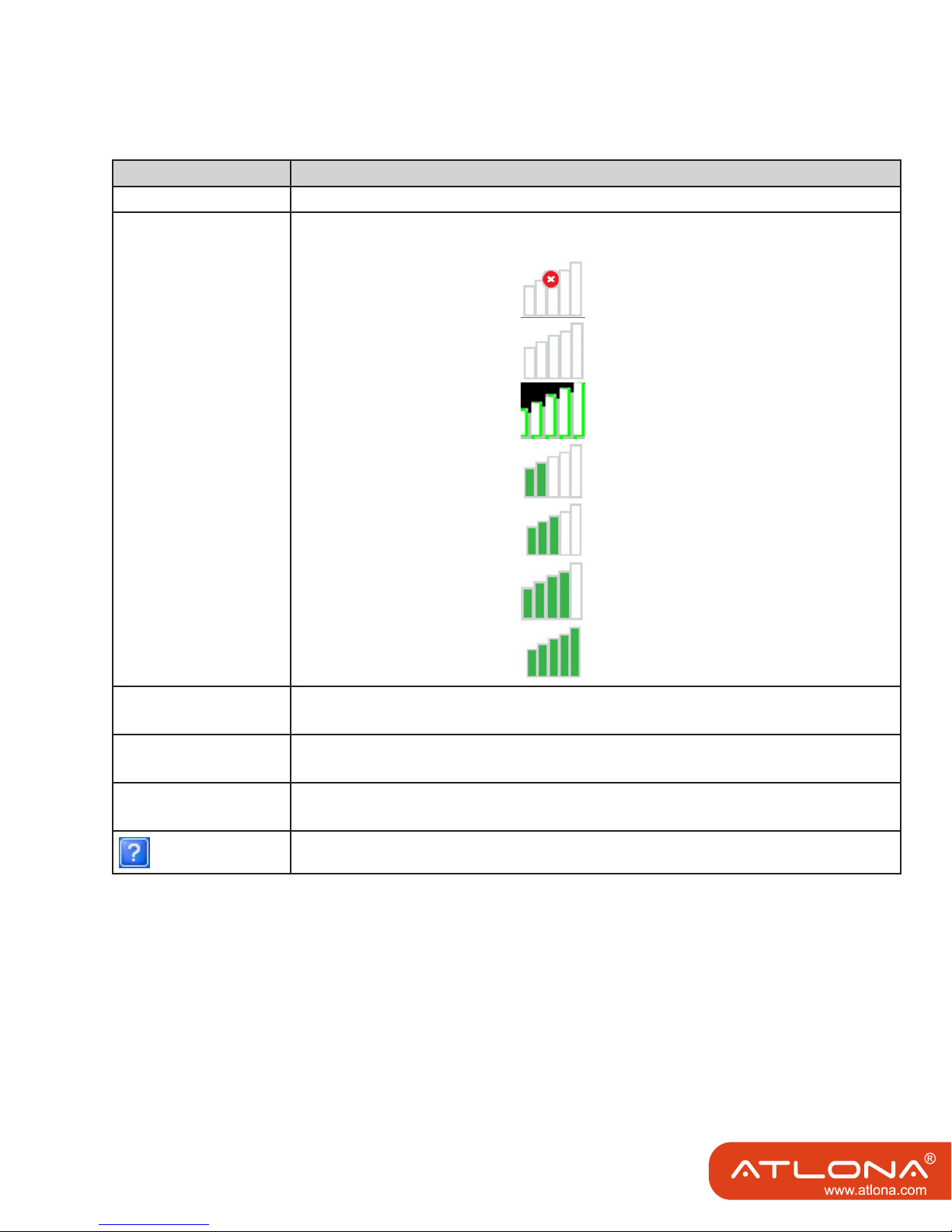

Table 2: Wireless USB Manager options
Menu Option Description
Host ID Displays the currently connected PC Adapter ID number
Connection Quality The following are the different states of the connection status icon which
indicates the connection quality:
Blocked –
Not connected –
Connected –
Medium –
Good –
Very Good –
Excellent –
Advanced Settings Displays the Advanced Settings screen, allows conguration of the PC
Adapter RF settings.
Close Closes the Wireless USB Manager screen, does NOT close the Wire-
less USB Manager application.
About Displays the About screen containing basic information regarding the
software version and vendor details
(Help) Opens the help/troubleshooting le (HTML format) in a browser

10 11
4.3 Blocking or Disassociating a Device
The Wireless USB Manager screen allows you to remove devices or to temporarily disable
them from connecting to the Host.
To Block a device temporarily, and prevent it from connecting to the Host:
• Right click the device name in the Connection list and select Block Device.
Figure 5: Wireless USB Manager Context Menu
To remove a device from the list of available devices completely:
• Right click the device name in the Connection list and select Disassociate Device
Figure 6: Wireless USB Manager– remote device blocked
Note: The Disassociate Device option is only available for Device Adapters that are purchased
separately and not in a set. For information about pairing an Adapter set, see Appendix B: Pairing
Procedure.
Table 3: Context menu options
Menu Option Description
Block/UnBlock Device Allows you to temporarily disable a device from connecting with the Host.
Disassociate Device Removes the device from the list. To return the device to the list, Pairing
must be performed again.
Properties Displays the properties screen for this device.

12
4.4. Changing Device Names in the Wireless USB Manager
The Wireless USB Manager screen allows you to modify the name of the device that appears in the con-
nections list.
To modify the device name:
1. Double-click the device name, or right click on the device name and choose Rename.
2. Enter the text that you want.
3. Click anywhere outside of the device name area to nalize.
Figure 7: Editing Device Name in Wireless USB Manager
4.5. Advanced Settings
The Advanced Settings screen of the Wireless USB Manager allows viewing advanced settings, and
allows conguration of the Channel and Region selection in the Host. To access the Advanced Settings
screen:
• In the Wireless USB Manager screen, click Advanced Settings
Figure 8: Advanced Settings Screen

12 13
Option Description
Region Allows selecting the regulatory region: USA, Europe, Japan, Korea,
China
Current Channel (read
only)
Displays the current PHY Channel
Channel Quality (read
only)
Displays Channel quality: Excellent, Very Good, Good, Low, Not Con-
nected
Select Channel Allows selecting PHY Channels: 13*, 14, 15#
Select Rate (Mbps) This option is not active.
OK Applies conguration changes that were made
Close Closes the Advanced Settings screen
Notes: * This is the default value for USA region.
# This is the only available option for Europe, Japan, Korea and China regions.
5.1 Using the DisplayDock Video connection
The following are suggested work modes for connecting a display screen to the DisplayDock:
• Mirror Mode
• Extend Mode
• Laptop with Lid Closed
• External Display Only
Note:
On Windows XP/Vista, the display properties for the DisplayDock can be congured in two ways: as de-
scribed in Sec. 5.3.1 Conguring the Display via the Display Icon Context Menu in Windows XP/Vista, or
as described in Sec. 5.3.2 Conguring the Display via Windows Display Properties in Windows XP/Vista.
On Windows 7, refer to Sec. 5.2 Conguring Display in Windows 7
When changing settings, or during rst connection between the PC Adapter and DisplayDock, the PC
display may icker or turn on and off as the screen resolution is automatically adjusted.
Upon rst time operation, the DisplayDock is in Extend mode, this section (Sec. 5.1) describes the dif-
ferent modes that can be set. In Sec. 5.2 and 5.3.2 you will nd the procedures for conguring these
modes.
5. Using and Configuring the DisplayDock

14
5.1.1 Using Mirror Mode
Mirror mode is used to display the identical content on the additional screen as is shown on the
main PC/Laptop screen. Mirror mode is generally used to display the PC contents on a larger or
higher denition display. See Figure 9: Mirror Mode - displaying PC desktop on a larger display
screen.
Figure 9: Mirror Mode - displaying PC desktop on a larger display screen
Note: Mirror mode is not recommended for playing HD video.
5.1.2 Using Extend Mode
Use the Extend mode to display different content on each display screen. In Extend mode, the display
attached to the DisplayDock becomes an extended part of the Windows desktop. The extra desktop
area is a great productivity aid, allowing you to view or work with more applications or documents at the
same time. You can also use this mode to extend your desktop to ll multiple screens that are positioned
next to each other for a larger continuous work space.
Figure 10: Illustration of extend mode
PC screen External
(extended) screen
Note: Extend mode is recommended for playing HD video.

14 15
5.1.3 Laptop Operation with the Lid Closed
You can work conveniently with a laptop by setting its default action upon closing the lid to “Do nothing”
(to prevent the laptop from entering “sleep” or “hibernation” mode, Control Panel > Power Options,
“When I close the lid:” - “Do nothing”), and then set the DisplayDock screen as the primary dis-
play while disabling the main screen (see Sec. 5.3.2.5 Setting the DisplayDock as the Primary Display).
The laptop lid can then be closed, and the laptop can be used with the DisplayDock screen and an exter-
nal keyboard and mouse attached to the laptop. This conguration can be used together with either Mirror
mode or Extend mode.
5.1.4. External Display Only
When you want to use the external display only, (see Sec. 5.3.2.5 Setting the DisplayDock as the Pri-
mary Display), you can close your main monitor and view movies on the external display attached to the
DisplayDock.
5.2. Conguring Display in Windows 7
5.2.1 Setting Mirror or Extend Mode in Windows 7
In Windows 7, there is a built in support for external monitor. To use it press the windows key together
with the P key ( +P), and then the following menu will appear:
Figure 12 - Switching projection mode under Windows 7
Figure 11: Extend Mode - using second display for an additional application or a movie

16
• For mirror mode, choose Duplicate
• For Extend mode, choose Extend
5.2.2 Congure Screen Options in Windows 7
When a link is established with the Wireless USB DisplayDock, the Display drivers are activated and the
Display icon appears in the Windows system tray. The right-click context menu of the Display
icon contains conguration options that correspond to the display mode.
Figure 13 - DisplayLink Context Menu
To congure screen resolution, or any other display option, choose Advanced. The following window will
appear:
Figure 14 - Windows 7 Display Settings
To change any of the external display settings:
1. Select the appropriate display name in the Display scroll down options. You should select the name of
the TV/Monitor/Projector connected to your DisplayDock.

16 17
2. Select the desired value in any of the available settings:
a. Resolution: your external display resolution.
b. Orientation: select either Landscape or Portrait.
c. Multiple displays: select either Mirror or Extend mode.
d. Make this my main display: mark this option to make the external display the primary display on
which the desktop is displayed.
5.3 Conguring Display in Windows XP/Vista
5.3.1 Conguring the Display via the Display Icon Context Menu in Windows XP/Vista
When a link is established with the Wireless USB DisplayDock, the Display drivers are
activated and the Display icon appears in the Windows system tray. The right-click context
menu of the Display icon contains conguration options that correspond to the display mode.
Note: When changing settings, the PC display may icker or turn on and off as the screen resolution is automati-
cally adjusted.
Conguration Option Options available Remarks
Screen Resolution Extend mode only
Color Quality Extend mode only
Screen Rotation Mirror and Extend modes

18
Extend To Extend mode only
Extend Sets the Extend mode
Mirror Sets the Mirror mode
Off Disables the remote display Select Mirror or Extend mode
to enable the display
Advanced Opens the Windows Display Settings
screen
5.3.1.1 Setting Mirror Mode
To set the display to Mirror mode:
• Right click the DisplayLink System Tray icon and select Mirror from the context menu
• The resolution, color depth and refresh rate of the primary screen are duplicated on the display con-
nected to the DisplayDock.
• If the display connected to the DisplayDock supports a lower resolution than the primary display, the
primary graphics device will have its resolution changed automatically to ensure the whole picture ts on
the additional display screen.
• If the display screen connected to the DisplayDock is larger than the primary screen, the image will be
adjusted to a letter-box frame to preserve the correct aspect ratio.
Note: When changing from Extend to Mirror mode, it is recommended to rst set the Display to Off, and then set to
Mirror.
