Atlona AT-HDSDI500 User manual

AtlonA

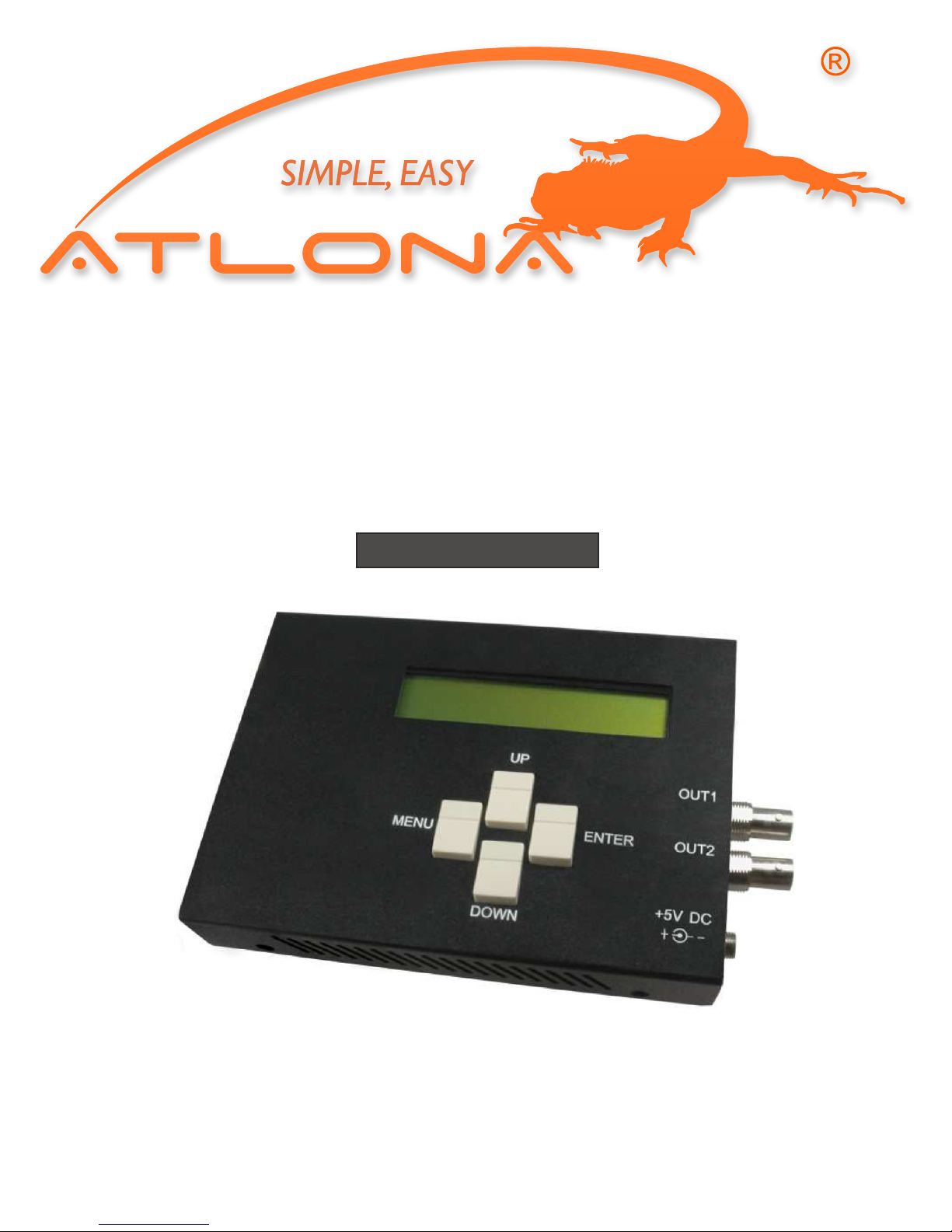

HD/SD-SDI Pattern Generator
AT-HDSDI500
User Manual

TABLE OF CONTENTS
1. Introduction .................................................. 1
2. Features .................................................. 1
3. Package Contents .................................................. 1
4. Specication .................................................. 2
5. Menu Operation .................................................. 3
6. Panel Descriptions .................................................. 5
6.1. Top Panel .................................................. 5
6.2. Front Panel .................................................. 5
7. Appendix .................................................. 6
8. Safety Information .................................................. 8
9. Warranty .................................................. 9
10. Atlona Product Regestration .................................................. 10

INTRODUCTION
1
Atlona’s AT-HDSDI500 SDI pattern generator with multi-format (HD/SD) and multi-pattern sup-
port. Besides still and moving video test patterns, other features such as Closed Caption (CC)
(EIA-608) and VANC (SMPTE-334M) are also provided. With portable size, the AT-HDSDI500
is equipped with four buttons and ease to control LCM screen. This device provides a cost ef-
fective way to calibrate and test SDI enable video devices and displays for many applications.
• Supported output resolution
NTSC 525@60, PAL 625@50, [email protected], 720p@24, 720p@25, [email protected], 720p@30,
720p@50,[email protected], 720p@60, 1080i@50, [email protected], 1080i@60, [email protected],
1080p@24,1080p@25, [email protected], 1080p@30
Bit Rate: 1.485 Gbps, 1.4835 Gbps, 270Mbps
Resolution: 10bit
• Video Patterns
100% Color Bars, Borderline, Random Noise, Check Field, Black, Vertical Lines, Black /
White alternate elds, Full Grey / Full White, Black to White Gradient, Random Generator for
all still patterns, moving squares White noise, Inverse effect with still pattern, Scrolling Title
(see Appendix for illustrations)
• Save Settings to Memory Option
• ANC Data
EDH (RP-165), SMPTE 352M, SMPTE 334M, EIA-608, SMPTE-12M
• Control
LCM & Panel Buttons
• Video Output
Dual SDI Output
1. 1x AT-HDSDI500
2. 1x 5V power adapter
3. 1x User Manual
FEATURES:
PACKAGE CONTENTS

SPECIFICATIONS
Technical
Role of usage Pattern generator
SDI standards SD-SDI & HD-SDI
Auto HD/SD-SDI detection Yes
Supported protocols SMPTE 259M (270Mbps / 360Mpbs), DVB ASI (270Mbps)
SMPTE 292M / HDTV (1.485Gbps and 1.485/1.001Gbps)
Video bandwidth 1.485Gpbs & 1.485/1.001Gbps
Data rates 143 / 270 / 1483 / 1485 Mbps
Video support [HD] 720p50/59.94/60, 1035i50/59.94/60, 1080i50/59.94/60, 1080p24/30
[SD] [email protected], PAL@50Hz
SDI signal type SMPTE-292M, SMPTE-259M, DVB-ASI
Output impedance 75
Cable (Belden 1294A)
equalization / transmission
[HD-SDI] up to 150m (500ft)
[SD-SDI] up to 300m (1000ft)
Audio support No
PCB Stack-up 4-layer board [impedance control — differential 100 ; single 50 ]
Input None
Output 2x BNC [SDI]
BNC connector 75 interlocking socket
Eye pattern characteristics Amplitude: Within 800mV ±3% (<10%); Rise overshoot: Less than 2% (<10%);
Fall overshoot: Less than 2% (<10%); Long time jitter: 0.195μ (<1.0μ);
Timing jitter: 0.195μ (<1.0μ); Alignment jitter: 0.127μ (<0.2μ)
Mechanical
Housing Metal case
Dimensions
[L x W x H]
Model 160 x 110 x 20mm [6.3” x 4.3” x 0.8”]
Package 330 x 200 x 95mm [1’1” x 7.9” x 3.7”]
Carton 495 x 440 x 380mm [1’7.5” x 1’5.3” x 1’3”]
Weight Model 325g [11.5oz]
Package
Fixedness Interlocking power supply
Power supply 5V 4A DC
Power consumption 10 Watts [max]
Operation temperature 0~40°C [32~104°F]
Storage temperature -20~60°C [-4~140°F]
Relative humidity 20~90% RH [no condensation]
Note: The measurement results are from Tektronix WFM-7120 with SDI through 1m (3.3ft) long Belden 1694A.
2

32
Menu Items
01 Format Resolution NTSC
PAL
720p
1080p
1080i
Frequency 60
59.94
50
30
29.97
25
24
23.98
Output YCbCr 422
02 Video Patterns SMPTE Bar
100% Bar
Check Field 1
Check Field 2
Check Field 3
Gradient R1
Gradient G1
Gradient B1
Gradient R2
Gradient G2
Gradient B2
Gradient R3
Gradient G3
Gradient B3
Gradient R4
Gradient G4
Gradient B4
Red Level 1
Red Level 2
Green Level 1
Green Level 2
Blue Level 1
Blue Level 2
100% Red
100% Green
100% Blue
100% While
70% Gray
40% Gray
Black
MENU OPERATION

Noise
Circle 1
Circle 2
Moire
H Stripe R
H Stripe G
H Stripe B
V Stripe R
V Stripe G
V Stripe B
Chess 1
Chess 2
Sequence
Text Off
On-White
On-Black
Timer Off
On-W/B
On-B/W
03 Audio Not available in this model
04 Motion Motion No Motion
Square 1
Square 2
2 Squares
Square Inv
Speed 1
2
3
4
5
6
7
8
05 ANC Data CC Off
On
Time Code Off
On
VANC Off
On
SMPTE-352M Off
On
EDH On
06 System Status No Change
Factory
Now Save
Version V1.00
4

Top Panel
Button Function
Menu Trigger the menu operation
Enter Enter the menu item
Up Choose the last menu item
Down Choose the next menu item
Front Panel
Connector Function
OUT1, OUT2 HD/SD SDI output
+5V DC 5V Power input
5
PANEL DESCRIPTIONS
4

6
APPENDIX
Data Identication Word of Ancillary Data Packet
ANC Data DID SDID/DBN
334M-CC 0x61 0x02
334M-VANC 0x5F 0xFA
12M-TC 0x60 0x60
352M 0x41 0x01
RP-165-EDH* 0xF4 0x00
* Data Type 1(SMPTE-291M)

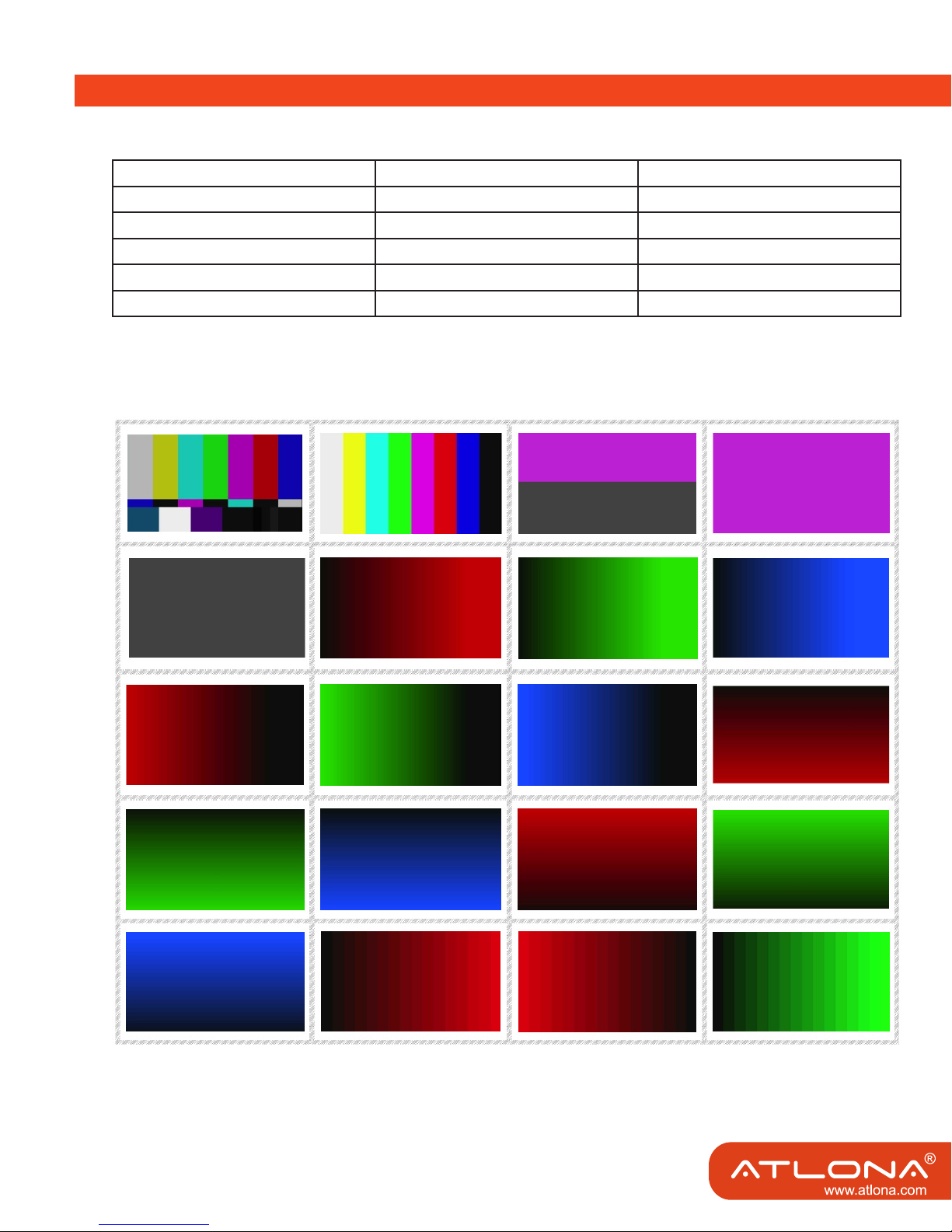

Built-in Video Patterns

76

8
SAFETY INFORMATION
Safeguards
To reduce the risk of electric shock, do not
expose this product to rain or moisture.
If the wall plug does not t into your local
power socket, hire an electrician to replace
your obsolete socket.
Do not modify the wall plug.
Doing so will void the warranty and safety
features.
This equipment should be installed near
the socket outlet and the device should
be easily accessible in case it requires
disconnection.
Precautions
FCC Regulations state that any
unauthorized changes or modications to
this equipment not expressly approved by
the manufacturer could void the
user’s authority to operate this
equipment.
Operate this product using only the
included external power supply. Use of
other power supplies could impair
performance, damage the product or cause
res.
In the event of an electrostatic discharge,
this device may automatically turn off. If this
occurs, unplug the device, and plug it back
in.
Protect and route power cords so they will
not be stepped on or pinched by anything
placed on or against them. Be especially
careful of plug-ins, or cord exit points from
this product.
Avoid excessive humidity, sudden
temperature changes or temperature
extremes.
Keep this product away from wet locations
such as bathtubs, sinks, laundries, wet
basements and swimming pools.
Use only accessories recommended by
ATLONA to avoid re, shock or other
hazards.
Unplug the product before cleaning. Use
a damp cloth for cleaning. Do not use
cleaning uid or aerosols, which could
enter the unit and cause damage, re or
electrical shock. Some substances may
also mar the nish of the product.
Never open or remove unit panels or make
any adjustments not described in this
manual. Attempting to do so could expose
you to dangerous electrical shock or other
hazards. It may also cause damage to your
AT-HDSDI500. Opening the product will
void the warranty.
Do not attempt to service the unit. Instead
disconnect it and contact your Authorized
ATLONA reseller or contact ATLONA
directly.

9
WARRANTY
1. LIMITED WARRANTY
Atlona Technologies warrants that (a) its products (the “Product”) will perform substantially in accordance with the
accompanying written materials for a period of 3 YEARS from the date of receipt and (b) that the Product will be
free from defects in materials and workmanship under normal use and service for a period of 3 years. In the event
applicable law imposes any implied warranties, the implied warranty period is limited to 3 years from the date of
receipt. Some jurisdictions do not allow such limitations on duration of an implied warranty, so the above limitation
may not apply to Customer.
2. CUSTOMER REMEDIES
Atlona Technologies and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technolo-
gies’ option, either return of the price paid for the Product, or repair or replacement of the Product that does not meet
this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited
Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. Any replacement Prod-
uct will be warranted for the remainder of the original warranty period or 3 year, whichever is longer.
3. NO OTHER WARRANTIES
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, ATLONA TECHNOLOGIES AND ITS SUPPLI-
ERS DISCLAIM ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED
TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH
REGARD TO THE PRODUCT AND ANY RELATED WRITTEN MATERIALS. THIS LIMITED WARRANTY GIVES
CUSTOMER SPECIFIC LEGAL RIGHTS. CUSTOMER MAY HAVE OTHER RIGHTS DEPENDING ON THE JU-
RISDICTION.
4. NO LIABILITY FOR DAMAGES
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL ATLONA TECHNOLO-
GIES OR ITS SUPPLIERS BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING WITHOUT LIMITA-
TION, SPECIAL, INCIDENTAL, CONSEQUENTIAL, OR INDIRECT DAMAGES FOR PERSONAL INJURY, LOSS
OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER
PECUNIARY LOSS) ARISING OUT OF THE USE OF OR INABILITY TO USE THIS PRODUCT, EVEN IF ATLONA
TECHNOLOGIES HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN ANY CASE, ATLONA
TECHNOLOGIES’ AND ITS SUPPLIERS’ ENTIRE LIABILITY UNDER ANY PROVISION OF THIS AGREEMENT
SHALL BE LIMITED TO THE AMOUNT ACTUALLY PAID BY YOU FOR THE PRODUCT. BECAUSE SOME JU-
RISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR
INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
ATLONA
2151 O’toole Ave, Ste D
San Jose CA 95131
Toll Free: 1-877-536-3976
International: 408-954-8782
FAX: [phone]
Website: www.atlona.com
E-MAIL: [email protected]
8

10
ATLONA PRODUCT REGISTRATION
Thank you for purchasing this Atlona product — we hope you’ll enjoy it.
We also hope that you’ll take a few moments to register your new purchase. Registration creates an ownership
record if your product is lost or stolen and helps ensure you’ll receive notication of performance issues and rm-
ware updates.
At Atlona, we respect and protect your privacy and assure you that your registration information is completely
secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited
warranty rights.
To register go to www.atlona.com/registration
