Atlona AT-HD52O User manual
ATLDNA
AT-HD52D
CV/SV
TO
HDMI
1
OBIDP
Scaler
Bax
Operation
Manual
TABLE
OF
CONTENTS
1.
Introduction
2.
Main
Features
3.
Package
Contents
4.
Operation
Controls
and
Functions
4.1
Front
Panel
4.2
Rear
Panel
4.3
OSD
Operation
5.
Reset
Functionality
6.
Remote
Control
7.
Specifications
7.1
General
Specification
7.2
Support
Resolution
8.
Connection
and
Installation
7.
SAFETY
INFORMATION
8.

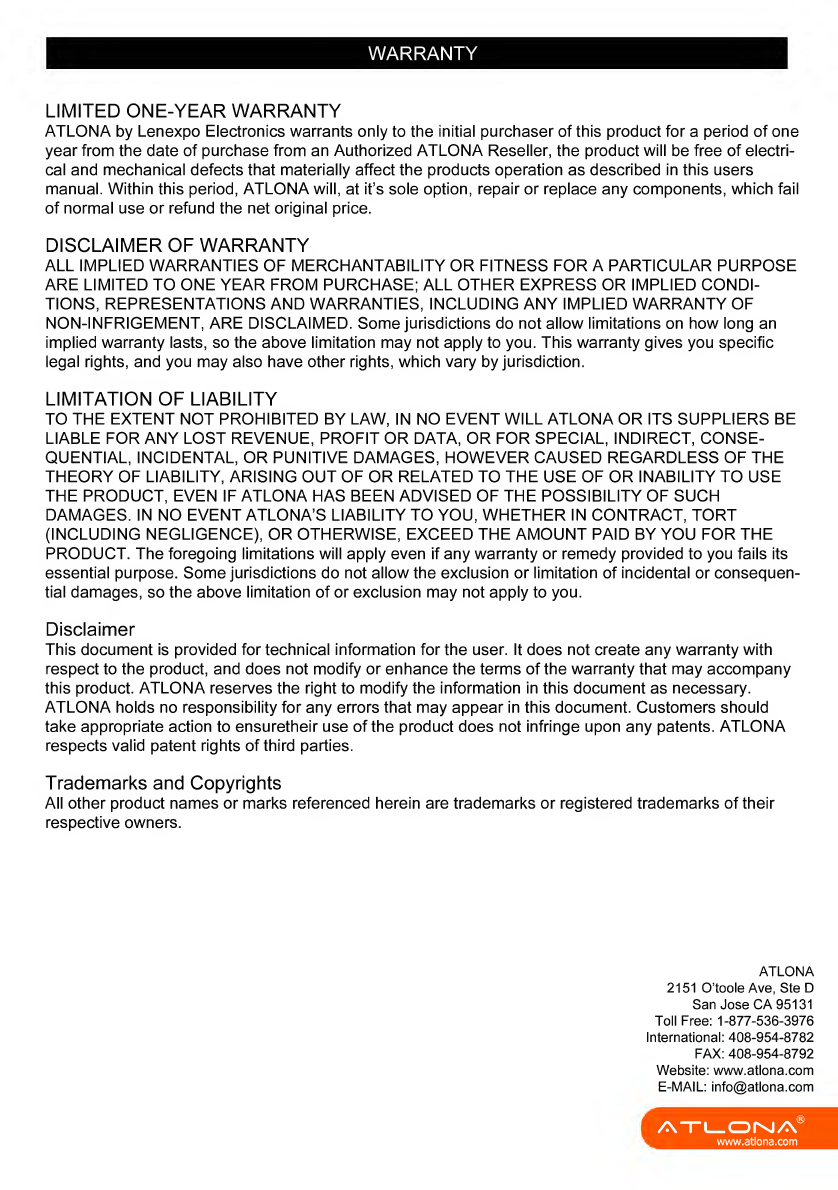

WARRANTY
1.
I
n
t
r
oduction
This
Scaler
Box
is
designed
to
upscale
analog
video
signal
from
CV/SV
input
source
to
digital
HDMI
output
of
wide-range
HDTV
and
PC
resolutions;
up
to
1080p.
Besides
video
upscaling,
the
scaler
box
also
converts
digital/analog
audio
signal
to
digital/analog
format,
then
output
to
HDMI
combining
with
the
video,
TOSLink
(Optical
fiber),
and
phone
jack
(L/R
audio)
simultaneously.
This
unit
has
a
compre¬
hensive
OSD
menu
that
allows
user
to
select
a
variety
of
output
resolutions
and
adjust
for
best
quality.
2.
Features
*
HDMI
1.2,
HDCP
1.1
and
DVI
1.0
compliant.
*
Scales
any
video
resolutions
to
PC
(VGA
-
WUXGA)/
HD
(480i
-
1080p)
resolutions.
*
Automatically
detect
the
factory
setting
of
the
connected
display
and
output
the
corresponding
reso¬
lution
and
refresh
rate,
when
the
NATIVE
output
is
selected.
*
Supports
50/60
Hz
frame
rate
conversion.
*
Supports
3-D
motion
video
adaptive,
3-D
de-interlacing
and
3:2/2:2
pull
down
detection
and
recovery.
*
Provides
output
adjustment
on
contrast,
brightness,
hue,
saturation,
sharpness,
RGB
(color
tone)
level
and
aspect
ratio
size.
*
Supports
high
resolution
output
(See
section
“7.
Support
Resolution”
for
reference.):
PC:
VGA,
SVGA,
XGA,
SXGA,
UXGA,
WXGA,
WSXGA,
WUXGA.
SD/HD:
480i,
576i,
480p,
576p,
720p,
1080i
and
1080p
*
Supports
stereo
LPCM
analog/digital
audio
input
and
stereo
LPCM
analog/digital
output.
Simply
select
among
the
audio
input
sources
in
the
OSD
menu,
then
output
the
audio
to
HDMI,
TOSLink
and
phone
jack
simultaneously.
*
Remote
control
of
the
color
bar:
“If
user
is
seeing
a
color
bar,
it
means
that
there
is
no
input
signal
present.
The
color
bar
will
be
active
for
15min
and
after
the
Atlona
device
will
go
to
the
stand-by
mode
and
disconnect
from
the
display.
As
soon
as
incoming
video
signal
will
resume,
the
Atlona
device
will
establish
a
new
connection
with
the
display”
3.
Package
Contents
1.
AT-HD520
CV/SV
to
HDMI
1080p
Scaler
Box
2.
5VDC
Power
Supply
Adaptor
3.
Operation
Manual
4.
Remote
control
4.
Operation
Controls
and
Functions
4.1
Front
Panel
1
.
HDMI
Output:
Connect
the
HDMI
output
port
to
the
HDMI
input
port
of
your
display
such
like
HDTV.
2
.
TOSLink
(optical
fiber)
Output:
Connect
the
optical
output
port
to
the
digital
audio
input
port
of
your
amplifier.
3
.
Audio
Output:
Connect
the
PC3.5mm
phone
jack
output
port
to
the
analog
audio
input
port
of
your
equipment.
4
.
Menu
Button:
Press
the
MENU
button
to
bring
up
OSD
operation
menu.
(See
section
“4.
OSD
Operation”
for
reference.)
5
.
Remote
Control
Sensor.
6
.
+/-
Button:
a.
On
the
first
tier
of
OSD
menu,
use
+
and
-
buttons
to
move
up/down
the
highlight
item
for
selection.
b.
Once
the
desired
option
is
selected,
use
+
and
-
buttons
to
toggle
between
setting
values.
C.
Without
OSD
menu,
press
(INPUT)
button
to
switch
between
CV
and
SV
4.2
Rear
Panel
player.
2
.
L/R
Input:
Connect
the
analog
audio
input
port
to
the
output
port
of
your
analog
audio
equipment.
3
.
TOSLink
(optical
fiber)
Input:
Connect
the
optical
input
port
to
the
digital
audio
output
port
of
your
source
equipment.
4
.
Power:
Plug
the
5VDC
power
supply
into
the
unit
and
connect
the
adaptor
to
AC
wall
outlet.
4.3.
OSD
Operation
1st
Tier
Option
2nd
Tier
Option
Adjustment
CONTRAST
-
0
~
100
of
Contrast
Level
BRIGHTNESS
-
0
~
100
of
Brightness
Level
FINETUNE
-
HUE
0
-
100
of
Hue
Level
-
SATURATION
0
~
100
of
Saturation
Level
-SHARPNESS
0
~
100
of
Sharpness
Level
-
EXIT
Back
to
1st
Tier
COLOR
-RED
0
~
100
of
Red
Color
Level
-GREEN
0
-
100
of
Green
Color
Level
-BLUE
0
~
100
of
Blue
Color
Level
-
EXIT
Back
to
1st
Tier
SIZE
-
FULL
/
OVERSCAN
/
UNDERSCAN
/
LETTERBOX
/
PANSCAN
OUTPUT
NATIVE
/
VGA
/
SVGA
/
XGA
/
SXGA
/UXGA
/
480i
/
480p
/
720p@60Hz
/
1080i@60Hz
/
1080p@60Hz
/
576i
/
576p
/
720p@50Hz
/
1080i@50Hz
/
1080p@50Hz
/
WXGA
/
WSXGA
/
WUXGA
AUDIO
-
EAR
PHONE/OPTICAL
OSD
-
HPOSITION
0
-
100
of
OSD
Horizontal
Position
-
VPOSITION
0
~
100
of
OSD
Vertical
Position
-
TIMER
0
~
100
of
OSD
Existing
Time
(sec.)
-BACKGROUND
0
~
100
of
OSD
Transparent
Level
-
EXIT
Back
to
1st
Tier
INFORMATION
SOURCE
(Input
Interface)
INPUT
(Input
Resolution)
OUTPUT
(Output
Resolution)
VERSION
(Firmware
Version)
EXIT
-
Close
OSD
Menu
5.
Reset
Functionality
To
reset
the
unit,
press
and
hold
the
MENU
button
then
re-plug
the
DC
power
into
the
unit
to
set
the
unit
back
to
factory
default,
with
output
resolution
as
NATIVE.
This
feature
is
also
useful
when
the
output
is
scaled
to
a
resolution
not
supported
by
the
connected
TV/monitor
so
no
is
shown,
because
the
NATIVE
resolution
can
guarantee
the
proper
(might
not
be
the
best)
output.

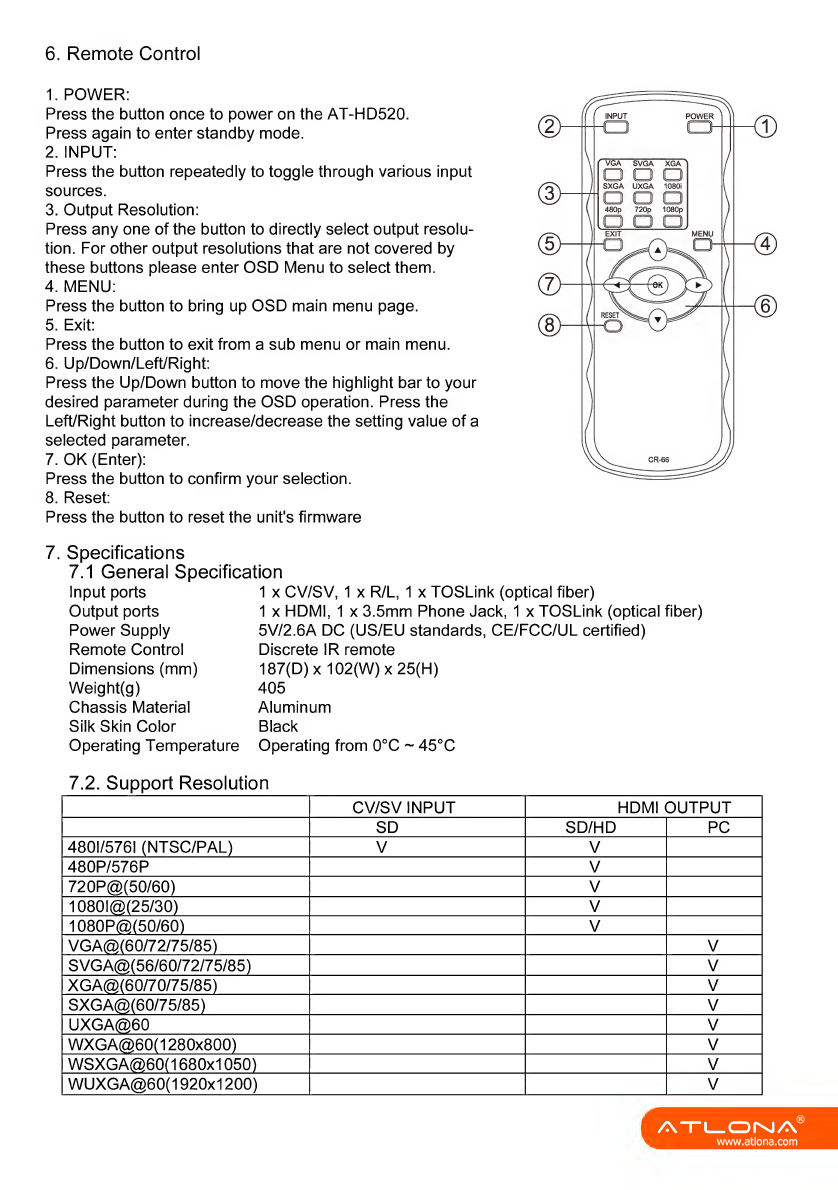

6.
Remote
Control
1.
POWER:
Press
the
button
once
to
power
on
the
AT-HD520.
Press
again
to
enter
standby
mode.
2.
INPUT:
Press
the
button
repeatedly
to
toggle
through
various
input
sources.
3.
Output
Resolution:
Press
any
one
of
the
button
to
directly
select
output
resolu¬
tion.
For
other
output
resolutions
that
are
not
covered
by
these
buttons
please
enter
OSD
Menu
to
select
them.
4.
MENU:
Press
the
button
to
bring
up
OSD
main
menu
page.
5.
Exit:
Press
the
button
to
exit
from
a
sub
menu
or
main
menu.
6.
Up/Down/Left/Right:
Press
the
Up/Down
button
to
move
the
highlight
bar
to
your
desired
parameter
during
the
OSD
operation.
Press
the
Left/Right
button
to
increase/decrease
the
setting
value
of
a
selected
parameter.
7.
OK
(Enter):
Press
the
button
to
confirm
your
selection.
8.
Reset:
Press
the
button
to
reset
the
unit's
firmware
7.
Specifications
7.1
General
Specification
Input
ports
Output
ports
Power
Supply
Remote
Control
Dimensions
(mm)
Weight(g)
Chassis
Material
Silk
Skin
Color
Operating
Temperature
1
x
CV/SV,
1
x
R/L,
1
x
TOSLink
(optical
fiber)
1
x
HDMI,
1
x
3.5mm
Phone
Jack,
1
x
TOSLink
(optical
fiber)
5V/2.6A
DC
(US/EU
standards,
CE/FCC/UL
certified)
Discrete
IR
remote
187(D)
x
102(W)x
25(H)
405
Aluminum
Black
Operating
from
0°C
~
45°C
7.2.
Support
Resolution
CV/SV
INPUT
HDMI
OUTPUT
SD
SD/HD
PC
4801/5761
(NTSC/PAL)
V
V
480P/576P
V
720P@(50/60)
V
10801(^(25/30)
V
1080P(a)(50/60)
V
VGA@(60/72/75/85)
V
SVGA@(56/60/72/75/85)
V
XG
A@(60/70/75/85)
V
SXGA@(60/75/85)
V
UXGA(a)60
V
WXGA(a)60(1280x800)
V
WSXGA(a)60(
1680x1050)
V
WUXGA@60(1920x1200)
V
8.
Connection
and
Installation
AMPLIFIER

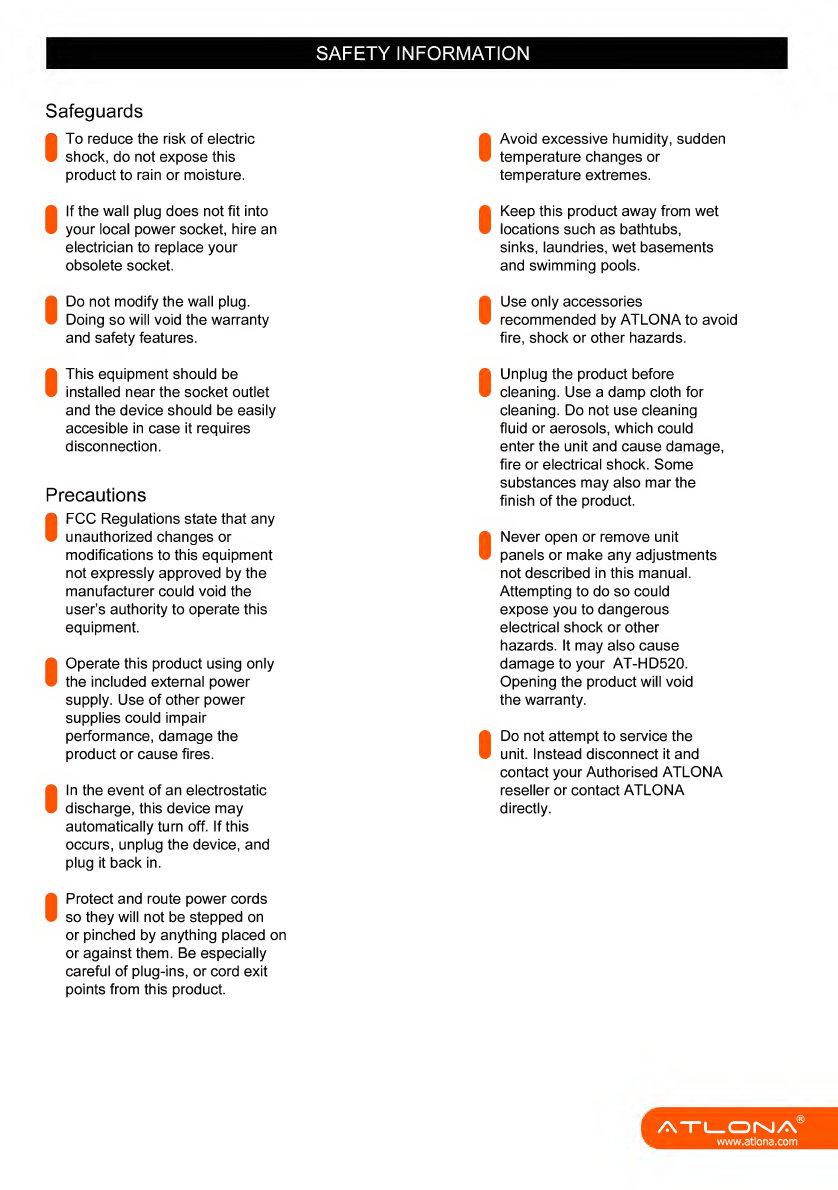

SAFETY
INFORMATION
Safeguards
•
To
reduce
the
risk
of
electric
shock,
do
not
expose
this
product
to
rain
or
moisture.
•
If
the
wall
plug
does
not
fit
into
your
local
power
socket,
hire
an
electrician
to
replace
your
obsolete
socket.
•
Do
not
modify
the
wall
plug.
Doing
so
will
void
the
warranty
and
safety
features.
•
This
equipment
should
be
installed
near
the
socket
outlet
and
the
device
should
be
easily
accesible
in
case
it
requires
disconnection.
Precautions
•
FCC
Regulations
state
that
any
unauthorized
changes
or
modifications
to
this
equipment
not
expressly
approved
by
the
manufacturer
could
void
the
user’s
authority
to
operate
this
equipment.
•
Operate
this
product
using
only
the
included
external
power
supply.
Use
of
other
power
supplies
could
impair
performance,
damage
the
product
or
cause
fires.
•
In
the
event
of
an
electrostatic
discharge,
this
device
may
automatically
turn
off.
If
this
occurs,
unplug
the
device,
and
plug
it
back
in.
•
Protect
and
route
power
cords
so
they
will
not
be
stepped
on
or
pinched
by
anything
placed
on
or
against
them.
Be
especially
careful
of
plug-ins,
or
cord
exit
points
from
this
product.
I
Avoid
excessive
humidity,
sudden
temperature
changes
or
temperature
extremes.
•
Keep
this
product
away
from
wet
locations
such
as
bathtubs,
sinks,
laundries,
wet
basements
and
swimming
pools.
I
Use
only
accessories
recommended
by
ATLONA
to
avoid
fire,
shock
or
other
hazards.
•
Unplug
the
product
before
cleaning.
Use
a
damp
cloth
for
cleaning.
Do
not
use
cleaning
fluid
or
aerosols,
which
could
enter
the
unit
and
cause
damage,
fire
or
electrical
shock.
Some
substances
may
also
mar
the
finish
of
the
product.
I
Never
open
or
remove
unit
panels
or
make
any
adjustments
not
described
in
this
manual.
Attempting
to
do
so
could
expose
you
to
dangerous
electrical
shock
or
other
hazards.
It
may
also
cause
damage
to
your
AT-HD520.
Opening
the
product
will
void
the
warranty.
•
Do
not
attempt
to
service
the
unit.
Instead
disconnect
it
and
contact
your
Authorised
ATLONA
reseller
or
contact
ATLONA
directly.
WARRANTY
LIMITED
ONE-YEAR
WARRANTY
ATLONA
by
Lenexpo
Electronics
warrants
only
to
the
initial
purchaser
of
this
product
for
a
period
of
one
year
from
the
date
of
purchase
from
an
Authorized
ATLONA
Reseller,
the
product
will
be
free
of
electri¬
cal
and
mechanical
defects
that
materially
affect
the
products
operation
as
described
in
this
users
manual.
Within
this
period,
ATLONA
will,
at
it’s
sole
option,
repair
or
replace
any
components,
which
fail
of
normal
use
or
refund
the
net
original
price.
DISCLAIMER
OF
WARRANTY
ALL
IMPLIED
WARRANTIES
OF
MERCHANTABILITY
OR
FITNESS
FOR
A
PARTICULAR
PURPOSE
ARE
LIMITED
TO
ONE
YEAR
FROM
PURCHASE;
ALL
OTHER
EXPRESS
OR
IMPLIED
CONDI¬
TIONS,
REPRESENTATIONS
AND
WARRANTIES,
INCLUDING
ANY
IMPLIED
WARRANTY
OF
NON-INFRIGEMENT,
ARE
DISCLAIMED.
Some
jurisdictions
do
not
allow
limitations
on
how
long
an
implied
warranty
lasts,
so
the
above
limitation
may
not
apply
to
you.
This
warranty
gives
you
specific
legal
rights,
and
you
may
also
have
other
rights,
which
vary
by
jurisdiction.
LIMITATION
OF
LIABILITY
TO
THE
EXTENT
NOT
PROHIBITED
BY
LAW,
IN
NO
EVENT
WILL
ATLONA
OR
ITS
SUPPLIERS
BE
LIABLE
FOR
ANY
LOST
REVENUE,
PROFIT
OR
DATA,
OR
FOR
SPECIAL,
INDIRECT,
CONSE¬
QUENTIAL,
INCIDENTAL,
OR
PUNITIVE
DAMAGES,
HOWEVER
CAUSED
REGARDLESS
OF
THE
THEORY
OF
LIABILITY,
ARISING
OUT
OF
OR
RELATED
TO
THE
USE
OF
OR
INABILITY
TO
USE
THE
PRODUCT,
EVEN
IF
ATLONA
HAS
BEEN
ADVISED
OF
THE
POSSIBILITY
OF
SUCH
DAMAGES.
IN
NO
EVENT
ATLONA’S
LIABILITY
TO
YOU,
WHETHER
IN
CONTRACT,
TORT
(INCLUDING
NEGLIGENCE),
OR
OTHERWISE,
EXCEED
THE
AMOUNT
PAID
BY
YOU
FOR
THE
PRODUCT.
The
foregoing
limitations
will
apply
even
if
any
warranty
or
remedy
provided
to
you
fails
its
essential
purpose.
Some
jurisdictions
do
not
allow
the
exclusion
or
limitation
of
incidental
or
consequen¬
tial
damages,
so
the
above
limitation
of
or
exclusion
may
not
apply
to
you.
Disclaimer
This
document
is
provided
for
technical
information
for
the
user.
It
does
not
create
any
warranty
with
respect
to
the
product,
and
does
not
modify
or
enhance
the
terms
of
the
warranty
that
may
accompany
this
product.
ATLONA
reserves
the
right
to
modify
the
information
in
this
document
as
necessary.
ATLONA
holds
no
responsibility
for
any
errors
that
may
appear
in
this
document.
Customers
should
take
appropriate
action
to
ensuretheir
use
of
the
product
does
not
infringe
upon
any
patents.
ATLONA
respects
valid
patent
rights
of
third
parties.
Trademarks
and
Copyrights
All
other
product
names
or
marks
referenced
herein
are
trademarks
or
registered
trademarks
of
their
respective
owners.
ATLONA
2151
O’toole
Ave,
Ste
D
San
Jose
CA
95131
Toll
Free:
1-877-536-3976
International:
408-954-8782
FAX:
408-954-8792
Website:
www.atlona.com
E-MAIL:
Table of contents
Other Atlona Media Converter manuals
Atlona
Atlona AT-DP200 User manual
Atlona
Atlona AT-AVS100 User manual
Atlona
Atlona AT-HD-M2C User manual
Atlona
Atlona AT-DP300 User manual
Atlona
Atlona AT-HD530 User manual
Atlona
Atlona AT-3GSDI-HD2 User manual
Atlona
Atlona AT-HD560 User manual
Atlona
Atlona AT-HD-AVSC User manual
Atlona
Atlona AT-HDVS-SC-RX User manual
Atlona
Atlona AT-LINE-PRO2 User manual
Atlona
Atlona AT-PROHD82M User manual
Atlona
Atlona AT-HDView User manual
Atlona
Atlona AT-LINE-PRO2 User manual
Atlona
Atlona AT-HD590 User manual
Atlona
Atlona AT-AVS100 User manual
Atlona
Atlona AT-HD510VGA User manual
Atlona
Atlona AT-HD-3GSDI User manual
Atlona
Atlona AT-HSDI-VGA User manual
Atlona
Atlona OmniStream 112 User manual
Atlona
Atlona AT-PRO130HD User manual
