Atlona AT-VGA10SS User manual

User Manual
AtlonA
1 x 10 VGA with Stereo Audio
Distribution Amplifier over CAT5/6
compatible with AT-VGA300RL
AT-VGA10SS

2
TABLE OF CONTENTS
1. Introduction .................................................. 3
2. Package Contents .................................................. 3
3. Features .................................................. 3
4. Specication .................................................. 3
5. Connection and Operation .................................................. 4
6. PJ45 Pin Conguration .................................................. 4
7. Troubleshooting .................................................. 4
8. LED Indicators .................................................. 5
9. DIP Switch .................................................. 5
10. Safety Information .................................................. 6
11. Warranty .................................................. 7
12. Atlona Product Registration .................................................. 8

3
INTRODUCTION
PACKAGE CONTENTS:
FEATURES:
The Atlona AT-VGA10SS is 1 x 10 VGA with Audio Distribution Amplier designed to accept a video and audio
feed from VGA source such as computer, media player or digital signage player and distribute the same feed to
10+ locations. The VGA10SS is featured with 1 x VGA/Audio input and 10 x CAT5/6/7 outputs which could be
connected with Atlona AT-VGA300RL receiving modules up to 1000ft away.
The VGA10SS is also featured with local VGA and audio outputs, meant to either connect to a local display for
monitoring or daisy chaining to another VGA10SS amplier.
Note: Receiving models AT-VGA300RL are a required accessory
• 1 x AT-VGA10SS (transmitter module)
• 1 x 5v Power supplies (Universal 110/240V)
• 1 x Set of Wall Mounting Ears
• 1 x Instructions manual
• Transmits VGA with Stereo Audio up to 1000ft away to 10+ locations
• Supports Full HD Video with resolutions up to 1920x1200
• Supports high resolution Video VESA: 640x480, 800x600, 1024x768, 1280x800, 1280x768, 1280x1024,
1680x1050, 1600x1200, 1920x1080, 1920x1200
• Compatible with receiving modules:
a. AT-VGA300RL (VGA + Stereo Audio up to 1000ft)
• DDC adjustments (Internal and Extender modes can be used)
• Supports all VESA formats which is perfect when used with specialized projectors or commercial LCD panels.
• Local VGA/Audio output for local monitoring display or daisy chaining ability to go to another VGA10SS
• Rack Mountable – 1U
SPECIFICATIONS:
Inputs 1 x HD15 and 1 x Stereo Audio (1/8-inch)
Outputs 10 x RJ45, 1 x HD15 and 1 x Stereo Audio (1/8-inch)
Supported Resolutions all VESA up to 1920x1200
Video bandwidth 550MHz(-3dB)-loop out and 370Mhz Cat5/6
EDID Compliant Yes (internal and external)
Supports high resolution Video VESA 640x480, 800x600, 1024x768, 1280x800, 1280x768, 1280x1024, 1680x1050,
1600x1200, 1920x1080, 1920x1200
Distance 1920x1200 @400ft; 1600x1200 @ 950ft; 1280x1024 @1050ft;1024x768@1100ft
Power Consumption (max.) 1.5A
VGA Connector HD15 female
Audio Connector 1/8-inch (3.5mm)
Power Supply 5V/2A (110/240 universal)
Dimensions (inch) 18.97×6.96×1.73 (Lx W x H) (1U)
Weight 4.1 lb
Operating Temperature Range -5 to +35°C (-41 to +95 °F)
Operating Humidity Range 5 to 90 % RH (no condensation)

4
CONNECTION AND OPERATION
RJ45 PIN CONFIGURATION
TROUBLESHOOTING
1. Connect the VGA Source e.g., Computer, Video Codec, switch to the AT-VGA10SS (transmitting unit)
2. Connect the VGA Display e.g., Projector, LCD/LED or a switch to (receiving unit) – (receiving unit is sold
separately)
3. Terminate the CAT5, 6 or 7 wire with 568B termination and use a tester to make sure all pins are wired cor-
rectly before connect it to the VGA10SS transmitter.
4. Connect the power supplies to both transmitter and receiver and the video and in a few seconds the video
should appear on the display.
1. Orange-white Video Blue –
2. Orange Video Blue +
3. Green-white Video Green -
4. Blue Audio +
5. Blue-white Audio -
6. Green Video Green +
7. Brown-white Video Red -
8. Brown Video Red +
1. No Signal or it is going in and out:
a. Please test your RJ45 cables with a Fluke or similar tester to make sure that all the wires are connected and
the distance is within the limits.
b. If you are using patch panel or and RJ45 wall plates, the distance will be reduced, please do a direct connec-
tion bypassing all additional equipment.
c. Please try to re-terminate your CAT5/6/7 wire to 568B
d. Change the resolution on the computer to 800x600 or 1024x768
e. Change frequency to 60Hz
f. Try using STP Cable
2. Image is tilted:
a. Change the resolution on the computer to 800x600 or 1024x768
b. Change frequency to 60Hz
c. Try using STP Cable
3. No Video Signal on the Display or Signal is going in and Out:
a. Please test your RJ45 cables with a Fluke or similar tester to make sure that all the wires are connected and
the distance is within the limits.
b. If you are using patch panel or and RJ45 wall plates, the distance will be reduced, please do a direct connec-
tion bypassing all additional equipment.
c. Please try to re-terminate your CAT5/6/7 wire to 568B
d. If your sources is a computer (laptop or desktop), please enable the VGA output.
• Windows computers: Select Properties Select Display resolutions Select Detect Display Select
second Display Select Extended Display check box Select most appropriate resolution (most basic would
be 1024x768)
• Mac Computers: Select Settings Select Displays Select Detect Display Select Arrangement
Select Mirror Displays Select most appropriate resolution (most basic would be 1024x768)

5

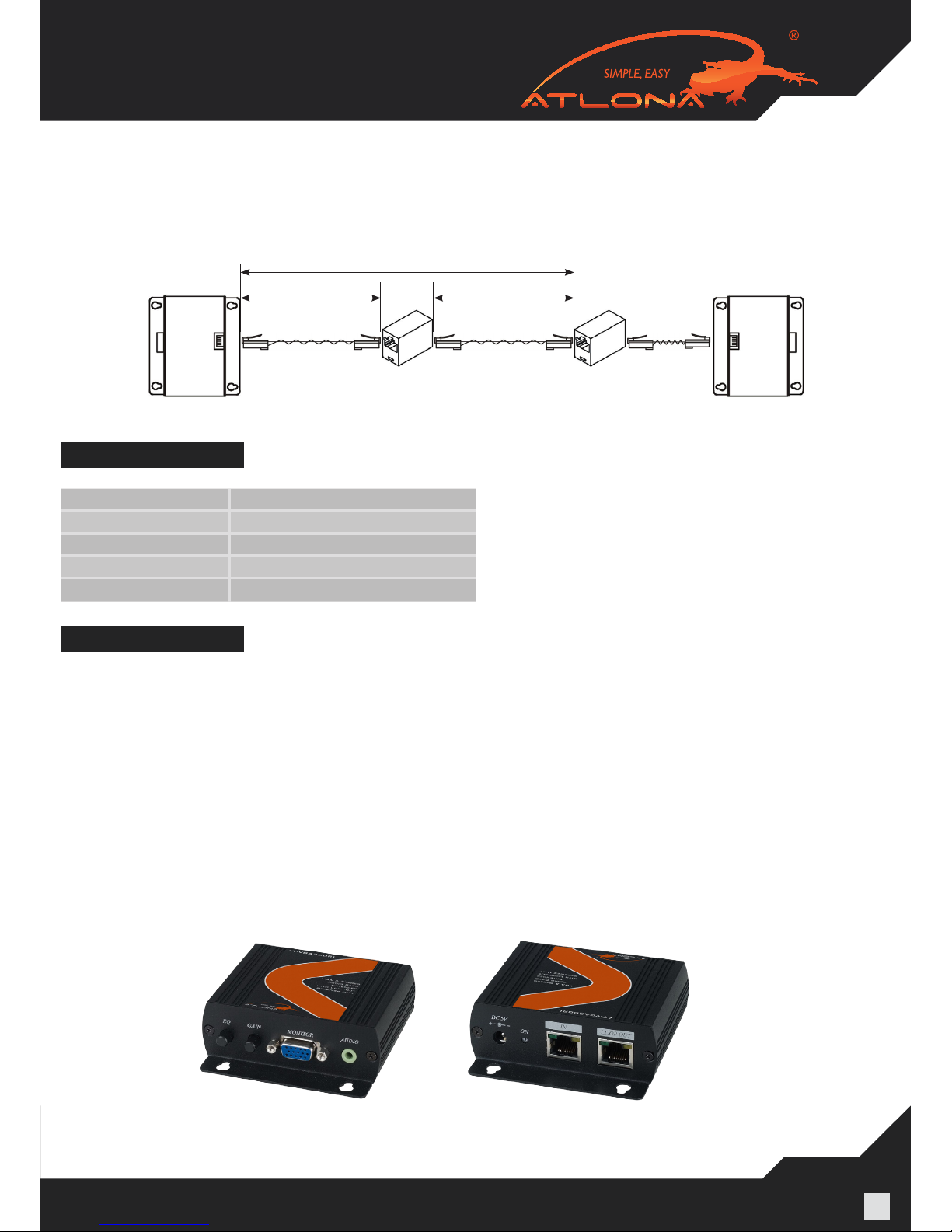

Total Distance
Transmitter
Skew
adapter
Skew
adapter Receiver
Short cable
to the
receiver
1/2 Distance1/2 Distance
LED INDICATORS
DIP SWITCH
BLUE Power ON/OFF.
RJ45 Green color ON/OFF Video Signal
Flash Not-Detected Input Source
RJ45 Yellow ON/OFF Digital Audio Signal
Flash Audio input distortion
DDC ← Use external (Loop Out) DDC.
→ Use Internal default EDID.
If external mode is selected, please make sure that you had a display connected to the local VGA output.
After 1min, the VGA10SS will auto-save EDID of the monitor and therefore the monitor can be disconnected if
needed to be by the application.
AUDIO ← select digital audio input (disabled currently)
→ select analog audio input
Compatible with following receiver module:
AT-VGA300RL
Front Side Back Side
4. Ghosting effect
a. Some lower end CAT5/6 cables may have a different twist for internal cables which will result different signals
arrive at the destination at different time and therefore cause Ghosting effect. The ghosting effect is basically
letters doubling up or incorrect colors. We include 2 x Skew adapters in the package, it is recommended to
use them.

6
SAFETY INFORMATION
Safeguards
To reduce the risk of electric shock, do not
expose this product to rain or moisture.
If the wall plug does not t into your local
power socket, hire an electrician to replace
your obsolete socket.
Do not modify the wall plug.
Doing so will void the warranty and safety
features.
This equipment should be installed near
the socket outlet and the device should
be easily accessible in case it requires
disconnection.
Precautions
FCC Regulations state that any
unauthorized changes or modications to
this equipment not expressly approved by
the manufacturer could void the
user’s authority to operate this
equipment.
Operate this product using only the
included external power supply. Use of
other power supplies could impair
performance, damage the product or cause
res.
In the event of an electrostatic discharge,
this device may automatically turn off. If this
occurs, unplug the device, and plug it back
in.
Protect and route power cords so they will
not be stepped on or pinched by anything
placed on or against them. Be especially
careful of plug-ins, or cord exit points from
this product.
Avoid excessive humidity, sudden
temperature changes or temperature
extremes.
Keep this product away from wet locations
such as bathtubs, sinks, laundries, wet
basements and swimming pools.
Use only accessories recommended by
ATLONA to avoid re, shock or other
hazards.
Unplug the product before cleaning. Use
a damp cloth for cleaning. Do not use
cleaning uid or aerosols, which could
enter the unit and cause damage, re or
electrical shock. Some substances may
also mar the nish of the product.
Never open or remove unit panels or make
any adjustments not described in this
manual. Attempting to do so could expose
you to dangerous electrical shock or other
hazards. It may also cause damage to your
AT-VGA10SS. Opening the product will void
the warranty.
Do not attempt to service the unit. Instead
disconnect it and contact your Authorized
ATLONA reseller or contact ATLONA
directly.

7
1. LIMITED WARRANTY
Atlona Technologies warrants that (a) its products (the “Product”) will perform substantially in accordance with the ac-
companying written materials for a period of 3 YEARS from the date of receipt and (b) that the Product will be free from
defects in materials and workmanship under normal use and service for a period of 3 years. In the event applicable law
imposes any implied warranties, the implied warranty period is limited to 3 years from the date of receipt. Some jurisdic-
tions do not allow such limitations on duration of an implied warranty, so the above limitation may not apply to Customer.
2. CUSTOMER REMEDIES
Atlona Technologies and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technologies’
option, either return of the price paid for the Product, or repair or replacement of the Product that does not meet this
Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty
is void if failure of the Product has resulted from accident, abuse, or misapplication. Any replacement Product will be war-
ranted for the remainder of the original warranty period or 3 year, whichever is longer.
3. NO OTHER WARRANTIES
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, ATLONA TECHNOLOGIES AND ITS SUPPLIERS
DISCLAIM ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO IM-
PLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH REGARD TO
THE PRODUCT AND ANY RELATED WRITTEN MATERIALS. THIS LIMITED WARRANTY GIVES CUSTOMER SPE-
CIFIC LEGAL RIGHTS. CUSTOMER MAY HAVE OTHER RIGHTS DEPENDING ON THE JURISDICTION.
4. NO LIABILITY FOR DAMAGES
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL ATLONA TECHNOLOGIES OR
ITS SUPPLIERS BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING WITHOUT LIMITATION, SPECIAL, IN-
CIDENTAL, CONSEQUENTIAL, OR INDIRECT DAMAGES FOR PERSONAL INJURY, LOSS OF BUSINESS PROFITS,
BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER PECUNIARY LOSS) ARISING
OUT OF THE USE OF OR INABILITY TO USE THIS PRODUCT, EVEN IF ATLONA TECHNOLOGIES HAS BEEN AD-
VISED OF THE POSSIBILITY OF SUCH DAMAGES. IN ANY CASE, ATLONA TECHNOLOGIES’ AND ITS SUPPLIERS’
ENTIRE LIABILITY UNDER ANY PROVISION OF THIS AGREEMENT SHALL BE LIMITED TO THE AMOUNT ACTU-
ALLY PAID BY YOU FOR THE PRODUCT. BECAUSE SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT
APPLY TO YOU.

8
ATLONA PRODUCT REGISTRATION
Thank you for purchasing this Atlona product — we hope you’ll enjoy it.
We also hope that you’ll take a few moments to register your new purchase. Registration creates an ownership
record if your product is lost or stolen and helps ensure you’ll receive notication of performance issues and rmware
updates.
At Atlona, we respect and protect your privacy and assure you that your registration information is completely
secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited war-
ranty rights.
