Atlona AT-DVI100SR User manual

AtlonA
DVI over CAT5 Transmitter/Receiver
With RS-232 & Stereo Audio.
AT-DVI100SR & AT-DVI250SR
User Manual
AT-DVI100SR
AT-DVI250SR

TABLE OF CONTENTS
1. Introduction .................................................. 1
2. Contents .................................................. 1
3. Features .................................................. 1
4. Operation Controls .................................................. 2
4.1 Transmitter’s Front Panel ....................................... 2
4.2 Receiver’s Front Panel ....................................... 3
4.3 Receiver’s Rear Panel ....................................... 4
5. RS-232 Protocol .................................................. 4
6. Connection and Installation ....................................... 5
7. Specications .................................................. 5
8. Safety Information .................................................. 6
9. Warranty .................................................. 7
10. Product registration .................................................. 8

Atlona Technologies’ DVI over CAT5/6/7 Transmitter/Receivers with RS-232 & Stereo Audio
(AT-DVI100SR & AT-DVI250SR) provide the most exible solution in the Audio Video indus-
try today at which high denition video and high quality audio can be transmitted to differ-
ferent locations over long distances with low cost Cat5/6/7 cables. These DVI transmitter
and receiver units over CAT5/6/7 are a pair of extenders for sending DVI signal along with
stereo audio and RS232 up to 825ft. Along with built in EDID and RS232 control, these ex-
tender are simple to operate and easy to install. The AT-DVI100SR & AT-DVI250SR are the
perfect products for extending high resolution digital signal with crystal clear images from
source to display.
• DVI over CAT 5 /6/7 Transmitter x 1
• DVI over CAT 5 /6/7 Receiver:
330ft (AT-DVI100SR) x1 or 825ft (AT-DVI250SR) x 1
• Operational Manual x 1
• 5V/2.6A Power Adaptor x 2
• Transmits DVI long distances over cost effective twisted Pair CAT5/6/7 cable
up to 330ft : (AT-DVI100SR)
up to 825ft : (AT-DVI250SR)
• Stereo Audio
• RS232 Control Signal
• DVI 1.0 Compliant; HDTV Compatible
• Supports Equalizer, Gain, CTI (Color Transient Improvement) adjustment. (Only available
on 250SR model.)
• Supports high denition input up to 1080P/1920x1200
• Simple installation and easy to operate.
• HDCP Compliant.
• Build-in EDID module which would save EDID info of the display to reliable connection
between the source and display.
The length depends on the characteristics and quality of the cables. Higher resolutions and longer transmis-
sion distances require low skew cables (<25ns/100m) for best performance. Unshielded CAT6 with metal
Introduction
1
Contents
Features

2
Operation Controls
Transmitter’s Front Panel
1) DVI-D IN – Connect DVI source video output with DVI cable.
2) RS-232 – Connect to source with D-Sub 9 pin cable to control output display device.
3) L/R IN – Connect DVI source audio output with Stereo Audio.
1) VIDEO CAT5 OUTPUT - Connect VIDEO output to VIDEO input of receiver with
CAT5/5e/6 cable.
2) RS232 CAT5 OUTPUT - Connect RS232 output to RS232 input of receiver with
CAT5/5e/6 cable.
3) Power Jack – Connect to 5V / 2.6A power adaptor.
1
1
VIDEO RS-232 DC 5V
2
2
3
3
CAT5 OUTPUT
DVI with Audio & RS232 Extender over CAT5
Sender
AT-DVI100SR

32
Receiver’s Front Panel
1) CTI dip switch – CTI Settings using the twin jumpers to adjust the optimized setting for
different distances.
CTI 1 2
150 - 250m ↑ ↑
100 - 150m ↓ ↑
50 - 100m ↑ ↓
50 m ↓ ↓ ↓
Note: This function is only available on 250SR.
2) EQUALIZER – Use this switch to adjust Sharpness/Peak over long distance by turning right or
left.
3) GAIN – Use this switch to adjust Brightness/Contrast by turning right or left.
4) RS232 CAT 5 INPUT - Connect the RS232 input to the RS232 output of the transmitter with
CAT5/5e/6 cable.
5) VIDEO CAT 5 INPUT – Connect the VIDEO input to the Video output of the transmitter with
CAT5/5e/6 cable.
6) Power Jack – Connect with 5V / 2.6A power adaptor.
12 3 4 5 6
1
1
1
2
2
2
250M
150M
100M
50M
ADJUST
CTI RS-232 VIDEO
DC 5V
EQUALIZER GAIN
MAXMIN
CAT5 INPUT

4
Operation Controls
RS-232 Protocol

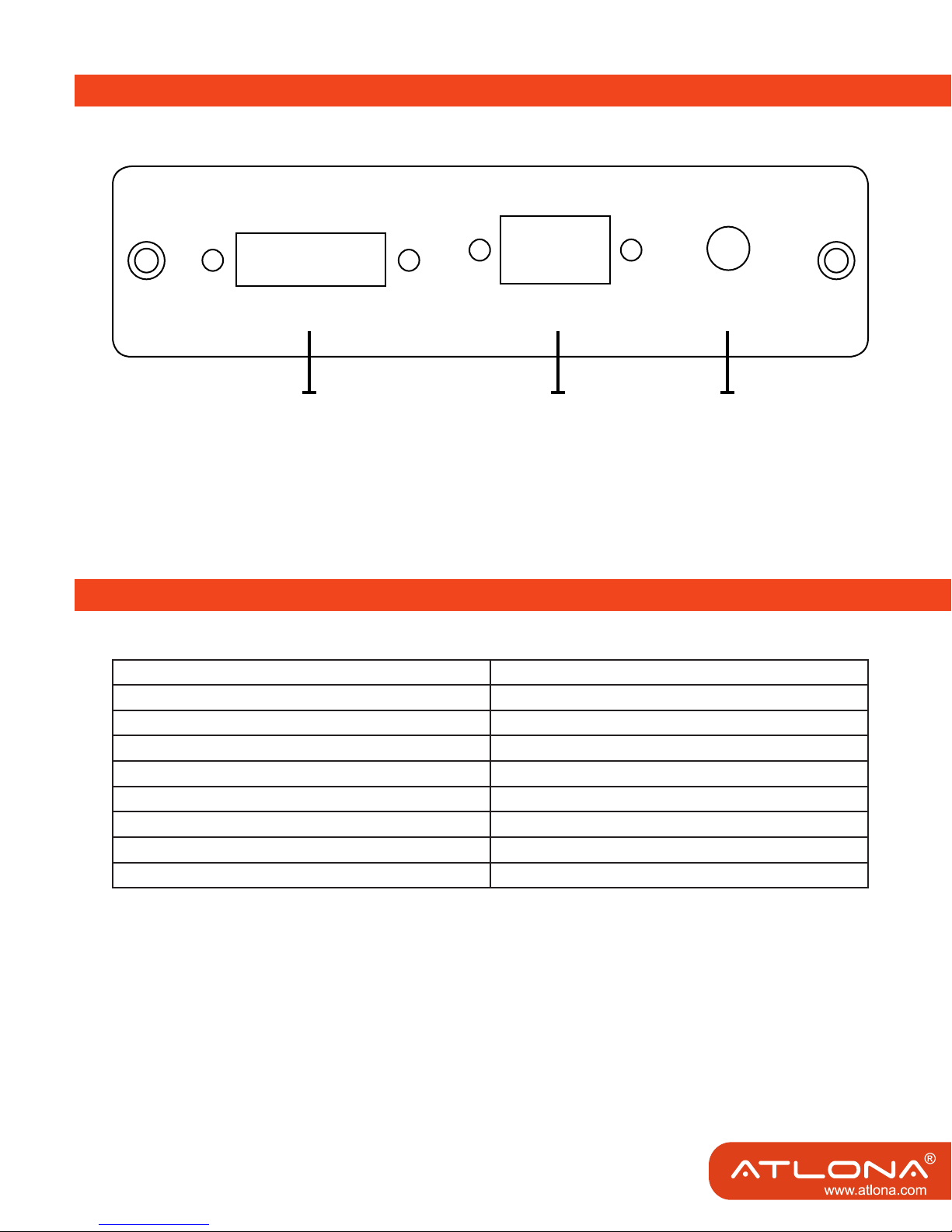

Receiver’s Rear Panel
RJ-45 Pin Denition
Pin Definition
1 R x D -
2 R x D +
3 T x D -
4 GND
5 GND
6 T x D +
7 N/A
8 N/A
Baud Rate: 110~921600
1) DVI-D OUT – Connect to display monitor with DVI cable.
2) RS-232 – Connect to display with D-Sub 9 Pin cable for controlling display device.
(Please refer to section 5 for RS-232 pin denition).
3)
L/R OUT
– Connect to audio input with Stereo Audio Input.
1 2 3
DVI-D
OUT
RS-232
OUT
L/R
OUT
DVI with Audio & RS232 Extender over CAT5
Receiver
AT-DVI250SR

54

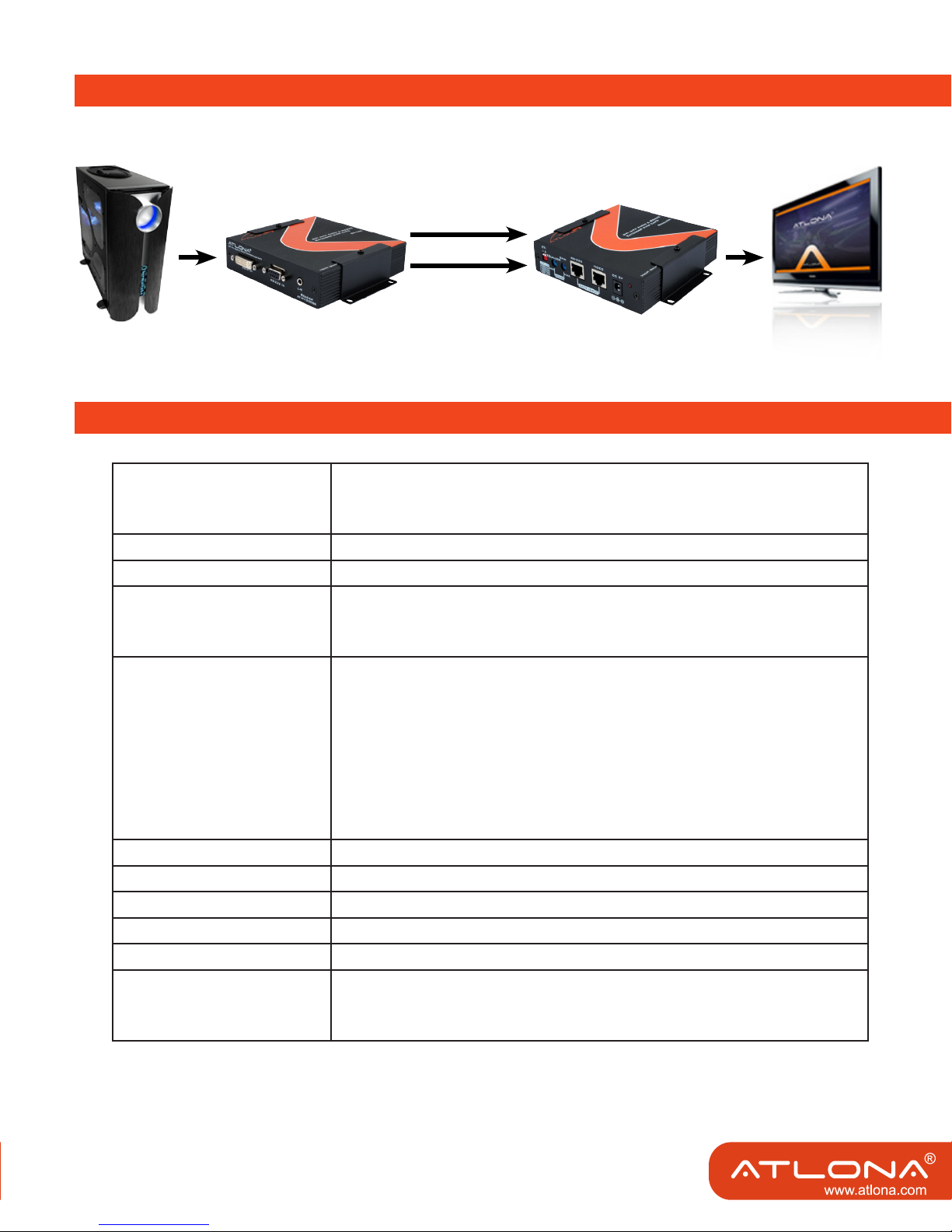

Connection and Installation
Specifications
CAT-5/6/7 Cable
Up to 825ft
CAT-5/6/7 Cable
Up to 825ft
PC
Transmitter Receiver Monitor
Transmitter Input ports 1 x DVI-I female port (Accept DVI-D signal only)
1 x RS-232
1 x Stereo Audio (3.5 mm Jack)
Transmitter Output ports 2 x RJ45
Receiver Input ports 2 x RJ45
Receiver Output ports 1 x DVI-I female port (Output DVI-D Signal only)
1 x RS-232
1 x Stereo Audio (3.5 mm Jack)
Resolution HD- 480i/p 60, 576p 50, 720P 50/60, 1080i 50/60Hz, 1080p
50/60Hz
PC- 640 x 480=VGA72, VGA75, VGA85
800 x 600=SVGA56, SVGA60, SVGA72, SVGA75, SVGA85
1024 x 768=XGA60, XGA70, XGA75, XGA85
1280 x 1024=SXGA60, SXGA75, SXGA85
1600 x 1200=UXGA60
1920 x 1200
Power Supply 5V / 2.6A DC (110/240 power supply)
Dimensions (inch) 49W / 5.11L / 1.18H
Weight (LB) 1.8 LB each
Material Aluminum
Color Black
Power Consumption Transmitter 7W
Receiver 6.5W / 250RC
6W / 100RC

6
SAFETY INFORMATION
Safeguards
To reduce the risk of electric shock, do not
expose this product to rain or moisture.
If the wall plug does not t into your local
power socket, hire an electrician to replace
your obsolete socket.
Do not modify the wall plug.
Doing so will void the warranty and safety
features.
This equipment should be installed near
the socket outlet and the device should
be easily accessible in case it requires
disconnection.
Precautions
FCC Regulations state that any
unauthorized changes or modications to
this equipment not expressly approved by
the manufacturer could void the
user’s authority to operate this
equipment.
Operate this product using only the
included external power supply. Use of
other power supplies could impair
performance, damage the product or cause
res.
In the event of an electrostatic discharge,
this device may automatically turn off. If this
occurs, unplug the device, and plug it back
in.
Protect and route power cords so they will
not be stepped on or pinched by anything
placed on or against them. Be especially
careful of plug-ins, or cord exit points from
this product.
Avoid excessive humidity, sudden
temperature changes or temperature
extremes.
Keep this product away from wet locations
such as bathtubs, sinks, laundries, wet
basements and swimming pools.
Use only accessories recommended by
ATLONA to avoid re, shock or other
hazards.
Unplug the product before cleaning. Use
a damp cloth for cleaning. Do not use
cleaning uid or aerosols, which could
enter the unit and cause damage, re or
electrical shock. Some substances may
also mar the nish of the product.
Never open or remove unit panels or make
any adjustments not described in this
manual. Attempting to do so could expose
you to dangerous electrical shock or other
hazards. It may also cause damage to your
AT-DVI100SR, AT-DVI250SR. Opening the
product will void the warranty.
Do not attempt to service the unit. Instead
disconnect it and contact your Authorized
ATLONA reseller or contact ATLONA
directly.

6
SAFETY INFORMATION
7
WARRANTY
1. LIMITED WARRANTY
Atlona Technologies warrants that (a) its products (the “Product”) will perform substantially in accordance with the
accompanying written materials for a period of 3 YEARS from the date of receipt and (b) that the Product will be
free from defects in materials and workmanship under normal use and service for a period of 3 years. In the event
applicable law imposes any implied warranties, the implied warranty period is limited to 3 years from the date of
receipt. Some jurisdictions do not allow such limitations on duration of an implied warranty, so the above limitation
may not apply to Customer.
2. CUSTOMER REMEDIES
Atlona Technologies and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technolo-
gies’ option, either return of the price paid for the Product, or repair or replacement of the Product that does not meet
this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited
Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. Any replacement Prod-
uct will be warranted for the remainder of the original warranty period or 3 year, whichever is longer.
3. NO OTHER WARRANTIES
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, ATLONA TECHNOLOGIES AND ITS SUPPLI-
ERS DISCLAIM ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED
TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH
REGARD TO THE PRODUCT AND ANY RELATED WRITTEN MATERIALS. THIS LIMITED WARRANTY GIVES
CUSTOMER SPECIFIC LEGAL RIGHTS. CUSTOMER MAY HAVE OTHER RIGHTS DEPENDING ON THE JU-
RISDICTION.
4. NO LIABILITY FOR DAMAGES
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL ATLONA TECHNOLO-
GIES OR ITS SUPPLIERS BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING WITHOUT LIMITA-
TION, SPECIAL, INCIDENTAL, CONSEQUENTIAL, OR INDIRECT DAMAGES FOR PERSONAL INJURY, LOSS
OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER
PECUNIARY LOSS) ARISING OUT OF THE USE OF OR INABILITY TO USE THIS PRODUCT, EVEN IF ATLONA
TECHNOLOGIES HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN ANY CASE, ATLONA
TECHNOLOGIES’ AND ITS SUPPLIERS’ ENTIRE LIABILITY UNDER ANY PROVISION OF THIS AGREEMENT
SHALL BE LIMITED TO THE AMOUNT ACTUALLY PAID BY YOU FOR THE PRODUCT. BECAUSE SOME JU-
RISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR
INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
ATLONA
2151 O’toole Ave, Ste D
San Jose CA 95131
Toll Free: 1-877-536-3976
International: 408-954-8782
FAX: [phone]
Website: www.atlona.com
E-MAIL: [email protected]

8
ATLONA PRODUCT REGISTRATION
Thank you for purchasing this Atlona product — we hope you’ll enjoy it.
We also hope that you’ll take a few moments to register your new purchase. Registration creates an ownership
record if your product is lost or stolen and helps ensure you’ll receive notication of performance issues and rm-
ware updates.
At Atlona, we respect and protect your privacy and assure you that your registration information is completely
secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited
warranty rights.
To register go to www.atlona.com/registration
