Atmel AT88CK9000 User manual

8821A–CRYPTO–6/12
Atmel AT88CK9000 Kit
Atmel AT88CK9000
Atmel Secure Personalization Kit for CryptoAuthentication
USER GUIDE

2
Atmel AT88CK9000 Secure Personalization Kit for CryptoAuthentication [User Guide]
8821A–CRYPTO–6/12
Features
Single push-button triggers parallel programming
Supports programming of up to 10 devices at a time for SOIC package
Supports programming of up to 5 devices at a time for TSSOP, UDFN, or TSSOP
Provides the following feedback:
Serial number
Programming count
Programming limitation count
Firmware version
Device and protocol
Verification cycle
Status lights for Pass/Fail per device
Visual feedback while programming (push button light is on)
Embedded power controller
Provides power to DUTs only when programming — load/unload safe
Detects when devices are positioned backwards and cuts power to protect the board
Standard micro-USB used for power and configuration
Contents
Atmel®AT88CK9000 board
Universal power supply adaptor
0.5M USB cable
Introduction
The Atmel AT88CK9000 secure personalization kit has been developed to securely personalize the Atmel
CryptoAuthentication™ATSHA204 device. Depending on the ordering code, the kit can securely
personalize 8-lead SOIC, 8-lead TSSOP, 8-pad UDFN, and 3-lead SOT23 package types. The 8-lead
SOIC kit has sockets that can accommodate two devices per socket making it capable of personalizing up
to 10 devices at a time. Safety and security has been added to ensure secure high-reliability programming.
The AT88CK9000 kit interfaces to the Atmel Crypto Evaluation Studio (ACES) software suite to provide
communication to a PC via a USB interface. This allows trusted users to program the board outside of the
manufacturing environment. Once programmed, the board becomes a standalone board. As a standalone
board, it only requires power, after which, will allow the programming of the ATSHA204 devices. In
addition, this board has an internal counter to keep track of how many devices were programmed, both in
total, as well as by session.

3
Atmel AT88CK9000 Secure Personalization Kit for CryptoAuthentication [User Guide]
8821A–CRYPTO–6/12
Table of Contents
Becoming Familiar with Atmel AT88CK9000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Install Atmel Crypto Evaluation Studio (ACES) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Configuring the Atmel AT88CK9000 Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Powering Up the Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Putting the Board in the Program Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Ordering Code Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Firmware Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Maintenance of the Atmel AT88CK9000 Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Troubleshooting the Atmel AT88CK9000 Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

4
Atmel AT88CK9000 Secure Personalization Kit for CryptoAuthentication [User Guide]
8821A–CRYPTO–6/12

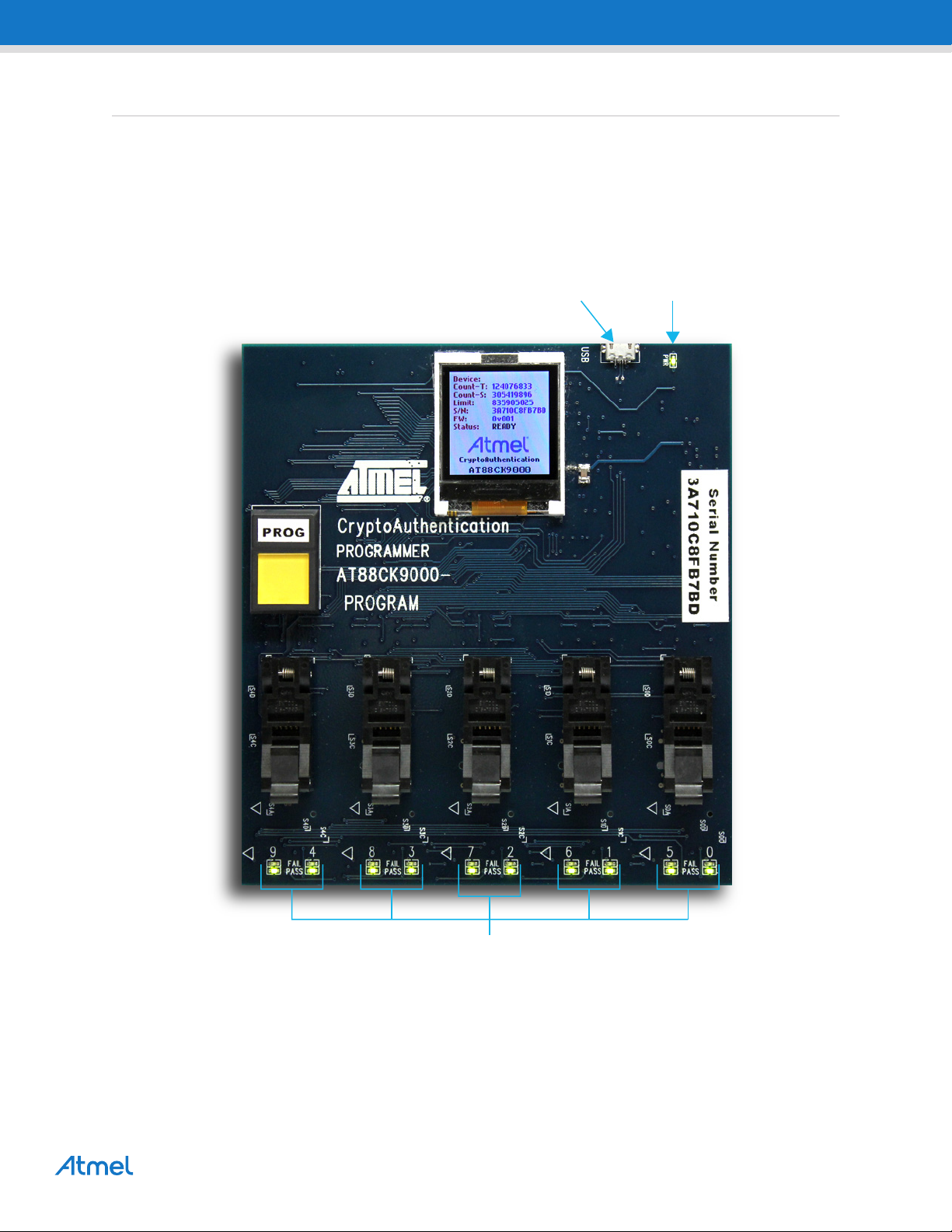

Becoming Familiar with Atmel AT88CK9000
The AT88CK9000 has been designed to make secure personalization of the CryptoAuthentication ATSHA204
devices as easy as possible.
USB PowerDisplayProgram Button
Pass/Fail Indicators

5
Atmel AT88CK9000 Secure Personalization Kit for CryptoAuthentication [User Guide]
8821A–CRYPTO–6/12
Configuration
Mode
Button
Reset
Button
FW Erase
Pads

6
Atmel AT88CK9000 Secure Personalization Kit for CryptoAuthentication [User Guide]
8821A–CRYPTO–6/12
Install Atmel Crypto Evaluation Studio (ACES)
To download Atmel Crypto Evaluation Studio (ACES), visit:
http://www.atmel.com/tools/ATMELCRYPTOEVALUATIONSTUDIO_ACES_.aspx.
Note: The AT88CK9000 kit is compatible with Version 3.2.0 or later.
1. Launch the installer by executing the downloaded file (e.g. ACES_Setup.exe).
2. Follow the installation instructions in the setup wizard.
3. Once installed, three ACES icons should be located on your desktop. These icons include:
The ACES Programmer icon will launch the ACES Programmer. See “Configuring the Atmel AT88CK9000
Board” in the following section for AT88CK9000 board configuration steps.

7
Atmel AT88CK9000 Secure Personalization Kit for CryptoAuthentication [User Guide]
8821A–CRYPTO–6/12
Configuring the Atmel AT88CK9000 Board
Now that ACES has been installed, begin configuring the ATSHA204 to work in your system. The
recommended method is to define and test your device configuration using the ACES Configuration
Environment (CE). ACES CE can create a personalization file that is compatible with the AT88CK9000 kit.
Save the personalization file in ACES CE:
1. Launch ACES CE:
From your desktop, select the ACES CE icon or
From the Start Menu, select Start > Atmel Crypto Solutions > ACES > ACES CE.
2. Configure the working device to the desired configuration.
3. From ACES CE menu bar, select File > Save Personalization File...
4. The File Save As dialog box will be displayed.
5. Name the personalization file and select Save.

8
Atmel AT88CK9000 Secure Personalization Kit for CryptoAuthentication [User Guide]
8821A–CRYPTO–6/12

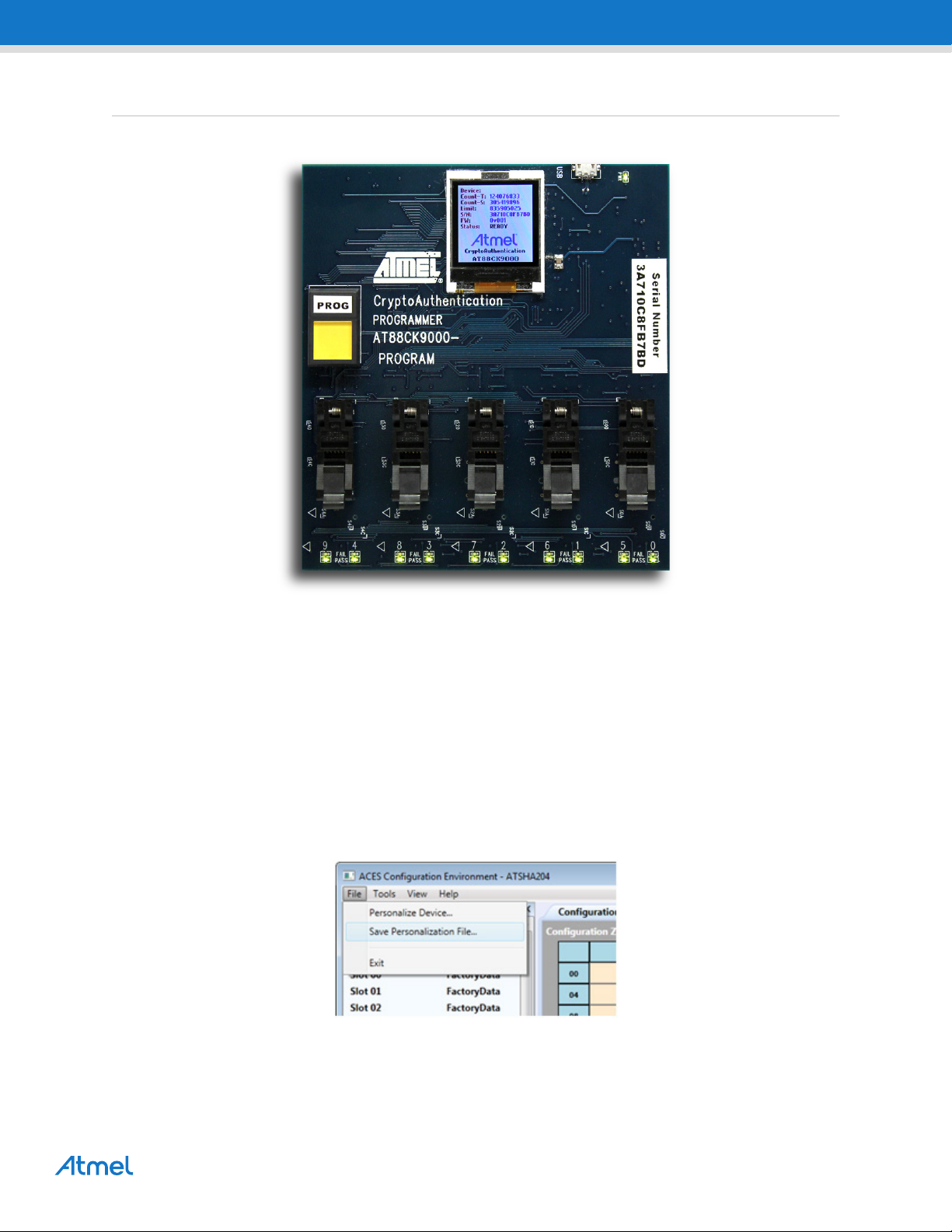

Powering Up the Board
The AT88CK9000 board can be powered via the multi-voltage power supply which is supplied with the kit
or via a USB port on a PC. Once powered, the green LED will illuminate next to the USB connector, and
the green LEDs will illuminate below each socket.
USB
Power
LEDs are illuminated
Power LED
is illuminated

9
Atmel AT88CK9000 Secure Personalization Kit for CryptoAuthentication [User Guide]
8821A–CRYPTO–6/12
Putting the Board in the Program Mode
1. Plug in the secure personalization board while holding the Boot Select button.
Holding the Boot Select button located on the back of the board while powering the board will put the
board in the programming mode. The below image shows what should be shown on the display.
2. Download the file contents to the programmer board.
Select the ACES Programmer desktop icon to launch the ACES Programmer.
The Personalize Programmer Board dialog box will then be presented.
Notes: 1. The board is attached.
2. The file is not selected.
Select the button and select a personalization file.
(Select the file that you have created using ACES CE)

10
Atmel AT88CK9000 Secure Personalization Kit for CryptoAuthentication [User Guide]
8821A–CRYPTO–6/12

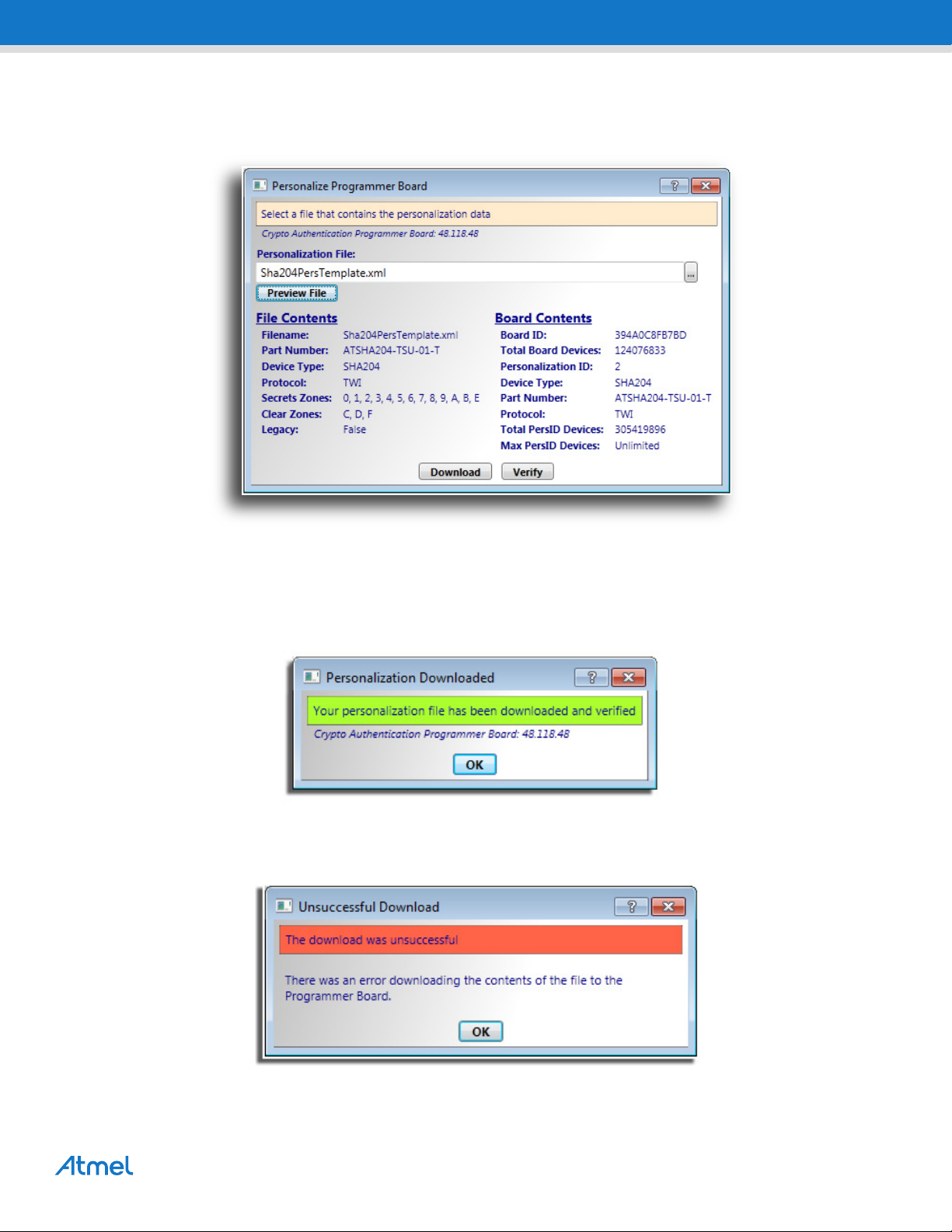

3. To load the contents of the file in preparation to download to the programmer board, select Preview File.
The Programmer User Interface should resemble the below dialog box.
4. Select Download.
If download is successful, the download confirmation dialog box will be displayed.
If download is not successful, the unsuccessful download dialog box will be displayed.

11
Atmel AT88CK9000 Secure Personalization Kit for CryptoAuthentication [User Guide]
8821A–CRYPTO–6/12

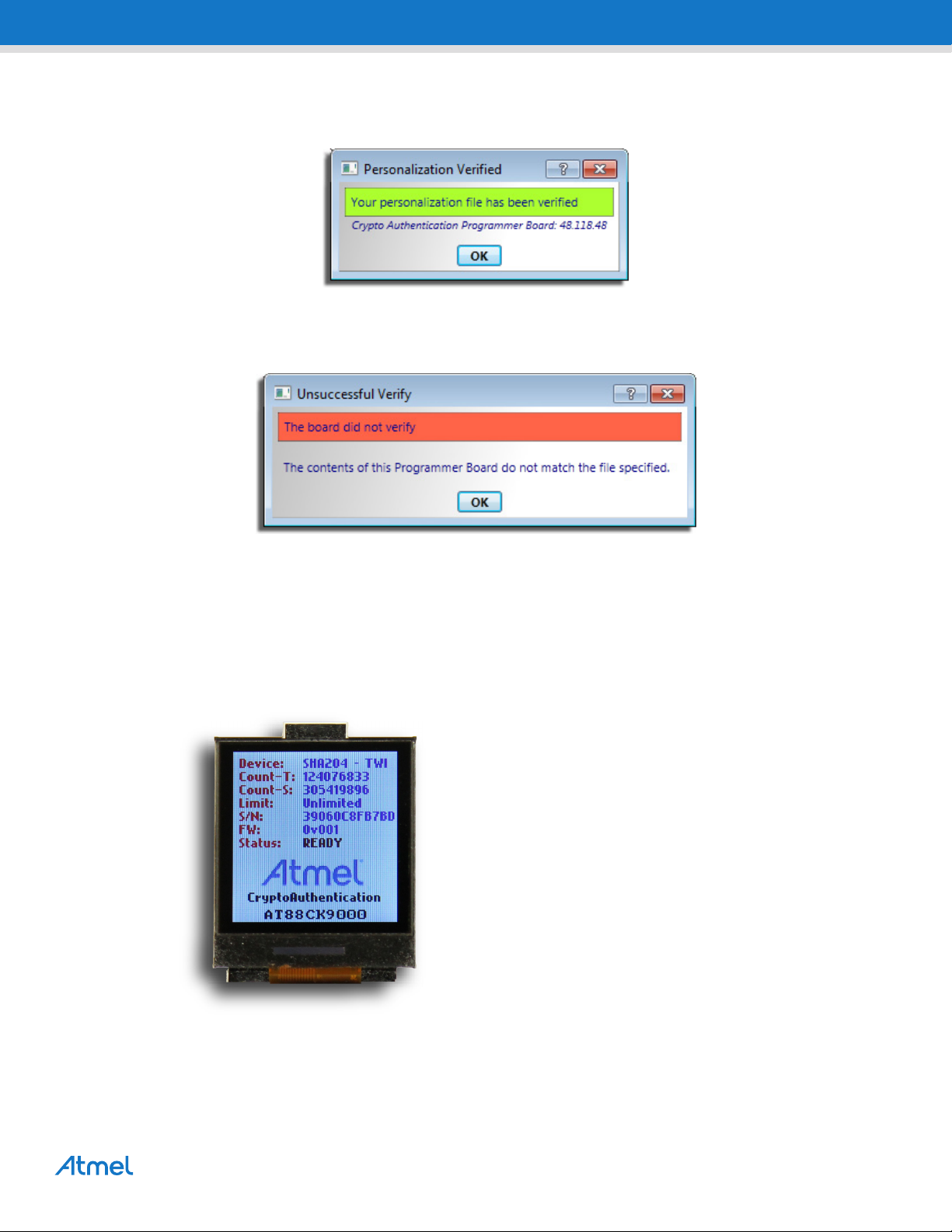

5. Select Verify.
If successful, the verified confirmation dialog box will be displayed.
If verify is not successful, the unsuccessful verified dialog box will be displayed.
6. Once the board has been successfully programmed, either:
Unplug the USB cable from the board or
Press the reset button located on the back of the board.
The AT88CK9000 display should display the communication panel screen as shown below.
7. Congratulations, your Atmel AT88CK9000 board is up and running.
Device = Device Type and Protocol
Count–T = Lifetime Count of Programmed Devices
Count–S = Session Count of Programmed Devices
Limit = Configurable Limit Per Session
S/N = Unique Serial Number
FW = Firmware Revision
Status = Board Status

12
Atmel AT88CK9000 Secure Personalization Kit for CryptoAuthentication [User Guide]
8821A–CRYPTO–6/12
Firmware Upgrade
To be determined.
Maintenance of the Atmel AT88CK9000 Kit
The sockets used in the AT88CK9000 kit are rated for 50,000 insertions per socket. Care must be taken to not
bend or deform the leads of the socket.
If the sockets become damaged or worn, the following part numbers and suppliers should be used for
replacement purchases. The sockets will need to be unsoldered and then resoldered onto the board.
Troubleshooting the Atmel AT88CK9000 Kit
Issue: No Power
Resolution: Verify that the USB cable is plugged correctly to the board, and is plugged into an
approved power source.
If the cable is plugged into the correct power source, try unplugging the cable and then
replug the cable into the AT88CK9000 board.
Issue: One or More Sockets (Sites) Always Failing.
Resolution: Visually inspect the socket for bent leads.
If the leads are straight, clean the contacts on the socket.
If the site is still failing, the socket may be worn and should be replaced.
Issue: Board Fails to Enumerate to the PC for Configuration Mode
Resolution: Be sure the board is in the configuration mode and is not in the programming mode.
Try unplugging and then replug the USB cable into the board while pushing the boot select
mode button on the back of the board.
Package Type Part Number Supplier
8-lead SOIC 216-7388-55-1902 Digikey 3M5078-ND
8-lead TSSOP FP-8(24)-065-01A Enplas
3-lead SOT23-3 499-P36-10 WellsCTI
8-pad UDFN 08QN50L43020 Plastronics

13
Atmel AT88CK9000 Secure Personalization Kit for CryptoAuthentication [User Guide]
8821A–CRYPTO–6/12
Ordering Code Information
EVALUATION BOARD/KIT IMPORTANT NOTICE
Revision History
Function
Ordering Code Package Type
AT88CK9000-8SH 8S1 8-lead JEDEC SOIC
AT88CK9000-8TH 8X 8-lead TSSOP
AT88CK9000- TSU 3TS1 3-lead SOT23-3
AT88CK9000-8MA 8MA2 8-pad UDFN
This evaluation board/kit is intended for ENGINEERING, DEVELOPMENT, DEMONSTRATION or
EVALUATION PURPOSE ONLY. It is not a finished product and may not (yet) comply with some or any
technical or legal requirements that are applicable to finished products, including, without limitations,
directives regarding electromagnetic compatibility, recycling (WEEE), FCC, CE or UL (except as may be
otherwise noted on the board/kit). Atmel®supplied this board/kit “AS IS,” without any warranties, with all
faults, at the buyer's and further users' sole risk. The user assumes all responsibly and liability for proper
and safe handling of goods. Further, the user indemnifies Atmel from claims arising from the handling or
use of goods. Due to open construction of the product, it is the user's responsibility to take any and all
appropriate precautions with regard to electrostatic discharge and any other technical or legal concerns.
EXCEPT TO THE EXTENT OF INDEMNITY SET FORTH ABOVE, NEITHER USER NOR ATMEL
SHALL BE LIABLE TO EACH OTHER FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES.
No license is granted under any patent right or other intellectual property right of Atmel covering or
relating to any machine, process, or combination in which such Atmel product or services might be or are
used.
Mailing address: Atmel Corporation
1600 Technology Drive
San Jose, CA 95110
USA
Doc. Rev. Date Comments
8821A 06/2012 Initial document release
