Atmos DC 15 User manual

Instruction manual - GB
www.atmos.cz
Instruction
manual

Instruction manual - GB
www.atmos.cz

Instruction manual - GB
www.atmos.cz
GB-3
GB
Contents
1. Intended use 5
2. Technical specifications 5
Control panel for boilers with ventilator 6
Control panel for boiler DC15E 6
Advantages of boilers 7
3. Technical data 8
Boiler drawings key 9
Technical data 9

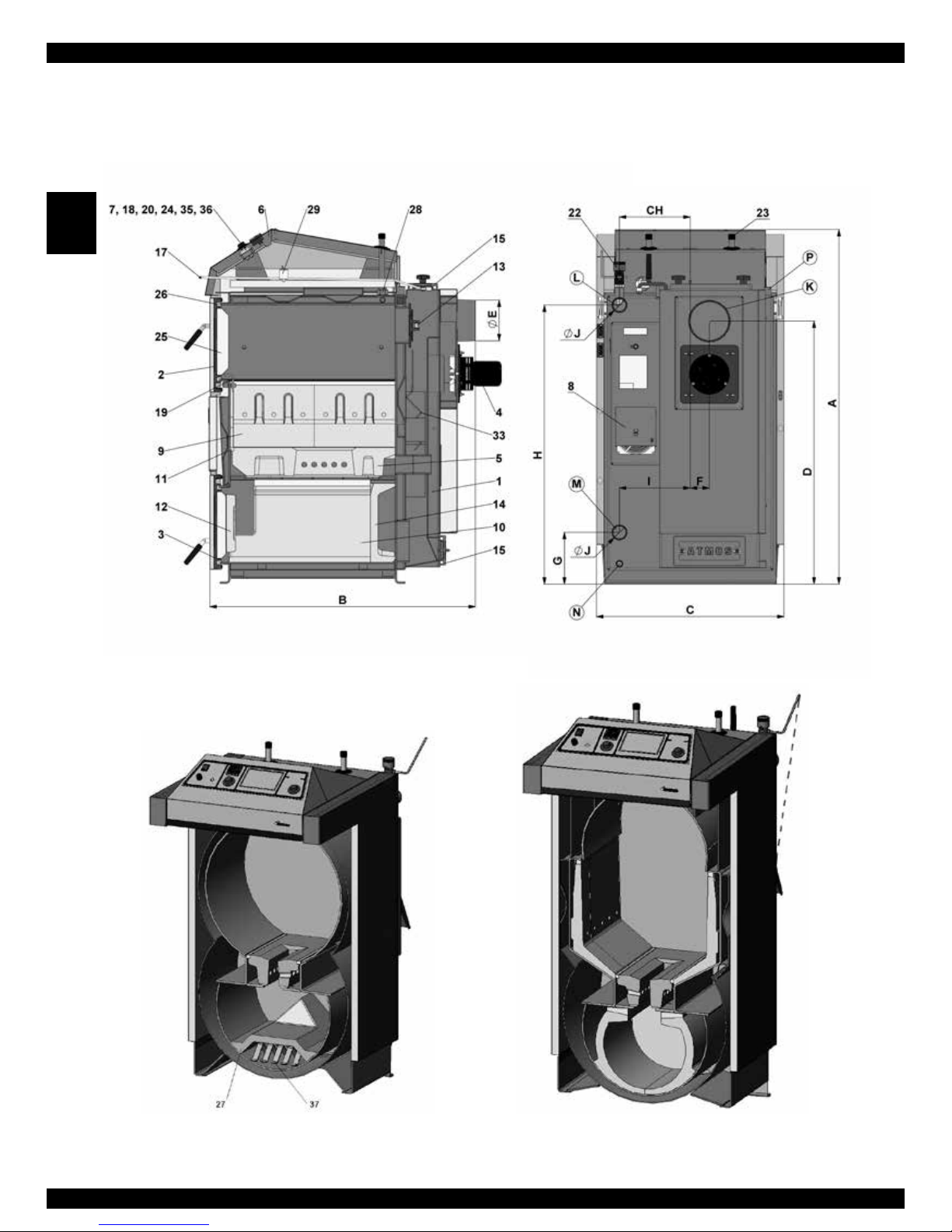

Drawings of boilers 10
Extraction ventilator schematics 12
4. Type and seating of shaped pieces into combustion area 12
5. Boiler accessories 13
6. Fuel 14

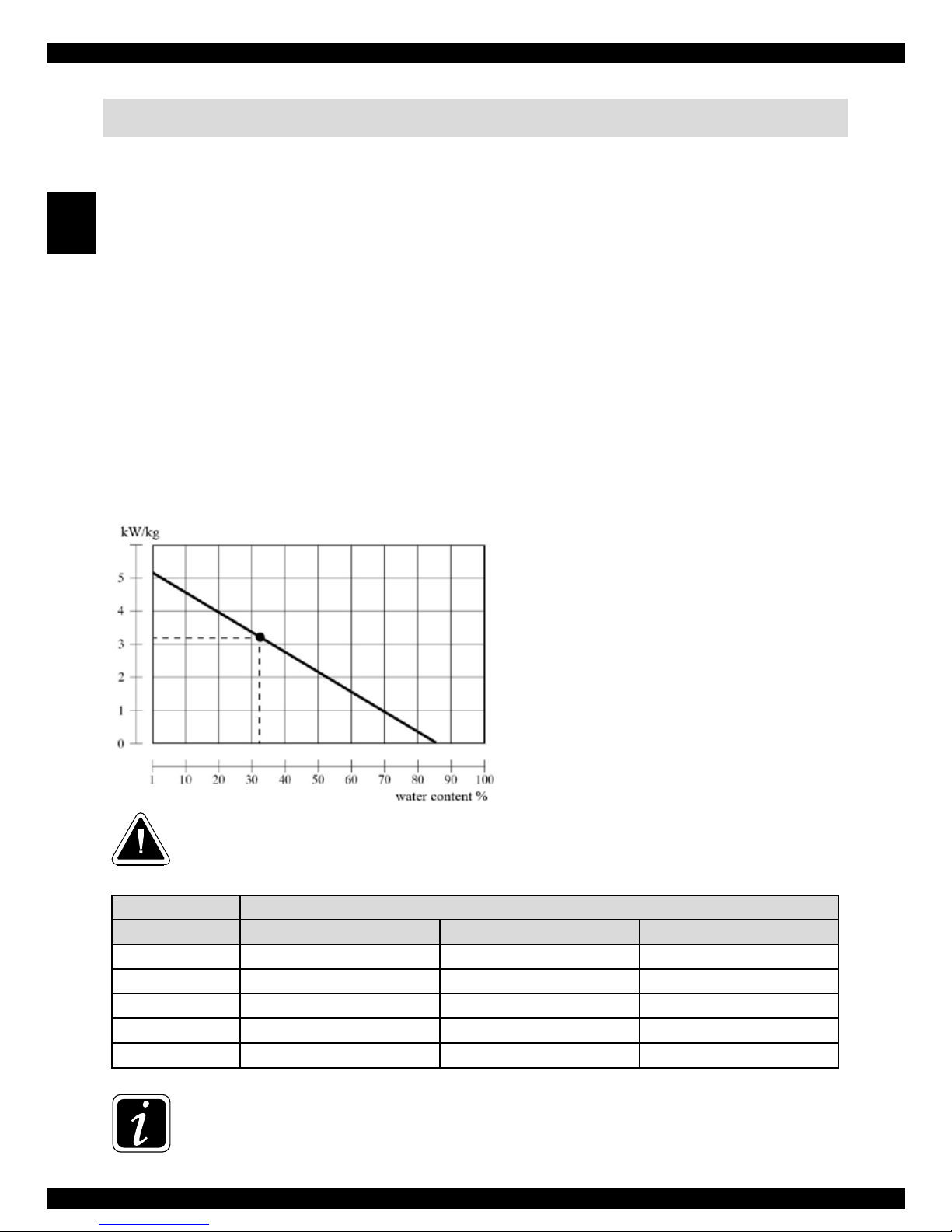

Basic wood burning data 14

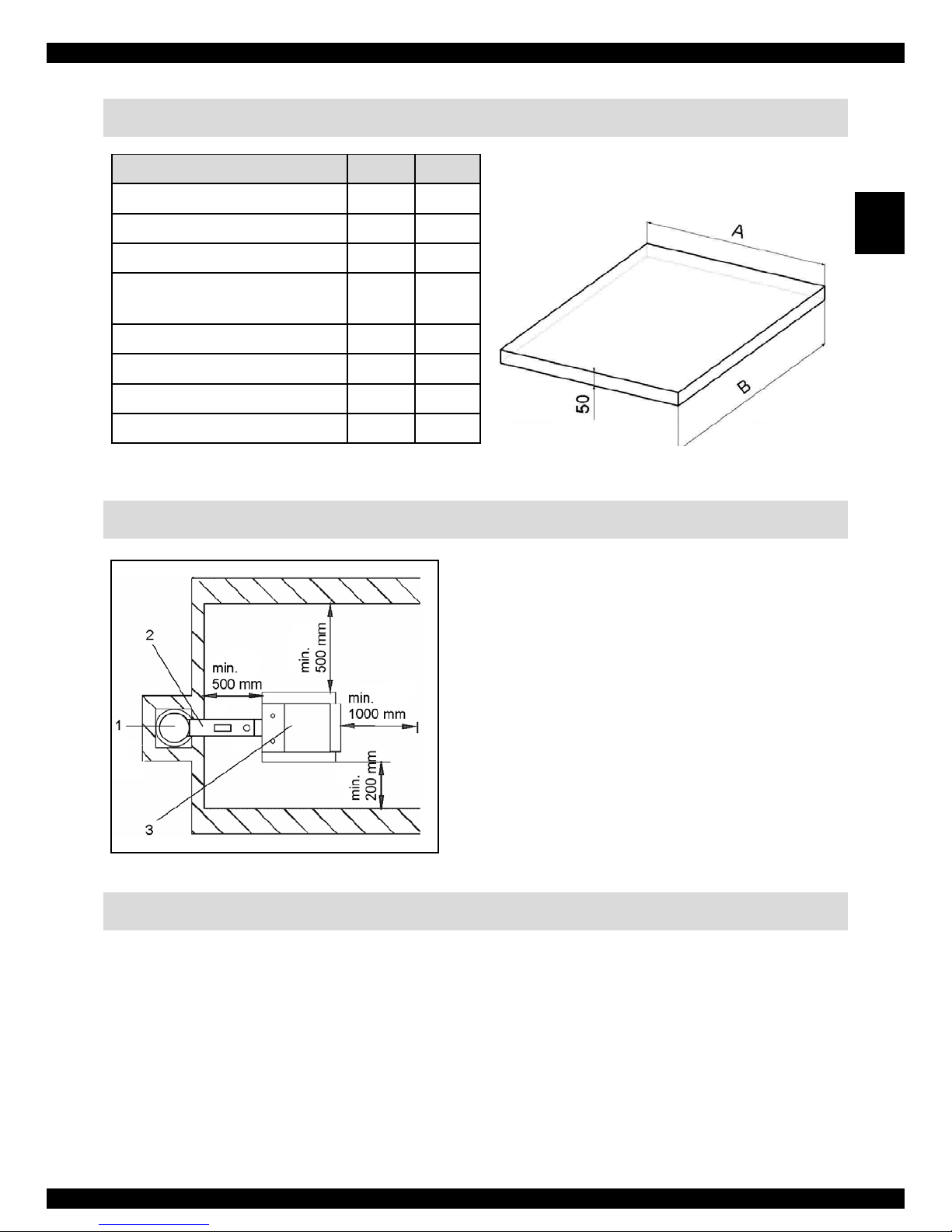

7. Boiler bases 15
8. Environment type and boiler placement in a boiler room 15
9. Chimney 15
10. Flue-gas duct 16
11. Fire prevention during installation and use of heating appliances 17
12. Connecting boilers to the electrical power network 18

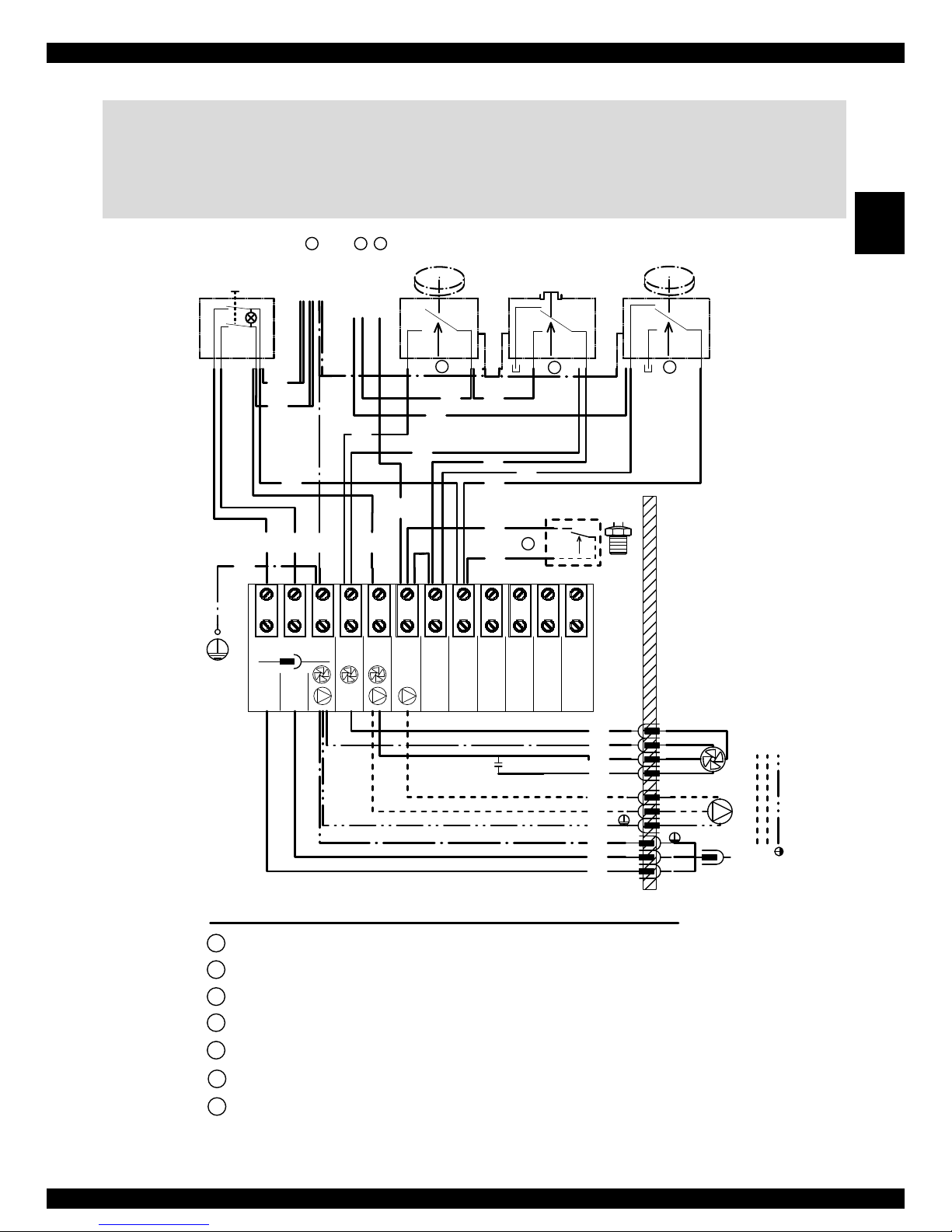

13. Wiring diagram of electromechanical regulation with extraction ventilator, type UCJ 4C52 (DC18S - DC50S),
(DC30 - DC50SE), (DCxxSX), (DCxxGS) and with pressure ventilator (DC80, DC70S), valid from 12/2007 19
14. Wiring diagram for DC75SE - electromechanical regulation with an UCJ 4C52 type extraction ventilator, valid
from 12/2007 20
15. Wiring diagram of electromechanical regulation of the DC15E type boiler, valid from 12/2007 21
16. Obligatory ČSN EN standards dealing with boiler designing and boiler assembly 21
17. Choice and connection method of control and heating elements 22
18. Boiler corrosion protection 23
19. Specified boiler connection with Laddomat 22 23
20. Specified boiler connection with thermoregulation 24
21. Boiler connection with equilizing tank 24
22. Recommended wiring diagram with Laddomat 22 and accumulators 25
23. Laddomat 22 26
24. Thermoregulatory valve 26
25. Operating a system with accumulation tanks 27
The standard ATMOS accumulation tanks provided 27
Tank insulation 27
Advantages 27
26. Connection of overheat protecting cooling loop with a safety valve Honeywell TS 131 - 3/4 ZA or WATTS STS20 28
27. Operating instructions 28
Preparing boilers for operation 28
Ignition and operation 28
Waste gas thermnostat setting 29
Output regulation - electromechanical 29
Draught regulator - HONEYWELL Braukmann FR 124 – Assembly instructions 30
28. Boiler output and combustion setting 31
For boilers with DC18S – DC75SE draught ventilator 31
Boiler with compressive ventilator DC70S 32
29. Fuel refill 32
30. Steady heat operation 33
31. Boiler cleaning 33
Ceramic ash areas 35
32. Heating system maintenance - including boilers 36
33. Use and inspections 36
34. Possible failures and troubleshooting 37
35. Spares 38
Heatproof shaped piece (nozzle) replacement 38
Door sealing cord replacement 39
Adjusting the door hinges and locks 39
36. Environmental protection 39
Disposal of the boiler after expiration of its service life 39
GUARANTEE CONDITIONS 40
BOILER INSTALLATION REPORT 41
ANNUAL INSPECTIONS RECORDS 42
RECORDS OF GUARANTEE PERIOD AND POST-GUARANTEE PERIOD REPAIRS 43

Instruction manual - GB
www.atmos.cz
4-GB
GB
WE HOPE YOU WILL BE SATISFIED WITH OUR PROD-
UCT, AND WE RECOMMENED TO COMPLY WITH
THESE MAIN REGULATIONS NECESSARY FOR
LONG SERVICE LIFE AND CORRECT FUNCTION OF
THE BOILER
1. Assembly, firing-up test and operator‘s training must be carried out by an installation compa-
ny trained by the manufacturer; this company also fills in a boiler installation report (p.41).
2. During the gasification process, wood tar and condensates (acids) form in the fuel storage tank.
Therefore, there must be a Laddomat 22 or a thermoregulatory valve installed behind the boiler in
order to keep the minimal temperature of water returning to the boiler at 65 °C.
Operating temperature of water in the boiler must be in the 80 - 90 °C range.
3. Every circulating pump in the system must be regulated by an individual thermostat in order to
keep the specified minimum temperature of water returning to the boiler.
4. The boiler must not be permanently operated in an output lower than 50 %.
5. The boiler operates environmentally-friendly at the nominal output level.
6. When operating the boiler in a lower output mode (summer operation or heating up warm ser-
vice water), it is necessary to fire-up daily.
7. Wethereforerecommend installingthe boilerwith accumulatingstorage tanksand Laddomat 22,
which provides 20 - 30 % fuel consumption decrease, and longer service life of both – the
boiler and the chimney and user-friendlier operation.
8. If you cannot install the boiler into an accumulation system, then we recommend installing it at
least with one equalising tank; the volume of which should be 25 l per 1 kW of the boiler output.
9. Use only dry fuel with 12 - 20 % moisture content – higher moisture content decreases the
boiler’s performance and increases consumption.
Boilers with an extraction ventilator are marked with S (DC 70S excluded) at the end of the
label.
CAUTION – if the boiler is installed with a Laddomat 22 or with a TV 60/65/70/75 °C
and with the accumulation tanks (see attached schematics), the guarantee period for
the boiler drum is extended from 24 to 36 months. The guarantee period for other
parts remains unaffected. In non-compliance with these instructions the drum’s and
the heatproof pipes’ service life may dramatically decrease. The boiler drum may cor-
rode in as little time as 2 years.
CAUTION - INSTALLER SHOULD ALWAYS COMPLY WITH LOCAL PLANNING
AND BUILDING REQUIREMENTS.

Instruction manual - GB
www.atmos.cz
GB-5
GB
1. Intended use
The environmentally friendly boilers ATMOS DC 15/18/20/22/25/30/32/40/50/70/75 are designed
for heating family houses, cottages, holiday houses and other similar buildings. Boilers are suitable
for buildings with heat loss ranging between 15 - 75 kW, depending on type. The boilers are construct-
ed mainly for burning logs. Any type of dry wood is suitable for heating, especially wooden logs up
to a maximum length 330, 530, 730 and 1000 mm as per the boiler type. If you use logs of a larger
diameter the nominal output is then decreased and the burning period prolonged. The boiler is not
intended for burning saw dust or small-particle wood waste. These can be burnt in small quantities
only, together with log-firewood. MAX.10 %. Due to their huge feeding hoppers, the boilers save the
user a lot of laborious wood wood preparation and splitting operations. They save both - the physical
effort and also the time dedicated to these operations.
2. Technical specifications
The boilers are designed for burning wood based on generator gasification principle utilising an
extraction ventilator (DC15E excluded), which extracts the waste gas from the boiler or blows the air
in the boiler.
a) Gas extraction ventilator – for boilers DC18S, DC22S, DC25S, DC30SE, DC32S,
DC50S, DC40SE, DC50SE, DC75SE, DC20GS,
DC25GS, DC32GS, DC40GS, DC22SX, DC30SX,
DC40SX
b) Pressure ventilator – for DC70S (DC80)
c) Without ventilator – DC15E
The boiler drum is manufactured as a welded structure from 3 - 8 mm thick steel sheets. The top
comprises the Fuel Hopper and the lower end of this hopper comprises a heatproof shaped piece with
longitudinal opening for combustion remnants and gases. The burn-off chamber is equipped with
ceramic shaped pieces. There is a vertical waste gas duct at the rear of the boiler body which is in its
upper section equipped with an ignition valve. The upper part of the waste gas duct is equipped with
gas outlet pipe for connecting to chimney. The front wall is in the upper part equipped with stoking
door and with ashtray door in the lower part. In the front section of the upper hood there is an ignition
valve pull rod. The boilers’ drum is externally heat insulated with mineral wool placed beneath the
sheet metal covers of the boilers’ external housing. A control panel for electromechanical regulation
is situated in the upper part of the boiler. In the rear section of the boilers, there is a primary and sec-
ondary air feeding duct fitted with a control valve, which is operated by FR 124 draught regulator.
Primary and secondary air is preheated to high temperature. For boilers DC50SE, the valve with the
FR 124 draught regulator is replaced with servo drive with inbuilt spring. This boiler also contains
two special steel plates alongside the gasifying nozzle.

Instruction manual - GB
www.atmos.cz
6-GB
GB
Control panel for boilers with ventilator
Control panel for boiler DC15E
ZÁTOP / FIRING-UP
SPALINOVÝ / W ASTE GASKOTLOVÝ / OPERATING
ZÁTOP
FIRING-UP
PROVOZ / OPERATION
PROVOZ
OPERATION
1
0
2 5 1 4 367
ZÁTOP / FIRING-UP
ČERPADLO / PUMPE
PROVOZ / OPERATION
1
0
2 1 867
1. Thermometer
2. Main switch
3. Waste gas thermostat
4. Control thermostat (boiler)
5. Safety irreversible thermostat
6. Ignition valve pulling rod
7. Area for electronic regulation of the heating
system (92x138 mm)
8. Pump thermostat (only DC15E)

Instruction manual - GB
www.atmos.cz
GB-7
GB
Description:
1. Thermometer – monitors the temperature of water exiting the boiler.
2. Main switch – allows for completely shutting down boiler if necessary.
3. Waste gas thermostat – is used to switch off the ventilator when the fuel has burnt out.
CAUTION – when firing up (igniting), set the waste gas thermostat to (“0 °C“- firing-up).
After flaring up, set the waste gas thermostat to „operation“. It is necessary to detect the
optimal operating position. Should the waste gas temperature fall below the preset value, the
thermostat switches the extraction ventilator off. If you want the ventilator to re-start, set a
lower temperature on the waste gas thermostat (set to “0 °C“ - firing-up).
4. Control thermostat (boiler) – controls the boiler operation depending on the temperature of
water exiting the boiler.
5. Safety irreversible thermostat – serves as boiler protection against overheating in case of con-
trol thermostat failure or as an indication of exceeding the emergency temperature. If such ex-
ceeding occurs, it is then necessary to depress the thermostat.
6. Ignition valve pulling rod – serves for opening the ignition valve during heating or inserting
fuel.
7. Area for electronic regulation of the heating system can be used to house any type of regulation
system that fits into an aperture of (92x138 mm). The electric harness is prefabricated and ready
to be used for the regulation’s power supply.
8. Pump thermostat in the DC15E boiler for switching the pump in the boiler circle (75 - 80 °C)
Advantages of boilers
Boilers provide burning at high temperatures with the generator gasification function. That re-
sults in fuel saving and ecological operation. The boilers pre-heat the primary and secondary air to a
high temperature which results in warm and stable flame of stable burning quality. Boilers marked
with GS provide this process in the ceramic combustion area with primary air side inlets. Boilers
equipped with extraction ventilator require simple and easy operation, and are marked with “S”
(DC70S, DC15E excluded). Large fuel hopper allows burning of the log pieces with the maximum
length 330 - 1.000 mm, depending on the boiler type. Large pieces of waste wood can also be burned.
All boilers are equipped with cooling loop for overheating protection.

Instruction manual - GB
www.atmos.cz
8-GB
GB
3. Technical data
ATMOS boiler type
DC15E
DC18S DC22S
DC22SX
DC25S
DC30SX
DC32S
DC30SE
DC40SX
DC20GS DC25GS
DC32GS DC40GS DC40SE DC50S DC50SE DC70S
DC80 DC75SE
Boiler output kW
14,9 20 22 22 25/27 30 35
30 40 20 25
32 40 40 49,9 49 70 75
Heat-up area m
2
1,8
1,8 2,1
1,9
2,3
2,3
2,9
2,9
1,9 2,7
2,9 3,2 3,5 3,8 4,2 5 5,2
Fuel duct volume dm
2
66
66 100
66
100
100
140
140
87 130 170 190 180 252 180 345
Feeding inlet dimensions mm
450x260
450x260 450x260
450x260
450x260
450x260
450x260
450x260
450x260 450x260 450x260 450x260 450x260 450x260 450x260 450x315
Specified chimney draught
Pa
18
20 23
23
23
24
24
25
20 23/24 25 25 25 25 30 30
Max. water overpressure kPa
250
250 250
250
250
250
250
250
250 250 250 250 250 250 250 250
Boiler weight
kg
260
269 324
290
326
332
366/400
368
343 431/436 485 443 433 545 515 669
Gas-outlet pipe diameter
mm
150/152 150/152 150/152 150/152 150/152 150/152 150/152 150/152 150/152 150/152 150/152 150/152 150/152 150/152 180 180
Boiler height
mm
1185 1185 1185 1185 1185 1185 1260 1260 1280 1280 1434 1360 1260 1360 1399 1487
Boiler width
mm
675* 675* 675* 675* 675* 675* 678 678 678 678 678 774 678 774 678 774
Boiler depth
mm
758 758 959 758 959 959 959 959 758 959 959 959 1160 1160 1166 1487
Electric parts ingress protection
IP 20
Electric input
W
0
50 50
50
50 50 50 50 50 50 50 50 50 50 50 70
Boiler effectiveness
% 80 - 89
Boiler class
3444554445/4434333
Waste gas temperature
at nominal output
°C
208
208 225
230
225 240 230/207 250 210 230/225 250 245 255 245 260 240
Waste gas combustion
products flow weight at nominal output
kg/s
0,010
0,012 0,014
0,014
0,015 0,017 0,017 0,022 0,012 0,015
0,018 0,022 0,022 0,025 0,025 0,035 0,035
Specified fuel
Dry wood with heating capacity 15 - 17 MJ.kg-1, water content at least 12 % - max. 20 %, average 80 - 150 mm
Average fuel con
-
sumption
kg.h
-1
3,5
3,8 5 5 6 7 7,2/7 10 3,8 6/7,2 10 10 13 13 18 18
Per heating season 1 kW = 1 stacked cubic meter Maximum wood length
mm
330
330 530
330
530
530
530
530
330 530 530 530 730 700 730 1000
Burning time at nomi
-
nal output
hod.
2
2 3
2
3
2
3
2
2 3/2 3 3 3 3 2 3
Boiler water volume
l
45
45 58
45
58
58
80
80
64 80 90 110 89 141 93 171
Hydraulic pressure drop
mbar
0,18
0,18 0,21
0,18
0,21
0,21
0,20
0,20
0,22 0,22 0,23 0,22 0,22 0,23 0,25 0,24
Equalising tank mini
-
mum volume
l
500
500 500
500
500
500
500
500
500 500 750 750 750 750 1000 1000
Connecting voltage
V/Hz 230/50
Specified minimum temperature of water returning to boiler is 65 °C when in operation. Specified boiler operating temperature is 80 - 90 °C.
* boiler width is 555 mm after disassembling the side hoods

Instruction manual - GB
www.atmos.cz
GB-9
GB
Boiler drawings key
Technical data
1. Boiler drum
2. Loading door
3. Ash-pan door
4. Ventilator - pressure
- extraction
5. Heatproof shaped piece - nozzle
6. Control panel
7. Safety thermostat for pump - 95°C (only for
DC75SE)
8. Control valve
9. Heat proof shaped piece – for type GS
- combustion area side
10. Heat proof shaped piece – for type GS
- spherical space
11. Nozzle sealing - 12x12 (14x14)
12. Heatproof shaped piece – half moon
13. Ignition valve
14. Heat proof shaped piece – for type GS
- rear head of spherical space
15. Cleaning lid
16. Screen
17. Ignition valve pulling rod
18. Thermometer
19. Combustion area screen
20. Switch with an indicator light
22. Draught regulator - Honeywell FR 124
23. Cooling loop protecting against overheating
24. Ventilator control thermostat (boiler)
25. Door filling - Sibral
26. Door sealing – cord 18 x 18
27. Ceramics - roof
28. Switching thermostat for pump - (only for
DC75SE)
29. Capacitator for exhast fan
31. Heatproof shaped piece – half moon
32. Heatproof shaped piece – combustion area plate
33. Waste gas brake for rear flue way duct
34. Cleaning aperture (DC70S)
35. Waste gas thermostat
36. Safety thermostat (Caution – in overheat
condition must be depressed)
37. Waste gas brake - under the roof
(only for DC30SX, DC40SX, DC50S, DC75SE)
38. Combustion chamber lining – for DC15E
40. Pump thermostat for DC15E
41.
Combustion area screen - rear (model DCxxSE)
K - flue gas duct neck
L - water outlet from
M - boiler – water inlet to
N - boiler – filling valve
P - pipe sleeve – sleeve for cooling loop control
valve sensor (TS 131, STS 20)
Di -
men -
sions
DC15E
DC18S DC20GS DC22SX DC22S DC25S DC30SX DC32S DC30SE DC40SX DC25GS DC32GS DC40GS DC40SE DC50SE DC50S DC70S DC 80 DC75SE
A
1185 1280 1185 1185 1185 1260 1260 1280 1280 1434 1360 1360 1260 1399 1487
B
694
758 758 758 959 959 959 959 959 959 959 961 1160 1160 1166 1487
C
675* 678 675* 675* 675* 678 678 678 678 678 774 774 678 678 774
D
690
874 950 874 874 874 950 950 950 950 1099 1046 1046 950 1047 1165
E
150/
152
150/
152
150/
152
150/
152
150/
152
150/
152
150/
152
150/
152
150/
152
150/
152
150/
152
150/
152
150/
152 180 180
F
65 69 65 65 65 69 69 69 69 69 69 69 69 90 82
G208 185 208 208 208 185 185 185 185 185 185 185 185 325 194
H933 1008 933 933 933 1008 1008 1008 1008 1152 1106 1106 1106 423 1230
CH 212 256 212 212 212 256 256 256 256 256 306 306 256 0 306
I212 256 212 212 212 256 256 256 256 256 306 306 256 240 306
J6/4” 6/4” 6/4” 6/4” 6/4” 6/4” 6/4” 6/4” 6/4” 2” 2” 2” 2” 2” 2”
* boiler width is 555 mm after disassembling the side hoods

Instruction manual - GB
www.atmos.cz
10-GB
GB
Drawings of boilers

Instruction manual - GB
www.atmos.cz
GB-11
GB
Drawing of boiler DC70S Cut away view - DC15E
Cut away view – DC70S
Combustion chamber
3. Ash-pan door
5. Heatproof shaped piece - nozzle
31. Heatproof shaped piece – half moon
32. Heatproof shaped piece – combus-
tion area plate.
34. Cleaning aperture

Instruction manual - GB
www.atmos.cz
12-GB
GB
Extraction ventilator schematics
CAUTION – The exhaust ventilator (S) is provided disassembled. Place it on the smoke
duct, fasten properly and test its smooth operation
1 - Motor
2 - Plate
3 - Rotating wheel (stainless steel)
4 - Nut with left-handed thread and washer
5 - Wing nut
6 - Screw
7 - Large gasket (2 pcs)
8 - Small gasket
4. Type and seating of shaped pieces into combustion area
1. For type
DC15E
DC18S
DC22S
DC25S
DC30SX
DC32S
DC50S
DC40SE
DC40SX
DC50SE
Roof of the lower combustion area must always be fully pressed against the boiler rear wall.
2. For type
DC75SE
Roof for this boiler type consist of two pieces – see figure (DC75SE – 2 x 500mm)
27. Heatproof shaped piece –
roof is for:
- for boiler ( DC15E, DC18S) lenght
320 mm
- for boilers (DC22S, DC25S,
DC30SX, DC32S, DC40SE,
DC40SX) length 500 mm;
- for boilers (DC50S, DC50SE)
length 700 mm.
16
2
4
3
7 8
5

Instruction manual - GB
www.atmos.cz
GB-13
GB
3. For type
DC18S
DC20GS
DC22SX
DC25GS
DC32GS
DC40GS
DC30SE
The spherical space must be assembled in a way that ensures that the front section of the piece /10/ is
3 cm away from the front edge of the boiler frame.
CAUTION – do not turn the rear face /14/ when handling
4. For type
DC15E
5. For type
DC70S
Front shaped piece is removed during boiler clean-up. It is positioned on the front side of the
combustion chamber towards the door.
5. Boiler accessories
Steel brush with accessories 1 pc
Poker 1 pc
Filling-in valve 1 pc
Operating and maintenance instructions manual 1 pc
Draught regulator - HONEYWELL FR 124 (DC50SE excluded) 1 pc
Ashtray (only for DCxxGS, DC15E) 1 pc
10. Heatproof shaped piece
- Spherical space (L+R
side),
14. Heatproof shaped piece
- rear face with a rearward
recess
38. Spherical area
39. Combustion area
lining (2 x 2 piece)
Spherical area /38/ must be
pushed to the rear of combus-
tion area
31. Heatproof shaped piece
– half moon.
32. Heatproof shaped piece –
combustion area plate (2
pieces)

Instruction manual - GB
www.atmos.cz
14-GB
GB
6. Fuel
Specified fuel is dry chopped log fire wood, Ø 8O - 150 mm, at least two years old, moisture 12 %
to 20 %, caloric power 15 – 17 MJ.kg-1 and log length 330 - 1000 mm as per boiler type. Fuel dimen-
sions are stated in section 3 „Technical Data“. It is also possible to burn large pieces of wood waste in
combination (max. 10 %) with crude logs.
Basic wood burning data
You can ensure maximum output and a long service life if you burn wood which has been left for
at least 2 years to dry. The following graph illustrates the relationship of moisture content to heating
capacity of the fuel. The energy content declines dramatically with increased water contents.
Example:
Wood with 20 % moisture contents has thermal power of 4 kWh /1 kg of wood
Wood with 60 % moisture contents has thermal power of 1.5 kWh /1 kg of wood
• Example – spruce wood which has been stored for 1 year under shelter – see graph
The boilers maximum output with wet fuel
illustrated in the graph
kW
DC 15 E - 8
DC 18 S - 13
DC 22 S - 14
DC 25 S - 19
DC 32 S - 24
DC 40 S(E) - 31
DC 50 S(E) - 39
DC 75 S(E) - 53
The information is relevant to other gasifica-
tion boiler types.
Boilers are not suitable for burning wood with moisture content lower than 12 %.
Fuel heating capacity
Wood - type Heating capacity per 1 kg
kcal kJoule kWh
spruce 3900 16250 4,5
pine 3800 15800 4,4
birch 3750 15500 4,3
oak 3600 15100 4,2
beech 3450 14400 4,0
Raw wood does not burn easily, produces a lot of smoke and substantially decreases
the service life of your boiler and chimney. Boiler output drops as low as 50 % and fuel
consumption doubles.

Instruction manual - GB
www.atmos.cz
GB-15
GB
7. Boiler bases
Boiler type (mm) A B
DC15E/DC18S/DC22SX 600 600
DC20GS 700 600
DC22S/DC25S/DC30SX 600 800
DC30SE/DC32S/DC25GS/
DC32GS/DC40GS/DC40SX 700 800
DC40SE 700 1000
DC50SE 800 1000
DC50S, DC70S 700 1000
DC75SE 800 1300
8. Environment type and boiler placement in a boiler room
Boilers may be used in a “basic environment” - AA5/
AB5 as specified in Czech standard ČSN3320001.
Boilers must be placed in a boiler room with sufficient
air access necessary for combustion. Placing boilers
in living areas (including halls) is not permitted. The
combustion air inlet aperture in the boiler room must
be of minimum 300 cm2for boilers of 15 - 75 kW
outputs.
1 - Chimney
2 - Flue duct
3 - Boiler
9. Chimney
Connecting the appliance to the chimney vent stack must always be carried out with the per-
mission of the appropriate chimney authority. The vent stack must always be capable of providing
sufficient draught and it must discharge the waste gas into the open atmosphere in a reliable manner
for all possible operating conditions. The dimensions of the individual vent stack must be correct to
ensure good functionality of the boiler; because the draught influences combustion, performance
and the service life of the boiler. The chimney draught is directly dependent on its cross section,
height and the inner wall ruggedness. It is not permitted to connect another appliance into a chimney
into which a boiler is connected. The chimney diameter must not be smaller than the boiler outlet
We recommend providing a concrete (metal)
base under the boiler.

Instruction manual - GB
www.atmos.cz
16-GB
GB
(min. 150 mm). The chimney draught must comply with the specified values (see technical data, page
8). The chimney must not be excessively high, otherwise the boiler effectiveness is decreased and the
combustion is affected (the flame “breaks”). In case of excessive draught, install a throttle valve in the
flue gas duct between the boiler and the chimney.
Indicative values of the chimney cross section dimensions:
20 x 20 cm height 7 m
Ø 20 cm height 8 m
15 x 15 cm height 11 m
Ø 16 cm height 12 m
Exact chimney dimensions are stipulated in Czech standard ČSN 73 4201. Specified chim-
ney draught is stated in section 3 „Technical Data“.
10. Flue-gas duct
The flue-gas duct must be connected into the chimney
vent stack. If the boiler cannot be connected to the chimney
directly, the appropriate flue-gas duct extension must be as
short as possible in the given circumstances, but not longer
than 1m, it must be without additional heating surface and
must incline upwards in the direction towards the chimney.
Flue-gas ducts must be mechanically durable and sealed
against combustion products and gas penetration, and it must
be possible to clean them inside. The flue-gas ducts must
not be lead through another person‘s apartment or property.
The internal diameter of the flue-gas duct must not be larger
than the internal diameter of the chimney intake and it must
not decrease in width in the direction towards the chimney.
Use of elbow-pipes is not suitable. Methods for providing
flue-gas duct entries through flammable material structures
are stipulated in appendices 2 and 3 of the Czech standard
ČSN 061008. These are appropriate for mobile installations,
wooden cottages etc.

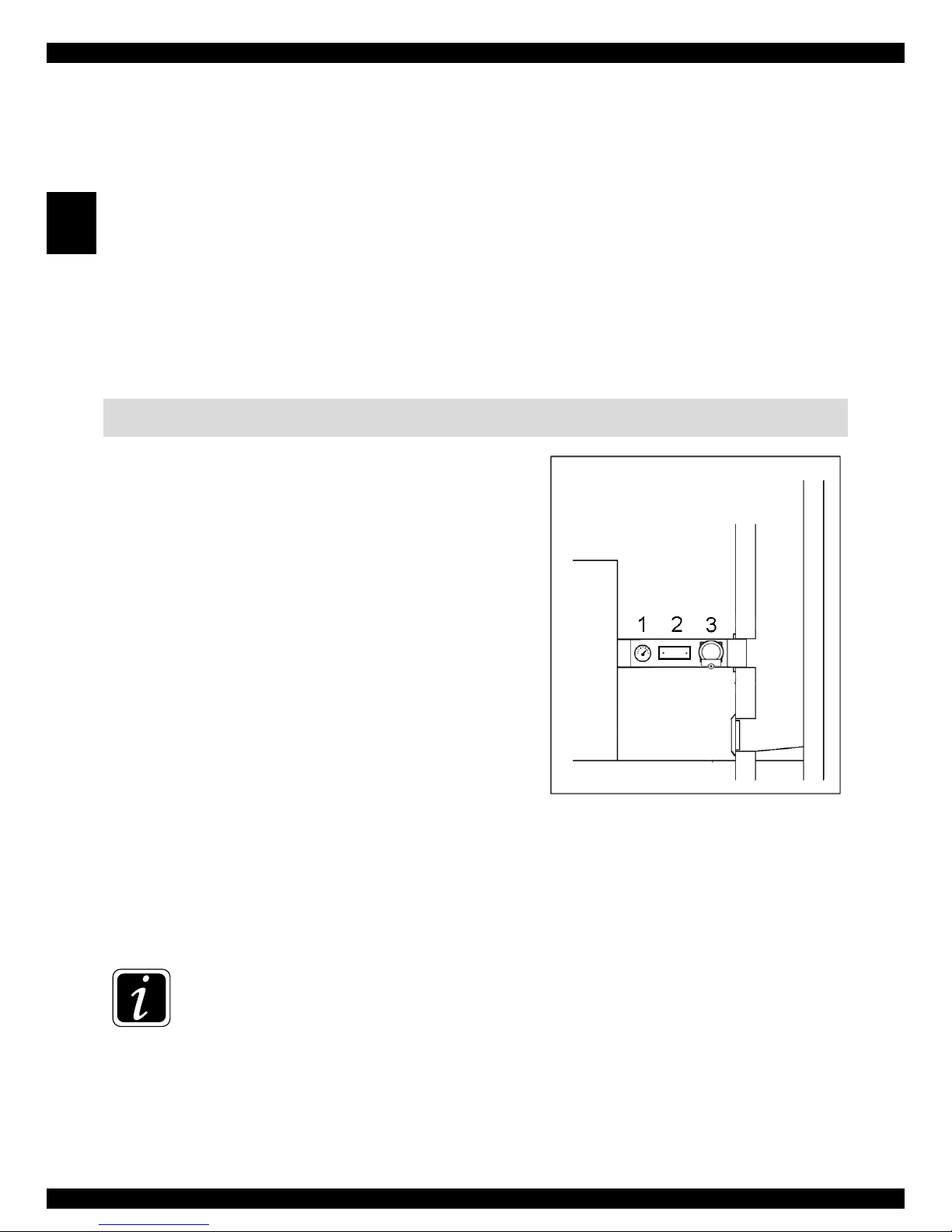

1- Waste gas thermometer
2- Cleaning aperture
3 - Throttle valve (draught limiter)
INFO - In case of excessive chimney draught, install a throttle valve or draught limiter
(regulator) /3/.
Boiler Chimney

Instruction manual - GB
www.atmos.cz
GB-17
GB
11. Fire prevention during installation and use of heating ap-
pliances
Selected from ČSN 061008 – Fire safety of local appliances and heat sources.
Safe distances
When installing the appliance, keep a minimum safe distance of 200 mm from building materials.
This distance is valid for boilers and flue-gas ducts positioned near flammable materials of the B, C1
and C2 flammability class materials (the flammability classes are listed in chart 1). It is necessary to
double the 200 mm safe distance if the boilers and flue-gas ducts are placed near flammable materials
of C3 class (see chart 1). It is also necessary to double the safe distance if the flammability class of
the material in question cannot be determined. The safe distance can be decreased to one half (to 100
mm) if a heat insulating, non-combustible screen (asbestos board) of a 5 mm minimum thickness, is
placed 25 mm from the protected combustible material (so called flammable insulation). The screen-
ing board or protection screen (on the protected object) must exceed the boiler outline including its
flue-gas duct on each side by at least 150 mm and by at least 300 mm above its upper surface. The
screening board or protection screen must be also used for all fixtures and fittings from combustible
materials in cases where the safe distance cannot be maintained (such as in mobile structures or
wooden cottages etc. - for more details see ČSN 061008 standard). The safe distance must be main-
tained even when placing fixtures and fittings near the boilers.
If boilers are placed on floors from combustible materials, the floor must be fitted with a non-com-
bustible, heat insulating pad exceeding the boiler’s ground-outline on the side where the stoking and
ash-pan apertures are, by at least 300 mm (in front of the aperture) and on all the other sides by at least
100 mm. The non-combustible, heat insulating pad can be made from any material of A flammability
class.
Chart 1
Flammability classes of building mate-
rials and products
A – non-combustible granite, sandstone, concrete, bricks, ceramic tiles, mortars,
reproong plasters etc.)
B – non-easily ammable Akumin, Izomin, Heraklit, Lignos, basalt felt boards, bre-
glass boards, Novodur
C1 – low degree of ammability deciduous tree wood (oak, beech), Hobrex boards, plywood,
Sirkolit, Werzalit, hardened paper (Formica), Ecrona)
C2 – medium degree of ammability coniferous tree wood (pine tree, larch, spruce), chipboards
and cork boards, rubber ooring (Industrial, Super)
C3 – high degree of ammability breboards (Hobra, Sololak, Sololit), cellulose materials,
polyurethane, polystyrene, polyethylene, foamed PVC
In circumstances when there is a risk of temporary access of flammable gases or fumes, or
during works when a temporary fire or explosion risk may possibly occur (such as gluing
linoleum, PVC etc.) the boilers must be put out of operation long enough before the risk
occurrence. No items from flammable materials may be placed on the boilers or near
them for a distance lower than the specified safe distance (more see ČSN EN 13501-1).

Instruction manual - GB
www.atmos.cz
18-GB
GB
12. Connecting boilers to the electrical power network
The boilers are connected to 230 V, 50 Hz mains with a mains cable without a plug. The mains
supply cable in case of repair it must be replaced with the same type by the servicing organization.
Connection, maintenance and reparation can be made only by a qualified person in accordance with
valid regulations of the particular country.
CAUTION - The mains cable must not be equipped with a plug (designed to be connected
to a socket). It must be connected in a fixed way to a switchboard or junction box to avoid
confusion of the conductors.
Mains cable must be regularly checked and maintained in the prescribed condition. It is forbidden
to interfere in to the safety circuits and elements for safe and reliable operation of the boiler. If any
damage of electrical equipment must be the boiler out of operation, disconnect from the mains and
ensure a qualified repair according to applicable standards and regulations.
Connectors in side hoods of the boiler:
1- connector for income cabel (L - brown, N - blue, PE - green/yellow)
2- connector for extraction fan
1 -
- 2
Connector in the left side hoodConnector in the right side hood

Instruction manual - GB
www.atmos.cz
GB-19
GB
13. Wiring diagram of electromechanical regulation with
extraction ventilator, type UCJ 4C52 (DC18S - DC50S),
(DC30SE - DC50SE), (DCxxSX), (DCxxGS) and with pres-
sure ventilator (DC80, DC70S), valid from 12/2007
DCxxS_11-05-01
123456789101112
L N PE NLL
t
TČ95
TČ95
SAFETY PUMP THERMOSTAT 95°C
SICHERHEITSPUMPETERMOSTAT 95°C
BEZPEČNOSTNÍ TERM. NA ČERPADLO 95°C
L
N
L
N
230V/50Hz
µ
1 F
  
  


























A
VARIANT OF ACCES POINT FOR BOILER ACCESSORIES ANLAGERUNGVARIANTE FÜR KESSELZUBEHOR VARIANTY PŘIPOJENÍ PŘÍSLUŠENSTVÍ KOTLE
  
BLBLACKSCHWARZČERNÁ BRBROWNBRÄUNEHNĚDÁ BUBLUEBLAUMODRÁ RREDROTČERVENÁ GYGREEN/YELLOWGRÜN/GELBZELENO/ŽLUTÁ WWHITEWEISBÍLÁ GRGREYGRAUŠEDÁ
A
t °C
PE
PT1 PTC
OPERATING THERMOSTAT
BETRIEB TERMOSTAT
PROVOZNÍ TERMOSTAT
t °C
PE
STC ST2 ST1
WASTE GAS THERMOSTAT
RAUCHGAS TERMOSTAT
SPALINOVÝ TERMOSTAT
HLvyp SNvyp
HNvyp
SLvyp
1245
SWITCH
SCHALTER
HL.VYPÍNAČ


CB
B
C
D
E
F
WHEN ELECTRONIC REGULATION CONTROL BOILER FAN  CHANGE CONNECTOR "BTC" FOR CONNECTOR "BTC REG"
DEN AUSWECHSELN KONNEKT. "BTC" FÜR KONNEKT."BTC REG" BEI DER KESSELGÄBLASE BEDIENUNG DER ELEKTRON. REG.
PŘEHODIT SVORKY "BTC" ZA "BTC REG" PŘI OVLÁDÁNÍ KOTLOVÉHO VENTILÁTORU ELEKTRONICKOU REGULACÍ
BT-C REG
RESERVOIR POINT "LPUMP" OF BOILERPUMP TO THE ELECTRONIC REGULATION
SPEISEKLEMME "LPUMP" DER KESSELPUMPE FÜR DIE ELEKTRONISCHE REGELUNG
PŘIPOJOVACÍ SVORKA "LPUMP" KOTLOVÉHO ČERPADLA DO ELEKTRONICKÉ REGULACE
RESERVOIR POINT "L  FAN IN" AND L  FAN OUT" OF BOILER FAN TO THE ELECTRONIC REGULATION
SPEISEKLEMME "L  FAN IN" UND "L  FAN OUT" DER KESSELGEBLÄSE FÜR DIE ELEKTRONISCHE REGELUNG
PŘIPOJOVACÍ SVORKA "L  FAN IN" A "L  FAN OUT" KOTLOVÉHO VENTILÁTORU DO ELEKTRONICKÉ REGULACE
WHEN ELECTRONIC REGULATION CONTROL BOILER FAN  CONNECTORS "PTC" A "PT1" MUST BE UNCONNECT
DEN KONNEKTOREN "PTC" UND "PT1" ABKLEMMEN BEI DER KESSELGÄBLESEBEDIENUNG DER ELEKTRONISCHE REGELUNG
KONEKTORY "PTC" A "PT1" ODPOJIT PŘI OVLÁDÁNÍ KOTLOVÉHO VENTILÁTORU ELEKTRONICKOU REGULACÍ
L N
REGN (X6:3) REGL (X6:4) REGPE (X6:2)
L PUMP (X7:5)


L  FAN OUT (X7:7)
L  FAN IN (X7:6)


G
ST-2 REG
WHEN ELECTRONIC REGULATION CONTROL BOILER FAN/PUMP/  CHANGE CONNECTOR "ST2" TO CONNECTOR "ST2 REG"
DEN AUSWECHSELN KONNEKTOR "ST2" FÜR KONNEKT."ST2 REG" BEI DER GÄBLASE/PUMPE BEDIENUNG DER ELEKTRON. REGELUNG
PŘEHODIT SVORKY "ST2" ZA "ST2 REG" PŘI OVLÁDÁNÍ KOTLOVÉHO VENTILÁTORU/ČERPADLA ELEKTRONICKOU REGULACÍ
G




EF
WHEN ELECTRONIC REGULATION CONTROL BOILERPUMP  CONNECTORS "TČ95" MUST BE UNCONNECT
DEN KONNEKTOREN "TČ95" ABKLEMMEN BEI DER KESSELPUMPE BEDIENUNG DER ELEKTRONISCHE REGELUNG
KONEKTORY "TČ95" ODPOJIT PŘI OVLÁDÁNÍ KOTLOVÉHO ČERPADLA ELEKTRONICKOU REGULACÍ


WHEN USE ELECTRONIC REGULATION MUST BE THESE CHANGES OF WIRING:
BEI DER STEUERUNG DES KESSELBETRIEBES DER ELEKTRONISCHE REGELUNG MÜSSEN DIESE ÄNDERUNGEN MACHEN SEIN:
PŘI ZAPOJENÍ ELEKTRONICKÉ REGULACE PROVEĎTE TYTO ZMĚNY:
VARIANTS OF RESERVOIR POINTS "REG L,N,PE" (FERRULE/FASTON 6,3) FOR ELECTRONIC REGULATION
SPEISEKLEMMEVARIANTEN "REG L,N,PE" (ADERENDHÜLSE/FASTON 6,3) FÜR ELEKTRONISCHE REGELUNG
VARIANTY NAPÁJECÍCH SVOREK "REG L,N,PE" (DUTINKA/FASTON 6,3) PRO ELEKTRONICKOU REGULACI
t °C
PE
BT-2 BT-1 BT-C
SAFETY THERMOSTAT
SICHERHEITSTERMOSTAT
BEZPEČNOSTNÍ TERMOSTAT


D

Instruction manual - GB
www.atmos.cz
20-GB
GB
14. Wiring diagram for DC75SE - electromechanical regula-
tion with an UCJ 4C52 type extraction ventilator, valid
from 12/2007
DC75SE_11-05-01
123456789101112
L N PE NLL
L
N
2
µ
F
























 









 
BLBLACKSCHWARZČERNÁ BRBROWNBRÄUNEHNĚDÁ BUBLUEBLAUMODRÁ RREDROTČERVENÁ GYGREEN/YELLOWGRÜN/GELBZELENO/ŽLUTÁ WWHITEWEISBÍLÁ
t °C
PE
PT1
PTC
OPERATING THERMOSTAT
BETRIEB TERMOSTAT
PROVOZNÍ TERMOSTAT
A
HLvyp SNvyp
HNvyp
SLvyp
1245
SWITCH
SCHALTER
HL.VYPÍNAČ
t °C
PE
BT-2 BT-1 BT-C
SAFETY THERMOSTAT
SICHERHEITSTERMOSTAT
BEZPEČNOSTNÍ TERMOSTAT
t °C
PE
STC
ST2 ST1
WASTE GAS THERMOSTAT
RAUCHGAS TERMOSTAT
SPALINOVÝ TERMOSTAT
L
N
230V/50Hz


C


D
EG


F
AVARIANTS OF RESERVOIR POINTS "REG L,N,PE" (FERRULE/FASTON 6,3) FOR ELECTRONIC REGULATION
SPEISEKLEMMEVARIANTEN "REG L,N,PE" (ADERENDHÜLSE/FASTON 6,3) FÜR ELEKTRONISCHE REGELUNG
VARIANTY NAPÁJECÍCH SVOREK "REG L,N,PE" (DUTINKA/FASTON 6,3) PRO ELEKTRONICKOU REGULACI
B
C
D
E
FWHEN ELECTRONIC REGULATION CONTROL BOILER FAN  CHANGE CONNECTOR "BTC" FOR CONNECTOR "BTC REG"
DEN AUSWECHSELN KONNEKTOR "BTC" FÜR KONNEKTOR"BTC REG" BEI DER KESSELGÄBLASEBEDIENUNG DER ELEKTRONISCHE REGELUNG
PŘEHODIT SVORKY "BTC" ZA "BTC REG" PŘI OVLÁDÁNÍ KOTLOVÉHO VENTILÁTORU ELEKTRONICKOU REGULACÍ
WHEN USE ELECTRONIC REGULATION ACD01 MUST BE THESE CHANGES OF WIRING:
BEI DER STEUERUNG DES KESSELBETRIEBES DER ELEKTRONISCHE REGELUNG ACD01 MÜSSEN DIESE ÄNDERUNGEN MACHEN SEIN:
PŘI ZAPOJENÍ ELEKTRONICKÉ REGULACE ACD01 PROVEĎTE TYTO ZMĚNY:
RESERVOIR POINT "L PUMP" OF BOILERPUMP TO THE ELECTRONIC REGULATION
SPEISEKLEMME "L PUMP" DER KESSELPUMPE FÜR DIE ELEKTRONISCHE REGELUNG
PŘIPOJOVACÍ SVORKA "L PUMP" KOTLOVÉHO ČERPADLA DO ELEKTRONICKÉ REGULACE
WHEN ELECTRONIC REGULATION CONTROL BOILER PUMP AND FAN  CONNECTORS "STC" AND "ST2" MUST BE UNCONNECT
DEN KONNEKTOREN "STC" UND "ST2" ABKLEMMEN BEI DER KESSELPUMPEBEDIENUNG UND KESSELGÄBLASEBEDIENUNG DER ELEKTRONISCHE REGELUNG
KONEKTORY "STC" A "ST2" ODPOJIT PŘI OVLÁDÁNÍ KOTLOVÉHO ČERPADLA A VENTILÁTORU ELEKTRONICKOU REGULACÍ
RESERVOIR POINT "L FAN  IN" OF BOILER FAN TO THE ELECTRONIC REGULATION
SPEISEKLEMME "L FAN  IN" DER KESSELGEBLÄSE FÜR DIE ELEKTRONISCHE REGELUNG
PŘIPOJOVACÍ SVORKA "L FAN  IN" KOTLOVÉHO VENTILÁTORU DO ELEKTRONICKÉ REGULACE
WHEN ELECTRONIC REGULATION CONTROL BOILER FAN  CONNECTORS "PTC" AND "PT1" MUST BE UNCONNECT
DEN KONNEKTOREN "PTC" UND "PT1" ABKLEMMEN BEI DER KESSELGÄBLESEBEDIENUNG DER ELECTRONIC REGELUNG
KONEKTORY "PTC" A "PT1" ODPOJIT PŘI OVLÁDÁNÍ KOTLOVÉHO VENTILÁTORU ELEKTRONICKOU REGULACÍ
BT-C REG


REGN (X6:3) REGL (X6:4) REGPE (X6:2)
LPUMP (X7:5)
L FAN  OUT (X7:7)
L FAN  IN (X7:6)


B




t °C
TČ95
TČ95
SAFETY PUMP THERMOSTAT 95°C
SICHERHEITSPUMPETERMOSTAT 95°C
BEZPEČNOSTNÍ TERM. NA ČERPADLO 95°C
t °C
TČ70
TČ70
PUMP THERMOSTAT 70°C
PUMPETERMOSTAT 70°C
TERMOSTAT NA ČERPADLO 70°C
RESERVOIR POINT "L FAN  OUT" OF BOILER FAN TO THE ELECTRONIC REGULATION
SPEISEKLEMME "L FAN  OUT" DER KESSELGEBLÄSE FÜR DIE ELEKTRONISCHE REGELUNG
PŘIPOJOVACÍ SVORKA "L FAN  OUT" KOTLOVÉHO VENTILÁTORU DO ELEKTRONICKÉ REGULACE
G
H
H
WHEN ELECTRONIC REGULATION CONTROL BOILER PUMP  CONNECTORS "TČ70" AND "TČ95" MUST BE UNCONNECT
DEN KONNEKTOREN "TČ70" UND "TČ95" ABKLEMMEN BEI DER KESSELPUMPEBEDIENUNG DER ELEKTRONISCHE REGELUNG
KONEKTORY "TČ70" A "TČ95" ODPOJIT PŘI OVLÁDÁNÍ KOTLOVÉHO ČERPADLA ELEKTRONICKOU REGULACÍ
H
