ATP ATP Instrumentation Ltd ET-935 User manual

User Manual
Professional Anemometer
Please read this user manual thoroughly before using this
unit and keep it for your future reference.

Contents
1. Safety.......................................................1
2. Introduction ..............................................2
3. Features...................................................2
4. Specifications...........................................3
5. Meter Description.....................................5
6. LCD Display Description..........................6
7. Operating Instructions .............................7
8. Notes......................................................11
9. Accessories............................................12

1
1. Safety
Read the following safety information carefully before
attempting to operate the meter.
Use the meter only as specified in this manual; otherwise,
the warranty may be invalidated.
یEnvironment conditions:
RH 90ˁ˄Non-Condensation˅
Operating Temperature: -20°C 60°C
یMaintenance
Repairs or servicing should only be performed by ATP
Instrumentation Ltd.
Cleaning: Wipe the unit with a dry soft cloth. Do not use
abrasives or solvents on this instrument.
یSafety Symbol
Complies with EMC

2
2. Introduction
The Anemometer is designed for measuring air velocity, air
flow and temperature. 35mm high contrast easy-read
backlit LCD display with function indicators for air velocity,
temperature and air velocity level, shown at the same time.
3. Features
Circuit: based on fast and high accurate MCU design
High accuracy NTC resistance for air temperature
measuring
Air velocity bar graph indicator
Low voltage battery indication
MAX/MIN/AVG/HOLD function

3
4. Specifications
Air Velocity Range
-30
60
(-22
℉
140
℉
)
0.430 m/s 0.858 Knots
167 MPH 805900 ft/min
1.4108 Km/h
Air Temp. Accuracy ±1.5
(±2.7
℉
)
Air Velocity Accuracy ±3%±0.1
Resolution 0.1
Sampling rate 1 time per second
Operating temperature -20
60
(-4
℉
140
℉
)
Operating humidity <90%RH˄Non-condensation˅
Storage temperature -30
60
(-22
℉
140
℉
)
Storage humidity <80%RH
Air velocity level
indication
level 0-16 with analog bar-graph
Measurement average average reading of the latest 10 records
Maximum / Minimum MAX/MIN
Reading freezing HOLD
Area set 0.001 9999 m2˄0.0019999ft2˅
Power Supply 1x 9V battery with type of 006P,NEDA1604
or IEC6F22

4
Auto power off Automatically power off after approx. 15
minutes of inactivity
Display 4 digit 35mm LCD display
Battery life at least 30 hours
Dimension(L*W*H) 158*62*32mm
Weight 292g

5
5. Meter Description

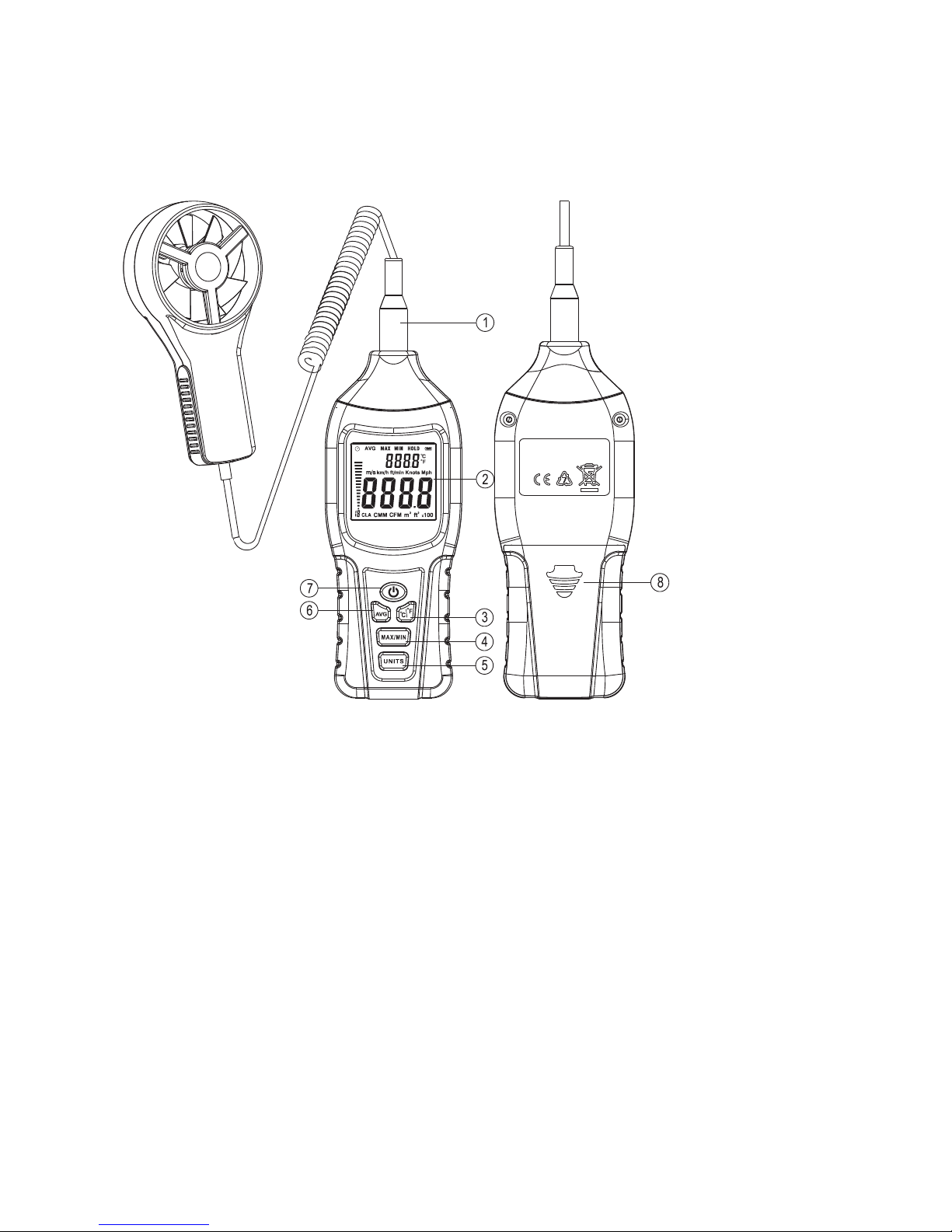

①Air Velocity Sensor ②LCD display
③Temperature Units Selection ④MAX/MIN/HOLD
Button
⑤Velocity Units Selection ⑥AVG/Backlight
Button
⑦Power ON/OFF ⑧Battery cover

6
6. LCD Display Description
①Timing shutdown Icon ②AVG Icon
③MAX Icon ④MIN Icon
⑤HOLD Icon ⑥Battery Icon
⑦Temperature unit
⑧Air Velocity Units: m/sˈkm/hˈft/minˈknots (nautical miles
per hour), MPH
⑨Air Velocity readings
⑩×100 (100 times for air volume reading)
⑪Area units: m2, ft2
⑫Air flow units: CMM (cubic meters per minute),
CFM (cubic feet per minute)
⑬Air Velocity level indication
⑭Analog bar-graph indication for air velocity level
⑮Measuring temperature readings

7
7. Operating Instructions
Open battery cover and install a 9-volt battery in the battery
compartment.
Power ON˖To turn the meter on, press the " " button for
1 second until the LCD is lit, then release the button.
Power OFF˖To turn the meter off, press and hold the
"" button for approx. 3 seconds until the LCD is
switched off, then release the button.
“ ” icon: When the low battery icon " " appears,
replace the meter's battery.
(5) Auto power off icon, the meter will automatically turn
off after approx. 15 minutes of inactivity.
(6) LCD Backlight: After turning the meter on, momentarily
press " " button, the backlight will turn on/off. It will
automatically turn off after approx. 30 seconds of inactivity.
(7) Units selection: After enter measuring mode, press
“” button to select desired units.
(8) HOLD: Press “ ” button one time, “HOLD” icon will
appear on LCD, which indicates the reading is frozen.

8
Press the button again to exit HOLD mode.
(9) MAX/MIN: Press " " button one time until "MAX"
icon appears on the LCD to view the current MAX reading;
press the button again, "MIN" icon will appear to view the
current MIN reading. To exit the MAX/MIN mode, press the
"" button again.
(10) AVG Button: Press “ ” button one time, ‘AVG’ will
appear on LCD and the meter will enter the average
measuring mode. The average reading of the latest 10
records will be displayed on the LCD.
(11)Temperature Units selection: Press" "button to
select or ℉.
(12) Area Set
Press and hold the “ ” button and then power the meter
on, release ‘ ’ button when LCD displays, at the time
the display will show as following (Note: the area units can
be set by press “ ” button for 3 seconds)

9
˖

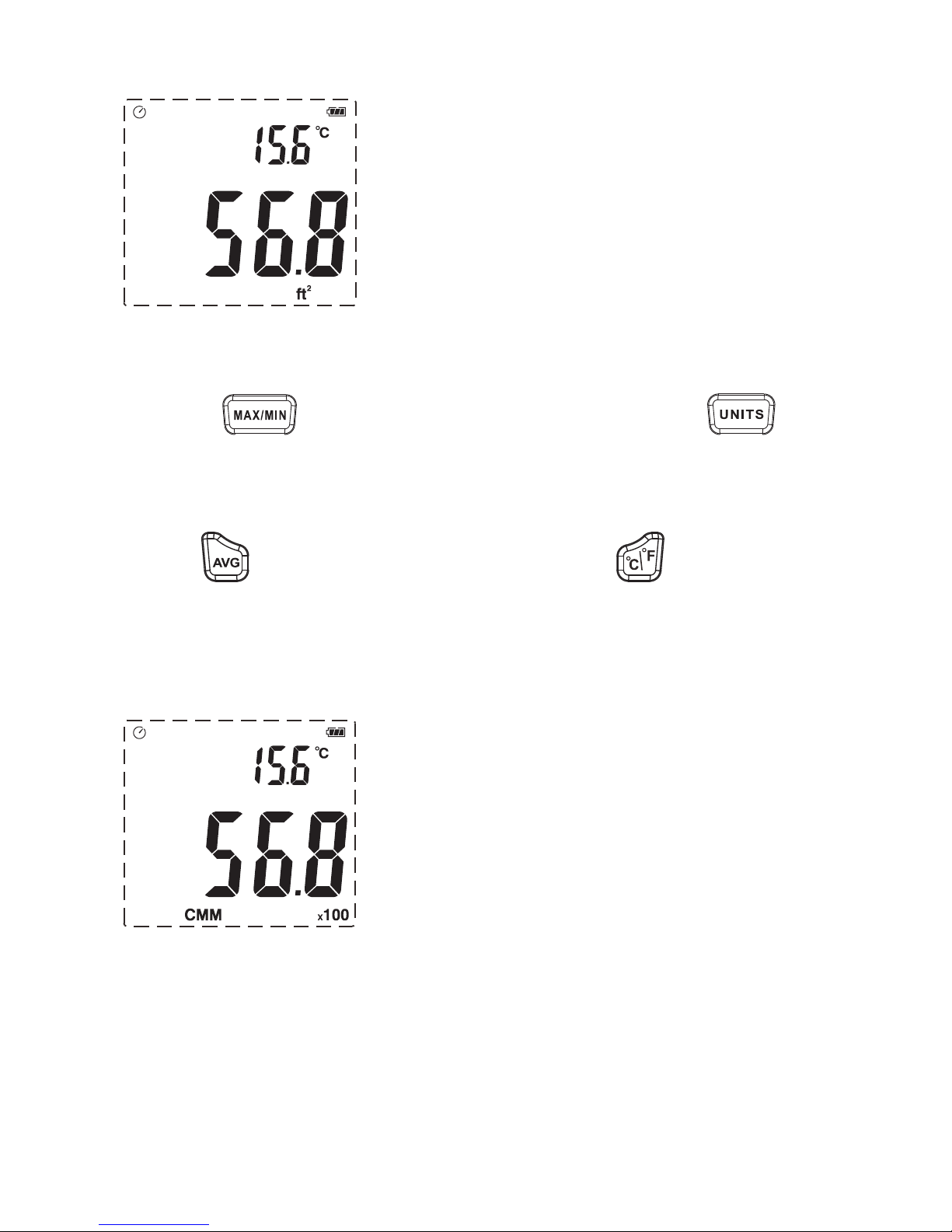

Set the area units as square centimeter (fig. as above)
Press“ ”to increase the dataˈpress“ ”to decrease
the data

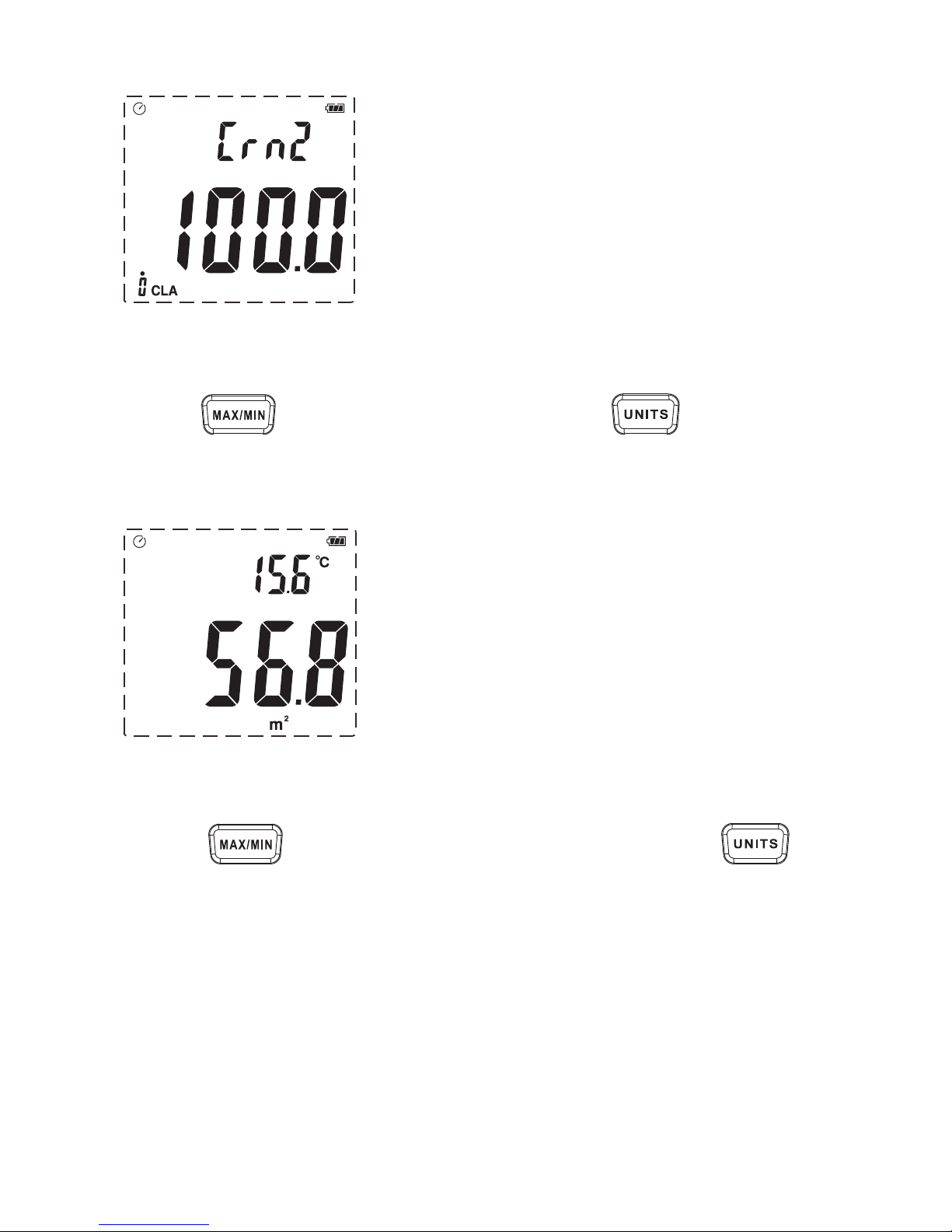

Set the area units as square meter (fig. as above)
Press“ ” to increase the data ˈpress“ ”to
decrease the data

10
Set the area units as square feet (fig. as above)
Press “ ” to increase the data ˈpress“ ” to
decrease the data
Press“ ” to increase the dataˈpress“ ” to decrease
the data
Air volume
Air volume display x 100 the actual volume = displayed
data x 100

11
8. Notes
1) This meter has already been calibrated before
delivery.
2) Repairs or servicing should only be performed by ATP
Instrumentation Ltd.
3) Remove the battery when the meter is to be stored for
long periods of time to avoid battery leakage.

12
9. Accessories
①Sensor
②User manual
③9V battery
