Attwood 66510 User manual

APPLICATION
Attwood flush pull-up cleats provide easy fittings for mooring and anchoring applications.
NOTE: It is recommended that the installation of the Attwood Flush Cleats be done by a
boat builder, boat dealer, or a qualified marine mechanic.
REQUIRED FOR INSTALLATION • Sabre saw
• Screwdriver
• Marine sealant
•Adjustable wrench
•Length of 3/8" (9.5mm) I.D. hose
•Cordless drill and bits
WARNING:
To prevent personal injury, always disconnect the power source when installing or
servicing this product. Always remove the boat from the water before using any 120V AC
power tools.
LOCATION
Select an installation location that meets the following criteria:
• Location on vessel must be able to withstand loads specified in application section.
See ABYC Reg. H-40 for details and ratings.
•Location is large enough and wide enough to accommodate the entire cleat body.
•Access to the underside of the vessel is necessary for both models in order to tighten
the fasteners.
FLUSH CLEAT TEMPLATES
Figure 1
Figure 2
4" and 6" Flush Mounted Cleat
66510, 66511, 66512, 66513, 66514, 66516
Installation Instructions
3
®
SAVE THESE INSTRUCTIONS
Form Number 69343 Rev. G 04-04
FLUSH CLEAT INSTALLATION INSTRUCTIONS
NOTE: Before you drill or cut a hole on your boat, BE ABSOLUTELY CERTAIN there is
room for the unit beneath the deck or gunwale where it will be installed. The cleat mechanism,
in the down position, will be recessed beneath the deck or gunwale.
1. Use templates provided to mark opening in deck (Figure 1 or 2). Cut using sabre saw
and drill four 1/4" (6.4mm) holes where indicated (thru-bolt cleat only).
2. Remove the supplied fasteners from the studded cleat. Apply a small bead of marine
sealant around the edge of the cut-out and place cleat in hole cut-out.
3. Align backing plate with the underside of the cleat. For the 4" thru-bolt version use (4)
#10 machine screws, locking washers and nuts (regular washers and nylock nuts can
be substituted). For the 6" thru-bolt version use (4) 1/4"-20 machine screws, locking
washers and nuts (regular washers and nylock nuts can be substituted).
4. Ensure the screw is long enough to provide for proper engagement with the nut. Attach
washers and nuts to the studs or screws and tighten.
WARNING:
The Flush Cleats are not to be used for towing, lifting, or for any other anchoring application
beyond those listed above. Any misuse of the intended application may result in personal
injury and/or damage to the boat.
1.75"
(4.45cm)
2"
(5.08cm)
1.650"
(4.19cm)
1.429"
(3.63cm)
1.657" (4.21cm)
4" Cut-Out Template
6" Cut-Out Template
4.764" (12.1cm)
6.475" (16.45cm)
2.220" (5.64cm)
7/8" Radius
1" Radius

Hose
Fitting
•
•
•
Lock
Washer Nut
Wate
r
Receptacl
e
(Sold
Separately)
•

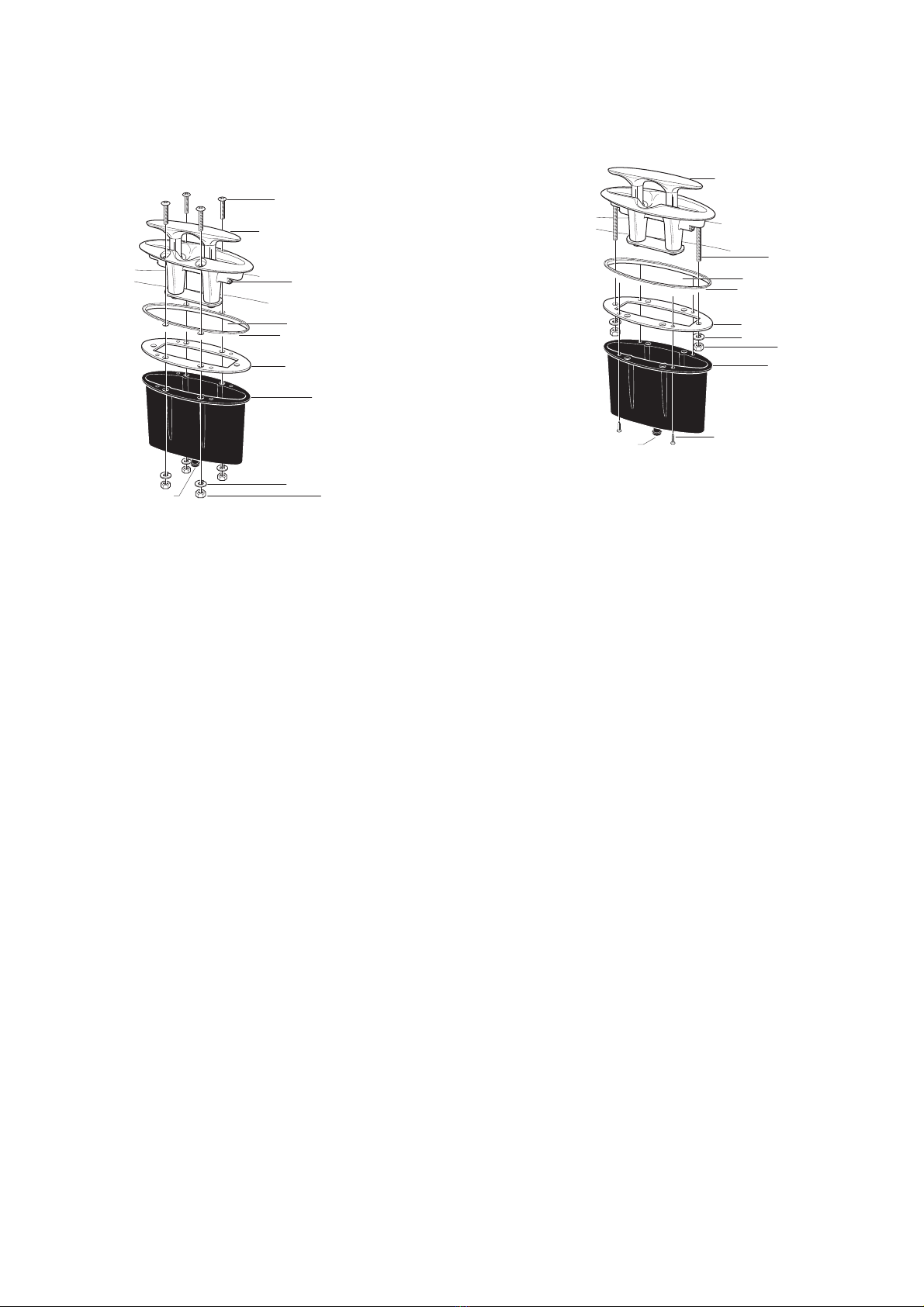

Machine
Screws
•
Tension/
Travel
Adjustmen
tSet
Screw
•
Cut-Out Hole
Marine Sealant
•
•
• Backing
Plate
• Thru-Bolt Flush
Cleat
Figure
3
Wate
r
Receptacl
e
(Sold
Separately)
•Self-Tapping
Screws
Hose
Fitting
•
•
•
Marine
Sealant
•
Studs
•
Backing
Plate
Nut
•Lock
Washer
•Studded Flush
Cleat
Cut-Out
Hole
•
•
Figure
4
OPTIONAL WATER RECEPTACLE INSTALLATION. (Water receptacle sold
separately.) If using the water receptacle on:
Thru-Bolt Version
The same cut-out can be used when the cleat is mounted with the receptacle.
1. Place water receptacle on underside of cleat and attach per flush cleat installation
instructions (Figure 3). The screws used must be long enough to go through the
flange of the cleat, deck, mounting plate and then the water receptacle.
2. Connect 3/8" inner diameter hose to the fitting on the receptacle. Route the hose into
the bilge or to a drain fitting.
Studded
Version
1. After the cleat has been installed, attach water receptacle to the backing plate using
(4) #8 self-tapping screws (Figure 4).
2. Connect 3/8" inner diameter hose to the fitting on the water receptacle. Route hose
into bilge or to a drain fitting.
MAINTENANC
E
•Asilicone based lubricant maybe used on cleat shafts to increase the ease of
travel.
ATTWOOD LIMITED WARRANTY
This limited warranty is not applicable if the product has been damaged by accident,
improper installation, unreasonable or improper use, lack of proper maintenance,
unauthorized repairs or modifications, normal wear and tear, or other causes not
arising out of defects in materials or workmanship.
Attwood products are warranted for use on pleasure boats. Any other use — including
but not limited to commercial, racing, or non-marine use — are not covered under this
warranty. Attwood’s obligation under this warranty is limited to repair of the product at
Attwood’s plant or replacement of the products at Attwood’s option without expense
to the original consumer purchaser. Any expenses involved in the removal, reinstallation
or transportation of the product are not covered by this warranty.
The product must be returned to Attwood’s plant at the address above, postage prepaid,
and insured with proof of original purchase including date.
If Attwood is unable to replace the product and repair is not commercially practical or
cannot be timely made, or if the original consumer purchaser is willing to accept a refund
in lieu of repair or replacement, Attwood may refund the purchase price, less an amount
for depreciation. The acceptance by Attwood of any product returned or any refund
provided by Attwood shall not be deemed an admission that the product is defective
or in violation of any warranty. Products that are replaced or for which a refund is
issued become the property of Attwood.
THIS WARRANTY IS ATTWOOD’S ONLY EXPRESS WARRANTY OF THIS
PRODUCT. NO IMPLIED WARRANTY SHALL EXTEND BEYOND ONE (1) YEAR
FROM THE DATE OF ORIGINAL CONSUMER PURCHASE. ATTWOOD SHALL NOT
BE LIABLE FOR ANY DAMAGES FOR LOSS OF USE OF THIS PRODUCT, NOR FOR
ANY OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES, COSTS OR
EXPENSES.
Some states do not allow limitations on how long an implied warranty lasts or the
exclusion or limitation of incidental or consequential damages, so the above limitations
and exclusions may not apply to you. This warranty gives you specific legal rights, and
you may have other rights which vary from state to state.
