ShoreLand'r DUB 2314 User manual

DUB 2314 TRAILER
Shoreland’r Trailer Install Guide
WB.DUB23T.01
https://support.legendboats.com/ 1
Riggers should be cautious assembling trailers and always use two people to move or rotate any
heavy items. Your safety is our #1 priority.
NOTE

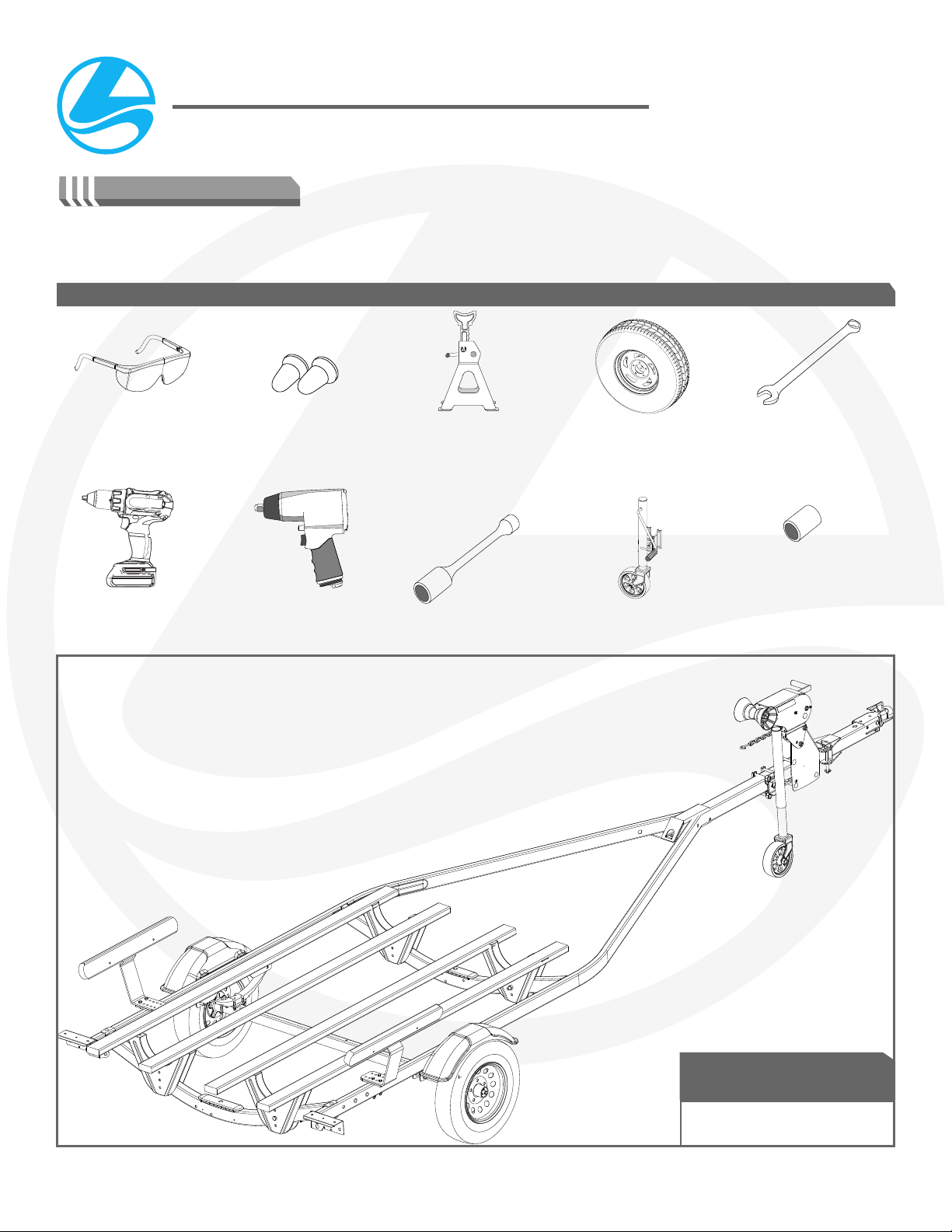

TOOLS REQUIRED
Drill
Safety
Glasses
Jack
Stands
Hearing
Protection
Torque Stick
Pneumatic
Socket Wrench
Tires
Jack & Dolly
APPLICABLE
BOAT MODELS
F19 Pro Tiller
9/16” Wrench
13/16” Wrench
3/4” Wrench
3/8” Socket
9/16” Socket
13/16” Socket
3/4” Socket
22mm Socket

DUB 2314 TRAILER
Shoreland’r Trailer Install Guide
WB.DUB23T.01
https://support.legendboats.com/
2
INDEX
PREPARATION............................................................3
LEAF SPRINGS............................................................4
AXLE.................................................................................5
TIRES................................................................................6
TONGUE TUBE............................................................7
SAFETY CHAINS........................................................9
WINCH POST................................................................10
JACK & DOLLEY.........................................................12
BUNKS.............................................................................13
GUIDE-ON BUNKS.....................................................14
ID TAGGING..................................................................15

DUB 2314 TRAILER
Shoreland’r Trailer Install Guide
WB.DUB23T.01
https://support.legendboats.com/ 3
Remove all parts strapped onto the Trailer Frame and locate the hardware bag.
PREPARATION

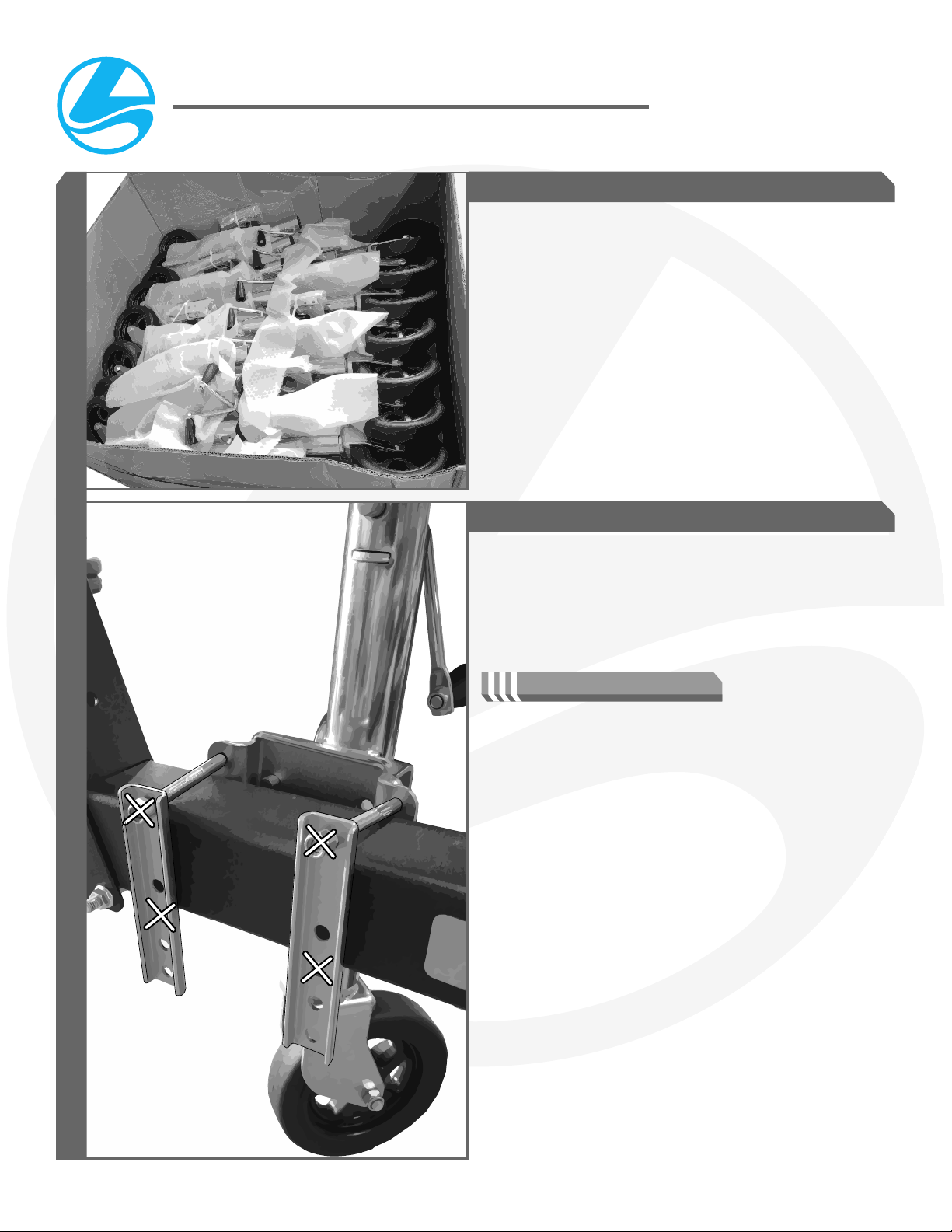

STEP 1
STEP 2
STEP 3
Referencing the manufacturers
specifications on the trailer frame, locate the
tires required.
Match the tire code located on the face of
the tire with the specified tire type.
Rig and hoist the trailer frame into the air.
Lower and rest the trailer frame onto the
jack stands ensuring the jack stands are
appropriately positioned.
Remove the plastic spacers around the
trailer and recycle accordingly.

DUB 2314 TRAILER
Shoreland’r Trailer Install Guide
WB.DUB23T.01
https://support.legendboats.com/
4
The Leaf Spring should hook and rest on the
rear bushing.
ATTENTION
The Leaf Spring should hook and rest on the
rear bushing.
ATTENTION
Do not over tighten the bolts on the frame.
ATTENTION
STEP 1
STEP 2
STEP 3
Mount the supplied spring bushing spacer
and bolt into the rear leaf spring brackets
of the Trailer.
Hand tighten with supplied nuts. Threads
should rest on the inside of the trailer.
Hook the leaf spring onto the rear bushing
spacer and thread the supplied bolt into
the leaf spring through the front bracket,
locking it in place.
Hand tighten with supplied nut.
Using a wrench and pneumatic drill,
tighten the leaf springs onto the trailer
frame.
LEAF SPRINGS

DUB 2314 TRAILER
Shoreland’r Trailer Install Guide
WB.DUB23T.01
https://support.legendboats.com/ 5

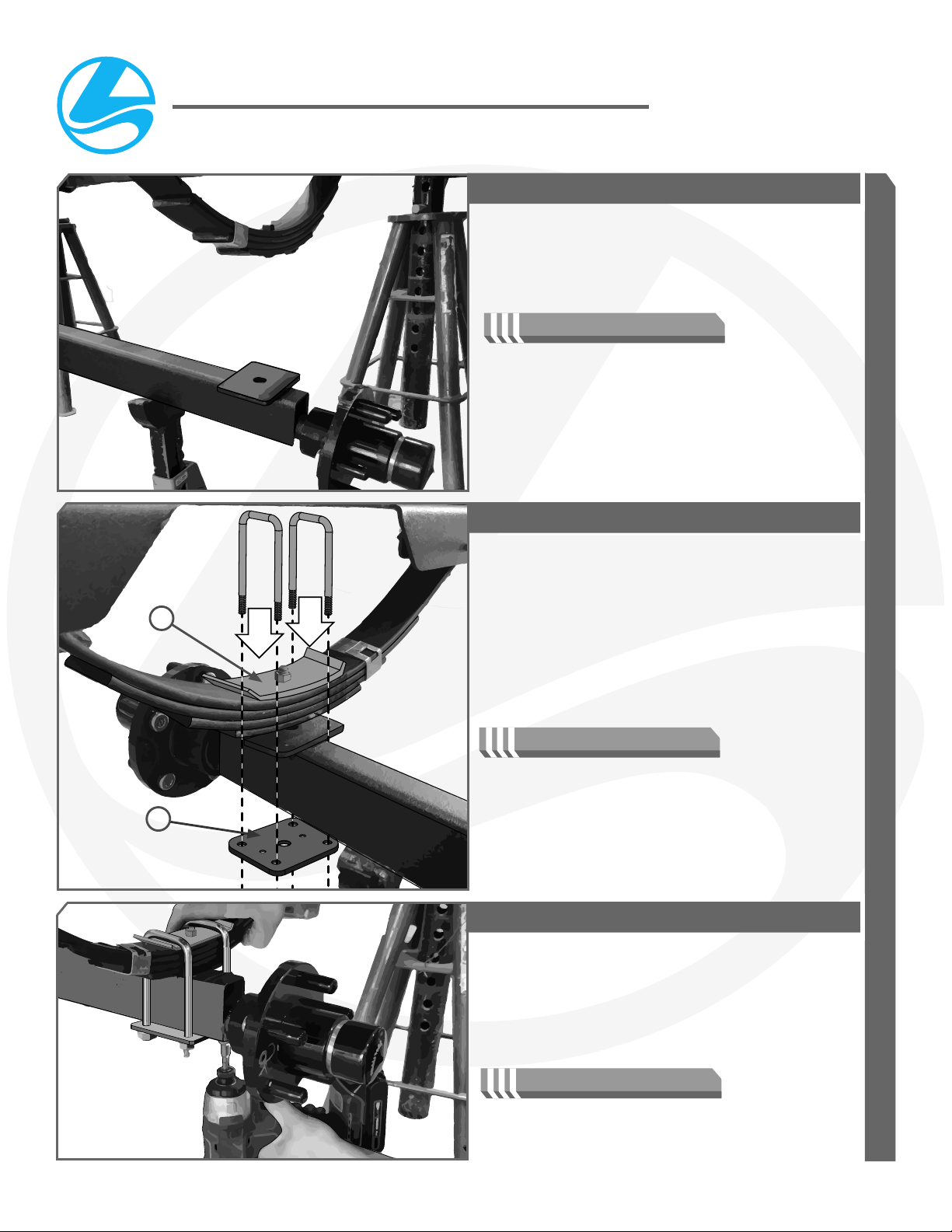

Ensure the Axle is properly centered in the
middle of the leaf springs and the U-Bolts are
resting on top of the spring clamp.
ATTENTION
Do not over tighten the bolts on the axle.
ATTENTION
STEP 1
STEP 2
STEP 3
Raise the axle to the leaf spring and
install the two U-Bolts over the leaf
spring, spring clamp (A), and through
the U-Bolt plate (B).
Hand tighten the supplied nuts and
repeat to the opposite side.
Using a drill, tighten the nuts securing
the axle onto the Leaf Springs and the
Leaf Springs onto the Frame.
AXLE
Ensure proper lifting form when moving any
heavy items. If you cannot safely move the
axle, two riggers are required.
ATTENTION
Lineup a jack stand beneath both leaf
springs and lift the axle onto the jack
stand.
B
A

DUB 2314 TRAILER
Shoreland’r Trailer Install Guide
WB.DUB23T.01
https://support.legendboats.com/
6
Ensure the tapered end points inward.
ATTENTION
STEP 1
STEP 2
STEP 3
Locate the tires as specified on the trailer
frame specifications sticker and mount the
tire onto the axle, aligning the lug nuts with
the holes in the rim.
Loosely install the supplied Lug Nuts onto
the lug bolts. Ensure the tapered end of the
lug nut points inward.
TIRES
Use a torque bar rated to 90lbs to
tighten the lug nuts in a star pattern.
ATTENTION
Using a pneumatic drill tighten the nuts in a
star pattern, securing the tire onto the axle.
When the trailer is lowered to the ground,
tighten the lug nuts with a torque bar to
90lbs.
Ensure the tire is mounted properly by
confirming the valve stem is facing outwards.
ATTENTION

DUB 2314 TRAILER
Shoreland’r Trailer Install Guide
WB.DUB23T.01
https://support.legendboats.com/ 7
STEP 3

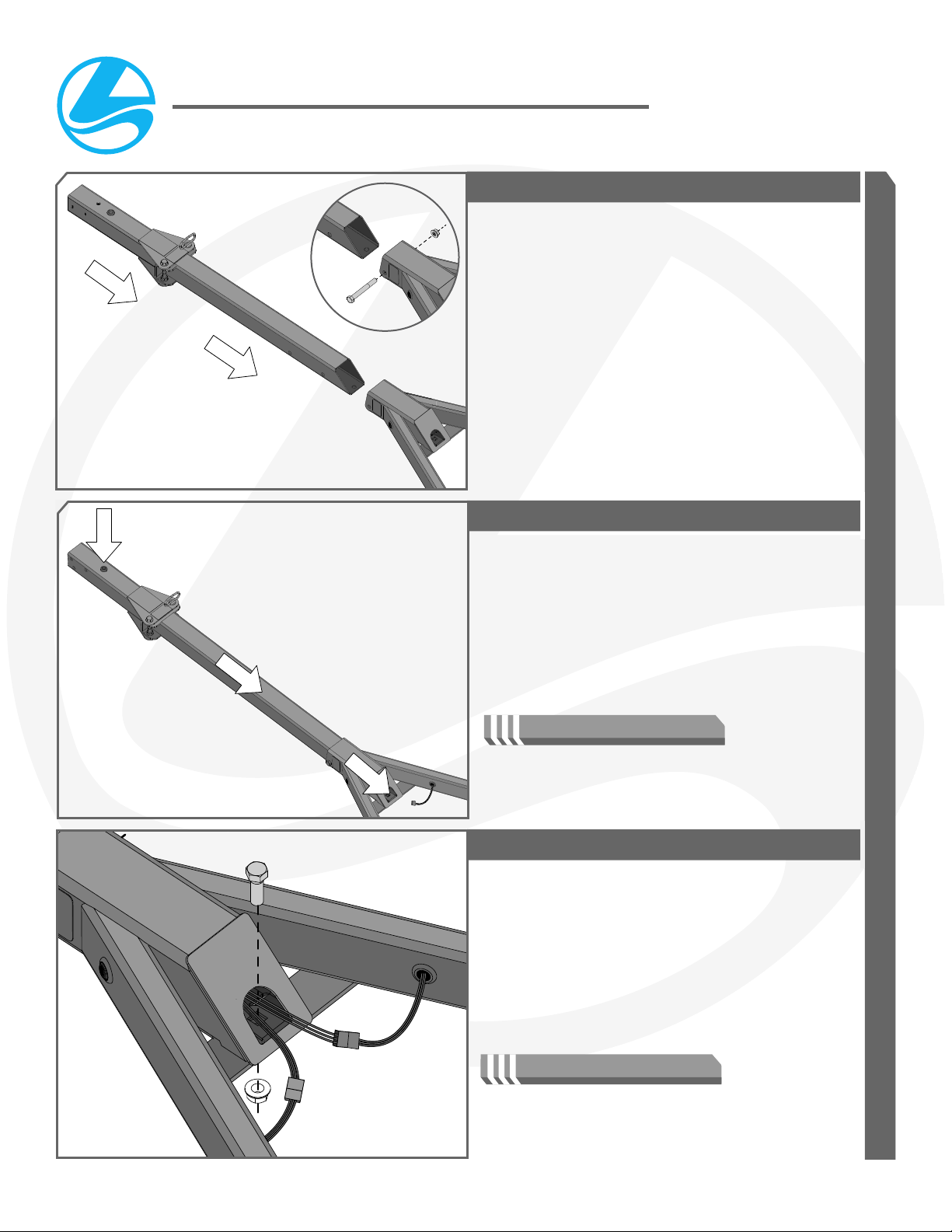

STEP 1
Insert the tongue assembly through the
front channel of the frame.
Install the tongue into the frame with
the supplied hardware, do not install the
vertical bolt.
STEP 2
Locate and insert the tongue wire
harness into the hole at the top of the
tongue. Thread the wiring out the rear of
the tongue.
Connect the rear tongue wire harness to
the trailer harness by matching plugs.
TONGUE TUBE
Opening the swing tongue can assist in
threading the wiring. Do not pinch the
wiring when closing the swing tongue.
NOTE
Ensure all bolts are properly tightened and
no excess wiring is exposed.
ATTENTION
Install the vertical bolt through the trailer
frame and tongue using the supplied
hardware.
Hide any excess wiring inside the tongue
tube.

DUB 2314 TRAILER
Shoreland’r Trailer Install Guide
WB.DUB23T.01
https://support.legendboats.com/
8
TONGUE TUBE
Refer to the Legend Wholesale Guide for the
proper tongue.
ATTENTION

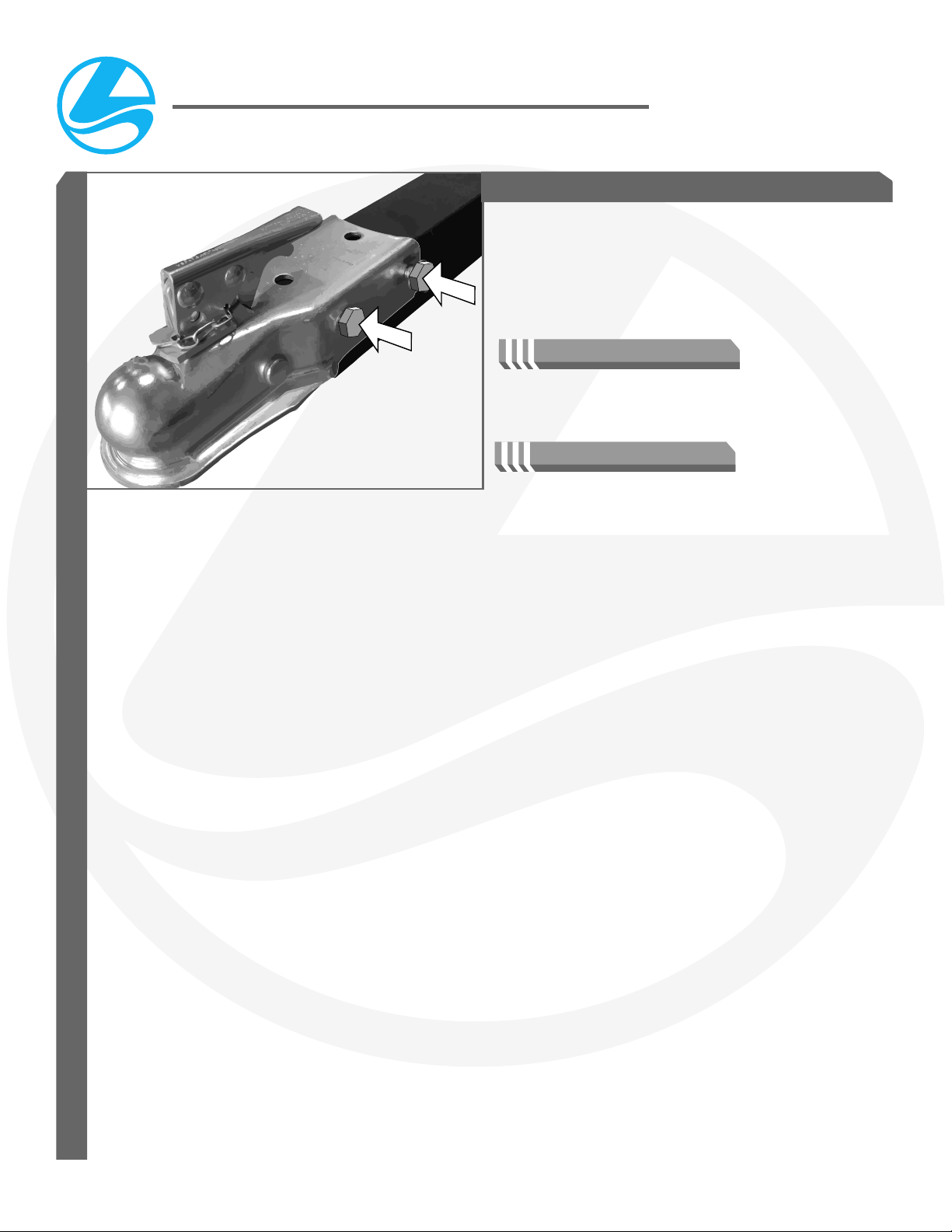

Locate the proper coupler for the trailer
based on the Legend wholesale guide.
Using the supplied hardware install the
coupler onto the front of the tongue.
STEP 4
Reference the supplier manual for exact
hardware call-outs.
NOTE

DUB 2314 TRAILER
Shoreland’r Trailer Install Guide
WB.DUB23T.01
https://support.legendboats.com/ 9

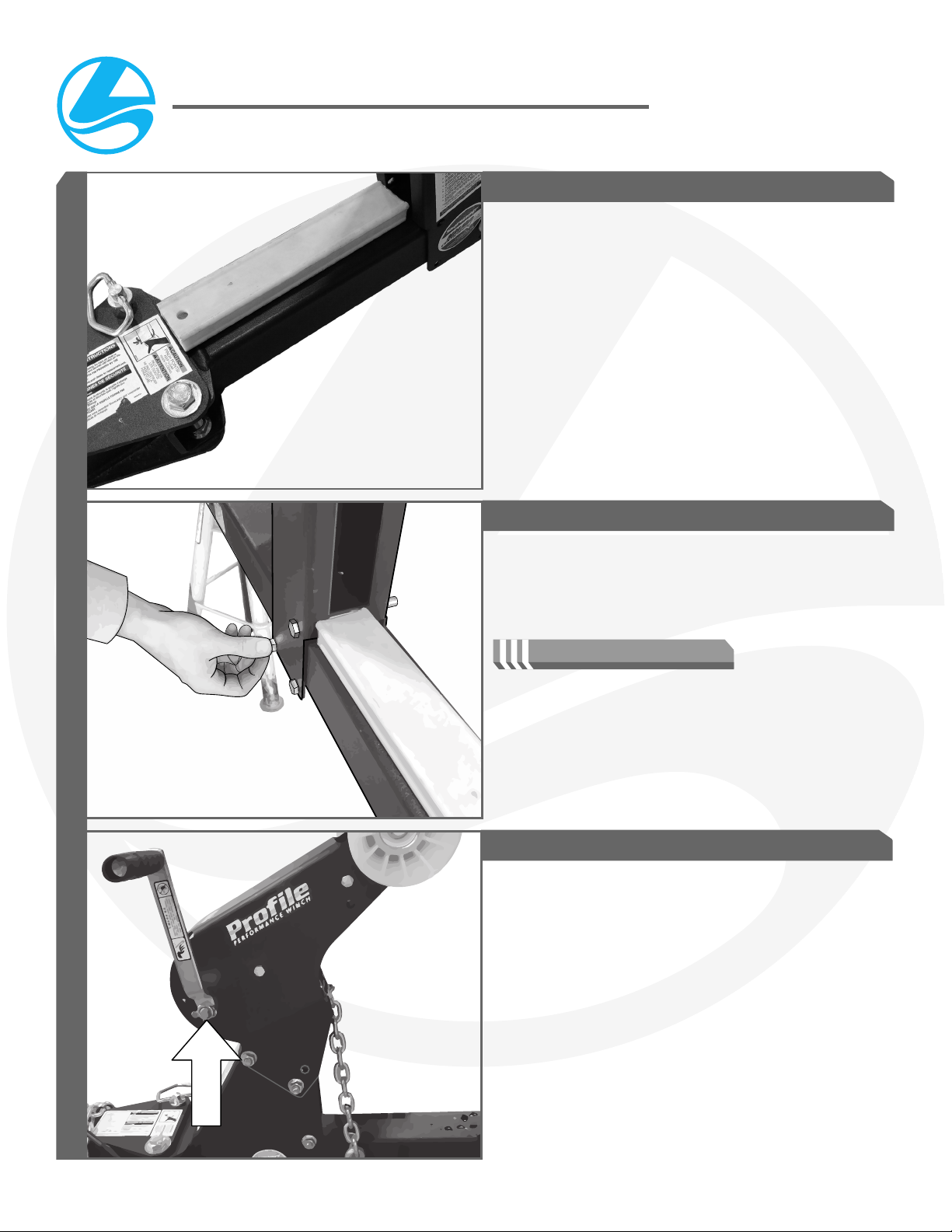

Locate the safety chains and install them
onto the tongue tube using the supplied
hardware.
Repeat to the opposite side.
Reference the supplier manual for exact
hardware call-outs.
NOTE
STEP 1
SAFETY CHAINS

DUB 2314 TRAILER
Shoreland’r Trailer Install Guide
WB.DUB23T.01
https://support.legendboats.com/
10
Ensure the bolts are properly tightened using a
socket drill and wrench.
ATTENTION
STEP 1
STEP 2
STEP 3
Locate and mount the winch post assembly
onto the tongue.
The winch post location is boat specific.
Refer to the Legend wholesale guide for
the mounting position and locate the
template in the workshop.
Install the winch post onto the tongue
using the supplied hardware and template.
Install the winch handle onto the drive
shaft of the winch, secure using the
supplied hardware.
WINCH POST
TEMPLATETEMPLATE
TEMPLATETEMPLATE

DUB 2314 TRAILER
Shoreland’r Trailer Install Guide
WB.DUB23T.01
https://support.legendboats.com/ 11
The Roller location is boat dependent,
refer to the Legend Wholesale guide for
the hole location and adjust the mast to
the appropriate hole.
Tighten all hardware using a socket drill
and wrench.
STEP 4
WINCH POST

DUB 2314 TRAILER
Shoreland’r Trailer Install Guide
WB.DUB23T.01
https://support.legendboats.com/
12
STEP 1
STEP 2
Locate the Jack & Dolly and organize
the parts to begin installation onto the
tongue.
Mount the Jack & Dolly onto the right
side of the tongue and install using the
supplied hardware.
Ensure the lower bolts are positioned in
the correct hole based on the tongue
height. The Jack & Dolly should not wobble
after installing.
NOTE
JACK & DOLLY

DUB 2314 TRAILER
Shoreland’r Trailer Install Guide
WB.DUB23T.01
https://support.legendboats.com/ 13

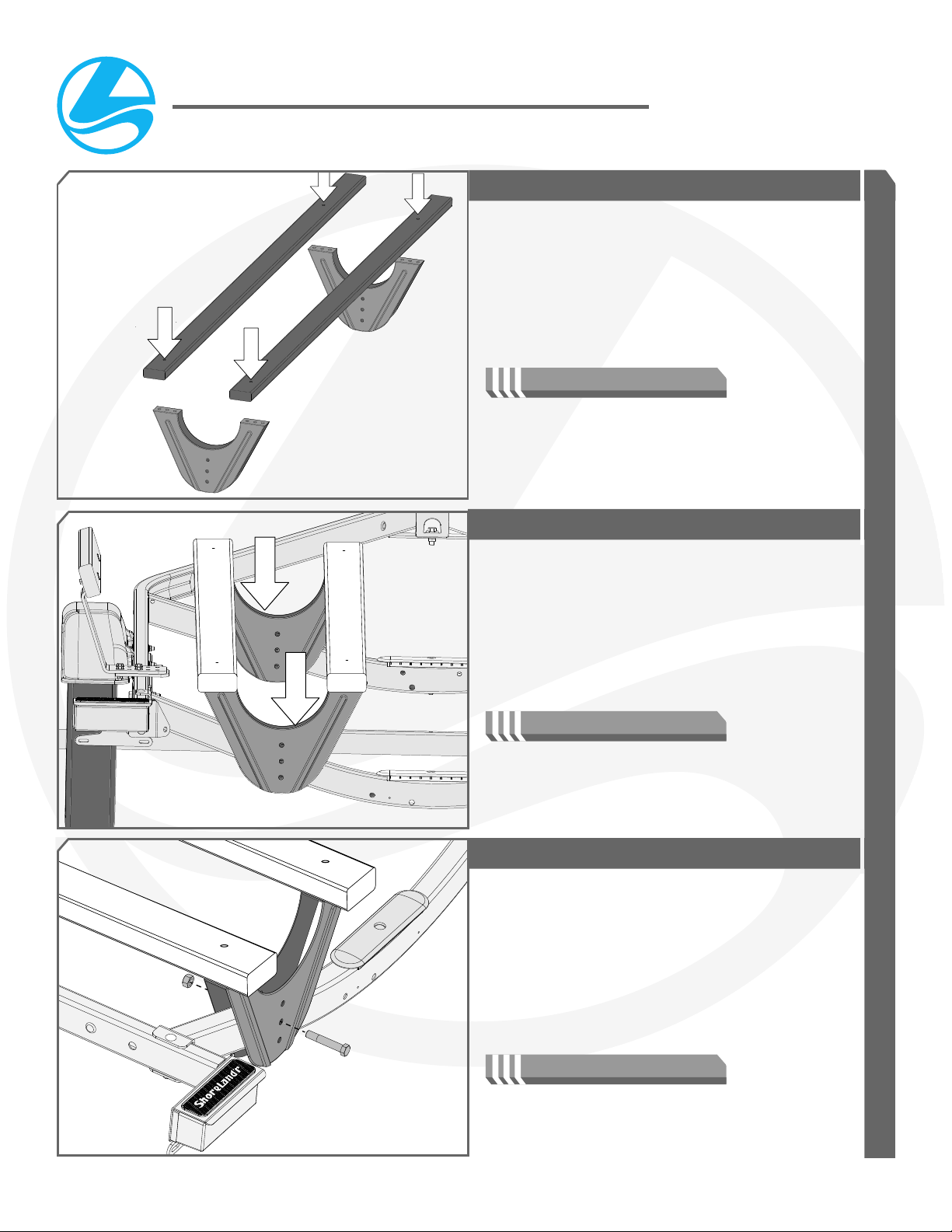

STEP 1
Mount the assembled brackets onto the
cross support members.
Ensure the bracket with the longer
overhang is mounted onto the front
cross supports.
Install the carpet bunks onto the
brackets with the supplied hardware.
The bunk holes are offset to overhang
the front bracket.
Refer to the Legend wholesale guide to
locate each bracket hole mounting and
distance locations.
Install the brackets onto the cross
supports based on the hole call-outs and
supplied hardware.
Ensure the brackets are oriented in the
proper direction based on the manufacturers
documents.
NOTE
Ensure the front bolts are pointing
backwards and the back bolts are pointing
forwards.
NOTE
Ensure the bunks are mounted in the
appropriate mounting holes by referencing
the Legend wholesale guide.
NOTE
Trailer front
Rear Cross Member
Trailer front
Trailer front↑
↑ ↑
↑ ↑
↑STEP 2
STEP 3
BUNKS

DUB 2314 TRAILER
Shoreland’r Trailer Install Guide
WB.DUB23T.01
https://support.legendboats.com/
14
STEP 1
Locate the required hardware and Guide-On bunks to assemble onto the trailer frame.
Install both guide-on bunks onto the trailer using the specified mounting holes and
hardware.
Mounting placement and hardware is trailer specific. Refer to the wholesale manual for
mounting locations.
NOTE
GUIDE-ON BUNKS

DUB 2314 TRAILER
Shoreland’r Trailer Install Guide
WB.DUB23T.01
https://support.legendboats.com/ 15
STEP 1
Referring to the Color Tag Chart, attach the applicable tag onto the winch post.
ID TAGGING
COLORCOLOR
TAGTAG
