ATV FDP690WDR User manual

WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE
VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT.

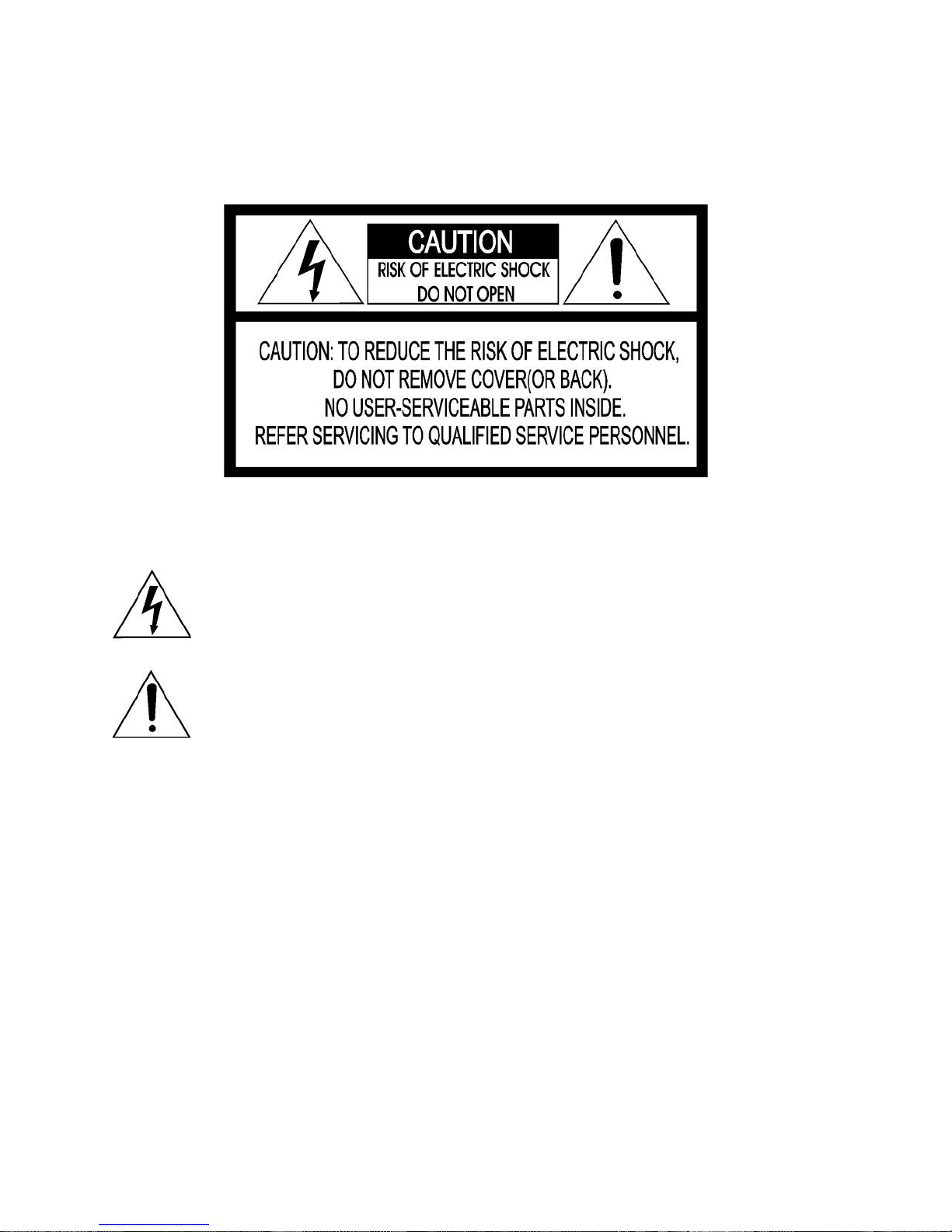

CAUTION
EXPLANATION OF GRAPHICAL SYMBOL
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to
alert the user to the presence of un-insulated "dangerous voltage" within the product's
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the
literature accompanying the product.
PRECAUTIONS
Cleaning
Clean the unit with a slightly damp soft cloth.
Use a mild household detergent. Never use strong solvents such as thinner or Benzene as they might damage
the finish of the unit.
Retain the original carton and pac
king materials for safe transport of this unit in the future.
Installation
Do not install the unit in an extremely hot or humid place or in a place subject to excessive dust.

3

4
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug.
A polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third prong
are provided for your safety. If the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for
long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been moisture, does not operate normally,
or has been dropped.
15. CAUTION – THESE SERVICING INSTRUCTIONS ARE FOR USE BY QUALIFIED
SERVICE PERSONNEL ONLY. TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT PERFORM ANY SERVICING OTHER THAN THAT CONTAINED IN THE
OPERATING INSTRUCTIONS UNLESS YOU QRE QUALIFIED TO DO SO.
16. Use satisfy clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed Class 2 po
wer source only.

5
INTRODUCTION
Camera Model Features:
●1/3" PIXIM CMOS (Seawolf DPS)
●Wide Dynamic Range (WDR)
●Built-in NTSC/PAL video encoder (OSD select)
●690HTLV-E / 540HTVL resolution
●0.1Lux @ F1.2, 50IRE Sensitivity
●1/25 - 1/30,720 sec electronic shutter
●OSD (On Screen Display)
● AGC (Auto Gain Control)
●DNR function
●Auto and manual white balance modes
● BLC (Back Light Compensation)
●12 Privacy Zones (Polygonal Mosaic, White / Black / Red)
●DSS (x2 ~ x32)
●Day & Night (Auto / Color / BW)
●Activity Detection (4 Alarm zones)
●Digital Pan / Tilt / Zoom (1x ~ 4x zoom)
●Synchronization Internal / AC line lock
●Functions (Flip, Sharpness, Freeze, Focus Detector, Flickerless)
●2.8-12mm Day/Night A/I Varifocal Lens F1.2~360
●9-22mm Day/Night A/I Varifocal Lens F1.4~360
●Test Monitor Output
●Operates on 12VDC or 24VAC
●Use Certified / Listed Class 2 power source only

6

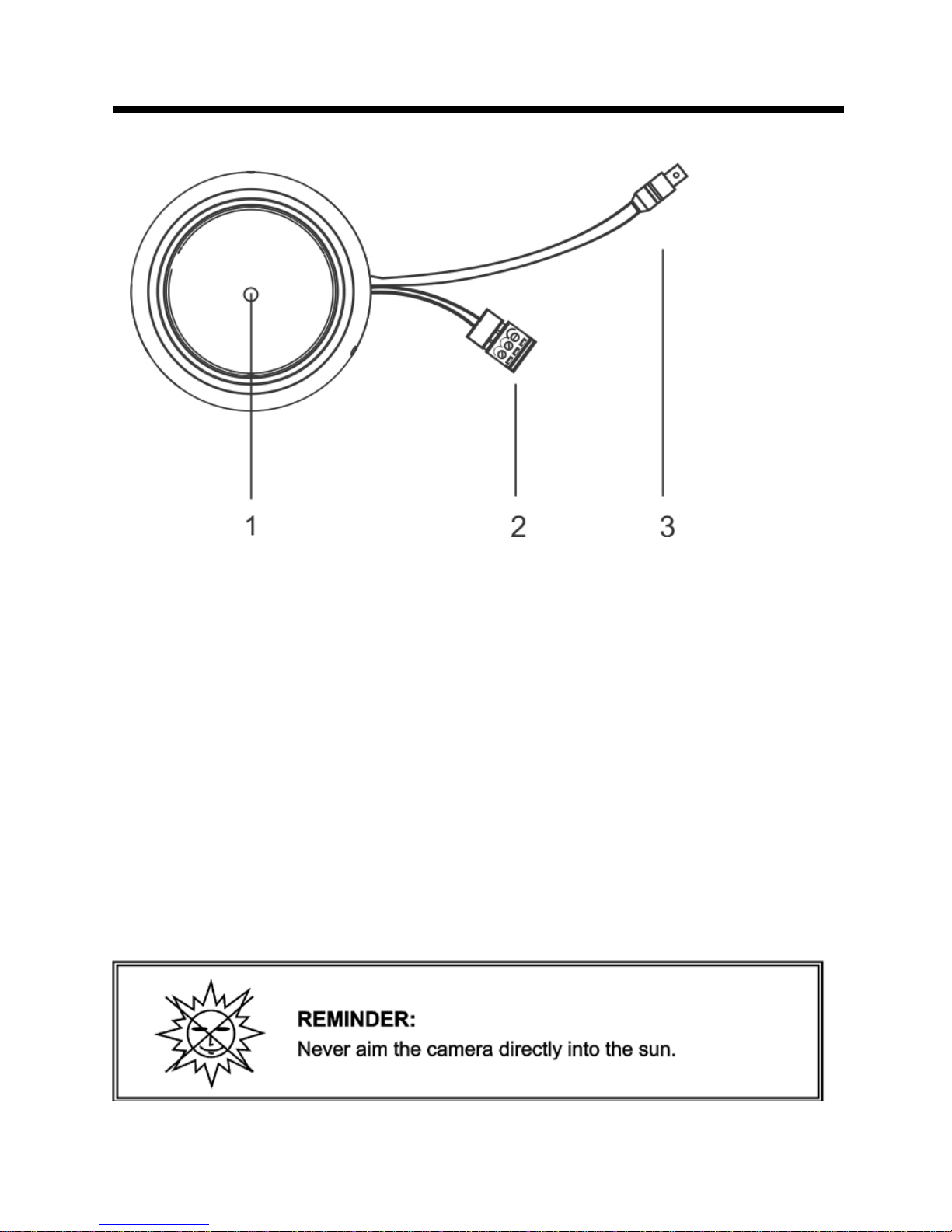

CAMERA CONNECTIONS
1. Lens : A/I Vari-focal lens for wide area monitoring..
2. Power : 24V AC input / 12V DC input
power source from a DC 12V or AC 24V ac +/-10% 60/50Hz +/-1Hz
Use Certified/Listed Class 2 power supply transformer only.
*If using DC 12V power adaptor, use a power supply capable of supplying 6 Watts.
3. Video : BNC connector used to connect the camera to a monitor, switcher, etc

7
CONTENTS OF PACKAGE
Installation of the camera must be performed by qualified service personnel in
accordance with all local and national electrical and mechanical codes.
Carefully remove the color camera and its accessories from the carton and verify that
they were not damaged in shipment.
The contents of the package includes:
1. Color camera
2. Accessory kit
3. Drilling Guide Label
4. This manual
5. Video Test Cable

8

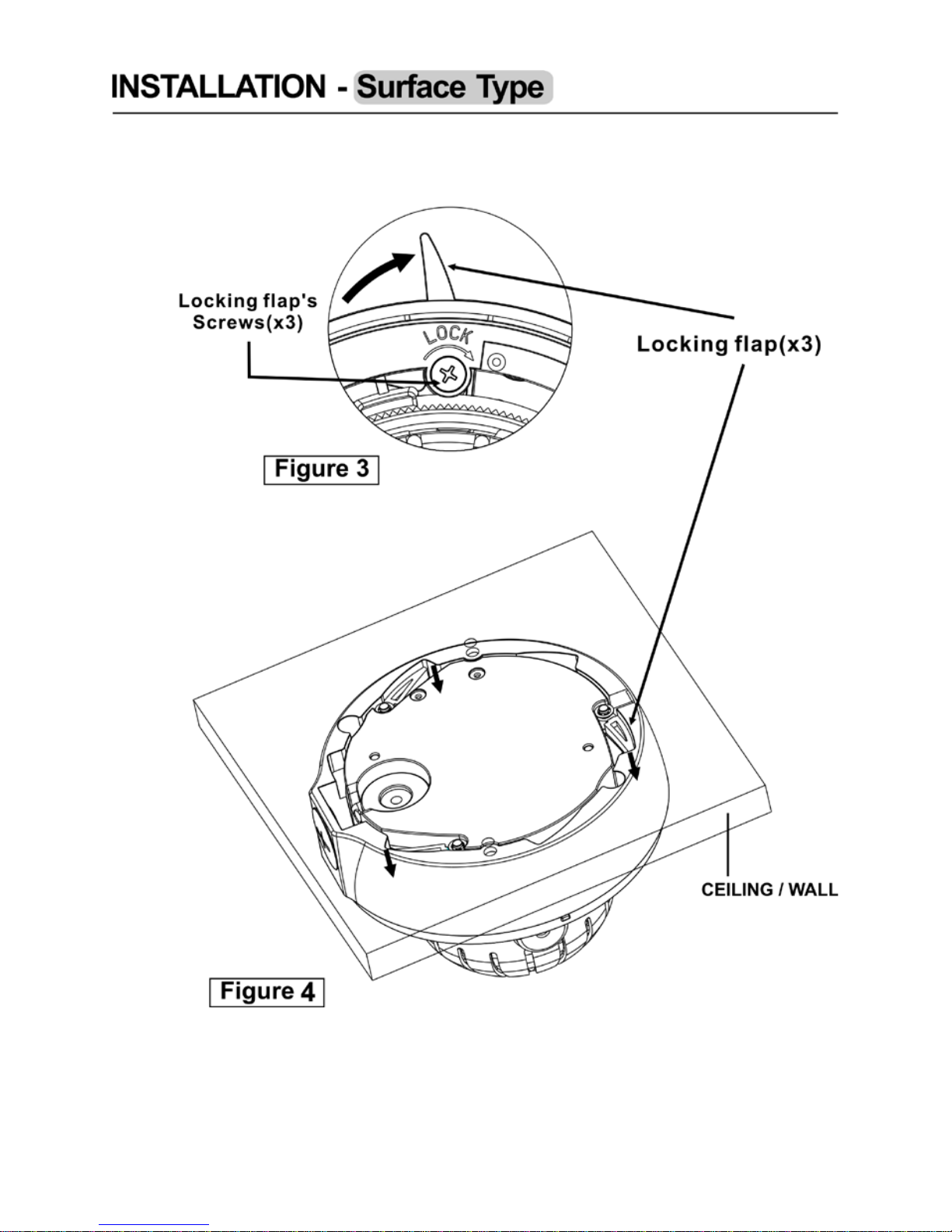

9

10

11

12
CAMERA SET UP – OSD
<MAIN MENU>
EXPOSURE
WDR/BLC
WHITE BALANCE
DAY/NIGHT
SPECIAL
SYSTEM SETUP
DEFAULT
SAVE&EXIT
EXIT
<EXPOSURE >
MODE
EXPOSURE MODE
FLICKERLESS
AGC
DNR
DSS LIMIT
LENS
FOCUS DETECTOR
EXIT
<DAY/NIGHT>
DAY/NIGHT
NIGHT MODE
LOWLIGHT SHARP.
EXIT
<SPECIAL>
FLIP
RENDER INTENT
SHARPNESS
SATURATION
ACTIVITY DETEC.
FREEZE
DIGITAL PTZ
PRIVACY
EXIT
<WDR/BLC>
WDR
BLC
EXIT
<WHITE BALANCE>
MODE
EXIT
<SYSTEM SETUP>
CAM TITLE
DISPLAY
POSITION
VIDEO
SYNC
EXIT

13
OSD MAIN SCREEN
All operation is via the tact switch
- [ENTER] Turn OSD menu ON or OFF
- [UP]/[DOWN] UP or DOWN of Cursor
- [LEFT]/[RIGHT] to go into SUB MENU or change setting
<EXPOSURE MENU>
Press the [ENTER] button to access the "EXPOSURE MENU" mode.
1) MODE DEFAULT, INDOOR, OUTDOOR can be selected.
- DEFAULT Standard video
- INDOOR To brighten the video taken indoors
- OUTDOOR When shooting in a bright area outdoors
2) EXPOSURE MODE 60i/50i, 30p/25p can be selected.
- 60i/50i 1/60(1/50)sec capture mode
- 30p/25p 1/30(1/25)sec capture mode
3) FLICKERLESS OFF, EFR, FFF can be selected.
(Helps resolve luminance problems related fluorescent
flicker(or beating) and fluorescent color roll with camera
set up for 50Hz NTSC)
4) AGC OFF, LOW, MIDDLE, HIGH can be selected.
(As the level of gain increases, the screen gets brighter and
the level of noise also increases)
5) DNR OFF, LOW, MIDDLE, HIGH can be selected.
(Reduces the noise on the screen under low light
condition/AGC)
6) DSS LIMIT OFF, x2, x4, x8, x16, x32 can be selected.
(Helps maintain a bright, clear screen image
by automatically detecting change in the level of light)
7) LENS DC
8) FOCUS DETECTOR FOCUS METER Helps to adjust Lens focus
9) EXIT Return to MAIN MENU.

14
<WDR/BLC MENU>
Press the [ENTER] button to access the "WDR/BLC MENU" mode.
1) WDR LOW, NORMAL, MIDDLE, HIGH can be selected.
(Adjust Wide Dynamic Range)
2) BLC OFF or ON can be selected.
(Camera to optimize the scene for highlights or shadows)
- OFF Set to highlights to provide the best detail in the brighter
areas of the scene
- ON Set to shadows to provide the best detail in the darker
areas of the scene
3) EXIT Return to MAIN MENU.
<WHITE BALANCE MENU>
Press the [ENTER] button to access the "WHITE BALANCE MENU" mode.
1) MODE ATW, PUSH AWB, INDOOR, OUTDOOR, MANUAL can be
selected.
- ATW This mode can be used within the color temperature range
2,000°K ~ 10,500°K
- PUSH AWB One-push automatic white balance control.
Shoot a target white subject and press the [ENTER] button,
and the white balance will be adjusted.
- INDOOR Set the color temperature to 3200°K
- OUTDOOR Set the color temperature to 6300°K
- MANUAL Manual mode.
User can change R and B Gain manually.
2) EXIT Return to MAIN MENU.

15
<DAY/NIGHT MENU>
Press the [ENTER] button to access the "DAY/NIGHT MENU" mode
1) DAY/NIGHT AUTO, COLOR, BW can be selected.
- AUTO This camera has a function which automatically changes to
the appropriate mode for day-time or night-time.
FILTER DELAY : Adjust the delay time of filter movement
When changing from on to off or off to on. (05S~20S)
- COLOR In this mode, the camera outputs the video image only in
color.
- BW In this mode, the camera outputs the video image only in
black and white.
2) NIGHT MODE When set to AUTO, can be selected for night-time
.
(BW / BW+BURST)
3) LOWLIGHT SHARPNESS Adjust Gain Value (-8~+8)
4) EXIT Return to MAIN MENU.
<SYSTEM SETUP>
Press the [ENTER] button to access the "SYSTEM SETUP" mode.
1) CAM TITLE Camera ID can be selected.
2) DISPLAY OFF or ON can be selected.
(Level setting is available in both DC & ELC mode).
3) POSITION UP-LEFT, UP-CENTER, UP-RIGHT, DOWN-LEFT,
DOWN-RIGHT can be selected.
4) VIDEO Used to switch between the video signal systems
(NTSC/PAL)
5) SYNC INTERNAL or LINELOCK can be selected.(Adjust V-PHASE)
6) EXIT Return to MAIN MENU.

16
<SPECIAL MENU>
Press the [ENTER] button to access the “SPECIAL MENU” mode.
1) FLIP OFF, REVERSE, V-FLIP, ROTATION can be selected.
2) RENDER INTENT For low and dim illumination areas
MOVIE – Less sharpness, still maintains color saturation
INFO – Maintains sharpness, less color saturation
(Similar to 2DNR noise reduction – to suit what you want to
achieve at low light level before camera switches to
monochrome mode (sharper image or color rendition)
3) SHARPNESS -8 to +8 can be selected.
4) SATURATION - BIAS: -8 to +8 can be selected.
- 100 IRE SAT: 100 to 130 can be selected.
- STC MODE: CLASSIC, SAT can be selected.
(Progress Bezier algorithm or Slope value)
5) ACTIVITY DETECTION - ALARM: OFF or ON can be selected
(Adjust ACTIVITY THR between 0~255 in steps of 5,
0 = highest sensitivity)
- SETUP ALARM ZONE: Alarm detection zones 1 to 4 can
be selected
Pushing ENTER turning the detection box WHITE allows
you to move the zone on the screen. Pushing ENTER
turning the box GREEN allows you to increase the size of
the zone. Pushing ENTER turning the box RED allows you
to shrink the size of the zone
Note: Once you are satisfied with size and position of the
Alarm zone, push and hold ENTER for approx 2
secs to save this and return to the menu
(Just displayed by “ MOTION DETECTED! ” on the OSD)
6) FREEZE OFF or ON can be selected.
7) DIGITAL PTZ OFF or ON can be selected.
(Adjust Digital Pan, Tilt, Zoom: x1~x4)
8) PRIVACY - PRIVACY MASK: OFF or ON can be selected.
(MASK 1~12, Polygonal Mosaic)
- MASK COLOR: WHITE, BLACK, RED can be selected.
9) EXIT Return to MAIN MENU.

17
SPECIFICATIONS
MODEL NTSC PAL
Power Power Source DC12V / AC24V ±10%
Power Consumption Max 3.0 Watts / 0.25A
General
Image Sensor 1/3" PIXIM CMOS (Seawolf DPS)
Total Pixels 768(H) x 548(V)
Scanning Frequency 15.734KHz(H)
59.94Hz(V) 15.625KHz(H) 50Hz(V)
Electronic Shutter 1/25 ~ 1/30,720 sec
Synchronize System Internal / Line Lock
Resolution 690HTVL-E / 540HTVL
Min. illumination 0.1 Lux @ F1.2, 50IRE
Video Output 1.0 Vp-p (75ohm, Composite)
Day & Night System True ICR
S/N Ratio More than 50dB (AGC off)
Camera Control OSD(Joystick Switch)
Function
EXPOSURE
60i(50i) / 30p(25p)
(DEFAULT / INDOOR / OUTDOOR)
FLICKERLESS OFF / FFF / EFR (AI THRESH -48 ~ +60)
AGC OFF / LOW / MIDDLE / HIGH
DNR OFF / LOW / MIDDLE / HIGH
DSS LIMIT OFF, x2 ~ x32
LENS DC
FOCUS DETECTOR FOCUS METER
WDR LOW / NORMAL / MIDDLE / HIGH (Max.120dB)
BLC OFF / ON
WHITE BALANCE ATW/PUSH AWB/INDOOR/OUTDOOR/MANUAL
(WB BIAS, RED, BLUE)

18
DAY & NIGHT AUTO / COLOR / BW (BW or BW+BURST)
(FILTER DELAY 05 ~ 20s)
LOWLIGHT SHARPNESS -8 ~ +8
FLIP OFF / REVERSE / V-FLIP / ROTATION
RENDER INTENT MOVIE / INFO
SHARPNESS -8 ~ +8
SATURATION BIAS (-8 ~ +8), 100 IRE SAT (100~130),
STC MODE (CLASSIC / SAT)
ACTIVITY DETECTION OFF / ON (SET ALARM ZONE, ACTIVITY THR.)
FREEZE OFF / ON
DIGITAL PTZ ZOOM (X1~X4), PAN(-100~+100),
TILT(-100~+100)
PRIVACY MASK OFF / ON (12 Point, Polygonal Mosaic)
MASK COLOR (WHITE / BLACK / RED)
CAM TITLE OFF / ON ( EDIT, POSITION)
VIDEO STANDARD NTSC / PAL
V-PHASE (Line Lock) 0 ~ 360
EXIT EXIT / SAVE & EXIT
Connector
&
ETC
Power Input 2-Pin Wire
Video Output BNC Connector
Lens Mount Fixed Mount (Φ14)
Lens f=2.8~12mm F1.2~360 Varifocal DC A/I ICR(D&N)
f=9~22mm F1.4~360 Varifocal DC A/I ICR(D&N)
Operating Temperature -10° ~ +50° C [14℉~ 122℉]
Operating Humidity 0 ~ 90% (Non-condencing)

19
50303074A
Subject to change without notice
