ATX QFQR 200A-04 Series User manual

QFQR 200A-04 Series Return Path Optical Receiver
Installation & Operation Manual
Q-SERIES
®
Optical

Q-Series®is a registered trademark of ATX in the United States and/or other countries. Products or features contained herein may be covered by one or more U.S. or foreign
patents. Other non-ATX product and company names in this manual are the property of their respective companies.
Although every effort has been taken to ensure the accuracy of this document it may be necessary, without notice, to make amendments or correct omissions.
Specications subject to change without notice.

Q-Series®Optical – QFQR 200A-04 Series Return Path Optical Receiver – Installation & Operation Manual i
TABLE OF CONTENTS
Page
1. PREFACE .................................................................................................................................................. 1-1
2. DESCRIPTION........................................................................................................................................... 2-1
2.1. Functional Diagram ........................................................................................................................... 2-1
3. FEATURES ................................................................................................................................................ 3-1
4. SPECIFICATIONS ..................................................................................................................................... 4-1
5. FUNCTION GUIDE .................................................................................................................................... 5-1
5.1. Front Panel Guide ............................................................................................................................. 5-1
6. INSTALLATION & ADJUSTMENT ............................................................................................................ 6-1
6.1. Supplies & Tools ................................................................................................................................ 6-1
6.2. Installation ......................................................................................................................................... 6-1
7. CLEANING & MAINTENANCE ................................................................................................................. 7-1
8. SERVICE & SUPPORT.............................................................................................................................. 8-1
8.1. Contact ATX Networks....................................................................................................................... 8-1
8.2. Warranty Information ......................................................................................................................... 8-1

ii Q-Series®Optical – QFQR 200A-04 Series Return Path Optical Receiver – Installation & Operation Manual
This page left intentionally blank.

Q-Series®Optical – QFQR 200A-04 Series Return Path Optical Receiver – Installation & Operation Manual 1-1
CHAPTER 1: PREFACE
PREFACE
1. Preface
This manual describes the QFQR 200A-04 rack mount quad return path optical receiver features, specications, installation,
adjustment and maintenance procedures to install this receiver successfully and use it safely. Users must read the manual
carefully before installation, and perform the installation and adjustment according to this manual. Otherwise, some practices
or circumstances may lead to damage or personal injury. Please contact ATX Networks Technical Support if you should have
any questions.
Important User Information
• Caution: Invisible laser radiation is emitted from ber optic connectors which connect to this unit, exposure can
cause permanent injury to skin or eyes.
• Make sure the case and the power supply are grounded well before powering on the receiver (grounding resistance
should be less than 4Ω) so as to prevent static from damaging the photodiode and injuring user.

1-2 Q-Series®Optical – QFQR 200A-04 Series Return Path Optical Receiver – Installation & Operation Manual
CHAPTER 1: PREFACE
This page left intentionally blank.

Q-Series®Optical – QFQR 200A-04 Series Return Path Optical Receiver – Installation & Operation Manual 2-1
CHAPTER 2: DESCRIPTIONCHAPTER 1: PREFACE
DESCRIPTION
2. Description
The QFQR 200A-04 rack mount quad return path receiver is designed for the reception of optically transmitted CATV signals.
The product utilizes high performance photodiodes and hybrid ampliers. Optical power indicators and RF test ports on the
front panel can be easily used to monitor the receiver’s operating status.
2.1. Functional Diagram
QFQR 200A-04
PRE
AMP
POST
AMP
OPTICAL
RANGE
Diode
OPTICAL
IN 1
Bandpass
Filter Attenuator RF
OUTPUT 1
-20 dB T.P.
Diode
Bandpass
Filter Attenuator RF
OUTPUT 2
-20 dB T.P.
OPTICAL
IN 2
Diode
Bandpass
Filter Attenuator RF
OUTPUT 4
-20 dB T.P.
OPTICAL
IN 4
Diode
Bandpass
Filter Attenuator RF
OUTPUT 3
-20 dB T.P.
OPTICAL
IN 3
0
dBm
-12
dBm
0
dBm
-12
dBm
0
dBm
-12
dBm
0
dBm
-12
dBm

2-2 Q-Series®Optical – QFQR 200A-04 Series Return Path Optical Receiver – Installation & Operation Manual
CHAPTER 2: DESCRIPTION
This page left intentionally blank.

Q-Series®Optical – QFQR 200A-04 Series Return Path Optical Receiver – Installation & Operation Manual 3-1
CHAPTER 2: DESCRIPTION CHAPTER 3: FEATURES
FEATURES
3. Features
• 1550 nm / 1310 nm dual wavelength
• 4 independent return path receivers in one 19” 1RU standard rack
• Low noise, high linearity photodiode
• 5-200 MHz RF bandwidth
• Two bandpass lters to depress upstream noise
• Output adjustment and -20 dB RF test points available on front panel

3-2 Q-Series®Optical – QFQR 200A-04 Series Return Path Optical Receiver – Installation & Operation Manual
CHAPTER 3: FEATURES
This page left intentionally blank.

Q-Series®Optical – QFQR 200A-04 Series Return Path Optical Receiver – Installation & Operation Manual 4-1
CHAPTER 3: FEATURES CHAPTER 4: SPECIFICATIONS
SPECIFICATIONS
4. Specications

4-2 Q-Series®Optical – QFQR 200A-04 Series Return Path Optical Receiver – Installation & Operation Manual
CHAPTER 4: SPECIFICATIONS
This page left intentionally blank.

Q-Series®Optical – QFQR 200A-04 Series Return Path Optical Receiver – Installation & Operation Manual 5-1
CHAPTER 4: SPECIFICATIONS CHAPTER 5: FUNCTION GUIDE
FUNCTION GUIDE
5. Function Guide

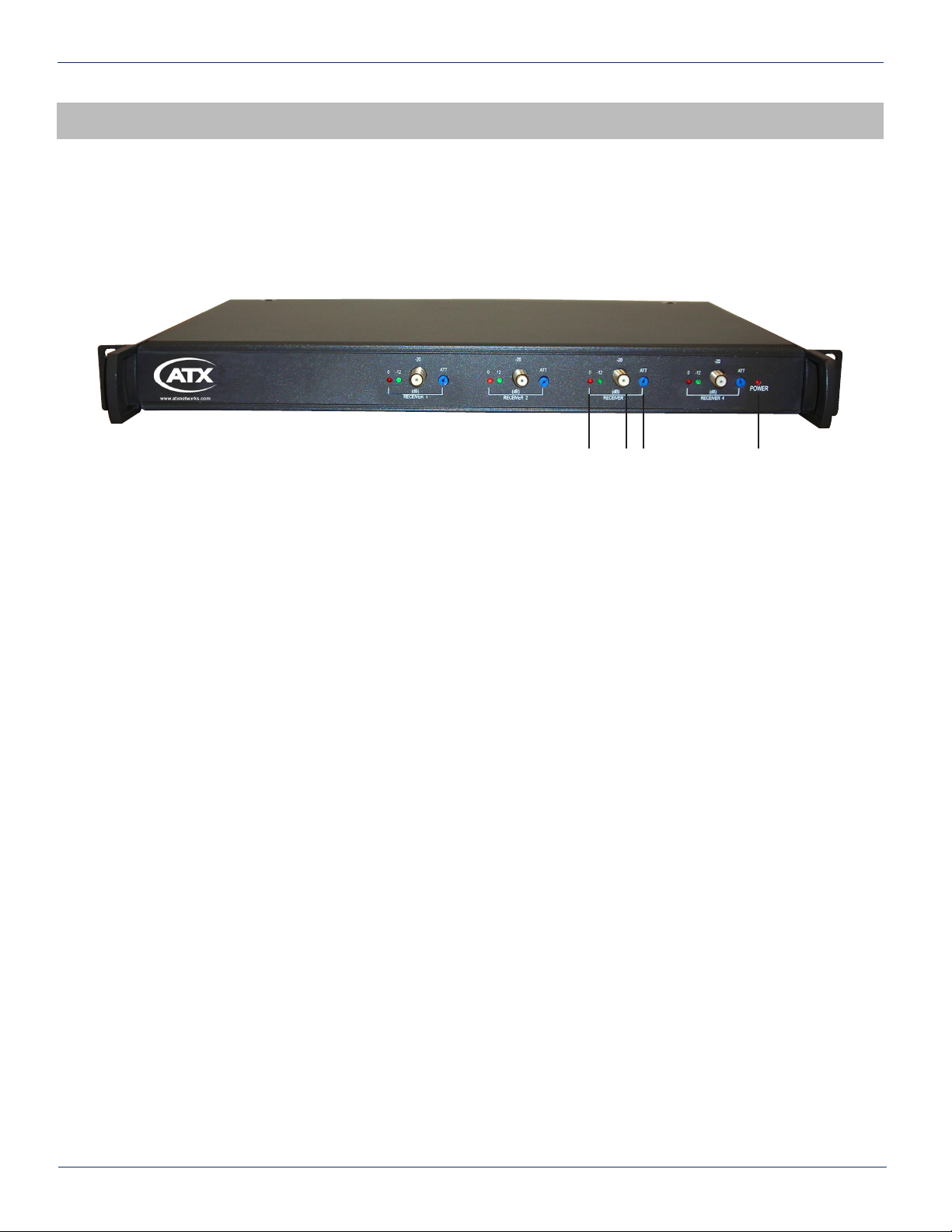

5.1. Front Panel Guide
1. Power Supply Indicator: Green-Normal, Red-Fault
2. Optical Power Indicator: Normal when the green LED is on. (When the -12 dBm LED is on, the input optical
power is 0 to -12 dBm; When the 0 dBm LED is on, the input optical power is 0 to +2 dBm; Recommended
optical input 0 to -10 dBm).
3. Attenuator: Adjust RF output 0 to 20 dB
4. RF Output Monitor: 20 dB lower than the RF output
12 4 3
Front View

5-2 Q-Series®Optical – QFQR 200A-04 Series Return Path Optical Receiver – Installation & Operation Manual
CHAPTER 5: FUNCTION GUIDE
This page left intentionally blank.

Q-Series®Optical – QFQR 200A-04 Series Return Path Optical Receiver – Installation & Operation Manual 6-1
CHAPTER 5: FUNCTION GUIDE CHAPTER 6: INSTALLATION & ADJUSTMENT
INSTALLATION & ADJUSTMENT
6. Installation & Adjustment
Inspect the package. If the packaging has been damaged, or shows signs of water damage, please contact the freight
company or contact ATX.
After unpacking, check the equipment and accessories according to packing list. If there are any questions, please contact
ATX.
If you suspect the equipment has been damaged, please do not turn on the power in order to avoid worse damage. Please
contact ATX.
6.1. Supplies & Tools
An optical power meter
A digital multimeter
A frequency analyzer
A standard ber test jumper (FC/APC or SC/APC)
Denatured or 99% pure isopropyl alcohol and lint-free ber optic cleaning wipes
6.2. Installation
a) Install the receiver into a standard 19” rack and ground the case.
b) Check voltage with a digital multi-meter in accordance with power requirements.
c) Make sure the ber connector is clean and verify the input optical power is normal by means of optical power meter
(0 dBm to -10 dBm recommended), then insert the ber connector into the ber adaptor.
d) After powering on the receiver, check the power and optical power LED indicators to ensure normal operation.
Troubleshooting during installation:
• RF Output Low: Check the connection of RF adaptor and the coaxial cable.
• No RF Output: Check the optical power indicator. If Red, check the optical input power.

6-2 Q-Series®Optical – QFQR 200A-04 Series Return Path Optical Receiver – Installation & Operation Manual
CHAPTER 6: INSTALLATION & ADJUSTMENT
This page left intentionally blank.

Q-Series®Optical – QFQR 200A-04 Series Return Path Optical Receiver – Installation & Operation Manual 7-1
CHAPTER 6: INSTALLATION & ADJUSTMENT CHAPTER 7: CLEANING & MAINTENANCE
CLEANING & MAINTENANCE
7. Cleaning & Maintenance
Fiber connectors can be easily contaminated by dust or dirt, which can result in decreased optical input power. If optical
receiver power and RF output levels of the receiver decline, you should clean ber connectors. The cleaning method is
recommended below:
a) Remove power from the receiver.
b) Carefully unplug the ber connector from the adapter.
c) Using isopropyl alcohol and lint-free wipes carefully clean the faces of the optical connector. After cleaning,
allow 1 to 2 minutes until the connector’s surface is dry.

7-2 Q-Series®Optical – QFQR 200A-04 Series Return Path Optical Receiver – Installation & Operation Manual
CHAPTER 7: CLEANING & MAINTENANCE
This page left intentionally blank.

Q-Series®Optical – QFQR 200A-04 Series Return Path Optical Receiver – Installation & Operation Manual 8-1
CHAPTER 7: CLEANING & MAINTENANCE CHAPTER 8: SERVICE & SUPPORT
SERVICE & SUPPORT
8. Service & Support
8.1. Contact ATX Networks
Please contact ATX Technical Support for assistance with any ATX products. Please contact ATX Customer Service to
obtain a valid RMA number for any ATX products that require service and are in or out-of-warranty before returning a failed
module to the factory.
TECHNICAL SUPPORT
Tel: [phone]
Toll Free: [phone] (USA & Canada only)
► Press *3 for Technical Support
► Then press 1 for Digital Video Products (DVIS, DigiVu, UCrypt, etc.)
► OR, press 2 for All Other Products
Email: [email protected] for Digital Video Products
Email: [email protected] for All Other Products
CUSTOMER SERVICE
ATX Networks
1-501 Clements Road West
Ajax, ON L1S 7H4 Canada
Tel: [phone]
Toll Free: [phone] (USA & Canada only)
► Press *1 for Customer Service
Fax: [phone]
Toll Free Fax: [phone] (USA & Canada only)
Web: www.atxnetworks.com
Email: [email protected]
8.2. Warranty Information
All of ATX Networks’ products have a 1-year warranty that covers manufacturer’s defects or failures.
NOTE: There are adhesive tape seals on both sides of the case. Any unauthorized removal of this tape seal by the
user will void the 1-year warranty.
