ATZ HDMI-V2-E70CL User manual

pg. 1
Notes : - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered
from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ
Model : ATZ HDMI-V2-E70CL
Description: HDMI Extender over Cat5E/6 4K@60 18Gbps 70m POC IR HDMI loop EDID
[TX/RX]
ATZ HDMI-V2-E70CL is a cost-effective point-to-point extender set for HDMI V2.0 and
IR signals; this kit supports 4K/UHD video @ 60 Hz with 4:4:4 Chroma sampling as
well as HDMI data rates up to 18Gbps HDCP 2.2 compliant; It provides HDMI
transmission up to 230 feet (70 meters) for 4K@60Hz 4:4:4 or 262 feet (80 meters)
for 1080p over single CAT5e/6 cable. It supports video resolution down-scaling the
4K input can be automatically downscale to 1080p output for compatibility with 1080p
display.

pg. 2
Notes : - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered
from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ
Model : ATZ HDMI-V2-E70CL
Description: HDMI Extender over Cat5E/6 4K@60 18Gbps 70m POC IR HDMI loop EDID
[TX/RX]
Features:
•Supports HDMI V2.0 up to 4K@60Hz 4:4:4 HDR 10 18G HDCP 2.2.
•Extends signal up to 4K@70m and 1080p@80m over single CAT5e/6 cable.
•HDMI loop out on transmitter.
•Bi-directional IR pass-through.
•Supports video resolution down-scaling the 4K input can be automatically
degraded to 1080p output on receiver for compatibility with legacy 1080p display
device.
•Features visually lossless compression with no latency.
•Smart EDID management.
•Compact design easy to install and simple to operate.
Specifications:
Transmitter
Input (1) SOURCE
Input Connector (1) 19-pin type-A female HDMI
Output (1) DISPLAY (1) CATx OUT
Output Connector (1) 19-pin type-A female HDMI (1) RJ45
Control (1) IR IN (1) IR OUT
Control Connector (2) 3.5mm mini jacks
Receiver
Input (1) CATx IN
Input Connector (1) RJ45
Output (1) DISPLAY
Output Connector (1) 19-pin type-A female HDMI
Control (1) IR IN (1) IR OUT
Control Connector (2) 3.5mm mini jacks
General
Video Resolution Up to 4K@60Hz 4:4:4 HDR 10
HDMI Audio Format
Supports LPCM 2ch LPCM 5.1ch LPCM 7.1ch Dolby Digital
2ch Dolby Digital 5.1ch DTS 2ch DTS 5.1ch DTS 96/24
5.1ch.
Transmission Distance
4K/1080p ≤ 70 meters (230ft)
Note that the CATx cable length should not be less than 15
meters for best video output..
HDMI Version HDMI V2.0

pg. 3
Notes : - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered
from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ
Model : ATZ HDMI-V2-E70CL
Description: HDMI Extender over Cat5E/6 4K@60 18Gbps 70m POC IR HDMI loop EDID
[TX/RX]
HDCP Version HDCP 2.2 compliant. (The HDCP of output follows the
HDCP version of display device.)
EDID EDID management
Power Supply Input: 100VAC~240VAC 50/60Hz;
Output: 12VDC 1A
Power Consumption 4W (Max)
Operation Temperature
-5~55
℃
Storage Temperature -25~70
℃
Relative Humidity 10%-90%
Dimensions (W*H*D) 80mm x 16.8mm x 80mm
Net Weight TX/RX: 70g
Note: The extender set does not support HBR audio
Transmitter Panel Description:
1. CATx UT: RJ45 port to connect the CATx IN port of receiver by CATx cable. It
supports 12V PoC to power the receiver. The orange LED illuminates when there is a
valid HDMI signal input. The green LED illuminates when power is applied.
2. IR IN: 3.5mm mini jack to connect IR receiver for IR pass-through.
3. IR UT: 3.5mm mini jack to connect IR emitter for IR pass-through.
4. DISPLAY: Type-A female HDMI port to connect HDMI display device.
5. S URCE: Type-A female HDMI port to connect HDMI source device.
6. DC 12V: DC connector for the power adapter connection.
7. EDID Management:
•EDID BYPASS: Press the button with paper clip or other sharp tool to learn the
EDID from the remote display connected to the Receiver’s HDMI out.
•EDID COPY Tx/3s: Press and hold the button for 3 seconds to copy the EDID from

pg. 4
Notes : - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered
from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ
Model : ATZ HDMI-V2-E70CL
Description: HDMI Extender over Cat5E/6 4K@60 18Gbps 70m POC IR HDMI loop EDID
[TX/RX]
the local display connected to the Transmitter’s HDMI out.
•DEFAULT: Factory default the source device learns EDID from the TV which has
the lowest resolution. Press and hold the button while the product is in turned-off
period and then release the button after 6 seconds of power on can restore the
default setting.
Note: If the standard resolution of the local display is lower than the receiver‘s the
unit will output the video with the lower resolution to ensure video can be shown on
both displays.

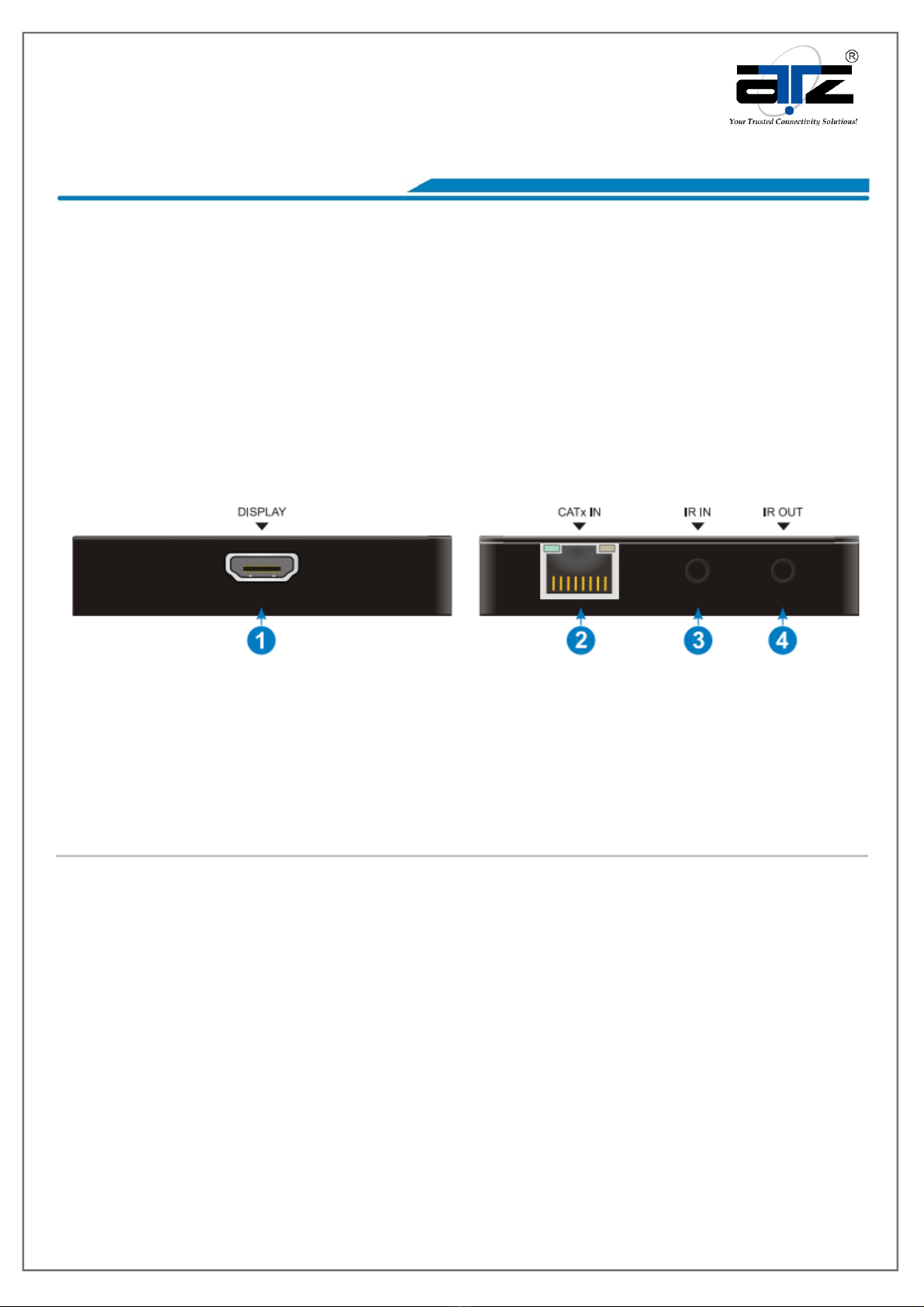

Receiver Panel Description:
1. DISPLAY: Type-A female HDMI port to connect HDMI display device.
2. CATx IN: RJ45 port to connect the CATx OUT port of transmitter by CATx cable. It
supports 12V PoC and the receiver can be powered from the transmitter. The orange
LED illuminates when there is a valid HDMI signal input. The green LED illuminates
when power is applied.
3. IR IN: 3.5mm mini jack to connect IR receiver for IR pass-through.
4. IR UT: 3.5mm mini jack to connect IR emitter for IR pass-through.
Package Includes:
1x Transmitter (Tx)
1x Receiver (Rx)
1x IR Receiver
1x IR Emitter
2x Velcro Strips
1x Power Adaptor (12V DC 1A)
1x User Manual

pg. 5
Notes : - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered
from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ
Model : ATZ HDMI-V2-E70CL
Description: HDMI Extender over Cat5E/6 4K@60 18Gbps 70m POC IR HDMI loop EDID
[TX/RX]
Product Diagram:
Warranty: 2 Years
Warranty is effective from the date of original delivery.
This warranty shall be void if a serial number has been removed from the product.
