Introduction
Professional internet audio player
The ISP40 is a professional internet radio player featuring the unique Linum™ technology
which eleminates any unwanted behaviour such as sudden channel hopping or music stops.
An internal buffer will avoid any music interruptions for short term connection interruptions
and will make sure the audio stream will be automatically restored afterwards.
The front panel of the system accomodates a 2.8” TFT display in combination with a push
rotary function dial and 4 tactile pushbuttons. The controls and indicators on the front panel
of the unit are guaranteeing an intuitive and user friendly operation, allowing hassle free
operation and configuration to even unexperienced users. Information such as internet radio
station information is are indicated.
It synchronizes with the database which contains over 30.000 channels, allowing selection
on different criteria such as genre, location, language, ... while custom streams can also be
added to a preference list up to 100 entries. The signal output level as well as the systems IP
settings and other advanced network settings are user configurable, allowing implementation
to any audio system connected to home, office or enterprise data networks.
The input connection is implemented by an RJ45 type connector with indicator LED’s, allowing
connection to any ethernet network. The balanced stereo line output is connected through
two 3-pin terminal block connections.
The RS-232 communication port allows system integration with any home or industrial
automation system, while an optional 2.4 GHz remote control allows handheld control while
hidden out of sight.

6
Precautions
READ FOLLOWING INSTRUCTIONS FOR YOUR OWN SAFETY
ALWAYS KEEP THESE INSTRUCTIONS. NEVER THROW THEM AWAY
ALWAYS HANDLE THIS UNIT WITH CARE
HEED ALL WARNINGS
FOLLOW ALL INSTRUCTIONS
NEVER EXPOSE THIS EQUIPMENT TO RAIN, MOISTURE, ANY DRIPPING OR SPLASHING
LIQUID. AND NEVER PLACE AN OBJECT FILLED WITH LIQUID ON TOP OF THIS DEVICE.
DO NOT PLACE THIS UNIT IN AN ENCLOSED ENVIRONMENT SUCH AS A BOOKSHELF
OR CLOSET. ENSURE THERE IS ADEQUATE VENTILATION TO COOL THE UNIT. DO NOT
BLOCK THE VENTILATION OPENINGS.
DO NOT STICK ANY OBJECTS THROUGH THE VENTILATION OPENINGS.
DO NOT INSTALL THIS UNIT NEAR ANY HEAT SOURCES SUCH AS RADIATORS OR
OTHER APPARATUS THAT PRODUCE HEAT
DO NOT PLACE THIS UNIT IN ENVIRONMENTS WHICH CONTAIN HIGH LEVELS OF DUST,
HEAT, MOISTURE OR VIBRATION
THIS UNIT IS DEVELOPED FOR INDOOR USE ONLY. DO NOT USE IT OUTDOORS
PLACE THE UNIT ON A STABLE BASE OR MOUNT IT IN A STABLE RACK
ONLY USE ATTACHMENTS & ACCESSORIES SPECIFIED BY THE MANUFACTURER
UNPLUG THIS APPARATUS DURING LIGHTNING STORMS OR WHEN UNUSED FOR LONG
PERIODS OF TIME
ONLY CONNECT THIS UNIT TO A MAINS SOCKET OUTLET WITH PROTECTIVE
EARTHING CONNECTION
THE MAINS PLUG OR APPLIANCE COUPLER IS USED AS THE DISCONNECT DEVICE, SO
THE DISCONNECT DEVICE SHALL BE READILY OPERABLE
EC DECLARATION OF CONFORMITY
This product conforms to all the essential requirements and further
relevant specifications described in following directives: 2014/30/EU
(EMC) and 2014/35/EU (LVD)
CAUTION - SERVICING
This product contains no user serviceable parts. Refer all servicing to
qualified service personnel. Do not perform any servicing (unless you
are qualified to)

7
CAUTION
The symbols shown are internationally recognized symbols that warn about potentional
hazards of electrical products. The lightning flash with arrowpoint in an equilateral
triangle means that the unit contains dangerous voltages. The exclamation point in
an equilateral triangle indicates that it is necessary for the user to refer to the users
manual.
These symbols warn that there are no user serviceable parts inside the unit. Do not
open the unit. Do not attempt to service the unit yourself. Refer all servicing to qualified
personnel. Opening the chassis for any reason will void the manufacturer’s warranty. Do
not get the unit wet. If liquid is spilled on the unit, shut it off immediately and take it to a
dealer for service. Disconnect the unit during storms to prevent damage.
WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)
The WEEE marking indicates that this product should not be disposed
with regular houshold waste at the end of its life cycle. This regulation
is created to prevent any possible harm to the environment or human
health.
This product is developed and manufactured with high quality materials
and components which can be recycled and/or reused. Please
dispose this product at your local collection point or recycling centre
for electrical and electronic waste. This will make sure that it will be
recycled on an environmentally friendly manner, and will help to protect
the environment in which we all live.

8

9
Chapter 1
Pin connections and connectors
CONNECTION STANDARDS
The in- and output connections for AUDAC audio equipment are performed corresponding
to international wiring standards for professional audio equipment.
3-Pin Terminal Block:
For balanced in & output connections
Left: Signal - (XLR Pin 3)
Center: Signal + (XLR Pin 2)
Right: Ground (XLR Pin 1)
For balanced line output connections:
For unbalanced line output connections:
RS232 (serial connection interface):
For connection with home automation systems, or other remote control equipment
Connection Standard RS232
PIN 2 ISP40 TX
PIN 3 ISP40 RX
PIN 5 GND
Settings 19200 Baud
8 Bit
1 Stop bit
No parity
No Handshaking
RS232
The complete command set for controlling the ISP40 through RS-232 is available in the
ISP40 commands user manual which is freely downloadable on www.audac.eu

10
Chapter 2
Front & rear panel
Front Panel overview
Front panel description
Graphical LCD display with tactile push buttons and rotary selection dial:
A clear system overview and intuitive user experience is offered using the 2.8” graphical LCD
display accompanied with four tactile selection buttons (left side) and a rotary selection dial
(right side). The true colour display offers a clear overview of the systems current operation
mode with intuitive and user friendly browsing through the menu structure.
The functionality of the four tactile push buttons on the left side depends on the current
mode and position in the menu structure. Icons on the left side of the display are indicating
the current functionality linked with the buttons.
Parameter adjustment and browsing is made easy using the rotary function dial. This
multifunctional dial allows easy one-hand operation throughout the entire menu structure.
Browsing through the menu is done by rotating it while actions are made by pressing it.
Power switch:
Allows to power the system ON and OFF. The blue indicator LED illuminates when switched on.

11
Rear Panel overview
Rear panel description
AC Power inlet with fuse:
The mains power supply (100-240V AC - 50/60 Hz) has to be applied to this AC power
inlet. The connection is made by an IEC C14 power connector and is fitted with a fuse. When
replacing the fuse, make sure that the value of the replacement fuse matches the value of
the original fuse. (T0.5AL/250V)
RS232 Connection:
The RS232 connection can be used to control the system through any external hardware
such as home and industrial automation systems. The pinout and communication settings
are described in an earlier chapter of this user manual. The complete RS232 command
instruction set and configuration information can be downloaded from the AUDAC website.
USB (Update) Connection:
The USB (Update) connection can be used for system firmware updates and/or for connection
of the RF remote control (RMT40) receiver.
Balanced stereo line output:
The balanced stereo line output is implemented using two 3-pin terminal block connectors.
The audio output available on this connector allows it to be fed to any amplifier or pre-amplifier
Ethernet RJ45 Connector:
The Ethernet connection implemented using an RJ45 type connectors. This Ethernet
connection works as the audio stream input of the ISP40. Hereby it shall get connected to
any LAN network with internet access for reaching the database and audio streaming servers.
For more information about the Ethernet configuration of this device, check ‘Chapter 4: User
interface & Configuration’ and ‘Chapter 4: IP Basics’ of this user manual.

12
Chapter 3
Using the ISP40
The ISP40 control and configuration is done through the front panel of the device which
includes a 2.8” graphical LCD display, which is accompanied with four tactile push buttons
(left side) and a rotary selection dial (right side). This combination allows you to navigate
through the systems user interface and access all the available control and configuration
possibilities of the system.
The functionality of the four tactile push buttons on the left side depends on the current
mode and position in the menu structure. Icons on the left side of the display are indicating
the current functionality linked with the buttons.
The rotary selection dial can be used for parameter adjustments and browsing to station lists,
playlists or any other. This multifunctional dial allows easy one-hand operation throughout the
entire menu structure. Browsing is done by rotating it while actions are made by pressing it.
The functionality for each icon is indicated in following table:
ICON DESCRIPTION
Show station list
Go to internet radio settings
Go to general settings
Mark / save current selection as favourite
Go back to system main screen
Go one step back
Erase current selection

13
Database updates
The ISP40 comes with the vTuner database pre-loaded. Since continuously new radio stations
are being added, it is recommended to manually start the database update process when
using it for the first time. How to start the manual update process is described in the ISP40
Settings > DB info chapter of this instruction manual.
When operational, the ISP40 will regularly check with the database server whether a new
update is available, and if so, automatically start the database update process without any
noticeable consequences for the user / listener.
Main screen

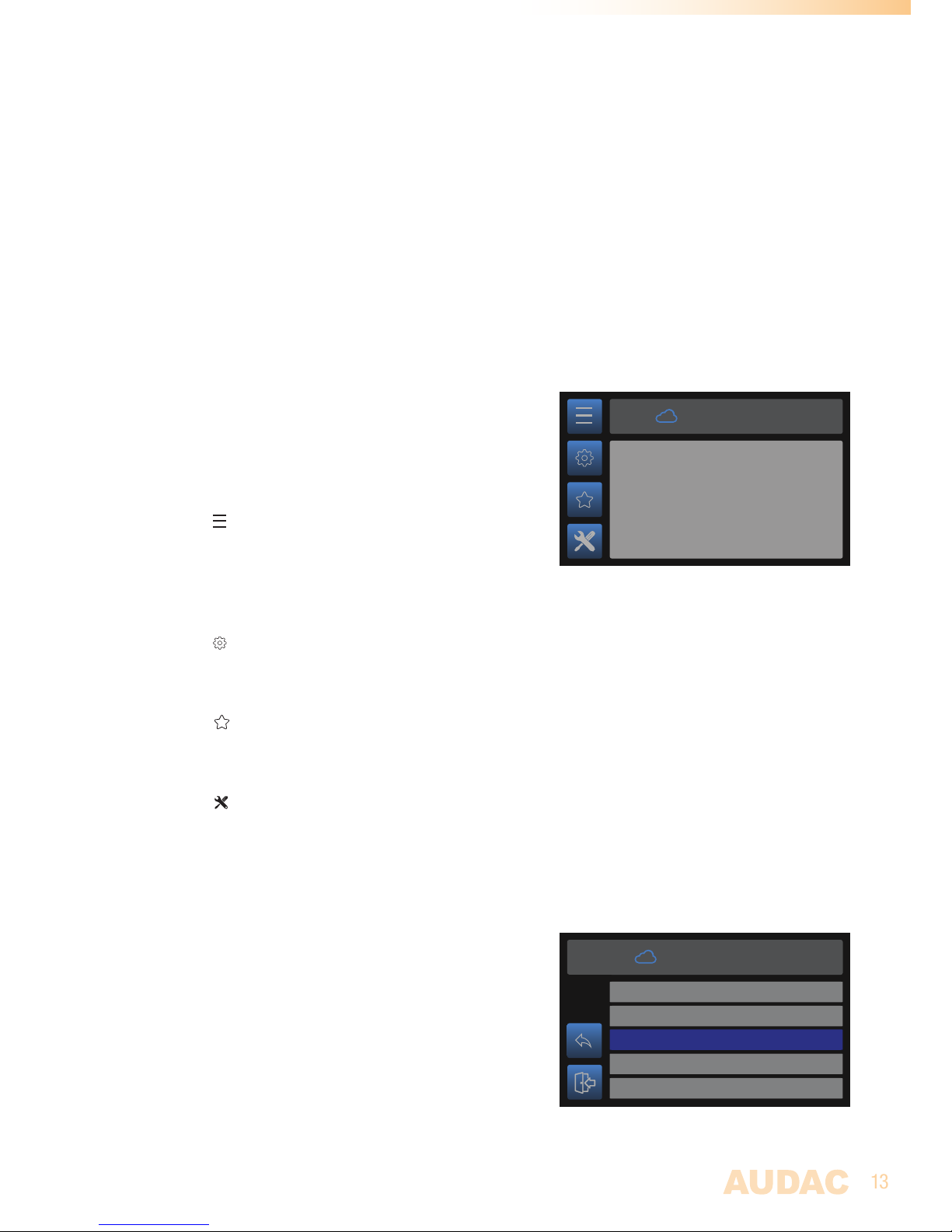

The main screen gives an overview of the ISP40’s current
operation mode. The name of the currently playing station
including additional carried information such as track
name, program name, ... will be indicated on this screen.
Station selection:
The (Station list) button gets you to the vTuner database
overview where the radio station selection can be made by
hand of various criteria, such as genre, location or stored
favourites.
Settings:
The (ISP40 settings) button gets you to the ISP40 settings menu where all configurations
related to the audio, database and network can be configured.
Favourites:
The (Favourites) button stores the currently playing channel to the favourites list which
can contain a maximum up to 100 enties.
General settings:
The (General settings) button gets you to the general settings menu where all general
settings for the device can be configured.
Station selection
The station selection screen allows radio stations selec-
tion though the vTuner database which includes over
30.000 channels. Selection of the radio station is done
by hand of various criteria, such as favourites (includes
the stored channels), location, genre, ...
When the main criteria is selected, the menu will guide
you through the next step of selection criteria including
all different continents, countries, genres, ... and so on.
Internet Radio
Studio Brussel
Music @ work
Select file from SD
Hip Hop
Internet Radio
Holiday
Jazz
Latin Hits
New Age

14
Browsing through the menu structure is done by turning the function dial, while selections
are made by pressing it. The button gets you one step back in the station selection
overview.
Once the desired channel has been found, press the function dial for selection and the
channel will start playing.
ISP40 Settings screen
The settings menu for ISP40 is loaded when pressing the (ISP40 settings) button.
Output gain:
The gain can be adjusted within a range of +8 dB
and -92 dB, allowing optimalization of the output level
according to the input sensitivity of the connected
amplifier or pre-amplifier. For adjusting the output
gain, rotate the function dial until ‘Gain’ is highlighted
and press it for proceeding to the gain settings. The
level can be adjusted by rotating clockwise (tuning up)
or counter-clockwise (tuning down). Press the rotary
dial for confirming the currently set output level.
DB info:
DB info gives the version information regarding the currently loaded vTuner database which
contains all station information.
The autoupdate function allows automatic updating of the database. When enabled, the
ISP40 automatically synchronizes with the database server whether a new update becomes
available, and if so, automatically start the database update process without any noticeable
consequences for the user / listener. Autoupdate is standard configured as ON but can be
disabled (switched to OFF).
Manual database updating can be started by selecting ‘Start Database Update’. When
selected, the currently stored database will be removed and the latest version is retrieved
from the server. The database update process can take few minutes before completed.
IP settings:
When highlighting the IP settings button is, an overview of the currently configured network
settings is given on the right screen side. When selected, a separate IP settings menu will
be loaded where all network settings can be customized.
DEFAULT NETWORK SETTINGS
DHCP: ON
IP address: Assigned by DHCP
Subnet mask: Assigned by DHCP
Gateway: Assigned by DHCP
DNS 1: Assigned by DHCP
DNS 2: Assigned by DHCP
Output gain
0dB
DB info
IP settings
Station info
Add station
ISP40 SETTINGS

15
IP Settings > DHCP:
In default configuration, the DHCP function for the ISP40 is enabled whereby the IP address
and other network settings are automatically assigned through the DHCP server in your
network.
Since the ISP40 doesn’t support any control commands from other devices over TCP/IP in
contrast to other TCP/IP control supporting devices, the ISP40 doesn’t need to have a ‘fixed’
for being reachable through other devices.
IP settings > IP address:
The IP address for the system can be configured in this window. Each section of the IP
address can be individually adjusted by turning the rotary dial (clockwise for up, and counter-
clockwise for down). The currently adjusting section will be indicated in blue colour. Once the
correct number for the current section is selected, proceed to the next section by pressing
the rotary dial.
IP settings > Other network settings:
All other network settings such as subnet mask, Gateway, DNS 1 and DNS 2 can be configured
in this window. The default configuration is set to DHCP, however in case of special network
restrictions or requirements, consult your network administrator for more details on the
network settings.
All additional network settings can be modified in similar way as the IP address, allowing
adjustments by turning and pressing of the rotary dial.
Station info:
Gives additional information about the currently playing station. Displayed information includes
station name, category, country, city, sample rate, bitrate, connections, playtime, ...
Add station:
Custom audio streams (not included in the vTuner database) can be manually added to
the ISP40 stations list. This feature allows specific broadcast streams from corporate
headquarters to various branch offices, or specific audio streams which are not public
accessible to be added to the system.
For adding specific audio streams, the corresponding URL shall get entered to the system,
and a specific stream name shall be given. Entering this data is done by selection of the
characters through turning the function dial, while selections are made by pressing it.
Once the URL is entered, select save to proceed to the stream name. When both are entered,
select save again to confirm stream details and go back to the settings screen. The entered
stream is now added to the favourites list.
Factory reset:
Factory reset will recall all settings to factory defaults and all previously made settings and
configurations will be lost. After selecting factory reset, a confirmation will be asked whether
all settings definitely need to be reset to factory defaults. When confirmed, all settings will
be lost.
Back:
Returning to the main screen is done by selecting ‘Back’.

16
General settings
The general settings menu for ISP40 is loaded when
pressing the (general settings) button. The general
settings menu allows to configure all the global settings
for the ISP40 unit, keeping aside the audio, database
and network settings.
Lock:
When selecting ‘Lock’, the system will be locked and
will require a password to be entered before any further
action can be taken (if the password is enabled).
Info:
Info will give an overview of the software versions the ISP40 is running.
LCD Settings:
Adjustments for the LCD settings can be made here. The brightness can be adjusted within a
range of 10% to 100% (standard is 80%). Adjusting of the LCD brightness can be convenient
when the device is placed in an environment with very low or very high ambient light. Hereby
the clarity of the LCD can be adjusted being clear but unobtrusive.
The backlight off time can be adjusted within an interval of 10 up to 120 minutes or never
(always on), making the backlight of the LCD automatically turn off after the set time.
Password:
Password protection can be enabled, avoiding unauthorized users to make any adjustment
to the system. The password is a four-digit code. In default, the password is set to ‘0000’
which gives full access to the system without requiring any password to be entered. If the
configured password is different from ‘0000’, the user will be requested to enter the password
before any access to the systems functions is provided.
The currently set password will be shown and the adjusting digit can be selected (turns
red) and confirmed by turning and pressing the rotary selection dial. Consecutive digits will
increase when the maximum value has been reached.
After the desired password has been selected it can be confirmed by pressing (turns red) and
turning the function dial clockwise to the entire right side where the ‘OK’ word will appear.
After pressing again the password is confirmed.
Back:
Returning to the main screen is done by selecting ‘Back’.
Lock
Info
LCD Settings
Password
Back
GENERAL SETTINGS
Lock device with password

17
Chapter 4
Additional information
IP Basics
Many AUDAC products are controllable by Ethernet. The Ethernet connection which is used
on the AUDAC products is TCP/IP based, like 99% of the computer networks. There are
some basics which you need to know to successfully make a TCP/IP Ethernet connection.
The data in TCP/IP networks is always send in packages, all these packages must be delivered
at an unique address, just like the mailman delivers mail at your home mailbox. In TCP/IP
networks, this address is called the “IP address”. The IP address is always a number in the
following format “192.168.000.001”. As you can see, this address consists of 4 separate
numbers ranging from “000” to “255”.
In simple terms, only the latest number of an IP address can be different within a network,
so there is a maximum of 254 unique addresses within a network, ranging from “xxx.
xxx.xxx.001” to “xxx.xxx.xxx.254”. The first three numbers must be the same to make
communication between several devices possible, else the devices can not communicate
with each other.
Example:
Device 1: IP address: 192.168.000.001
Device 2: IP address: 192.168.000.002
Device 3: IP address: 192.168.001.003
In this example, Device 1 can communicate with Device 2, but not with Device 3, because
the first three numbers must be the same. These first three parts are called the “IP range”,
so the devices must be in the same “IP range” to communicate with each other.
The “IP range” of home and office networks are defined by the network administrator, this
means that the IP range of your home or office network can be different from another network.
AUDAC products have the following IP address as default: “192.168.0.xxx”, this means
the standard IP range of AUDAC products is “192.168.000.xxx”. If your network is using a
different IP range, the AUDAC products will not be accessible from your network. You can
change the IP address of the AUDAC products to make them work properly in your network.
This can be done in the settings menu, and is described extensively in the “Settings” chapter
of this user manual.
Ask your network administrator for help if you are not familiar with networks.
Summary
- All devices must have an unique IP address
- All devices must be within the same IP range

18
Technical specifications
Input RJ45 Ethernet connection
Output Balanced stereo line output
(2 x 3-pin Euro Terminal Block ~ 3.81 mm)
Output level +8 dB ~ -92 dB
(Software configurable)
Supported filetypes streaming MP3, WMA, AAC
Control Front panel
RS232 (DB9 connector)
RMT40 Remote control (optional)
Display 2.8” Graphical LCD
Signal/noise 94 dB
THD+N < 0.07%
Frequency response 20 Hz - 20 kHz
Crosstalk 80 dB
Power supply Type Switching mode
Range 100-240V AC - 50/60 Hz
Power consumption 1.6 Watt
Dimensions (W x H x D) 482 x 44 x 330 mm
Weight 3.15 Kg
Unit height 1 HE
Optional accessories RMT40 RF remote control - 2.4 GHz

19
Notes

20
Notes
