The new Audi A5 Sportback – Edition 1.0
The new Audi A5 Sportback
Pricing and Specification Guide
Valid from August 2009
Audi UK
Customer Services
Selectapost 29
Sheffield
S97 3FG
0800 699888
www.audi.co.uk
Specifications and prices subject
to change without notice.
© Audi (UK)
Printed in the UK
Edition 1.0 08/09
2010 Model Year

Personalising your
A5 Sportback
This guide has been designed to help you tailor
and price your Audi A5 Sportback quickly
and logically. At the back, you will also find
information on CO2emissions-based vehicle
excise duty and other services offered by Audi,
including Finance and Insurance.
The Audi A5 Sportback
Efficiency 8
Engine 10
Transmission 11
quattro® 12
Model details and prices
Standard model equipment 14
SE model equipment 16
S line model equipment 17
Model prices 18
Colour and upholstery
Paint finishes 20
Upholstery options 22
Colour and trim guide 26
Inlays 27
Options
Wheels, tyres and suspension 28
Audio and communication 30
Steering wheels 32
Safety and security 33
Interior equipment 34
Exterior equipment 35
Seats 36
Technical details
Technical data 38
Dimensions 40
Additional information 42
Pricing information 44

44

5
Vorsprung durch Technik.
Three words that express
the very essence of Audi.
Vorsprung durch Technik isn’t
a slogan. It’s our way of seeing
the world. It is the driving
force behind our history of
innovation that continues into
the 21st century. Indeed, many
technologies that Audi pioneered
remain in our cars today. Some
are milestones in the history of
the motorcar.
From our beginnings in 1899, to
the Auto Union team’s Grand Prix
successes in the 1930s and our
more recent wins at Le Mans, we
have always been at the forefront
of the motor industry.
Vorsprung durch Technik makes
us who we are. To see more of its
influence, just read on.

6
The Audi A5
Sportback
continues our
proud history
of innovation.
It’s the first mid-size Sportback in the Audi
range, an exciting milestone in design. But
even in a pioneer like the A5 Sportback,
it’s rare to find such a balance of different
qualities. Its elegant lines and accentuated
wheel arches are influenced heavily by the
iconic A5 Coupé while it provides the comfort
and practicality of a larger family car. It also
comes with several different engine options
– TDI, FSI and TFSI – all incorporating fuel-
efficient direct-injection technology.

7
7

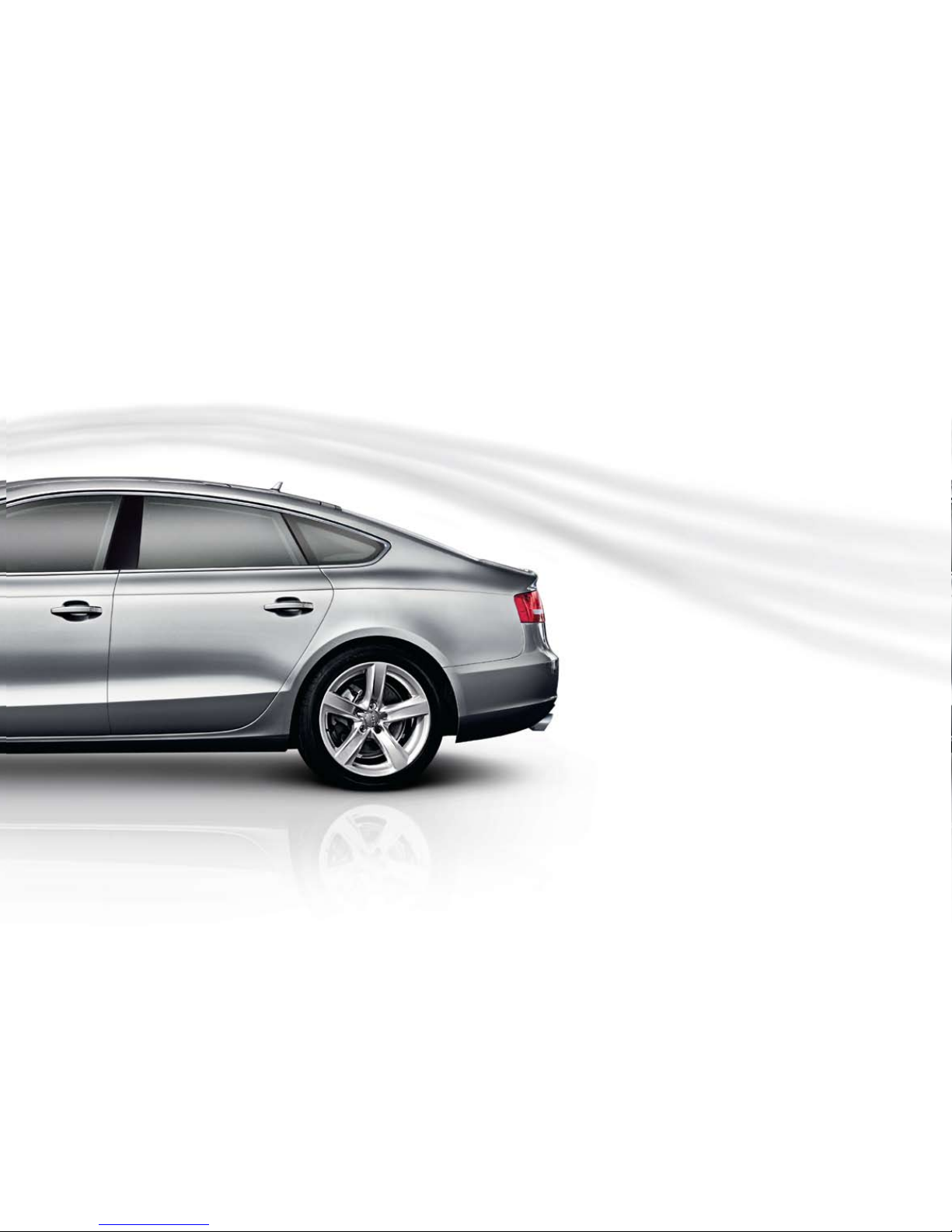

Efficiency
At Audi, doing less is something we’re trying
to do more of. We’re working to use less fuel,
release less CO2and waste less energy. It’s why
we’ve incorporated a number of more efficient
technologies into the Audi A5 Sportback.
Recuperation
When a vehicle brakes, the brake discs convert
the kinetic energy into thermal energy, which is
wasted as it cannot be used. With a recuperation
system, like the one in the Audi A5 Sportback, the
kinetic energy is converted into useful electrical
energy. The way it works is simple. While the car is
coasting or braking, the alternator voltage is raised
above the level of the basic electrical system, which
enables the alternator to generate electrical energy
and store it temporarily in the battery. When the
vehicle accelerates, this energy is used to relieve
the load on the alternator, resulting in a fuel
saving of 3%.
Automatic Start-Stop function
In heavy traffic, your car still uses fuel and releases
CO2, even when it’s stationary. The automatic
Start-Stop function counteracts this problem by
switching off the engine when your car comes to a
standstill. As soon as you touch the clutch, the car
restarts. In conjunction with TDI and TFSI, it helps
save 0.4 litres of fuel every 100km.
8

Efficiency programme
The Driver’s Information System in the Audi A5
Sportback is available with a special efficiency
programme, which offers up-to-the-minute advice
on ways you can improve fuel economy as you
drive. It also shows you which items in your car are
using energy, and how much they are using, so you
can make an informed choice about which ones to
switch off.
9

10

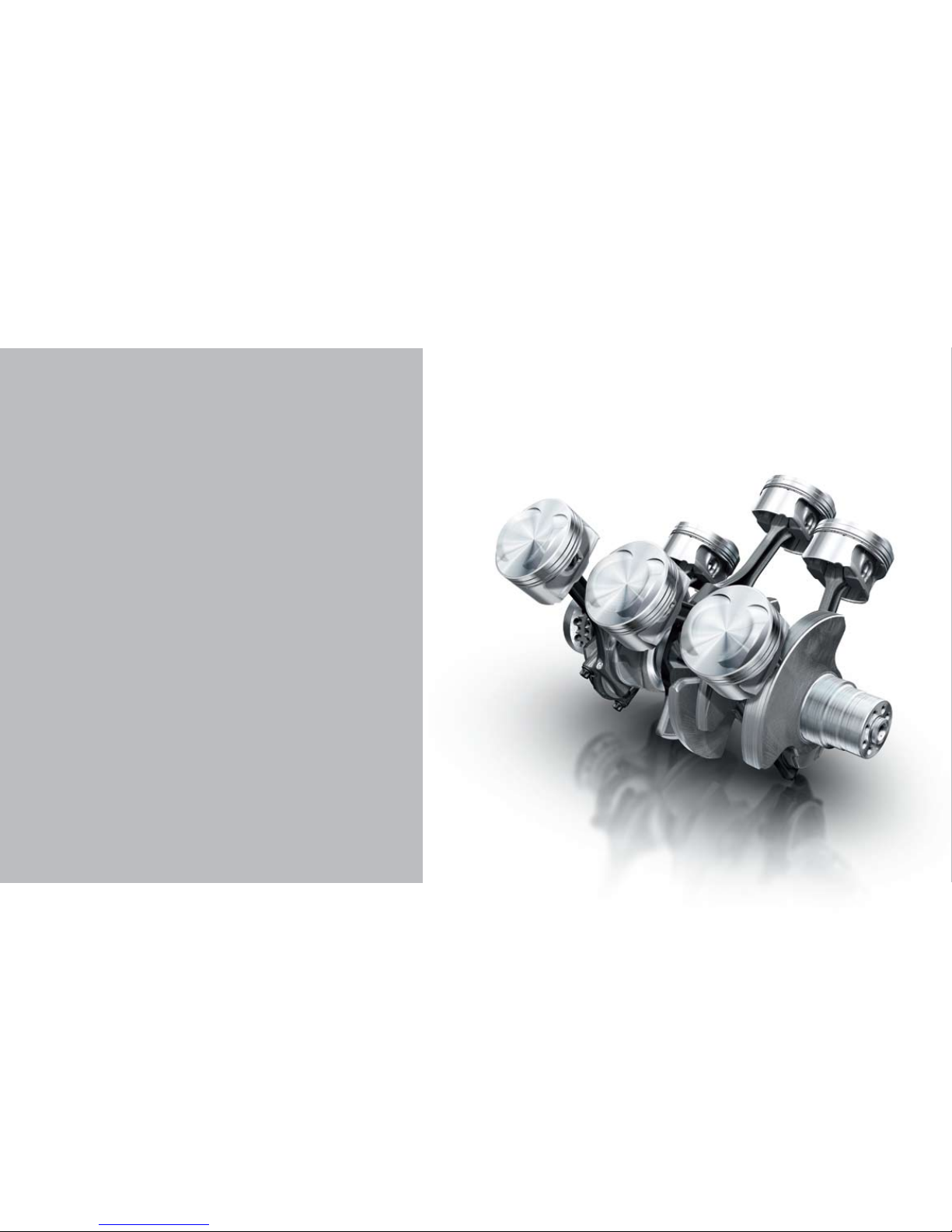

Engine
The A5 Sportback is available with a number of engine options:
2.0 TFSI, 3.2 FSI quattro®, 2.0 TDI and 3.0 TDI quattro®. They
all incorporate fuel-saving direct-injection technology, which has
played a major part in our unprecedented success at Le Mans.
The fuel is injected directly into the combustion chambers, so not
a drop is wasted. It was ideal on the racetrack, and it’s just as
effective on the road.

11

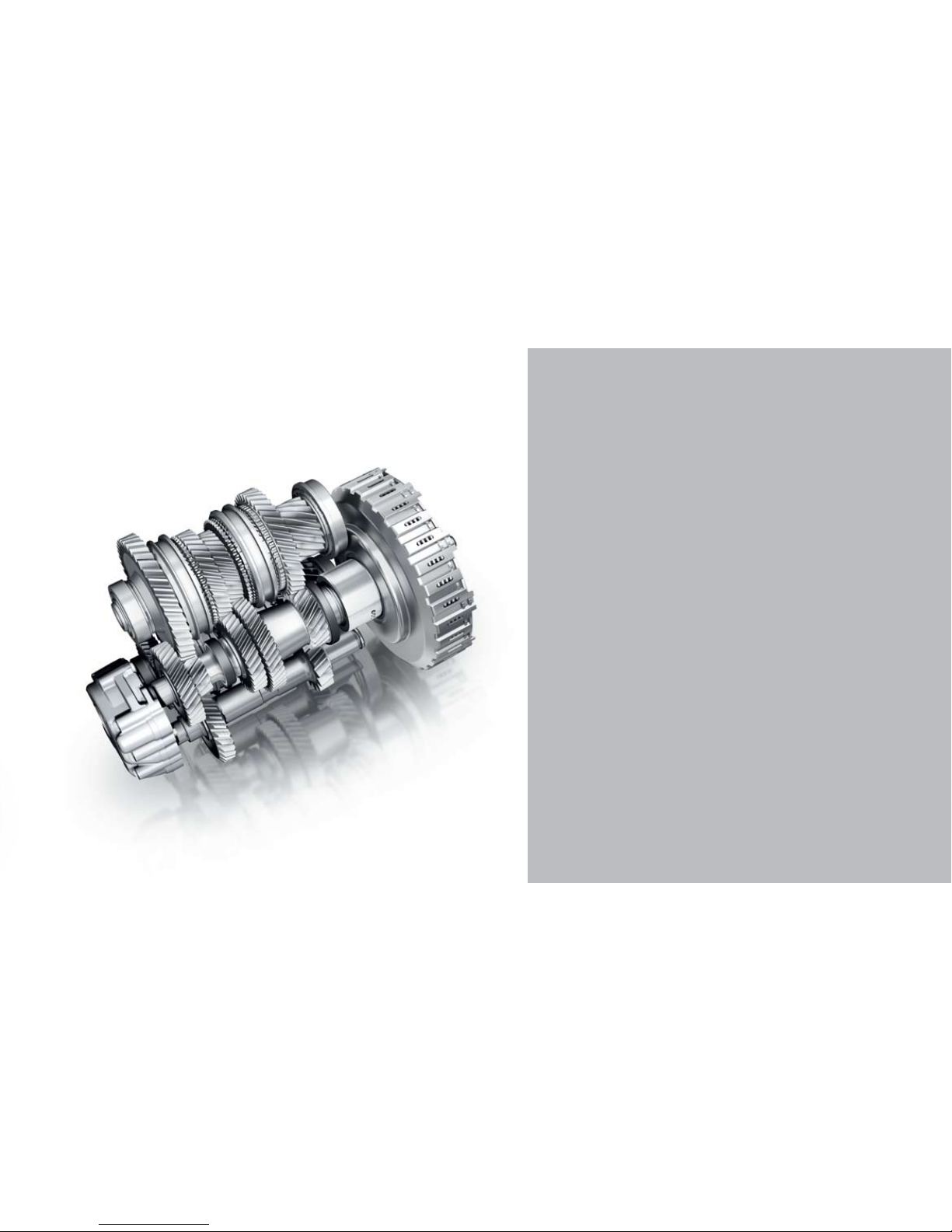

Transmission
The A5 Sportback comes with a 6-speed manual gearbox, or
you can opt for a 7-speed S tronic transmission, which uses
an innovative dual-clutch system. It means that while you’re
accelerating in third, it’s already pre-selecting fourth, so it
changes gear in just a few milliseconds without any interruption
in power. Alternatively, you can choose a 6-speed manual
transmission, which puts you in complete control of every gear
shift, for a flexible and rewarding drive.

12

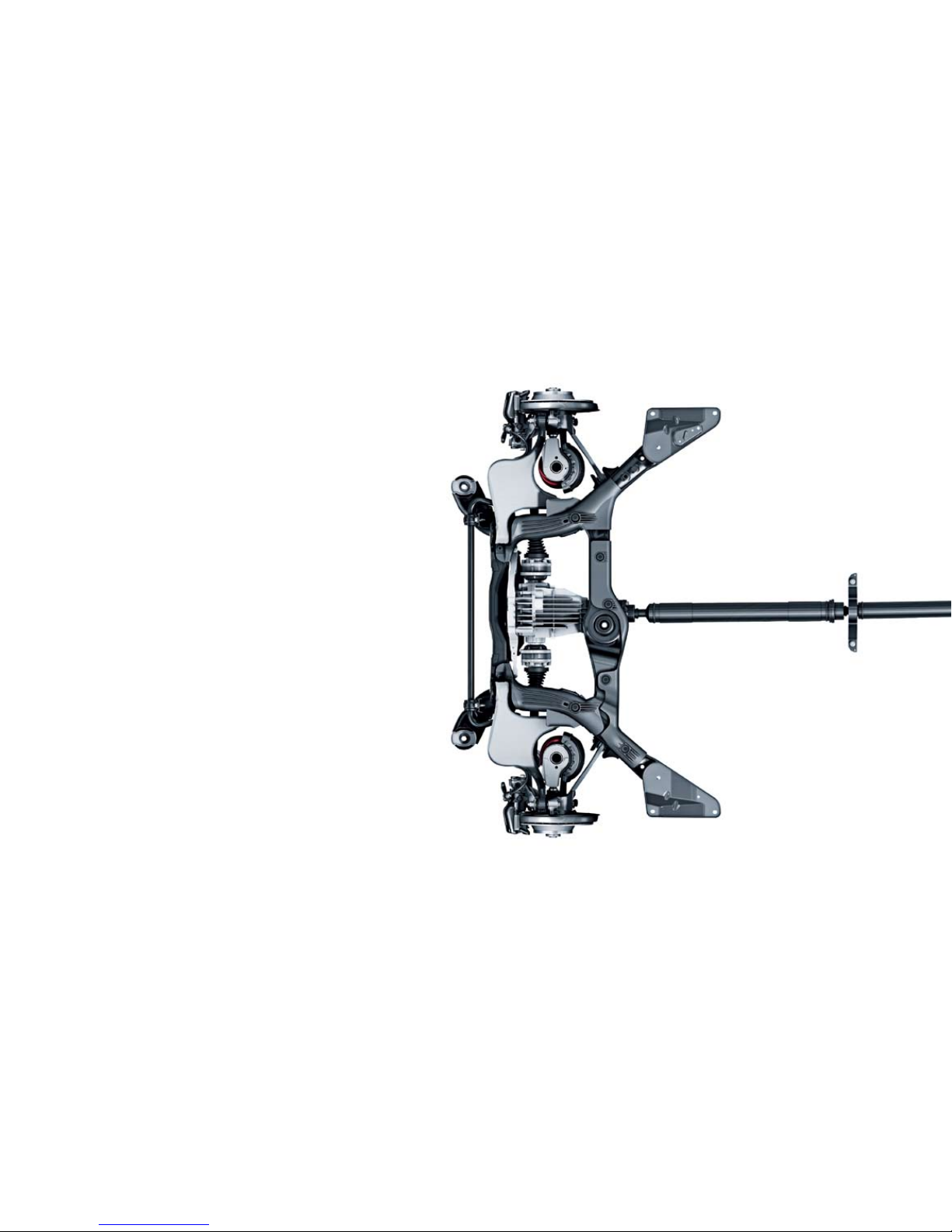

quattro®
It’s the technology that has given Audi the
edge on the racetrack ever since it was first
introduced over 25 years ago – a technology
that delivers ultimate control whilst
enhancing the sporty characteristics which
make the A5 Sportback so thrilling to drive.
It’s called quattro® permanent
all-wheel-drive.

13
The principle is simple: in the same way that
four brakes ensure better deceleration, four
permanently-driven wheels deliver better
acceleration and road-holding, pushing
or pulling the car as needed, for a driving
experience that’s both dynamic and safe.
In the A5 Sportback asymmetric dynamic
torque distribution continuously distributes
drive power between the front and rear
axles depending on weather conditions,
road surface and gradient, which increases
flexibility for an enhanced, sportier drive.

14

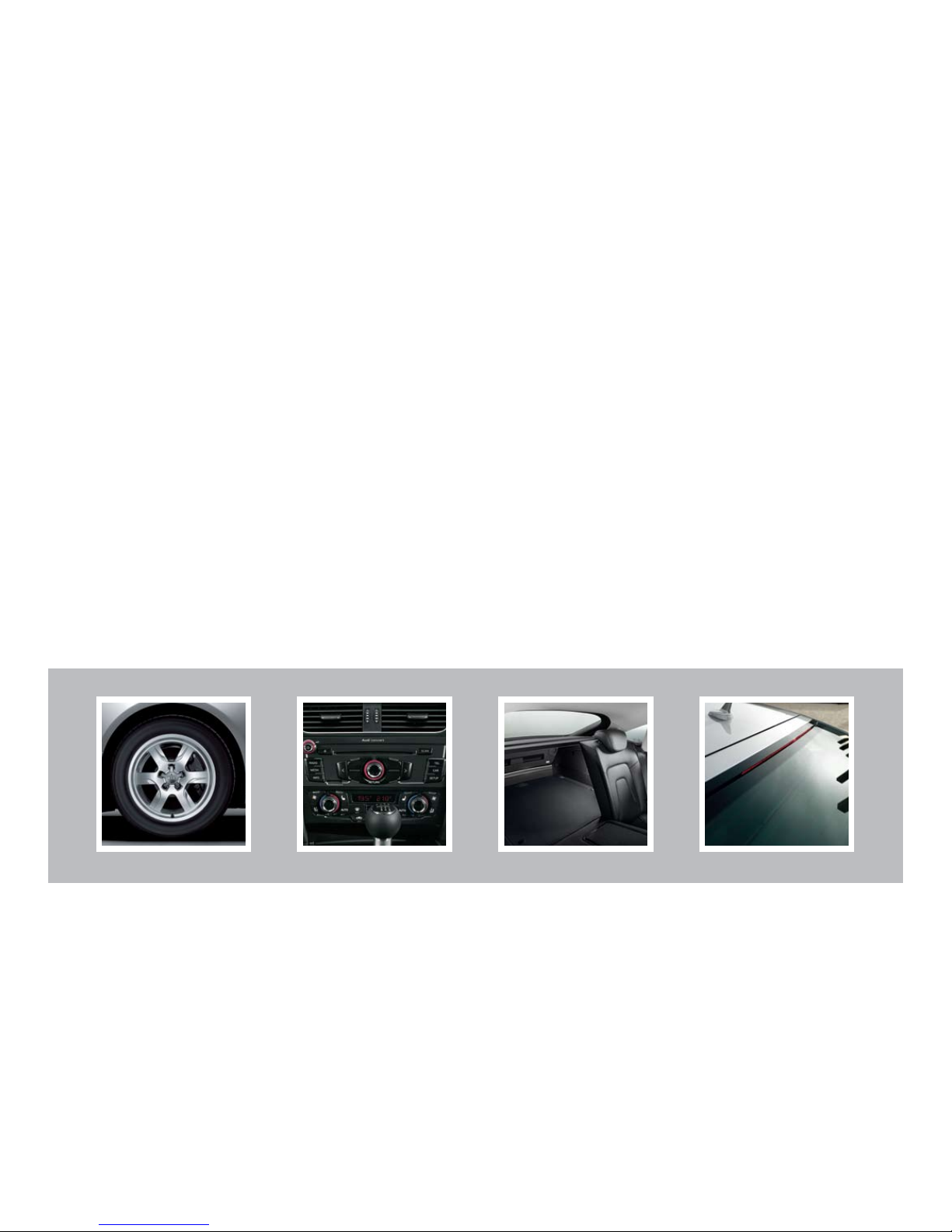

Audi Concert audio system17” x 7.5J ‘6-arm’ design alloy wheels LED high level brake lightSplit-folding rear seat
Engines
Automatic Start-Stop function for
greater fuel and CO2efficiency.
Comprising:
– Recuperation for optimal
energy utilisation
– Energy-saving tips feature in Driver’s
Information System; including
gearshift indicator
(Only available on the 2.0 TFSI and
2.0 TDI manual engines)
Wheels, tyres and suspension
17” x 7.5J ‘6-arm’ design alloy wheels
with 245/45 R17 tyres and locking
wheel bolts
Space-saving spare wheel
Audio and communication
Audi Concert audio system. Single CD
with MP3 compatibility, colour centre
console screen, SD memory card reader
and AUX-IN socket in centre console
6 speakers
Safety and security
ESP
First aid kit
Front and rear fog lights
Front and rear ISOFIX preparation
with front passenger airbag
de-activation switch
Front side airbags
Halogen daytime running lights
Headlight range adjustment
Thatcham category 1 alarm
and immobiliser
Toolkit and car jack
Warning triangle
Seats
Arcade cloth seats
Split-folding rear seat
Interior equipment
1-zone climate control
3-spoke leather steering wheel
Driver’s Information System (DIS)
Electric front windows
Electromechanical parking brake
Front and rear floor mats
Intelligent key
Micrometallic inlays
Steering column adjustment for
rake and reach
Interior chrome package
Exterior equipment
Exterior mirrors – electrically operated
and heated
Front grille – Black gloss on 3.2 FSI and
3.0 TDI quattro® models, Stone grey on
all others
Exhaust pipes – 4-cylinder models have
two exhaust pipes on the left-hand side.
6-cylinder and 2.0 TFSI models have one
exhaust pipe on either side
Standard
model
equipment
All new A5 Sportback
models have the
following items of
Standard equipment

15
Model details and prices

16
Wheels, tyres and suspension
17” x 7.5J ‘7-arm’ design alloy wheels
with 245/50 R17 tyres and locking
wheel bolts
Audio and communication
Audi sound system speaker package,
10 speakers including subwoofer
(180 Watts)
Safety and security
Rear parking sensors
Automatic headlight operation
(6-cylinder models only)
Automatic windscreen wipers
(6-cylinder models only)
Seats
Milano leather seats
Interior equipment
3-spoke leather multi-function
steering wheel
4-cylinder models – 1-zone
climate control
6-cylinder models – Deluxe 3-zone
climate control with separate air
distribution and digital display for driver
and front passenger. System includes
air-conditioning controls in
the rear centre console for rear
passenger compartment
Colour Driver’s Information System (DIS)
Front centre armrest including 2 x 12V
power sockets
SE model
equipment
In addition to Standard
models, all SE models
have the following items
of equipment.
Colour Driver’s Information System (DIS)17” x 7.5J ‘7-arm’ design alloy wheels Split-folding rear seatMilano leather seats

17
Wheels, tyres and suspension
18 x 8J ‘5-arm’ S line design alloy wheels
with 245/40 R18 tyres and locking
wheel bolts
Sports suspension with shorter spring
settings and shock absorbers (S line
Sports suspension available at
no charge)
Interior equipment
3-spoke S line multi-function
steering wheel (paddle shift for
automatic models)
Black headlining
Matt brushed aluminium inlays
Perforated leather gear knob
S line embossed Sports seats in
Milano leather
S line sill plates
Exterior equipment
Bumper ‘blade’ in platinum optic
Chrome fog light surround
Chrome rolled exhaust
S line exterior styling package including:
- S line side skirts
- S line front bumper
- S line rear diffuser
- S line badges on wings
Xenon headlights with LED front lights
and LED rear lights
S line model
equipment
In addition to SE models,
all S line models have
the following items
of equipment.
3-spoke S line multi-function
steering wheel
18 x 8J ‘5-spoke’ S line design alloy wheels S line embossed Sports seats in
Milano leather
Perforated leather gear knob
Model details and prices

18
Engines Power Transmission Basic RRP Total RRP inc VAT
Recommended
OTR
2.0 TFSI 180PS 6-speed manual £19,947.83 £22,940.00 £23,710.00
2.0 TFSI 180PS multitronic £21,182.61 £24,360.00 £25,155.00
2.0 TFSI 211PS 6-speed manual £21,691.30 £24,945.00 £25,715.00
2.0 TFSI quattro® 211PS 7-speed S tronic £24,200.00 £27,830.00 £28,625.00
2.0 TDI 170PS 6-speed manual £21,478.26 £24,700.00 £25,440.00
2.0 TDI quattro® 170PS 6-speed manual £22,752.17 £26,165.00 £26,935.00
Audi A5 Sportback Standard
Engines Power Transmission Basic RRP Total RRP inc VAT
Recommended
OTR
2.0 TFSI 180PS 6-speed manual £21,426.09 £24,640.00 £25,410.00
2.0 TFSI 180PS multitronic £22,660.87 £26,060.00 £26,855.00
2.0 TFSI 211PS 6-speed manual £23,169.57 £26,645.00 £27,415.00
2.0 TFSI quattro® 211PS 7-speed S tronic £25,678.26 £29,530.00 £30,325.00
3.2 FSI quattro® 265PS 7-speed S tronic £28,760.87 £33,075.00 £33,910.00
2.0 TDI 170PS 6-speed manual £22,956.52 £26,400.00 £27,140.00
2.0 TDI quattro® 170PS 6-speed manual £24,230.43 £27,865.00 £28,635.00
2.7 TDI 190PS multitronic £26,165.22 £30,090.00 £30,885.00
3.0 TDI quattro® 240PS 6-speed manual £27,656.52 £31,805.00 £32,600.00
3.0 TDI quattro® 240PS 7-speed S tronic £28,891.30 £33,225.00 £34,020.00
Engines Power Transmission Basic RRP Total RRP inc VAT
Recommended
OTR
2.0 TFSI 180PS 6-speed manual £23,339.13 £26,840.00 £27,610.00
2.0 TFSI 180PS multitronic £24,573.91 £28,260.00 £29,055.00
2.0 TFSI 211PS 6-speed manual £25,082.61 £28,845.00 £29,615.00
2.0 TFSI quattro® 211PS 7-speed S tronic £27,591.30 £31,730.00 £32,525.00
3.2 FSI quattro® 265PS 7-speed S tronic £30,673.91 £35,275.00 £36,110.00
2.0 TDI 170PS 6-speed manual £24,869.57 £28,600.00 £29,340.00
2.0 TDI quattro® 170PS 6-speed manual £26,143.48 £30,065.00 £30,835.00
2.7 TDI 190PS multitronic £28,078.26 £32,290.00 £33,085.00
3.0 TDI quattro® 240PS 6-speed manual £29,569.57 £34,005.00 £34,800.00
3.0 TDI quattro® 240PS 7-speed S tronic £30,804.35 £35,425.00 £36,220.00
Audi A5 Sportback SE
Audi A5 Sportback S line
Please note: The maximum power output figures are quoted in PS (or Pferdestärke, which is the metric equivalent of brake
horsepower). To convert to brake horsepower, divide the PS figure by 1.0139.
Recommended On-The-Road (OTR) retail prices include: delivery charge, half a tank of fuel, number plates at £565.00 (inc. VAT), Road Fund
Licence (which may vary depending on model/transmission – see page 42 for details) and first registration fee at £55.00.
RRP – Recommended Retail Price.

19
Model details and prices

20
Ibis white – T9
Standard
colours
Optional
colours
Monza silver, metallic – U7
Misano red, pearl effect – N9
Deep sea blue, pearl effect – 8A
Phantom black, pearl effect – L8
Brilliant red – C8 Condor grey, metallic – 5Q
Ice silver, metallic – P5
Dakar beige, metallic – 9X
Sphere blue, metallic – 9F
Deep green, metallic – 3W
Lava grey, pearl effect – 1R
Meteor grey, pearl effect – X5
S line only
colours
Aruba blue, pearl effect – Q9
Amethyst grey, metallic – 1J
Garnet red, pearl effect – 9C
Optional colours
Basic RRP
£508.70
Total RRP inc VAT
£585.00
Paint
Standard and
optional colours
You can select the standard Ibis
white, Brilliant red or Brilliant black
colours shown opposite or, for a
different look, choose from the
huge range of optional finishes.
Options are subject to availability
and may extend delivery.
All the colour swatches on this page are
matched as accurately as possible to the
actual paint colours used. However, due to
print processes, Audi UK cannot guarantee
that colours shown are 100% accurate.
Visit your local Audi Centre for a more
accurate colour swatch.
RRP – Recommended Retail Price.
Brilliant black – A2

21
Colour and upholstery
