Audi S4 User manual

Audi A4 Cabriolet •S4 Cabriolet
Quick reference guide

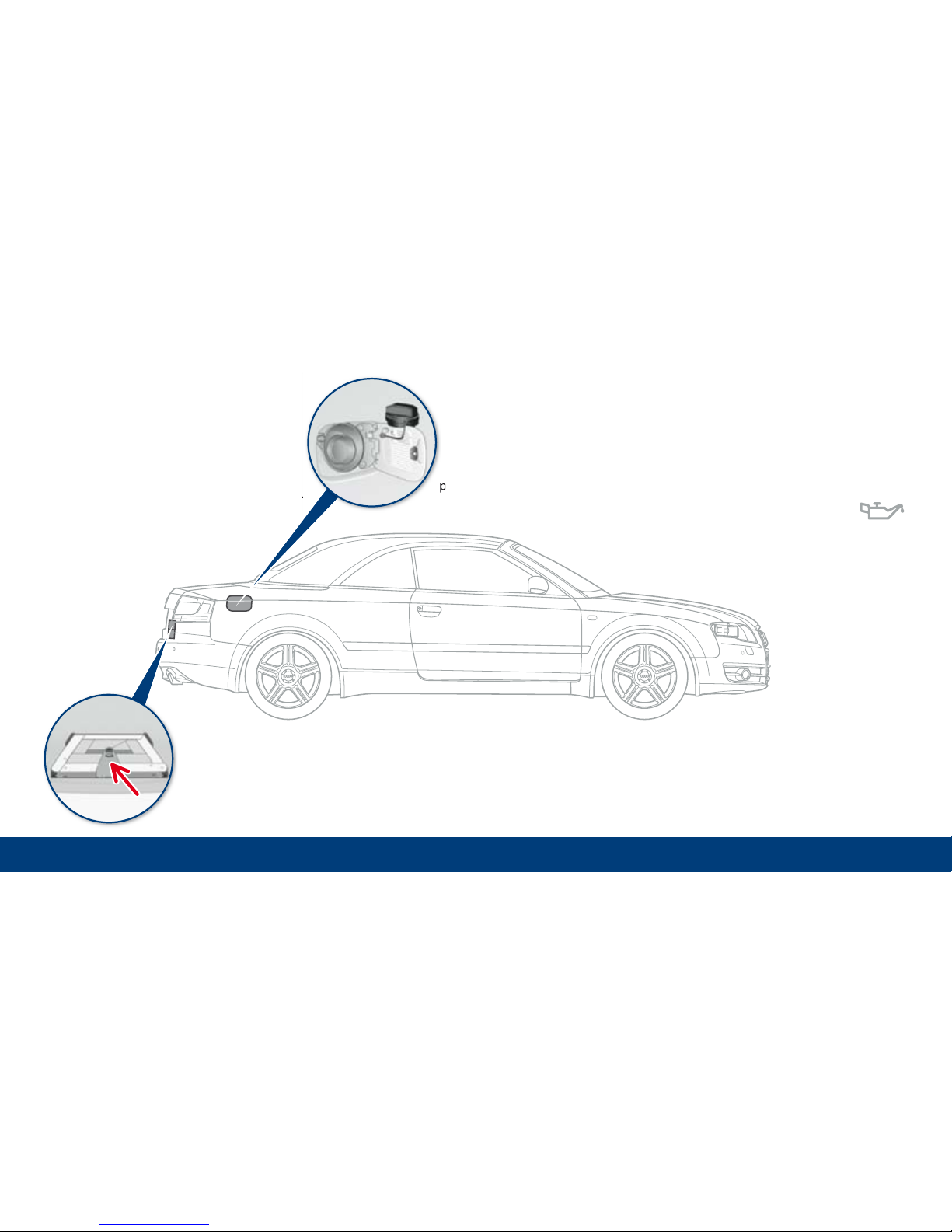

Fuel
(see sticker)
Tyre pressures
(see sticker on door
pillar on driver side)
Fuel tank flap
To open:
Press the right side of the flap.
To close:
Press the tank flap until you hear
it click into place.
Engine oil
The correct oil specifi-
cations and engine oil
capacity are listed in
the Performance,
weights and dimen-
sions section of the
Owner’s Manual.
Warning triangle
The compartment for the warning
triangle is located inside the boot lid.

Welcome
Dear Audi Driver,
This quick reference guide gives you
an overview of the main features and
controls of your vehicle. However, it
cannot replace the detailed Owner’s
Manual which contains important
information and safety warnings.
Please refer to your Owner's Manual
for detailed information on your vehicle.
You will find everything you need to
know about the radio, CD, navigation, TV
and telephone functions in the Operating
Manual for your sound system or
navigation system.
We wish you safe and enjoyable
motoring with your new Audi.
AUDI AG

Controls and
displays
Buttons for seat memory
Electric windows
To set the desired position:
Press/pull to the first stop
and hold.
„One-touch“ function:
Press/pull briefly to the
second stop.
Bonnet lock release
Steering wheel position
adjuster
4
3
1
2
1
2
3
4
5
67
8
9
10 14
12 12
11 11
13
15
Door handle and
central locking switch
Unlock
Lock
Adjuster for exterior
mirrors
Turn the adjuster for:
Left exterior mirror
Exterior mirror heating
Right exterior mirror
Exterior mirror
retraction
Press the adjuster to move
the mirror glass in the
desired direction.
5
6

Overview

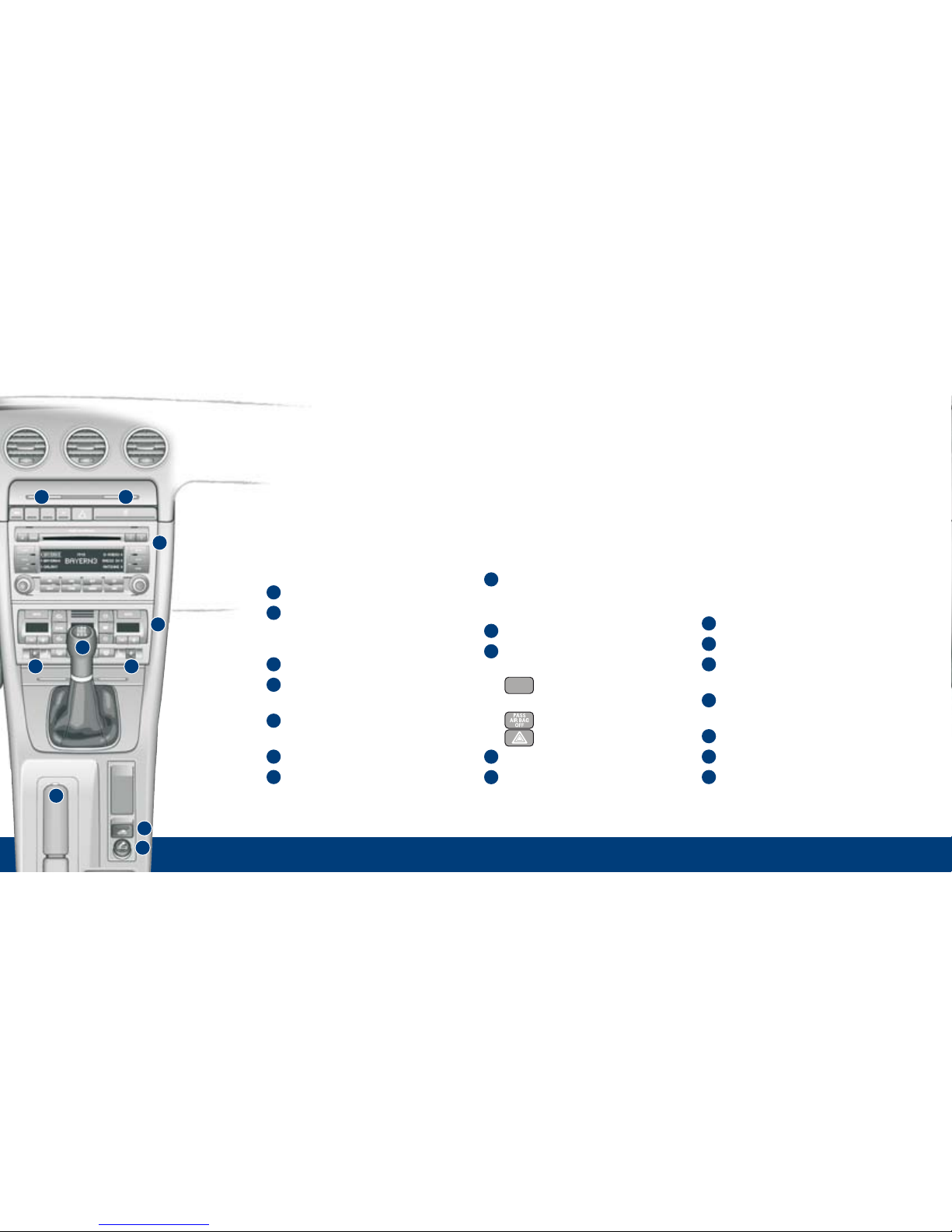

Air conditioner
Driver’s seat heating
Front passenger’s seat
heating
Gear lever or selector lever
for automatic gearbox
Handbrake
Power-operated soft top
Cigarette lighter/electrical
socket
23
24
20
22
21
19
25
Windscreen wipers/washer
and buttons for on-board
computer
Ignition lock
Switches and warning
lamps for:
Electronic stabilisation
program
Passenger airbag off
Hazard warning lights
Storage tray
Sound system or
navigation system
18
17
ESP
OFF
16
15
14
16 17
18
19
20
22
23
24
25
21
Cruise control system
Headlight range control
and coming home/leaving
home function
Light switch
Turn signal and main beam
lever
Controls on multi-function
steering wheel
tiptronic paddle levers
Instruments and warning/
indicator lamps
12
11
10
9
13
8
7

21 3
Seat adjustment
Electric seat adjustment

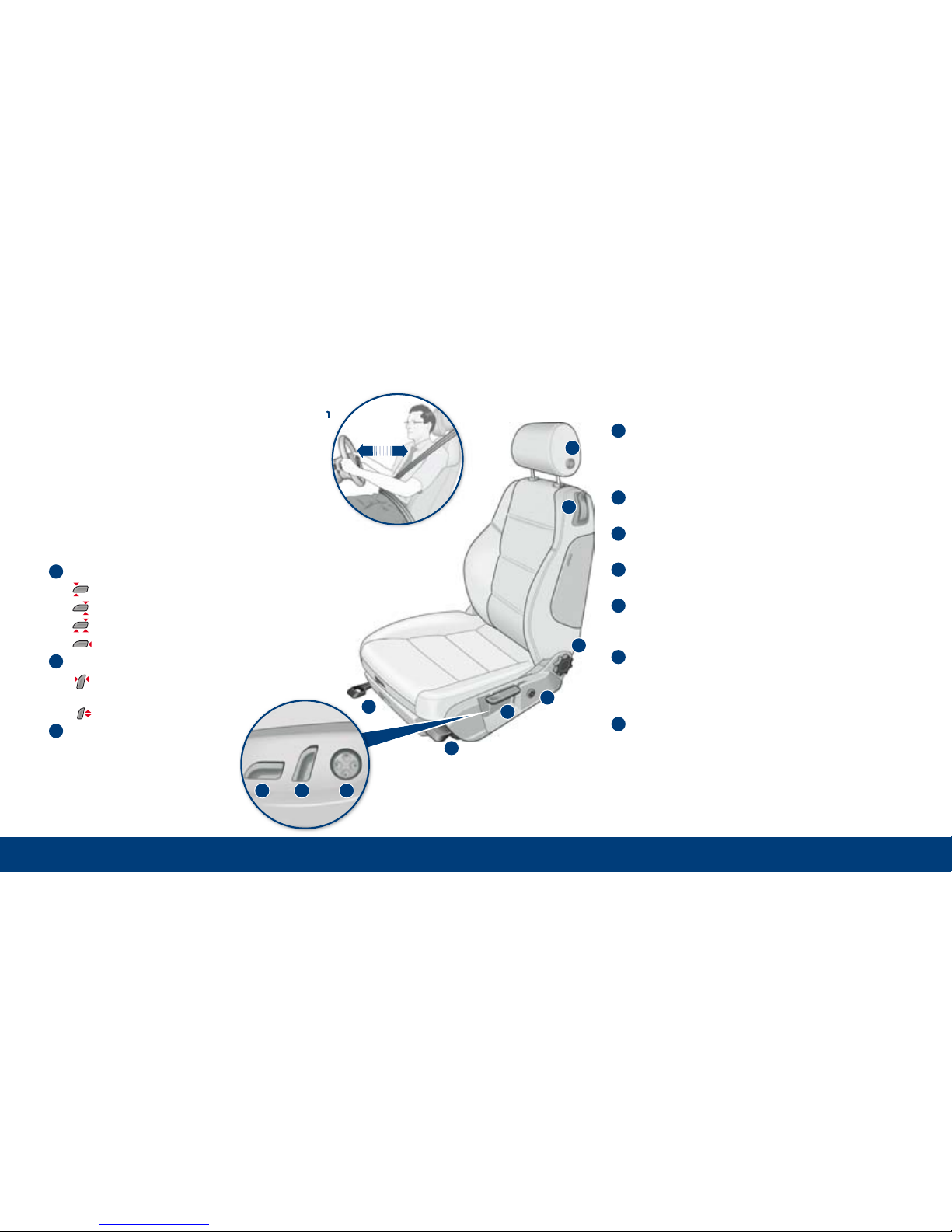

To adjust seat height and move seat backwards or forwards:
Front of seat cushion up/down
Rear of seat cushion up/down
Seat up/down
Seat forwards/backwards
To adjust backrest:
Backrest further upright/
further reclined
Head restraint up/down
To adjust lumbar support:
Press the appropriate
part of the switch.
2
3
1
Manual seat adjustment
To move seat backwards or forwards:
Lift the lever and move the seat. Then
release the lever and move the seat further
until the catch engages.
To adjust angle of seat cushion:
Lift the lever and adjust the seat angle.
To adjust seat height:
Pull up or press down the lever repeatedly.
To adjust lumbar support:
Press the appropriate part of the switch.
To adjust backrest:
Take your weight off the backrest and turn
the knob.
Easy entry function:
Pull the lever upwards and fold the backrest
forwards; then release the lever and move
the seat forwards.
To adjust head restraint:
Press the button on the side of the head
restraint and move the head restraint up or
down. The top of the head restraint should
be at eye level or higher.
10
9
7
5
8
6
4
Sitting position
Sit in a normal upright position and
do not sit too close to the steering
wheel. If necessary, also adjust the
position of the steering wheel.
min.
25 cm
4
5
6
7
8
9
10

First steps
Starting the engine

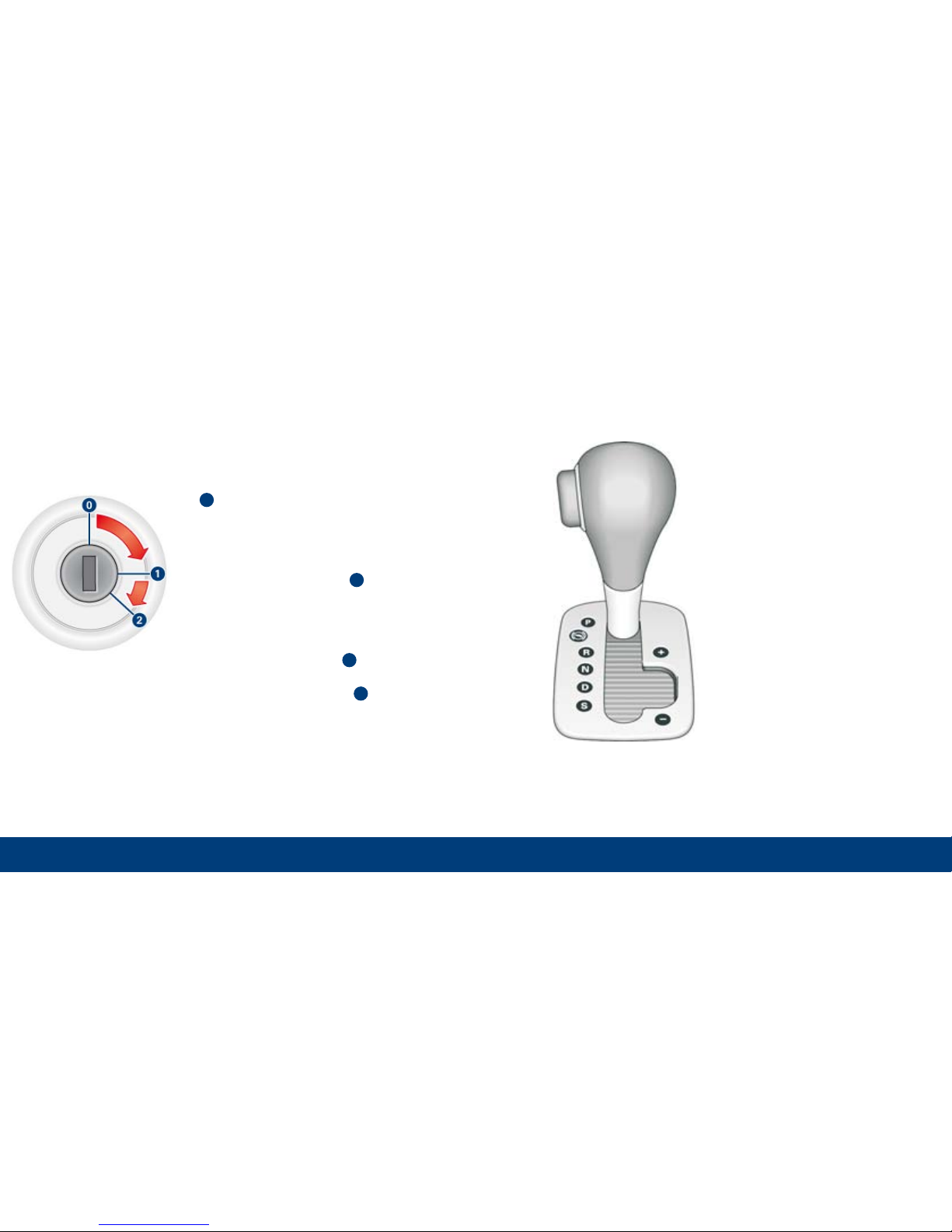

Switching on the ignition/starting the engine
Insert the key into the ignition lock.
To switch on the ignition: Turn the key to
position . The glow plugs on diesel
engines start preheating in this
position.
To start the engine (on vehicles with
manual gearbox): Press the clutch
and turn the key to position until
the engine starts.
To start the engine (on vehicles with
automatic gearbox): Move the selector
lever to position Por N, press the brake
pedal, and turn the key to position until
the engine starts.
To switch off the engine: Turn the key to position .
0
2
2
1
Automatic gearbox
Selector lever positions
PParking lock
RReverse gear
NNeutral
DDrive (forwards)
SSport position
To release the selector lever and
engage a gear: Switch on the ignition,
press the brake pedal, and press the
interlock button on the selector
lever. Move the selector lever to
Dor Sto start driving forwards.
tiptronic: To switch to manual
gear selection mode, push the
selector lever from position D
to the right. The gears are
shown on the driver infor-
mation system.
To shift up or down a gear:
Briefly push the selector lever forwards or
backwards.

Air conditioner
A
B
Variable
soft top storage box
The storage box can be raised in order to
extend the luggage compartment.
The soft top must be closed!
To raise: Slide the lever to position .
To lower: Slide the lever to position .
B
A
Switches for air conditioner
Buttons on left: Temperature
selection for left side
Buttons on right: Temperature
selection for right side
Buttons in centre: Blower speed
Automatic mode
Set the desired temperature and
press the button
Air recirculation
Circulates and filters the air in the
interior of the vehicle
ECON mode
Activates/deactivates air cooling
To deactivate the air conditioner
Air to the windows
Air from the dashboard outlets
Air to the footwells
ECON
AUTO
Power-operated
soft top
To open the soft top:
Switch on the ignition.
Pull and hold the
switch until
the soft top is fully
open.
To close the soft top:
Switch on the ignition.
Press and hold the
switch until the
soft top is fully closed.

Technology
A
B
C

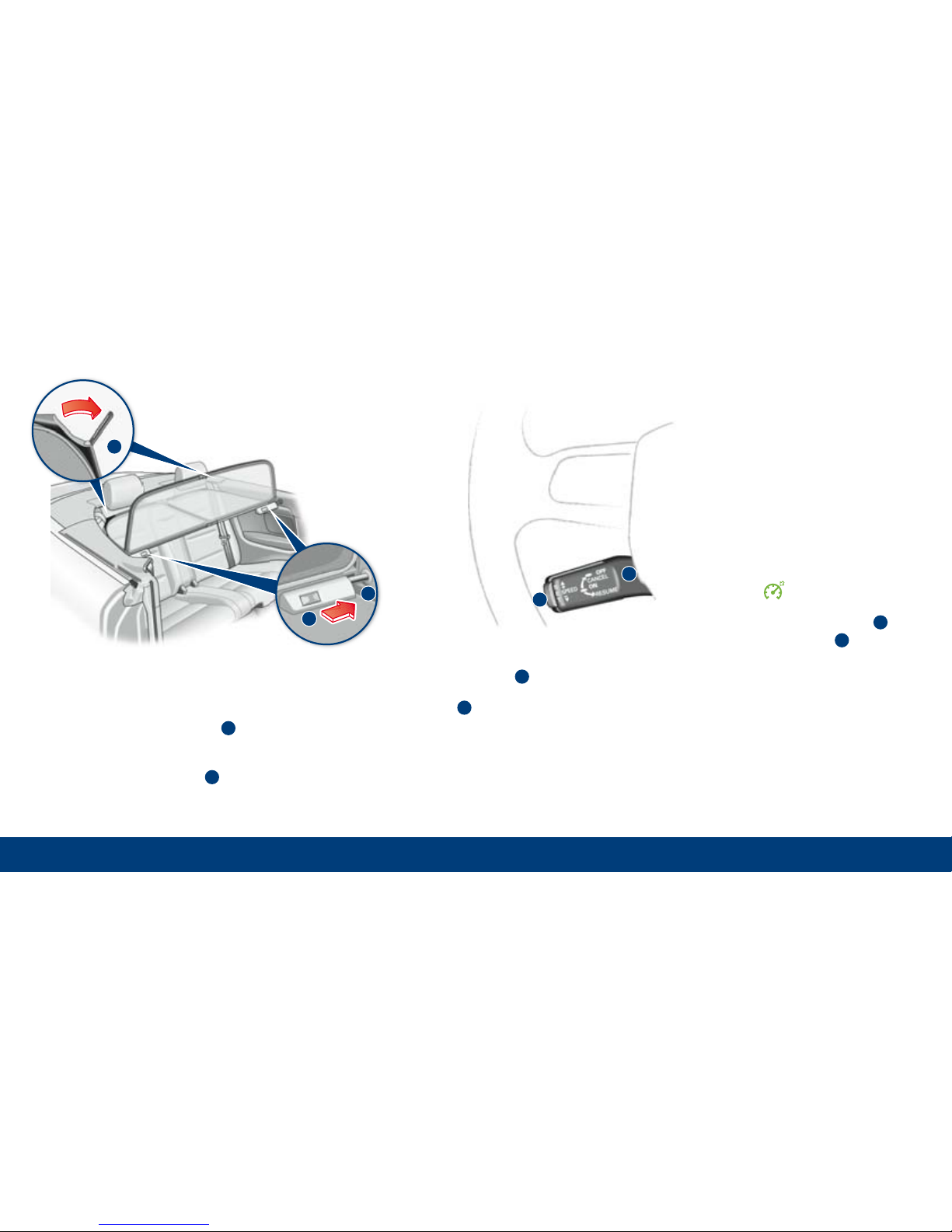

Setting up:
pTake the windbreak out of the storage
bag (luggage compartment).
pFold the two side sections outwards.
pPull out the retainer pegs (left/right)
and hold the windbreak in a horizontal
position against the backrest upholstery.
pSlide the retainer pegs (left/right) all
the way into the mountings.
pPress the release catches (left/right)
and slide the locking pins into the
mounting holes at the sides.
pFold the vertical section of the wind-
break into the fully upright position.
Removing:
Follow the instructions in reverse order.
C
B
A
A
Windbreak
2
1
Cruise control
system
When the system is switched on, the
indicator lamp appears in the
instrument cluster.
To switch on/off: Pull/press lever .
To set speed: Press button .
To adjust stored speed: Press lever up
(faster) or down (slower).
1
2

1
2
2
Audi Navigation System plus
Components
Driver information system
Multi-function steering wheel

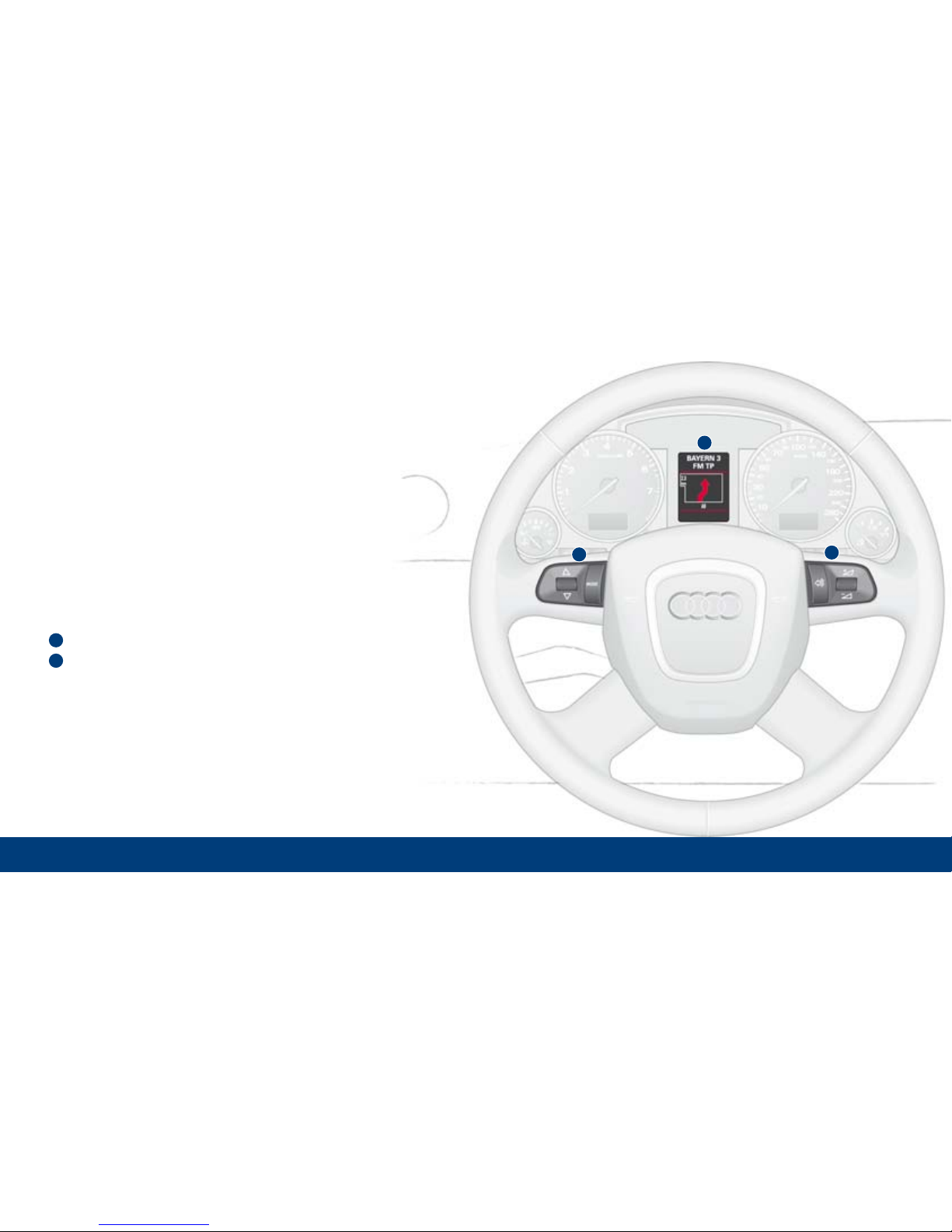

Scroll the left thumbwheel to select a menu item in the
driver information system. Press the thumbwheel to
confirm the selection.
Press the MODE button to switch between the active audio
source and the navigation and telephone functions.
Scroll the right thumbwheel to adjust the volume. If you
press the right thumbwheel, the last navigation cue will be
repeated.
2
1

Operating logic
The operating logic for
accessing the functions is
always the same.
To call up the menu in a
corner of the display: Press
the corresponding button.
To select: Turn the rotary
pushbutton.
To confirm: Press the rotary
pushbutton.
A
C
B
C
A
B
3
5
7
6
6
4
Display
Function selector buttons
Press one of the buttons
(e.g. RADIO) to activate
the desired mode.
ON/OFF button
To switch on: Press briefly.
To adjust volume: Turn.
To mute: Press briefly.
To switch off: Press and hold.
Control buttons
To activate one of the functions
shown in the four corners of
the display, press the control
button for that corner of the display.
Rotary pushbutton
To select a menu item on display :
Turn the rotary pushbutton.
To confirm selection:
Press the rotary pushbutton.
3
7
5
6
4
3
Infotainment

8
4
5 7
6
Turn the rotary pushbutton and select
the desired memory position.
Press the rotary pushbutton to confirm.
8
7
Press the control button for ”Memory”.
Turn the rotary pushbutton and, if
desired, select ”Store <station name>”.
5
4Press the rotary pushbutton. The next
free position in the memory list will be
highlighted.
6
Storing a radio station
Press the RADIO function selector
button.
1Press the rotary pushbutton to confirm. 3
Turn the rotary pushbutton and select
the desired station.
2
1
2
3

Infotainment

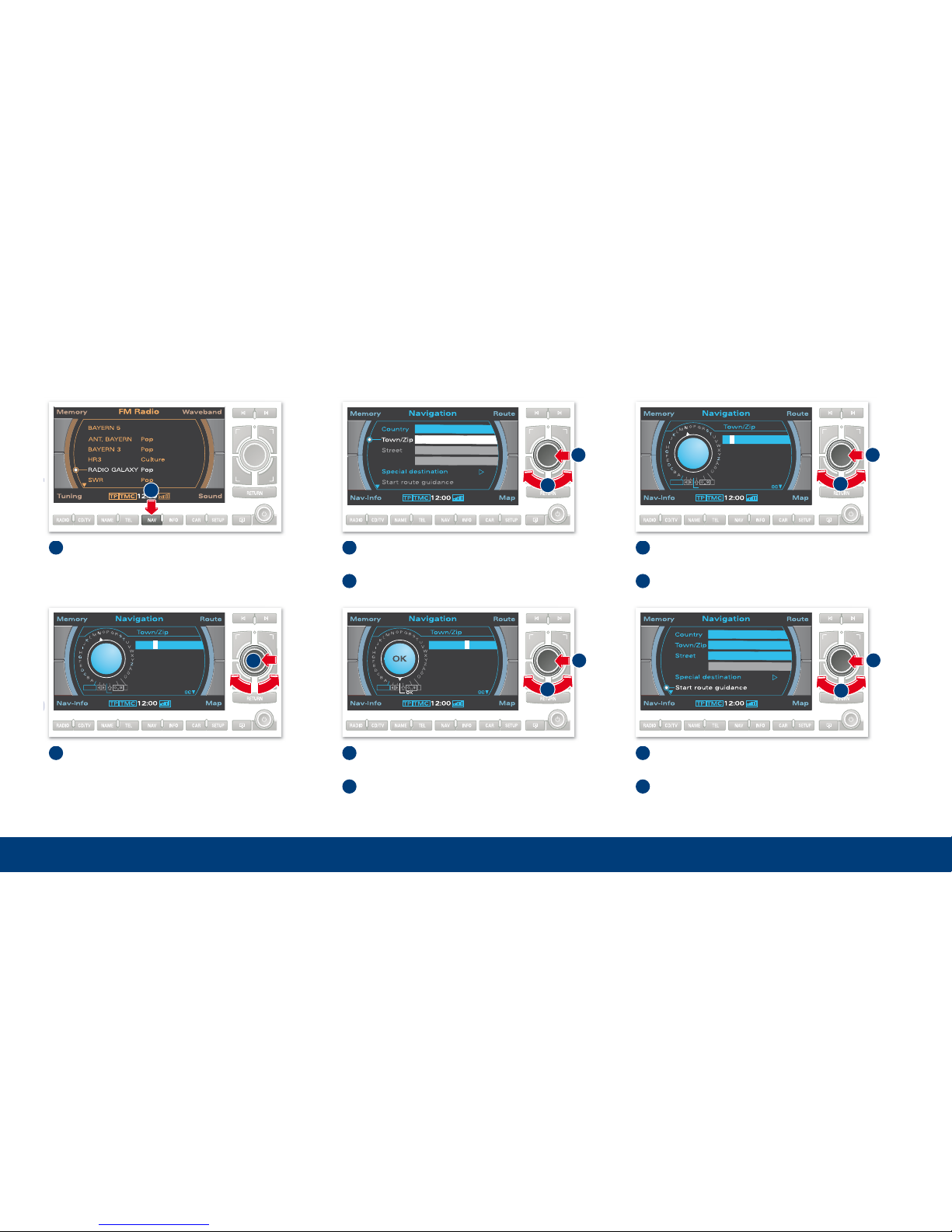

Press the NAV function selector button.
1Turn the rotary pushbutton and select
the first letter of the destination town.
Press the rotary pushbutton to confirm.
5
4
Select ”Start route guidance” from the
menu.
Press the rotary pushbutton to confirm.
The route will be calculated.
10
9
Turn the rotary pushbutton and select
”Town/ZIP”.
Press the rotary pushbutton to confirm.
3
2
Repeat the above step to enter the
remaining letters of the destination
town until the name of the desired
town appears on the display.
6When you have entered the town, turn
the rotary pushbutton and select ”OK”.
Press the rotary pushbutton to confirm.
8
7
Starting the navigation system
Germany
M
MÜNCH-LEU…
MÜNCHAUR…
MÜNCHBERG
MÜNCHEBERG
DEL
LIST
N
MÜNCHEN
MÜNCH-LEU…
MÜNCHAUR…
MÜNCHBERG
MÜNCHEBERG
DEL
MÜNCH-LEU…
MÜNCHAUR…
MÜNCHBERG
MÜNCHEBERG
DEL
LIST
N
MÜN
MÜNCHEN/MÜNCHEN (…
Centre
Germany
1
3
2
5
4
6
7
8
9
10

Functions
Establishing a BluetoothTM connection
for a mobile phone
You can quickly connect a Bluetooth
mobile phone to the onboard phone
system on your navigation system:
pSwitch on the ignition, navigation
system and mobile phone.
pOn your mobile phone, select the menu
that looks for Bluetooth devices (e.g.
”Hands-free”).
pOn the mobile phone, select ”Audi UHV”
and confirm.
pEnter the PIN ”1234” on your mobile
phone.

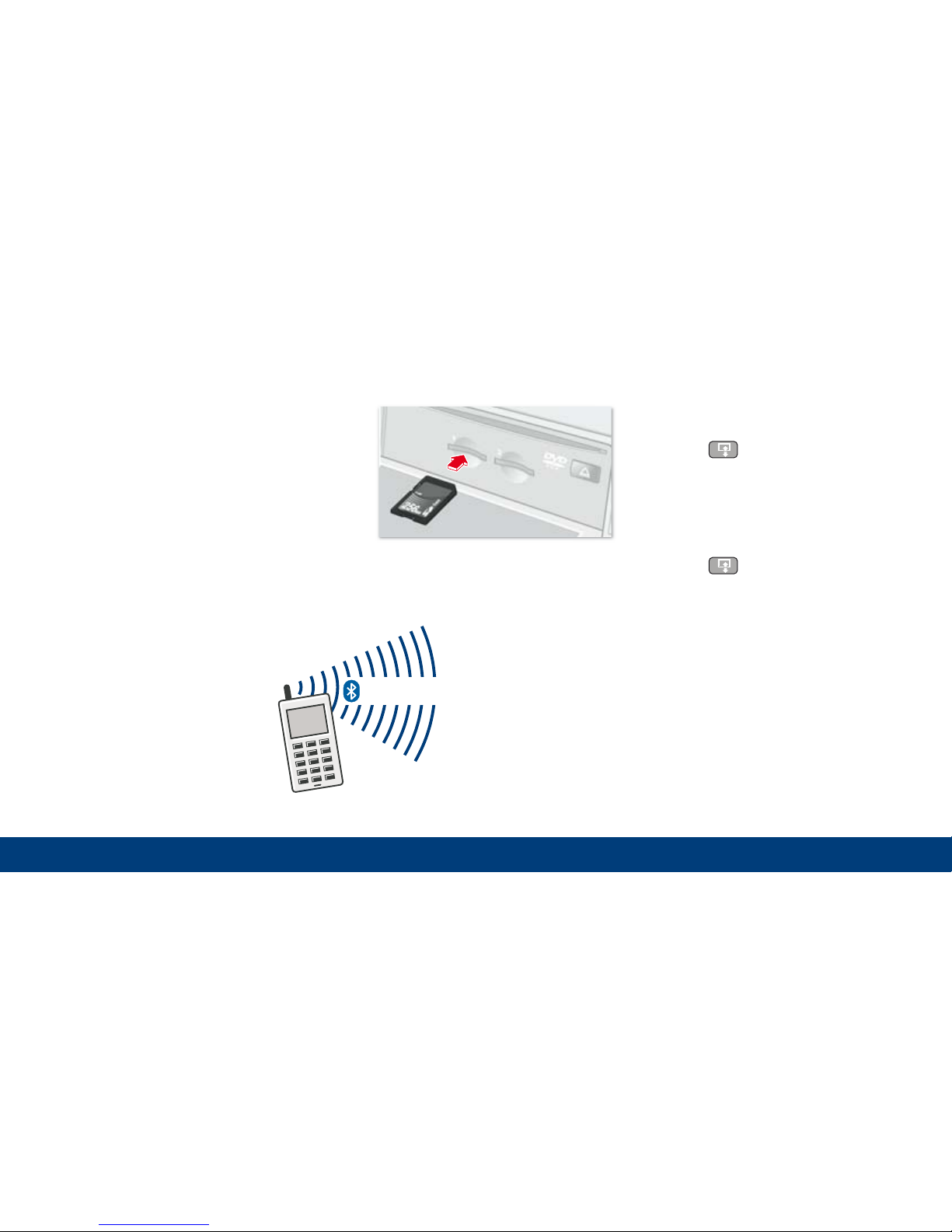

Memory cards
Loading:
pPress the button to open the
display.
pInsert the memory card into the reader
slot as shown in the illustration and
press in the memory card until you feel
it click into place.
Removing:
pPress the button to open the
display.
pPress in the memory card. The card will
be released and can then be removed
from the reader slot.
Bluetooth
©
Infotainment

Warning and indicator lamps
Warning and indicator lamps
© 2007 AUDI AG
AUDI AG reserves the right to alter any part of the vehicle, its equipment and technical specifications.
No legal commitment can be implied by the information, illustrations or descriptions in this publication.
No part of this publication may be reprinted, reproduced or translated without the written permission
of AUDI AG. All rights under the laws of copyright are expressly reserved by AUDI AG. Subject to alteration
and amendment. Concept and layout: Pfriemer GmbH. Printed in Germany.
If one of these red symbols lights up in the
display while you are driving, stop the car
immediately, switch off the engine and refer to
the Owner’s Manual.
Fault in the brake system
Fault in the cooling
system
Engine oil pressure
too low
Tyre pressure too low
Warning symbols
1) If this warning lamp lights up when driving, please contact a qualified workshop without delay.
Turn signals/
hazard warning lights
Electronic stabilisation
program (ESP)
Alternator1)
Main beam headlights
Engine management1) or
Glow plug system1)
Fault in brake system or
handbrake is applied
Emission control system
Airbag system1)
Cruise control system
Trailer turn signals
Anti-lock brake system1)
Seat belt warning lamp
Power-operated soft top

Audi A4 Cabriolet •S4 Cabriolet
Kurzanleitung
englisch 11.07
282.562.684.20
www.audi.com
