The new Audi A5 and S5 Cabriolet
Pricing and Specification Guide
Valid from July 2009

3
This guide has been designed to help you tailor and
price your chosen A5 Cabriolet quickly and logically.
At the back of this guide, you will also find information
on CO2emissions-based taxation and the other services
offered by Audi, including Finance and Insurance.
If you wish, you can also go to audi.co.uk and configure
your A5 Cabriolet online.
Tune into the Audi Channel at any time on Sky Guide
No. 884 to see a whole range of programmes about
the Audi range and our motorsport achievements.
A User’s Guide Table of con en Page Number
Introduction
The A5 Cabriolet
Engines and quattro®6
Model details and prices
Standard models 8
SE models 10
S line models 12
S5 quattro®models 14
Transmission 16
Colour and upholstery
Paint finishes 18
Upholstery options 20
Colour and trim guide 24
Inlays 26
Options
Wheels, tyres and suspension 28
Audio and communication 30
Steering wheels 32
Safety and security 33
Interior equipment 34
Exterior equipment 35
Seats 36
Audi exclusive
Audi exclusive options 38
Audi exclusive line 44
Technical details
Technical data 46
Dimensions 48
Additional information 50

4

5

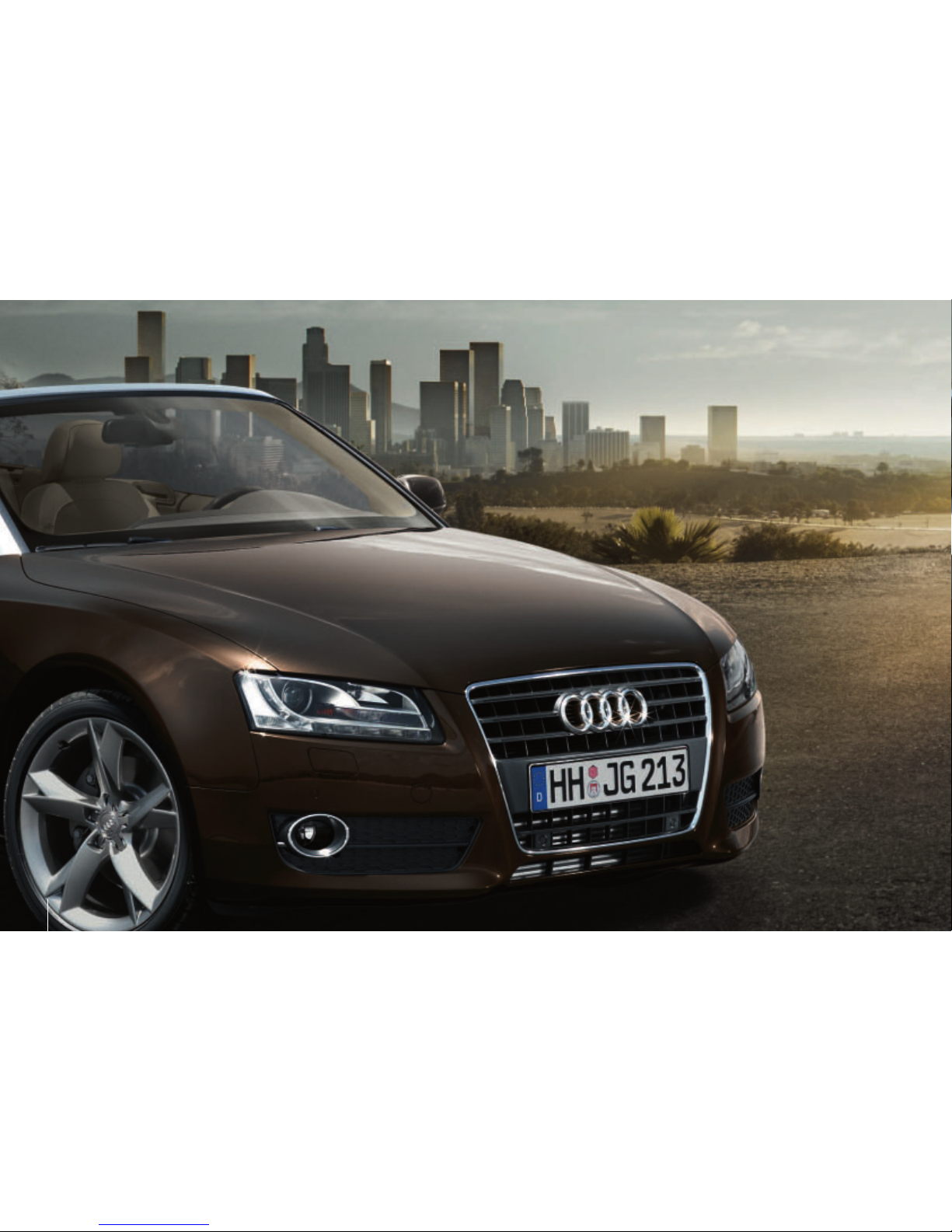

The A5 Cabriole
When Audi’s Italian head of design, Walter da Silva, designed the Audi A5, he described it as ‘a rhythm of lines’ and the
most beautiful car he’d ever built. The A5 Cabriolet has exactly the same qualities, with the added benefit of open-top
driving. Its lightweight roof opens in just 15 seconds and closes in 17, and the optional head-level heating and solar
heat-reflecting upholstery ensure that it’s enjoyable to have the roof down, whatever the weather conditions.
Aside from the obvious benefits of a cabriolet, there are other features that are equally appealing. It accelerates from
0 to 62mph in just 5.6 seconds, on the way to an electronically limited top speed of 155mph. And there’s a choice of

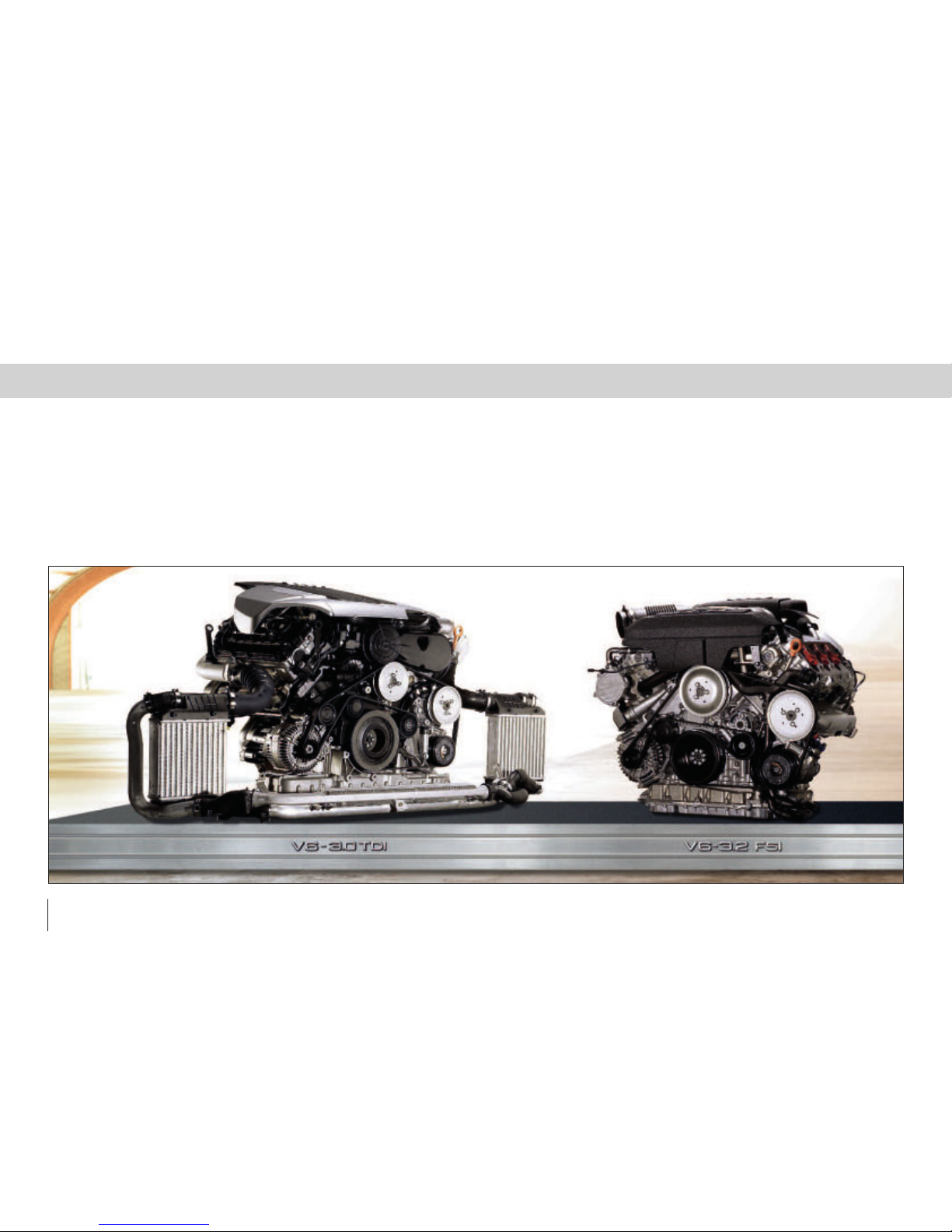

impressive engines, the 2.0 TDI, 3.0 TDI, 3.2 FSI and S5 quattro®, which demonstrate our trademark fuel-efficient
technology. Technical ingenuity and elegant design combine to make us rather proud of the A5 Cabriolet.

6
All A5 Cabriolet petrol engines feature FSI®direct-injection – a unique Audi technology
originally developed for the Le Mans 24-hour endurance race to deliver increased
power and torque as well as enhanced fuel efficiency. The way it does this is, in theory,
very simple. Precisely the right amount of fuel and air are injected directly into the
combustion chambers, enabling the engine to ‘breathe’ more easily. At the same time,
electronics monitor the engine load and adjust the injection process. The result –
reduced heat-loss and increased output, with around a 15% reduction in fuel
consumption and significantly lower exhaust emissions. Ideal for the buyer who
wants an athletic, exhilarating drive without the drawbacks of excessive fuel costs
or high emissions.
All diesel engines from Audi are known as TDI. This impressive technology was originally
pioneered by Audi in 1989, marking a departure from the noisy, fuel-thirsty diesel engines
of the past. Like its FSI petrol counterpart, the TDI diesel engine is designed for power,
performance, low fuel consumption and emissions.
All A5 Cabriolet TDI engines are based on the common rail system. Here, fuel is stored
and kept at constant pressures of up to 1,600 bar, ready to feed a series of highly accurate
piezo injectors, which control the rate and point of injection.
Petrol Diesel
Engines

®
It’s the technology that has given Audi the edge on the racetrack ever
since it was first introduced over 25 years ago – a technology that
delivers ultimate control whilst enhancing the athletic characteristics
which make the A5 Cabriolet so thrilling to drive. It’s called quattro®
permanent all-wheel-drive. The principle is simple: in the same way
that four brakes ensure better deceleration, four permanently-driven
wheels deliver better acceleration and road-holding, pushing or
pulling the car as needed, for a driving experience that’s both dynamic
and safe. In the A5 Cabriolet, asymmetric-dynamic torque distribution
continuously distributes drive power between the front and rear axles
depending on weather conditions, road surface and gradient, which
increases flexibility for an enhanced, more dynamic drive.
7

8
Engines
Automatic start/stop function for greater fuel and CO2
efficiency. Comprising:
– Recuperation for optimal energy utilisation
– Energy-saving tips feature in Driver’s Information System;
including gearshift indicator
(Only available on the 2.0 TFSI manual engine)
Wheels, yres and suspension
17 x 7.5 ‘6-arm’ design alloy wheels with 245/45 R17 Y
tyres and locking wheel bolts
Space-saver spare wheel
Audio and communica ion
Audi Concert audio system. Single CD with MP3 compatibility,
colour centre console screen, SD memory card reader and
AUX-IN socket in centre console
6 loudspeakers (80 Watts)
Safe y and securi y
ESP (including limited-slip differential on FWD models)
First aid kit
Front and rear fog lights
Front and rear ISOFIX preparation with front
passenger airbag de-activation switch
Front side airbags
Halogen daytime-running lights
Headlight range adjustment
Thatcham category 1 alarm and immobiliser
Toolkit and car jack
Warning triangle
Sea s
Arcade cloth seats
Automatic seat belt feeder
Split folding rear seat – one touch operation
In erior equipmen
1-zone climate control
3-spoke leather steering wheel
Driver’s Information System (DIS)
Electric front windows
Electromechanical parking brake
Front and rear floor mats
Intelligent key
Interior chrome package
Micrometallic inlays
Steering column adjustment for rake and reach
Servotronic speed-related power-assisted steering
(on 190PS models and above)
Ex erior equipmen
Fully automatic soft top (can be operated at speeds up to 31mph)
Exterior mirrors – electrically operated and heated
Front grille – Black gloss on 3.0 TDI and 3.2 FSI models,
Stone grey on all others
Exhaust pipes – 4-cylinder models have two exhaust pipes
on the left-hand side. 2.0 TFSI and 6-cylinder models have one
exhaust pipe on either side
Exterior aluminium package
All A5 Cabriolet models have the following items of Standard equi ment:
Images are for general illustration purposes only and do not necessarily depict UK specification.
S andard model equipmen
17 x 7.5 ‘6-arm’ design alloy wheels Fully automatic soft top

Recommended On-The-Road (OTR) retail prices include: delivery charge, half a tank of fuel, number plates at £565.00 (inc. VAT) and
Road Fund Licence (which may vary depending on model/transmission. See page 50 for details) and first registration fee at £55.00.
RRP – Recommended Retail Price.
Please note images shown are for illustration purposes only and do not necessarily depict UK specification.
Standard model rices
Model details and prices
9
Engines Power Transmission Basic RRP
Recommended
OTR
2.0 TFSI 211PS 6-speed manual £25,243.48 £29,030.00 £29,800.00
2.0 TFSI quattro®211PS 7-speed S tronic £27,752.17 £31,915.00 £32,710.00
Petrol
Total RRP inc.
VAT Engines Power Transmission Basic RRP
Recommended
OTR
2.0 TDI 170PS 6-speed manual £25,030.43 £28,785.00 £29,530.00
Diesel
Total RRP inc.
VAT

10
In addition to Standard model equipment:
SE model equipment
Basic RRP Total RRP
£1,608.70 £1,850.00
inc.
VAT
Wheels, tyres and suspension
17 x 7.5J ‘7-arm’ d sign alloy wh ls with 225/50 R17
tyr s and locking wh l bolts
Audio and communication
Audi sound syst m sp ak r packag , 10-sp ak rs
including subwoof r (180 Watts)
Seats
Milano l ath r s ats
Safety and security
Automatic h adlight op ration
Automatic windscr n wip rs
R ar acoustic parking syst m
Interior equipment
3-spok l ath r multi-function st ring wh l
D lux 3-zon climat control with s parat air distribution
and digital display for driv r and front pass ng r. Syst m
includ s air-conditioning controls in r ar c ntr consol for
r ar pass ng r compartm nt
Driv r’s Information Syst m (DIS) in colour
Front c ntr armr st including 12V pow r sock t
Wind d fl ctor
17 x 7.5J ‘7-arm’ d sign alloy wh ls Driv r’s Information Syst m (DIS) in colour

11
SE model rices
Recommended On-The-Road (OTR) retail prices include: delivery charge, half a tank of fuel, number plates at £565.00 (inc. VAT) and
Road Fund Licence (which may vary depending on model/transmission. See page 50 for details) and first registration fee at £55.00.
RRP – Recommended Retail Price.
Please note images shown are for illustration purposes only and do not necessarily depict UK specification.
Engines Power Transmission Basic RRP
Recommended
OTR
2.0 TFSI 211PS 6-speed manual £26,852.17 £30,880.00 £31,650.00
2.0 TFSI quattro®211PS 7-speed S tronic £29,360.87 £33,765.00 £34,560.00
3.2 FSI 265PS multitronic £30,895.65 £35,530.00 £36,365.00
3.2 FSI quattro®265PS 7-speed S tronic £32,169.57 £36,995.00 £37,830.00
Petrol
Total RRP inc.
VAT Engines Power Transmission Basic RRP
Recommended
OTR
2.0 TDI 170PS 6-speed manual £26,639.13 £30,635.00 £31,380.00
2.7 TDI 190PS multitronic £29,573.91 £34,010.00 £34,805.00
3.0 TDI quattro®240PS 7-speed S tronic £32,300.00 £37,145.00 £37,940.00
Diesel
Total RRP inc.
VAT

12
In addition to SE model equi ment:
Recommended On-The-Road (OTR) retail prices include: delivery charge, half a tank of fuel, number plates at £565.00 (inc. VAT) and
Road Fund Licence (which may vary depending on model/transmission. See page 50 for details) and first registration fee at £55.00.
RRP – Recommended Retail Price.
S line model equipmen
Wheels, yres and suspension
18 x 8 ‘5-spoke’ S line design alloy wheels with
245/40 R18 tyres and locking wheel bolts
Sports suspension with stiffer spring settings and
dampers than Standard models
In erior equipmen
3-spoke S line multi-function steering wheel
(paddle shift for automatic models)
Black headlining
Matt-brushed aluminium inlays
Perforated leather gear knob
S line embossed Sport seats in Milano leather
S line sill plates
Ex erior equipmen
Acoustic hood with LED rear passenger reading lights
Bumper ‘blade’ in Platinum optic
Chrome fog light surround
Chrome rolled exhaust
S line exterior styling package including:
– S line side skirts
– S line front bumper
– S line rear diffuser on wings
Xenon headlights with LED daytime-running lights
LED rear lights
Basic RRP Total RRP
£2,130.43 £2,450.00
inc.
VAT
Xenon headlights with LED daytime-running lights
18 x 8 ‘5-spoke’ design alloy wheels

13
S line model rices
Recommended On-The-Road (OTR) retail prices include: delivery charge, half a tank of fuel, number plates at £565.00 (inc. VAT) and
Road Fund Licence (which may vary depending on model/transmission. See page 50 for details) and first registration fee at £55.00.
RRP – Recommended Retail Price.
Please note images shown are for illustration purposes only and do not necessarily depict UK specification.
Engines Power Transmission Basic RRP
Recommended
OTR
2.0 TFSI 211PS 6-speed manual £28,982.61 £33,330.00 £34,100.00
2.0 TFSI quattro®211PS 7-speed S tronic £31,491.30 £36,215.00 £37,010.00
3.2 FSI 265PS multitronic £33,026.09 £37,980.00 £38,815.00
3.2 FSI quattro®265PS 7-speed S tronic £34,300.00 £39,445.00 £40,280.00
Petrol
Total RRP inc.
VAT Engines Power Transmission Basic RRP
Recommended
OTR
2.0 TDI 170PS 6-speed manual £28,769.57 £33,085.00 £33,830.00
2.7 TDI 190PS multitronic £31,704.35 £36,460.00 £37,255.00
3.0 TDI quattro®240PS 7-speed S tronic £34,430.43 £39,595.00 £40,390.00
Diesel
Total RRP inc.
VAT

14
Wheels, yres and
suspension
19 x 8.5 ‘5-parallel-spoke’
design alloy wheels with
255/35 R19 tyres
‘S’ Sports suspension
Safe y and securi y
‘S’ model enhanced
braking system
In erior equipmen
3-spoke ‘S’ Sports
multi-function leather
steering wheel with
silver stitching
Aluminium scuff plates
with S5 logo
Interior lighting package
Inlays in matt-brushed
aluminium
‘S’ instrument dials
Sea s
S5 Sports seats with
electric adjustment and
lumbar support
Silk Nappa leather upholstery
Through-load facility
Ex erior equipmen
Acoustic hood with LED rear
passenger reading lights
Aluminium-effect door
mirror housings
Exhaust pipes – twin on
left- and right-hand
side in chrome rolled finish
Platinum grey matt grille,
with vertical bars and
chrome inserts
Painted brake callipers with
S5 logo
‘S’ body styling
Xenon headlights with LED
daytime-running lights and
LED rear lights
S5 quattro®Cabriolet model equi ment – in addition to SE model equi ment:
Recommended On-The-Road (OTR) retail prices include: delivery charge, half a tank of fuel, number plates at £565.00 (inc. VAT),
Road Fund Licence (which may vary depending on model/transmission –see page 50 for details) and first registration fee at £55.00.
RRP – Recommended Retail Price.
Images are for general illustration purposes only and do not necessarily depict UK specification.
One look at its muscular body styling, 19” alloy wheels and subtle V6T badging, and it’ll come as no surprise that the Audi S5
Cabriolet features the new S tronic gearbox as standard, as well as a new powerful 3.0 litre V6 supercharged engine, capable of
taking you from 0 to 62 mph in 5.6 seconds. And from the comfort and stability of a stylish, S5-embossed Silk Nappa leather
Sports seat, you can sit back and enjoy every single unit of this engine’s 333PS capability, safe in the knowledge that the quattro®
permanent all-wheel-drive system will keep you exactly where you want to be – on the road.
But sleek styling and powerful performance in the S5 Cabriolet don’t come at the expense of functional, driver-oriented
specifications. Simple yet thoughtful touches, such as the matt-brushed aluminium inlays, S instrument dials and
through-load facility have been included to ensure that your life runs as smoothly as your Audi does.
Engines Power Transmission Basic RRP
Recommended
OTR
S5 quattro®333PS 7-speed S tronic £36,008.70 £41,410.00 £42,245.00
Petrol
Total RRP inc.
VAT

15

16
Transmission
Translating a driver’s preferences and intentions into road performance, the multitronic®
automatic transmission system entertains no compromises – whether in terms of
dynamism, convenience or economy. multitronic®is available on front-wheel-drive
models. A continuously variable transmission, multitronic®operates in an exceptionally
wide range of gear ratios thanks to its steel link-plate chain construction. The result is
exceptional driving comfort, as well as smooth, powerful acceleration over the entire
range of engine speeds.
In addition, thanks to its lightweight design and the DRP Dynamic Regulating
Programme which monitors gradient, road conditions and the way the driver is using
the accelerator pedal, multitronic®also plays an instrumental role in reducing fuel
consumption. And with seven simulated gear ratios available, you can enjoy all these
benefits whilst adopting the dynamic driving style of a manual.
The revolutionary 7-speed S tronic gearbox combines sporty driving with the convenience
and smooth, uninterrupted power of an automatic transmission. The technical basis of
S tronic is the double clutch. This consists of two lubricated plates with hydraulically-
regulated contact pressure. It means that S tronic works almost as two separate systems:
one engaging the odd-numbered gears, the other the even-numbered gears, enabling
gearshifts to be made in a fraction of a second, with no disruption to the power flow. So
with S tronic, depending on how the mood takes you, you can either allow gear-changes
to take place automatically or, for a sportier driving style, operate the system using the
gear lever or the optional steering wheel shift-paddles. The choice is yours.
multitronic®S tronic®

17
– = Not available •= Available S= Standard
Transmission
Automatic 7-s eed multitronic®transmission • – S – – S – – £1,234.78 £1,420.00
Automatic 7-s eed S tronic®transmission – S – S – – S S £1,234.78 £1,420.00
3.2 FSI 2.0 TFSI quattro®
2.0 TFSI 3.2 FSI quattro®
2.7 TDI 2.0 TDI 3.0 TDI quattro®
Total RRP
Basic RRP inc.
VAT
S5 quattro®

18
Paint finishes
Brilliant black A2
Brilliant red C8
Ibis white T9
Standard colours Optional colours
All the above colour swatches are matched as accurately as possible to the actual paint colours used. However, due to print
processes, Audi U cannot guarantee that colours shown are 100% accurate.
Sahara silver, metallic (not available on S5 quattro®) 9T
Phantom black, pearl effect L8
Ice silver, metallic P5
Quartz grey, metallic Q4
Meteor grey, pearl effect X5
Deep sea blue, pearl effect 8A
Basic RRP Total RRP
£508.70 £585.00
inc.
VAT
Amethyst grey, pearl effect (not available on S5 quattro®)1J Garnet red, metallic 9C
Sphere blue, metallic (not available on S5 quattro®) 9F

19
RRP – Recommended Retail Price.
Aruba blue, pearl effect (not available on S5 quattro®)Q9
Teak brown, pearl effect (not available on S5 quattro®)4U
Colour and upholstery
Misano red, pearl effect (not available on S5 quattro®)N9
Monza silver, metallic (not available on S5 quattro®)U7
S line additional colours Hood colours
Brown PW
Blue PB
Black PA
Red SF
Aurum beige, metallic (not available on S5 quattro®)C6
Sprint blue, pearl effect (only available on S5 quattro®)5N

20
Standard SE
S – – – No charge No charge
• S – – £1,095.65 £1,260.00
Arcade cloth, Black GD/JN Arcade cloth, Light grey GE/AD
Upholstery
Standard seats
Milano leather, Black GD/JN Milano leather, Light grey GE/AD Milano leather, Cinnamon GN/GJ Milano leather, Cardamom beige AN
Total RRP
Basic RRP inc.
VAT
Options are subject to availability and may extend delivery.
– = Not available •= Available S= Standard
RRP – Recommended Retail Price.
All leather upholstery choices include seats, head restraints, door inserts and front centre armrest in leather.
S line
Sports seats in Cardamom beige (AN), Milano leather (N5W), head level heating system (9 1) and Laurel nutmeg inlays (7TD)
S5 quattro®

– • – – £404.35 £465.00
–•–– £404.35 £465.00
– • – – £700.00 £805.00
21
All l ath r upholst ry choic s includ s ats, h ad r straints, door ins rts and front c ntr armr st in l ath r. Alcantara/l ath r choic s
includ h ad r straints, s at sid bolst rs and front c ntr armr st in l ath r with th s at c ntr s and door ins rts in Alcantara.
Sports seats –front, with 4-way l ctrical lumbar adjustm nt and manual h ight adjustm nt
L ath r/Alcantara, Black GD/JN L ath r/Alcantara, Light gr y GE/AD L ath r/Alcantara, Cardamom b ig AN
Standard SE
Total RRP
Basic RRP inc.
VAT
S lin
Fin Nappa l ath r, Black GD/JN
Fin Nappa l ath r, Luxor b ig AC/GM
Fin Nappa l ath r, Light gr y GE/AD Fin Nappa l ath r, Cardamom b ig AN
Fin Nappa l ath r, Cinnamon GN/GJ
Fin Nappa l ath r, R d AA/BF
Milano l ath r, Black GD/JN Milano l ath r, Light gr y GE/AD Milano l ath r, Cinnamon GN/GJ Milano l ath r, Cardamom b ig AN
Upholstery
S5 quattro®
