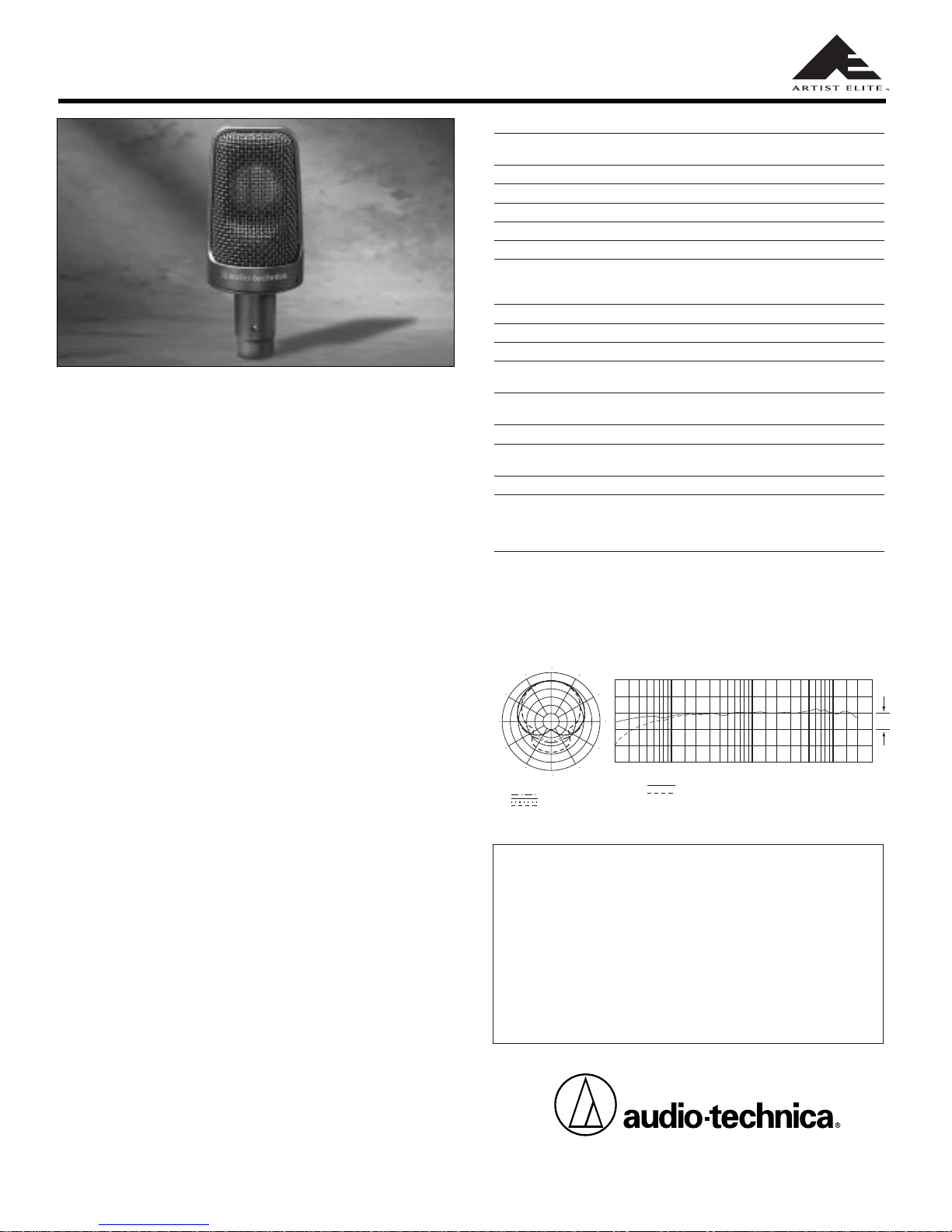

Audio Technica Artist Elite AE3000 User manual

•Excels in high-SPL applications such as guitar cabinets, toms,
snare, timpani and overheads
•Large-diaphragm capsule combines with the open architecture of
the headcase to provide an extremely accurate and open sound
•Low-profile side-address design with tapered grille allows optimal
positioning of element vis-à-vis sound source
•Robust design for enduring dependability on the road
•Integral 80 Hz HPF switch and 10 dB pad
•Cardioid polar pattern reduces pickup of sounds from the sides
and rear, improving isolation of desired sound source
The AE3000 is intended for use in professional applications where
remote power is available.It requires 11V to 52V DC phantom
power, which may be provided by a mixer or console, or by a
separate, in-line source such as the Audio-Technica AT8801 single-
channel or CP8506 four-channel phantom power supplies.
Output from the microphone’s XLRM-type connector is low
impedance (Lo-Z) balanced.The signal appears across Pins 2 and
3;Pin 1 is ground (shield).Output phase is “Pin 2 hot”–
positive acoustic pressure produces positive voltage at Pin 2.
To avoid phase cancellation and poor sound, all mic cables must be
wired consistently:Pin 1-to-Pin 1, etc.
An integral 80 Hz hi-pass filter provides easy switching from a flat
frequency response to a low-end roll-off.The roll-off position reduces
the microphone’s sensitivity to popping in close vocal use.It also
reduces the pickup of low-frequency ambient noise (such
as traffic, air-handling systems, etc.), room reverberation and
mechanically-coupled vibrations.
The AE3000 includes an AT8471 isolation clamp to provide secure
mounting, versatile positioning, and effective dampening of unwant-
ed mechanical noise.
Avoid leaving the microphone in the open sun or in areas where
temperatures exceed 110°F (43°C) for extended periods.
Extremely high humidity should also be avoided.
One-Year Limited Warranty
Audio-Technica brand products purchased in the U.S.A.are warranted for one year from date
of purchase by Audio-Technica U.S., Inc.(A.T.U.S.) to be free of defects in materials and
workmanship.In event of such defect, product will be repaired promptly without charge or, at
our option, replaced with a new product of equal or superior value if delivered to A.T.U.S.or
an Authorized Service Center, prepaid, together with the sales slip or other proof of purchase
date.Prior approval from A.T.U.S.is required for return.This warranty excludes defects
due to normal wear, abuse, shipping damage, or failure to use product in accordance with
instructions.This warranty is void in the event of unauthorized repair or modification, or
removal or defacing of the product labeling.
For return approval and shipping information,contact the Service Department,
Audio-Technica U.S., Inc., 1221 Commerce Drive, Stow, Ohio 44224.
Except to the extent precluded by applicable state law,A.T.U.S.will have no liability for
any consequential,incidental,or special damages;any warranty of merchantability or
fitness for particular purpose expires when this warranty expires.
This warranty gives you specific legal rights, and you may have other rights which vary from
state to state.
Outside the U.S.A., please contact your local dealer for warranty details.
AE3000 SPECIFICATIONS†
ELEMENT Fixed-charge back plate
permanently polarized condenser
POLAR PATTERN Cardioid
FREQUENCY RESPONSE 20-20,000 Hz
LOW FREQUENCY ROLL-OFF 80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY –43 dB (7.0 mV) re 1V at 1 Pa*
IMPEDANCE 100 ohms
MAXIMUM INPUT SOUND LEVEL 148 dB SPL,1kHzat1%T.H.D.;
158 dB SPL, with 10 dB
pad (nominal)
NOISE111 dB SPL
DYNAMIC RANGE (typical) 137 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO183 dB, 1 kHz at 1 Pa*
PHANTOM POWER 11-52V DC, 3 mA typical
REQUIREMENTS
SWITCHES High-pass filter;
10 dB pad (nominal)
WEIGHT(less accessories) 6.0 oz (170 g)
DIMENSIONS 4.55" (115.5 mm) long, 1.89"
(48.0 mm) maximum diameter
OUTPUT CONNECTOR Integral 3-pin XLRM-type
ACCESSORIES FURNISHED AT8471 isolation clamp for
5/8"-27 threaded stands; 5/8"-27 to
3/8"-16 threaded adapter;
soft protective pouch
†In the interest of standards development, A.T.U.S.offers full details on its test
methods to other industry professionals on request.
*1 Pascal = 10 dynes/cm2= 10 microbars = 94 dB SPL
1Typical, A-weighted, using Audio Precision System One.
Specifications are subject to change without notice.
Audio-Technica U.S., Inc., 1221 Commerce Drive, Stow, Ohio 44224
Audio-Technica Limited,Old Lane, Leeds LS11 8AG England
www.audio-technica.com
P51488-EN ©2002 Audio-Technica U.S., Inc. Printed in Japan
AE3000 CARDIOID CONDENSER MICROPHONE
8 kHz
Polar Pattern
180
SCALE IS 5 DECIBELS PER DIVISION
LEGEND
200 Hz
1 kHz
5 kHz
270
240
210
300
330
0
150
120
90
30
60
Frequency in Hertz
LEGEND 12" or more on axis
Roll-off
Frequency Response
10050 200 500 1k 2k 20k
5k 10k
Response in dB
10 dB
