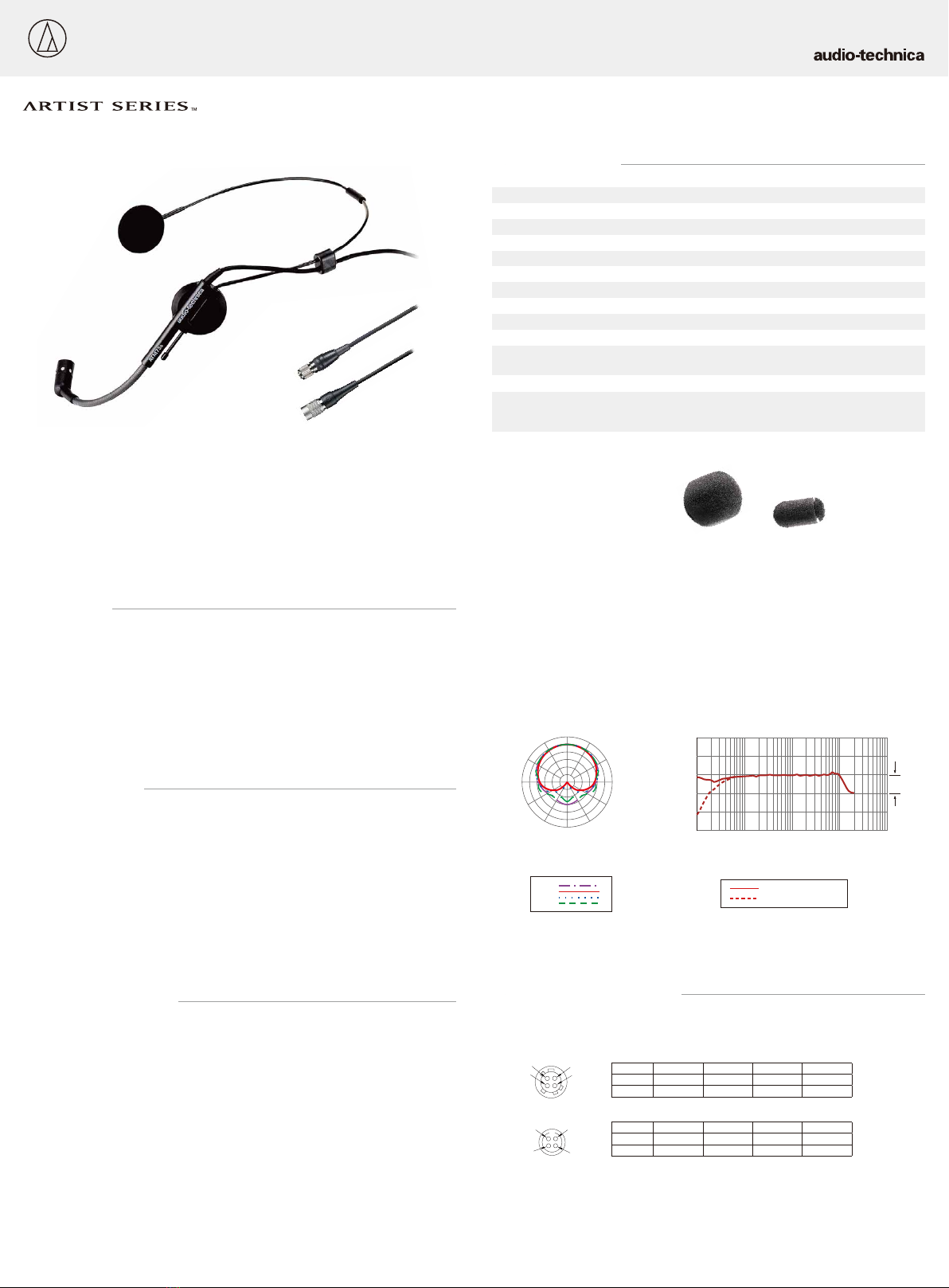

Audio Technica Artist Series User manual

User Manual
Cardioid Condenser Headword Microphones for Wireless System ATM73cW / ATM73cH
■Features
■Notes on use
■Connection procedure
■Specifications
Fixed-charge back plate, permanently polarized condenser
Cardioid
40 - 15,000 Hz
-55 dB (1.7 mV) re 1V at 1 Pa
200 ohms
146 dB SPL, 1 kHz at 1% T.H.D.
111 dB, 1 kHz at Max SPL
2.5-10V
Headset: 165.0 mm nominal at widest point, 67.0 mm boom
Microphone: 10.0 mm diameter
•1 Pascal = 10 dynes/cm2 = 10 microbars = 94 dB SPL
*Typical, A-weighted, using Audio Precision System One.
■Polarpattern ■Frequency response
■Cable Terminations
180°
150°
120°
30°
0°
330°
300°
270°
240°
210°
Audio-Technica Corporation
2-46-1 Nishi-naruse, Machida, Tokyo 194-8666, Japan
©2017 Audio-Technica Corporation
Global Support Contact: www.at-globalsupport.com
16-NOV--2020 Form No.ATGC-L0382-20
LEGEND
0°, 50cm
SCALE IS 5 DECIBELS PER DIVISION
LEGEND
200 Hz
1 kHz
5 kHz
8 kHz
Thank you for purchasing this product. Before using the product, read through the user
manual to ensure that you will use the product correctly.
Please keep this manual for future reference.
ATM73cW and ATM73cH wireless versions do not contain power module and includes
clothing clip and metal-frame pop filter only. 1.4 m cable terminated with locking 4-pin
connector. The connector is also compatible with Audio-Technica cW and cH type
body-pack transmitters.
For maximum stability and minimum visibility, the headband should be worn around the
back of the head, with each cushioned support pad resting on the temple in front of the ear.
The cable should remain clipped to the headband, with some slack at the boom connection.
The headset is designed so the microphone descends from the left support pad.
Avoid leaving the microphone in the open sun or in areas where temperatures exceed 43°C
for extended periods. Extremely high humidity should also be avoided.
For product improvement, the product is sublect to modification without notice.
• Composed of ATM73a microphone with cW-style connector
• Ideal for drummers, keyboard players or anyone requiring hands-free operation
• Comfortable, unobtrusive headband design with side-of-mouth pickup
• Cardioid polar pattern improving isolation of desired sound source
• Rugged design and construction for reliable performance
• ATM73cW equipped with cW-style locking and equipped with ATM73cH cH-style
screw-down 4-pin termination for Audio-Technica wireless systems
■Safety precaution
■Cautions for the product
Although this product was designed to be used safely, failing to use it correctly may result in
an accident. To ensure safety, observe all warnings and cautions while using the product.
• Do not subject the product to strong impact to avoid malfunction.
• Do not disassemble, modify or attempt to repair the product.
• Do not handle the product with wet hands to avoid electric shock or injury.
• Do not store the product under direct sunlight, near heating devices or in a hot, humid or
dusty place.
cW-type (ATM73cW) / cH-type (ATM73cH)
Element
Polar pattern
Frequency response
Open circuit sensitivity
Impedance
Maximum input sound level
Dynamic range (typical)
Voltage range
Dimensions
Output connector
Cable 1.4 m long (permanently attached to microphone),
Roll-off
31 gWeight
Included accessories AT8125 windscreen; AT8128 windscreen;
2.6 mm diameter, 2-conductor shielded cable
(termination dependent)
60°
90°
ATM73cW – Terminated with locking 4-pin connector for use with A-T UniPak®body-pack transmitters
ATM73cH – Terminated with locking 4-pin connector for use with A-T cH body-pack transmitters
1
2
3
4
1
4
32
Pin 1 Pin 2 Pin 3 Pin 4
Function Ground / Shield Instrument Mic Audio Blas + In
Wire Colour Copper Wire Jumper to Pin 1 Yellow Red
Pin 1 Pin 2 Pin 3 Pin 4
Function Ground / Shield Instrument Mic Audio Blas + In
Wire Colour Copper Wire Jumper to Pin 1 Yellow Red
AT8125 AT8128
10 dB
1k 10k 100k10010
Response in dB
Frequency in Hertz
10
0
-10
-20
-30
20
cH-style
cW-style
59 dB, 1 kHz at 1 PaSignal-to-noise ratio

心形指向性头戴夹式话筒 - 无线系统适用 ATM73cW / ATM73cH
■规格
固定充电背板，静电型电容式
心形指向性
40 - 15,000 Hz
-55 dB（1.7mV) 以 1V 于 1Pa
200 欧姆
146 dB 声压, 1 kHz 于 1% T.H.D.
元件
指向性
频率响应
开路灵敏度
输出阻抗
最大承受声压
111 dB, 1 kHz 于最高声压
59 dB, 1 kHz 于 1 Pa
动态范围 (典型)
信噪比
• 1 帕＝ 10 达因/平方厘米＝ 10 微巴＝ 94 dB SPL
*
典型，A 计权，使用 Audio Precision System One
因产品改进，本产品会随时改装，恕不另行通知。
■指向性 ■频率响应
■接线端子
Audio-Technica Corporation
2-46-1 Nishi-naruse, Machida, Tokyo 194-8666, Japan
©2017 Audio-Technica Corporation
全球支持联系：www.at-globalsupport.com
响应单位是 dB
频率单位是赫兹
图例
0°，50 厘米
比例是每分隔线 5 分贝
图例
200 赫兹
1 千赫兹
5 千赫兹
8 千赫兹
用戶手冊
感谢您购买本产品。在使用产品之前，请全文浏览本用户手册以确保您将正确地
使用本产品。请妥善保存本手册，以供将来参考。
■产品特点
• 以 ATM73a 话筒配置 cW 型连接器而组成
• 专为鼓手、键盘手及其他乐手提供免提型话音收音
• 提供舒适及不显眼的设计，及近距离收音
• 心形指向性收音，能有效减低旁边及后方的杂声干扰
• 坚固的设计和结构，性能可靠
• ATM73cW 配以锁固式 cW 型4针话筒输出端子，ATM73cH 配以螺旋式 cH 型4针
话筒输出端子，适用于鐵三角 Audio-Technica cW 或 cH 型的盒式无线发射机
■使用注意事项
ATM73cW 和 ATM73cH 无线版本不带供电模组，但提供领带夹和金属网防风罩，
长1.4m音频线输出，可配置于所有鐵三角Audio-Technica cW 或 cH 型的盒式无线
发射机中。
为了获得更好的稳定性和更佳的隐藏性，配戴时应把头环戴在头的后方周围，每个
支撑衬垫贴在太阳穴的位置上。连接线应夹持在头环上，并与话筒杆之间的连接预
留一些松弛长度。头环的设计是把收音头在左方支撑垫向下伸延。
把话筒暴露于高温中可能导致输出电平逐渐及永久性减弱，应避免将话筒留在日晒
的地方或长时间置于温度超过43°C的地方，而极高湿度也应避免。
■连接步骤
16-NOV-2020 Form No.ATGC-L0382-20
■安全预防措施
■本产品注意事项
虽然本产品采用安全设计，但使用不当仍可能发生事故。为了确保安全，使用本
产品时请注意全部警告和提醒。
• 切勿让本产品遭受强烈冲击，以避免发生故障。
• 切勿拆开、改装或尝试维修本产品。
• 切勿用湿手握持本产品，以免触电或受伤。
• 切勿将本产品存放在阳光直射的地方、加热装置附近或者炎热、潮湿或多尘的
地方。
高通滤波
180°
150°
120°
30°
0°
330°
300°
270°
240°
210°
60°
90°
ATM73cW ‒ 以锁固式4式针端子，使用于鐵三角 A-T UniPak® 盒式无线发射机
1
2
3
4针脚1针脚2针脚3针脚4
功能 地线 / 屏蔽 乐器 话筒音频 偏压+输入
导线颜色 祼铜线 与 针脚1 跳线 黄色 红色
收音头: 直径 10.0 mm
cW 型4针 (ATM73cW) / cH 型4针 (ATM73cH)
尺寸
输出端子 (供电模组)
连接线 长 1.4 米 (固定连接于话筒), 直径 2.6 mm ,
2.5 - 10V
31 克
电压范围
重量
附带配件AT8125 防风罩；AT8128 防风罩;
2芯屏蔽式连线并配置连接端子
(连接端子类型视乎不同型号)
ATM73cH ‒ 以锁固式4式针端子，使用于鐵三角 A-T cH型 盒式无线发射机
针脚1针脚2针脚3针脚4
功能 地线 / 屏蔽 乐器 话筒音频 偏压+输入
导线颜色 祼铜线 与 针脚1 跳线 黄色 红色
1
4
32
10 dB
1k 10k 100k10010
10
0
-10
-20
-30
20
AT8125 AT8128
头环: 宽度 165.0 mm, 话筒杆 67.0 mm
cH 型
cW 型
