SCALE IS 5 DECIBELS PER DIVISION
Polar Pattern
200 Hz
LEGEND
5 kHz
1 kHz
8 kHz
240
180
210
270
300
330
0
150
120
90
30
60
12" or more on axis
100
50 200
LEGEND
Roll-off
10k
5k
1k
500 2k 20k
Frequency in Hertz
Frequency Response
Response in dB
10 dB
• Ideal for sax, toms, brass and percussion
• Excels in high-SPL applications
• Perfect for active stage performances
• Extended frequency response captures subtle nuances of the
performance
• UniMount
®
clip permits accurate positioning, provides shock
resistance and protects element
• Corrosion-resistant contacts from gold-plated XLRM-type
connector
• Cardioid polar pattern reduces pickup of sounds from the sides
and rear, improving isolation of desired sound source
The PRO 35ax is intended for use in professional applications
where remote power is available. It requires 11V to 52V DC
phantom power, which may be provided by a mixer or console, or
by a separate, in-line source such as the Audio-Technica AT8801
single-channel or CP8506 four-channel phantom power supplies.
An integral 80 Hz high-pass filter provides easy switching from a flat
frequency response to a low-end roll-off. The roll-off position
reduces the pickup of low-frequency ambient noise (such as traffic,
air-handling systems, etc.), room reverberation and mechanically
coupled vibrations.
Output from the power module’s XLRM-type connector is low
impedance (Lo-Z) balanced. The signal appears across Pins 2 and
3; Pin 1 is ground (shield). Output phase is “Pin 2 hot” – positive
acoustic pressure produces positive voltage at Pin 2.
To avoid phase cancellation and poor sound, all mic cables must be
wired consistently: Pin 1-to-Pin 1, etc.
Avoid leaving the microphone in the open sun or in areas where
temperatures exceed 110° F (43° C) for extended periods.
Extremely high humidity should also be avoided.
PRO 35ax SPECIFICATIONS†
ELEMENT Fixed-charge back plate
permanently polarized condenser
POLAR PATTERN Cardioid
FREQUENCY RESPONSE 50-15,000 Hz
LOW FREQUENCY ROLL-OFF 80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY –45 dB (5.6 mV) re 1V at 1 Pa*
IMPEDANCE 250 ohms
MAXIMUM INPUT SOUND LEVEL 145 dB SPL, 1 kHz at 1% THD
DYNAMIC RANGE (typical) 115 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO164 dB,1 kHz at 1 Pa*
PHANTOM POWER REQUIREMENTS 11-52V DC, 4 mA typical
SWITCH Flat, roll-off
WEIGHT (less cable and accessories)
MICROPHONE 0.3 oz (8 g)
POWER MODULE 2.0 oz (56 g)
DIMENSIONS
MICROPHONE 0.98" (25.0 mm) long,
0.40" (10.2 mm) diameter
POWER MODULE 3.86" (98.0 mm) long,
0.74" (18.9 mm) diameter
OUTPUT CONNECTOR Integral 3-pin XLRM-type
(power module)
CABLE Integral 6' (1.8 m) permanently
attached between microphone and
power module
ACCESSORIES FURNISHED AT8418 UniMount®microphone
instrument mount; AT8536 power
module; soft protective pouch
†In the interest of standards development, A.T.U.S. offers full details on its test
methods to other industry professionals on request.
*1 Pascal = 10 dynes /cm 2= 10 microbars = 94 dB SPL
1Typical, A-weighted, using Audio Precision System One.
Specifications are subject to change without notice.
Audio-Technica U.S., Inc., 1221 Commerce Drive, Stow, Ohio 44224
Audio-Technica Limited, Old Lane, Leeds LS11 8AG England
www.audio-technica.com
P51679-EN ©2004 Audio-Technica U.S., Inc. Printed in Japan

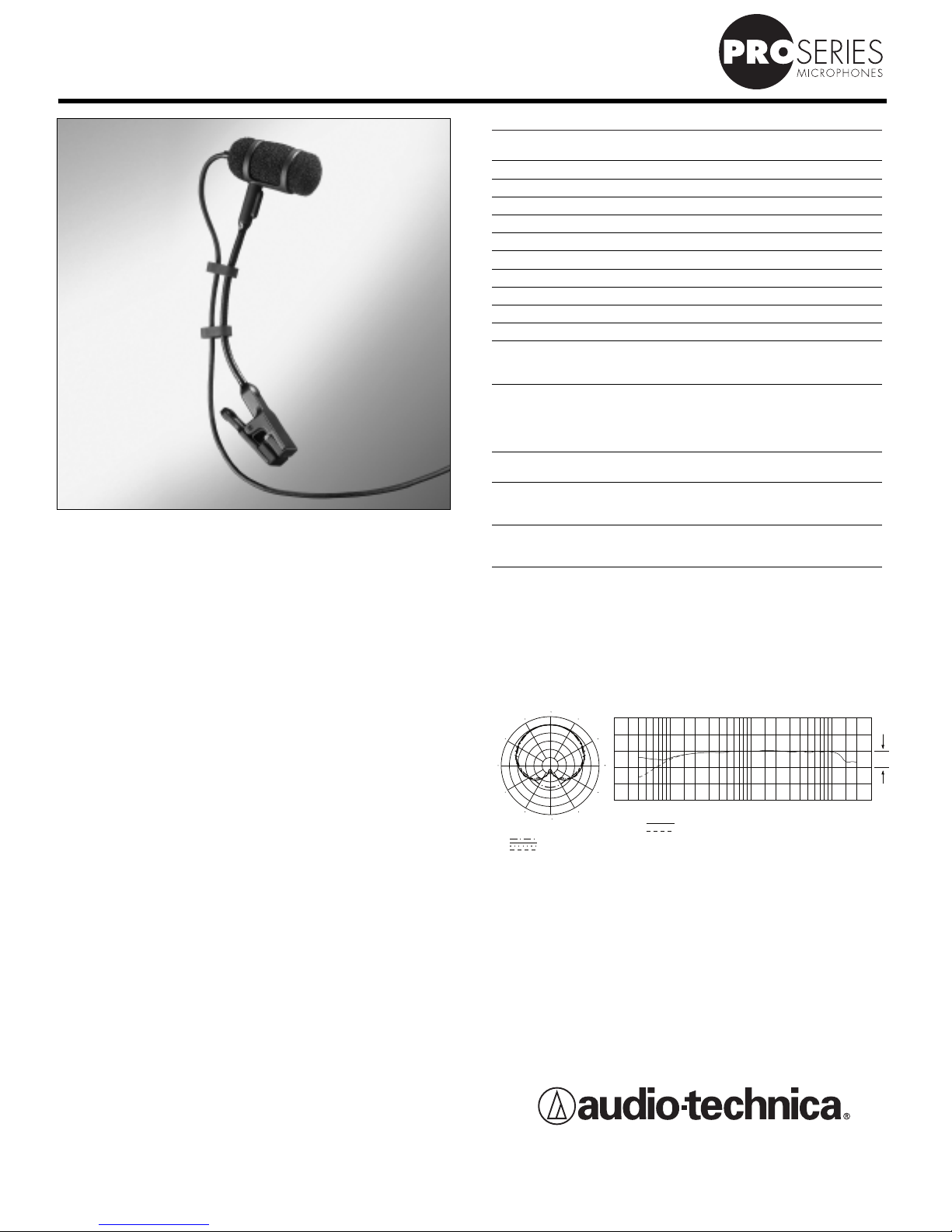

PRO 35ax CARDIOID CONDENSER CLIP-ON
INSTRUMENT MICROPHONE
