Audio Technica ARTIST ELITE AE4100 User manual

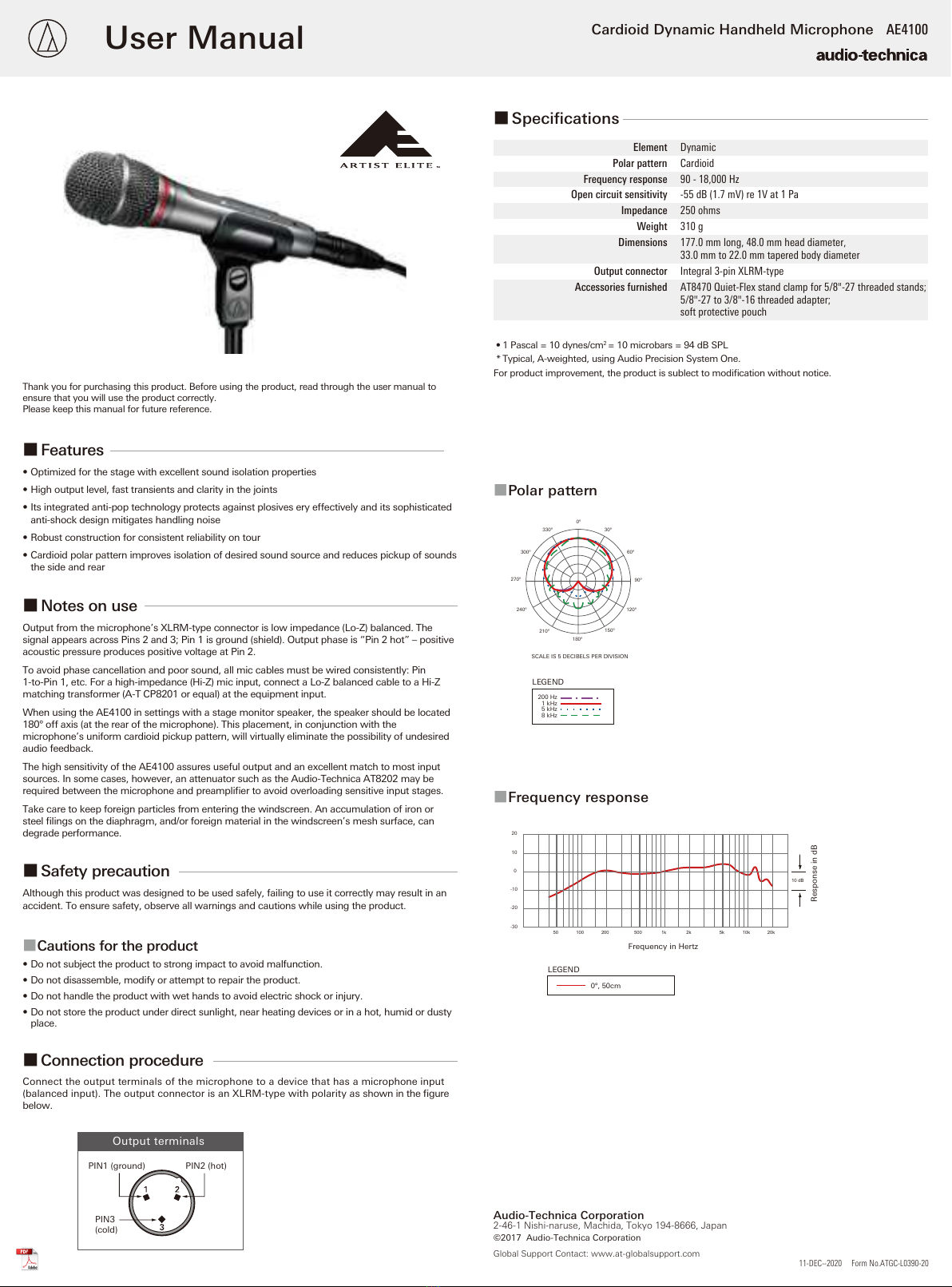

User Manual
Cardioid Dynamic Handheld Microphone AE4100
■Features
■Notes on use
■Connection procedure
Output terminals
PIN1 (ground)
PIN3
(cold)
PIN2 (hot)
■Specifications
Dynamic
Cardioid
90 - 18,000 Hz
-55 dB (1.7 mV) re 1V at 1 Pa
250 ohms
310 g
177.0 mm long, 48.0 mm head diameter,
33.0 mm to 22.0 mm tapered body diameter
Integral 3-pin XLRM-type
AT8470 Quiet-Flex stand clamp for 5/8"-27 threaded stands;
5/8"-27 to 3/8"-16 threaded adapter;
soft protective pouch
•1 Pascal = 10 dynes/cm2 = 10 microbars = 94 dB SPL
*Typical, A-weighted, using Audio Precision System One.
■Polarpattern
■Frequency response
180°
150°
120°
30°
0°
330°
300°
270°
240°
210°
Audio-Technica Corporation
2-46-1 Nishi-naruse, Machida, Tokyo 194-8666, Japan
©2017 Audio-Technica Corporation
Global Support Contact: www.at-globalsupport.com
11-DEC--2020 Form No.ATGC-L0390-20
LEGEND
0°, 50cm
SCALE IS 5 DECIBELS PER DIVISION
LEGEND
200 Hz
1 kHz
5 kHz
8 kHz
Thank you for purchasing this product. Before using the product, read through the user manual to
ensure that you will use the product correctly.
Please keep this manual for future reference.
Output from the microphone’s XLRM-type connector is low impedance (Lo-Z) balanced. The
signal appears across Pins 2 and 3; Pin 1 is ground (shield). Output phase is “Pin 2 hot” – positive
acoustic pressure produces positive voltage at Pin 2.
To avoid phase cancellation and poor sound, all mic cables must be wired consistently: Pin
1-to-Pin 1, etc. For a high-impedance (Hi-Z) mic input, connect a Lo-Z balanced cable to a Hi-Z
matching transformer (A-T CP8201 or equal) at the equipment input.
When using the AE4100 in settings with a stage monitor speaker, the speaker should be located
180° off axis (at the rear of the microphone). This placement, in conjunction with the
microphone’s uniform cardioid pickup pattern, will virtually eliminate the possibility of undesired
audio feedback.
The high sensitivity of the AE4100 assures useful output and an excellent match to most input
sources. In some cases, however, an attenuator such as the Audio-Technica AT8202 may be
required between the microphone and preamplifier to avoid overloading sensitive input stages.
Take care to keep foreign particles from entering the windscreen. An accumulation of iron or
steel filings on the diaphragm, and/or foreign material in the windscreen’s mesh surface, can
degrade performance.
Connect the output terminals of the microphone to a device that has a microphone input
(balanced input). The output connector is an XLRM-type with polarity as shown in the figure
below.
For product improvement, the product is sublect to modification without notice.
• Optimized for the stage with excellent sound isolation properties
• High output level, fast transients and clarity in the joints
• Its integrated anti-pop technology protects against plosives ery effectively and its sophisticated
anti-shock design mitigates handling noise
• Robust construction for consistent reliability on tour
• Cardioid polar pattern improves isolation of desired sound source and reduces pickup of sounds
the side and rear
■Safety precaution
■Cautions for the product
Although this product was designed to be used safely, failing to use it correctly may result in an
accident. To ensure safety, observe all warnings and cautions while using the product.
• Do not subject the product to strong impact to avoid malfunction.
• Do not disassemble, modify or attempt to repair the product.
• Do not handle the product with wet hands to avoid electric shock or injury.
• Do not store the product under direct sunlight, near heating devices or in a hot, humid or dusty
place.
Element
Polar pattern
Frequency response
Open circuit sensitivity
Impedance
Weight
Dimensions
Output connector
Accessories furnished
60°
90°
Response in dB
Frequency in Hertz
10
0
-10
-20
-30
20
500
100
50 200 10k
5k
1k 2k 20k
10 dB
All manuals and user guides at all-guides.com

心形指向手持动圈话筒AE4100
输出端子针脚1（接地）针脚3（负）针脚2（正）■规格动圈式心形指向性90 - 18,000 Hz-55 dB（1.7mV) 以 1V 于 1Pa250 欧姆310 克AT8470 Quiet-Flex 防震式 5/8＂-27 接头话筒夹;5/8＂-27 至 3/8＂-16 转接头、保護袋 元件指向性频率响应开路灵敏度输出阻抗重量附带配件• 1帕＝10达因/平方厘米＝ 10微巴＝ 94 dB SPL* 典型，A 计权，使用 Audio Precision System One因产品改进，本产品会随时改装，恕不另行通知。■指向性■频率响应Audio-Technica Corporation
2-46-1 Nishi-naruse, Machida, Tokyo 194-8666, Japan
©2017 Audio-Technica Corporation
全球支持联系：www.at-globalsupport.com
响应单位是dB
频率单位是赫兹图例0°，50 厘米比例是每分隔线 5 分贝图例
200赫兹1千赫兹5千赫兹8千赫兹
用戶手冊感谢您购买本产品。在使用产品之前，请全文浏览本用户手册以确保您将正确地使用本产品。请妥善保存本手册，以供将来参考。■产品特点• 针对舞台进行了优化，具有出色的隔音性能• 高电平输出，提供快速瞬间变化和混音清晰度• 其集成的防爆音技术有效地防止收音時的破声，并且其先进的防震设计能减轻手持噪声• 坚固的结构可确保在巡回演出時有始终如一的可靠性• 心形指向性改善了所需声源的隔离度，并减少了侧面和后部的声音拾取■使用注意事项话筒的XLRM卡农输出端为低阻抗平衡输出，话筒音频信号最终以卡农公头的2号及3号针脚输出，而1号针脚则为地线(屏蔽)连接。输出相位将以正相位电平设于2号针脚上。为避免出现相位相互抵消而失真的情况，所有话筒连接时，接线必需以 1-1，2-2，3-3 型式把针脚连接。如连接高阻抗的话筒输入，请配套阻抗匹配变压器 AT8201。在设置有监听音箱的舞台中使用 AE4100 时，音箱应位于话筒偏离轴180°的位置（即话筒的后方）。这种放置方式与话筒的心形指向收音方式相结合，能在无形中消除不希望有的音频反馈声。AE4100 提供高灵敏度的收音效能，可确保能接收到最大的音源。而在某些情况下，为避免发生超负载输入而出现破声情况，需要在话筒和前置放大器之间加入AT8202等的电平衰减器。小心不要把金属碎或铁屑掉进防风罩内，铁屑会吸进收音头磁铁中，或贴在防风罩内，将会影响及减低收音效果。■连接步骤将话筒的输出端子连接到具有话筒输入（平衡输入）的设备。输出接口是XLRM型接口，其极性如下图所示。11-DEC-2020 Form No.ATGC-L0390-20
■安全预防措施■本产品注意事项虽然本产品采用安全设计，但使用不当仍可能发生事故。为了确保安全，使用本产品时请注意全部警告和提醒。• 切勿让本产品遭受强烈冲击，以避免发生故障。 • 切勿拆开、改装或尝试维修本产品。• 切勿用湿手握持本产品，以免触电或受伤。 • 切勿将本产品存放在阳光直射的地方、加热装置附近或者炎热、潮湿或多尘的地方。长度 177.0 mm, 保护网直径 48.0 mm锥形话筒身直径 33.0 mm 至 22.0 mm内置式 3 针卡农公头尺寸输出端子10 dB
10
0
-10
-20
-30
20
500
100
50 200 10k
5k
1k 2k 20k
180°
150°
120°
30°
0°
330°
300°
270°
240°
210°
60°
90°
