AudioCodes MP-11x Fast Track User manual

MP-11x Fast Track Installation Guide
MGCP, H.323 & SIP
Version 4.6
Document #: LTRT-61504

MP-11x
Fast Track Installation Guide
MGCP, H.323 & SIP
Version 4.6
Document #: LTRT-61504
Published July 2005

Notice
This Fast Track Installation Guide describes the installation of the AudioCodes MediaPack Series MP-11x
VoIP gateways applying to MGCP, H.323 and SIP versions.
Information contained in this document is believed to be accurate and reliable at the time of printing. However,
due to ongoing product improvements and revisions, AudioCodes cannot guarantee the accuracy of printed
material after the Date Published nor can it accept responsibility for errors or omissions.
Updates to this document and other documents can be viewed by registered Technical Support customers at
www.audiocodes.com under Support / Product Documentation.
© Copyright 2005 AudioCodes Ltd. All rights reserved.
This document is subject to change without notice.
Date Published:Jul-03-2005 Date Printed: Jul-27-2005

Fast Track Installation Guide Contents
Version 4.6 3 July 2005
Table of Contents
1Quick Start.................................................................................................................................................7
2Installing the MP-11x................................................................................................................................8
2.1 Unpacking ...........................................................................................................................................8
2.2 Package Contents...............................................................................................................................8
2.3 19-inch Rack Installation Package ......................................................................................................9
2.4 Mounting the MP-11x ..........................................................................................................................9
2.4.1 Mounting the MP-11x on a Desktop.................................................................................. 10
2.4.2 Mounting the MP-11x on a Wall ........................................................................................ 10
2.4.3 Installing the MP-11x in a 19-inch Rack............................................................................ 10
2.5 Cabling the MP-11x...........................................................................................................................11
2.5.1 Cables and Cabling Procedure ......................................................................................... 11
3Configuring the MP-11x..........................................................................................................................13
3.1 Assigning the MP-11x IP Address.....................................................................................................13
3.1.1 Assigning an IP Address Using HTTP .............................................................................. 13
3.1.2 Assigning an IP Address Using BootP .............................................................................. 14
3.1.3 Assigning an IP Address Using the CLI ............................................................................ 15
3.1.3.1 Access the CLI..............................................................................................................15
3.1.3.2 Assign an IP Address....................................................................................................16
3.2 Restoring Networking Parameters to their Initial State .....................................................................16
3.3 Accessing the Embedded Web Server .............................................................................................17
3.4 Configuring the MP-11x Basic Control Protocol Parameters............................................................17
3.4.1 Configuring Basic MGCP Parameters............................................................................... 18
3.4.2 Configuring Basic H.323 Parameters................................................................................ 19
3.4.3 Configuring Basic SIP Parameters.................................................................................... 21
3.4.4 Example of Connecting Two MP-118 Devices.................................................................. 23
4Changing the MP-11x Username and Password .................................................................................24
5Restoring and Backing Up the MP-11x Configuration........................................................................25
6Monitoring the MP-11x ...........................................................................................................................26
6.1 Monitoring the MP-11x Front Panel LEDs.........................................................................................26
6.2 Monitoring the MP-11x Channels......................................................................................................27
7Upgrading the MP-11x............................................................................................................................28
7.1 Software Upgrade Wizard .................................................................................................................28
7.2 Updating the Auxiliary Files...............................................................................................................33
8Regulatory Information ..........................................................................................................................35

MP-11x
MP-11x 4 Document #: LTRT-61504
List of Figures

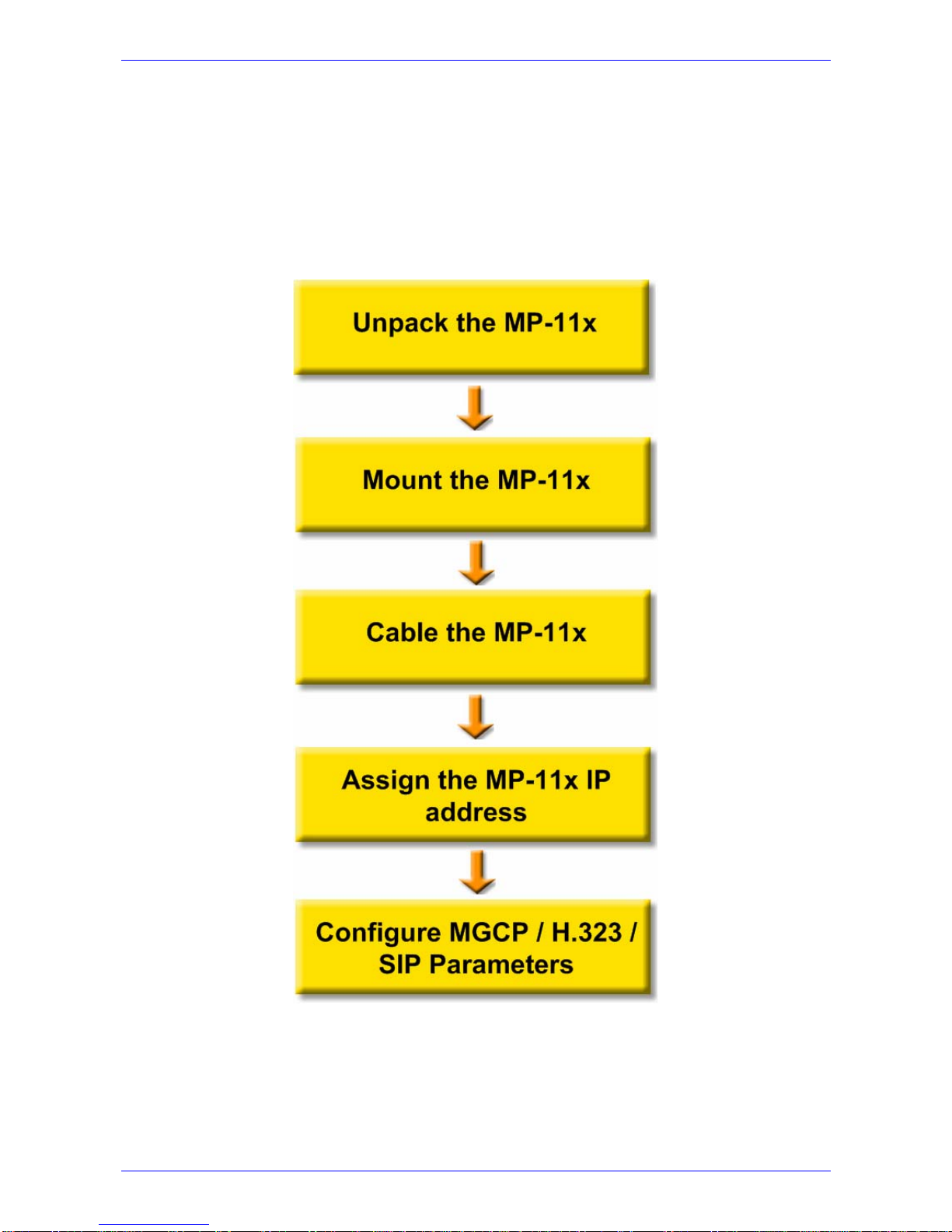

Figure 1-1: Required Steps to Install the MP-11x ............................................................................................. 7
Figure 2-1: 19-inch Rack Shelf .......................................................................................................................... 9
Figure 2-2: View of the MP-11x Base................................................................................................................ 9
Figure 2-3: MP-11x Rack Mount...................................................................................................................... 10

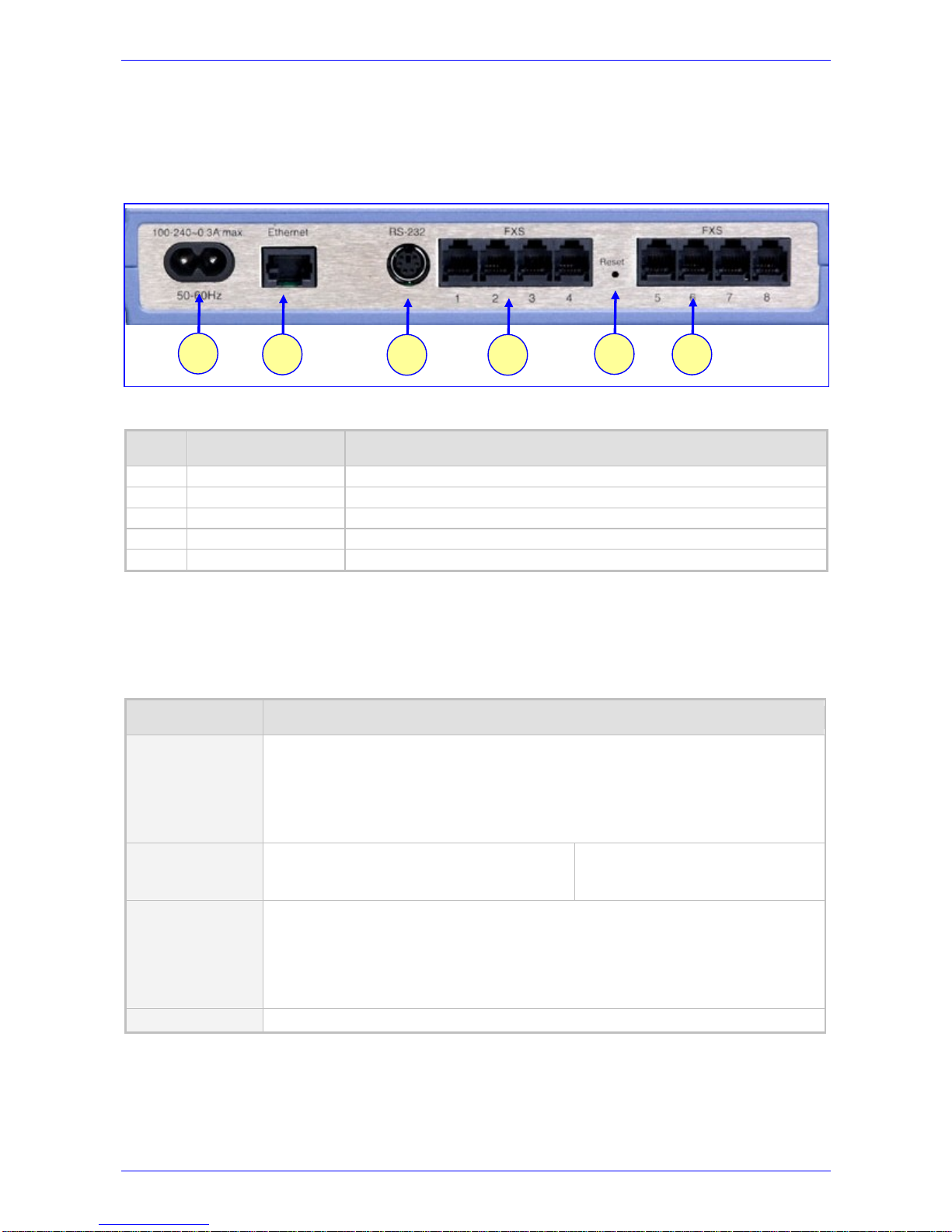

Figure 2-4: MP-118 Rear Panel Connectors ................................................................................................... 11

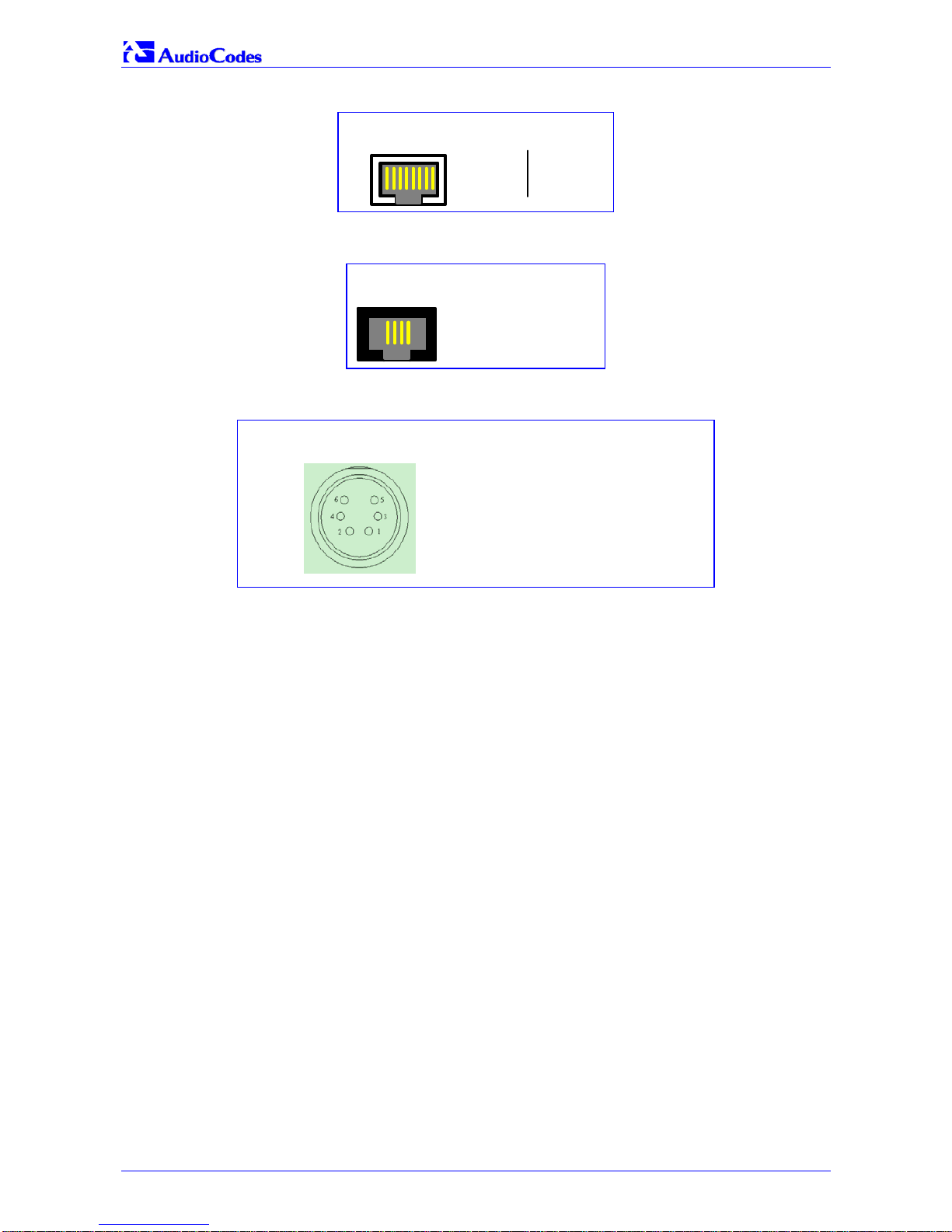

Figure 2-5: RJ-45 Ethernet Connector Pinout ................................................................................................. 12
Figure 2-6: RJ-11 Phone Connector Pinout .................................................................................................... 12
Figure 2-7: PS/2 Pinout ................................................................................................................................... 12

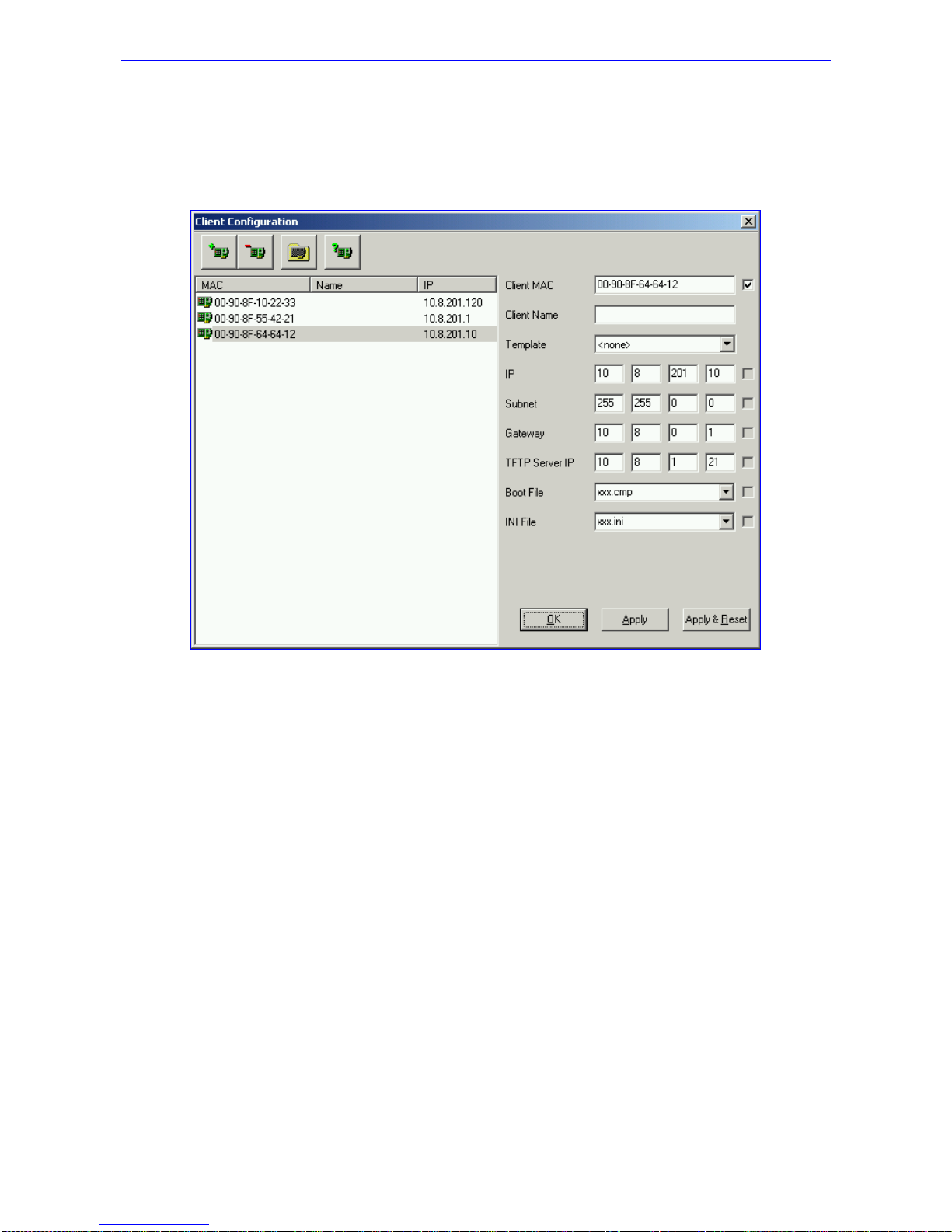

Figure 3-1: Client Configuration Screen with Blank Parameters..................................................................... 15

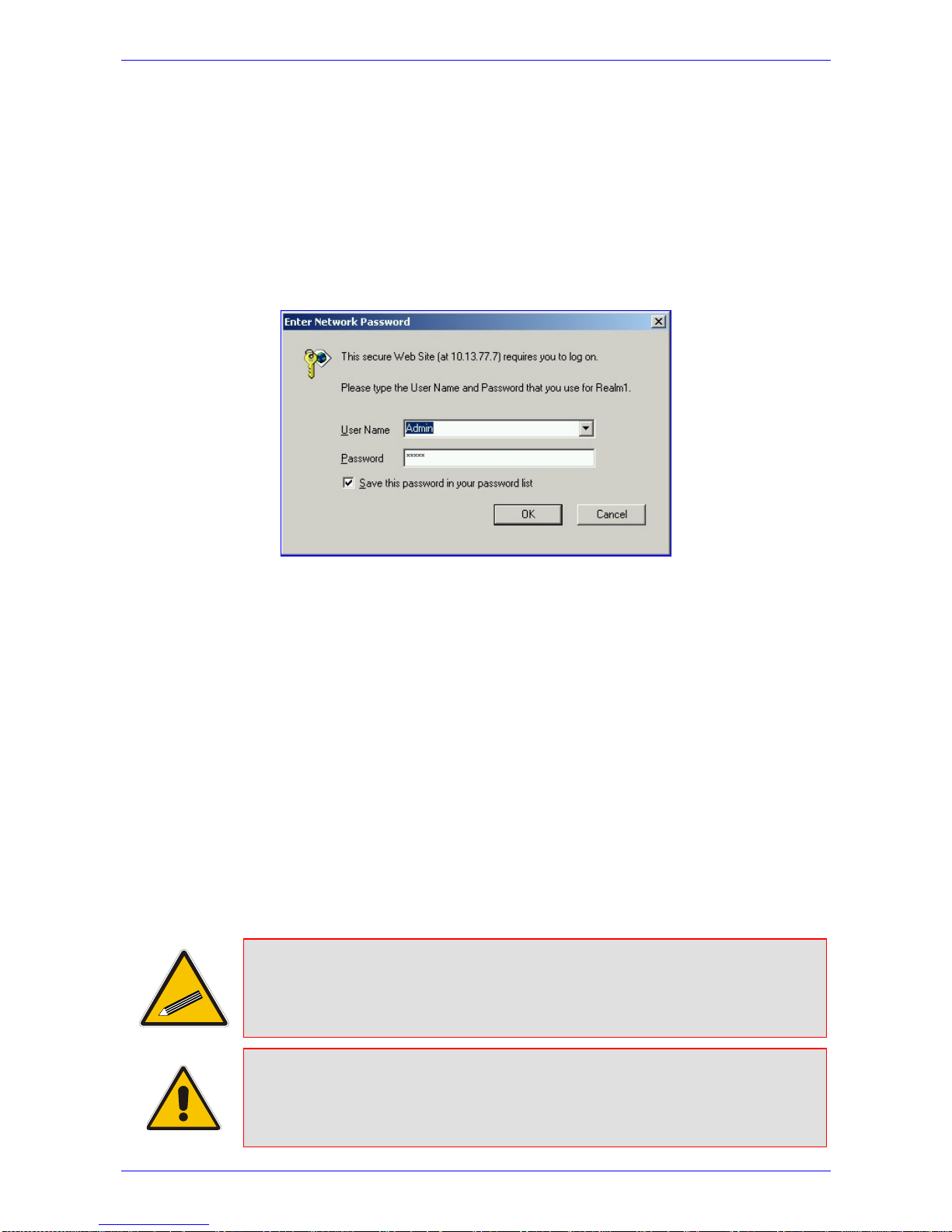

Figure 3-2: Embedded Web Server Login Screen .......................................................................................... 17
Figure 3-3: MP-11x MGCP Quick Setup Screen.............................................................................................18
Figure 3-4: MP-11x H.323 Quick Setup Screen .............................................................................................. 19
Figure 3-5: MP-11x SIP Quick Setup Screen.................................................................................................. 21
Figure 3-6: Example of Connecting Two MP-118 Devices.............................................................................. 23
Figure 4-1: Change Password Screen in Administrator Mode ........................................................................ 24
Figure 5-1: Configuration File Screen.............................................................................................................. 25
Figure 6-1: MP-11x Channel Status Screen.................................................................................................... 27
Figure 7-1: Start Software Upgrade Screen .................................................................................................... 28
Figure 7-2: Load a cmp File Screen ................................................................................................................ 29
Figure 7-3: cmp File Successfully Loaded into the Device Notification........................................................... 29
Figure 7-4: Load an ini File Screen ................................................................................................................. 30
Figure 7-5: Load a CPT File Screen................................................................................................................ 31
Figure 7-6: FINISH Screen .............................................................................................................................. 31
Figure 7-7: ‘End Process’ Screen.................................................................................................................... 32
Figure 7-8: Auxiliary Files Screen.................................................................................................................... 34
List of Tables
Table 2-1: View of the MP-11x Base................................................................................................................. 9
Table 2-2: MP-11x Rack Mount....................................................................................................................... 10
Table 2-3: MP-11x Rear Panel Component Descriptions ............................................................................... 11
Table 2-4: Cables and Cabling Procedure ...................................................................................................... 11
Table 3-1: MP-11x Default Networking Parameters........................................................................................ 13
Table 6-1: Definition of MP-11x Front Panel LED Indicators........................................................................... 26
Table 6-2: Channel Status Color Indicators .................................................................................................... 27
Table 7-1: ini and Auxiliary Files Descriptions................................................................................................. 33

Fast Track Installation Guide General
Version 4.6 5 July 2005
Tip: When viewing this manual on CD, Web site or on any other electronic copy,
all cross-references are hyperlinked. Click on the page or section numbers
(shown in blue) to reach the individual cross-referenced item directly. To
return back to the point from where you accessed the cross-reference, press
the ALT and ◄keys.
Trademarks
AC logo, Ardito, AudioCoded, AudioCodes, AudioCodes logo, IPmedia, Mediant, MediaPack, MP-
MLQ, NetCoder, Stretto, TrunkPack, VoicePacketizer and VoIPerfect, are trademarks or
registered trademarks of AudioCodes Limited. All other products or trademarks are property of
their respective owners.
Customer Support
Customer technical support and service are provided by AudioCodes’ Distributors, Partners, and
Resellers from whom the product was purchased. For Customer support for products purchased
directly from AudioCodes, contact [e-mail].
Abbreviations and Terminology
Each abbreviation, unless widely used, is spelled out in full when first used. Only industry-
standard terms are used throughout this manual. Hexadecimal notation is indicated by 0x
preceding the number.
Related Documentation
Document # Manual Name
LTRT-613xx (e.g., LTRT-61301) MP-11x MGCP User’s Manual
LTRT-616xx MP Series Release Notes
LTRT-651xx MediaPack H.323 User’s Manual
LTRT-652xx MediaPack H.323 Analog Gateways Release Notes
LTRT-654xx MediaPack SIP User’s Manual
LTRT-656xx MediaPack & Mediant 1000 SIP Analog Gateways Release Notes
Note: The MP-112 differs from the MP-114 and MP-118. Its configuration excludes
the RS-232 connector, the Lifeline option and outdoor protection.
Note: MP-11x refers to the MP-118 8-port, MP-114 4-port and MP-112 2-port VoIP
gateways having similar functionality except for the number of channels.
Note: Where “network” appears in this manual, it means LAN, WAN, etc. accessed
via the gateway’s Ethernet interface.
Note: FXS (Foreign Exchange Station) is the interface replacing the Exchange (i.e.,
the CO or the PBX) and connects to analog telephones, dial-up modems, and
fax machines. The FXS is designed to supply line voltage and ringing current
to these telephone devices. An FXS VoIP gateway interfaces between the
analog telephone devices and the Internet.

MP-11x
MP-11x 6 Document #: LTRT-61504
Warning: Ensure that you connect FXS ports to analog telephone or to PBX-trunk
lines only.
Warning: The MP-11x is supplied as a sealed unit and must only be
serviced by qualified service personnel.

Fast Track Installation Guide 1. Quick Start
Version 4.6 7 July 2005
1 Quick Start
This guide provides you with information on how to install the MP-11x for the first time. Prior
knowledge of IP networks is preferred.
Refer to the configuration procedures, outlined in Figure 1-1, for information on how to install,
initialize, configure the device and make calls. For detailed information on how to fully configure
the gateway refer to the MP-11x User’s Manuals.
Figure 1-1: Required Steps to Install the MP-11x
Refer to Section 2.4
Refer to Section 2.5
Refer to Section 3.1
Refer to Section 2.1
Refer to Section 3.4

MP-11x
MP-11x 8 Document #: LTRT-61504
2 Installing the MP-11x
Caution Electrical Shock
The equipment must only be installed or serviced by qualified service personnel.
¾To install the MP-11x, take these 3 steps:
1. Unpack the MP-11x (refer to Section 2.1 below).
2. Check the package contents (refer to Section 2.2 below).
3. Mount the MP-11x (refer to Section 2.4 on page 9).
4. Cable the MP-11x (refer to Section 2.5 on page 10).
After connecting the MP-11x to the power source, the Ready and Power LEDs on the front panel
turn to green (after a self-testing period of about 2 minutes). Any malfunction in the startup
procedure changes the Fail LED to red and the Ready LED is turned off (refer to Section 6.1 on
page 26 for details on the MP-11x LEDs).
When you have completed the above relevant sections you are then ready to start configuring the
gateway (Section 3on page 13).
2.1 Unpacking
¾To unpack the MP-11x, take these 6 steps:
1. Open the carton and remove the packing materials.
2. Remove the MP-11x gateway from the carton.
3. Check that there is no equipment damage.
4. Check, retain and process any documents.
5. Notify AudioCodes or your local supplier of any damage or discrepancies.
6. Retain any diskettes or CDs.
2.2 Package Contents
Ensure that in addition to the MP-11x, the package contains:
•AC power cable.
•Small plastic bag containing four anti-slide bumpers for desktop installation.
•A CD with software and documentation may be included.
•This Fast Track Installation Guide.

Fast Track Installation Guide 2. Installing the MP-11x
Version 4.6 9 July 2005
2.3 19-inch Rack Installation Package
Additional option is available for installing the MP-11x in a 19-inch rack. The 19-inch rack
installation package contains a single shelf (shown in Figure 2-2 below) and eight shelf-to-device
screws.
Figure 2-1: 19-inch Rack Shelf
2.4 Mounting the MP-11x
The MP-11x can be mounted on a desktop (refer to Section 2.4.1 below), on a wall (refer to
Section 2.4.2) or installed in a standard 19-inch rack (refer to Section 2.4.3).
Figure 2-2 below describes the design of the MP-11x base.
Figure 2-2: View of the MP-11x Base
Table 2-1: View of the MP-11x Base
Item # Functionality
1 Square slot used to attach anti-slide bumpers (for desktop mounting)
2 Oval notch used to attach the MP-11x to a wall
3 Screw opening used to attach the MP-11x to a 19-inch shelf rack
1
3 2

MP-11x
MP-11x 10 Document #: LTRT-61504
2.4.1 Mounting the MP-11x on a Desktop
Attach the four (supplied) anti-slide bumpers to the base of the MP-11x (refer to item #1 in Figure
2-2) and place it on the desktop in the position you require.
2.4.2 Mounting the MP-11x on a Wall
¾To mount the MP-11x on a wall, take these 4 steps:
1. Drill four holes according to the following dimensions:
¾Side-to-side distance 140 mm.
¾Front-to-back distance 101.4 mm.
2. Insert a wall anchor of the appropriate size into each hole.
3. Fasten a DIN 96 3.5X20 wood screw (not supplied) into each of the wall anchors.
4. Position the four oval notches located on the base of the MP-11x (refer to item #2 in Figure
2-2) over the four screws and hang the MP-11x on them.
2.4.3 Installing the MP-11x in a 19-inch Rack
The MP-11x is installed in a standard 19-inch rack by placing it on a shelf preinstalled in the rack.
This shelf can be ordered separately from AudioCodes.
Figure 2-3: MP-11x Rack Mount
Table 2-2: MP-11x Rack Mount
Item # Functionality
1 Standard rack holes used to attach the shelf to the rack
2 Eight shelf-to-device screws
¾To install the MP-11x in a 19-inch rack, take these 3 steps:
1. Use the shelf-to-device screws found in the package to attach one or two MP-11x devices to
the shelf.
2. Position the shelf in the rack and line up its side holes with the rack frame holes.
3. Use four standard rack screws to attach the shelf to the rack. These screws are not
provided.
1
2

Fast Track Installation Guide 2. Installing the MP-11x
Version 4.6 11 July 2005
2.5 Cabling the MP-11x
Refer to Table 2-4 below for the cabling procedure for the MP-11x.
Figure 2-4: MP-118 Rear Panel Connectors
Table 2-3: MP-11x Rear Panel Component Descriptions
Item # Label Component Description
1 100-240~0.3A max. AC power supply socket
2 Ethernet 10/100 Base-TX Uplink port
3 RS-232 RS-232 status port (requires a DB-9 to PS/2 adaptor)
4 FXS 4 RJ-11 FXS ports (total 8)
5 Reset Reset button
2.5.1 Cables and Cabling Procedure
Verify that you have the cables listed under column ‘Cable’ in Table 2-4 before beginning to cable
the MP-11x according to the column ‘Cabling Procedure’.
Table 2-4: Cables and Cabling Procedure
Cable Cabling Procedure
RJ-45 Ethernet
cable
Connect the Ethernet connection on the MP-11x directly to the network using a
standard RJ-45 Ethernet cable. For connector’s pinout refer to Figure 2-5 on page
12.
Note that when assigning an IP address to the MP-11x using HTTP (under step 1in
Section 3.1.1), you may be required to disconnect this cable and re-cable it
differently.
RJ-11 two-wire
telephone cords
Connect the RJ-11 connectors on the rear
panel of the MP-11x to fax machine, modem,
or phones (refer to Figure 2-6).
Ensure that the FXS ports are
connected to the correct devices,
otherwise damage can occur.
RS-232 serial
cable
Insert the RS-232 straight serial cable into the RS-232 port using the DB-9 to PS/2
adaptor (not supplied). Connect the standard DB9 RS-232 connector on the other
end to a Terminal port. The pinout of the PS/2 connector is shown in Figure 2-7.
The RS-232 port is mainly used internally by service personnel for monitoring
purposes. Advanced users can also use this feature to obtain log information (for
example).
AC Power cable Connect the MP-11x power socket to the mains.
1 2 3 4 4
5

MP-11x
MP-11x 12 Document #: LTRT-61504
Figure 2-5: RJ-45 Ethernet Connector Pinout
1 2 3 4 5 6 7 8
RJ-45 Connector and Pinout
4, 5, 7, 8
not
connected
1 - Tx+
2 - Tx-
3 - Rx+
6 - Rx-
Figure 2-6: RJ-11 Phone Connector Pinout
1 2 3 4 1 -
2 -
3 -
4 -
Not connected
RJ-11 Connector and Pinout
Not connected
Tip
Ring
Figure 2-7: PS/2 Pinout
2
3
6
PS/2 Female Connector and Pinout
(TD) - Transmit Data
(RD) - Receive Data
(GND) - Ground for Voltage

Fast Track Installation Guide 3. Configuring the MP-11x
Version 4.6 13 July 2005
3 Configuring the MP-11x
The MP-11x application software already resides in the device’s flash memory when it is supplied
(with factory default parameters). MP-11x devices also include an Embedded (integrally stored)
Web Server.
Section 3.1 below describes how to assign an IP address to the MP-11x, while Section 3.4 on
page 17 describes how to set up the MP-11x with basic parameters using a standard Web
browser (such as Microsoft TM Internet Explorer).
Note: Section 3.1 applies equally to MGCP, H.323 and SIP.
3.1 Assigning the MP-11x IP Address
To assign an IP address to the MP-11x use one of the following methods:
•HTTP using a Web browser (refer to Section 3.1.1 below).
•BootP (refer to Section 3.1.2 on page 14).
•DHCP (refer to the product’s User’s Manual).
•The embedded Command Line Interface (CLI) accessed via Telnet or RS-232 (refer to Step
3.1.3 on page 15).
The default networking parameters are show in Table 3-1.
Use the ‘Reset’ button at any time to restore the MP-11x networking parameters to their factory
default values (refer to Section 3.2 on page 16).
Table 3-1: MP-11x Default Networking Parameters
Parameter Default Value
IP Address 10.1.10.10
Subnet Mask 255.255.0.0
Default Gateway IP Address 0.0.0.0
3.1.1 Assigning an IP Address Using HTTP
¾To assign an IP address using HTTP, take these 8 steps:
1. Disconnect the MP-11x from the network and reconnect it to your PC using one of the
following two methods:
¾Use a standard Ethernet cable to connect the network interface on your PC to a port on
a network hub / switch. Use a second standard Ethernet cable to connect the MP-11x to
another port on the same network hub / switch.
¾Use a standard Ethernet cable to directly connect the network interface on your PC to
the MP-11x.
2. Change your PC’s IP address and subnet mask to correspond with the MP-11x factory
default IP address and subnet mask, shown in Table 3-1. For details on changing the IP
address and subnet mask of your PC, refer to Windows™ Online Help (Start>Help).
3. Access the MP-11x Embedded Web Server (refer to Section 3.3 on page 17).
4. In the ‘Quick Setup’ screen, set the MP-11x ‘IP Address’, ‘Subnet Mask’ and ‘Default
Gateway IP Address’ fields under ‘IP Configuration’ to correspond with your network IP

MP-11x
MP-11x 14 Document #: LTRT-61504
settings. If your network doesn’t feature a default gateway, enter a dummy value in the
‘Default Gateway IP Address’ field.
5. Click the Reset button and click OK in the prompt; the MP-11x applies the changes and
restarts. This takes approximately 2 minutes to complete. When the MP-11x has finished
restarting, the Power and Ready LEDs on the front panel are lit green.
Tip: Record & retain the IP address and subnet mask you assign the MP-11x. Do
the same when defining new username or password. If the Embedded Web
Server is unavailable (for example, if you’ve lost your username and
password), use the BootP/TFTP configuration utility to access the device,
“reflash” the load and reset the password (refer to the MP-11x User’s
Manuals for detailed information on using a BootP/TFTP server to access the
device).
6. Disconnect your PC from the MP-11x or from the hub / switch (depending on the connection
method you used in step 1).
7. Reconnect the MP-11x and your PC (if necessary) to the network.
8. Restore your PC’s IP address & subnet mask to what they originally were. If necessary,
restart your PC and re-access the MP-11x via the Embedded Web Server with its new
assigned IP address.
3.1.2 Assigning an IP Address Using BootP
Tip 1: BootP procedure can also be performed using any standard compatible
BootP server.
Tip 2: You can also use BootP to load the auxiliary files to the MP-11x (refer to the
product’s User’s Manual).
¾To assign an IP address using BootP, take these 12 steps:
1. Open the BootP application (supplied with the software package).
2. Click on the Edit Clients icon;
the ‘Client Configuration’ screen is displayed.
3. Click on the Add New Client icon;
a client with blank parameters is displayed (Figure 3-1).
4. In the ‘Client MAC’ field, enter the MAC address of the gateway. The MAC address is printed
on a label located on the base of the MP-11x.
5. Verify that the box to the right of the ‘Client MAC’ field is checked. This enables the particular
client in the BootP tool (if the client is disabled, no replies are sent to BootP requests).
6. In the ‘Client Name’ field, enter a descriptive name for this client so that it is easier to
remember which gateway the record refers to. For example, this name could refer to the
location of the gateway.
7. In the ‘IP’ field, enter the IP address you want to apply to the gateway. Use the normal dotted
decimal format.
8. In the ‘Subnet’ field, enter the subnet mask you want to apply to the gateway. Use the
normal dotted decimal format. Ensure that the subnet mask is correct. If the address is
incorrect, the gateway may not function until the entry is corrected and a BootP reset is
applied.
9. In the ‘Gateway’ field, enter the IP address for the default gateway. If you do not know the IP
address for the default gateway, contact your network administrator.
10. Click Apply to save this entry to the list of clients.

Fast Track Installation Guide 3. Configuring the MP-11x
Version 4.6 15 July 2005
11. Click OK; the ‘Client Configuration’ screen is closed.
12. Use the reset button (located on the MP-11x rear panel) to physically reset the gateway
causing it to use BootP; the device changes its network parameters to the values provided
by the BootP.
Figure 3-1: Client Configuration Screen with Blank Parameters
3.1.3 Assigning an IP Address Using the CLI
First access the CLI using a standard Telnet application or using a serial communication software
(e.g., HyperTerminalTM) connected to the MP-11x RS-232 port (refer to Section 3.1.3.1 below).
Then assign the MP-11x an IP address (refer to Section 3.1.3.2 on page 16).
3.1.3.1 Access the CLI
¾To access the CLI via the Embedded Telnet Server, take these 3 steps:
1. Enable the Embedded Telnet Server:
¾Access the MP-11x Embedded Web Server (refer to Section 3.3 on page 17).
¾Set the parameter ‘Embedded Telnet Server’ (under Advanced Configuration >
Network Settings > Application Settings) to ‘Enable (Unsecured)’ or ‘Enable Secured
(SSL)’.
¾Click the Reset button on the main menu bar; the Reset screen is displayed.
¾Click the Reset button in the middle of the Reset screen with the Burn option selected;
the MP-11x is shut down and re-activated. A message about the waiting period is
displayed. The screen is refreshed.
2. Use a standard Telnet application to connect to the MP-11x Embedded Telnet Server. Note
that if the Telnet server is set to SSL mode, a special Telnet client is required on your PC to
connect to the Telnet interface over a secured connection.
3. Login using the username (‘Admin’) and password (‘Admin’).

MP-11x
MP-11x 16 Document #: LTRT-61504
¾To access the CLI via the RS-232 port, take these 2 steps:
1. Connect the MP-11x RS-232 port to either COM1 or COM2 RS-232 communication port on
your PC (refer to Table 2-4 on page 11 for detailed information).
2. Use a serial communication software (e.g., HyperTerminalTM) to connect to the MP-11x.
Set your serial communication software to the following communications port settings:
¾Baud Rate: 9,600 bps
¾Data bits: 8
¾Parity: None
¾Stop bits: 1
¾Flow control: Hardware
The CLI prompt is available immediately.
3.1.3.2 Assign an IP Address
¾To assign an IP address via the CLI, take these 4 steps:
1. At the prompt type ‘conf’ and press enter; the configuration folder is accessed.
2. To check the current network parameters, at the prompt, type ‘GCP IP’ and press enter; the
current network settings are displayed.
3. Change the network settings by typing: ‘SCP IP [ip_address] [subnet_mask]
[default_gateway]’ (e.g., ‘SCP IP 10.13.77.7 255.255.0.0 10.13.0.1’); the new settings take
effect on-the-fly. Connectivity is active at the new IP address.
Note: This command requires you to enter all three network parameters (each separated by
a space).
4. To save the configuration, at the prompt, type ‘SAR’ and press enter; the MP-11x restarts
with the new network settings.
3.2 Restoring Networking Parameters to their Initial State
You can use the ‘Reset’ button to restore the MP-11x networking parameters to their factory
default values (described in Table 3-1) and to reset the username and password.
Note that the MP-11x returns to the software version burned in flash. This process also restores
the MP-11x parameters to their factory settings. Therefore, you must load your previously
backed-up ini file, or the default ini file (received with the software kit) to set them to their correct
values.
¾To restore networking parameters to their initial state, take these 4
steps:
1. Press in the ‘Reset’ button uninterruptedly for a duration of more than six seconds; the
gateway is restored to its factory settings (username: ‘Admin’, password: ‘Admin’).
2. Assign the MP-11x IP address (refer to Section 3.1 on page 13).
3. Load your previously backed-up ini file, or the default ini file (received with the software kit).
To load the ini file via the Embedded Web Server, refer to the MP-11x User’s Manual.
4. Press again on the ‘Reset’ button (this time for a short period).

Fast Track Installation Guide 3. Configuring the MP-11x
Version 4.6 17 July 2005
3.3 Accessing the Embedded Web Server
¾To access the Embedded Web Server, take these 4 steps:
1. Open a standard Web-browsing application such as Microsoft™ Internet Explorer™ (Version
6.0 and higher) or Netscape™ Navigator™ (Version 7.2 and higher).
2. In the URL field, specify the IP address of the MP-11x (e.g., http://10.1.10.10); the
Embedded Web Server’s ‘Enter Network Password’ screen appears, shown in Figure 3-2.
Figure 3-2: Embedded Web Server Login Screen
3. In the ‘User Name’ and ‘Password’ fields, enter the username (default: “Admin”) and
password (default: “Admin”). Note that the username and password are case-sensitive.
4. Click OK; the ‘Quick Setup’ screen is accessed, shown in Figure 3-3 (MGCP), Figure 3-4
(H.323), and Figure 3-5 (SIP).
3.4 Configuring the MP-11x Basic Control Protocol
Parameters
To configure the MP-11x basic control protocol parameters use the Embedded Web Server’s
‘Quick Setup’ screen.
•For MGCP refer to Section 3.4.1 on page 17.
•For H.323, refer to Section 3.4.2 on page 19.
•For SIP, refer to Section 3.4.3 on page 21.
When you have completed the above relevant section you are then ready to start using the MP-
11x. For information on how to fully configure the VoIP gateway, refer to the MP-11x User’s
Manuals.
Tip: Once the gateway is configured correctly, back up your settings by making a
copy of the VoIP gateway configuration (ini file) and store it in a directory on
your PC. This saved file can be used to restore configuration settings at a
future time. For information on backing up and restoring the gateway’s
configuration refer to Section 5on page 25.
Note: The following configuring Sections from here up to and including Section
3.4.3 on page 21 apply individually to MGCP, H.323, or SIP.
MGCP configuring continues with Section 3.4.1 on page 17.
H.323 configuring continues with Section 3.4.2 on page 19.
SIP configuring continues with Section 3.4.3 on page 21.

MP-11x
MP-11x 18 Document #: LTRT-61504
3.4.1 Configuring Basic MGCP Parameters
After accessing the Embedded Web Server (refer to Section 3.3 on page 17) the MGCP ‘Quick
Setup’ screen is displayed, shown in Figure 3-3.
Figure 3-3: MP-11x MGCP Quick Setup Screen
¾To configure basic MGCP parameters, take these 10 steps:
1. If your network features a DNS server, in the fields ‘DNS Primary Server IP’ and ‘DNS
Secondary Server IP’, enter the IP address of the primary and secondary DNS servers
(clarify with your network administrator). Note that the DNS server option is not supported by
MGCP.
2. If your network features a DHCP server, in the ‘Enable DHCP’ field, select ‘Enable’; the ‘IP
Address’, ‘Subnet Musk’ and ‘Default Gateway IP Address’ fields are disabled. When the
gateway is configured to use DHCP, it attempts to contact the DHCP server to obtain the
networking parameters (i.e., IP address, subnet mask, default gateway and
primary/secondary DNS server).
3. Select ‘MGCP’ in the ‘Control Protocol Type’ field.
4. In the ‘Call Agent IP’ field, enter the Call Agent IP address if your enterprise’s network
doesn’t feature a DNS server that automatically defines the Call Agent’s IP address. If you
have a DNS server, the field is optional.
5. In the ‘Call Agent Port’ field, enter the Call Agent port. The default is 2427.
6. In the ‘Call Agent Domain Name’ field, enter the Call Agent domain name. When using the
DNS server option, enter the domain name of the Call Agent operating with the MP-11x. The
DNS server automatically detects the Call Agent’s IP address from the domain name.
7. In the ‘Gateway Name’ field, enter a name to the device. (For example: ‘gateway1.com’).
Ensure that the name you choose is the one that the Call Manager/Agent is configured with
to identify your MP-11x.
