Audiolab 6000A Play User manual

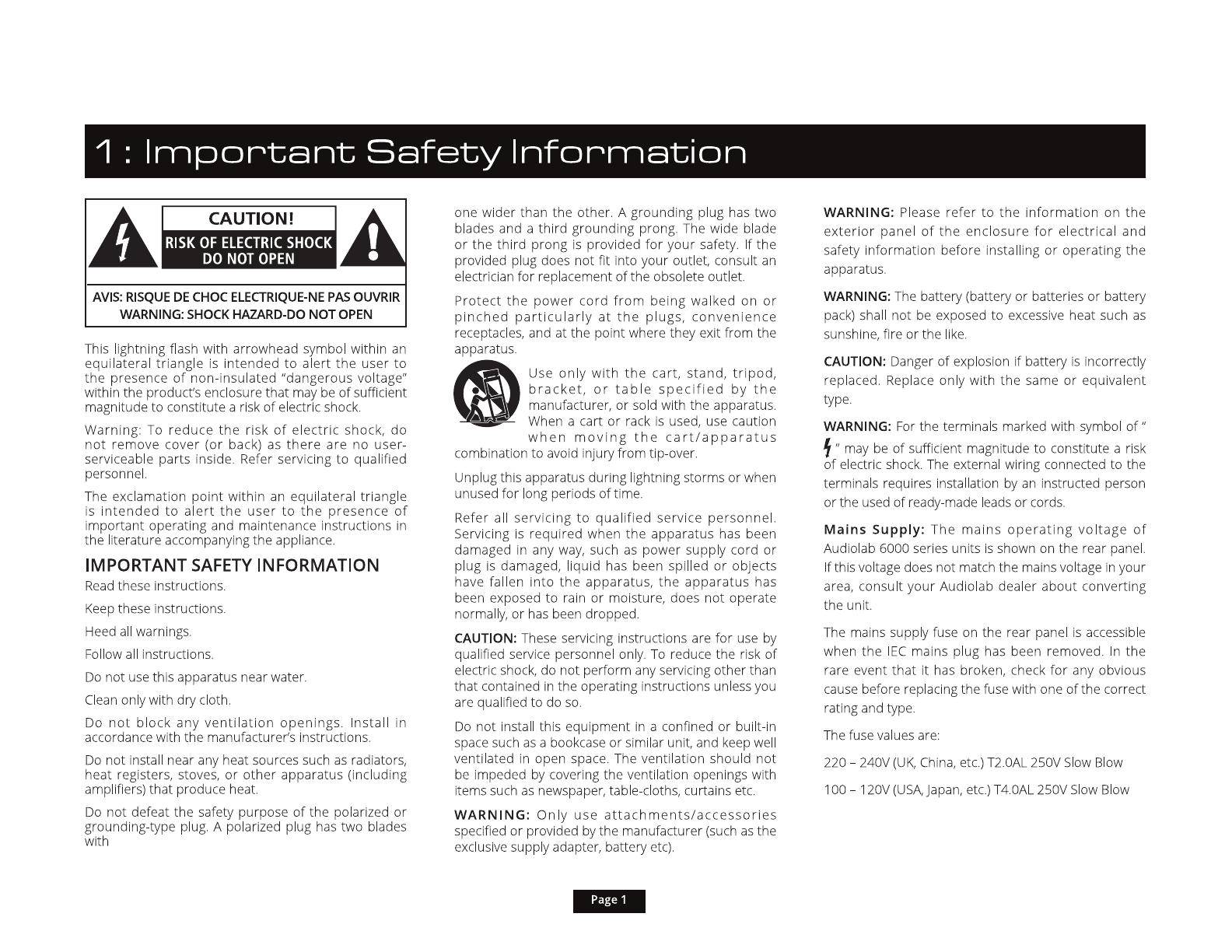

1 : Important Safety Information
A
AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR
WARNING: SHOCK HAZARD-DO NOT OPEN
This lightning flash with arrowhead symbol within an
equilateral triangle is intended to alert the user to
the presence of non-insulated "dangerous voltage"
within the product's enclosure that
may be of sufficient
magnitude to constitute a risk
of electric shock.
Warning: To reduce
the risk of electric shock, do
not remove cover (or back) as there are no user-
serviceable parts inside. Refer servicing
to qualified
personnel.
The exclamation point within
an equilateral triangle
is
intended to alert the user to the presence of
important operating and maintenance instructions in
the literature accompanying the appliance.
IMPORTANT SAFETY INFORMATION
Read these instructions.
Keep these instructions.
Heed
all warnings.
Follow
all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do
not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
Do not install near any heat sources such as radiators,
heat registers, stoves,
or other apparatus (including
amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with
one wider than the other. A grounding plug
has two
blades and a third grounding prong. The wide blade
or the third prong is provided for your safety. If the
provided plug does not fit into your outlet, consult
an
electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or
pinched particularly at the plugs, convenience
receptacles, and at the point where they exit from the
apparatus.
otm1·~ Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the apparatus.
-When a cart
or rack is used, use caution
when moving the cart/apparatus
combination to avoid injury from tip-over.
Unplug this apparatus during lightning storms or when
unused for long periods
of time.
Refer all servicing
to qualified service personnel.
Servicing
is required when the apparatus has been
damaged in any
way, such as power supply cord or
plug is damaged, liquid has been spilled or objects
have fallen
into the apparatus, the apparatus has
been exposed to rain
or moisture, does not operate
normally, or
has been dropped.
CAUTION: These servicing instructions are for
use by
qualified service personnel only. To reduce the risk of
electric shock, do not perform any servicing other than
that contained
in the operating Instructions unless you
are qualified to do
so.
Do not install this equipment in a confined or built-in
space such
as a bookcase or similar unit, and keep well
ventilated in open space. The ventilation should not
be impeded by covering the ventilation openings with
items such
as newspaper, table-cloths, curtains etc.
WARNING: Only use attachments/accessories
specified or provided by the manufacturer (such as the
exclusive supply adapter, battery
etc).
WARNING: Please refer to the information on the
exterior panel of the enclosure for electrical and
safety information before installing
or operating the
apparatus.
WARNING:
The battery (battery or batteries or battery
pack) shall not be exposed to excessive heat such as
sunshine, fire or the like.
CAUTION: Danger of explosion if battery is incorrectly
replaced. Replace only with the same
or equivalent
type.
WARNING: For the terminals marked with symbol of"
i" may be of sufficient magnitude to constitute a risk
of electric shock. The external wiring connected to the
terminals requires installation
by an instructed person
orthe
used of ready-made leads or cords.
Mains Supply: The mains operating voltage of
Audiolab 6000 series units is shown on the rear panel.
Ifthis voltage does not match the mains voltage
in your
area, consult your Audiolab dealer about converting
the unit.
The mains supply fuse on the rear panel is accessible
when the
IEC mains plug has been removed. In the
rare event that it has broken, check for any obvious
cause before replacing the fuse with one of the correct
rating and type.
The fuse values are:
220 -240V
(UK, China, etc.) T2 . 0AL 250V Slow Blow
100 -120V
(USA, Japan, etc.) T4. 0AL 250V Slow Blow

2: Getting Started
Welcome to Audiolab 6000 Series.
6000A is the latest in a long line of Audiolab integrated amplifiers with a pedigree that
stretches back
to the very first 8000A that made Audiolab an overnight sensation.
The 6000A
features analogue and digital audio circuitry of the highest quality
and has been designed by engineers who are passionate about the reproduction
of music, and we hope you will enjoy its performance for many years to come.
Please read through this manual
to obtain the very best performance from your
6000A.
Features:
Bluetooth aptX
DAC - ES9018K2M
Dedicated high performance MM Phono Input.
Separate Pre-Power sections for flexibility
of operation.
Automatic equipment activation
via 12V trigger.
Auto standby function.
Inputs:
Three analogue line level inputs.
One Phono input (MM)
One Power-Amp input
Two Coaxial SPDIF digital inputs
Two Optical SPDIF digital inputs
Bluetooth
(aptX)
Outputs:
Pre-Amplifier output.
Loudspeaker output.
Headphone output.
Unpacking
Unpack the productfully. The carton should contain:
The Audiolab 6000A
One
!EC power cord suitable for your area.
One Remote handset with two
AAA batteries
This instruction manual.
One Bluetooth Antenna
If
an item is missing or damaged report this to your dealer as soon as possible. Retain
the packing for safe transport of your unit. Ifyou dispose of the packing, do so with
regard to any recycling regulation
in your area.
Placement
The unit is designed to run warm during normal operation but ensure you do not
block any ventilation openings.
Place the unit on a sturdy shelf or table. Ifyou use an equipment rack, ensure the unit
has adequate ventilation and is on its own shelf.
Check your mains voltage corresponds to the rating printed on the rear panel (near
the power inlet socket).
If
in doubt, consult your dealer. Ifyou move to an area with a different mains voltage
seek advice from an Audiolab appointed dealer or a competent service technician.
l±Mfd

3: Controls and Connectors
( __ ,-----)
SOOO A
POW ER LED SOURCE SELECTOR MODE DISPlAY
'.:::
=
()
VOLUME
HEADPHONE REMOTE
SOCKET INPUT
audi olab
STANDB Y
BUTTON
4.
=
~ -Jr ®
,_
J-~- • -
aoclolob :{
, +
~ + I~-~:
:::;;;;.;;:;:: :r '® ®®® @! @
i
~ I-
~ i - 1 •
@) \~ n, ~ ~~ -
-~__J_ ~ - ! ~
i. ®® fd>° mi •---- ... 1 ®®®<st®®®®I©
0 !
@I 0 0 - •
•~ 0 0 0 0 0 0 R,,J,,
()I Gl INPUl OIGl U~DATE -~- PR[ _l_ PO#DI - AUX1 -AUXl - AUX3 - PttONO J
SETIAL21SOV ,J
SN :
I I I I
FUSE MAINS POWER LOUDSPEAKER
12V TRIGGERS BLUETOOTH OPT/DIG
UPDATE PRE
OLJTPLJT
ANALOGUE
I NPLJTS
GROUND
INPUT SWITCH OUTPUT ANTENNA I NPUT
'"'''

4 . R t H d t
NOTE: the handset buttons shown crossed out are for use with otherAudio/ab units like
. 8 m O 8 8 n S 8 Audio/ab 6000CDT and are not operational when used with the 6000A
1 STANDBY Press to bring the unit in/out of Standby Fitting Batteries
@
CD
MUTE
2VOL+ Increase Volume Open
the battery compartment cover, unwrap the
® D 3
VOL- Decrease Volume supplied
AAA batteries and place them in the battery
~ ~ ~
compartment with the correct polarity. Replace the
4 DISPLAY Press to toggle the display on/off cover.
00 00 00 5 A
Press to select 6000A remote mode Always use
AAA batteries and replace them in sets -
~ m m 6
CD Press to select 6000CDT remote mode never mix old and new batteries.
PRCJG STORE
~ m ~
Press to cycle source inputs Very weak batteries
can leak and damage the handset.
REPEAT MENU RANDOM
7 SOURCE
~ ~
Replace them in good time!
8
MODE Press to select 6000A operating mode
2 9
MUTE Press to mute and unmute the sound Note:
there is a risk of fire and burns if a battery
is handled improperly . Do not disassemble, crush,
10
MENU Press to enter MENU
puncture, short the contacts or dispose of the batteries
►► I
11 1..-
Press once to replay the current track of BT
in fire or water.
3 Move to previous page
or setting in menu Do
not attempt to open or service a battery. Discard used
batteries
in full accordance with recycling regulations in force
®
12 ► 11
Press to start I pause BT playback
in your area.
:AIR FILTER
Handset Operation
~
Press to confirm page or setting selected in
(j)
FO OISPLAY
menu
~□
@ The handset operates several Audiolab components.
13 ►► I
Move to the next track of BT
The handset buttons shown crossed out are for use
Move to next page or setting in menu with other Audiolab units and are
not operational when
® used with the 6000A.
Point the handset at the remote receiver and press the
® relevant
key. The handset should be within 15 meters
audiolab
of the player and there must be a clear line of sight
between the two units.
''"''

5: Connections
Analogue Inputs (Line Level)
Connect your analogue sources to one of the three line level
inputs, AUX1, AUX2 or AUX3.
Phono Input (MM)
Connect yourTurntable (Moving Magnet cartridge) to the PH ONO
Input. Connect the Earth lead from your Turntable (ifavailable) to
the GROUND terminal.
Coaxial digital Inputs
Connect your coaxial digital sources to either DIG1 or DIG2.
Optical digital Inputs
Connect your Optical digital sources to either OPT1 or OPT2.
Pre-Amplifier Output
Pre-amplifier output for driving external power amplifiers, sub-
woofers or signal processors.
Loudspeaker Terminals
One set of Loudspeaker output terminals.
Headphone Output
A stereo 6.3mm (1 /4") jack is provided on the front panel for
connecting Headphones.
When Headphones are connected the audio to the loudspeakers
terminals will be cut off.
Bluetooth Connection
Select BT source on the 6000A, on your mobile device search for
'Audiolab 6000A BT' and connect.
[Q] [Q]
OPTI @ OPT2 (I
@@
DIG1 DIG 2
INPUT
~
©'
@)
PRE _J
Once paired the front panel SOURCE indicator will be turned on. Ifyou switch to another
input on the 6000A your mobile device will be disconnected after 60 sec. To reconnect,
select BT on the 6000A and it will connect to the last paired device, or select 'Audiolab
6000A
BT' on your mobile device in the Bluetooth menu and it will reconnect.
12V Trigger Connections
The 6000A features two 12V Trigger connections, one output and one input. Use
the output to control other products (ie. Audiolab amplifiers or 3rd party compatible
equipment). Use the input when the 6000A is to be controlled (ie. by Audiolab
6000CDT, or 3rd party compatible equipment).
The Trigger
connections are made using 3.5mm to 3.5mm jack interconnects (not
incl.).
®
G: ~t ~I
Mains Input
audiolab
1-==-1
1- - -- 1 ®
-=
CE & !
Before connecting the 6000A to the mains supply make sure all other
connections to your system have been properly and securely made.
Make sure the ON/OFF switch on the rear of the unit is switched off.
OO ~OFF
~a~
Now connect the supplied mains cable to the AC supply outlet. 'AC220•240V-50/60Hz 440W
7
L FUSET2.5AL250V _j
ffjfft

6: Operation
Switching On and Off
Switch on all source units before switching on power to the 6000A.
When switching
On: The power LED illuminates.
When switching
Off: Switch offthe 6000A before the source units.
Standby Mode
The 6000A will enter standby mode after being powered on. Press
the "Standby" button to bring the 6000A
out of standby, the power
indicator LED becomes brighter and the display shows "6000A"
welcome screen while the unit
is getting ready for operation.
The Auto Standby feature will,
by default, put the unit into standby
after 20mln
of Inactivity.
This feature
can be configured using the MENU (see page 8) and be
set to 20min, 1 hour or Never.
Source Select
Rotate the SEL knob on the front panel or use the source buttons on
the remote handsetto select different source inputs.
Volume Control
Rotate the VOL knob on the front panel, or use the Volume up/down
keys on
the remote control, to set the volume level. The range is
-78dB to +8dB, the factory default volume setting is -20dB. When
coming
out of standby the 6000A will be set to the previous used
volume setting, except
if louderthan -20dB, in which case the volume
will default
to -20dB.
sa
0
VOL
0
Mute
Press the VOL knob on the front panel or the MUTE button on the remote handset to
mute I un-mute the sound.
Display Setting
The DISPLAY button on the remote control will toggle the front panel display ON/OFF.
When the display is OFF: Using the front panel controls or pressing any remote key will
momentarilyturn on the display, after 5
sec. the display will go off.
Digital Filter selection (DAC)
The DAC in the 6000A has a choice of 3 digital filters. Press the MENU key on the
remote control to access the
FILTER options (see page 8 for further details)
Filter=
Fast :
Filter=
Slow:
Filter= Phase:
Standard flat response with fast frequency roll offabove Fs/2 (half
the sampling frequency)
Starts rolling offat a lower frequency than the
Fast filter but has a
more gentle rate
of attenuation.
Has a gentle attenuation slope similar to the Slow filter but with
minimum phase characteristics. It
can be likened to an analogue
filter applied
in the digital domain.

6: Operation - 2
Operating Modes
Although the 6000A is an integrated amplifier it can function as a separate
Pre and Power amplifier.
Use
the MODE knob on the front panel, or the MODE key on the Remote
control, to select different operating modes.
MODE
POWER AMP IN PRE OUT HEADPHONE OUT
PRE DISABLE ACTIVE ACTIVE
PRE - POWER
ACTIVE ACTIVE ACTIVE
INTEGRATED DISABLE
ACTIVE
ACTIVE
Integrated mode
MODE
0
LOUDSPEAKERS
DISABLE
ACTIVE
ACTIVE
The pre-amplifier section is internally connected to the power amplifier, Pre -a mplifier output is also
operational in this mode. A second
power amplifier can be connected for bi -a mplification as shown
in the diagram.
" □ '"
@)
·@)
<® ·
((
G~.,
'
! •
gi t
- @) @) -
::a:
0 I
~ I
•
·I
Pre-Power mode
The pre-amplifier section is internally disconnected from the power amplifier. The
6000A
can be used as a stand alone power amplifier (ie. part of an AV setup). This
mode
can also be used ifadditional signal processing is required, connecting the Pre -
out to
an external signal processor and then take the output from the processor to
the 6000A Power-
IN.
POWER
Pre Mode
All signals to and from the power amplifier of the 6000A are disconnected. In this
mode, the 6000A functions
as a stand-alone pre-amplifier. The pre-amplifier section
of the 6000A can be connected to a stereo power amplifier, or to two mono-block
amplifiers.
@)
audiolab
~-ir~- -,
~ I ~ ~
@@@@@c @
@) -c l[J
@ @ @ I©
©@©©@•.i,,
® .. -@ -~··
, _J_ __ m,-~o-m,--J
Output to the
Ex ternal power amplifier

B: Operation - 3
The MENU
The menu enables you to customize the unit and optimize the interface with other equipment in your system.
6000A has 6 different menu pages.
Press the MENU key on the remote control to enter menu mode, and then press 1+1 or ►~ to turn to different menu pages, press ► II to enter any
menu
page, press I ◄◄ or ►► I again to select different settings, Pressing the MODE knob on the front panel can also enter the menu mode, rotating this knob turns through the menu
pages; press the
MODE knob again to enter any menu page and rotate the knob to change the setting, press the MODE knob again to select a setting.
No operation
for 5 seconds will also exit menu mode automatically
The Menu Tree
fiWfl

7: Warranty
Audiolab Ltd. warrants this product, subject to the terms and conditions below, to be free
from defects
in materials and workmanship. During the warranty period Audiolab will repair or
replace (at Audiolab's option) this product, or any defective part in this product, if it is found to be
defective due to faulty materials, workmanship or function. The warranty period may vary from
country to country.
Terms and conditions
The warranty starts on the date of purchase (or the date of delivery if this is later).
You must provide proof of purchase/delivery before work can be carried out. Without this proof,
any work carried
out will be chargeable to you.
All work will be carried out by Audiolab or its authorized agents or distributors.
Any unauthorized repair
or modification will void this warranty.
Ifany part
is no longer available it will replaced with a functional replacement part.
Any parts that are replaced will become the property
of Audiolab.
Any repair
or replacement under this warranty will not extend the period of warranty.
This warranty
is valid only in the county of purchase, applies only to the first purchaser and is not
transferable.
The following are not covered:
1. Products where the seri al number has been removed, altered or otherwise made illegible.
2. Normal wear tear and cosmetic damage.
3. Transportation or installation of the product.
Accidental damage, fault caused
by commercial use, acts of God, incorrect installation, connection
or packing, misuse, neglect or careless operation or handling of the product which is not in
accordance with Audiolab's user instructions.
1. Repairs or alterations carried out by parties other than Audiolab or its authorized agents or
distributors.
2. Products not purchased from an Audiolab authorized dealer.
3. Products that were not new at the time of original purchase.
4. Products sold
'as is', 'as seen' or 'with all faults'.
Repairs
or replacements as pro vided under this warranty are the exclusive remedy of the
consumer.
Audiolab shall
not be liable for any incidental or consequential damages for breach of any
express
or impli ed warranty in this product. Except to the extent prohibited by law, this warranty
is exclusive and in lieu of al l other warranties whatsoever, both express and implied, including,
but not limited to , the warranty of merchantability and fitness for a practical purpose.
This warranty provides benefits that are additional to and do not affect your statutory rights
as a
consumer.
Some
countries and U.S. states do not allow the exclusion or limitation of incidental or
consequential damages or implied warranties so the exclusions in the paragraph above may
not apply to you. This warranty gives you specific legal rights, and you may have other statutory
rights, which vary from state to state
or county to county.
How to claim:
To obtain warranty service contact the Audiolab authorized dealer from which you purchased
this product.
Do not dispatch goods without the prior agreement of the dealer, Audiolab or their
authorized distributors.
If asked to return products for inspection and/or repair, pack carefully, preferably
in the original
cartons
or packing affording an equal degree of protection, and return prepaid. If unsuitable
packaging
is used, Audiolab may make a charge for the supply of new packaging.
Insurance
is recommended and goods are returned at owner's risk. Audiolab or their authorized
distributors cannot
be held liable for loss or damage in transit.
''"''

B: Specification
Pre-amplifier Section
Gain (max.)
Input Sensitivity
Input Impedance
Total
Harmonic Distortion (THD)
Frequency Response
Output Voltage
Output Impedance
Signal-
to -Noise Ration (SIN)
D AC
D to A converter
Total H armonic Distortion (T H D)
Output level (0dBFS, 1 KHz)
Max. Sampling Frequency
Signal-to-noise ratio (S/N)
Digital Filters
Po wer Amplifier Section
Gain
Rated Max. Power Output
Frequency Response
I
nput Sensitivity
Total H
armonic Distortion (T H D)
Signal -t o-Noise ratio (SIN)
Max.
Output Current
+8dB (Line)
+SSdB (Phono MM)
720mV (Line, Volume= 0dB)
3.1 mV (Phono MM, Volume=0dB)
1
OK (Line)
471<//1 00pF (Phono MM)
< 0.0004% (Line, 1KHz@
2V, Volume= 0dB)
20Hz-20kHz (+/-0.1 dB)
2.3V max. (Volume= 0dB)
120
ohm
> 11 0dB (Line, A-weighted)
>76dB (Phono MM, A-weighted)
ES9018K2M
< 0.0006%
(1 KH z@ 0dBFS)
2.0SV
192KHz
> 112dB (A -weighted)
Fast Roll - off, Slow Roll - off, Minimum Phase
+29dB
2 X
SOW (8 ohm, THD<1 %)
2 X75W (4 ohm, TH D<1 %)
20Hz-20kHz (+/-0.3dB)
720mV
<0.003%
(1 kH z@ 40W/8ohm)
> 11 0dB (A -weighted)
9A
Headphone Amplifier
Total Harmonic Distortion (THD)
Output Impedance
Load impedance
General
Standby Power Consumption
Power Requirements
Dimensions (mm)
(W x H x D)
Carton Size (mm) (W x H x D)
Weight
< 0.01 %
(1 kHz, S0mW)
2.35
ohm
20-600 ohm
<0.SW
240V -50 -60Hz
230V -50 -60Hz
11 SV -50 -60Hz
100V -50 -60Hz
445 X 65.5 X
300
512x467x 146
7.8kg (Net)
Correct disposal of th is product. Th is marking indicates that this product should not be disposed
wi th other ho useh old w astes throughout the EU. To prevent p ossi ble harm to the en vironment or
human health from uncontrolled waste dispo sal , recycle it responsiblyto promote the su stainable
reuse of material resource s. To return your used device, please use the return and collection
sys tem s or contact the retailer where the product w as purchased. They can take this product for
-environmental safe recycling.

Audiolab
IAG House,
1 3/1 4 Glebe Road,
Huntingdon,
Cambridgeshire.
PE2970L,
UK
Tel: +44(0)14B0 452561
Fax: +44[0)14B0413403
http:/ /www.audiolab.co.uk
CODE: AH1 4-MNL0004a
