audiophony 10752 User manual

USER GUIDE
10752/10753/10754/10755/10756/10757/10758/10759/10760/10761/10762/
10763/10764/10767/10768/10773 - Version 1.0 /07-2017

iLINE Series - Column speakers system with active and passive subwoofers
Page 2
Sound levels
Our audio solutions deliver important sound
pressure levels (SPL) that can be harmful
to human health when exposed during long
periods. Please do not stay in close proximity
of operating speakers.
1 - Safety information

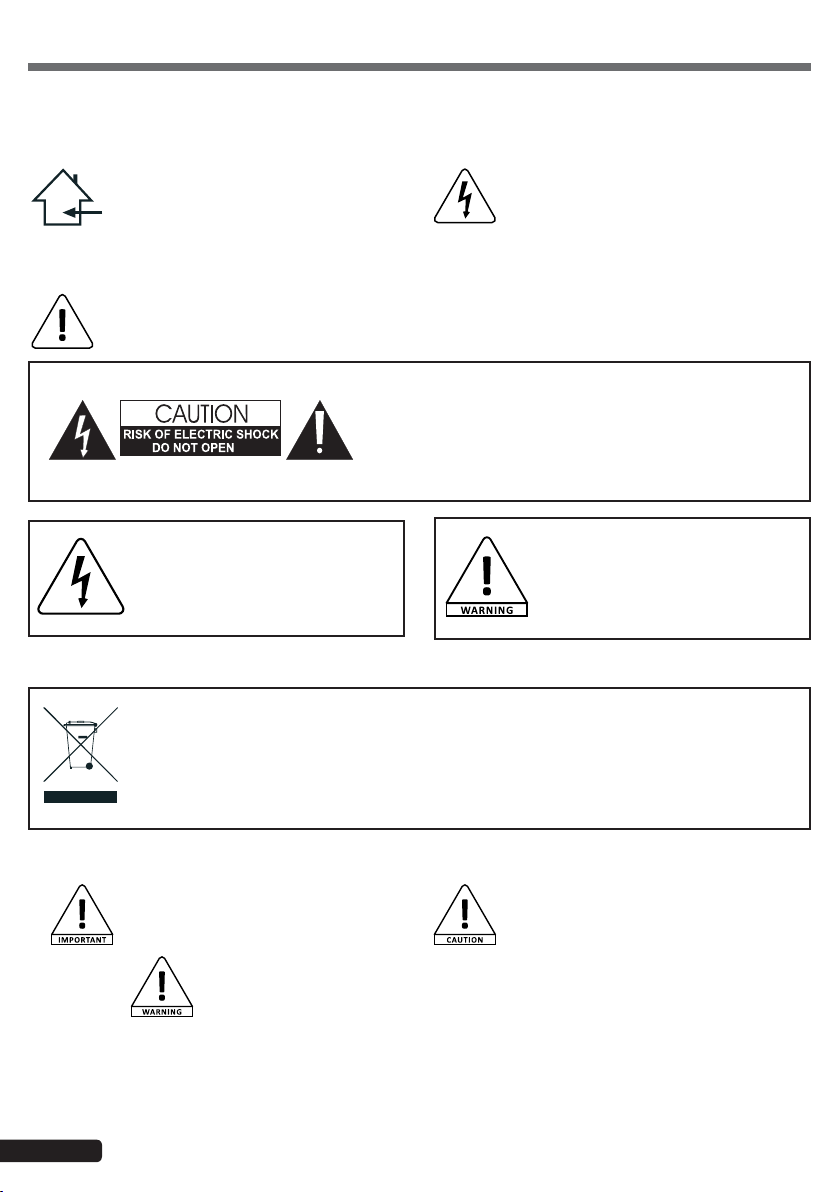

This symbol signals an important safety
precaution. The CAUTION symbol signals a risk of product deterioration.
The WARNING symbol signals a risk to the user’s physical integrity.
The product may also be damaged.
Important safety information
Symbols used
Any maintenance procedure must be performed by a CONTEST
authorised technical service. Basic cleaning operations must tho-
roughly follow our safety instructions.
This product contains non-isolated electrical components. Do not
undertake any maintenance operation when it is switched on as
it may result in electric shock.
This unit is intended for indoor use only. Do not use it in a wet,
or extremely cold/hot locations. Failure to follow these safety ins-
tructions could result in fire, electric shock, injury, or damage to
this product or other property.
WARNING : This unit contains no user-serviceable parts. Do not open the
housing or attempt any maintenance by yourself. In the unlikely even your unit
may require service, please contact your nearest dealer.
In order to avoid any electrical malfunction, please do not use any multi-socket,
power cord extension or connecting system without making sure they are
perfectly isolated and present no defect.
Recycling your device
• As HITMUSIC is really involved in the environmental cause, we only commercialise clean, ROHS compliant products.
• When this product reaches its end of life, take it to a collection point designated by local authorities. The separate collection and recycling of your
product at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the
environment.
Risk of electrocution
To prevent the hazard of electric shocks, do not use
extension cords, multi-socket or any other connection
system without making sure metal parts completely are
out of reach.

iLINE Series - Column speakers system with active and passive subwoofers
Page 3
1 - Please read carefully :
We strongly recommend to read carefully and understand
the safety instructions before attempting to operate this unit.
2 - Please keep this manual :
We strongly recommend to keep this manual with the unit for
future reference.
3 - Operate carefully this product :
We strongly recommend to take into consideration every
safety instruction.
4 - Follow the instructions:
Please carefully follow each safety instruction to avoid any
physical harm or property damage.
5 - Avoid water and wet locations :
Do not use this product in rain, or near washbasins or other
wet locations.
6 - Installation :
We strongly encourage you to only use a fixation system or
support recommended by the manufacturer or supplied with
this product. Carefully follow the installation instructions and
use the adequate tools.
Always ensure this unit is firmly fixed to avoid vibration and
slipping while operating as it may result in physical injury.
7 - Ceiling or wall installation :
Please contact your local dealer before attempting any ceiling
or wall installation.
8 - Ventilation :
The cooling vents ensure a safe use of this product, and avoid
any overheating risk.
Do not obstruct or cover these vents as it may result in
overheating and potential physical injury or product damage.
This product should never been operated in a closed non-
ventilated area such as a flight case or a rack,
unless cooling vents are provided for the purpose .
9 - Heat exposure :
Sustained contact or proximity with warm surfaces may cause
overheating and product damages. Please keep this product
away from any heat source such as a heaters, amplifiers, hot
plates, etc...
10 - Electric power supply :
This product can only be operated according to a very specific
voltage. These information are specified on the label located
at the rear of the product.
11 - Power cords protection:
Power-supply cords should be routed so that they are not likely
to be walked on or pinched by items placed upon or against
them, paying particular attention to cords at lugs, convenience
receptacles and the point where they exit from the fixture.
12 - Cleaning precautions :
Unplug the product before attempting any cleaning operation.
This product should be cleaned only with accessories
recommended by the manufacturer. Use a damp cloth to clean
the surface. Do not wash this product.
13 - Long periods of non use :
Disconnect the unit’s main power during long periods of
non use.
14 - Liquids or objects penetration :
Do not let any object penetrate this product as it may result
in electric shock or fire.
Never spill any liquid on this product as it may infiltrate the
electronic components and result in electric shock or fire.
15 - This product should be serviced when :
Please contact the qualified service personnel if :
- The power cord or the plug has been damaged.
- Objects have fallen or liquid has been spilled into the
appliance.
- The appliance has been exposed to rain or water.
- The product does not appear to operate normally.
- The product has been damaged.
16 - Inspection/maintenance :
Please do not attempt any inspection or maintenance by
yourself. Refer all servicing to qualified personnel.
17 - Operating environment :
Ambient temperature and humidity: +5 - +35°C, relative
humidity must be less than 85% (when cooling vents are not
obstructed).
Do not operate this product in a non-ventilated, very humid
or warm place.
Instructions and recommendations

iLINE Series - Column speakers system with active and passive subwoofers
Page 4

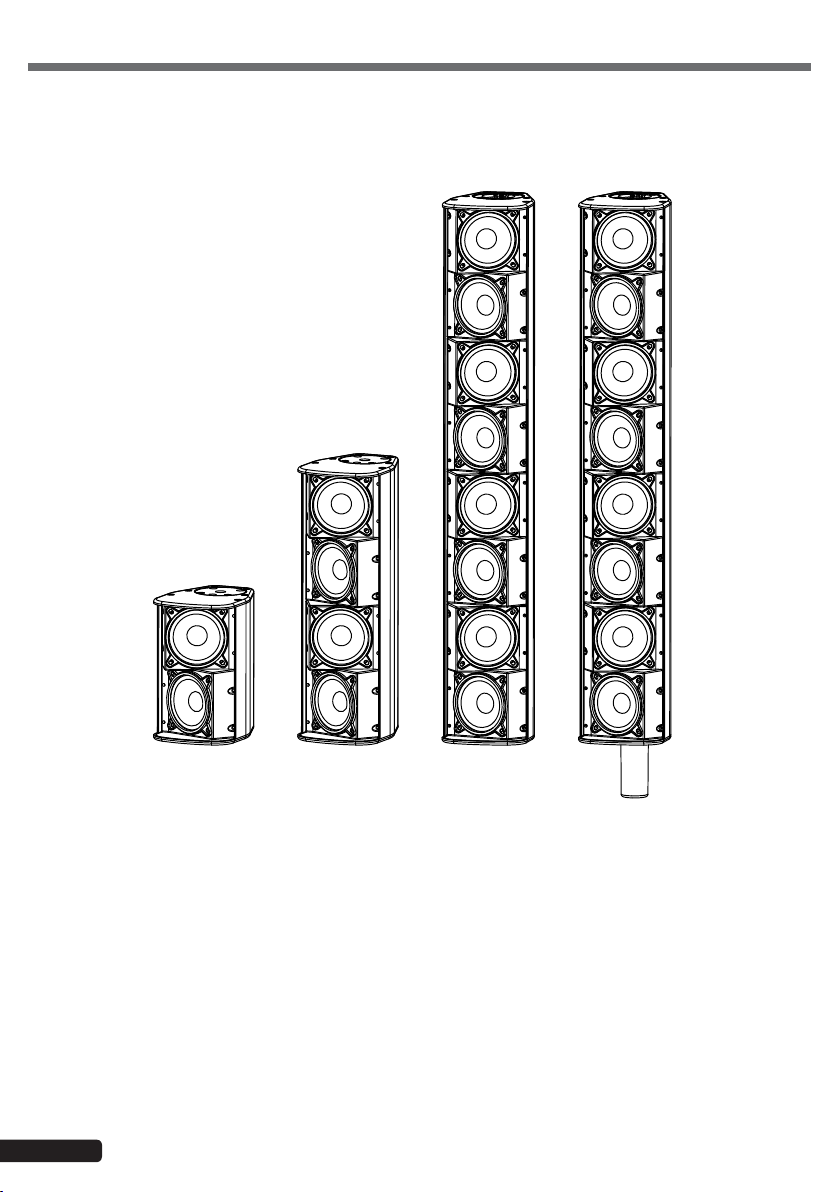

2 - 1 : Column speakers
iLINE23 - 10752 2 x3" Loudspeaker - 40W - 16Ω iLINE43 - 10754 4 x3" Loudspeaker - 80W - 8Ω iLINE83 - 10756 8 x3" Loudspeaker - 160W - 16 Ω iLINE83B - 10758 8 x3" Loudspeaker - 160W - 16Ω Baseplate connector
2 - iLINE series components (except fixation systems and covers)

iLINE Series - Column speakers system with active and passive subwoofers
Page 5

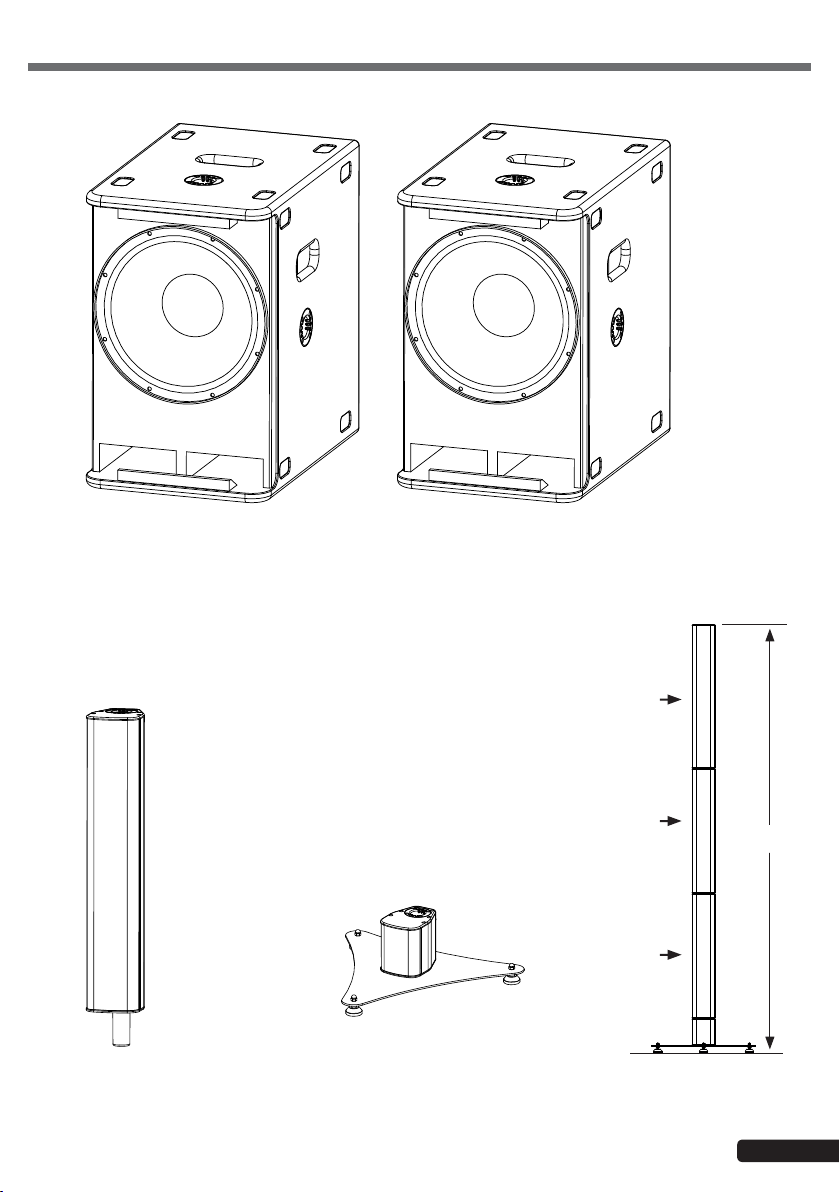

2 - 2 : Subwoofers
2 - 3 : Support systems with built-in connectors
iLINEsub12A - 10761
-700W + 700W / 4ΩActive subwoofer
-4-point Speakon input / output lowband/and
full range
-Costumizable DSP
-Powercon power input/output
iLINEspace60 - 10759
-60cm Extension for iLINE83B
-Signal connection via male and
female baseplates
iLINEbase - 10760
-Ground support for iLINEspace
and iLINE83B
-Speakon connector and female
baseplate connector
iLINEsub12P - 10763
-400W / 8ΩPassive subwoofer
-4-point Speakon input / output bass/full range
iLINE83B
iLINEspace60
~2 m
iLINEspace60
Sample configuration

iLINE Series - Column speakers system with active and passive subwoofers
Page 6

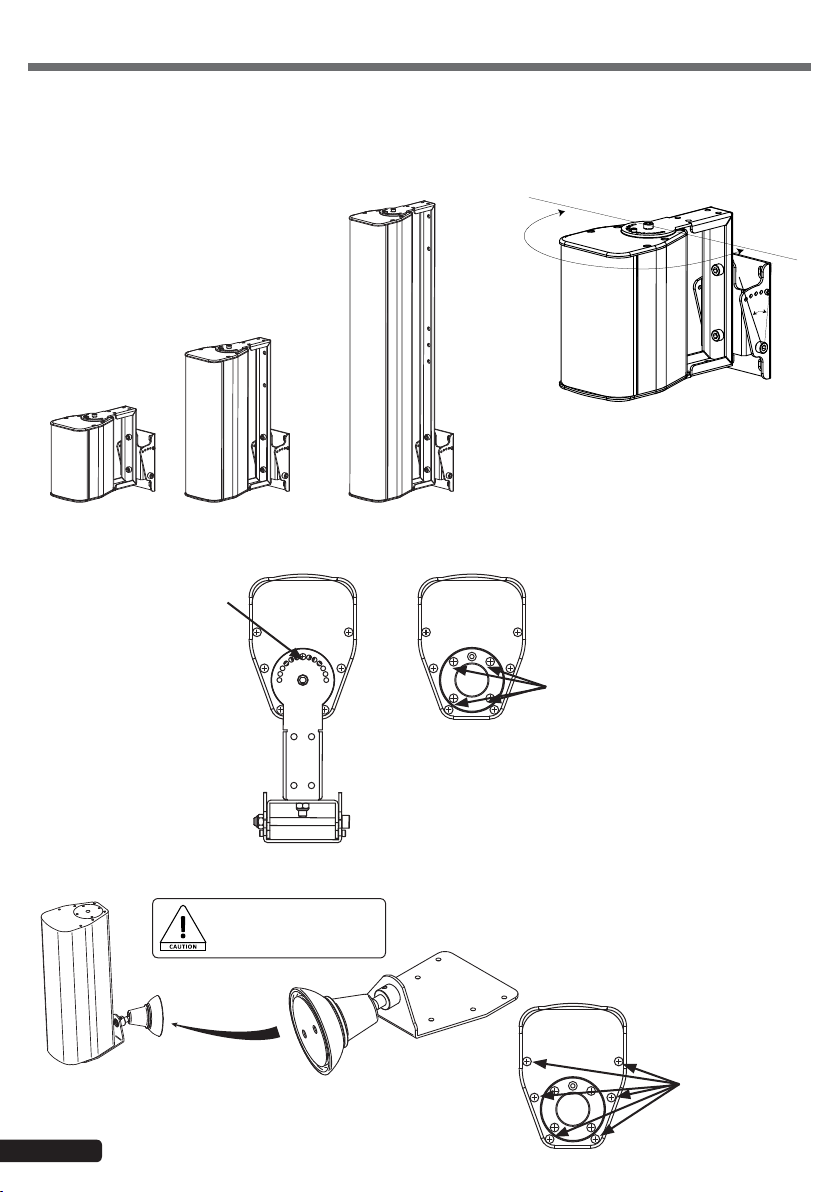

These brackets are designed for iLINE23, iLINE43 and iLINE83 column speakers
These speakers are supplied with a 35mm baseplate, which needs to be changed in order to fit these wall brackets.
2 - 4 : Wall brackets
iLINE23Sup - 10753
Bracket for iLINE23
iLINE43Sup - 10755
Bracket for iLINE43
iLINE83Sup - 10756
Bracket for iLINE83
Tightening screw to be removed to
change the 35mm baseplate.
The same screw can be used to secure
the adequate baseplate
These brackets allow a 180° horizontal
rotation by 15° increments and a 30°
vertical rotation by 8° increments
Tightening screw allowing to
adjust the orientation
180°
30°
2 - 5 : iLINEsup24 - 10773 : Adjustable wall mount for iLINE23 et iLINE43
Tightening screw to
be removed.
The same screw
can be used to
secure the wall
mount.
To install this wall mount, remove the 6
screws from the bottom of the speaker,
place the wall mount and reposition the
screws through the bracket.
This wall mount is only
suitable for iLINE23 and
iLINE43

iLINE Series - Column speakers system with active and passive subwoofers
Page 7
3 - Installation and use
3 - 1 : Installation
3 - 2 : Various configurations
Mode 1
iLINE83B
iLINEspace60
iLINEsub12A
22,5° 22,5°
Please make sure you are using an even and stable surface.
iLINEsub12A and iLINEsub12P subwoofers can be set either
horizontally or vertically.
We recommend to position your iLINEsub12P on top of your
iLINEsub12A if you decide to use two subwoofers (iLINEsub12A
and iLINEsub12P)Connect the two subwoofers together using the
Speakon/Speakon cable reference iLINEcord60.
Place the iLINEspace60 on top, then finally place your iLINE83B.
Note The baseplate allows a rotation from the subwoofer of
approximately 22,5°.
Each iLINEsub12A subwoofer can handle (maximum):
- 1 iLINEsub12P subwoofer
- 2 iLINE83B column speakers
Power : 560W (1120W max.)
Max. SPL : 121dB

iLINE Series - Column speakers system with active and passive subwoofers
Page 8
Mode 2
Mode 3
iLINE83B
iLINE83B
iLINE83B
iLINE83B
iLINEsub12A
iLINEsub12P
Speakon/Speakon cable
reference iLINEcord60 Speakon/Speakon
cable reference
iLINEcord60
iLINEsub12A
Power : 720W (1440W max.)
Max. SPL : 123dB
Power : 1020W (2040W max.)
Max. SPL : 127dB

iLINE Series - Column speakers system with active and passive subwoofers
Page 9
3 - 2 : Power connection
3 - 3 : Connection principle to a line-level signal
The power socket of your iLINEsub12A is a Powercon©
Neutrik®.
The blue plug is used for power connection.
The grey plug is used to transfer power to other units.
Caution: max power via this plug is 20A (4600W at 240V).
The wiring principle is described on the image hereby.
Mono mode in daisy-chain
Main power
CD Player
XLR/XLR cable
PowerconIN/PowerconOUT cable

iLINE Series - Column speakers system with active and passive subwoofers
Page 10
Stereo mode
Main powerMain power
CD Player
Instrument
Mic

iLINE Series - Column speakers system with active and passive subwoofers
Page 11
IN / OUT
IN / OUT
MADE IN CHINA
IN / OUT
PIN 1+ : FULL RANGE +
PIN 1- : FULL RANGE -
PIN 2+ : SUBWOOFER+
PIN 2- : SUBWOOFER-
ATTENTION:
Risque de perte auditive
WARNING:
Risk of earing loss
PASSIVE SUBWOOFER
400W RMS / 8 Ohms

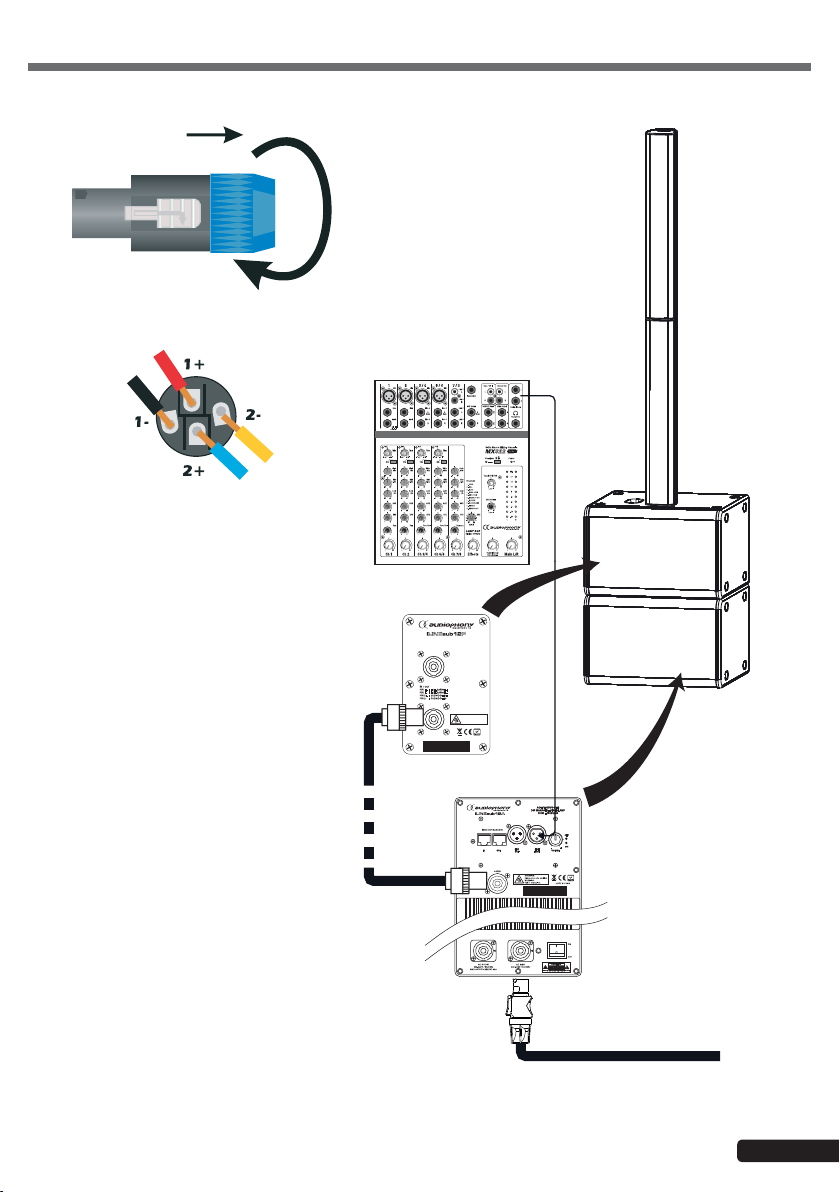

Double-subwoofer mode
When using two subwoofers (iLINEsub12A and
iLINEsub12P), they must be connected together
via the optionnal iLINEcord60 cord.
This cord features 2 x 4-point SpeakOn
connectors hardwired as follows:
-Pin 1+ : Full range positive signal
-Pin 1- : Full range negative signal
-Pin 2+ : Bass positive signal
-Pin 2- Bass negative signal
Full range
Bass
iLINEcord60 - 10764
4-point Speakon cord - 60 cm

iLINE Series - Column speakers system with active and passive subwoofers
Page 12
UR485
iLINEbox USB to RJ45
converter.
This converter is required for
any DSP settings.
DSP parameters are factory
set in order to ensure optimal
performances.
CAUTION: Altering the DSP settings may cause severe damage to your loudspeakers.
Audiophony cannot be held responsible for any damage caused to loudspeakers after altering these settings.
3 - 4 : Configuring DSP by connecting to a computer

iLINE Series - Column speakers system with active and passive subwoofers
Page 13

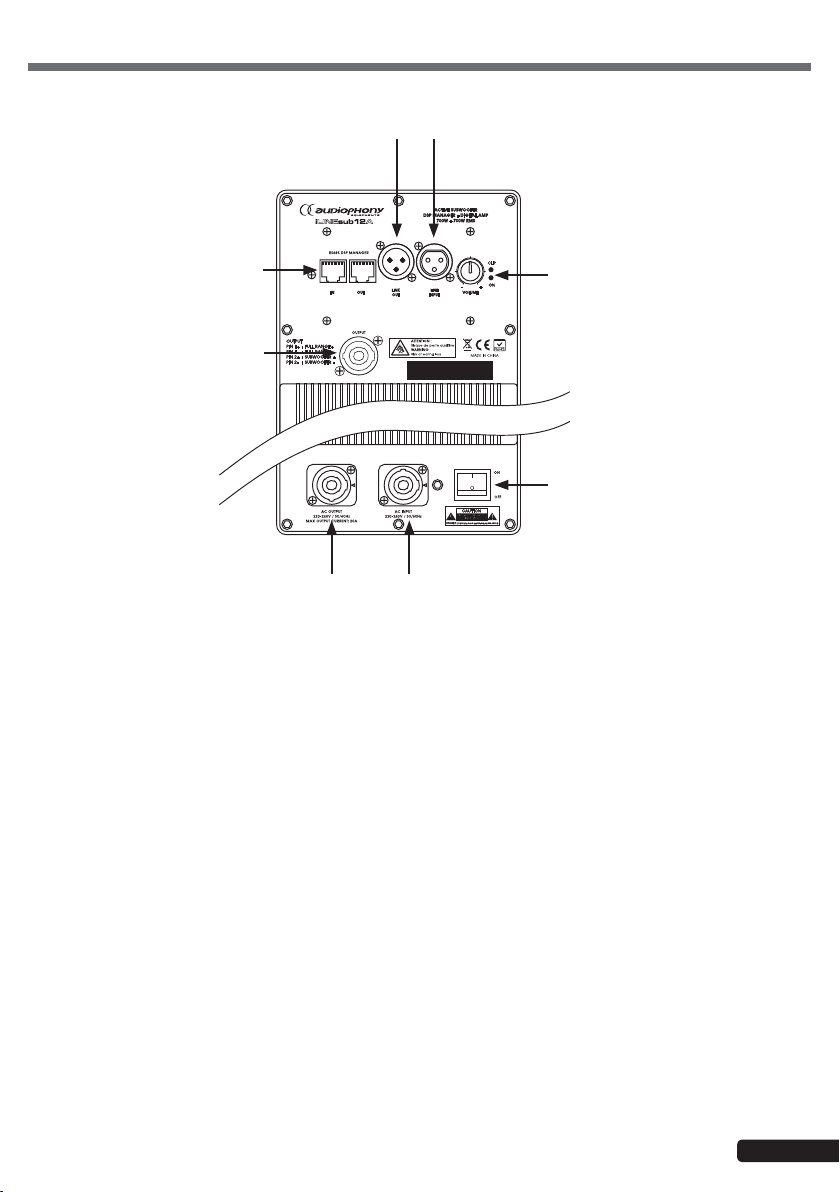

Power input via Powercon IN socket
220/240V - 50/60Hz
ON/OFF power button
Indicator LED:
-ON : Turns on upon activation of your
device
-CLIP : Turns on when the output level
is critical
Line-level balanced output via Male XLRLine-level balanced output via Female XLR
Power output via Powercon OUT socket
220/240V - 50/60Hz - 20A maximum
Speakers powered output
wired as follows :
Full range :
Power 700W RMS / 4Ω
-Pin 1+ : Full range +
-BPin 1- : Full range -
Basses :
Power 400W RMS / 8Ω
-Pin 2+ : Basses +
-Pin 2- : Basses -
DSP input/output via RJ45 socket.
RS485 Protocole.
4 - Amplification module
There are two optional transport covers :
iLINEbag - 10767
This cover allows to transport two columns inLINE 83B. It is provided with a removable partition to avoid the friction of the
two speakers against each other.
iLINEcov - 10768
This house protects the iLINEsub12A and iLINEsub12P subwoofer.
5 - Housse de transport en option

iLINE Series - Column speakers system with active and passive subwoofers
Page 14
iLINE23 - 10752 iLINE43 - 10752 iLINE83 - 10754 iLINE83B iLINEsub12P iLINEsub12A
Power output 40W RMS / 80W max. 80W RMS / 160W max. 160W RMS / 320W max. 160W RMS / 320W max. 400W RMS - 800 W max. 700W / 4Ω+ 700W / 4Ω
Frequency response 135 Hz - 17 KHz 135 Hz - 17 KHz 135 Hz - 17 KHz 135 Hz - 17 KHz 50 - 200 Hz 50 - 200 Hz Axial sensitivity (1W/1m) 89 dB 92 dB 95 dB 95 dB 96 dB 96 dB Max. SPL 108 dB 114 dB 120 dB 120 dB 125 dB 124 dB Nominal impedance 16Ω8Ω16Ω16Ω8Ω8Ω
Loudspeakers 2 x 3" 4 x 3" 8 x 3" 8 x 3" 12" 12" Dimensions 110 x 180 x 148,5 mm 110 x 350 x 148,5 mm 110 x 690 x 148,5 mm 110 x 770 x 148,5 mm 350 x 515 x 490 mm 350 x 515 x 490 mm Net weight 2,2 Kg 4 Kg 7,6 Kg 7,6 Kg 22 Kg 23,5 Kg Horizontal dispersion 115° 115° 115° 115° - - Vertical dispersion 20° 20° 20° 20° - Connectors Speakon input/output Speakon input/output Speakon input/output Speakon input/output
4-point Speakon input/
output :
- 1+/1- : Output
broadband
- 2+/2- : Bass output
Input: - Line-level balanced XLR Outputs : - Line-level balanced XLR - Bass/Treble amplified Speakon : - 1+/1- : Full range - 2+/2- : Bass output Power supply: - Input / output via Powercon: AC 220V-240V / 50/60Hz. 20A DSP : - Input / output via RJ45
Amplification - ----
Total power available 700+700 W RMS / 4Ω: Full range output : 700 W/4Ω Subwoofer : 350W/8Ω+ 350 W RMS/8Ω
internal
Settings - ----
Volume : Main volume control DSP : 28/56 bit, 50 MIPS System configuration by the software provide with converter reference iLINEbox
6 - Technical specifications

Because AUDIOPHONY®takes the utmost care in its products to make sure you only get the best possible quality, our products are
subjects to modifications without prior notice. That is why technical specifications and the products physical configuration might differ
from the illustrations.
Make sure you get the latest news and updates about the AUDIOPHONY®products on www.audiophony.com
AUDIOPHONY®is a trademark of HITMUSIC S.A.S - Zone Cahors sud - 46230 FONTANES - FRANCE
