Audiovox Mobile Video HR7010PKG User manual

OPERATION
MANUAL
128-8770
HR7010PKG
Two Custom Vehicle Headrests
with 7” LCD Monitors Touch Screen Control
and Built-in
DVD Player for Rear Entertainment
AUX AUX

IMPORTANT
An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used
for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television
reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle is
in “park” or when the vehicle’s parking brake is applied.
An LCD panel or video monitor used for television reception, video or DVD play that operates when the vehicle is in gear or when the
parking is not applied must be installed to the rear of the driver’s seat where it will not be visible, directly or indirectly, to be operator of the
motor vehicle.
An LCD panel or video monitor used for television reception, video or DVD play that operates when the vehicle is in gear or when the
parking is not applied must be installed to the rear of the driver’s seat where it will not be visible, directly or indirectly, to be operator of the
motor vehicle.
Licensed under one or more of the following patents:
Patent NOS. 7,245,274 , 6,899,365 and 6,678,892
I

1
HR7010PKG
The HR7010PKG contains two vehicle specific head-rests. Each has a 7” Monitor with touch screen control and built-in DVD Player. This
system allows the users to either watch individual DVD’s or watch the same DVD on both monitors. Both users can also share each others
program. The full function remote control can operate either unit by selecting M1 or M2 on the remote. This system is also FLO Ready and
can be enhanced with the addition of a FLO TV kit (AUDIOVOX model AVXFRK1 / ADVENT model ADVFRK1.)
Quick Start Guide
1. Turn on the M1 monitor, to gain access to the DVD slot push at the top center of the screen frame, the screen will tilt forward.
2. Insert a DVD, CD or MP3 disc into the slot, disc label toward driver. Push down gently on the disc until the player pulls the disc in.
3. Use the touch screen to access the DVD mode.
4. Tilt the monitor to a comfortable viewing position (the headrest itself can be tilted forward to help achieve a comfortable viewing
position).
5. Each wireless headphone has a CH A/CH B switch. Turn the volume down to its lowest setting before putting them on your head.
When sitting in front of the M1 screen, use the CH A switch setting. When sitting in front of the M2 screen, use the CH B switch setting.
Set the headphone to the proper channel and press the Power On/Off switch. The power indicator will light up red.
6. When the DVD menu appears, select the menu item using the cursor keys and touch the OK or play button.
7. If audio playback through the vehicle radio is preferred, use the FM transmitter On/Off button on the remote control. Set the vehicle
radio to the channel selected on the M1 monitor. If interference with a local radio station occurs, set the FM modulator to one of the
other 15 radio frequencies using the CHANNEL SELECT button on the remote control.
8. Turn on the M2 Monitor using the power button on the front of the screen or remote control.
9. Tilt the screen to a comfortable viewing position (the headrest itself can be tilted forward to help achieve a comfortable viewing
position).
10. Touch the screen and touch on M1 or use remote control to press SOURCE button to view program from M1 or select from the other
available sources DVD, MEMORY CARD, USB, FLO TV, AUX and MEDIA for M2 Monitor.
NOTE: To operate the M1 screen, press M1 on the remote control.
To operate the M2 screen, press M2 on the remote control.

2
HR7010PKG SYSTEM OVERVIEW
1) The HR7010PKG SYSTEM is a versatile headrest system. The headrests are referred to as M1 and M2 in this manual.
2) The M1 Monitor is comprised of a 7" Touch Screen TFT LCD monitor with built-in DVD player that allows the user to select from several sources (DVD,
SD, USB, M2, *FLO TV (AV), AUX, MEDIA and GAME Source). The M1 monitor has a built-in infrared audio transmitter channel (CH A) for use with the
two-channel wireless headphones (CH A)
NOTE: When the DVD menu appears on the screen, touch the desired DVD menu selection to start the DVD playing. Refer to page for operation.
3) The M2 monitor is comprised of a 7" Touch Screen TFT LCD monitor with built-in DVD player that allows the user to select from several sources (DVD,
SD, USB, M1, *FLO TV (AV), AUX and MEDIA Source). The M2 monitor has a built-in infrared audio transmitter channel (CH B) for use with the two-
channel wireless headphones (CH B).
NOTE: When the DVD menu appears on the screen, touch the desired DVD menu selection to start the DVD playing. Refer to page for 4 operation.
4) The monitors will display all of the functions with the comprehensive Graphical User Interface (GUI) and can be accessed using the touch screen.
5) The two-channel wireless headphone sets have an A-B switch that allow the users to select the audio from either the M1 (CH A) or the
M2 (CH B).
6) When using the IR remote control, the M1 Monitor will only respond to the remote control unit when the Monitor Select (M1) button on remote control is
pressed. The M2 Monitor only respond to the Remote Control unit when the Monitor Select (M2) button on remote control is pressed.
7) Optional wired headphones allow the user to listen to audio from the system.
8) The M1 and M2 Monitor will accept an audio / video input through the 1/8” jack located on the front of the unit. The audio / video device could be a video
game system, video camera or other input device.
4
AUX
WIRED HEADPHONE
USB
AUX
TOUCH SCREEN GRAPHICAL USER INTERFACE (GUI)
NOTE: FLO TV is an option that can be added to your HR7010PKG
system. If FLO TV is installed the Touch Screen will display
the FLO TV icon. If FLO TV is not installed, there is an optional
AV Input available and the Touch Screen will display an AV icon.

3
9) Press and release the screen at the top of the screen to release the screen for disc insertion. Pressing it again will lock the screen back in the closed
position. The headrest itself can be tilted forward to help achieve a comfortable viewing position.
PULL UP
AUX
USB JACK
WIRED HEADPHONE
PUSH IN
10) Insert/Eject disc and SD Card
Insert/Eject Disc
Insert/Eject
SD Card 19 Degrees
19 degrees

4
HR7010PKG Touch Screen
The touch screen of the unit allows the user to start DVD play by touching PLAY MOVIE or any of the DVD menu features on the LCD screen.
Some DVD’s will not allow this function. One method is to use the remote control instead of the touch screen. The other method is to touch any of
four corners of the screen to pop up the DVD menu navigation screen (below)
Use the up/down/left/right icons to select an item from the DVD menu. Use the Enter / to start DVD play.

1
32
AUX
4
5678
M1/M2 Panel Control
1. DVD disc insertion slot.
2. EJECT Button -Press this button to eject the disc.
3. SD Card Reader
4. MENU/POWER Button with Power Indicator LED.
5. Wired Headphone Jack
6. IR Transmitter LEDS.
7. USB Port
8. AUX Jack
9. IR Sensor
10. Graphical User Interface (GUI) Touch Screen
CONTROLS AND INDICATORS DIAGRAM
Control Function Description for M1 and M2 Monitor
5

6
Touch Screen For HR7010PKG
Main Page
Turn on the unit by
pressing the Menu / Power
button located on the lower
left of the unit.
I) Touch the panel then
touch the Home icon to
display the Main Menu. The
Main Menu can also be
accessed by pressing the
Menu / Power button on the
unit’s front panel.
ii) The Main Menu screens
for M1 and M2 contains
the following icons:
M1 Unit
DVD, MEMORY CARD,
USB, M2, FLO TV, AUX,
MEDIA, GAME, PIX,
SCREEN OFF, MUTE,
FMM.
M2 Unit
DVD, MEMORY CARD,
USB, M2, FLO TV, AUX,
MEDIA, PIX,
SCREEN OFF, MUTE
Main Menu
M1
MEMORY CARD
Insert Memory Card / SD Card into SD CARD slot. Touch the Main
Menu MEMORY CARD icon to set unit’s source to SD.
USB
Insert the USB to the USB Slot. Touch the Main Menu USB icon to
set the unit’s source to USB.
M2
Touch the Main Menu M2 icon on the M1 unit to link the M1 unit to
the M2 unit. The M1 unit will now receive its AV from M2.
M1
Touch the Main Menu M1 icon on the M2 unit to link the M2 unit to
the M1 unit. The M2 unit will now receive its AV from M1.
FLO TV
Touch the Main Menu FLO TV icon to access the FLO TV mode.
Select a FLO TV channel by touching (increase)
or (decrease), then touch (enter) to exit.
To increase the wired headphone volume press and to
decrease the volume press . Press turn off the audio
output.
DVD
Touch the Main Menu DVD icon to set the source to DVD. Then
insert the DVD into slot with label face toward driver. Gently push
down on the disc and the disc will load automatically.
SCREEN
OFF MUTE
MEDIA
FMM
GAMEAUX
MEMORY
CARD USB M1
DVD
Main Menu
PIX
FLO TV
SCREEN
OFF MUTE
MEDIA
FMM
GAMEAUX
MEMORY
CARD USB M2
DVD
Main Menu
PIX
FLO TV
M2
VOLUME 16
CH
CH
MUTE
CH
CH
MUTE

AUX
Touch the Main Menu AUX icon to route external audio and video
supplied to the unit via the cable adapter.
MEDIA
Touch the Main Menu MEDIA icon to select the MEDIA display.
GAME
Touch the Main Menu GAME icon on (for M1 only). The GAME
selection is controlled by wireless game controller.
PIX
Touch the Main Menu PIX icon to gain access to the display’s
picture controls. The controls available are BRIGHTNESS,
CONTRAST, COLOR, TINT and RESET.
Adjustment of each control is made by touching (increase) or
(decrease), then touch (enter) to exit.
The game source can only be selected from the M1 monitor.
When playing two-player games, select the GAME source on the
M1 monitor and select the M1 source on the M2 monitor.
7
The on screen DVD menu of most DVD’s can be used to select a
DVD menu feature such as “Play Movie”, “Scene Select”, etc. by
touching the menu item on the touch screen. For example,
touching “Play Movie” in the below screen will start movie play.
NOTE: A small number of DVD discs will not function like this. In
that event use the remote control to start the movie or select the
different DVD options.
SCREEN OFF
Touch the Main Menu SCREEN OFF icon and the screen will
shut off. Touch the screen again to turn it back on. The screen
will turn back on after cycling power.
MUTE
Touch the Main Menu MUTE icon to toggle the unit’s audio
between on and off.
PIX
COLOR 16
COLOR 16
Scene Select
•
Extras
•
ETC
•
Audio
•
Play Movie
•

FMM
Touch the Main Menu FM MODULATOR icon (For M1 only) to
gain access to the FM Modulator controls.
To turn on FM Modulator touch +or - icon, then select the FM
modulator transmission frequency by touching (decrease) or
(increase) [88.1MHz ~ 91.1MHz]. Touch (enter) to exit.
Set the vehicle radio to the selected frequency to listen to the
movie over the vehicle sound system.
To turn off the FM Modulator function, touch OFF icon. Then
touch (enter) to exit.
OFF
FMM 88.1 MHZ
8
Back View
REMOTE CONTROL WITH
WIRELESS GAME CONTROL OPERATION
DIRECTION KEYS
M1/M2
P1/P2
SELECT
TB
A
TA
B
GAME/REMOTE
SELECTOR SWITCH
BATTERY COVER
START
RESET
Battery Installation
Before attempting to operate your remote control, install the
batteries as described below.
1) Turn the remote control face down. Using a finger, slide
battery cover off in the direction of the arrow.
2) Install three “AAA” batteries. Make sure that proper polarity
(+ or -) is observed.
3) Align the cover tabs with the remote control and slide the
cover until it locks.
The remote control will operate the M1 and M2 monitors. It is not
a universal remote control and will not control equipment from
other manufacturers.

9
1. Position the GAME/REMOTE selector switch to Game
position.
2. Use the select button (page up & page down) to display
the games (1-32). Then use the direction buttons to move the
arrow to the desired game. Press Start to select the game.
3. A Key : “A Function Key” activates the jump and optional
Weapons.
4. B Key : “ B Function Key” activates Bullet fire and attack.
5. TA Key : TURBO “A” Function Key.
6. TB Key : TURBO “B” Function Key.
7. Press Start to begin the game. Press Start again at any time
to pause the game.
8. Return the GAME/REMOTE selector switch to Remote
position after use.
WIRELESS GAME CONTROLLER FUNCTIONAL
DESCRIPTION
Two-Player Games
The game source can only be selected from the M1 monitor.
When playing two-player games, select the GAME source on the
M1 monitor and select the M1 source on the M2 monitor.
When playing two-player games use two remote controls and set
the remote controls as follows:
Player 1 (M1 Monitor) sets their remote to Game/M1/P1
Player 2 (M2 Monitor) sets their remote to Game/M1/P2.
Single player games can be played on the M2 monitor but the M1
monitor must be turned on and set to the GAME source. You
cannot watch a DVD on the M1 monitor and play a game on the
M2 monitor. When playing a single player game on the M2
monitor set the remote control to GAME/M1/P1 and point the
remote control to the M2 monitor.

POWER
MUTE
RETURN
123
456
78 9
0
EJECT
VOLUME
DAY
NIGHT PIX
OK
AUDIO
M1 M2
DISPLAY
MODE
ZOOM
MENU SETUP
SYSTEM
MENU
SOURCE
IRT
ON/OFF
FMM
ON/OFF
FMM
SELECT
SUBTITLE
A-BREPEAT
FLO DVD
SOURCE
DVD
i
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
10
* Function control is available on the unit and the remote control.
** Function control is not available on the unit and the remote control.
*** FLO TV function only available when optional FLO TV module is
installed.
Note: Refer to Appendix A FLO TV for FLO TV operating
instructions.

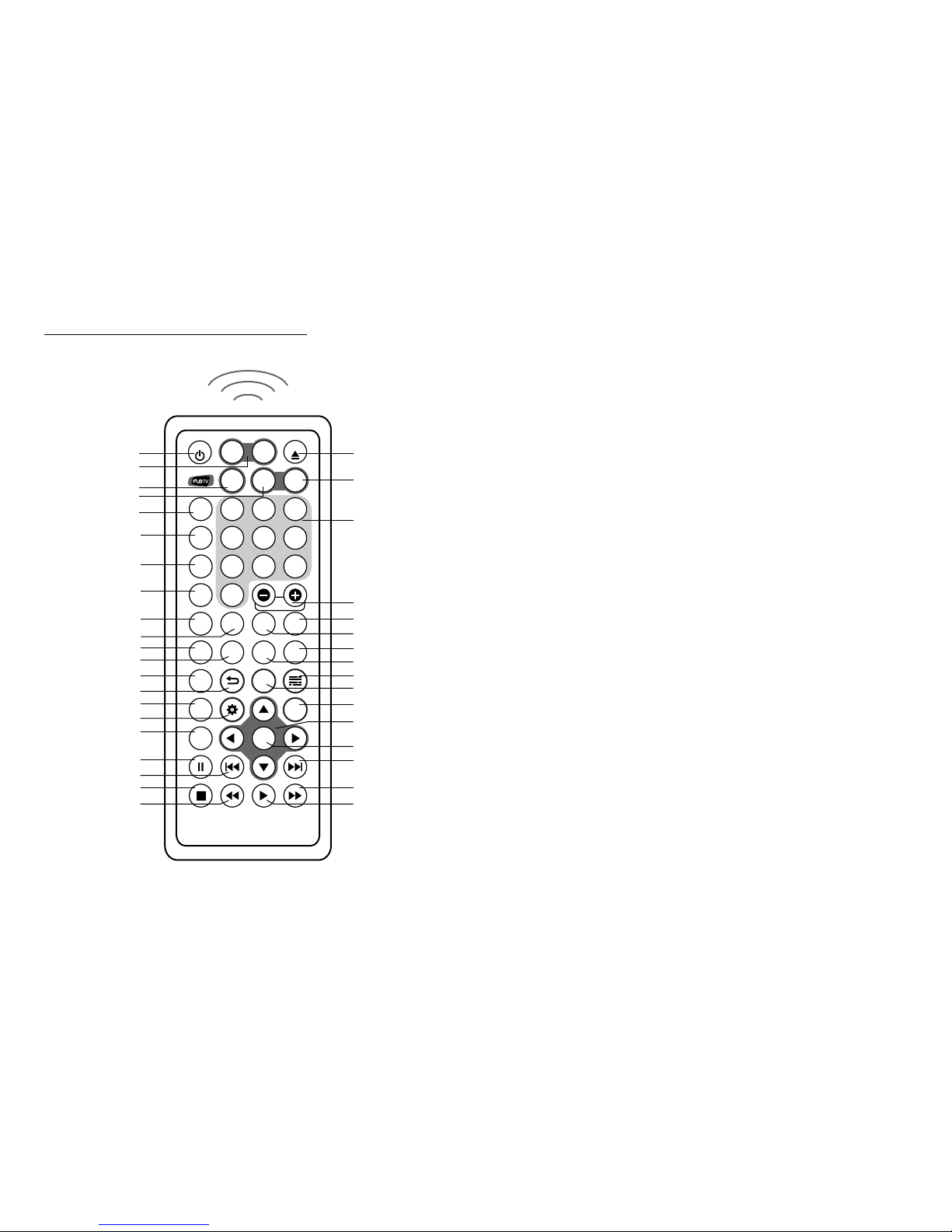

1. POWER Button*
Press this button to turn the unit ON and OFF.
2. MONITOR SELECT
M1 Button – Sets the remote control codes to enable the control of
M1 Monitor.
M2 Button – S ets the remote control codes to enable the control of
M2 Monitor.
3. FLO TV Button***
Press this button to access FLO TV mode.
4. DVD Mode Select Button*
Press this button when playing DVDs. Switches certain function
keys on the remote control for DVD functions.
5 SOURCE Button*
For M1: Each time the button is pressed, the unit will select
various sources in the following sequence: DVD > M2 > FLO TV
> AUX > MEDIA > GAME. For M2: Each time the button is
pressed, the unit will select various sources in the following
sequence: DVD > M1 > FLO TV > AUX > MEDIA
6. FMM ON/OFF Button*
Turn the wireless FM Modulator on or off.
Also switches the
function keys on the remote control to correspond to FLO TV
functions.
MAIN FUNCTION DESCRIPTION

7. FMM SELECT Button*
Select the wireless FM Modulator Frequency:
(CH1 88.1MHz, CH2 88.3MHz, CH3 88.5MHz, CH4 88.7MHz, CH5 88.9MHz, CH6 89.1MHz, CH7 89.3MHz, CH8 89.5MHz, CH9
89.7MHz, CH10 89.9MHz, CH11 90.1MHz, CH12 90.3MHz, CH13 90.5MHz, CH14 90.7MHz, CH15 90.9MHz, CH16 91.1MHz).
8. IRT ON/OFF Button
Turn the Infrared Transmitter ON or OFF for IR Wireless Headphones. Pressing M1 then IRT ON/OFF will control the IR
Transmitter for M1. Pressing M2 then IRT ON/OFF will control the IR Transmitter for M2.
9. SUBTITLE Button
Press to display and select the available subtitle language in DVD mode. Each time you press the button, the subtitle language changes.
Note: The type and number of subtitle languages vary from disc to disc.
10. DISPLAY Button
Press to display current disc information while the disc is playing. Press cursor (pq) buttons to select the Title or Chapter.
For Title/Chapter selection use the numeric buttons to enter the desired Title Chapter selection.
11. REPEAT Button
Allows the user to repeat a selected title, chapter or track.
12. A-B Button
Allow user to repeat disc playback from point A to point B.
Press A-B button On-Screen Display DVD Player
Once Repeat A- Mark the beginning of the section to repeat (Set point A)
Twice Repeat A-B Mark the end of the section to repeat (Set point B)
3 Times AB Off Cancel the A-B repeat function
13. RETURN Button
Press Return Once: Go to disc menu.
Press Return Twice: Go to movies playback.
11

12
14. BACK Button ***
Pressing the Back Button in FLO TV mode will allows the user back one screen when in the Menu, Show Information, Show Description or
Guide. Path ends at full screen TV.
15. AUDIO Button
Press to display and select the available AUDIO languages in DVD mode. Each time you press the button, the language changes.
Note: The audio languages vary from disc to disc.
16. MENU / SETTINGS Button
a.) MENU Button
Pressing the MENU button in DVD mode will cause the DVD root menu to be displayed. When using the SD card or a USB device, pressing
the MENU button will cause the root menu to be displayed. Pressing the MENU button while listening to MP3 files has no effect. The
operation is prohibited.
Note: Pressing the FLO TV button will disable the DVD, SD, and USB functions. To return to DVD control functions, press the DVD button.
b.) SETTINGS Button ( ) ***
When in FLO TV mode the Settings button allows the user to toggle on/off the FLO TV setting menu.
17. SYSTEM MENU Button**
Press to display and select the available subtitle language in DVD mode. Each time you press the button, the subtitle language changes.
Note: The type and number of subtitle languages vary from disc to disc.
18. PAUSE ( II ) Button*
Allows the user to pause the playback. Pressing pause again or pressing the Play Button will resume normal playback.
19. PREVIOUS (9) Button*
Press to return to the previous chapter or track.
20. STOP (n) Button*
Press to stop playback.

13
21. SCAN BACKWARD (7) Button*
Press to search in the backward direction. Press repeatedly to change the search speed from 2, 4, 8 and 16 times the normal speed.
22. PLAY (u) Button*
Press to activate the play mode when a disc is loaded in the disc compartment.
23. SCAN FORWARD (8) Button*
Press to search in the forward direction. Press repeatedly to change the search speed from 2, 4, 8 and 16 times the normal speed.
24. NEXT (:) Button*
Press to skip to the next chapter or track.
25. OK Button (ENTER)*
Used to implement a selected setting or menu option.
26. CURSOR (pqt u)***
Use these buttons to access menu selections on the screen in DVD mode. Use these buttons for channel changing (up/down),
navigating menus and selecting items in FLO TV mode.
27. MODE*/SETUP Button
a.) MODE Button *
When in FLO TV mode pressing the MODE button toggles between FLO TV and an auxiliary A/V source attached to the FLO TV
module. (NOTE: your system may not have an auxiliary source).
b.) SETUP Button
When in DVD mode pressing the SETUP button will display the Setup Menu which allows the user to change the DVD player options
such as OSD Language, Video, Rating etc. Refer to the settings and adjustment section for more information. Selects an audio / video
device connected to the AUX Input or the optional FLO TV module. If you are in FLO TV mode and FLO TV is not
Displayed, press the MODE button to access FLO TV.

28. INFORMATION Button ( ) ***
Pressing this button displays the Channel Info bar and the Program Description. When in FLO TV mode pressing the button opens
the Channel Info bar. The second button press while Channel Info bar is displayed will provide program information. To return to the
FLOTV program press the button again.
29. CHANNEL GUIDE Button ( )***
When in FLO TV mode pressing this button allows the user to turn the Channel Guide on and off. The Channel Guide opens with
the current channel and show title highlighted.
30. ZOOM Button
Press this button to enlarge the picture when playing a DVD disc.
Press ZOOM button DVD Player perform
Once Enlarge the picture 2 times of the original size
Twice Enlarge the picture 3 times of the original size
3 times Enlarge the picture 4 times of the original size
4 times Picture is returned to original size
31. MUTE Button*
Press this button to mute all the audio.
Pressing the button again restores the sound to the previously set level.
32. DAY / NIGHT Mode Button**
Function not available in this model.
33. PIX Button (Picture Select)*
Each time this button is pressed, the on screen picture adjustment displays the “adjustment bar” for BRIGHTNESS, CONTRAST, COLOR,
TINT or RESET. Once the desired adjustment bar is displayed, use the VOLUME (+) / VOLUME (-) button to adjust the setting. The display
will automatically turn off if no adjustments are made within 6 seconds.
14

34. VOLUME DOWN (-) or UP (+)*
Press to select the level of the picture adjustments when the unit is in picture adjustment mode or to increase or decrease the volume for
the wired headphones.
35. NUMBER Buttons
When in DVD mode these buttons allow the user to enter numbers 0 to 9 for selection of CD tracks, DVD Chapters and password.
When in FLO TV mode these buttons allow the user to select favorite channels and are also used for PIN entry for parental controls. ***
36. DVD Source*
This button is only active when remote control is in DVD mode. Each time the button is pressed one of the sources (DVD, Card
Reader and USB) will be selected.. Press to change source in the sequence of DVD > SD > USB.
37. EJECT () Button
This button is used to eject the disc.
NOTE: This function is not available on this model. Use the eject button on the DVD player.
15

The Setup Menu contains features and options that let you customize your DVD player. For example, you can set a language for the on-
screen display or control DVD playback content for children. You can use the remote control or the touch screen to navigate the setup
menu.
Using the DVD Setup Menu
Setup Menu
Setup Menu be
Setup Menu
Setup Menu.
.
.
Setup Menu
LANGUAGE SETUP
Language for On-Screen Display
OSD MENU: The OSD MENU setup allows you to select the language for the on-screen display.
The user can either select English, French, Spanish, German or Italian for the OSD language.
The can be accessed using either the remote control or the touch screen. To access
the using the touch screen you must have a DVD in the unit and in DVD Mode.
The remote control can access the DVD by pressing DVD and SETUP.
Touch Screen:
1. Touch the touch screen to bring up the DVD control menu.
2. Touch the (tool) icon to bring up the DVD
3. Touch any of the four settings (Language/Video/Rating/Misc) to access the submenu for that item.
4. Touch the submenu item on the right side of the screen to select it, a submenu will appear. Touch the submenu item to select it
5. Touch the RETURN icon to return to the DVD movie
Note: The cursor keys at the bottom of the screen can be used to navigate through the touch screen menu.
Remote Control:
1. Press DVD and SETUP on the remote control to bring up the DVD Setup Menu.
2. Use the UP/DOWN buttons to select any of the four settings (Language/Video/Rating/Misc) to access the submenu for that item.
3. Use the RIGHT ARROW button to highlight the desired menu item. A submenu will appear. Use the UP/DOWN arrow button to
highlight the desired submenu item. Press the OK key to set the item.
4. Use the LEFT ARROW button to return to the settings on the left.
5. Use the SETUP button on the remote control to exit the DVD and return to the movie.
Vi deo
Rating
Misc
Subtit l e
Audio
: Englis h
: Off
: Englis h
Language Language
SETTINGS AND ADJUSTMENTS
Vi deo
Rating
Misc
Language
Subtit l e
Audio
Langua g e E n glish
Fren c h
Span i s h
Ge rma n
Ital i a n
ü
16

SUBTITLE SETUP
Select "SUBTITLE" using pqbutton, then press ubutton to enter the Sub menu. Select the subtitle you
desire using pqbutton, then press OK / to confirm the setting. Press tbutton to return.
Note: The subtitle selection is only available for discs that are recorded in the above listed languages. If the selected,
language is not available, the player will play and display on the screen the original language contained in the disc.
AUDIO SETUP
Select "AUDIO" using pqbutton, then press ubutton to enter the Sub menu. Select the audio you
desire using pqbutton, then press OK / to confirm the setting. Press tbutton to return.
Note: The audio selection is only available for discs that are recorded in the above listed languages. If the selected,
language is not available, the player will play and display on the screen the original language contained in the disc.
VIDEO SETUP
TV Display
The TV DISPLAY setup allows you to adjust screen setting (aspect ratio) from 4:3 or 16:9. Depending
on the DVD format, the screen will appear full or with black bands.
TV Type
The TV Type setup allows you to select the system to fit to the color system of the TV to be connected.
NTSC - Select this type for NTSC TV
PAL - Select this type for PAL TV
Vi deo
Rating
Misc
Language
Subtit l e
Audio
Langua g e E n glish
Fren c h
Span i s h
Ge rma n
Ital i a n
Japa n e se
Thai
Chin e s e
Of f
ü
Vi deo
Rating
Misc
Language
Subtit l e
Audio
Langua g e E n glish
Fren c h
Span i s h
Ge rma n
Ital i a n
Japa n e se
Thai
Chin e s e
Of f
ü
Vi deo
Rating
Misc
Language
TV Type
TV Di splay
NTSC
PAL
ü
Vi deo
Rating
Misc
Language
TV Type
TV Di splay 4 : 3
16 : 9
ü
17
