Audiovox PROV716 User manual

VOD705
ELECTRONICS CORP.
®
PROV716/
PROV716T/
PROV716G
DVD PLAYER
WITH
DROP-DOWN
VIDEO
TV/MONITOR
CHANNEL SOURCE VOLUME FM SELEC T
ON OFF AUTO
AUTO
PROG
HEADPHONE
S
I
NPUT
AUDI
O
L
R
VI
DE
O
I
R
S
AP

Important Notice
It is unlawful in most jurisdictions for a person to drive a motor vehicle which is equipped with a screen that is located
in the motor vehicle at any point forward of the back of the driver’s seat, or that is visible, directly or indirectly, to the
driver while operating the vehicle. In the interest of safety, the PROV716/PROV716T/PROV716G should never be
installed where it will be visible, directly or indirectly, by the operator of the motor vehicle.
Warnings
Do not use any solvents or cleaning materials when cleaning the video monitor.
Donotuseanyabrasivecleaners,theymayscratchthescreen. Useonlyalightlydampenedlintfreeclothtowipethe
screen if it is dirty.
Lock the LCD screen in the fully closed position when not in use.
Before putting on headphones always adjust the volume setting to the lowest position.
Remember to leave the dome light switch in the off or auto positions when the vehicle is unattended, as the dome
lights, if left on, can drain the vehicle’s battery.
Do not put pressure on the screen.
Television Reception
This entertainment system is designed primarily for viewing prerecorded movies or playing video games. Television
reception in a moving vehicle will be limited and in some areas will not be possible due to weak and variable signal
strength. Televisionviewinginastationaryvehiclewill result in an improvement, but may still be marginal due tosignal
strength. The quality of the picture will not be consistent with home TV reception. Reception may be affected by
weather and distance from TV station. A weak signal may cause the picture to roll, be snowy, or cause some color
loss.

Congratulations on your purchase of the Audiovox
PROV716/PROV716T/PROV716G DVD Player with
Drop-Down Video TV/Monitor. The PROV716/
PROV716T/PROV716G has been designed to give
youandyourfamilymanyyearsofvideo entertainment
inthe mobile environment. Please readthedirections
that follow to familiarize yourself with the product and
to ensure that you obtain the best results from your
equipment.
Please note: Installation options vary, see the
individual owner’s manuals for each component in
your system to obtain a full understanding of each
component’s operation.
Safety Precaution
For safety reasons, when changing video media it is
recommended that the vehicle is not in motion, and
that you do not allow children to unfasten seat-belts
to change video media or make any adjustments to
the system. System adjustments can be
accomplished using the remote control unit, while
seat-belts remain fastened. Enjoy your Audiovox
entertainment system but remember-safety of all
passengers remains the number one priority.
Features
••
••
•7InchTFT(ThinFilmTransistor)ActiveMatrix
LCD(LiquidCrystalDisplay)Monitor
••
••
•OSD(OnScreenDisplay)forControlofPicture
QualityandFunctions
••
••
•Built-in TV Tuner
••
••
•FullFunctionRemoteControl
••
••
•Six Frequency FM Modulator with remote
controlandOSD
••
••
•Dual Channel Infrared Transmitter for IR
WirelessHeadphones(SatelliteRadioReady)
••
••
•TwoAudio/VideoInputs
••
••
•Headphone/SpeakerAmplifier
••
••
•TwoHeadphoneJacks
••
••
•ForwardandSideRemoteSensor
••
••
•DomeLightswithSwitch
••
••
•BacklitControlsforLowLightOperation
••
••
•LastPositionMemory forDVD

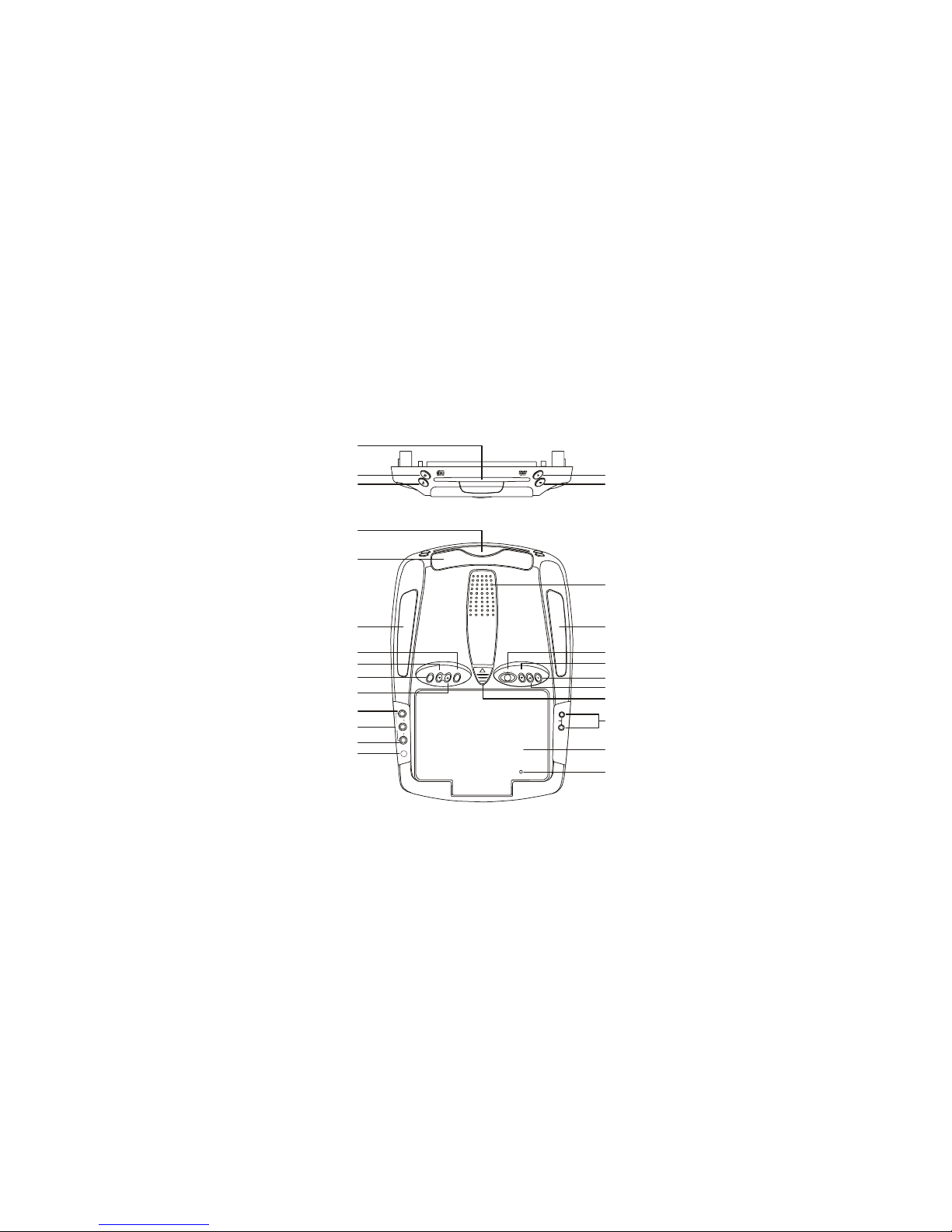

Controls and Indicators Diagram
NOTE : ScreenModeButton
Located on inside with
screenintheclosedposition.
CHAN NEL SOURC E VOLUME FM SELECT
ON OFF AUTO
AUTO
PROG
HEADPHONES
I
NPUT
AUDI
O
L
R
VI
DEO
I
R
POW ER
EJECT
PLAY
STOP
1
1
2
34
5
6
8
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
S
AP

Main Function Descriptions
1. DVD Disc insertion slot – For loading Disc.
2. POWER Button – Bright red when system is on dim when
off.
3. EJECT ( ) Button – For ejecting discs from the disc
compartment.
4. PLAY ( ) Button – This button is used to enter the play
mode.
5. STOP ( ) Button – To stop playing.
6. Infrared Transmitter and Sensor – Use to transmit audio
to wireless headphones. Also allows the remote control to
operate the PROV716/PROV716T/PROV716G and to
control other accessories in the system.
7. PROV716/PROV716T/PROV716G Ventilation Opening.
8. Dome Lights–Provideadditional interior illumination.
9. SOURCE Select – Used to select one of the four sources
(TV,AV1,AUX,DVD).
10. CHANNEL ( ) Button –Use this button to decreasethe
channel number to the desired number. Note : When TV
function is selected.
11. AUTO PROGRAM Button –Allows the user to scan and
store active TV stations into memory.
12. CHANNEL( )Button – Use this button to increase the
channel number to the desired number. Note : When TV
function is selected.
13. Auxiliary Audio Right Input.
14. Auxiliary Audio Left Input.
15. Auxiliary Video Input.
16. Side Remote Sensor Eye – Allows the remote control to
operate the PROV716/PROV716T/PROV716G, control
volume to wired headphone jacks and control the other
accessories.
17. Screen Mode Button – Allows the user to change the
screen format (Aspect Ratio, 4:3 or 16:9)
18. Drop Down LCD Panel.
19. Headphone Jack – Allow the use of wired headphones
witha 1/8” plugfor listening tovideo program audio.
20. Screen release – Moves indirectionofthe arrow to release
thedrop down screen.
21. VOLUME( )Button–Usethisbuttontoraise the volume
leveloftheheadphonejacks. Itisalsousedtomakepicture
adjustments in picture select mode. Note : Audiovox
recommendstheuse of the AudiovoxHP275Headphones
whenusingwiredheadphones.

22. FM Select Button – Each time this button is pressed will
switched FMM cycles through (FM OFF – POD AUDIO –
SATAUDIO) and the frequency of the channelofmodulator
willremain same.
23. VOLUME ( ) Button – Use this button to decrease the
volume level of the headphone jacks. It is also used to
make picture adjustments in picture select mode.
Note:These buttons will not affect the volume of wireless
headphonesorthewiredRFmodulator. When using these
devices the volume must be adjusted with the wireless
headphonevolumecontrolorwithyourradio’svolumecontrol
(see page 15, Wireless Headphones, or page 16, Wired
FMModulator).
24. Three position Dome Light Switch
• Auto – Automatically switches on the dome lights in
conjunctionwith the vehicle’sinterior illumination.
• Off – The dome lights will not turn on in this position.
• On – Turns on the dome lights.

Remote Control Operation
Battery Installation
Before attempting to operate your Remote Control,
install the batteries as described below.
1) Turn the Remote Control face down. Using a
fingernail, lift the battery cover off.
2) Install two “AAA” batteries as shown. Make
sure that proper polarity (+ or -) is observed.
3) Align the cover tabs with the remote control
and press down until the cover clicks.
The remote control will operate the PROV716/
PROV716T/PROV716G and most Audiovox VCP’s.
It is not a universal remote control and will not control
equipment from other manufacturers.
If a universal remote control is to be used with the
PROV716/PROV716T/PROV716G,choosetheremote
encoding scheme for Audiovox Televisions when
programming the remote control.
POW ER
SOURCE
MENU
RETURN
S
ETUP
PIX
Enter
ERASE/
WRITE
1
2
3
4
5
10
6
13
14
15
17
27
SKIP/
SEARCH
AUTO
MEMORY
VOL
–+
MUTE
CH
CH
REPEAT
7
8
9
11
12
16
18
19
20
21
22
23
24
25
26
28
29
30
31
35
34
33
EJECT
32

DVD Function Descriptions
*Function control is available on the unit and the remote control.
1. POWER Button*
Pressthis button to turnthePROV716/PROV716T/PROV716G on. Press the buttonagainto turn the PROV716/
PROV716T/PROV716G off.
2. SOURCE Button*
Video signals from video equipment connected to the audio / video inputs can be displayed on the monitor by
pressing this button. Each time the button is pressed, the audio / video source will change the sources: DVD,
TV,AV1 andAUX.
3. AUTO MEMORY Button (AUTO PROGRAM Button)*
When the AUTO MEMORY button is pressed, all channels are searched and channels that are detected with
signals of sufficent levels are automatically stored.
4. SKIP/SEARCH Button
This button selects betweeen SKIP and SEARCH mode. In “SKIP mode” the TV tuner will tune and stop on
channels that are programmed into memory when CHANNEL UP/DOWN buttons are used. When the SKIP
mode is disable, the TV will stop on all active channels.
5. ERASE/WRITE Button
While tuned to a channel, pressing this button will store or erase the channel from memory.The stored channel
numbers are displayed in “GREEN” on the LCD display screen, and the non-stored channel numbers are in
“RED”.

6. Channel Up ( ) Button*
Use this button to increase the channel number to the desired channel and to scroll upward in menu options.
7. MUTE Button
Press this button to mute the audio.
Pressing the button again restores sound to the previously set level.
8. ENTER Button
Used to implement setting selected.
9. LEFT ( ) Button
Allows the user to shift left in the menu options.
10. MENU Button
Allows the user to access the main menu.
11. RETURN Button
Allows the user to return to the menu while PBC on.
Note:Thisfunctiononlypresent on VCD2.0.
12. TV Mode Select Button
Switches certain function keys on the remote control for TV functions.

13. DISPLAY Button
Press to display DVD Disc current information.
PressDISPLAYbutton DVD Player Perform
Once Display current TITLE & CHAPTER
Twice Display current SUBTITLE
3 times DisplaycurrentAUDIOlanguage &channel
4 times Display current surround status
5 times Display currentANGLE
6 times DisplayA-B current status
7 times Display REPEAT current status
8 times Display is turn off
ForTitle& Chapter,use cursor buttonstodotitle/chapterselection,then press Enter button to implementtheselection.
For Subtitle, Audio, Angle, A to B & Repeat, press Enter key repeatedly to change the options. These options may vary
fromdisctodisc.
14. PAUSE ( ) Button*
Allows the user to pause the playback.
15. PREVIOUS ( ) Button
Allows the user to return to the previous chapter or track.
16. NEXT ( ) Button
Allows the user to skip to the next chapter or track.

17. REV ( ) Button
Allows the user to search in a backward direction at 2,4, 6 and 8 times the normal speed.
18. FWD ( ) Button
Allows the user to search in a forward direction at 2,4, 6 and 8 times the normal speed.
19. PLAY ( )Button*
Press this button to activate the play mode while a disc is loaded into the disc compartment.
20. STOP () Button*
DVD disc play will be stopped.
21. DVD Mode Select button
Switches certain function keys on the remote control for DVD functions.
22. VCP Mode Select button
Switches certain function keys on the remote control for VCP functions.
23. A-B Button
Allows the user to repeat play of a DVD or CD from point Ato point B.
24. REPEAT Button
Allows the user to repeat various positions of a DVD, CD or MP3.
25. Channel Down ( ) Button*
Use this button to decrease the channel number to the desired channel and to scroll downward in the menu
options.

26. SETUP Button
Allowsthe user to select theDVDplayer’soptions (Display,OSD Language, Defaults, ParentalControl, Password,
Exit Setup).
27. RIGHT ( ) Button
Allows the user to shift to the right in the menu options.
28. PIX Button (PICTURE SELECT)
Eachtime this button is pressed,theon screen picture adjustment displaythe“adjustment bars” for BRIGHTNESS,
CONTRAST, COLOR or TINT. Once the desired adjustment bar is displayed, use the VOLUME UP/DOWN
buttons to adjust the setting. The display will automatically turn off if no adjustments are made within 6 seconds,
or if any other button is depressed.
29. VOLUME DOWN (-) Button*
Usethesebuttonstodecreasethevolumeleveloftheheadphonejacks.Theyarealsousedtomakepictureadjustments
in picture select mode.
30. VOLUME UP (+) Button*
Use these buttons to raise the volume level of the headphone jacks, They are also used to make picture adjustments
in picture select mode.
Note: The volume buttons will not affect the volume of wireless headphones or a wired RF modulator. When
using these devices the volume must be adjusted with the wireless headphone volume control or with your
radio’s volume control (see page 15, Headphones, or page 16, Wired FM Modulator).
31. NUMBER Buttons
Allows the user to enter the numbers 0 to 9 for selection of CD tracks, DVD chapters, and password setting.

32. EJECT ( )Button*
The disc will be ejected from disc compartment.
33. FM TRANSMITTER ON/OFF Button
Turns FM Modulator power on/off.
34. SOURCE SELECT Button*
With FM ON, used to selects the PODAudio (DVD and POD audio) or SATAudio (Second IR input).
With FM OFF, used to select SATAudio or Car Audio.
35. CHANNEL SELECT Button
Selects the FM modulator Frequency (Frequency 1, 88.3MHz, Frequency 2, 88.7MHz, Frequency 3, 89.1MHz,
Frequency 4, 89.5MHz, Frequency 5, 89.9MHz, Frequency 6, 90.3MHz).

Turning the PROV716/PROV716T/PROV716G On or Off
1. Sliding the screen release lock forward will unlock the LCD screen and it will drop down slightly. Pivot the screen
downward until a comfortable viewing angle is reached. The internal friction will hold the screen in position while
the system is in use.
2. Pressing the power button on the unit or the remote control will turn the system on or off alternately. When in use
the internal backlighting will illuminate the controls.
3. After the unit has been turned on and is displaying a picture, adjust the viewing angle by pivoting the screen to
optimize the picture quality.
4. Remember to turn the unit off and pivot the LCD to the locked position when not in use.
Overhead Dome Lights
The lights integrated into the PROV716/PROV716T/
PROV716G are controlled by a three position slide
switch. Sliding the switch to the on position will turn
the lights on. The off position will prevent the lights
from turning on at all times, and the auto position will
allow the lights to turn on and off with the vehicle’s
interiorlighting.Referto the Installation Manual for the
wireconnections. Do not leave the vehicle unattended
with the dome light switch in the on position, as this
could result in a discharged battery.
CHAN NEL SO URCE VOLUM E FM SELECT
ON OFFA UTO
AUTO
PROG
HEADPHONES
I
NPUT
AUD
I
O
L
R
VI
D
EO
I
R
S
Dome
Light
S
witch
AP

Remote Sensor
The PROV716/PROV716T/PROV716G incorporates two Infrared
sensors which relay signals from the remote control to allow the
unit to be controlled simply by pointing its remote control at the
remotesensoreye. Therepeater function allows control of auxiliary
equipmentsuch as anAudiovox VideoCassette Player. Theinfrared
sensor can relay signals from most manufacturer’s remote controls
to its respective component connected to the Video 1 input. In this
caseyoumust use the remote control supplied with the component.
Accessories
Wireless Headphones
The PROV716/PROV716T/PROV716G includes a built-in infrared transmitter for use with Audiovox wireless
headphones (Part Number IR2CHS-Dual channel). The volume can then be adjusted using the controls on each
headset. Thewirelessheadphonesmust be used within a line of sight from the transmitter,asinfrared transmissions,
likevisible lighttravelonly in astraightline. See thedocumentationaccompanyingyourAudiovoxwirelessheadphones.
IR2 Input
Any line level audio source may be connected to this input (Satellite Radio, CD Changer etc). The audio program
connected to the IR2 input can be received on the B channel of the dual channel wireless headphones (Part Number
IR2CHS).
Headset Special Features
•Automatic Level Control prevents input signal over loading.
•Uses high frequency infrared light to assure a clean signal for clear reception.
CHANNEL SOURCE VOLUM E FM SELECT
ON OFF AUTO
AUTO
PROG
HEADP
HONE
S
I
NPUT
A
U
D
I
O
L
R
V
I
D
E
O
I
R
S
Rem ote
Sensor
Eye
Rem ote
Sensor
Eye
AP

Wired Headphones
There are two 1/8” headphone jacks on the PROV716/PROV716T/PROV716G that can be used with any standard
wired stereo headphones. These jacks are controlled by the volume up / down buttons on the PROV716/PROV716T/
PROV716G remote control.
Wired FM Modulator
The PROV716/PROV716T/PROV716G is equipped with an RF modulator, that allows you to listen to the PROV716/
PROV716T/PROV716G audio signal by tuning your vehicle’s radio to the selected frequency, (88.3, 88.7, 89.1, 89.5,
89.9, 90.3MHz). This feature is accessed by using either the FM transmitter buttons on the remote (On/Off, Source
Select, Channel Select) or the FM Select button on the unit. Whenever the RF modulator is on, broadcast reception
on the vehicles radio will be poor. Switching off the FM modulator will allow normal radio reception.
AV1Input
The video inputs may be connected to a Video cassette Player (VCP), video game system, or other audio / video
devices. To access theA/V inputs, turn the PROV716/PROV716T/PROV716G on and press the source button on the
PROV716/PROV716T/PROV716G or the Source button on the remote control until “AV1” is displayed on the screen.
Turn the video source component on with its power button or remote control. The PROV716/PROV716T/PROV716G
is now ready to play the audio and video signals from the source connected toAV1 input.
AUXA/V Input
The PROV716/PROV716T/PROV716G will accept an audio/video input through the RCA jacks located on the side of
the unit. The audio / video device could be a video game system, video camera, or other input device.
Video Out
The PROV716/PROV716T/PROV716G provides a video output for an optional video monitor(s). (Refer to page 6 of
the Installation Guide for more details.) This output will provide a video signal that duplicates the signal displayed by
the PROV716/PROV716T/PROV716G to an additional monitor or video display. Please see your installer for more
information.

DVD Basics
To get the optimum use out of the DVD section, make sure you read this section completely.
Regional Coding
Both the DVD player and disc are coded by region. These regional codes must match in order for the disc to play. If
the codes don’t match, the disc won’t play. This unit’s code is region 1. Other regional codes cannot be played in
this unit. The unit will display “WRONG REGION.”
Types of Discs your DVD will play
•DVD discs – DVD discs which contain video.
•Audio discs – Audio CDs contain musical or sound content only.
•MP3 discs –A disc that contains audio files (for example, a CD-R with downloaded MP3 files).
•VCD discs –VCD discs which contain video.
Loading and Playing Discs
Before you load a disc, make sure that it is compatible with the player.
Note: the following Discs CANNOT be used with this player :
•MiniDisc
•Laserdisc
•CD-I, CD-ROM, DVD-ROM
To load and Play a Disc
Pressthe Powerbuttonto turntheunit ON. SelectDVDmode andinsertthe disc(LabelUp) intothedisc compartment.

Settings and Adjustments
This chapter describes how to set and how to adjust using the on-screen SETUP menu.
Using the Setup Menu
Using the setup display, you can do the initial setup, adjust the picture quality, and set the various outputs. You can
also set a language for the on-screen display and the setup display and limit playback by children.
1) Press the SETUP button to display the “setup menu” on the display screen.
2) Select the main item you want using the cursor (▼▲) buttons, and then press the ENTER button.
To Cancel Using the Setup Display
Press the SETUP button on the remote.
Setting the Language for On-Screen Display
Press the SETUP button and using the
(▼▲▼▲
▼▲▼▲
▼▲)buttons select “OSD LANGUAGE”.
OSD (On-Screen Display) Language Menu
The OSD Language Menu allows the user to select
the language for the on-screen display. Press
andthen use the (▼▲▼▲
▼▲▼▲
▼▲)buttonsto select thedesired
language. Theuser canselect either English,French
or Spanish for the OSD language.

Defaults Settings
PresstheSETUPbutton and select Defaults.The DEFAULTS
SETUP allows you to reset ALL options to factory defaults.
Press and then press Enter to implement the reset.
Note : This function will not effect the Parental setting.
Settings for Display
Press the SETUP button and select Display. The DISPLAY
SETUPallows you toadjustscreen setting (aspectratio)Press
and then use the (▼▲▼▲
▼▲▼▲
▼▲)buttons to select the appropriate
settings.
4:3/PS
This displays the wide picture on the screen with a
portion of the left & right side removed.
4:3/LB
This displays the wide picture with black bands on the
upper and lower portions of the screen.
16:9
This displays a picture with black bands on the upper
and lower portion of the screen.
Then press ENTER to confirm your selection.

Settings for Parental (Parental Control)
This section of the SETUP Menu allows user to control the content of movie playback from G to Adult.
The Parental Control function allows you to limit viewing to your preference.
1. Use the ▼▲▼▲
▼▲▼▲
▼▲ buttons to select from:
G (Children)
PG
PG 13
R
NC-17
ADULT(Adult)
Note:The lower the value, the more strict the limitation.
Press the Enter button to confirm the selection.
2. Input a password in 4 digits using the numeric buttons then press the Enter button.
The Default password is 3308.
