Installation Guide
VOD10PS2
10.2” OVERHEAD LCD MONITOR
WITH SONY PS2 PLAYER
MENU / ENTER

Important Notice
An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the
driver if the LCD panel or video monitor is used for vehicle information, system control,
rear or side observation or navigation. If the LCD panel or video monitor is used for
television reception, video or DVD play, the LCD panel or video monitor must be installed
,
so that these features will only function when the vehicle is in "park" or when the vehicle s
parking brake is applied.
An LCD panel or video monitor used for television reception, video or DVD play that
operates when the vehicle is in gear or when the parking brake is not applied must be
,
installed to the rear of the driver s seat where it will not be visible, directly or indirectly, to
the operator of the motor vehicle.
Installation of overhead products requires careful planning and preparation. Be
extremely careful when working on a vehicle with side curtain air bags. Do not route
wires near any portion of the side curtain air bag assemblies. This includes any anchor
points in A, B, C or D pillars of the vehicle. Routing wires in these areas or running wires
by the side curtain air bags can prevent the side curtain air bag from fully deploying which
can result in personal injury to vehicle occupants. If you have any questions regarding
wire routing in a vehicle, please contact Audiovox Technical Support at 1-800-225-6074.
When connecting power and ground in a mobile video installation ensure that the ACC
wire is fused at the point where it is connected to the vehicle ACC wiring. Failure to do
so can result in damage to the vehicle if a short circuit develops between the vehicle
connection point and the mobile video product.
Important Note
The VOD10PS2 incorporates two new features:
1) A wireless FM Modulator
2) Snap on Covers with matching Trim Rings (Shale and Pewter).
Select the color that matches the interior trim.
Please be advised that the wireless FM modulator will perform well in most
applications. However, in certain applications the quality of the wireless
signal may be less than optimal, resulting in static or strong local station
bleed thru. If this is the case, an optional relay box is available. The Audiovox part
number is SIRSWB and it plugs into the 1/8" jack located next to the FM antenna on
the side of the chassis. This relay box is installed between the vehicle antenna and
the car radio to provide the best possible FM reception of the DVD player audio.
When the SIRSWB is installed it is recommended that the wireless FM antenna that
is plugged into the printed circuit board next to the 3.5mm jack be unplugged.
Licensed under one or more of the following patents,
Patent NOS. 5,775,762 and 5,927,784

OPEN/
CLOSE
AUDIO SHUFFLE
1
4
2
5
3
6
78 9
ANGLE PROGRAM
SUBTITLE REPEAT
CLEAR
SLOW
SCAN PREV NEXT A-B
RESET
DISPLAY TOP MENU MENU RETURN
PAUSE STOPPLAY
ENTER
STARTSELECT
R1
L1 L3 R3
L2 R2
ENTER
SOURCE
MUTE DISPLAY
FMM ON/OFF
FMM SELECT SYSTEM
MENU
IR ON/OFF
PIX
VOLUME
0
TIME
DVD /PLAYSTATION
MENU / ENTER
MATERIALS INCLUDED IN THIS PACKAGE:
1) 10.2" Overhead LCD Monitor With SONY PS2 Player - (1pc)
2) 12 Pin Power / Signal Harness (P/N 112-3959) - (1pc)
3) 2 Pin Power Wire Harness With Choke (P/N 112B3143) - (1pc)
4) Hardware Package
Screws ISO M5 x 10mm - (4pcs)
M4 x 16 Self Drilling Screws - (4pcs)
M3 x 8 Self Tapping Screws - (6pcs)
5) Remote Control (P/N 136-4926) - (1pc)
6) Universal Mounting Bracket (P/N 108-4010) - (1pc)
7) Pry Tool - (1pc)
8) Screw Cap - Shale - (4pcs)
- Pewter - (4pcs)
9) PS2 DVD GAME DISC - (2pcs)
10) Trim Ring - Shale (P/N 172-0010) - (1pc)
- Pewter (P/N 172-0011) - (1pc)
11) Snap On Cover (Screen Back) - Shale (P/N 172-0012) - (1pc)
- Pewter (P/N 172-0013) - (1pc)
12) Snap On Cover (Shroud) - Shale (P/N 172-0014) - (1pc)
- Pewter (P/N 172-0015) - (1pc)
13) Wireless Headphones (P/N IR1CFF) - (2pcs)
14) PS2 Game Controller (P/N 136-4927) - (2pcs)
TOOLS REQUIRED:
#2 Phillips Screwdriver
#1 Phillips Screwdriver
Utility or Razor Knife or Shears
Wire Strippers
Upholstery hook tool (for removal of panels as necessary)
Electrical Tape
Masking Tape
Multimeter (to verify 12 volt DC and continuity: Do not use a test light or logic probe)
Marker pen – to mark headliner
Scribe (to mark trim ring if used)
Misc. electrical connectors (to connect to vehicle power source). Requirements will vary from vehicle
to vehicle)
DVD Movie (to verify system operation after installation)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
3
PS2
DVD GAME DISC
SELECT START
VIBRATI ON
MODE
FORCE LI NK
LR

Begin by hooking area “A” (above) over the dome light and slide the cover over the pod. The cover will snap in place.
Place the pod on a soft surface to avoid damaging the plastic.
Open the screen and hook the two tabs “B” on the bottom edge of the screen. Snap the opposite side over the hinge.
Installing The Shroud
(B) (B)
(A)
Installing The Screen Cover
Installing The Snap On Covers
Housing
3.2. 4.
Snap On Cover
(Shroud)
1 Pewter, 1 Shale
Snap On Cover
(Screen Back Cab)
1 Pewter, 1 Shale
1. 5.
Installing The Screw Cap
Plug-in
4
Remove
tape backing
before installing.
Screw cap get installed after the unit is mounted.
Trim Ring
1 Pewter, 1 Shale
MENU / ENTER
Screw Cap
(L & R)
4 Pewter, 4 Shale
MENU / ENTER
MENU / ENTER
MENU / ENTER
MENU / ENTER

2 3
Work on a soft surface to avoid damaging the plastic.
Insert the supplied pry tool between the Housing and Snap On Cover (Shroud), then press the pry tool to
release the Snap On Cover (Shroud).
Insert the supplied pry tool between the Housing and Snap On Cover (Screen Back), then press the pry tool to
release the Snap On Cover (Screen Back).
Removing The Snap On Cover (Screen Back) From LCD The Housing
Removing The Snap On Cover (Shroud) From The Housing
1
5
DVI EO
AU ODI L
R
5
7
4
6
V DI EO
AU ID O L
R
NT RMENU / E E

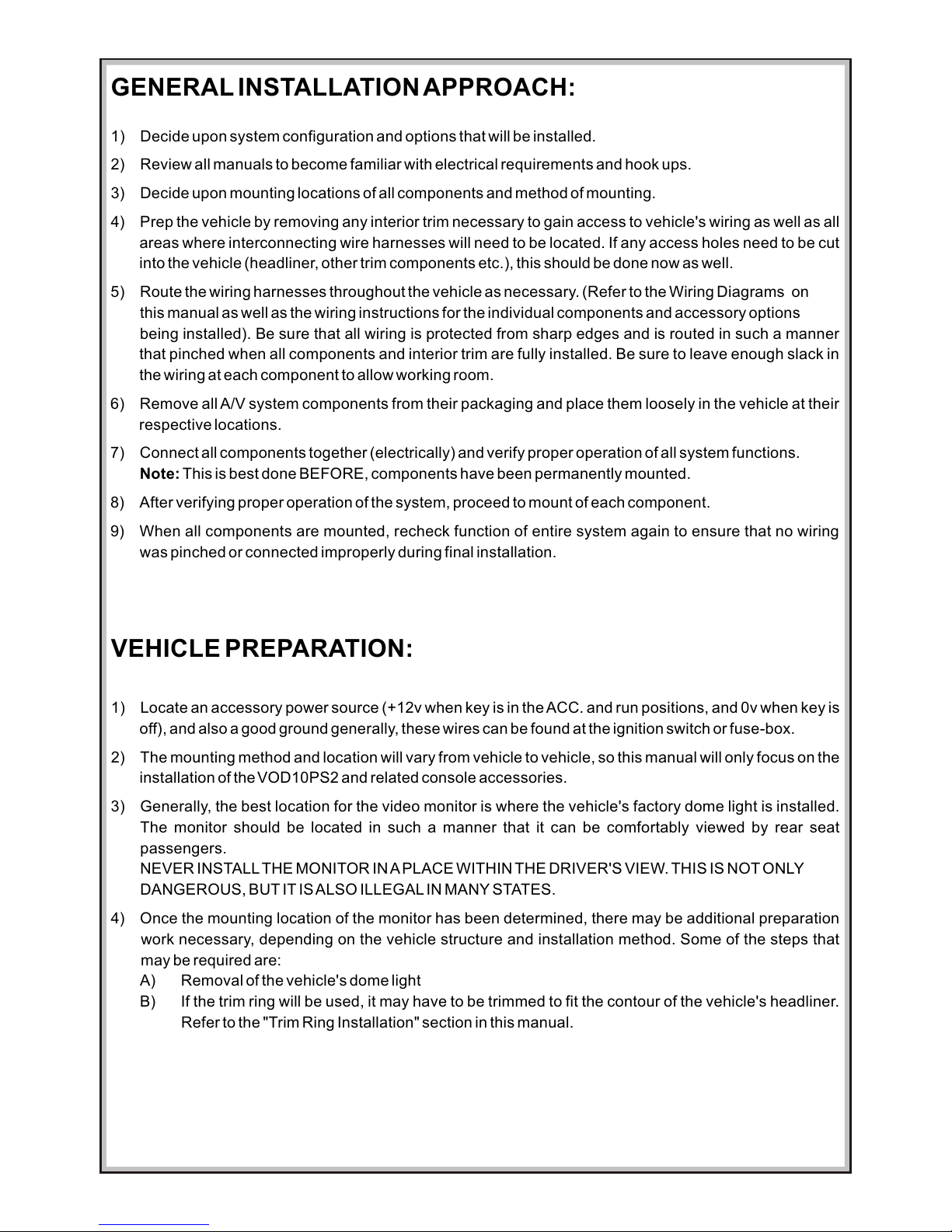

VEHICLE PREPARATION:
1) Locate an accessory power source (+12v when key is in the ACC. and run positions, and 0v when key is
off), and also a good ground generally, these wires can be found at the ignition switch or fuse-box.
2) The mounting method and location will vary from vehicle to vehicle, so this manual will only focus on the
installation of the VOD10PS2 and related console accessories.
3) Generally, the best location for the video monitor is where the vehicle's factory dome light is installed.
The monitor should be located in such a manner that it can be comfortably viewed by rear seat
passengers.
NEVER INSTALL THE MONITOR IN A PLACE WITHIN THE DRIVER'S VIEW. THIS IS NOT ONLY
DANGEROUS, BUT IT IS ALSO ILLEGAL IN MANY STATES.
4) Once the mounting location of the monitor has been determined, there may be additional preparation
work necessary, depending on the vehicle structure and installation method. Some of the steps that
may be required are:
A) Removal of the vehicle's dome light
B) If the trim ring will be used, it may have to be trimmed to fit the contour of the vehicle's headliner.
Refer to the "Trim Ring Installation" section in this manual.
GENERAL INSTALLATION APPROACH:
1) Decide upon system configuration and options that will be installed.
2) Review all manuals to become familiar with electrical requirements and hook ups.
3) Decide upon mounting locations of all components and method of mounting.
4) Prep the vehicle by removing any interior trim necessary to gain access to vehicle's wiring as well as all
areas where interconnecting wire harnesses will need to be located. If any access holes need to be cut
into the vehicle (headliner, other trim components etc.), this should be done now as well.
5) Route the wiring harnesses throughout the vehicle as necessary. (Refer to the Wiring Diagrams on
this manual as well as the wiring instructions for the individual components and accessory options
being installed). Be sure that all wiring is protected from sharp edges and is routed in such a manner
that pinched when all components and interior trim are fully installed. Be sure to leave enough slack in
the wiring at each component to allow working room.
6) Remove all A/V system components from their packaging and place them loosely in the vehicle at their
respective locations.
7) Connect all components together (electrically) and verify proper operation of all system functions.
Note: This is best done BEFORE, components have been permanently mounted.
8) After verifying proper operation of the system, proceed to mount of each component.
9) When all components are mounted, recheck function of entire system again to ensure that no wiring
was pinched or connected improperly during final installation.
6

TRIM RING INSTALLATION:
Note: This page only covers special installation considerations for thick trim ring installation. If the video
monitor is to be installed in a vehicle with the thick trim ring, it may need to be trimmed to fit the contour of the
vehicle Headliner.
Note: The trim rings supplied with this unit are not designed to be trimmed.
1) In this installation, the video monitor is mounted directly to the overhead cross-member in the roof
using the mounting screw bosses. These screw bosses should contact the cross-member directly
(i.e.: no gap between the screw boss and the roof structure). Also, be sure that the screws do not pierce
the outer roof skin when fully fastened to the cross-member. The trim ring is attached to the video
monitor using the perimeter screw bosses. It is important that the screws used in this installation are
not over tightened, and that the video monitor and trim ring are mounted in such a way that the
assembly does not distort (or bend) when the mounting screws are tightened. An alternate method is to
use the mounting bracket. First secure the mounting bracket to the cross-member, then screw the
monitor into the mounting bracket. See the drawing in this manual.
2) It is best to mount the video monitor to the roof structure without the trim ring first. There should be a
gap between the headliner and the outer flange of the video monitor. The trim ring should be cut to fill
this gap. Apply masking tape to the outer surface of the trim ring in the areas where the cut will be made.
3) Mark the cut to follow the necessary contour of the roof. The suggested method of marking is as
follows:
A) First mark the narrowest point of the trim ring on the masking tape. Be careful to consider not only
vertical location, but fore-aft location.
B) Using the handle of a screwdriver, make a “transfer marking tool”. See diagram below. Place the
tool against the roof and the marker against the masking tape on the trim ring. Trace the cut to be
made around the entire perimeter of the trim ring.
C) Cut the trim ring using a sharp utility knife or shears. Make the cut in several passes over the
marked line, each time cutting a little deeper. It is not necessary to cut completely through the
plastic, the cut only need be over 50% of the wall thickness of the plastic. By bending the cut back
and forth several times, the plastic will break cleanly at the cut.
D) Check the fit of the trimmed console and make any minor adjustments necessary.
4) The trim ring can be painted or covered with a material that matches the headliner before assembling
the trim ring to video monitor.
5) The finished trim ring should be attached to the video monitor, then attach the assembly to the roof.
Tape marker to screwdriver.
Starting at your mark for the
lowest point, trace the contour of the roof
Lowest point mark
Cut line
Headliner
7

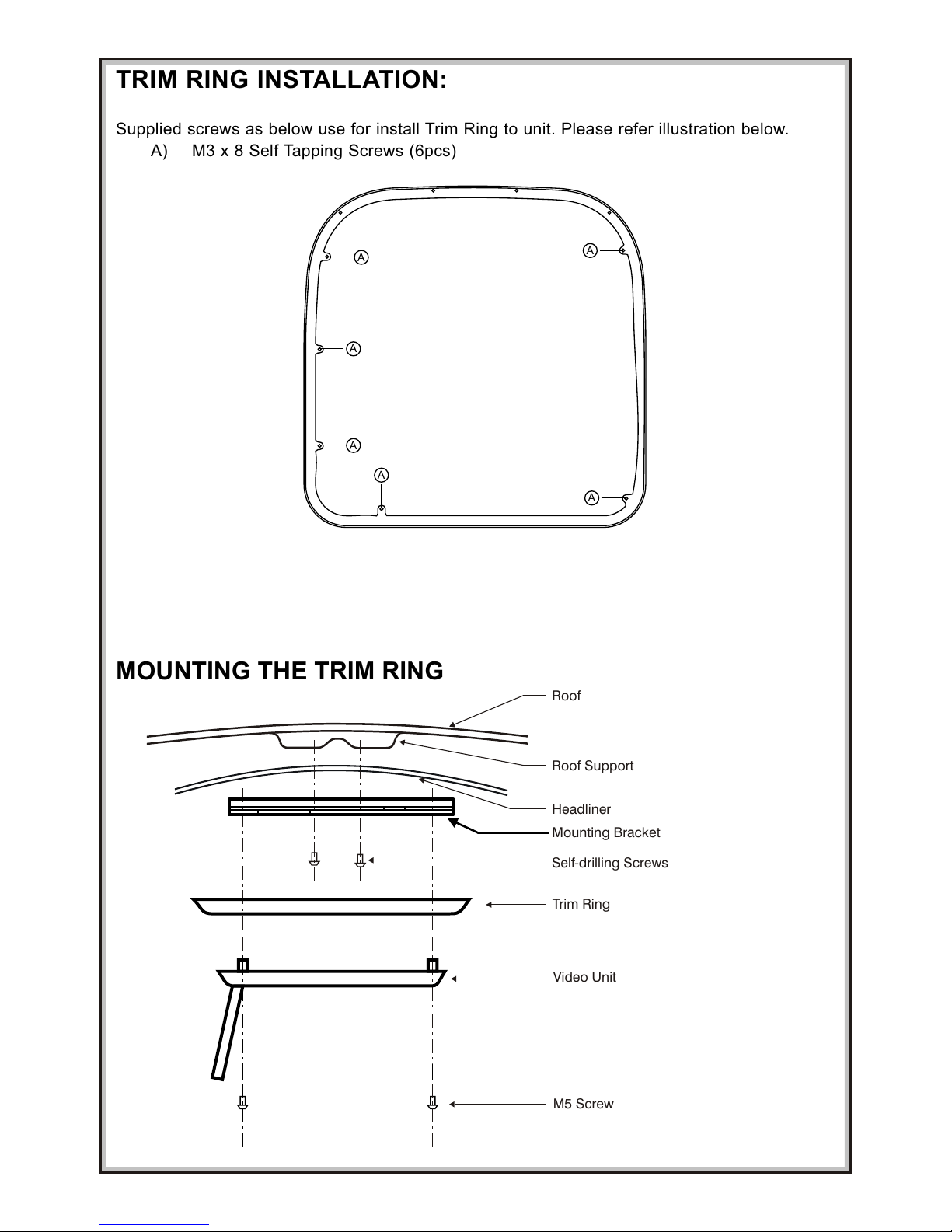

TRIM RING INSTALLATION:
Supplied screws as below use for install Trim Ring to unit. Please refer illustration below.
A) M3 x 8 Self Tapping Screws (6pcs)
Roof
Roof Support
Headliner
Mounting Bracket
Self-drilling Screws
Trim Ring
Video Unit
M5 Screw
MOUNTING THE TRIM RING
8
A
A
A
A
A
A

1) Make the connections to the vehicle for the 12 pin wiring harness.
2) Connect power harness to vehicles electrical system by tapping into an accessory
hot line and a good ground.
3) Connect the 12 pin harness to the mating connector on the video monitor.
4) Verify all functions of the system before final mounting of the finished assembly.
A/V Source Definitions:
1. PS2 - Built in song PS2
2. AV1 - Supplied 12 Pin Power / Signal Harness to 3 RCA Jack Pigtail is used for
AV1 input.
3. AUX - AUX input.
*NOTE: If the optional relay box is P/N SIRSWB installed, it recommended that the
antenna for the FM modulator antenna wire is unplugged. See VOD10PS2
Wiring Diagram (Figure A) for antenna location.
**NOTE: Extending the wireless antenna beyond its 12 inch length will cause the
FM modulator to exceed FCC limits of wireless transmission. When installing
the unit position the antenna for best reception.

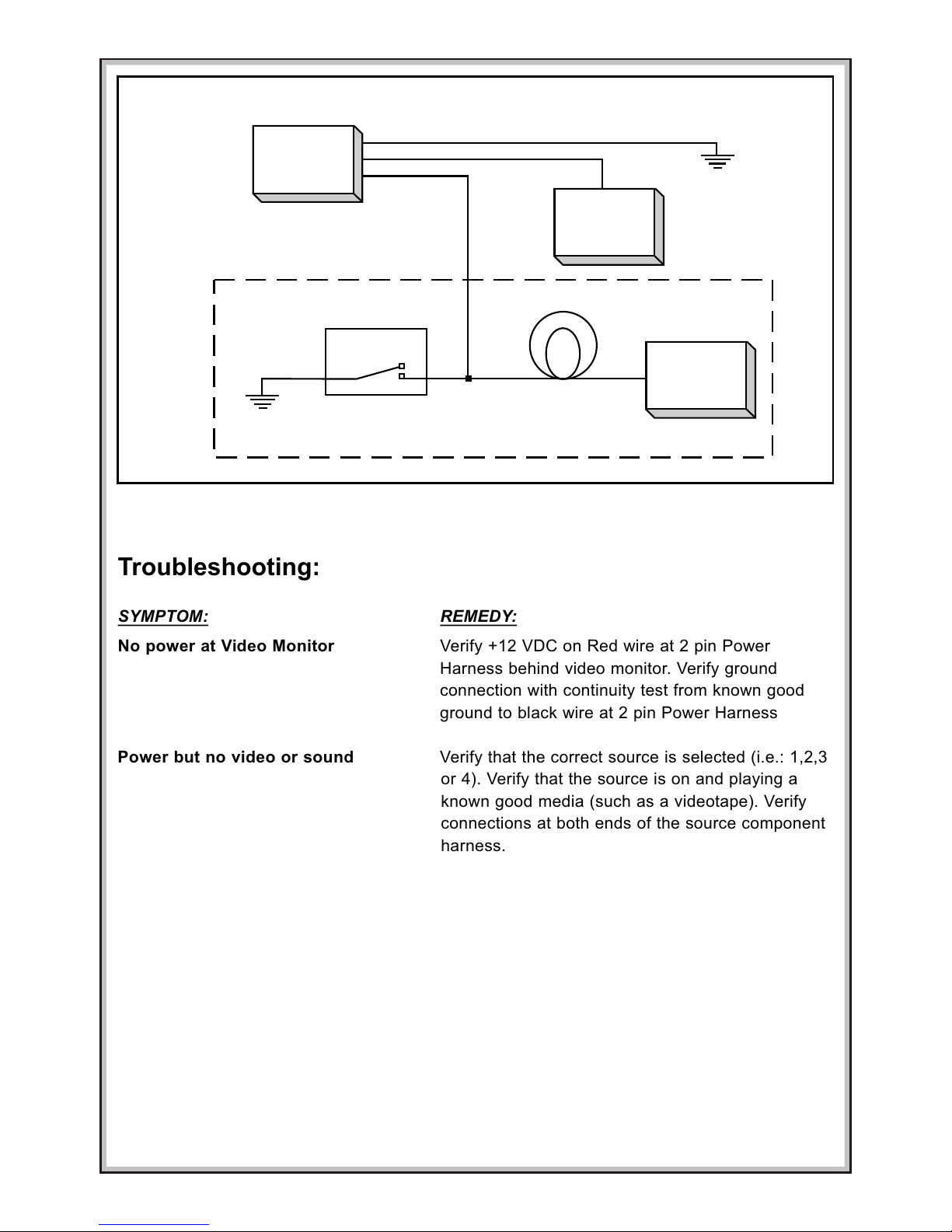

WIRING DIAGRAM
9
Figure A
* Antenna for Wireless FM Mod.
** See Antenna Note
12 Pin Power /
Signal harness
Line Out-R (Red) Line Out-L (White)
Line Out-V (Yellow)
Dome Light
Power source
Auxiliary Video Display 2 Pin Power
Wire Harness
with choke
Line Out-R (Red)
Line Out-L (White)
Line Out-V (Yellow)
AV1 Video
Source
* Optional Relay Box
SIRSWB

CONNECTING THE DOME LIGHTS
The dome lights in the video monitor require three connections to the vehicle's wiring. There are two common
types of dome light circuits used, positive or negative switched system. Positive switched systems supply
voltage to the interior lights to turn on, negative switched systems apply ground to illuminate the bulbs.
To determine which system you have to locate the wires at the dome light:
On a positive switched system, with all the doors closed and the lights out, both wires at the dome light will
rest at ground. When the light is activated, one of these wires will switch to +12 vdc. This is the vehicle's
switching wire.
On a negative switched system, with all the doors closed and the lights out, both wires at the dome light will
rest at + 12vdc. When the light is activated, one of these wires will switch to ground. This is the vehicle’s
switching wire.
For positive systems, connect the violet / brown (Lamp auto) wire to the vehicle's switched wire. Then
connect the red / black (lamp on) wire to a fused constant 12 volt source and the black / red (lamp common)
wire to a good ground. Positive systems are commonly found on Ford vehicles.
For negative systems, connect the violet / brown (Lamp auto) wire to the vehicle's switched wire. Then
connect the red / black (lamp on) wire to a good ground and the black / red (lamp common) wire to fused
constant 12 volt source. Negative systems are commonly found on General Motors and import vehicles.
Note: Some vehicles which incorporate transistorized control of the dome light circuit, such as the 1999
Dodge Caravan, may require that the violet / brown (Lamp auto) wire be connected to the door pin switch
wire, as the additional current draw of the monitor's lights may not be supported by the output of the vehicles
body control computer.
10
Positive Switched Dome Lighting
Red / black - Lamp on
Factory Dome light circuit
To 12 pin
connector
on Monitor
To
constant
+12vdc
To
constant
+12vdc
Black / red - Lamp common
Purple / brown - Lamp Auto
Factory Door ajar
switch or Body
Control computer
Fused

Troubleshooting:
SYMPTOM: REMEDY:
No power at Video Monitor Verify +12 VDC on Red wire at 2 pin Power
Harness behind video monitor. Verify ground
connection with continuity test from known good
ground to black wire at 2 pin Power Harness
Power but no video or sound Verify that the correct source is selected (i.e.: 1,2,3
or 4). Verify that the source is on and playing a
known good media (such as a videotape). Verify
connections at both ends of the source component
harness.
11
Red / black - Lamp on
To 12 pin
connector
To
constant
To
constant
Black / red - Lamp common
Purple / brown - Lamp Auto
Factory Door ajar
switch or Body
Control computer
Negative Switched Dome Lighting

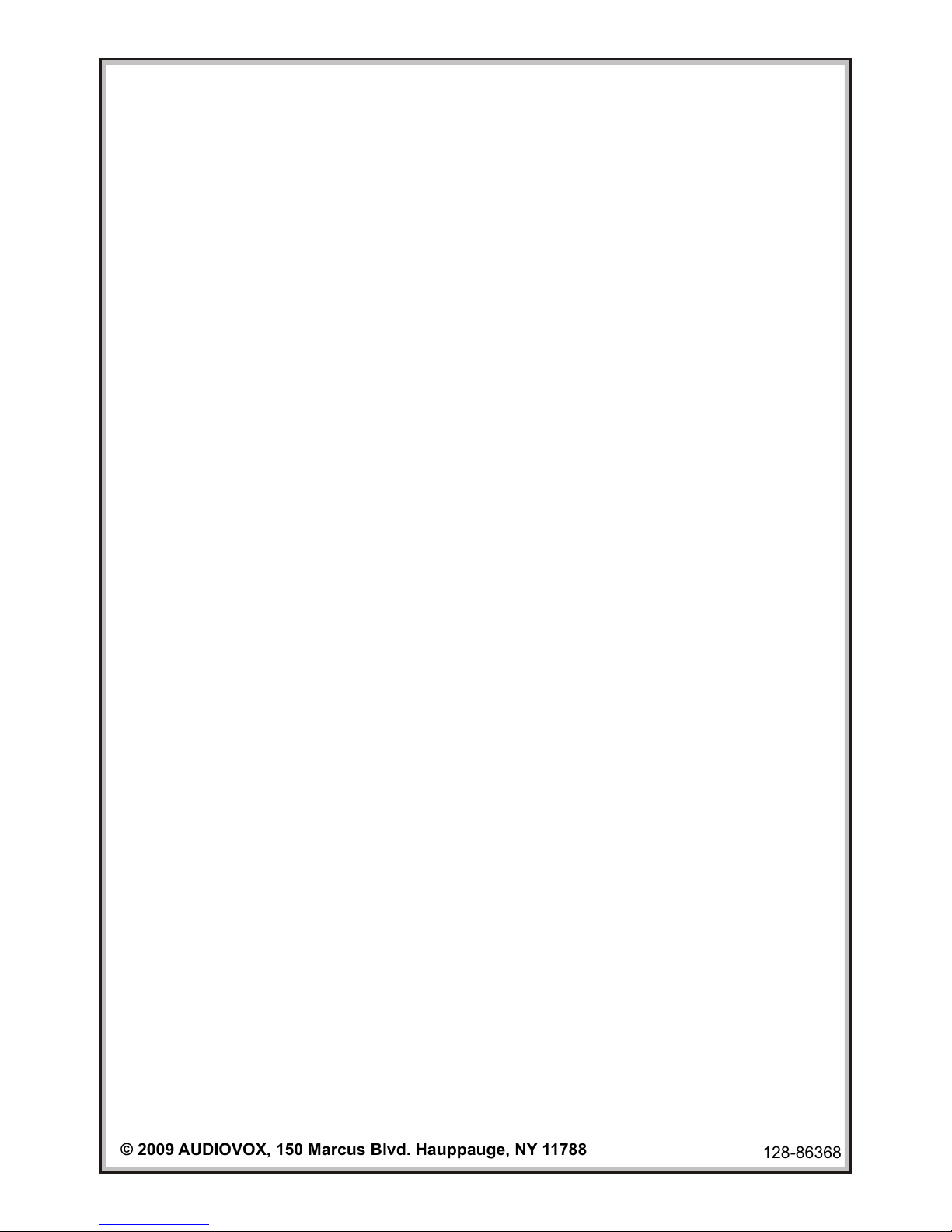

© 2009 AUDIOVOX, 150 Marcus Blvd. Hauppauge, NY 11788 128-86368
