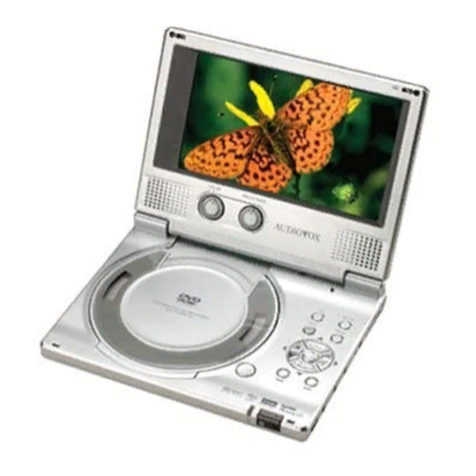

A. Introduction
Thankyouforchoosingthe7”portableDVDplayer.The mainfea-
tures include a 7" Wide Screen (16:9Aspect Ratio) Liquid Crystal
Display (LCD)monitorandaDVDplayer.Theunit applies thelatest
stateof the artelectronicsand is designedfor use in hotels,offices
or your home. The unit is constructed to provide years of reliable,
trouble-freeservice,andiscompact sothatyoucantakeitwithyou
anywhere and is designed for quick and easy installation. Please
readthe entireinstruction manualsuppliedwith thisproduct priorto
using.Thedocumentationwillassistyouininstallingthesystemprop-
erly to obtain the best equipment performance. Please save this
manualforlateruse.
B. Cautions and Warnings
1. Placement
To prevent fire or electric shock, do not expose this appliance to
rainormoisture. Do not place the set on an unstable cart, stand,
tripod,bracketortabletopreventitfromfalling.Keeptheunitaway
fromstrongmagnets,heatsources,directsunlight,excessivedust.
Ifthe unitisbrought directly froma cold toawarm location, mois-
turemaycondenseinsidetheunit. Whenyoumoveitfrom acold
to a warm location, wait for about one hour before operating the
unit,orremovethediscandleavetheunitturnedonuntilthemois-
ture evaporates.
2. Installation
Ensurethat the7” portableDVD playeris installedinaccordance
withtheinstructionsand illustrationsprovidedinthismanual.
3. Caution
Donot pushobjectsofanykindintotheunit throughopenings;do
not spill or spray liquid of any kind on or in the system (this may
resultin a fire or electricshock). Donot place anything heavy on
theunit.To ensureproperventilationandproper operation,never
coverorblocktheslotsandopeningswithaclothorothermaterial.
Keeptheunitawayfromanopenflamesuchas,.fire,candleetc,.It

3
5. Cleaning Unit
Whencleaning,makesurethesystemisunplugged fromthepower
source. Do not use liquid cleaners or aerosol cleaners. Use a
cloth lightly dampened with water for cleaning the exterior of the
system only.
6. Disc
Do not use irregularly shaped discs such as heart or star-shaped
discs as they may cause the unit to malfunction. Do not stick pa-
per, tape or glue on the disc. Do not expose the disc to direct sun-
light or heat sources . Do not touch the surface of disc. Handle the
disc by its edge. Clean the disc by wiping the disc from the center
out with a cleaning cloth. Remove the disc from the unit and store
it in its case after playing. Some playback operations of discs may
be intentionally fixed by software producers. Since this unit plays
discs according to the disc contents the software producers de-
signed,some playback featuresmay notbe available. Also refer to
the instructions supplied with the discs.
ishazardoustoreplacethebatteryincorrectly.Replacethebattery
only with the same or equivalent type, in order to protect the
enviromnent,pleasedispose the battery properly.Donotusethe
unitintemperatureshigherthan140degreesFahrenheitor40de-
greesCelcius.
4.Disassemble
Do not attempt to disassemble the cabinet. There is a risk of elec-
tric shock and/or exposure to Laser Radiation. Contact qualified
service personnel if your system needs repair.

4
C. Contents
1.1x7’’LCDMonitor &DVDPlayerCombo
2.1xACtoDCAdapter
3.1x RemoteControlwithbattery(CR2025)
4.1xInstructionManual
5.1xAudio/VideoCable
6.1xCigaretteLighterAdapter
7.RechargeableBattery
D. Powering and installation
1. Powering the system indoors (Refer to Figure 1)
Plugone end of theAC toDCadapterinto the DC 9V jackonthe
leftsideofthemainunit,thenplugtheotherendintothe120V AC
poweroutlet.
2. Powering the system in a car (refer to Figure 1)
Plugone end of the cigarettelighter adapter into the DC 9Vjack on
the unit, then plug the other end into the cigarette lighter socket.
Figure 1
E. Controls, Indicators, and Connectors

5
1. Unit View (Refer to Figure 2)
Figure 2
1)MENU
2) Up Button
3) Left Button
4) Down Button
5) OK Button
6) Right Button
7) Open Button
8) Previous Button
9) Stop Button
10) Next Button
11) Play Button
12) Pause
13) Screen Mode Button
14) LCD Panel Shut Off Switch
15) Remote Control Sensor
16) Power LED
17) Video output Jack
18)Audio output Jack
19)Video InputJack
20)AudioInput Jack
21) Power On/Off Switch
22) Volume Up/Down Control
23) Headphone Jack 1
24) Headphone Jack 2
25) DC 9V Input Jack
26) Brightness Up/Down Control

6
2. Remote Control View (Refer to Figure 3)
1) DisplayButton
2) AngleButton
3) SubtitleButton
4) AudioButton
5) ZoomButton
6) UP/DOWN/LEFT/RIGHT/
ENTER Buttons
7) ReturnButton
8) A-BButton
9) ForwardButton
10) ReverseButton
11) Slow Button
12) StopButton
13) NumericKeypad
14) SetupButton
15) MenuButton
16) RepeatButton
17) SKIP-
18) SKIP+
19) Play Button Figure 3
20) PauseButton
F. Loading and Playing a Disc
a.Afterconnectingpowertothe unit,poweron“DVD player”withthe
powerswitch. Thepowerindicatorwilllight.
b.OpenthedisctraybypressingOPEN, andplaceadiscintothe
traywiththe labelsidefacingup.
c.Close the tray by pressing the “PRESS” button.The unit will load
thediscandstart playing.
d.Rotate BRIGHTNESS and VOLUME to adjust theLCD’sbright-
nessand theDVD player’svolume.
e.Tostop playing adisc,press STOP.

7
G. SETUP
Press ‘SETUP’ to display the Main screen of the SETUP Menu on the
screen. Press ‘SETUP’ again to exit the SETUP Menu and the unit
will resume it’s last playback mode.
Figure 4. Main SETUP Menu Screen
1) Press“Setup”, the‘GENERALSETUPPAGE’willdisplayonscreen.
Figure 5. General SETUP Menu Screen
a).SelectTVDISPLAYusingtheUP/DOWNbuttons,andthenpress
RIGHT to enter the submenu. Select the TV display mode on
the screen using UP/DOWN, and press ENTER to confirm the
setting. Press LEFT to return.

8
* NORMAL/PS: When the player is connected to a normal TV,
and a wide picture is shown on the full screen.
* NORMAL/LB: When the player is connected to a normal TV,
and a wide picture is shown on the screen with a black strip
at both the top and bottom of the screen.
* WIDE: When the player is connected to a wide screen TV, a
wide picture is shown on the full screen.
Figure 6. TV DISPLAY Screen Display
b).Select ‘ANGLE MARK’ using the UP/DOWN butttons, and then
press the RIGHT button to enter the submenu. Choose Angle
Mark on or off using the UP/DOWN buttons and then press EN-
TER to confirm the setting. Press the LEFT button to return.
Figure 7. ANGLE MARK Screen Display
* ON: The screen will show the angle mark icon. (*If an angle
optionis available).
OFF: The screen will not display theAngle Mark
NOTE: Not all discs contain above features. The above features
are disc dependent.

9
c). Select ‘SCREEN SAVER’ using the UP/DOWN buttons,
Figure 8. SCREEN SAVER Display
*ON: enables screen saver
*OFF: disables screen saver (off)
*NOTE: The DVD player will enter the Screen Saver mode after
approximately five minutes if the same image remains on the
screen.
d). Select “ Last Memory” by UP/DOWN button
Figure 9. LAST MEMORY Screen Display
*on: The unit will return to the last position on the disc.
*off: The unit will not return to the last position on the disc.
2) With no disc inside the player select “Video quality Setup”by using
the LEFT/RIGHT buttons, press “enter” to enter the video quality
set up page.
Figure 10. Main SETUP Menu VIDEO QUALITY

10
a).Select“BrightnessbyusingtheUP or DOWN buttons,thenpress
“Enter”you can change the Brightness by pressing the LEFT or
RIGHTbuttons. To exit “Brightness Setting”, press “Enter”again
to return the main Menu.
Figure 11. BRIGHTNESS Screen Display
b).Select “Contrast” by using the UP or DOWN buttons,then press
“Enter” you can adjust the Contrast by pressing the LEFT or
RIGHTbutttons.
Figure 12. CONTAST Screen Display
To exit “Contrast” Setting, press “Enter”again to return to the main
Menu.
c).Select “Hue” by using the UP or DOWN buttons, then press
“Enter” you can adjust the Hue by pressing the LEFT or RIGHT
buttons.
Figure 13. HUE Screen Display
To exit “Hue”Setting,press “Enter”again to return the main Menu.

11
d).Select “Saturation “ by using the UP or DOWN buttons, then
press“Enter”youcan adjusttheSaturationbypressing the LEFT
orRIGHT buttons.
Figure 14. SATURATION Screen Display
To exit “Saturation”Setting,press “Enter”again to return to the main
Menu
3).With no disc inside the player ,select “password” using the LEFT
or RIGHT buttons, then press the RIGHT button to enter the
submenu .
Figure 15. PASSWORD CHANGE Menu
Press ‘ENTER’ to enter the Password Change Page. Input the Old
Password or the Default Password, the New Password, and the
Confirmed New Password. Press ‘ENTER’ to confirm the change.
Figure 16. PASSWORD CHANGE MENU

12
4).Withnodiscinsidetheplayerselect‘PREFERENCES’usingthe LEFTor
RIGHTbuttons, thenpress‘ENTER’toenterthepreferences page.
Figure 18. Preference Audio Language
a. Select ‘AUDIO’ using the UP/DOWN buttons, then press
‘RIGHT’ to enter the submenu. Select the audio language you
desire using the UP or DOWNbuttons, then press ‘ENTER’ to
confirm the setting. Press LEFT to return.
b. Select ‘SUBTITLE’ the using the UP or DOWN buttons, then
press RIGHT to enter the submenu. Select the desired subtitle
language or SUBTITLE OFF using the UP or DOWN buttons ,
then press ‘ENTER’ to confirm the setting. Press ‘LEFT’ to re-
turn.
Figure 19. Preference SUBTITILE LANGUAGE
NOTE: The default password is 3308.
Figure 17. PASSWORD VERIFY Input Screen Display

13
Figure 20. Preference DISC MENU LANGUAGE
Note: Language and subtitle selection is only available for discs
that are recorded in the above listed languages. If the selected,
language is not available, the player will play and display on the
screen the original recorded language contained in the disc.

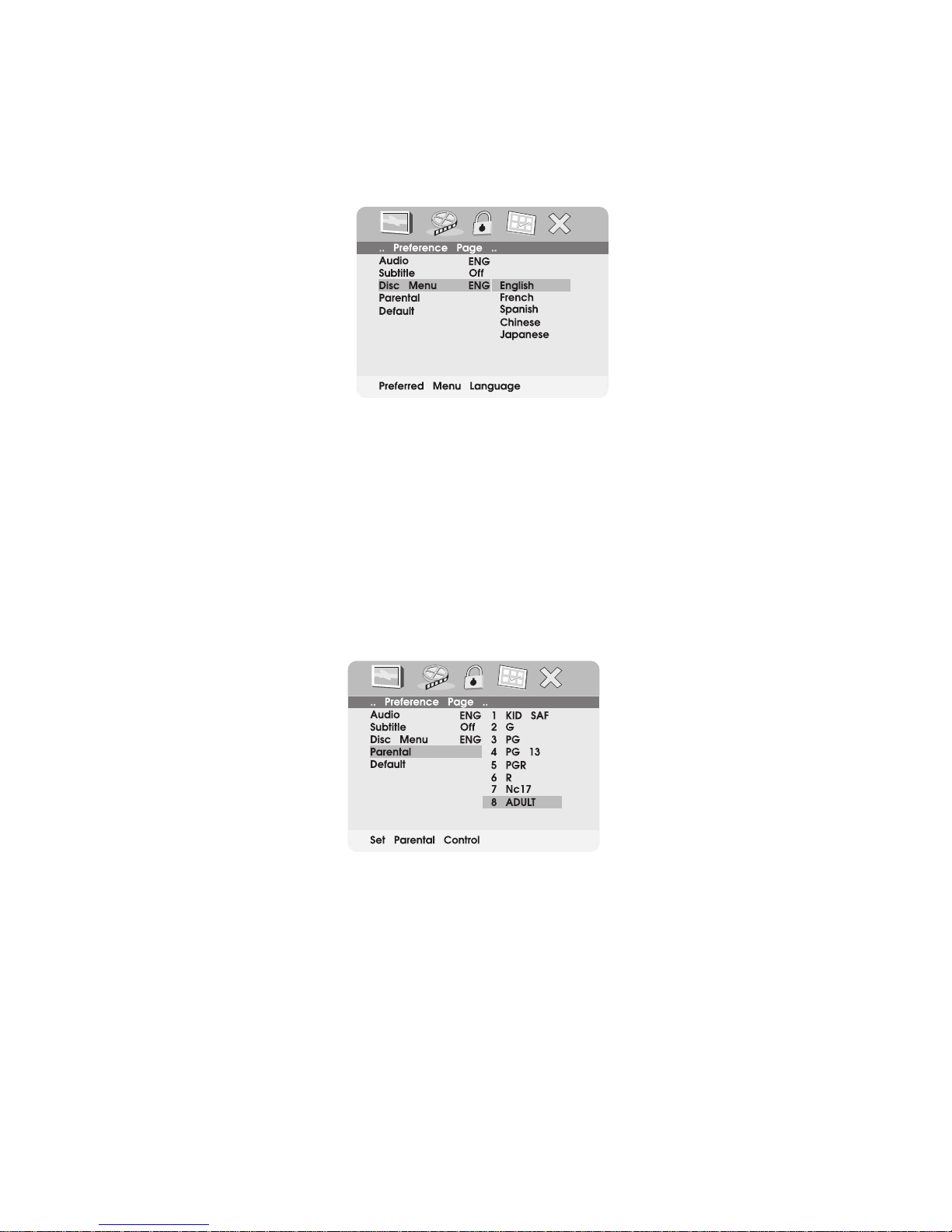

d. Select ‘PARENTAL’ using the UP or DOWN buttons , then press
RIGHT to enter the submenu.
Figure 21. PARENTAL Preference Screen Display
Select the parental level you desire using the UP or DOWN but-
tonsfordiscswithlock-outfunctionormultipleratinglevels.These
are listed from the lowest level (1 Kid Safe) to the highest level
(Adult). Enter a 4 digit password, then press ‘ENTER’ to confirm
the parental level setting.
NOTE: The level of 8Adult is the factory default.
c. Select ‘DISC MENU’ using the UP or DOWN buttons, then press
‘RIGHT’ to enter the submenu. Select the Disc Menu Language
you desire using the UP or DOWN buttons , then press ‘ENTER’
to confirm the setting. Press ‘LEFT’ to return.

14
Figure 22. Loading Factory Setting
NOTE: The Default Password is 3308. This password is
always effective even after you have selected your own
password and changed it. To avoid the possibility of others
using the defaultpassword tosettheparental level and change
the password, you can record this default password in another
area and delete it from this manual. Some discs can be limited
depending on the age of users while some discs cannot.
e. Select ‘DEFAULTS’ using the UP or DOWN buttons, then press
RIGHT to enter the submenu. Press ENTER to make the setting
return to the factory-set mode.
NOTE: The parental setting is not affected by the default reset
function.

15
1. Basic Operation
Turntheuniton/off
Remove/loadthedisc
StartPlay/Executeitemorsetting
Playat1/2, 1/4,1/8 or1/16 timesspeed
StillPicture
(1time)Stopatthepresentplayingpoint/
(2times)Stopplaying
Goto the nextchapter, track orscenedur-
ingplayback
Gobacktothepreviouschapter,trackor
sceneduringplayback
Scan forward at 2, 4, 8,16 or 32x times
speed
Scan backward at 2, 4, 8, 16 or 32x times
speed
UsedforMenuNavigation
Executeitemor confirmsetting
Selectitemor setting
Return
Displaythemainmenuofthe disc
Repeatplayingtitle,chapter,ortrack
RepeataspecificportionfrompointAtopoint
B of the disc
Display information (title, chapter, track,
time,etc.).
Changetheviewinganglesonthescene
Selectthe subtitlelanguageand turn iton/
off
Selecttheaudiolanguage
Enlargean imageto 2,3,or 4times the
originalsize.
Display the setup menu to select and set
items,andexitthesetupmenu.
POWER
OPEN
PLAY
SLOW
PAUSE
STOP
NEXT
PREVIOUS
FORWARD
REVERSE
LEFT/RIGHT/UP/DOWN
ENTER
NUMBERS
RETURN
MENU
REPEAT
A-B
DISPLAY
ANGLE
SUBTITLE
AUDIO
ZOOM
SETUP

2. MENU
A DVDis dividedintosectionscalledtitlesandchapters. Whenyou
playaDVD,arootmenuofthediscwillappearon thescreenofyour
TVorMonitor.Thecontentsofthemenuvaryfromdisctodisc.Press
MENUduringplaybacktodisplaythemenu. SomeDVDsonlyallow
youtoselect discplayback optionsusing theDVDrootmenu.
3. DISPLAY (Display contents vary from disc to disc.)
1. PLAYING TIME AND REMAINING TIME
a.During playbackpressthe ‘DISPLAY’ buttontodisplaythe cur-
rent Title Number (1),thetotalNumber ofTitles (2), thecurrent
ChapterNumber (3), the total Number of Chapters (4), andthe
Playing elapsedTimeforthetitle(5).Theheadingwilldisappear
automaticallyafter3 secondsif nobuttons arepressed.
b.Press‘DISPLAY’againtodisplaytheRemainingTimeof thetitle.
Theheadingwilldisappear automatically in3seconds.
Figure 20. Title Remaining Time Screen Display
Figure 19. Title, Chapter Number, and Time Screen Display
16

17
c. Press ‘DISPLAY’ a 3rd time to display the Elapsed Time for the
chapter. The heading will disappear automatically in 3 seconds.
d.Press ‘DISPLAY’a 4thtime todisplay theRemainingTime for the
chapter. The heading will disappear automatically in 3 seconds.
e. Press ‘DISPLAY’ a 5th time to exit, ‘DISPLAY OFF’ will be dis-
played and will disappear automatically in 3 seconds.
2.ANGLE
During playback of a disc, press ‘ANGLE’ to display the available
angles for discs containing multi-angles*, with the current angle
number (1) and the total number of angles (2) displaying. Press
‘ANGLE’ to select another angle, then press again to exit and re-
turn to the normal viewing angle. The angle display will disappear
automatically if the ‘ANGLE’ button is not pressed again within 3
seconds.
*NOTE: Notall discs containthis feature.
Figure 21. Chapter Elapsed Time Screen Display
Figure 22. Chapter Remaining Time Screen Display

18
3. SUBTITLE
During disc playback press ‘SUBTITLE’ to select the subtitle lan-
guage you desire*, with the current Subtitle Language Number (1)
and the total Number of Subtitle Languages (2) displayed. If there
are multiple languages press ‘SUBTITLE’ again to select another
subtitle language. To turn subtitles OFF, press the ‘SUBTITLE’
button until ‘SUBTITLE OFF’ is displayed. The Subtitle display will
disappear automatically if the ‘SUBTITLE’ button is not pressed
again within 3 seconds.
Figure 23. Angle Screen Display
Figure 24. Subtitle Screen Display
*Some DVDs only allow access tothisfunctionthrough the DVD
menu.

19
4. AUDIO
During playback press ‘AUDIO’ to select the audio language you
desire*, with the current Audio Channel Number (1) and the total
number of Audio Channels (2) displayed. PressAUDIO again to
select another audio language. The audio display will disappear
automatically if the ‘AUDIO’ button is not pressed within for 3
seconds.
Figure 25. Audio Language Screen Display
*SomeDVDsonlyallowaccess tothis functionthrough theDVD
menu.
5. ZOOM
Duringplaybackpress ‘ZOOM’ to enlargethepicture by 2x,3xor 4X
with the current zoom multiple.(1)Press “zoom”one time ,the pic-
ture will be enlarged 2X.(2)Press “zoom a ”second time ,the picture
will be enlarged 3X.(3)Press “zoom a ”3rd time ,the picture will be
enlarged 4X.(4)Press “zoom”4th time ,the picture will return to nor-
mal size.
Figure 26. ZOOM Screen Display

20
6. A-B REPEAT
a. During playback press first time ‘A-B’ to set the Starting
Point A.
Figure 27. A-B Repeat Starting Point Screen Display
b.Press ‘A-B’second time to set the Ending Point B and the
player will repeatedly play the part between PointAand Point
B.
Figure 29. A-B Repeat Cancelled Screen Display
Figure 28. A-B Repeat Ending Point Screen Display
c. Press A-B a third time to cancel A-B repeat and resume
playback.
