Audiovox VBP3900 User manual

VBP3900VBP3900
VBP3900VBP3900
VBP3900
VIDEO IN A BAG SYSTEM WITH
5" LCD MONITOR & DVD PLAYER

2
SAFETY PRECAUTION
For safety reasons, when changing video media, it is recommended
that the vehicle is not in motion, and that you do not allow children to
unfasten seat-belts to change video media or make any adjustments
to the system. Enjoy your entertainment system but always remem-
ber-safety of all passengers remains the number one priority.
IMPORTANT NOTICE
It is unlawful in most jurisdictions for a person to drive a motor vehicle
which is equipped with a television viewer or screen that is located in
the motor vehicle at any point forward of the back of the driver’s seat,
or that is visible, directly or indirectly, to the driver while operating the
vehicle. In the interest of safety, this system should never be installed
where it will be visible, directly or indirectly, by the operator of the mo-
tor vehicle.
A. Introduction
Thank you for selecting the VBP3900 “Video in a Bag” System.The
system's main features include a 5" Liquid Crystal Display (LCD)
monitor and a DVD player. The system utilizes the latest state of the
art electronics and is designed for use in vehicles, hotels, offices or
your home. The VBP3900 Video in a Bag is constructed to provide
years of reliable, trouble-free service. The system is compact so
that you can take it with you anywhere and is designed for quick
and easy installation. One additional monitor*can be purchased
and added to the system setup allowing you to utilize two monitors
at once. The connection of the additional monitor is plug and play.
Please read the entire instruction manual supplied with this product
prior to operation. The documentation will assist you in installing the
system properly to obtain the best equipment performance. All
manuals should be stored for later use.

3
B. Cautions and Warnings
1. Placement
To prevent fire or electric shock, do not expose this appliance to
rain or moisture. Do not place the set on an unstable cart, stand,
tripod, bracket or table to prevent it from falling. Keep the unit
away from strong magnets, heat sources, direct sunlight, exces-
sive dust. If the unit is brought directly from a cold to a warm loca-
tion, moisture may condense inside the unit. When you move it
from a cold to a warm location, wait for about one hour before
operating the unit, or remove the disc and leave the unit turned on
until the moisture evaporates.
2. Installation
Ensure that the LCD Monitor, DVD Player, Bag are installed in
accordance with the instructions and illustrations provided in this
manual. When the main unit is in the bag, ensure the latch of the
bag are fastened to prevent the unit from falling. The “S” hooks
and all straps must be fastened correctly to secure the system in
the vehicle in the event of an accident. Operate the “Video in a
Bag” System with the bag open to ensure proper ventilation of the
monitorandtheDVDplayer.Thesystemisintendedtobemounted
for rear seat viewing only. Do not use the system in the front seat
while operating your vehicle.
*NOTE: The AC power supply that comes with the VBP3900 can only
suply the main unit. If an additional monitor is used, you must use the
power supply that is supplied with it.

4
3. Power
This system MUST be powered from the type of switched (Acces-
sory) power indicated on the marking label (i.e. not directly from the
car battery). Power should be applied to the unit when the ignition
key is in the Run and/or Accessory positions. To prevent battery
discharge, disconnect the “Video in a Bag” System jack from the
cigarette lighter socket when the unit is not in use. Use only the
supplied power cable matching this set to avoid electric hazards.
Always disconnect the power source first and then the jack from the
system.
4. Object and Liquid
Do not push objects of any kind into the system through openings;
do not spill or spray liquid of any kind on or in the system (this may
result in a fire or electric shock). Do not place anything heavy on the
unit.To ensure proper ventilation and proper operation, never cover
or block the slots and openings with a cloth or other material.
5. Disassemble
Do not attempt to disassemble the cabinet. There is a risk of electric
shock and/or exposure to Laser Radiation. Contact qualified ser-
vice personnel if your system is in need of repair.
6. Cleaning Unit
When cleaning, make sure the system is unplugged from the power
source. Do not use liquid cleaners or aerosol cleaners. Use a cloth
lightly dampened with water for cleaning the exterior of the system
only.
7. Disc
Do not use irregularly shaped discs such as heart or star-shaped
discs as they may cause the unit to malfunction. Do not stick paper,
tape or glue on the disc. Do not expose the disc to direct sunlight or
heat sources such as hot air ducts. Do not touch the surface of disc.
Handle the disc by its edge. Clean the disc by wiping the disc from

5
the center out with a cleaning cloth. Remove the disc from the unit
and store it in its case after playing. Some playback operations of
discs may be intentionally fixed by software producers. Since this
unit plays discs according to the disc contents the software pro-
ducers designed, some playback features may not be available.
Also refer to the instructions supplied with the discs.
C. Contents
1. 1 x Monitor & DVD Player Combo
2. 1 x AC to DC Adapter
3. 1 x Cigarette LighterAdapter
4. 1 x Remote Control
5. 1 x Mounting Bag with 4 Straps
6. 1x Storage bag
7. 1 x Instruction Manual
D. Power Source
1. Powering the system indoors (Refer to Figure 1)
Figure 1
UnzipthelowercompartmentofthebagandtakeouttheACtoDC
adapter.PlugoneendoftheACtoDCadapterintotheDC12Vjack
on the left side of the main unit, then plug the other end into the
110VACpowerreceptacle.
AC/DC
Adapter
DC Input
Jack

6
2. Powering the system in the vehicle (Refer to Figure 2)
Figure 2
Unzip the lower compartment of the bag and take the cigarette
lighter adapter. Plug one end into the DC 12V jack on the left side
of the main unit, then plug the other end into the cigarette lighter
socket.

7
E. Installation
1.Installing the system onto the seat back in a car (Refer
to Figure 3)
Figure 3
1)Unfastenthevelcrostrapon the rear of the bag. Foldthe
strapintotheshapeofatriangleand fasten it to thebag.
2)Takeoneof the supplied strapsfromthe lower compartment.
Connectthelatchtooneoftheupper metalringsonthemount-
ing bag. Connect the “S” hook to the other upper metal ring
and place the loop over the headrest. Adjust the strap until
the bag is firmly secured.
3) Take one of the supplied straps from the lower compartment
of the bag, and connect the latch to the lower metal ring on
the left side of the bag. Attach the "S" hook to the same ring
after looping the strap around the seat rail. Repeat this pro-
cess for the right side. In some vehicles, it may be necessary
to attach the "S" connector to the rail directly, as it may not be
long enough to reach back to the ring.
4) Adjust the straps tightly so that the bag is secured.

8

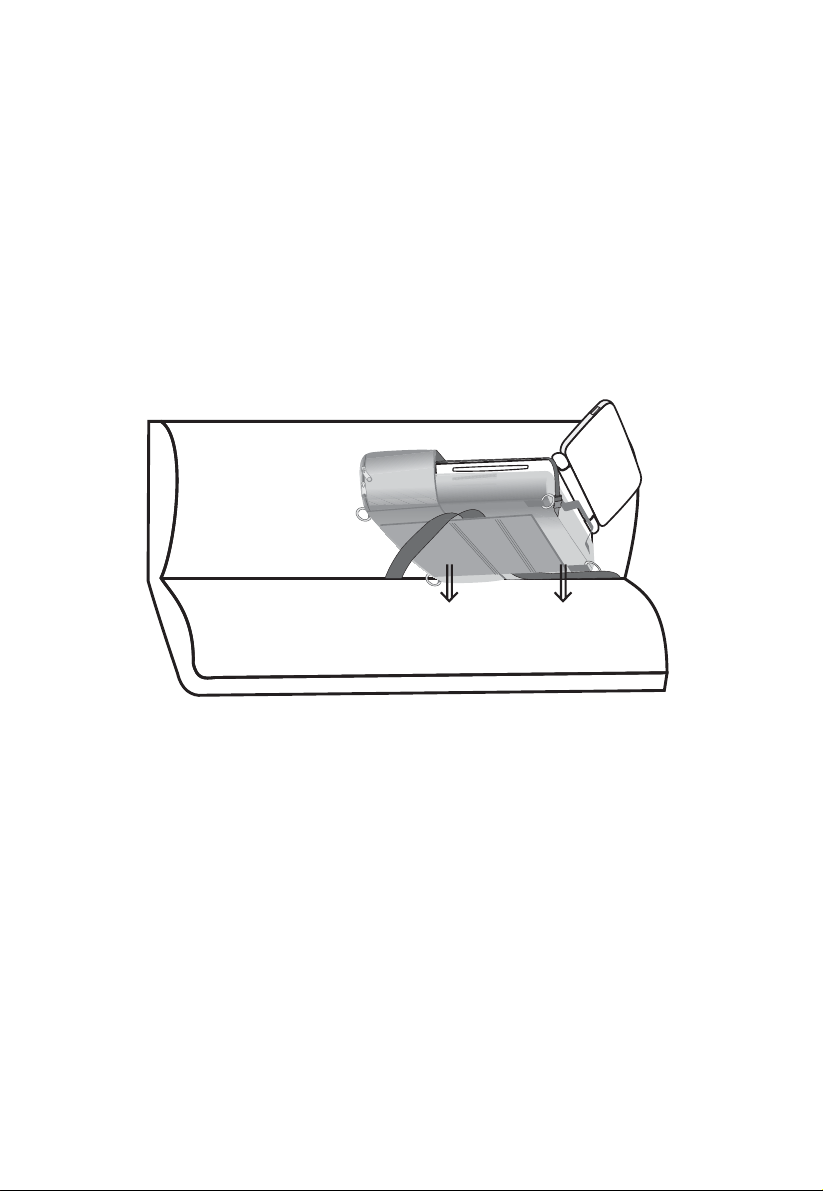

2. Installing the system between the driver/passenger seat
(Refer to Figure 4)
Figure 4
1)Take one of the supplied straps from the lower compartment
of the bag, and connect the latch to the upper side metal ring on
the left side of the bag. Attach the "S" hook to the same ring
after looping the strap around the headrest of the driver's seat.
Repeat this process for the right side (Passenger Seat).
2)Take another strap and connect the latch to lower metal ring on
the left side of the bag. Attach the "S" hook to the same ring
after looping the strap around the driver's seat rail. Repeat this
pro-cess for the right side. In some vehicles, it may be neces-
sary to attach the "S" connector to the rail directly, as it may not
belongenoughtoreachbacktothering.
3)Adjustthestrapstightly so that the bagissecured.

9
4) Unzip the bag and flip down the front flap. Ensure the retain-
ing Velcro strap of the bag is fastened to prevent the unit
from falling out. Swing the monitor upwards and adjust the
screenfor the desired viewing angle.
3. Installing the system on the back seat in a car (Refer to
Figure 5)
There is no need to remove the four straps from the bag as they
are not used in this installation.
Figure 5
Ensure the rear strap of the bag is attached to the upper Velcro
strip on the back of the bag. Carefully place the system (front
facingup) on theback seat. Guide the vehicle’ssafety beltthrough
the rear piece of the bag. Then secure and adjust the safety belt
so that the system is not free to move around. Swing the monitor
upward and adjust the screen for the desired viewing angle. En-
suretheretainingstrapofthebagisfastenedtoprevent theunitfrom
fallingout.

10
F. Controls, Indicators, and Connectors
1. Unit View (Refer to Figure 6)
Figure 6
1) Headphone Jack 1
2) Headphone Jack 2
3)VolumeUp/DownThumbwheel
4) DC 12V power Jack
5) S Video Output Jack
6) Video Jack
7) Audio L Jack
8) Audio R Jack
9) Input/Ouput Switch
10) Monitor Port
11) Remote Control Sensor
12) Power Button
13) Power Indicator
14) Menu Button
15) Previous Button
16) Play Button
17) Next Button
18) Up/Down/Left/Right/Enter
Buttons
19) Stop Button
20) Eject Button
20) Brightness Up/Down
Thumbwheel

11
2. Remote Control View (Refer to Figure 7)
1) Power Button
2)Display Button
3) Angle Button
4) Subtitle Button
5) Audio Button
6) Zoom Button
7) Up/Down/Left/Right /
Enter Buttons
8) Menu Button
9) Return Button
10) A-B Button
11) Forward Button
12) Reverse Button
13) Slow Button
14) Stop Button
15) Eject Button
16) Number Button
17) Setup Button
18) Repeat Button
19) Skip- Button
20) Skip+ Button
21) Pause Button
22) Play Button Figure 7
G. Playing A DVD
After connecting power to the unit, press the power button on the
main unit momentarily. Insert the disc into the slot on the right side
of the main unit, the unit will load the disc and start playing auto-
matically; if there’s a disc inside unit, press the POWER button,
the unit will start playing automatically.

12
1. Basic Operation
POWER
EJECT
PLAY
SLOW
PAUSE
STOP
NEXT
PREVIOUS
FORWARD
REVERSE
UP/DOWN/LEFT /
RIGHT
ENTER
NUMBERS
RETURN
MENU
REPEAT
A-B
DISPLAY

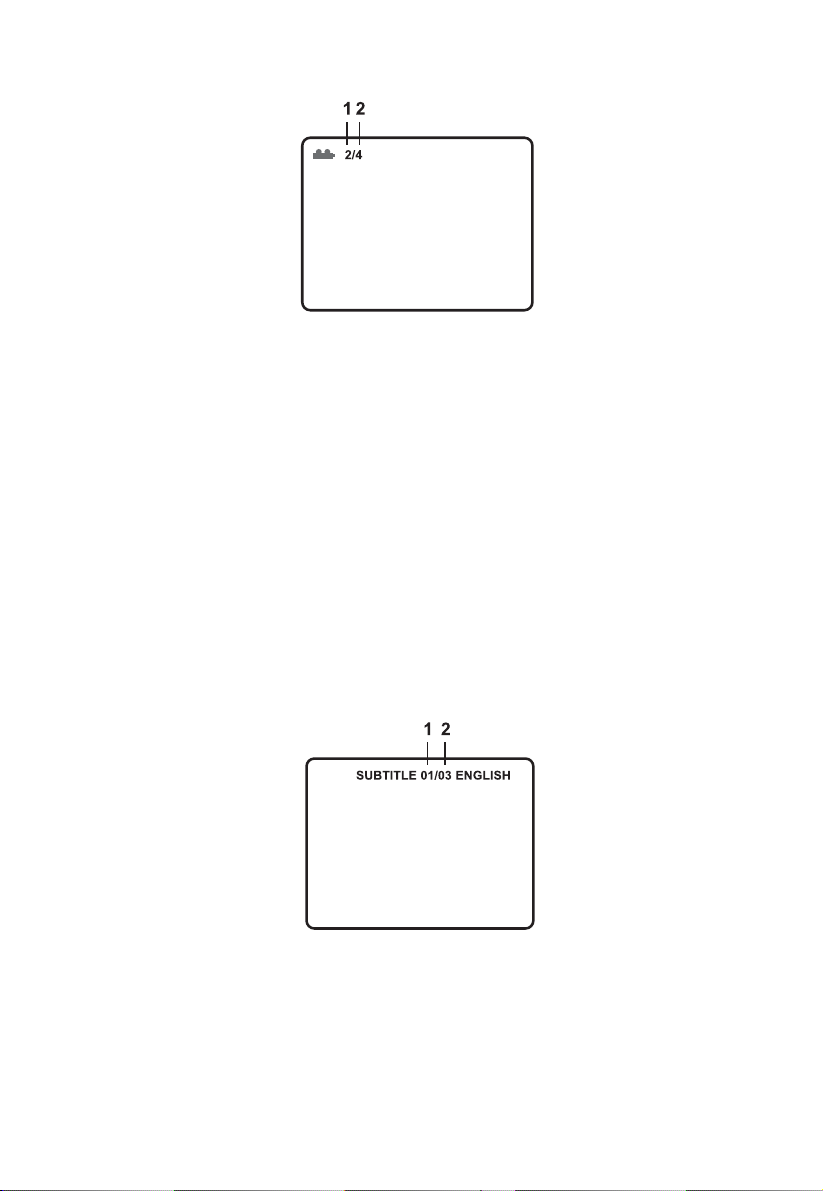

ANGLE
SUBTITLE
AUDIO

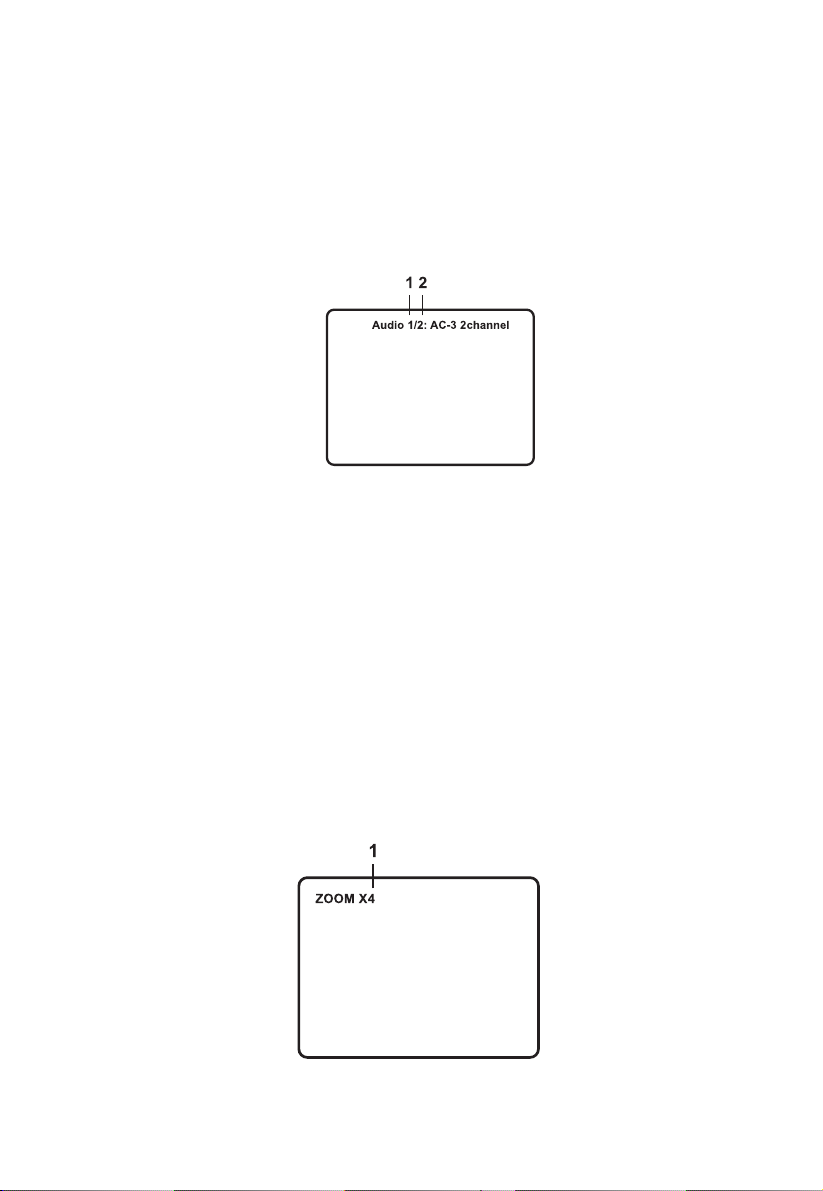

ZOOM
SETUP
Turnon/offtheunit
Eject/load the disc
Start Play
Play at 1/2, 1/4, or 1/8 times speed
Still Picture
(1 time) Stop at the present playing point /
(2 times) Stop playing
Go to the next chapter, track or scene dur-
ing play back
Go back to the preceding chapter, track or
scene during play back
Scan forward at 2, 4, 6, or 8 times speed
Scanbackwardat 2, 4,6,or 8 times speed
Providesfor MenuNavigation
Execute item or setting
Select item or setting
Selecting password or other numeric func-
tions
Return to the previous selection
Display the root menu of the disc

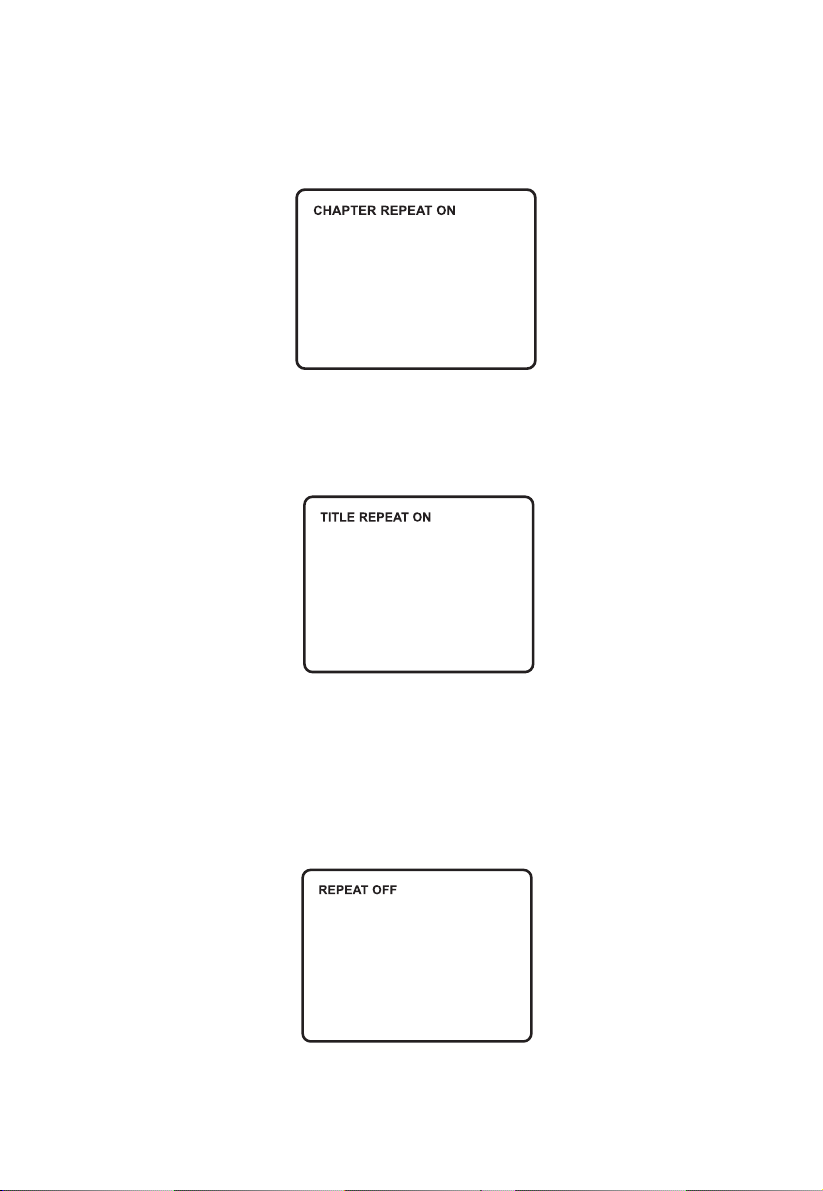

Repeat playing title, chapter or track

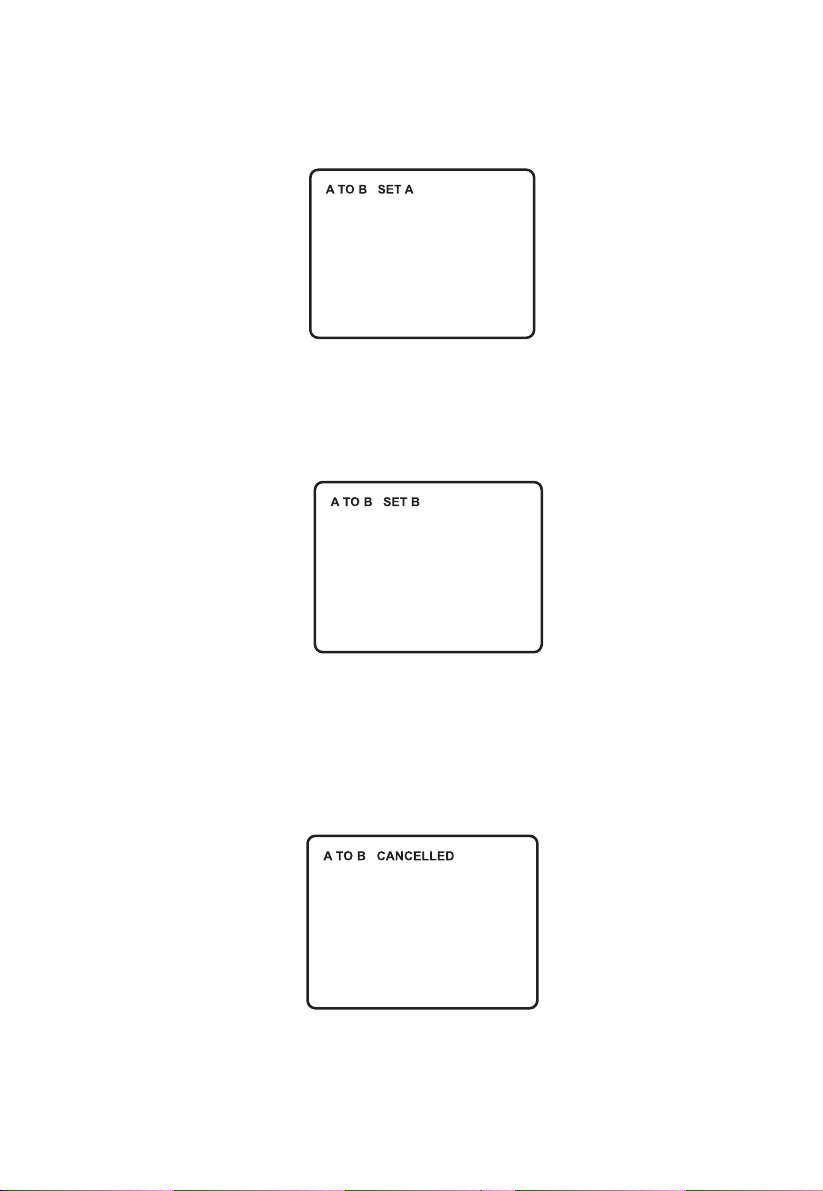

Repeat a specific portion from point A to
point B of the disc

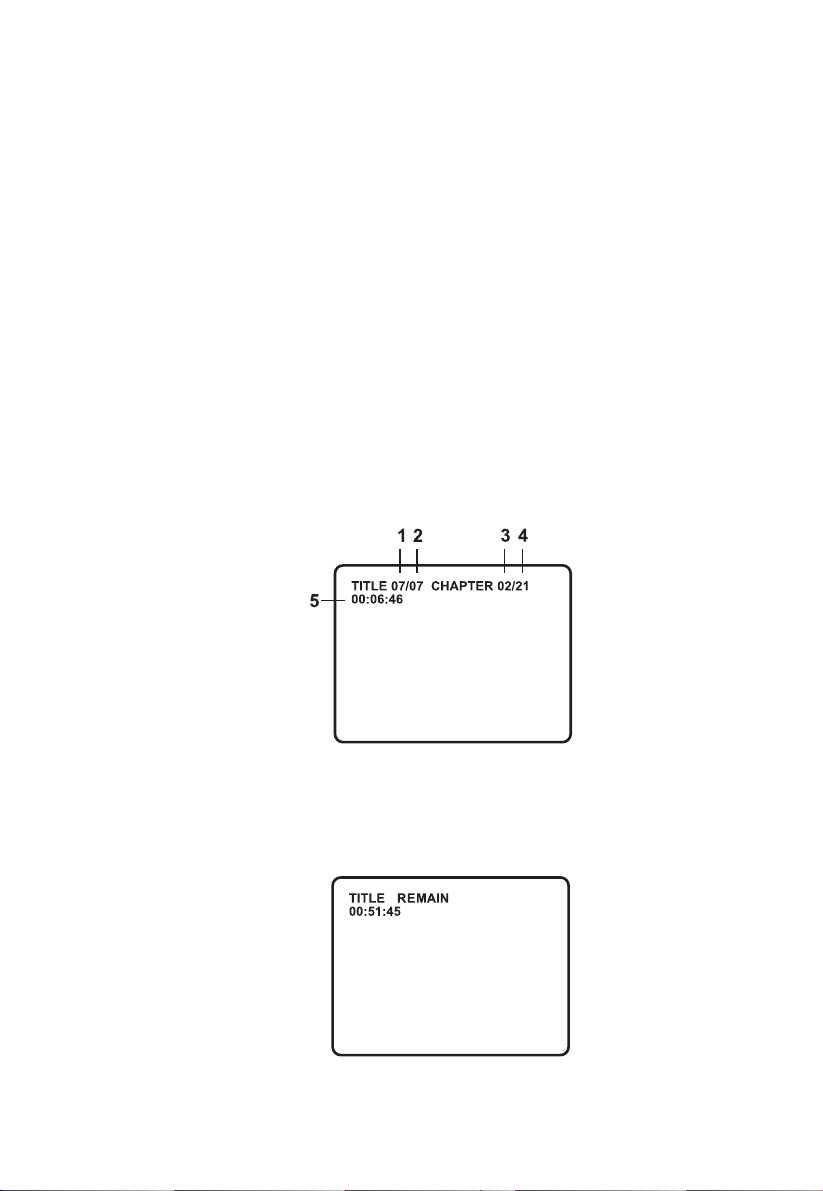

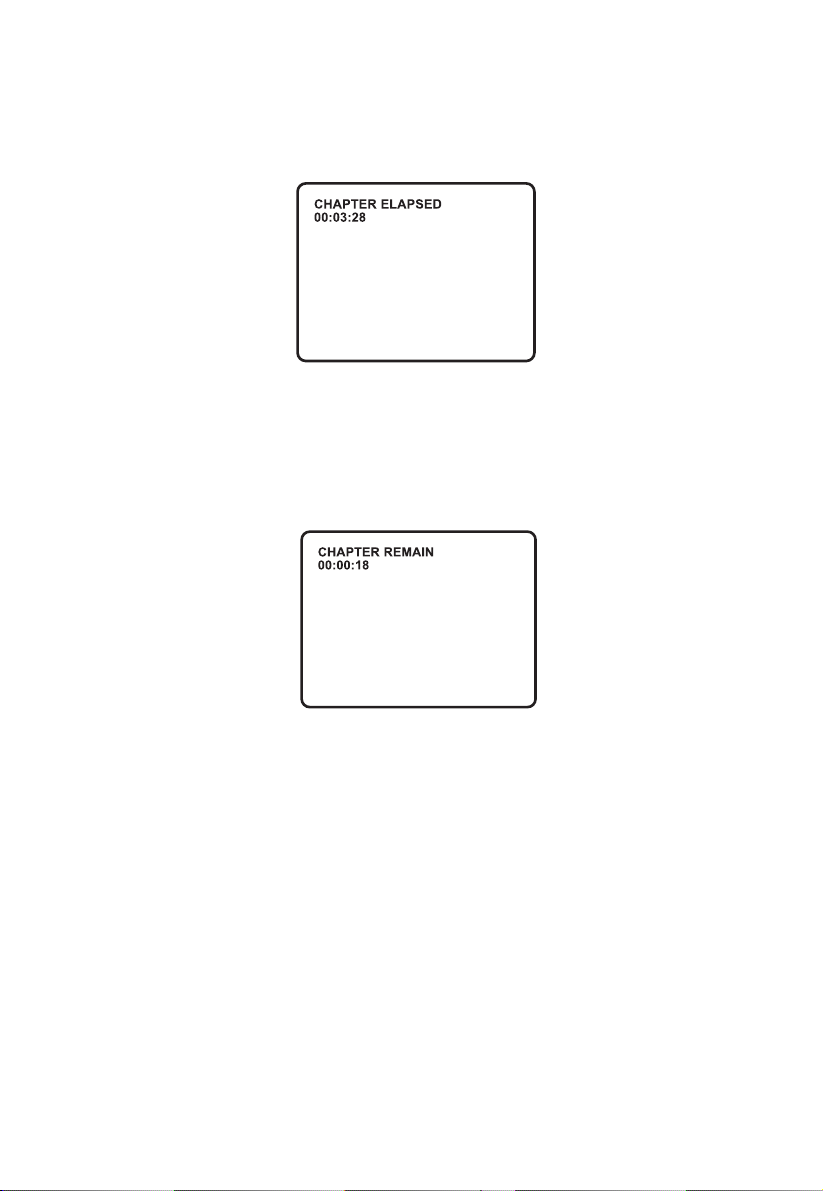

Display information (title, chapter, or track,
time,etc.).
Changethe angles on thescene
*Notall DVDs contain thisfeature
Selectthesubtitlelanguageandturniton/off
Selecttheaudiolanguage
Enlarge an image to 1.5, 2, or 4 times the
original
Display the setup menu for selection of
various video and audio functions and exit
the setup menu.

13
2. MENU
A DVD is divided into sections called titles and chapters. When
you play a DVD, a root menu of the disc will appear on the screen
of your TV or Monitor. The contents of the menu vary from disc to
disc. Press MENU during playing to display the menu, and press
ENTER or PLAY to start playing. Some DVDs only allow you to
select disc playback options using the DVD menu.
3. DISPLAY (Display contents vary from disc to disc.)
1) PLAYING TIME AND REMAINING TIME
a. During playback press ‘DISPLAY’ to display the current Title
Number (1), the total Number of Titles (2), the current Chap-
ter Number (3), the total Number of Chapters (4), and the
Playing Time for the title (5). The heading will disappear auto-
matically after 3 seconds if no buttons are pressed.
b. Press ‘DISPLAY’ again to display the Remaining Time of the
title. The heading will disappear automatically in about 3
seconds.
Title, Chapter Number, and Time Screen Display
Title Remaining Time Screen Display

14
c. Press ‘DISPLAY’ the 3rd time to display the Elapsed Time for
the chapter. The heading will disappear automatically in about
3 seconds.
d. Press ‘DISPLAY’ the 4th time to display the Remaining Time
for the chapter. The heading will disappear automatically after
3 seconds. Press ‘DISPLAY’ a 5th time to exit.
2) ANGLE
During playback of a disc, press ‘ANGLE’ to display the avail-
able angles for discs containing multi-angles*, with the current
angle number (1) and the total number of angles (2) displaying.
Press ‘ANGLE’ to select another angle, then press again to exit
and return to the normal viewing angle. The angle display will
disappear automatically if the ‘ANGLE’ button is not pressed
again within 3 seconds.
*NOTE: Not all discs contain this feature.
Chapter Elapsed Time Screen Display
Chapter Remaining Time Screen Display

15
3) SUBTITLE
During disc playback press ‘SUBTITLE’ to select the subtitle
language you desire, with the current Subtitle Language Num-
ber(1)andthetotalNumberof SubtitleLanguages(2)displayed.
If there are multiple languages press ‘SUBTITLE’ again to se-
lect another subtitle language. To turn subtitles OFF, press the
‘SUBTITLE’ button until ‘SUBTITLE OFF’is displayed.The Sub-
title display will disappear automatically if the ‘SUBTITLE’ but-
ton is not pressed again within 3 seconds.
Angle Screen Display
Subtitle Screen Display

16
4) AUDIO
During playback press ‘AUDIO’ to select the audio language
you desire, with the current Audio Channel Number (1) and the
totalnumberofAudio Channels(2)displayed.PressAUDIOagain
to select another audio language. The audio display will disap-
pear automatically if the ‘AUDIO’ button is not pressed again
for 3 seconds.
5)ZOOM
During playback press ‘ZOOM’ to enlarge the picture by 1.5, 2,
or 4X with the current zoom multiple (1) displaying. Press ‘UP/
DOWN/LEFT/RIGHT’ to move the picture. Press ‘ZOOM’ again
to select another zoom multiple or until ZOOM OFF is displayed
and the picture will return to normal size. The zoom display will
disappear automatically if the ‘ZOOM’ button is not pressed
within 3 seconds.
Audio Language Screen Display
ZOOM Screen Display
NOTE: Some DVDs only allow control of subtitles and audio the DVD
root menu

17
6) A-BREPEAT
a. During playback press ‘A-B’ to set the Starting Point A.
b. Press ‘A-B’ to set the Ending Point B and the player will re-
peatedly play the part between Point A and Point B.
c. Press ‘A-B’ a 3rd time to Cancel A-B Repeat. Normal play
back will resume from Point A.
A - B Repeat Starting Point Screen Display
A-B Repeat Cancelled Screen Display
A - B Repeat Ending Point Screen Display

18
7) REPEAT
a. During playback press ‘REPEAT’ once to repeatedly play the
current chapter.
b. During playback press’ REPEAT ‘again to repeatedly play the
current title.
c. During playback press’ REPEAT’ a 3rd time to cancel the re-
peat playback function and resume normal play back. The
repeat display will disappear automatically if the ‘REPEAT’
button is not pressed again for 3 seconds.
Chapter Repeat ON Screen Display
Title Repeat ON Screen Display
Repeat OFF Screen Display

19
4. PLAYING AUDIO CDS
When playing an audio CD, the DISPLAY Banner appears
automatically. It displays the current track and the amount of the
time for that track playing, the total amount of time on the disc and
thecurrent time runningonthe disc. Press theDISPLAYbuttonon
the remote to display the DISPLAY Banner. The options below
show you what happens when you press the DISPLAY button.
a. During playback press ‘DISPLAY’ once and SINGLE
ELAPSED will appear along with the current track
playing and the time of that track.
b. Press ‘DISPLAY ‘2 twice and SINGLE REMAIN appears
along with the current track playing the and the amount
of time left.
SINGLE ELAPSED 01/02
00:00:00
SINGLE ELAPSED Screen Display
SINGLE REMAIN 01/02
00:00:00
SINGLE REMAIN Screen Display

20
c. Press ‘DISPLAY’ three times and TOTAL ELAPSED
appears along withthe current track playing the total
time playing on theCD.
d. Press ‘DISPLAY’ four times and TOTAL REMAIN appears
along with the current track playing and the amount of time
left on the CD.
e. Press ‘DISPLAY’ a fifth times and “OFF” will appear
momentarily then disappear. CD Time Information will not be
displayed.
1) USING THE REPEAT FEATURE
The default mode for the Repeat feature is OFF. Pressing REPEAT
consecutively changes the repeat options:
•REP-ONE- repeats the track that is playing.
•REP-ALL- repeats the disc that is playing.
•REPEAT OFF
As you toggle through the options, the repeat option changes. The
selected repeat option loops repeatedly until you turn it off.
TOTAL ELAPSED Screen Display
TOTAL REMAIN Screen Display
TOTAL ELAPSED 01/02
00:00:00
TOTAL REMAIN 01/02
00:00:00
