Audiovox VBP3800 User manual

1
VBP3800
VIDEO IN A BAG SYSTEM WITH
5" LCD MONITOR & DVD PLAYER

2
SAFETY PRECAUTION
Do not change video media while the vehicle is in motion. Do not allow
children to unfasten seat-belts to change video media or make any
adjustments to the system. Enjoy your entertainment system but al-
ways remember the safety of all passengers remains the number one
priority.
IMPORTANT NOTICE
It is unlawful in most jurisdictions for a person to drive a motor vehicle
which is equipped with a television viewer or screen that is located in
the motor vehicle at any point forward of the back of the driver’s seat,
or that is visible, directly or indirectly, to the driver while operating the
vehicle. In the interest of safety, this system should never be installed
where it will be visible, directly or indirectly, by the operator of the mo-
tor vehicle.
A. Introduction
Thank you for selecting the VBP3800 “Video in a Bag” System.
Please read the entire instruction manual supplied with this product
prior to operation. It will assist you in installing the system properly
and obtaining the best equipment performance. All manuals should
be stored for later use. The system's main features include a 5"
Liquid Crystal Display (LCD) monitor and a DVD player. The sys-
tem utilizes the latest state of the art electronics and is designed for
use in vehicles, hotels, offices or your home. The VBP3800 Video
in a Bag is built to provide years of reliable, trouble-free service. It is
compact so that you can take it with you anywhere and is designed
for quick and easy installation. Additional monitors*(AUDIOVOX
VBPEX56) can be purchased and added to the system allowing you
to utilize up to 3 monitors at once. Simply plug the addition monitor
into the system and you are ready to play.

3
B. Cautions and Warnings
1. Placement
To prevent fire or electric shock, do not expose this appliance to
rain or moisture. To prevent it from falling, do not place the set on
an unstable cart, stand, tripod, bracket or table. Keep the unit away
from strong magnets, heat sources, direct sunlight, excessive dust.
If the unit is brought directly from a cold to a warm location, mois-
ture may condense inside the unit. When you move it from a cold
to a warm location, wait for about one hour before operating the
unit, or remove the disc and leave the unit turned on until the mois-
ture evaporates.
2. Installation
Ensure that the VBP3800 is installed in accordance with the in-
structions and illustrations provided in this manual. When the main
unit is in the bag, the latch of the bag must be fastened to prevent
the unit from falling out. The “S” hooks and all straps must be fas-
tened correctly to secure the system in the vehicle. Operate the
“Video in a Bag” System with the bag open to ensure proper venti-
lation of the monitor and the DVD player. The system is intended to
be mounted for rear seat viewing only. Do not use the system in
the front seat while operating your vehicle.
*NOTE: For home use, the AC/DC power supply that comes with the
VBP3800 can only supply the main unit. If an additional monitor is used,
you must use the AC/DC power supply that is included in all optional
screens.

4
3. Power
This system MUST be powered from the type of switched (Acces-
sory) power indicated on the marking label (i.e. not directly from the
car battery). Power should be applied to the unit when the ignition
key is in the Run and/or Accessory positions. To prevent battery
discharge, disconnect the “Video in a Bag” System jack from the
cigarette lighter socket when the unit is not in use. Use only the
supplied power cable matching this set to avoid electric hazards.
Always disconnect the power source first and then the jack from the
system.
4. Object and Liquid
Do not push objects of any kind into the system through openings;
do not spill or spray liquid of any kind on or in the system (this may
result in a fire or electric shock). Do not place anything heavy on the
unit. To ensure proper ventilation and proper operation, never cover
or block the slots and openings with a cloth or other material.
5. Disassemble
Do not attempt to disassemble the cabinet. There is a risk of electric
shock and/or exposure to Laser Radiation. Contact qualified ser-
vice personnel if your system is in need of repair.
6. Cleaning Unit
When cleaning, make sure the system is unplugged from the power
source. Do not use liquid cleaners or aerosol cleaners. Use a cloth
lightly dampened with water for cleaning the exterior of the system
only.
7. Disc
Do not use irregularly shaped discs such as heart or star-shaped
discs as they may cause the unit to malfunction. Do not stick paper,
tape or glue on the disc. Do not expose the disc to direct sunlight or
heat sources such as hot air ducts. Do not touch the surface of disc.
Handle the disc by its edge. Clean the disc by wiping the disc from

5
the center out with a cleaning cloth. Remove the disc from the unit
and store it in its case after playing. Some playback operations of
discs may be intentionally fixed by software producers. Since this
unit plays discs according to the disc contents the software pro-
ducers designed, some playback features may not be available.
Also refer to the instructions supplied with the discs.
C. Contents
1. 1 x Monitor & DVD Player Combo
2. 1 x AC to DC Adapter
3. 1 x Cigarette Lighter Adapter
4. 1 x Remote Control W/battery CR2025
5. 1 x Mounting Bag with 4 Straps
6. 1 x Travel bag
7. 1 x Instruction Manual
D. Power Source
1. Powering the system indoors (Refer to Figure 1)
Figure 1.
Unzip the lower compartment of the bag and take out the AC to DC
adapter. Plug one end of the AC to DC adapter into the DC 12V
Input jack on the rear right side of the main unit, then plug the other
end into the 110V AC power receptacle.
AC/DC
Adapter
DC Input
Jack

6
E. Installation
1.Installing the System onto the seat back in a car
(Refer to Figure 2)
Figure 2.
1. Unfasten the Velcro strap on the rear of the bag. Fold the
strap into the shape of a triangle and fasten it to the lower
Velcro strip.
2. Take one of the supplied straps from the lower compartment.
Connect the latch to one of the upper metal rings on the
mounting bag. Connect the “S” hook to the other upper metal
ring and place the loop over the headrest. Adjust the strap
until the bag is firmly secured.
3. Take one of the supplied straps from the lower compartment
of the bag, and connect the latch to the lower metal ring on
the left side of the bag. Attach the “S” hook to the same ring
after looping the strap around the seat rail. Repeat this pro-
cess for the right side. In some vehicles, it may be neces-
sary to attach the “S” connector to the rail directly, as it may
not be long enough to reach back to the ring.
4. Adjust the straps tightly so that the bag is secured.

7
1. Installing the system between the driver/passenger seat
(Refer to Figure 3)
Figure 3.
1. Take one of the supplied straps from the lower compartment
of the bag, and connect the latch to the upper metal ring on
the left side of the bag. Attach the “S” hook to the same ring
after looping the strap around the headrest of the driver’s seat.
Repeat this process for the right side (Passenger Seat).
2. Take another strap and connect the latch to lower metal ring
on the left side of the bag. Attach the “S” hook to the same ring
after looping the strap around the driver’s seat rail. Repeat
this process for the right side. In some vehicles, it may be
necessary to attach the “S” connector directly to the rail, as it
may not be long enough to reach back to the ring.
3. Adjust the straps tightly so that the bag is secured.
4. Swing the monitor upwards and adjust the screen for the de-
sired viewing angle.

8
2. Powering the system in the vehicle (Refer to Figure 2)
Figure 4.
Unzip the lower compartment of the bag and take out the cigarette
lighter adapter. Plug one end into the DC 12V jack on the left side of
the main unit, then plug the other end into the cigarette lighter socket.

9

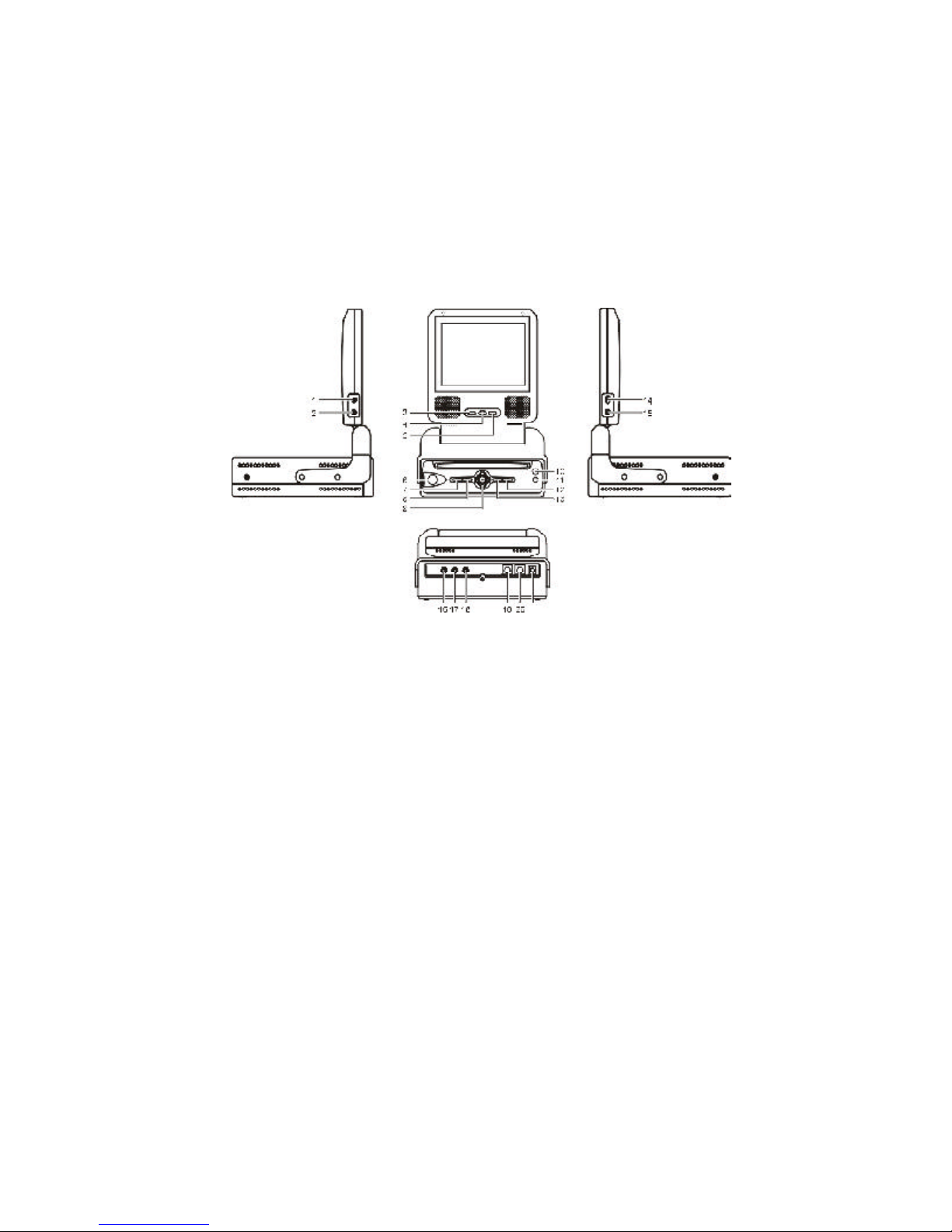

F. Controls, Indicators, and Connectors MAIN Unit
(Refer to Figure 5)
Figure 5.
1) Headphone Jack 1
2) Headphone Jack 2
3) VolumeUp / Down
Thumbwheel
4) Picture Up/Down Button
5) Brightness Thumbwheel
6) Power Button
7) Menu Button
8) Previous Button
9) PLAY/UP/DOWN/LEFT/
RIGHT Button
10) Eject Button
11) Remote Control Sensor
12) Stop Button
13) Next Button
14) DVD/AUX Switch
15) AV Input Jack
16) Video Output Jack
17) DVD Audio L Output Jack
18) DVD Audio R Output Jack
19) Monitor Port 1
20) Monitor Port 2
21) DC12V Input Jack
21

10
G. Remote Control
(Refer to Figure 7)
1) Power Button
2) Display Button
3) Angle Button
4) Subtitle Button
5) Audio Button
6) Zoom Button
7) Up/Down/Left/Right /
Enter Buttons
8) Menu Button
9) Return Button
10) A-B Button
11) Forward Scan Button
12) Reverse Scan Button
13) Slow Button
14) Stop Button
15) Eject Button
16) Number Buttons
17) Setup Button
18) Repeat Button
19) Skip- Button
20) Skip+ Button
21) Play Button
22) Pause Button
Figure 6.

11
6. SETUP
Press ‘SETUP’ to display the Main screen of the SETUP Menu on
the screen. Press ‘SETUP’ again to exit the SETUP Menu and
the unit will resume it’s last playback or stop mode.
1) Select ‘GENERAL SETUP’ using the UP/DOWN buttons, then
press ‘ENTER’ to enter the GENERAL Setup screen.
a. Select TV DISPLAY using UP/DOWN, and then press RIGHT
to enter the submenu. Select the TV display mode on the
screen using UP/DOWN, and press ENTER to confirm the
setting. Press LEFT to return.
* NORMAL/PS: When the player is connected to a normal
TV, and a wide picture is shown on the full screen.
* NORMAL/LB: When the player is connected to a normal TV,
and a wide picture is shown on the screen with a black strip at
both the top and bottom of the screen.
Figure 8. General SETUP Menu Screen
Figure 7. Main SETUP Menu Screen

12
* WIDE: When the player is connected to a wide screen
TV, a wide picture is shown on the full screen.
b. Select ‘ANGLE MARK’ using UP/DOWN, and then press
the RIGHT button to enter the submenu. Choose Angle
Mark on or off displayed on the screen using the UP/DOWN
and then press ENTER to confirm the setting. Press the
LEFT button to return.
* ON: The screen will show angle mark.
(*If angle option is available)
OFF: The screen will not display the Angle Mark
c. Select ‘MAIN PAGE’ using UP/DOWN, and then press ENTER
to return to the main page.
Figure 9. ANGLE MARK Screen Display
*NOTE: The VBP3800 will enter the Screen Saver mode after
5 minutes if the image on the screen remains the same for
more then 5 minutes.

13

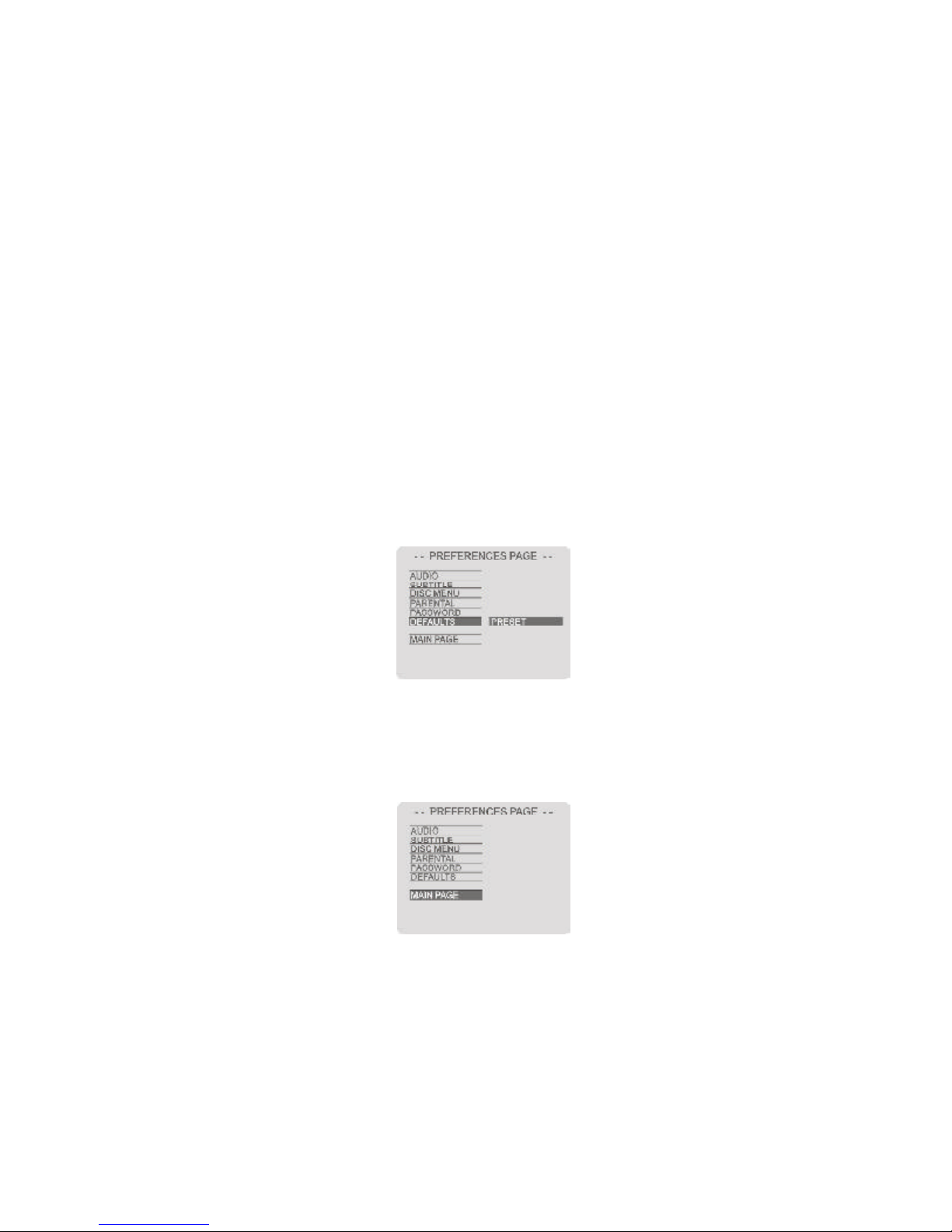

2) When there is no disc inside the player select ‘PREFERENCES’
using UP/DOWN, then press ‘ENTER’ to enter the preferences
page.

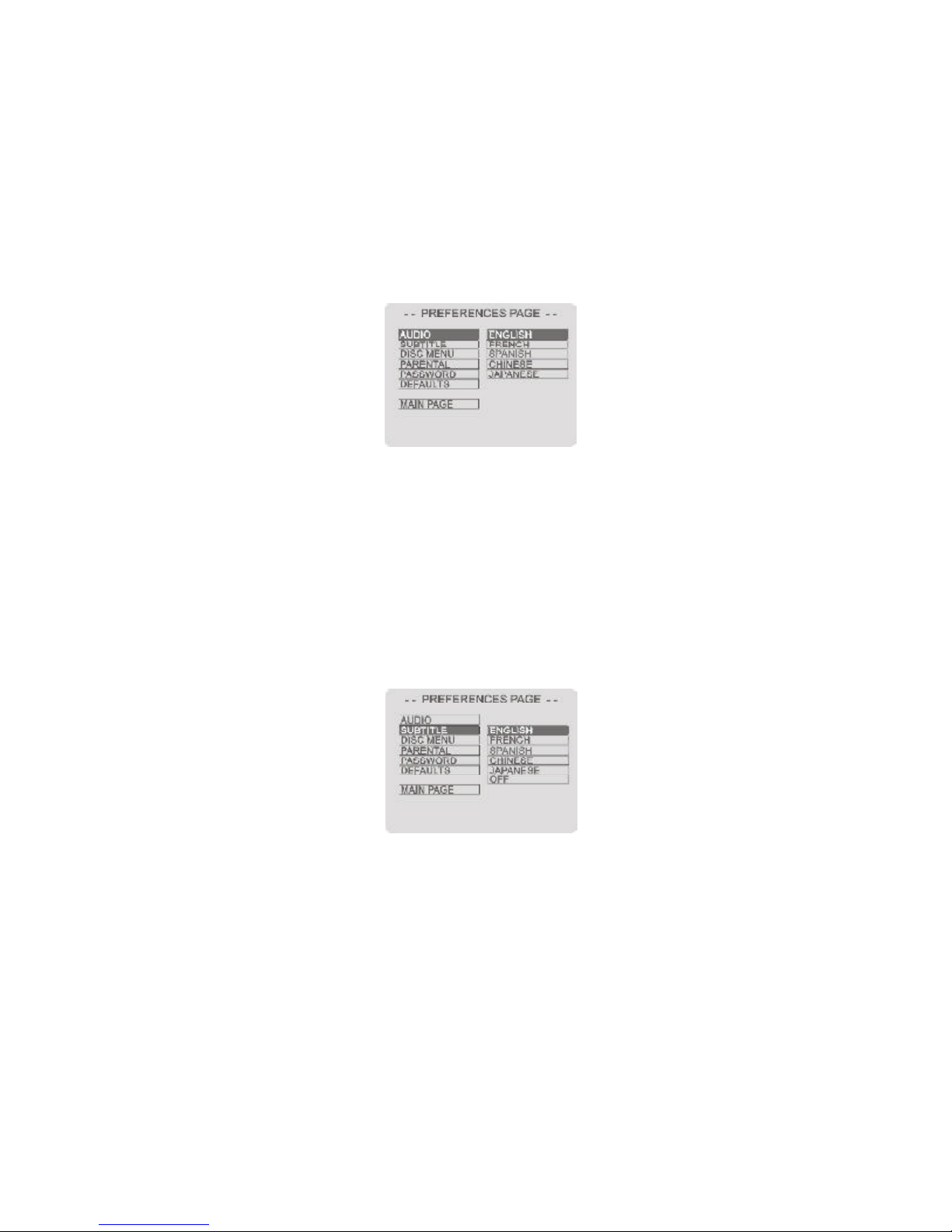

a. Select ‘AUDIO’ using UP/DOWN, then press ‘RIGHT’ to
enter the submenu. Select the audio language you desire using
UP/DOWN, then press ‘ENTER’ to confirm the setting.
Press LEFT to return.
b. Select ‘SUBTITLE’ using UP/DOWN, then press RIGHT
to enter the submenu. Select the desired subtitle language or
SUBTITLE OFF using UP/DOWN, then press ‘ENTER’
to confirm the setting. Press ‘LEFT’ to return.
Figure 10. AUDIO Preference Screen Display
Figure 11. SUBTITLE Preference Screen Display

14
c. Select ‘DISC MENU’ using UP/DOWN, then press ‘RIGHT’
to enter the submenu. Select the Disc Menu Language you
desire using UP/DOWN, then press ‘ENTER’ to confirm the
setting. Press ‘LEFT’ to return.
Note:Language and subtitle selection is only available for discs
that are recorded in the above listed languages. If the selected,
language is not available, the player will play and display on the
screen the original recorded language contained in the disc.
d. Select ‘PARENTAL’ using UP/DOWN, then press RIGHT
to enter the submenu.
Select the parental level you desire using UP/DOWN for discs
with lock-out function or multiple rating levels. These are listed
from the lowest level (1 Child) to the highest level (8 Adult).
Press ‘ENTER’ to enter the Password Verify Page.
Figure 12. DISC MENU Preference Screen Display
Figure 13. PARENTAL Preference Screen Display

15
Enter a 4 digit password, then press ‘ENTER’ to confirm the
parental level setting.
NOTE:For 1st time use the default password is 3308.
e. Select ‘PASSWORD’ using UP/DOWN, then press RIGHT
to enter the submenu.
Press ‘ENTER’ to enter the Password Change Page. Input
the Old Password or the Default Password, the New Pass-
word, and the Confirmed New Password. Press ‘ENTER’ to
confirm the change.
Figure 14. PASSWORD VERIFY Input Screen Display
Figure 15. PASSWORD CHANGE Screen Display
Figure 16. PASSWORD CHANGE PAGE Screen Display

16
NOTE:The Default Password is 3308. This password is al-
ways effective even after you have selected your own pass-
word and changed it. To avoid the possibility of others using the
default password to set the parental level and change the pass-
word, you can record this default password in another area and
delete it from this manual. Some discs can be limited depending
on the age of users while some discs can not.
f. Select ‘DEFAULTS’ using UP/DOWN, then press RIGHT to
enter the submenu. Press ENTER to make the setting return to
the factory-set mode.
NOTE: The parental setting is not affected by the default
function.
g. Select ‘MAIN PAGE’ using UP/DOWN, then press ENTER
to return to the main page. Press SETUP to exit the MAIN
PAGE
Figure 17. DEFAULT PRESET Screen Display
Figure 18. PREFERENCE MAIN Page Screen Display

17
1. Basic Operation
POWER
EJECT
PLAY
SLOW
PAUSE
STOP
NEXT
PREVIOUS
FORWARD
REVERSE
UP/DOWN/LEFT /RIGHT
ENTER
NUMBERS
RETURN
MENU
REPEAT
A-B
DISPLAY
ANGLE
SUBTITLE
AUDIO
ZOOM
SETUP
Turn the unit on/off
Eject/load the disc
Start Play/Execute item or setting
Play at 1/2, 1/4, 1/8 or 1/16 times speed
Still Picture
(1 time) Stop at the present playing point /
(2 times) Stop playing
Go to the next chapter, track or scene dur-
ing play back
Go back to the preceding chapter, track or
scene during play back
Scan forward at 2, 4, 8, or 16 times speed
Scan backward at 2, 4, 8, or 16 times speed
Used for Menu Navigation
Execute item or setting
Select item or setting
Return
Display the root menu of the disc
Repeat playing title, chapter, or track
Repeat a specific portion from point A to point
B of the disc
Display information (title, chapter, track,
time, etc.).
Change the angles on the scene
Select the subtitle language and turn it on/
off
Select the audio language
Enlarge an image to 2, 3, or 4 times the
original
Display the setup menu to select and set
items, and exit the setup menu.

18
2. MENU
A DVD is divided into sections called titles and chapters. When
you play a DVD, a root menu of the disc will appear on the screen
of your TV or Monitor. The contents of the menu vary from disc to
disc. Press MENU during playing to display the menu, and press
ENTER or PLAY to start playing. Some DVDs only allow you to
select disc playback options using the DVD menu.
3. DISPLAY(Display contents vary from disc to disc.)
1) PLAYING TIME AND REMAINING TIME
a. During playback press ‘DISPLAY’ to display the current Title
Number (1), the total Number of Titles (2), the current Chapter
Number (3), the total Number of Chapters (4), and the Playing
Time for the title (5). The heading will disappear automatically
after 3 seconds if no buttons are pressed.
b. Press ‘DISPLAY’ again to display the Remaining Time of the
title. The heading will disappear automatically in about 3
seconds.
Figure 19. Title, Chapter Number, and Time Screen Display
Figure 20. Title Remaining Time Screen Display

19
c. Press ‘DISPLAY’ the 3rd time to display the Elapsed Time for
the chapter. The heading will disappear automatically in about
3 seconds.
d. Press ‘DISPLAY’ the 4th time to display the Remaining Time for
the chapter. The heading will disappear automatically after 3
seconds.
e. Press ‘DISPLAY’ a 5th time to exit. ‘DISPLAY OFF’ will be
diplayed and will disappear automatically after 3 seconds.
2) ANGLE
During playback of a disc, press ‘ANGLE’ to display the avail
able angles for discs containing multi-angles*, with the current
angle number (1) and the total number of angles (2) displaying.
Press ‘ANGLE’ to select another angle, then press again to exit
and return to the normal viewing angle. The angle display will
disappear automatically if the ‘ANGLE’ button is not pressed
again within 3 seconds.
*NOTE: Not all discs contain this feature
Figure 21. Chapter Elapsed Time Screen Display
Figure 22. Chapter Remaining Time Screen Display

20
3) SUBTITLE
During disc playback press ‘SUBTITLE’ to select the subtitle lan-
guage you desire*, with the current Subtitle Language Number
(1) and the total Number of Subtitle Languages (2) displayed. If
there are multiple languages press ‘SUBTITLE’ again to select
another subtitle language. To turn subtitles OFF, press the ‘SUB-
TITLE’ button until ‘SUBTITLE OFF’ is displayed. The Subtitle
display will disappear automatically if the ‘SUBTITLE’ button is
not pressed again within 3 seconds.
Figure 23. Angle Screen Display
Figure 24. Subtitle Screen Display
*Some DVDs only allow access to this function through the DVD menu.
