D1718ES
PORTABLEDVDPLAYER WITHTWO 7" MONITORS
7"LCD MONITOR

2
NOTICE:
This Productincorporates copyrightprotection technologythat is pro-
tectedbymethod claims ofcertain patents and other intellectual prop-
erty rights owned byMacrovision Corporation and other rights owners.
Useofthis copyrightprotectiontechnologymust beauthorizedby
MacrovisionCorporation,andisintendedforhomeandotherlimitedview-
inguses only unless authorizedby MacrovisionCorporation. Reverse
engineeringor disassemblyis prohibited.
NOTICE:
An LCD panel and/or video monitor maybe installed in a motor vehicle
and visibleto the driver ifthe LCDpanelor video monitor isused for
vehicleinformation,systemcontrol, rearorsideobservationornavigation.
Ifthe LCD panel orvideo monitor is used for television reception, video
orDVD play,the LCD panel or videomonitor must beinstalled sothat
these featureswill only function when thevehicle isin park’or whenthe
vehicle’sparking brakeis applied.
An LCD panel orvideomonitor used for televisionreception, video or
DVD play thatoperates whenthe vehicle is ingear or whenthe parking
brake isnot appliedmustbeinstalledtothe rear of the driver’sseat
whereitwill not bevisible, directly or indirectly,to the operator of the
motorvehicle.

3
A.Introduction
ThankyouforchoosingtheD1718ESportable DVDplayer.Themain
featuresincludea7"Wide Screen(16:9AspectRatio)Liquid Crystal
Display (LCD)monitorandaDVDplayer. The unit applies the latest
stateoftheartelectronics and is designed for use in hotels,offices
oryourhome. Theunitisconstructed to provide yearsofreliable,
trouble-free service,andis compactso thatyou cantake itwithyou
anywhereandisdesignedforquickandeasyinstallation.Pleaseread
theentireinstructionmanual suppliedwiththis product prior to using.
Thedocumentationwillassist youininstallingthesystemproperlyto
obtainthebestequipmentperformance. Pleasesavethismanualfor
lateruse.
B. Cautions and Warnings
1. Placement
Topreventfireorelectric shock, donotexposethisappliance to
rain or moisture. Do notplace the seton an unstable cart, stand,
tripod,bracket ortabletopreventitfromfalling.Keep theunitaway
fromstrongmagnets,heatsources,directsunlight,excessivedust.
If theunitisbrought directly fromacoldtoawarmlocation,mois-
ture maycondenseinsidethe unit. Whenyoumove itfromacold
to awarmlocation,waitfor aboutone hourbeforeoperatingthe
unit,orremovethediscandleavetheunitturnedonuntilthemois-
tureevaporates.
2. Installation
Ensure that the D1718ES isusedin accordancewiththe instruc-
tions andillustrations providedinthis manual.
3. Objectsand Liquids
Donot pushobjects ofany kindintotheunitthroughopenings; do
not spillorspray liquidof any kindonorin thesystem(thismay
resultin afire or electricshock).Do notplace anything heavyon
theunit.Toensure properventilation andproperoperation,never
coverorblock theslotsandopeningswithaclothorothermaterial.
4. Disassembly

4
5. Cleaning Unit
Whencleaning,makesurethesystem isunplugged fromthepower
source. Donotuseliquid cleaners or aerosolcleaners. Usea cloth
lightly dampenedwith waterfor cleaningtheexterior ofthe system
only.
6. Disc
Do not use irregularlyshaped discs such asheart orstar-shaped
discs as theymay cause the unittomalfunction.Donotstickpaper,
tapeor glue on the disc. Do not expose thedisc to direct sunlight
or heat sources. Do not touchthe surface ofdisc. Handle thedisc
by itsedge. Cleanthedisc bywipingthedisc from the center out
with acleaning cloth. Removethe disc from the unit and store it in
its case after playing. Some playbackoperationsofdiscs maybe
intentionally fixed bysoftwareproducers. Since this unitplays discs
according to the disc contentsthesoftwareproducers designed,
some playbackfeatures maynot be available. Also refer to the in-
structionssuppliedwiththediscs.
7.Regional Coding
Both theDVDplayer and disc are coded by region. These
regional codes must match inorder for thedisc toplay.Ifthe
codesdon’t match, the disc won’t play. This unit’s code is region
1. DVD’swith other regionalcodes cannot beplayed in this unit.
Do not attempt to disassemblethe cabinet. Thereis a riskof elec-
tricshock and/orexposure toLaserRadiation.Contactqualified
service personnel ifyour system is in need of repair.

5
C. Contents
1.1x7’’ LCD Monitor & DVD Player Combo
2.1x7”LCD Monitor
3.2xAC to DCAdapter
4.1xRemote Control with battery(CR2025)
5.1xInstructionManual
6.1xAVAdapter Cable (One to Three Female)
7.1xAVAdapter Cable (One toThreeMale)
8.1xY Type DC Power Adapter
9.1xRechargeable Battery
10.1x Mounting BagWith Straps for theMonitor
11.1 xCarryBagWith Straps
D. Powering and installation
1. Powering thesystem indoors(Refer to Figure1)
Plugone end oftheAC to DC adapter into the DC 9V jackon the
right side ofthe mainunit, thenplugtheother end into a 120V
AC power outlet.
The monitor can also be powered in thesame manner.
2.Powering thesysteminacar(refer to Figure2)
Plug oneendofthe DCpower adapterinto the DC9V jack
on themainunit, then plugtheotherendintothe vehiclepower
socket.
Figure1
SingleMonitorMainUnit

6
Figure2
Main Unit
RightSide
Monitor
Monitor Main Unit

7
E. Vehicle Installation
Installing the DVD Player and monitor onto a car seat
(Refer to Figures 3 through 5)
1).Unfoldthe carrybag, andplace the DVD player on the bag
beneaththe elastic straps. Ensurethat the unit’scornersare
secured bythe elasticstraps.
2).Securetheupper portion of the carry bag toheadrest support
barsusingthe headreststrap.Adjust the headreststrap untilthe
bag isfirmly secured.
3). Securethelowerportionofthecarry bagto the vehicleseat back
using the seatback strap.Adjust the seat back strap until the
bag isfirmly secured.
Elastic
Straps
CarryBagClosed
VehicleSeat
Back
VehicleHeadrest
Figure3
Headrest Strap
Seat Back
Strap
CarryBagOpened

8
Installing the monitor
Option 1 Vehicle Headrest (Refer to Figure 4)
Figure4
Slidethe Monitor into the pouch and attach theVelcro straps to se-
cure the Monitorinthe pouch.Loopthe strap ofthe poucharoundthe
headrest andpullthe endofthe strapwhileholdingthe buckleto
secure the pouch to the headrest
Option 2 Flat Surface (Refer to Figure 5)
Figure5
Rotate the base ofMonitor backward and place on aflat surface.
Adjust thescreen for a proper viewingangle. Thiscanbedonewith
the Monitor insideor outside the pouch.

9
F. Controls, Indicators, and Connectors

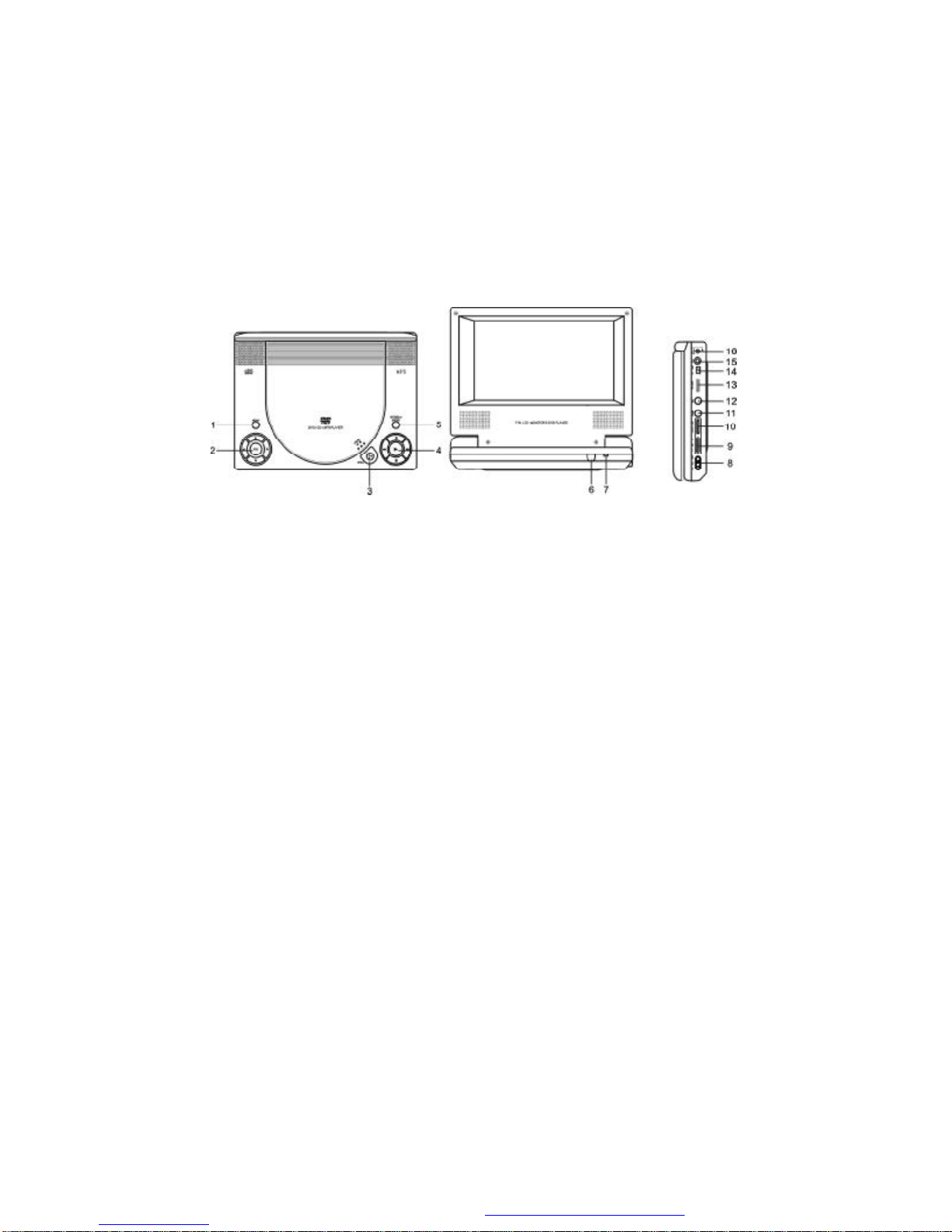

1. UnitView (Refer to Figure6)
Figure 6
1) Menu Button
2) Up/Down/Left/Right/OK
Buttons
3) Open Button
4) Previous/Next/Pause/
Stop/PlayButtons
5) Screen Mode Button
6)Remote Sensor
7) Power Indicator
8)PowerOn/OffSwitch
9) Brightness Up/Down Control
10) Volume Up/DownControl
11)HeadphoneJack 1
12)HeadphoneJack 2
13) E-Port
14)AV In/Out Switch
15)AVIn/OutJack
16) DC Input Jack

10

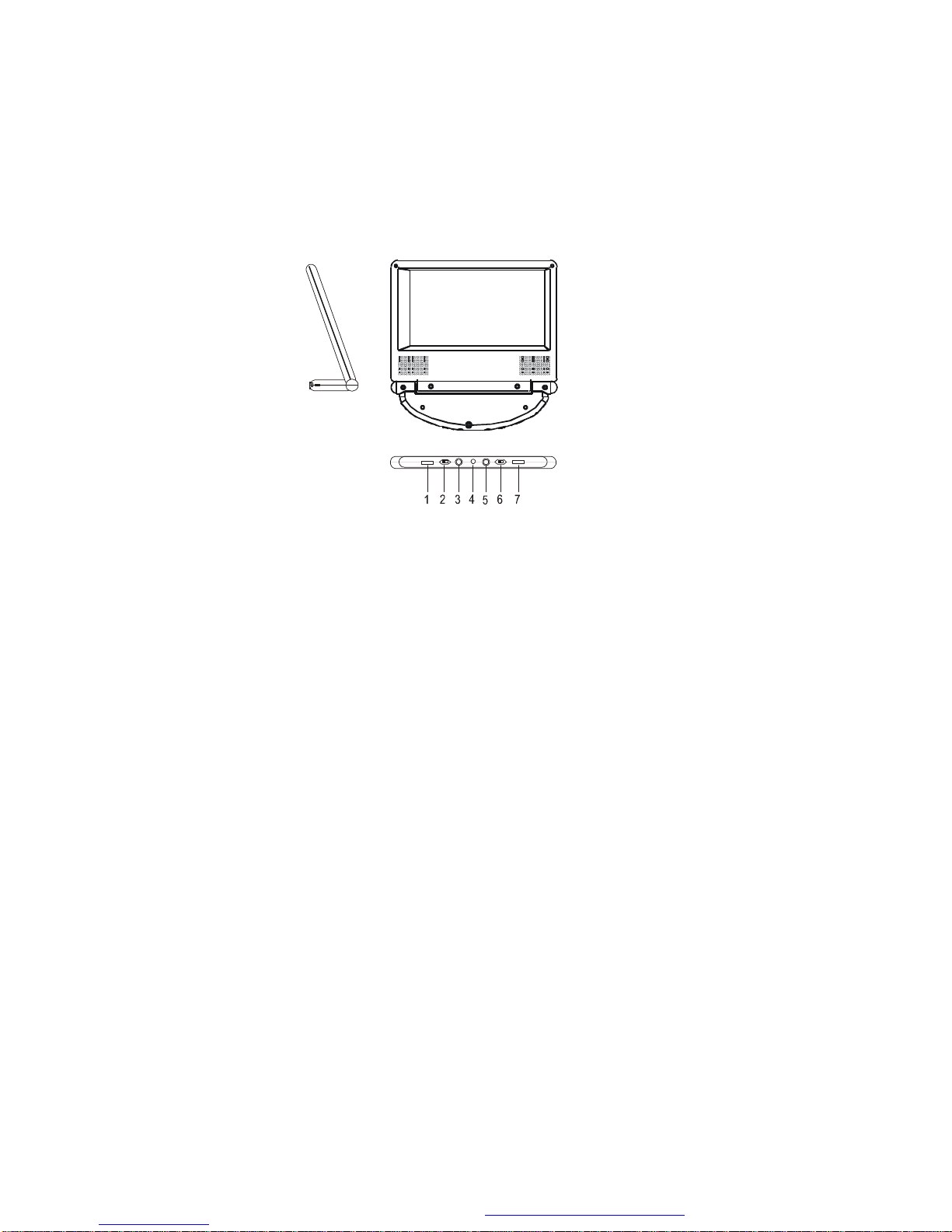

2. MonitorView (Refer to Figure 7)
Figure7
1). Volume Control
2). Reverse Switch
3). Headphone Jack
4). DC 9-12VInput Jack
5). AV InJack
6).PowerOff/OnSwitch
7).Brightness Control
NOTE: Slide theReverse Switch to rotate the picture 180 degrees.
