A.Introduction
Thankyou forchoosingtheD2017PKportableDVDplayer. Themain
featuresinclude a10.2"Wide Screen (16:9AspectRatio)Liquid Crys-
tal Display (LCD) monitorandaDVD player.Theunit appliesthe
latest state ofthe art electronics and isdesigned foruse in vehicles,
hotels,officesoryourhome.Theunitis constructed toprovide years
of reliable,trouble-free service, andiscompact sothatyou can take
it with you anywhere and is designed for quickand easyinstallation.
Please read the entireinstruction manual supplied with thisproduct
prior to using. The documentationwillassist you in installingthe sys-
temproperly to obtain thebest equipment performance. Pleasesave
this manual for later use.
B. Cautions and Warnings
1. Placement
Toprevent fireorelectric shock,donotexpose this appliance to
rainor moisture. Keep the unitawayfrom strong magnets, heat
sources,directsunlight, excessive dust.If the unit is brought di-
rectly from acold toa warmlocation, moisturemay condense in-
side theunit. When youmoveitfromacoldtoawarm location,
waitforabout one hour beforeoperating theunit, orremove the
disc andleave the unit turned on until the moisture evaporates.
2. Installation
Ensure that the D2017PK portableDVD player is used in accor-
dancewiththeinstructions andillustrations provided inthis manual.
3. Objects and Liquids
Do not push objects ofany kindinto the unit throughopenings;
do not spill or sprayliquid ofanykind on or in the system (this
mayresult in a fire or electric shock). Do not place anything
heavy onthe unit. Toensure proper ventilation and proper
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

5
operation,never cover or blocktheslots and openings with acloth
or other material. It is hazardousto replacethebattery incorrectly.
Replacethebatteryonly with thesame or equivalenttype.In order
to protect the environment, please dispose the batteryproperly.
Do not use the unit in temperatures higher than 95 degrees Fahr-
enheit or 35 degrees Celsius.
4.Disassembly
Donot attempt to disassemblethe unit.Thereisa riskofelectric
shockand/orexposure to LaserRadiation. Contactqualifiedser-
vicepersonnel ifyour system needs repair.
5.Cleaning Unit
Whencleaning,makesurethesystem isunplugged fromthepower
source. Donotuseliquid cleaners or aerosolcleaners. Usea cloth
lightly dampenedwith waterfor cleaningtheexterior ofthe system
only.
6. Discs
Do not use irregularlyshaped discs such asheart orstar-shaped
discs as theymay cause the unittomalfunction.Donotstickpaper,
tapeor glue on the disc. Do not expose thedisc to direct sunlight
or heat sources. Do not touchthe surface ofdisc. Handle thedisc
by itsedge. Cleanthedisc bywipingthedisc from the center out
with acleaning cloth. Removethe disc from the unit and store it in
its case after playing. Some playbackoperationsofdiscs maybe
intentionally fixed bysoftwareproducers. Since this unitplays discs
according to the disc contentsthesoftwareproducers designed,
some playbackfeatures maynot be available. Also refer to the in-
structionssuppliedwiththediscs.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

6
7.RegionalCoding
Both theDVDplayer and disc are coded by region. These
regional codes must match inorder for thedisc toplay.Ifthe
codesdon’t match, the disc won’t play. This unit’s code is region
1. DVDs withother regional codes cannot be played in thisunit
C. Contents
1. 1 x10.2’’ LCDMonitor & DVD Player
2. 1 xRemote Control with battery(CR2025)
3.1 x Audio/VideoAdapterCable
4. 1 xAC to DCAdapter
5. 1 xDC Power Adapter
6. 1x Instruction Manual
7. 1 xRechargeable Battery
8. 1 xCarryBagWithStraps
9. 2 xFoldable Headphones
D. Powering and Installation

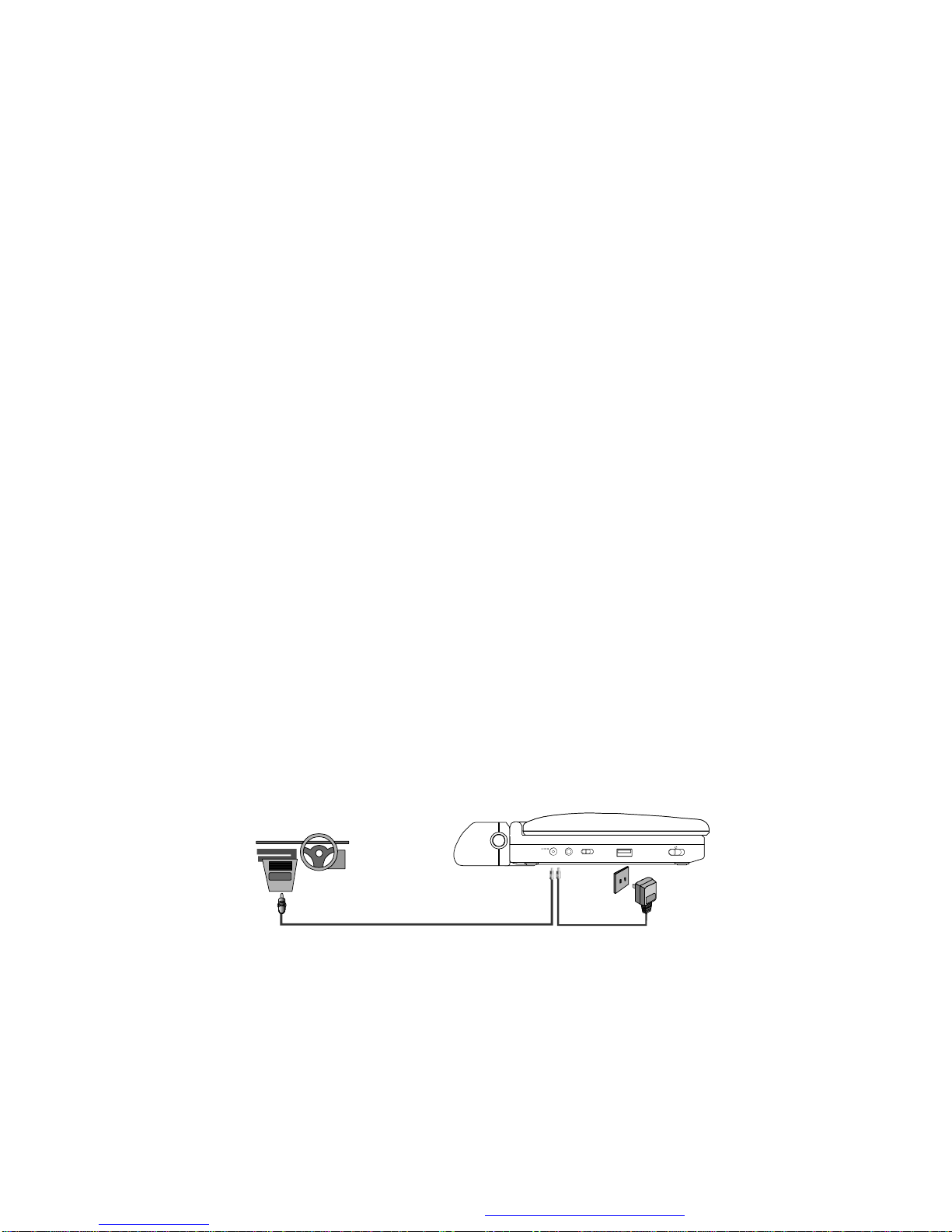

1. Powering the system indoors (Refer to Figure 1)
Plug one end of theAC to DC adapterinto the DCinputjackon the
left side ofthe mainunit, then plugthe otherend intothe 110~240V
AC power receptacle.
2. Powering the systemin a car
Plug one end ofthe DC Power adapter into the DC input jackon
theunit, then plug the other end intothe vehiclepower outlet.
Figure1
DC 9V
ONOFF
OUT IN
A/V
U
S
B
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

7
E. Vehicle Installation
Installingthe DVD Player onto the seat back ina car
(Refer to Figure 2)
1).Unfoldthe carrybag, andplace the DVD player on the bag
beneaththe elastic straps. Ensurethat the unit scornersare
secured bythe elasticstraps.
2).Securetheupper portion of the carry bag toheadrest support
barsusingthe headreststrap.Adjust the headreststrap untilthe
bag isfirmly secured.
3). Securethelowerportionofthecarry bagto the vehicleseat back
using the seatback strap.Adjust the seat back strap until the
bag isfirmly secured.
Elastic
Straps
CarryBagOpened
CarryBagClosed
Figure2
VehicleHeadrest
Vehicle Seat Back
Headrest Strap
Seat BackStrap
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

8
F. Controls, Indicators, and Connectors
1. UnitView (Refer to Figure3)
Figure 3

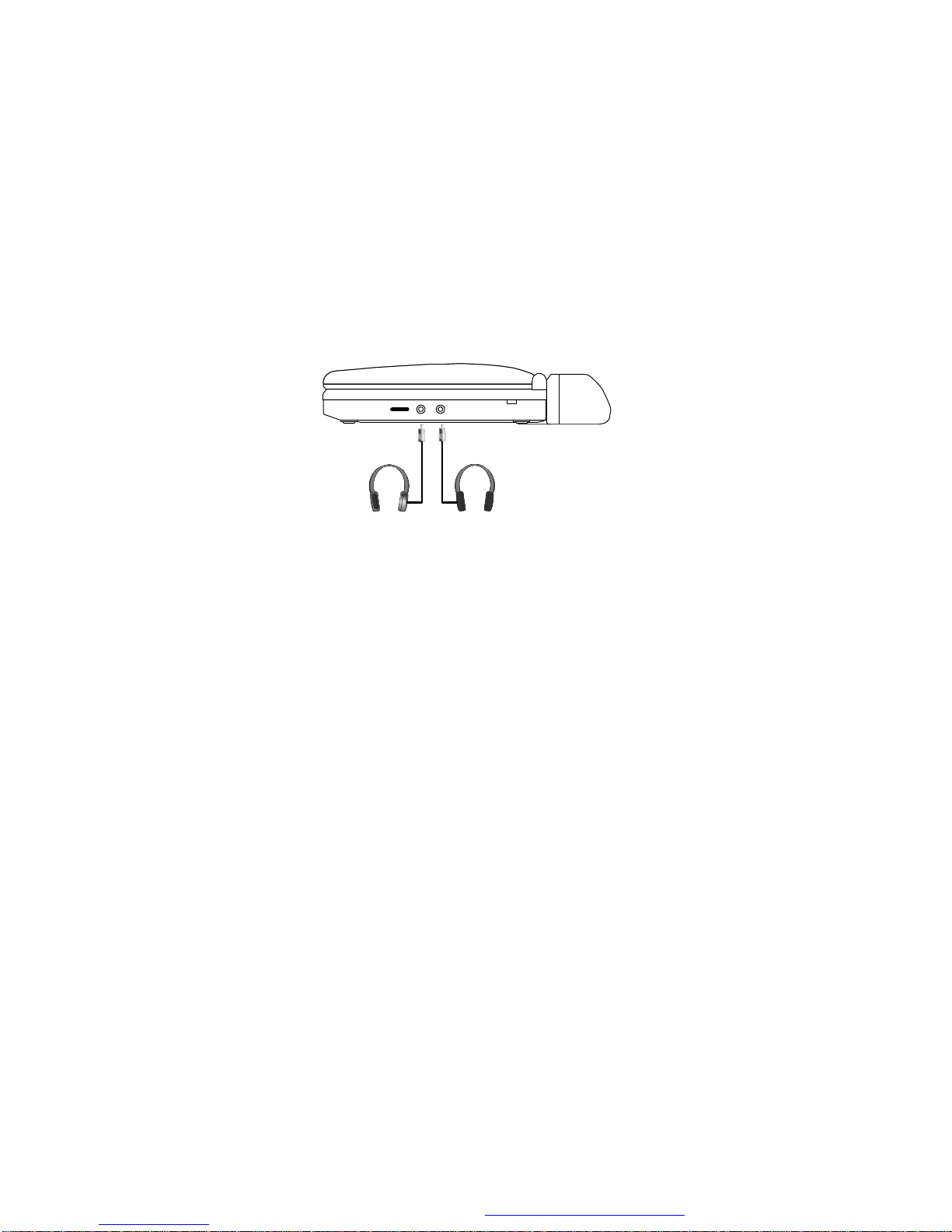

* Connectingto headphone jacknumber 1 will disable the
internal speakers
1
2
3
4
5
78910
11
12
13
14
15
16
17
18
19
6
1) Release Button ofBattery
2) DC 9-12V InputJack
3)AVJack
4)AVIn/Out SW
5) USB Port
6)PowerOn/OffSW
7) SD/MMC/MS Slot
8)Power LED
9)Remote Control Sensor
10) Cover Open Switch
11) Charge Indicator
12)Headphone Jack 1*
13)HeadphoneJack 2
14)Volume Control
15) LCD Panel shut off
16) Wide Button
17) Previous/Next/Pause/Stop/Play
18)MenuButton
19) Up/Down/Left/Right/OK Button
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

9
2.Remote Control (Refer to Figure4)
1)DVD/SD-USB Button
2) DisplayButton
3) Skip-Button
4) Menu Button
5) LeftButton
6)AngleButton
7) Stop Button
8) SetupButton
9) Numbers Button
10) Bright- Button
11)AudioButton
12) Subtitle Button
13) Up Button
14) Skip+ Button
15) Enter Button
16) Right Button
17) DownButton
18) Play/Pause Button
19) ZoomButton
20)A-B Repeat Button
21) Bright+ Button
22) 1-All Repeat Button
G. Loading and Playing a Disc
a.After connecting powerto theunit, poweron DVDplayer”with the
power switch. The powerindicator will light.
b.Openthedisctrayby sliding theOPEN switch inthe directionof
the arrow. Place a disc in the traywith label sidefacingup.
c. Close thetray bypressingthe area marked PRESS”.Theunitwill
load the discand start playing.
d. Rotate VOLUMEto adjustthe LCD’sbrightness and the DVD
player’svolume.
e. To stopplaying adisc,pressSTOP.
Figure 4
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

10
H. Basic Operation
POWER
OPEN
PLAY/PAUSE
STOP
NEXT
PREVIOUS
FORWARD
REVERSE
LEFT/RIGHT/UP/DOWN
ENTER
NUMBERS
MENU
REPEAT
A-B
DISPLAY
SUBTITLE
AUDIO
ZOOM
SETUP
Turnthe uniton/off
Remove/load the disc
Start Play/Execute item or setting
Still Picture
(1time) Stopatthepresentplaying point /
(2 times) Stop playing
Goto thenextchapter, track or scene
during play back
Gobacktothe previouschapter, track
or scene duringplayback
Scan forward at 2, 4, 8,16 or
32 times speed
Scan backward at 2, 4, 8, 16or
32 times speed
Used forMenu Navigation
Execute item or confirm setting
Select item or setting
Display the mainmenu ofthe disc
Repeat playingtitle, chapter, or track
Repeat a specific portionfrom
point A to pointBof thedisc
Displayinformation (title, chapter,
track, time, etc.).
Select thesubtitlelanguage andturn it
on/off
Selecttheaudio language
Enlargean imageto 2, 3, or 4 times the
original size.
Displaythe setup menuto select and
set items, and exit the setup menu.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

11
I.Menu
A DVD is divided into sections called titlesandchapters. When you
playaDVD’sroot menu of thediscwill appear on the screen of your
TVor Monitor. Thecontentsofthe menu varyfrom disc to disc.
Press MENU duringplaybackto display the menu. Some DVDs only
allowyou to select disc playbackoptions using the DVD root menu.
J.Display
1. PLAYINGTIME AND REMAININGTIME
a. Duringplaybackpress the ‘DISPLAY’button to displaythe cur-
rent Title Number (1), the total Number ofTitles (2), the current
ChapterNumber (3), thetotal Numberof Chapters (4), andthe
Playing elapsedTimefor thetitle (5). Theheadingwill disappear
automaticallyafter 3 seconds ifDISPLAYbuttonis not pressed.
Title, Chapter Number, and TimeScreenDisplay
b. Press ‘DISPLAY’constantlyto choosetheoptionsbelow in
sequence.
TitleElapsed: The elapsedtime ofthe title
Title Remain:The remaining time ofthe title
Chapter Elapsed: The elapsed time ofthe chapter
Chapter Remain: The remainingtime ofthe chapter
Display Off: The DVD’stime Information will not be displayed.
Title Elapsed
TitleRemain
Chapter Elapsed
Chapter Remain
DisplayOff
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

12
Audio Language
2. SUBTITLE

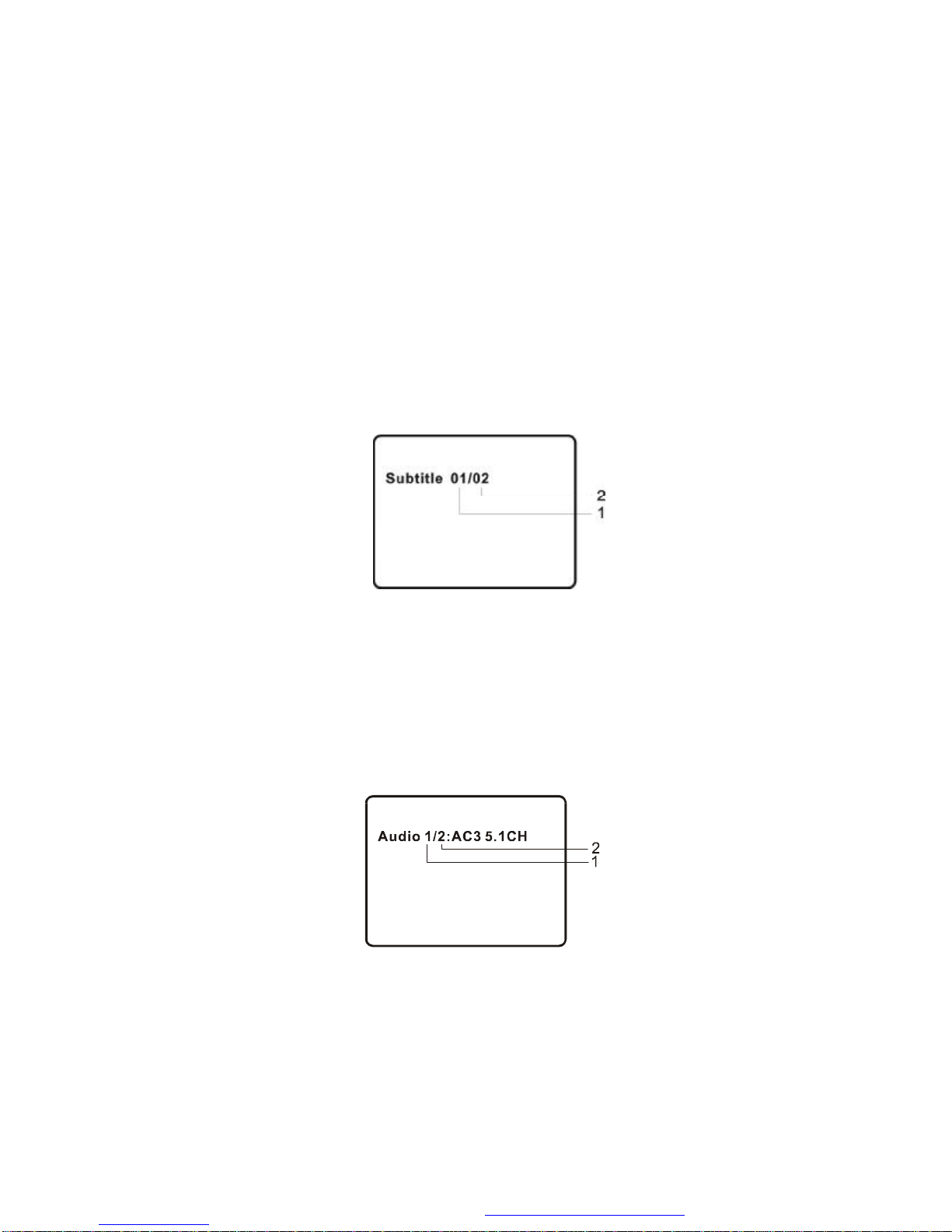

Duringdisc playbackpress ‘SUBTITLE’toselectthe subtitle language
youdesire*,withthecurrentSubtitle LanguageNumber(1) andthe
total Number of Subtitle Languages(2)displayed. Ifthere are mul-
tiplelanguagespress ‘SUBTITLE’againto selectanother subtitlelan-
guage.Toturn subtitles OFF,press the ‘SUBTITLE’button until ‘Sub-
titleOff’isdisplayed.TheSubtitledisplay willdisappearautomatically
ifthe ‘SUBTITLE’button is not pressed again within 3 seconds.
*Some DVDsonly allowaccessto this functionthrough theDVDmenu
3. AUDIO
During playbackpress ‘AUDIO’to select theaudio languageyou de-
sire*, with the current Audio Channel Number (1) and the total num-
ber of AudioChannels(2)displayed.PressAUDIOagain to select
anotheraudio language. The audiodisplaywill disappear automati-
callyifthe ‘AUDIO’button is not pressed within for 3 seconds.
*SomeDVDsonly allow accessto this functionthrough theDVD menu.
Subtitle
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

13
4.ZOOM

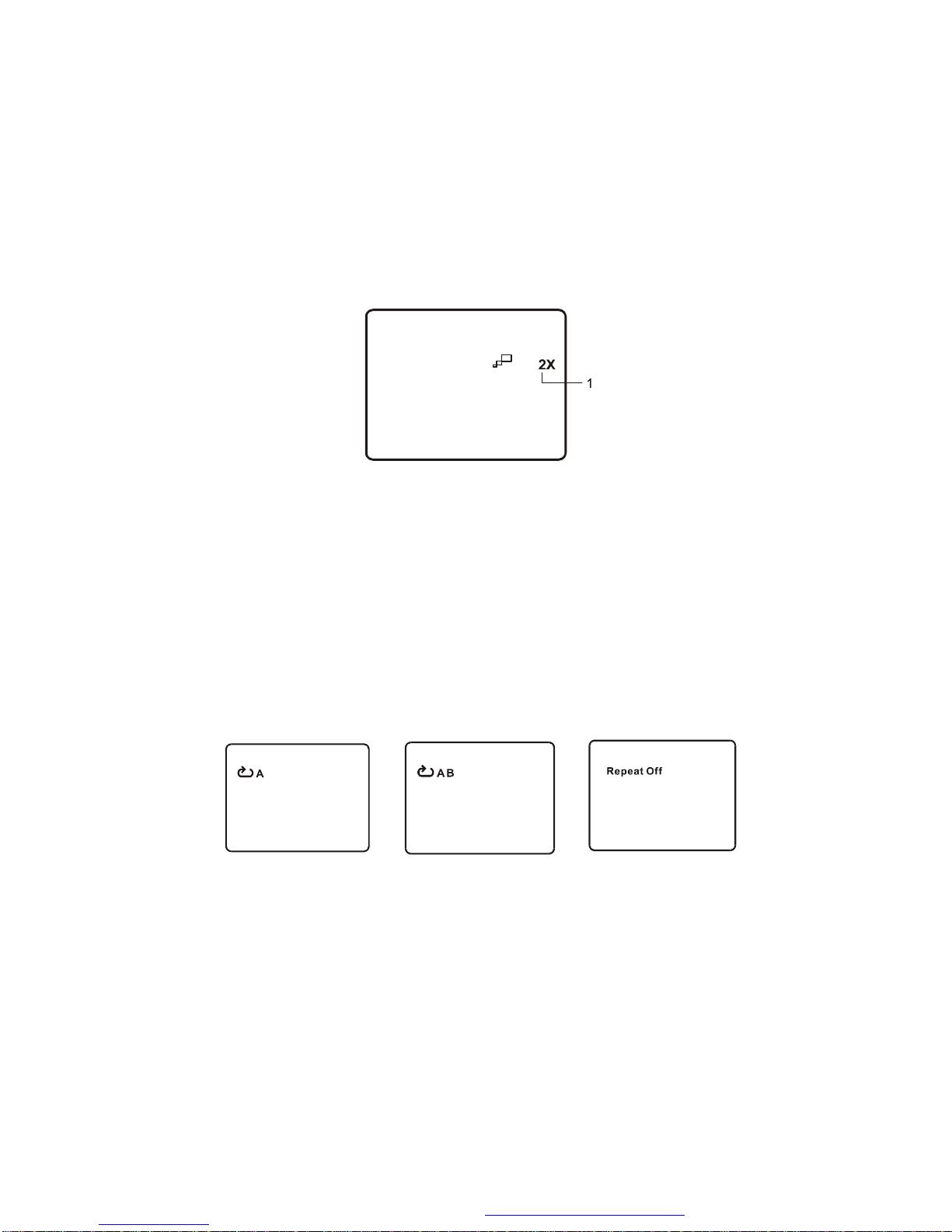

During playbackpress ‘ZOOM’mutiple timesto enlarge the picture
by 2X, 3Xor4X.
.
Zoom
5. A-B REPEAT
a. Duringplaybackpress the ‘A-B’buttononce to set the Starting
PointA.
b. Press ‘A-B’asecond time to set the EndingPoint Band the
playerwill repeatedly playthe partbetween PointAand Point B.
c.PressA-Bathird time to cancelA-Brepeat and resume
normalplayback.
A-B Repeat Starting Point A-BRepeatEnding Point A-B Repeat Cancelled
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

14
6.REPEAT
a.Duringplayback press ‘REPEAT’repeatedlyto cycle through the
repeat modes.
Chapter: Repeat the current chapter
Title: Repeat the current title
All: Repeat all chapters and titles
Repeat Off: Resume normal playback
K. Playing Audio CDs
Whenplayingan audio CDpressthe DISPLAYbuttonconstantly on
theremoteto viewtimeinformation.Theoptions belowappear on
screendisplayinsequence toshow youwhatinformationis available
usingthis function.
CD Display Mode
Single Elapsed:The current track playingand the elapsed time of
that track willbe displayed on the screen.
Single Remain:Thecurrenttrackplayingand theamount of time
remaining.
Single Elapsed
SingleRemain
TotalElapsed
TotalRemain
Display Off
Single Elapsed When Playing Audio CDs
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

15
Total Elapsed: The current track playingand the total time that the
CD hasbeen playing.
Total Remain:The current track playingand the amountoftime
remaining on the CD.
Display Off:The CD time Information will notbe displayed.
USING THE1/ALLREPEATFEATURE
Thedefaultmode forthe Repeat feature isOFF.PressingREPEAT
consecutively changes the repeat options:
•Track-repeats the track that isplaying.
•All-repeats the disc that isplaying.
•Repeat Off
Asyou toggle throughthe options,the repeatoptionchanges. The selected
repeat option loops repeatedly until you turn itoff.
L. Playing MP3 Discs
MP3isa format for storingdigital audio.AnaudioCD-quality songis
compressed into theMP3 format with very littleloss ofaudio quality
whiletaking up much less disc space.CD-R/RWdiscs that have
beenencoded in MP3formatare compatible with this system.
Whenan MP3discis insertedintothe unit, themenuscreenappears
automatically.Youcanuse themenuscreentoselect your desired
foldersandsongs orthesystem plays thesongs in theorder they
were burned onto the disc.
1.Press the or buttontochoosea folderfrom thefolder liston
the leftsideof the screen.
2. Press ENTERto select thehighlighted folder. The songs avail-
able under the folder willbe listed.
3.Use or buttontochooseasongfromthe list. PressENTER
to select and begin playback ofthehighlightedsong.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

16
4.Usethe (NEXT )button tomovetothenextsong. Press the
(PREVIOUS) button tomovetothe beginningoftheprevious
song.
USINGTHEREPEATFEATURE
Thedefault mode for theRepeat featureis OFF. Pressing REPEAT
consecutively changes the repeat options:
•Repeat One (repeat playback ofa song)
•Repeat Folder (repeatplaybackofa specific folder)
•RepeatOff (normal playback)
Asyoutoggle throughtheoptions, the repeat modechanges. The
selected repeat mode loops repeatedly until you turn it off.
NOTICE
”iconinfrontofafilenameindicatesthatthisisafolder,notan
MP3file.
MP3”iconinfrontofafilenameindicates that thisis aMP3 file.
Note:
Duetothecompany’s policyof constant improvementandtechnical
refinement, the company reserves therighttochangeoraltersoftware.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

17
M. Playing JPEG Files
1)Load the JPEG Disc intotray.
2)Pressingthe MENU button accesses the thumbnailview.Choose
thepicture youdesire byusing the RIGHT”and LEFT”buttons.
Accesstheprevious and next pagebypressingthe PREVIOUS”
or NEXT”buttons.
3)YoucanpreviewtheJPEG file which you selected bypressing
PLAY”or ENTER”buttons.
4)Pressingthe DOWN buttonrotates the picture 90 degrees
clockwise.
5)Pressing the UP Keywill returnsto the JPEG menu.
6)Whenpreviewingthefile,pressing ANGLE”, SUBTITLE”, AUDIO”,
AB”, REW/FF”an icon willappear on the displaymeaningthat
theseoptions are notavailable.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

18
Figure5
2. Connecting toa Game or Camcorder (Refer toFigure 5)
a. Position the AV In/Out Switch to In”Position.
b. Connect one end ofthe audio/video cable’s black(1/8”plug)
plugintotheunit’sAV jack using a standardA/V cable(not supplied),
and connect the otherendto the AUDIO/VIDEOoutput jacks on
your Camcorder or game (white = left audio channel, red= right
audio channel, yellow= video).
Note: Please do notconnectan AVsignal source totheAVjackwhen
theunit isin AVOut”Mode.
N. Connectingto other Electronic Equipment
1. Connecting to a TV or anothermonitor ( Refer toFigure 5)
a. PositiontheAVIn/Out Switchto Out”Position.
b.Connectone endofthe audio/videoadaptercable’sblack1/8”plug
into the unit’sAVjack. Using astandard A/Vcable(not supplied),
connecttheotherend totheAUDIO/VIDEOInputjacksonyourTVor
Monitor (white=left audio channel, red =right audiochannel,
yellow=video).
NOTSUPPLIED
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

19
3.Headphones
Wired headphonesmay beusedwiththe unit.Simplyplugin the
headphonestoeitherHeadphone1jackorHeadphone2jackonthe
rightside of theDVD. (Refer toFigure6.)
Figure6
PluggingintoHeadphonejack1disablestheinternalspeakers.
4. SD Card and Thumb Drive/Digital Cameras
With nodiscintheunit, insert eitheranSD card,ThumbDrive, or digital
camera with JPEGor MP3filesintothe appropriateinput. Press the
DVD/SD-USBbutton the appropriate position.Thenyoucan:
1) Insert anSDCard into theSD Slot onthe frontoftheunit.
2) Insert aThumb Driveintothe USBjackonthe left sideof theunit.
3)Connect theUSB cable (not supplied)fromacameraintotheUSB
port ontheleftsideoftheunit.
**
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

20
O. Setup
1. GeneralSetup Page
1)Withnodiscinsidetheplayer,press‘SETUP’todisplaythe Mainscreen
ofthe Setup Menu on the screen and General Setup Page”appears.At
the same time, ” ishighlighted. Press ‘SETUP’againto exitthe
Setup Menu.
2)Press the ENTER button, TV Display”ishighlighted.
3) Press the or buttons to select the other menus in general setup
page.
4) Press to enter the submenu.
5) Press the or buttonto select the desired option in the sub
menu and press the ENTER to confirm your selection.
6) Repeat steps 3-5 for other menus.
Note: Press toreturn theprevious menu.
a) TVDisplay
* Normal/PS: When the player outputs signal toa normal TV, a nor-
mal picture is shown on the full screen.
* Normal/LB: When the player outputs signal to a normal TV, a nor-
mal picture is shownon the screen withablackstripatboththetop
andbottom ofthescreen.
*Wide:When theplayeroutputs signal to awidescreenTV, a
wide picture is shown on the full screen.
b) Angle Mark
*On:Thescreenwillshow the angle mark icon.(*If an angle option is
available).
* Off:The screen will not display theAngle Mark
NOTE: Not all discs contain abovefeatures. The abovefeatures are
discdependent.
c) Screen Saver
*On:Enables screensaver
*NOTE: The DVD playerwill enter the Screen Savermode after ap-
proximately three minutes ifthe same imageremainsonthe screen.
*Off:Disables screen saver(off)
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com
