D1809PK
8LCD MONITORWITHDVDPLAYER

2
FCC Information
ThisdevicecomplieswithPart15 ofthe FCC Rules. Operation issub-
jecttothefollowingtwoconditions:(1)Thisdevicemaynotcauseharm-
fulinterference,and(2)thisdevicemustacceptanyinterferencereceived,
includinginterferencethat maycauseundesiredoperation.
InaccordancewithFCCrequirements,changesormodificationsnot
expresslyapproved byAudiovoxElectonics Corp.couldvoidtheuser s
authoritytooperatethisproduct.
Thisdevicegeneratesand usesradiofrequency(RF)energy, andifnot
installed and used properly, thisequipment maycauseinterferenceto
radioand televisionreception.Ifthisequipmentdoescauseinterference
toradioortelevision reception(whichyou can determinebyturning the
equipmentoffandon), trytocorrecttheinterferencebyoneormoreof
thefollowing measures:
-Reorientthe receivingantenna (that is, the antennafortheradioor
television thatis"receiving"theinterference).
-Movethe unitawayfromtheequipment thatisreceivinginterference.
-Plug the unit intoadifferentwalloutletsothat theunit andtheequip-
mentreceiving interferenceareondifferentbranchcircuits.
Ifthesemeasuresdonoteliminatetheinterference,pleaseconsultyour
dealeroran experiencedradio/television technician foradditional
suggestions.
Thisproduct complieswithDHHSRules21 CFRSubchapterJ. Appli-
cableat thedateofmanufacture.
Manufacturer/ResponsibleParty
AudiovoxElectronics Corp.,
150MarcusBlvd., Hauppauge,NY11788
Caution: Useofanycontrols,adjustments,orproceduresotherthan
thosespecifiedhereinmayresult inhazardousradiationexposure.
ForYourSafety
Mainplugisused asthe disconnect device,itshallremainreadilyoper-
ableand shouldnotbe obstructedduringintended used. Tobecom-
pletelydisconnectedthe apparatusfromsupplymains,themainplug of
the apparatusshallbe disconnected fromthe mainssocketoutlet
completely.

3
Notice:
ThisProductincorporatescopyrightprotectiontechnologythatis
protectedbymethod claimsofcertainU.S.Patentsand other
intellectualpropertyrightsowned byMacrovisionCorporation andother
rightsowners. Useofthiscopyrightprotection technologymust be au-
thorizedbyMacrovisionCorporation,andisintendedforhomeandother
limited viewing usesonlyunless otherwiseauthorizedbyMacrovision
Corporation.Reverseengineering ordisassemblyisprohibited.
WARNING:TOPREVENTFIREORELECTRICALSHOCK HAZARD,
DO NOTEXPOSETHISPRODUCTTORAINORMOISTURE.
Thispowerunitisintendedtobecorrectlyorientedinaverticalor
floormountposition.
This class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.

4
Content
A.Introduction..............................................................................5
B.Cautionsand Warnings.......................................................... 5
C.Contents....................................................................................7
D.Powering and Installation ........................................................ 8
E.VehicleInstallation....... ......................................................... 9
F.Controls,Indicators,and Connectors..................................... .10
G. Loadingand Playing aDisc.....................................................11
H.Setup.........................................................................................12
I. BasicOperation .........................................................................20
J.Menu ..........................................................................................21
K.Display......................................................................................21
L.Playing AudioCDs................................................................27
M.PlayingJPEGFiles................................................................ 29
N.Connecting toOtherEquipment.............................................29
O. Specifications.........................................................................30
P.RechargeableBuilt-inBattery...............................................31
Q.Troubleshooting.......................................................................32

5
A.Introduction
ThankyouforselectingtheD1809PKportableDVDplayer.The main
featuresinclude a8"Screen (16:9AspectRatio)LiquidCrystal
Display(LCD)monitorand aDVDplayer. Theunitappliesthelatest
stateofthe art electronics andisdesigned foruseinhotels,offices
homeorvehicle.The unitisconstructedtoprovide yearsofreliable,
trouble-free service,andiscompactsothatyou can takeitwithyou
anywhereandisdesigned forquick and easy use. Pleaseread the
entireinstructionmanualsupplied withthisproductpriorto
operation.The documentation willassistyouininstalling the system
properlytoobtainthebestequipmentperformance.Pleasesavethis
manualforlateruse.
B. CautionsandWarnings
WaterandMoisture
Donotusethisproductnearwaterforexample,nearabathtub,
washbowl,kitchen sink,orlaundrytub;inawetbasement; or
nearaswimming pool; and thelike.Donotspill liquidson your
PortableDVDoritscomponentsastheymaytouchdangerous
voltage pointsorshort-outpartsthat couldresultinafireor
electricshock. Iftheunitisbroughtdirectlyfromacoldtoa
warm location, moisturemaycondenseinside theunit. Waitfor
aboutone hourtillthe moistureevaporatesbeforeoperating the
unit.
Cleaning
Unplugthisproduct fromthe wall outlet beforecleaning.Donot
useliquidcleanersoraerosolcleaners. Useasoftslightlydamp
clothforcleaning.Always allowallthecomponentstodrycom-
pletelybeforeusingagain.
Heat
Theproduct shouldbeplaced awayfromheat sourcessuchas
radiators,heatregisters,stoves,orotherproducts(including
amplifiers)thatproduceheat. Donotexposethe PortableDVDor
anyofitscomponentstoextremeheatorcold. Donotexposethe
playertodirectsunlight.

6
Attachments
Donotuseattachmentsnotrecommendedbythe productmanu-
facturerastheymaycausehazards.
Servicing
Donotattempttoservicethisproductyourself asopening or
removingcoversmayexposeyou todangerousvoltage orother
hazards.Referallservicing toqualified servicepersonnel.
AC/DC PowerAdapterCords
AC/DCpoweradaptercordsshouldbe routedsothattheyarenot
likelytobewalked on orpinchedbyitemsplaced uponoragainst
them, payingparticularattentiontocordsatplugs,convenience
receptacles, and thepoint wheretheyexitfromthe product.
PowerSources
Thisproductshouldbeoperatedonlyfromthetypeofpowersource
indicated onthe marking label. Ifyou arenotsureof the typeof
powersupplytoyourhome, consultyourproductdealerorlocal
powercompany.
Caution
Donotpushobjectsofanykindintothe unitthrough openings;do
notspill orsprayliquidofanykind on orinthe system(thismay
resultinafireorelectricshock). Donotplaceanything heavyon
theunit. Toensureproperventilationandproperoperation,never
coverorblocktheslotsand openingswithaclothorother
material. Keep theunitawayfromanopenflamesuchasfire,
candleetc.Built-inbatteryisnotuser-serviceable.ContactAudiovox
CustomerServiceforassistance. Inordertoprotect the environ-
mentpleasedisposeofthebatteryproperly.Donotusetheunitin
temperatureshigherthan 104 degreesFahrenheitor40 degrees
Celsius.
Disc
Donot useirregularlyshapeddiscs suchasheartorstar-shaped
discs astheymaycausethe unit tomalfunction.Donotstick paper,
tape orglue on the disc.Donot exposethe disctodirectsunlight or
heatsourcessuchashotairducts. Donottouchthe surfaceofdisc.
Handlethediscbyitsedge.Cleanthediscbywipingthediscfromthe
centeroutwithacleaning cloth. Removethediscfromthe unitand
storeitinitscaseafterplaying.Someplayback operationsofdiscs
maybeintentionallyfixed bysoftwareproducers.Sincethisunitplays

7
discsaccordingtothedisccontentsthesoftwareproducers
designed,someplaybackfeaturesmaynotbe available.Alsorefer
tothe instructionssupplied withthe discs.
DVDRegionalCode
YourDVDplayerhasbeen designed
toprocess regionalmanagement
information thatisstored on DVDdiscs.
The regionalcode foryourplayeris1(The U.S.,U.S.Territories
and Canada).OnlyDVDdiscs that haveregionalcodesof1or
ALL(forallregions)canbeplayedbyyourplayer.
PrecautionsWhenWatching
When using yourPortableDVDplayerdonotsit orstandtoo
closetothe screen.
C.Contents
1.1x8 LCD Monitorand DVDPlayer
2.1xACtoDCAdapter
3.1xRemoteControlw/Battery(CR2025)
4.1xInstructionManual
5.1xAudio/VideoCable
6.1xDC PowerAdapter
7. 1xCarryBag WithStraps
8. 2xFoldableHeadphones
9.1xProductRegistration Card
10.1xeMusicCard
HaveaBlast-JustNot inyoureardrums!
Makesureyouturndownthe volumeon
theunitbeforeyou putonheadphones.
Increasethe volumetothedesired level
onlyafterheadphoneareinplace.
Thedescriptionsandcharacteristicsinthisowner’smanualare
forthepurposeofgeneralreferenceonlyandnotasaguarantee.In
ordertoprovideyouwiththe highestqualityproduct,wemaymake
changesormodificationswithoutpriornotice.

8
D.PoweringandInstallation
1. Powering theSystemIndoors (RefertoFigure1)
Plug one end ofthe ACtoDC adapterintothe DC 9-12Vjack on
therightsideofthe mainunit,thenplugtheotherendintothe100-
240VACpowerreceptacle.
2. Powering theSysteminaCar (RefertoFigure1)
Plug oneendofthe DC poweradapterintotheDC jackonthe unit,
then plug theotherend intothevehicle‘sDC powersocket.
3.Charging theBuilt-inBattery
SlidethePowerOn/OffSwitchtoOffposition.Plugoneendofthe
ACtoDCadapterintothe DC jackon the sideofthe player,then
plugthe otherendintothe100~240VACpoweroutlet.Thecharge
lightwill flashforabout3seconds, thenitturnstored.Oncefully
charged,the LEDindicatorwill be green.Then removethe ACto
DC adapterwall plug.
NOTE: Yournewbatterymustbe charged aminimumof8hours
beforethefirstusage. Eachfullrecharge takesapproxi-
matelyfivehoursandonefullchargecanprovide powerto
theplayerforapproximately2hours.
Figure1

9
E.VehicleInstallation
InstallingtheDVDPlayerontotheSeatBack inaCar
(RefertoFigure2)
1).Unfoldthecarrybag,and placethe DVDplayeron the bag
beneaththeelasticstraps. Ensurethat theunit scornersare
secured bythe elasticstraps.
2).Securethe upperportionof the carrybag toheadrestsupport
barsusingtheheadreststrap.Adjusttheheadreststrapuntilthe
bag isfirmlysecured.
3).Securethelowerportionofthecarrybagtothevehicleseatback
using the seat back strap. Adjusttheseat backstrap untilthe
bag isfirmlysecured.
HeadrestStrap
SeatBack
Strap
Elastic
Straps
CarryBagOpened
CarryBag Closed
VehicleSeat
Back
VehicleHeadrest
Figure2

10
F.Controls,Indicators,andConnectors
1. UnitView (RefertoFigure3)
Figure3
1)LCD PanelShutOff Switch
2)Wide Screen Button
3)StopButton
4)PreviousButton
5)NextButton
6)Play/PauseButton
7)Menu Button
8)UpButton
9)RightButton
10)OKButton
11)DownButton
12)Left Button
13)Open DoorSwitch
14)IRSensor
15)PowerLED
16)Poweron/off Switch
17)VolumeControl
18)Headphone 1*
19)Headphone2
20)ChargeIndicator
21)AVOutJack
22)DC 9-12VInputJack
*Usingheadphone jack1will disabletheinternalspeakers

11
2. RemoteControlView (RefertoFigure4)
1)SETUPButton
2)UPButton
3)PREVIOUSButton
4)ENTERButton
5)REVERSE SCAN/LEFT Button
6)DOWNButton
7)NUMERICButtons
8)DISPLAYButton
9)ZOOMButton
10)SUBButton
11)NEXTButton
12)A-BREPEATButton
13)FORWARDSCAN/RIGHTButton
14)1/AllREPEATButton
15)STOPButton
16)MENU Button
17)AUDIOButton
18)ANGLEButton
19)PLAY/PAUSEButton
G. Loadingand PlayingaDisc
a.Afterconnecting powertotheunit, applypowertotheDVDplayer
withthe POWERON/OFF switch. The powerindicatorwill light.
b.Open the disc traybysliding OPEN DOOR switchand placeadisc
intothetraywiththelabelsidefacing up.
c.Closethetraybypressing thePRESS button.The unit will load
the disc and startplaying.
d.Rotatethe VOLUMEcontroltoadjustthe DVDplayer s
volume.
e.Tostop playback ofadisc,press the STOPbutton.
f.ToturnofftheDVDplayer, slide the POWERON/OFF switchto
OFF.
Figure4

12
H. Setup
PressSETUPbuttontodisplaythe Mainscreen oftheSETUPMenu
onthescreen.PressSETUPbutton againtoexittheSETUPMenu
andthe unitwillresumeit slastplayback mode.
1)Press SETUPbutton,the ‘GENERALSETUPPAGE willdisplay
on screen.
a)Select ‘TVDISPLAY usingtheDOWNbutton, andthen press
ENTERbutton toenterthe submenu.Selectthe TVdisplay
modeon the screen using UP/DOWNbutton,and press
ENTERbuttontoconfirm thesetting.Press the LEFT buttonto
exitthe TVDISPLAYmenu.
*NORMAL/PS: When the playerisconnected toanormalTV,
andawide pictureisshownonthe full screen.
*NORMAL/LB: When the playerisconnected toanormalTV,
andawidepictureisshownonthescreen withablackstrip
at boththetop andbottomofthescreen.
*WIDE: When the playerisconnected toawide screenTV, a
widepictureisshownon the fullscreen.
TVDisplayScreenDisplay
MainSetupMenu Screen

13
b)Select ‘ANGLEMARK using theDOWNbutton, and thenpress
the ENTERbutton toenterthesubmenu. ChooseAngleMark
on oroff using the UP/DOWNbuttonsand then press ENTER
buttontoconfirm the setting. Press the LEFT button toreturn.
*ON: The screen will showthe anglemarkicon. (*Ifan angle
optionisavailable).
*OFF:ThescreenwillnotdisplaytheAngleMarkicon.
NOTE: Not all discscontainabovefeatures.
c)Select ‘OSDLANG usingtheDOWNbutton,andthenpress the
ENTERbutton toenterthe submenu. Choosethe screen dis-
playlanguageyoudesireusing theUP/DOWNbuttonsandthen
press ENTERbutton toconfirmthesetting.Press the LEFT
buttontoreturn.
AngleMarkScreenDisplay
OSDLanguageScreenDisplay

14
d)Select ‘SCREENSAVER using the DOWNbutton,andthen press
the RIGHTbuttontoenterthesubmenu.ChooseScreen saver
on oroff using the UP/DOWNbuttonsand then press ENTER
button toconfirm the setting.PresstheLEFTbuttontoreturn.
*ON:Enablesscreensaver.
*OFF: Disablesscreensaver.
NOTE: TheDVDplayerwillentertheScreen Savermode after
approximatelyfiveminutesifthesameimageremainson
the screen.
e)Select ‘LASTMEMORY byusing the DOWNbutton, and then
pressthe RIGHTbutton toenterthe submenu.ChooseLast
Memoryon oroff using the UP/DOWNbuttonsand then press
ENTERbuttontoconfirm thesetting.Pressthe LEFT buttonto
return.
*ON:Theunitwill returntothe lastposition on the disc.
*OFF:Theunitwill notreturntothe lastposition on thedisc.
ScreenSaverScreenDisplay
LastMemoryScreenDisplay
NOTE: The Lastposition memoryfunction isonlyaccessible
when thedisc trayhasbeen opened.

15
a)Select ‘BRIGHTNESS byusing theUPorDOWNbuttons,then
press ENTERbutton.Adjustthe Brightnessbypressing the
LEFT orRIGHTbuttons.ToexitBrightness Setting,press
ENTERbuttonagain.
b)Select ‘CONTRAST byusingthe UPorDOWNbuttons, then
pressENTERbutton.AdjusttheContrast bypressingtheLEFT
orRIGHTbuttons.
Press ENTERbuttonagaintoexittheContrastsetting.Andpress
LEFTbuttontoexittheVIDEOQUALITYSETUPmenu.
BrightnessScreenDisplay
2)Select ‘VIDEO byusing the LEFT/RIGHTbuttons, press ENTER
button toenterthe VIDEOSETUPPAGE.
ContrastScreenDisplay
VideoQualitySetup ScreenDisplay

16
3)Select ‘Password using the LEFT orRIGHTbuttons, then press
theENTERbuttontoenterthesubmenu.
PressENTERbuttontwicetoenterthePASSWORDCHANGE
PAGE.InputtheOldPasswordorthe Default Password,the New
Password,and the ConfirmedNewPassword.PressENTER
buttontoconfirmthechange.
NOTE: The DefaultPasswordis 3308. Thispasswordisalways
effectiveevenafteryouhaveselected yourownpassword
andchangedit. Toavoidthepossibilityofothersusingthe
default passwordtosettheparentalleveland changethe
password,you can recordthisdefaultpasswordin
anotherarea and deleteitfromthismanual. Somediscs
canbelimiteddependingontheageofuserswhilesome
discs cannot.
PasswordSetup PageScreenDisplay
PasswordChangePageScreenDisplay

17
Preference AudioLanguage
a)Select ‘AUDIO using the DOWNbutton,then pressENTER
button toenterthesubmenu.Selecttheaudiolanguageyou
desireusing the UPorDOWNbuttons, then press ENTER
button toconfirm the setting.Press LEFT toreturn.
4)Withno disc insidetheplayerselect ‘PREFEREN using the
LEFT orRIGHTbuttons,then press ENTERbuttontoenterthe
PREFERENCES PAGE.
PreferenceScreenDisplay

18
PreferenceDiscMenuLanguageScreen
NOTE: Language and subtitleselection isonlyavailablefordiscs
thatarerecorded inthe abovelistedlanguages.Ifthe
selectedlanguageisnotavailable, theplayerwill play
and displayon the screen the originalrecorded language
contained inthedisc.

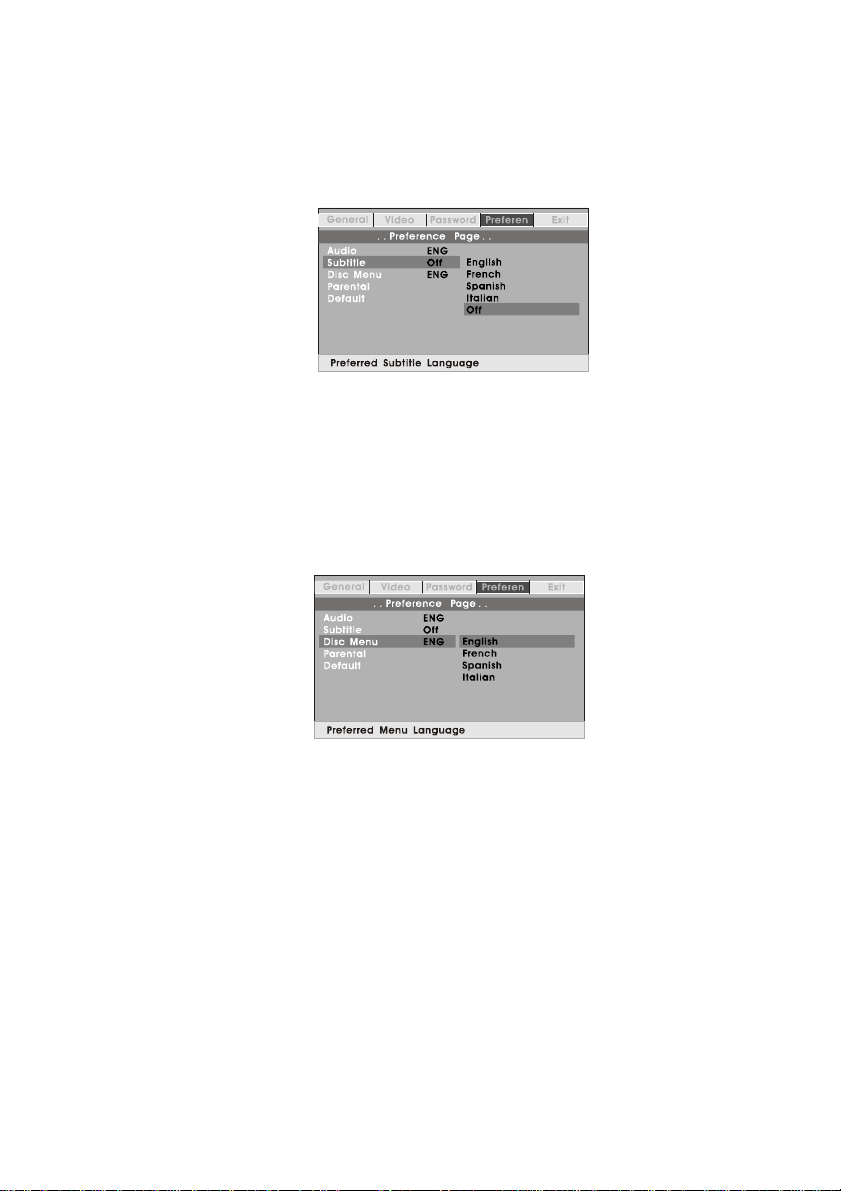

c)Select ‘DISCMENU usingtheDOWNbutton,thenpress
ENTERbutton toenterthe submenu.Select the Disc Menu
Language you desireusing the UPorDOWNbuttons,thenpress
ENTERbutton toconfirm thesetting. Press LEFT toreturn.
b) Select ‘SUBTITLE usingthe DOWNbutton,then press
ENTER toenterthe submenu. Selectthedesired subtitlelan-
guageorSUBTITLEOFF using theUPorDOWNbuttons, then
press ENTERbuttontoconfirmthesetting.PressLEFT toreturn.
PreferenceSubtitleLanguage

19

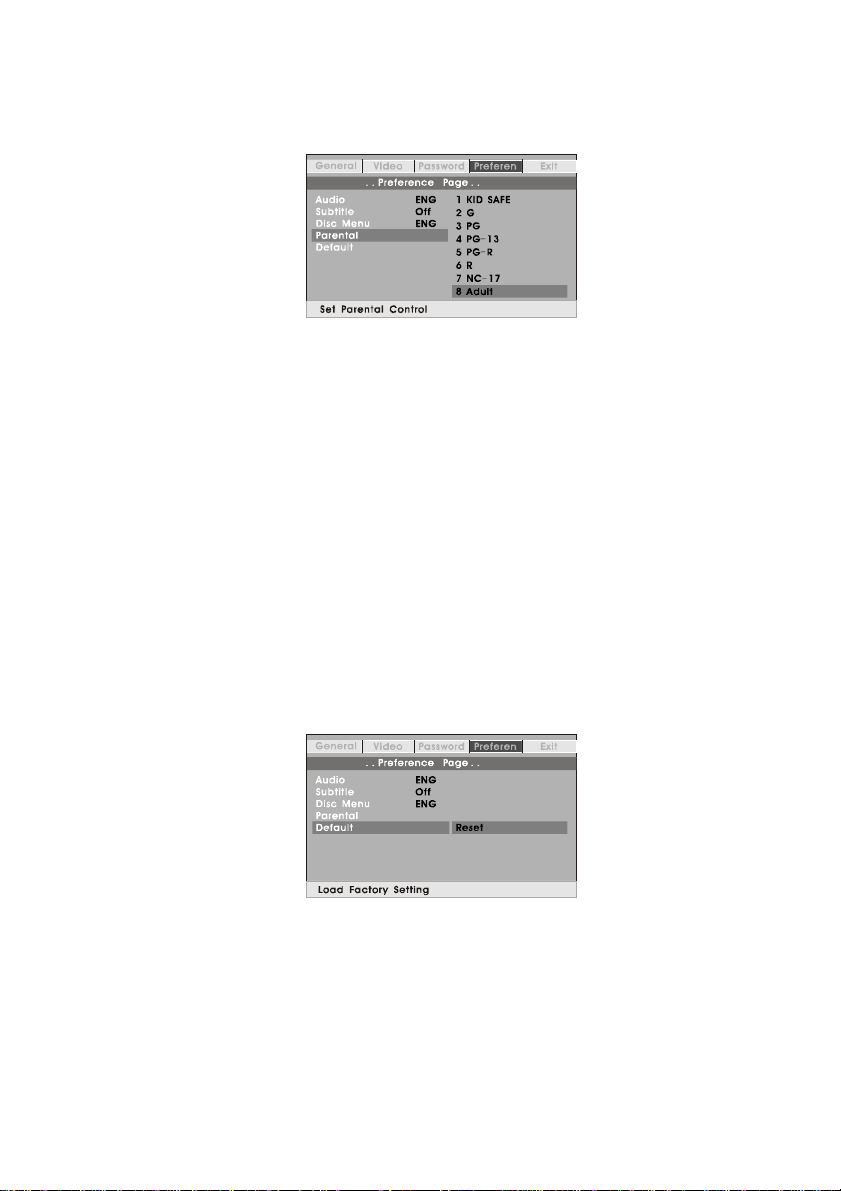

e)Select ‘DEFAULT using the DOWNbutton,thenpress ENTER
button toenterthesubmenu.Press ENTERbutton tomakethe
settingreturntothe factory-setmode.
NOTE: Theparentalsetting isnotaffectedbythedefaultreset
function.
Selecttheparentallevelyoudesireusingthe UPorDOWNbut-
tonsfordiscs withlock-outfunction ormultiplerating levels.These
arelisted fromthe lowest level(KIDSAFE)tothe highest level
(ADULT).Entera4digitpassword,thenpressENTERbuttonto
confirmthe parentallevelsetting.
NOTE: Thelevelof8ADULTisthefactorydefault.
d)Select ‘PARENTAL using the DOWNbutton,then press
ENTERbutton toenterthesubmenu.
ParentalPreferenceScreenDisplay
Loading FactorySetting

20
I. BasicOperation
POWER
OPEN
PLAY
PAUSE
STOP
NEXT
PREVIOUS
FORWARD
REVERSE
LEFT/RIGHT/UP/DOWN
ENTER
NUMBERS
MENU
REPEAT
A-B
DISPLAY
ANGLE
SUBTITLE
AUDIO
ZOOM
SETUP
Turnthe uniton/off
Remove/load the disc
StartPlay/Executeitemorsetting
StillPicture
(1time)Stopatthe presentplaying point/
(2times) Stopplayback oftheDVD
Gotothenextchapter,track orscenedur-
ing playback
Goback tothepreviouschapter,track or
sceneduringplayback
Scanforwardat2,4, 8,16 or32xtimes
speed
Scan backwardat2,4, 8,16 or32xtimes
speed
UsedforMenu Navigation
Executeitemorconfirmsetting
Selectitemorsetting
Displaythemain menuofthedisc
Repeatplayingtitle,chapter,ortrack
Repeataspecificportion frompointAto
pointBofthedisc
Displayinformation(title,chapter, track,
time,etc.).
Change the viewing anglesonthescene
Selectthesubtitle languageandturniton/
off
Selectthe audiolanguage
Enlargeanimageto2,3,or4timesthe
originalsize.
Displaythe setup menu toselectand set
items,and exitthe setup menu.
