auna Z-SA-1-Si User manual

WARNING: To reduce
the risk of electric shock, do
not remove cover (or back).
N o u s e r - s e r v i c e a b l e
p a r t s i n s i d e . R e f e r
s e r v i c i n g t o q u a l i f i e d
service personnel.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
T h e e x c l a m a t i o n
p o i n t w i t h i n t h e
triangle is a warning
sign alerting you of
important instructions
accompanying the
product.
The lightning flash
a n d a r r o w h e a d
within the triangle
i s a w a r n i n g
sign alerting you of
"dangerous voltage"
inside the product.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRI C SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO DRIPPING OR SPLASHI NG LIQUIDS.
E-2
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LASER DE CLASSE
LASER DI PRIMA CLASSE
KLASSE 1 LASER
LASER PRIMERA CLASE
LASER CLASSE 1
KLASSE 1 LASER PRODUKT
CAUTION: INVISIBLE LASER RADIATION WHEN OPEN AND
INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM.
VORSICHT: UNSICHTBARE LASERSTRAHLUNG TRITT AUS,
WENN DECKEL GEÖFFNET UND WENN SICHERHEITSVERRIEGELUNG
ÜBERBRÜCKT IST. NICHT DEM STRAHL AUSSETZENI.
VARNING: OSYNLIG LASERSTRÁLNING NÄR DENNA DEL ÄR ÖPPNAD OCH
SPÄRR ÄR URKOPPLAND. STRÁLEN ÄR FARLIG.
ADVARSEL: USYNLIG LASERSTRÁLING VED ÁBNING. NÁR
SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION. UNDGÁ UDS/ETTELSE FOR
STRÁLING.
ATTNENZIONE: RADIONS LASER INVISIDILE. NON GUARDARE
DIRETTAMENTE NELLA SORGENTE DEL LASER.
ACHTUNG: LASERLINSE NICHT BERÜHREN UNSICHTBARER LASERSTRAHL.
AVISO: A LENTE NUNCA DEVE SER TOCADA.
CAUTI ON: GROUNDING OR POLARI ZATION. THE PRECAUTI ONS
SHOULD BE TAKEN SO THAT THE WIDER BLADE OF THE AC PLUG
MUST MATCH THE SLOT IN RECEPTACLE "WALL SOCKET" .
CAUTI ON
DO NOT EXPOSE TO DRIPP ING OR SPLASHI NG LI QUIDS!
OPERATING INSTRUCTIONS
HIGH OUTPUT MICRO SHELF SYSTEM
DIGITAL CD-RADIO-CLOCK HI-FI
WITH WALL MOUNTING CAPABILITY
USB
FLASH MEMORY
PLAYBACK
REMOTE
CONT RO L
BLUE
BACKLIGHT
DISPLAY
CLOCK
QUARTZ
DIGITAL
D I G I T A L
PLAYBACK
MP3
PLL
DIGITAL
TUNER
DATE: 15 FEB, 2008
MODEL Z-SA-1-Si / Z-SA-1-BL “AUNA”
SIZE: 102(W) X 136(H) MM FOR EACH PAGE
PRINTING COLOR: BLACK
MATERIAL: 80G WOODFREE PAPER
ENGLISH IM FOR APPROVAL
MODELL : Z-SA-1-Si
Z-SA-1-BL

E-3
QUICK START !
1. CONNECT THE SPEAKERS & TABLE STANDS
2. PLUG AC-CORD INTO WALL SOCKET & UNWRAP THE FM-ANTENNA WIRE
3. PRESS “ON/OFF” KEY TO SWITCH “ON” THE UNIT
(CONTINUED)
E-4
5. TO LISTEN TO RADIO
6. PRESS “ON/OFF” KEY TO "OFF" THE UNIT ("STANDBY MODE")
(CONTINUED)
END
- PRESS "TUNER/ BAND" KEY TO SWITCH TO RADIO (TUNER) MODE
- PRESS "TUNER/ BAND" KEY TO SWITCH TO "FM" RADIO BAND.
- PRESS "TUNER/ BAND" KEY AGAIN TO SWITCH TO "AM" RADIO BAND.
- PRESS & RELEASE NEXT TO TUNE RADIO FREQUENCY UP (1-STEP).
- PRESS & RELEASE BACK TO TUNE RADIO FREQUENCY DOWN (1-STEP).
- “PRESS & HOLD” NEXT (2 SECS.) TO SCAN UP (TO SEEK NEXT STATION).
- “PRESS & HOLD” BACK (2 SECS.) TO SCAN DOWN (TO SEEK PREV. STATION).
PRESS "BACK" TO TUNE DOWN
PRESS "NEXT" TO TUNE UP
4. TO LISTEN TO CD-PLAYER
- PRESS "FUNCTION" KEY REPEATEDLY UNTIL "CD" IS DISPLAYED
- PRESS "OPEN/CLOSE" KEY
- INSERT A DISC (CD-AUDIO or CD-MP3)
- PRESS "PLAY" KEY ( ) TO START PLAYING CD
- ADJUST VOLUME (VOL+) or (VOL )
FM-ANTENNA WIRE
P
S
R
D
I
N
R
T
A
S
W
I
D
T
E
U
O

E-5

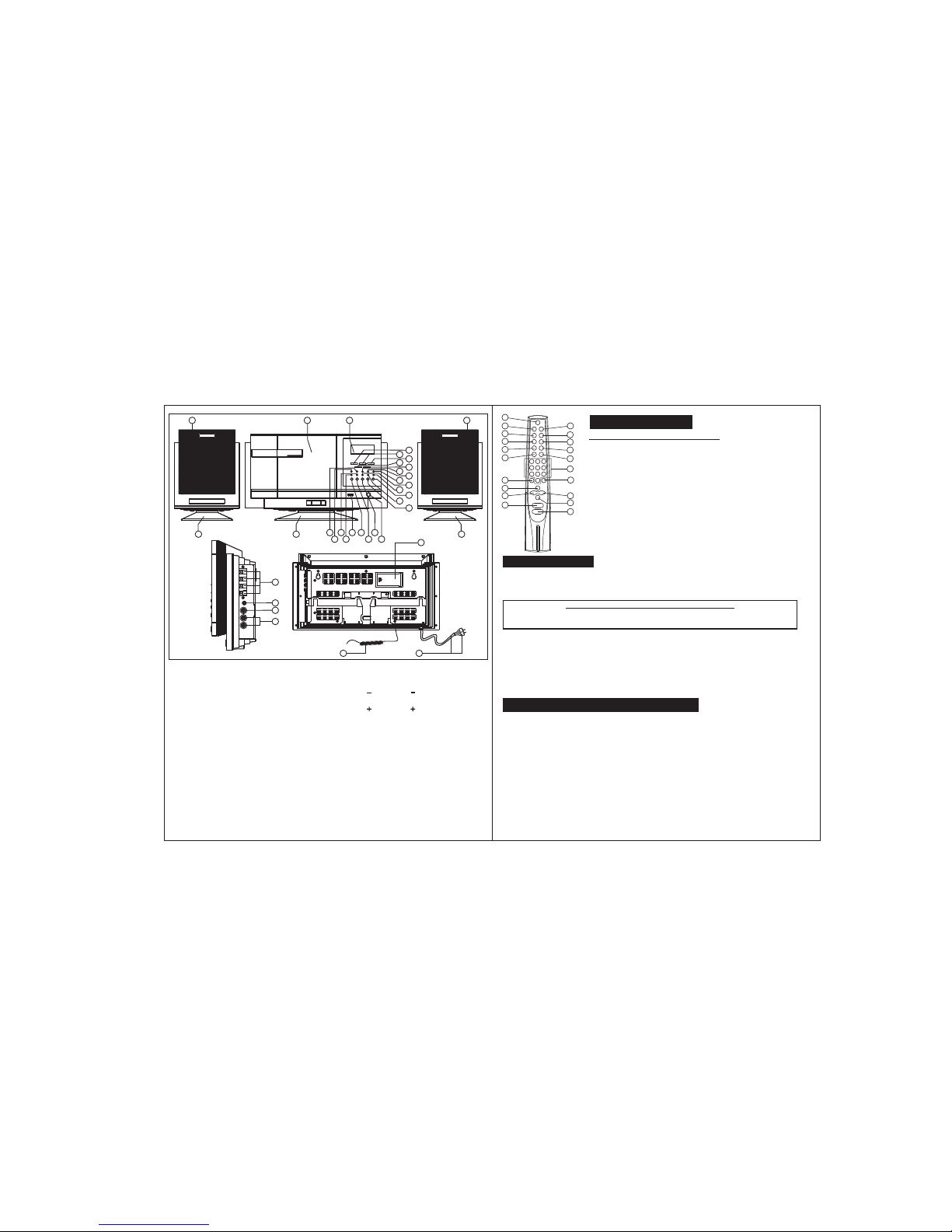

LOCATION OF CONTROLS
E-6
POWER SUPPLY
- THIS SET WORKS ON NORMAL HOUSE HOLD AC- POWER.
- MAKE SURE T HE SET VOLTAGE OF THE UNI T MATCHE S YOUR LOCA L VOLTAGE.
- INSERT THE PLUG OF THE AC-CORD INTO A WALL OUTL ET WITH AC-P OWER.
- PRES S THE ON/ OFF KEY TO SWITCH “ON” THE UNIT.
WHEN THE POWER IS “ON” THE ENTI RE DIGITAL DISPL AY WILL BE LIT UP WIT H
A “BLUE ” BACK -LIGHT. THI S INDICATES T HE HI-FI IS SWITCHE D “ON”.
IMPORTANT : HOW TO TEL L IF POWER IS "ON" ?
CONNECTION OF SPEAKER BOXES
- PLA CE THE SPEA KER BOXES AS FAR APART AS POSSI BLE FOR BEST SOUND EFF ECT.
- UNWRAP THE SPEA KER- CORDS OF BOTH SPEA KER- BOXES .
- INSERT THE "RED" WIRE OF THE LEF T SPEAKER- BOX INTO THE "RED" ( + ) SPEA KER
CONNEC TOR BEHI ND THE MAIN-UNIT, WHIC H HAS T HE "L" INDICATION (UNDER T HE
SPEA KER-CONNEC TOR).
- INSERT THE "BLAC K" WIRE OF THE LEFT SPEAKER- BOX INTO THE "BLAC K" ( - )
SPEA KER CONNEC TOR BEHI ND THE MAI N- UNIT, WHIC H HAS T HE "L" INDI CATI ON
(UNDER T HE SPEA KER- CONNEC TOR).
- REPEAT THE ABOVE 2 STEP S FOR THE RED & BLA CK WIRE S OF THE "RIGHT"
SPEA KER BOX, BUT THI S TIME, INSERTI NG THEM INTO THE RED & BLACK
CONNEC TORS WITH THE "R" INDICATION.
- WHEN INSERTI NG EACH WIRE INTO A CONNEC TOR, PRES S DOWNW ARDS ON
THE CONNEC TOR'S PLA STIC KNOB (RED OR BLA CK PART) & PUSH T HE EXPOS ED
METAL END OF THE WIRE ALL THE WAY INTO THE HOLE ABOVE THI S KNOB.
- THIS UNIT IS DESI GNED TO OPERATE WIT HOUT EVER BEING TOTALLY POWERED "OFF".
IT WIL L EI THER BE "ON " OR "S TANDBY MODE" .
- IN STANDBY MODE, THE BLUE BACK -LIGHT OF THE DIGITAL DISPLAY WILL BE
SWI TCHE D OFF BUT THE DISPLAY WILL SHOW THE CURRE NT TIME (CLOCK FUNCT ION) .
- WHEN I N STANDBY MODE, YOU CAN USE T HE POWER SWI TCH (O N REMOTE CONTR OL
OR ON FRONT PANEL OF THE MAIN UNIT) TO SWITCH "ON " THE UNI T.
- TO CONSE RVE ELE CTRICITY, PLEASE SWI TCH THE UNI T TO "STANDBY MODE"
WHEN NOT LISTEN ING TO RADI O OR CD MUSIC.
REMOTE CONTROL
LOCATION OF REMOTE CONTROLS
1. ON/ OFF BUTTON
2. FIND/ M/S KEY
3. TIMER KEY
4. EQ KEY
5. SLEEP KEY
6. MEMORY DOWN KEY
7. BAND KEY
8. INTRO KEY
9. FUNCTION KEY
10. REPEAT KEY
11. MEMORY UP KEY
12. DIRECT KEYS (NUMBER KEYS)
13. MUTE KEY
14. PROGRAM KEY
15. CD PLAY/ PAUSE KEY
16. CD NEXT/ TUNE UP KEY
17. CD BACK/ TUNE DOWN KEY
18. CD STOP KEY
19. VOLUME UP KEY
20. VOLUME DOWN KEY
1
2
3
4
5
6
7
8
9
10
20
11
12
13
15
17
19 18
16
14
1. CD DOOR (MOTOR IZED)
2. CD/ CL OCK/ RADIO DIGI TAL
MULTIFUN CTION DI SPLAY
3. CD BACK/ TUNE-DO WN KE Y
4. CD PL AY/ PAUSE KEY
5. CD NEXT/ TUNE-UP KEY
6. CD STO P KE Y
7. FUNCTION KEY
8. CD REPEAT KEY
9. CD PR OGRAM/ TIME KE Y
10. FIND / ESP/ DISPLAY KEY
11. MUTE KE Y
12. TUN ER/ BAND KEY
13. EQ (EQUA LIZER ) KE Y
14. RANDOM KEY
15. RE MOTE CO NTROL SENS OR
16. ON/ OFF KE Y
17. VOLUME UP KE Y
18. VOLUME DOWN KEY
28
31
30
33 34
32
29
21
2527
3
45
6
9
10
13
17
18
19
16
7
8
11
12
21
22
23
24
26
27
26
20
14
15
19. CD DO OR OP EN / CLOSE KEY
20. USB SOCK ET
21. MEM. ( ) / FOL DE R KEY
22. SLEE P KE Y
23. MEM. ( ) / FOL DE R KEY
24. TIMER KE Y
25. DESK STAND (FOR MAIN UNIT)
26. SPEA KE RS (LEFT & RIGH T)
27. DESK STANDS (FOR SPEAKE RS )
28. SPEA KER-OUT SOCK ET S (LEFT & RI GHT)
29. HEADPH ON E JAC K
30 . SU B WOO FER OU TPU T
31. AUDIO LINE IN SO CKET [DVD/AU X]
(LEF T & RIGHT)
32. BACK UP BATTERY COMPART ME NT
(BEHIND THE UNIT)
33. AC-CORD & PLUG
34. FM-ANTENNA WIRE

DIGITAL CLOCK FUNCTION
- THE SET HAS A BUI LT-IN DIGI TAL CLOCK , WHIC H IS DI SPLAYED WHEN THE UNI T IS
IN "STANDBY MODE" OR WHEN YOU PRES S & HOLD PROGRA M KEY FOR TWO
SECON DS DURI NG CD OR RADI O OPERATI ON.
- TO SET THE CORREC T TI ME, FOLL OW THI S PROCE DURE:
HOW TO SET CORRECT TIME:
SWITCH UNI T TO "STAND-BY" MODE
(DISPLAY LIGHT = OFF)
PRES S & HOLD PROGRA M FOR 3 SECON DS
DISPL AY SHOWS HOUR OR HOUR (FLASHING)
12 24
PRESS NEXT OR BACK TO SEL ECT 12-HOUR
OR 24-HOUR CLOCK DISPLAY SYST EM & PRESS
PROGRA M TO CONFI RM YOUR SEL ECTI ON
PRESS NEXT OR BACK REPE ATEDLY TO SET THE
CORREC T HOUR IN THE DISPL AY & PRES S PROGRA M
TO CONFI RM
PRESS NEXT OR BACK REPE ATEDLY TO SET THE
CORREC T MINUTE IN THE DISPL AY & PRESS PROGRA M
TO CONFI RM
CORREC T TIME IS NOW SET & WILL BE SHOWN
IN THE DISPL AY!
E-7
E-8

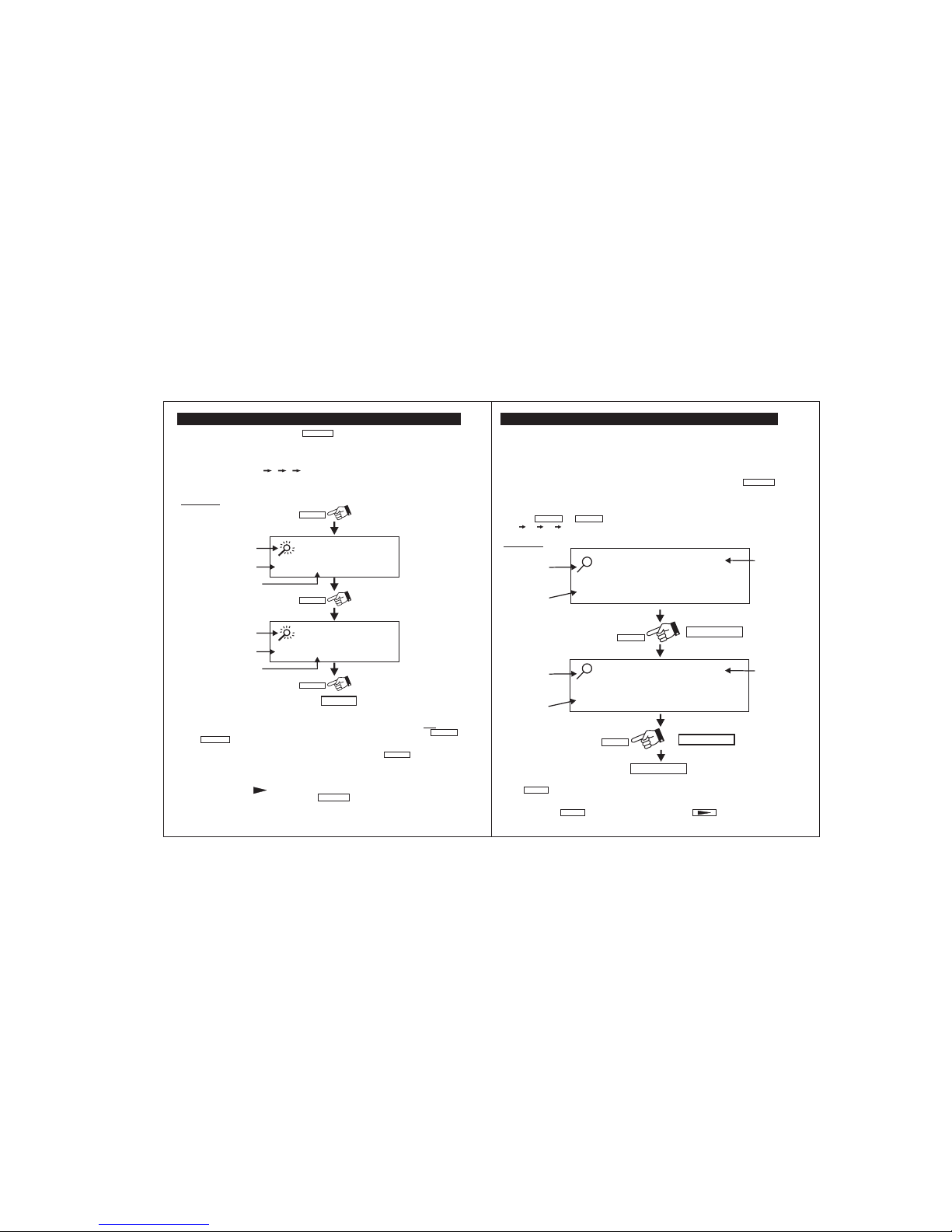

AUTOMATIC POWER ON/ OFF TIMER FUN CTION
HOW TO SET TIME R
- THIS SET HAS A TIMER FUNCTION TO ENABLE YOU TO PROGR AM THE UNIT TO
AUTOMATICALLY SWITCH “ON” OR “OFF” AT PRESET TIMES. THIS IS US EFUL AS A MO RN ING
ALARM CL OC K :
AUTOMATIC POWER OFF SLEEP FUN CTION
- THIS SET HAS A SPECIAL SLEEP TIME R FUNCTION WHICH CAN AUTOMATICALLY
SWITCH OFF THE UNIT. THIS IS USEFUL FOR SLEEPING TO MUSIC AT NIGH T.
- AT ANY TIME WHILE THE UNIT IS OPERATING (CD PLAYER OR RADIO), PRESS
KEY REPEATEDLY TO CHOOSE THE AUTOMATIC POWER OFF TIME .
SLEEP
90
MINS
80
MINS
70
MINS
60
MINS
50
MINS
(*OFF MEANS SLEEP TIME R IS DEACTIVATED)
1. PRESS AND HO LD TIMER KEY. THE SYMBOL APPEARS IN THE DISPLAY.
2. PRESS NE XT OR BACK TO AD JUST THE HOUR OF THE DE SIRE D "POW ER ON" TIME
AND THE N PRE SS TIMER TO CONF IRM.
3. PRE SS NE XT OR BACK TO ADJUST THE MINU TES OF THE DE SIRE D "POWER ON "
TIME AND THEN PRE SS TIMER TO CO NF IRM.
4. NO W THE SYMBOL IN THE DI SPLAY CHANG ES TO SHO W .
5. PRESS NE XT OR BACK TO AD JUST THE HOUR OF THE DE SIRE D "POW ER OFF"
TIME AND THEN PRESS TIMER TO CONFIRM .
6. PRESS NE XT OR BACK TO AD JUST THE MINUTES OF THE DESIRE D "POWER OFF"
TIME AND THEN PRE SS TIMER TO CO NF IRM.
7. NO W THE DISPLAY WI LL INDICATE THE "WAKE UP MODE " (CD OR RA DI O) .
PRESS NEXT TO CHOOSE THE DESIRE D MODE & PRESS TIMER TO CONFIRM
8. THE DISPLAY THEN SHO WS T HE "WAKE UP VOLUME LEVEL" (LOUNDNESS).
PRE SS BACK OR NE XT TO DECR EASE OR INCREASE THE VOLUME LEVEL TO BE
USED FOR THE MUSIC TO BE PLAYED WHEN THE TIMER SWITCH ES ON THE UN IT AT THE
PRE -SET TIME .
9. PRESS TIME R TO CONFIRM . THE UN IT WILL THEN AUTOM ATICALLY DISPLAY ALL YOU R
SETTINGS IN SEQU ENCE:
ON
"POWER ON TIME " ( )
ON
"POWER OFF TIME" ( )
OFF
"POWER ON MO DE" (CD OR TUNER)
"POWER ON VOLUME LEVEL" (LOUDN ESS)
(NO TE : THE AUTOM ATIC POWER ON /OFF TIMER WI LL SWITCH ON THE UN IT AS IF YOU HAVE
MANUALLY PRESSED THE “POW ER” KEY. IF YOU HAVE SELECTED "WAKE TO RA DIO",
THE EXACT PRE SET RADIO BAND & STATION WILL BECOME ACTIVATED WHEN POW ER
SWI TCHES ON ).
10. FINA LLY THE UN IT WILL RETUR N TO THE NORMAL DISPLAY, EXCEPT THAT THE SYMBOL
WI LL BE SHOWN, TO INDICATE THAT YOU HAVE PROGRAMMED A POWER ON /OFF ALARM
SETTING.
11. IN CASE YOU WISH TO DI SABLE THE TIMER, PRESS TIME R & THE SYMB OL DISAPPEARS .
OFF*
40
MINS
30
MINS
20
MINS
10
MINS
OFF

E-9
ELECTRONI C VOLUME CONT ROL
- THIS UNIT USES AN ELECTRONIC VOLUME CONTROL .
- TO INCREASE OR DECREASE THE LOUDNESS OF UNIT, PRESS
THE VOLUME UP (VOL +) OR VOLUME DOWN (VOL -) KEYS RESPECTIVELY.
- RELEASE THE KEY WHEN VOL UME LEVEL IS AT THE DESIRED LOUDNESS.
- SOMETIMES, ESPECIALLY DURING LISTENING TO THE RADIO, YOU MAY NOTICE
A "CLICK-CLICK-CLICK" (REPEATING) SOUND WH EN YOU ARE INCREASING OR
DECREASING THE VOL UME . THIS IS A NORMAL CONDITION & THE SOUND WI LL
DISAPPEAR WHEN YOU RELEASE THE VOL UME KEY (WH EN YOU REACH THE
DESIRED VOL UME LEVEL).
(PUSH BUTTON TYPE)
E-10
RADIO ME MORY (STATION PRESET MEMO RY STORAGE)
- AT ANY TIME , THE CURRENTLY DISPLAYED STATION OR FREQUENCY CAN BE
STORED INTO ON E OF THE MEMO RY POSITION.
- PRESS KEY ONCE.
- PRESS OR TO SELECT DESIRED MEMORY POSITION . (THERE AR E
10 MEMORY POSITIONS FOR EACH RADIO BAND).
- PRESS KEY ONCE TO SAVE THE SELECTED STATION INTO THE
SELECTED ME MO RY POS ITION .
- TO RECALL ANY SAVED MEMORY, SIMPLY PRESS OR , THE SAVED
RADIO- BAND WI LL BE RECALLED.
- TO CLEAR THE MEMO RY OF ANY POSITION, SIMPLY SAVE A NEW STATION TO
THE SAME MEMORY POSITION.
PROGRAM
M+ M-
M+ M-
INSERTION AND REMOVAL OF DISCS
IMPORTANT: ALWAYS HOLD A CD BY IT'S EDGES . AVOI D GETT ING ANY FI NGER- PRINTS,
SMUDGES OR DI RT ONTO THE SURF ACE OF A DISC. I N CASE THI S HAPP ENS,
USE A SPEC IAL CD-CLEANING CLOT H OR CLE ANI NG KIT TO REMOVE THE DIRT OR
SMUDGES .
PRESS THE "FUNCTION" KEY REPEATEDLY UNTIL THE DISPLAY SHOWS "CD".
PRESS THE OPEN/ CLOSE KEY TO OP EN THE CD-DOOR. CAREFULLY PLACE
A COMPACT DISC (CD OR MP3 DISC) ONTO THE CENTER SPINDLE WI TH THE
LABEL SIDE (PRINTED SIDE OF DISC) FACING OU TWARDS (TOWARDS YOU).
PRESS THE "OPEN/ CLOSE" BUTTON TO AUTOMATICALLY CLOSE THE CD-DOO R.
THE CD-DISPLAY WILL SHOW THE TOTAL NUMB ER OF TRACKS ON THE DISC
AFTER A FEW SECONDS. THE CD IS NOW READY TO BE PLAYED. TO REMOVE
A DISC, PRESS THE OPEN/ CLOSE KEY. THE DOOR WILL OPEN UPWARDS ALLOW ING
THE REMOVAL OF THE CD INSIDE.
OPERATION OF RADIO
- PRESS THE "ON /OFF" KEY ON CE TO SWITCH ON THE UNIT.
- PRESS THE KEY TO SELECT THE DESIRED RADIO BAND.
- FOR MW (AM) STATIONS, ROTATE OR REPOSITION THE SET TO IMPROVE RADIO
RECEPTION .
- FOR FM STATIONS, EXTEND AN D AD JUST THE TELESCOPIC ANTENNA TO OBTAIN
THE BEST RECEPTION .
- USE THE FM MO NO/STEREO BUTTON TO SELECT THE DESIRED MO DE. IN SOME
CASES, WHERE RECEPTION IS POO R, IT MAY BE ADVISABLE TO SELECT
“MONO” MODE, TO IMPROVE CLARITY OF THE RADIO SIGN AL.
TUNER
MUSIC EQUA LIZER
- PRESS KEY REPEATEDLY TO CHOOSE THE DESIRED SOUND EFFECT
ACCORDING TO THE MUSIC YOU ARE LISTENING TO :
EQ
*PASS CLASSIC JAZZ ROCK POP
(*PASS MEANS EQUALIZER IS "BY-PASSED" OR "OFF")
MANUAL FREQUENCY ADJUSTMENT (SCAN MO DE)
- PRESS (AND IMMEDIATELY RELEASE) THE KEY OR
KEY TO “SCAN” (MANUALLY ADJUST) THE RADIO FREQU ENCY “UP” OR “DOWN”
BY 1-STEP AT A TIME .
- THE RADIO DIGITAL DISPLAY WI LL INDICATE THE EXACT FREQUENCY AT EACH
STEP’S POSITION.
- WHEN A DESIRED FREQU ENCY OR STATION IS REACHED. IT CAN BE SAVED
INTO ON E OF THE “MEMORY” POSITIONS. (SEE “RADIO MEMO RY” SECTION ).
AUTOMATIC FREQUENCY ADJUSTME NT (SEEK MODE)
- PRESS AND HOL D (FOR 2 SECON DS) THE OR KEYS
TO “SEEK” (AUTOMATICALLY ADJUST) THE RADIO FREQUENCY “UP” OR “DOWN”
TO THE NEXT AVAILABLE RADIO STATION.
- THE RADIO DIGI TAL DISPLAY WILL INDICATE THE EXACT FREQU ENCY OF THE
NEXT STATION THAT IS FOU ND.
- WHEN A DESIRED STATION IS REACHED. IT CAN BE SAVED INTO ON E OF THE
“MEMORY” POSITIONS. (SEE “RADIO MEMO RY ” SECTION ).
NEXT BACK
NEXT BACK
NORMAL CD OPERATION
- PRESS "ON/OF F" KEY TO SWITCH ON THE UNIT.
- PRESS THE "FUNCTION " KEY REPEATEDLY UNTIL THE DISPLAY SHOWS "CD"
- PRESS THE "OPEN/ CLOS E" KEY & INSERT A CD AS DESCRIBED.
- PRESS KEY. THE DISK WI LL START SPINNING & THE FIRST
SONG (TRACK) WI LL START PLAYING. THE DISPLAY WILL INDICATE THE CURRENT
TRACK NO.
- AT ANY ANYTIME DURING PLAYBACK, PRESS THE KEY
TO PAUSE OP ERATION OF THE UNIT. PRESS KEY TO RESUME
OPERATION AT THE SAME TRACK & POS ITION.
- AT ANYTIME DURING PLAYBACK, PRESS THE KEY TO STOP OPERATION
OF THE SET. THIS WILL RESET THE SET TO THE FIRST TRACK (IF YOU PRESS
PLAY AF TER STOP, THE FIRST TRACK WILL ALWAYS START PLAYING).
- AT ANYTIME DURING PLAYBACK, PRESS AN D RELEASE THE OR
KEYS TO S KIP FORWAR D OR BACKWARDS BY ON E TRACK, AS DESIR ED.
- ANY ANYTIME DURING PLAYBACK, PRESS AN D HOLD THE OR
KEYS TO FAST-FORWAR D (CUE) OR FAST-REVER SE (RE VIEW) THE SPECIFIC
TRACK, WHICH IS CURRENTLY PLAYING.
PLAY
PLAY
PLAY
STOP
PROGRAM
NEXT BACK
NEXT BACK

E-11
- MP3 (MPEG 2, LAYER 3) IS A DIGITAL FILE FORMAT FOR AUDIO (MUSIC).
- YOU CAN DOWNLOAD MP3 SONGS FROM MANY WEBSITES ON THE INTERNET
(PLEASE OBSERVE THE COPYRIGHT REGULATIONS OF YOUR COUNTRY).
- MP3 SONGS ARE MUCH SMALLER IS MEMORY SIZE COMPARED WITH NORMAL
CD-AUDIO FORMAT SONGS. THIS IS CALLED “COMPRESSION” & IT ALLOWS
MUCH MORE RECORDING TIME ON A STANDARD CD THAN THE NORMAL
74 MINUTES (FOR NORMAL CD-AUDIO).
WHAT IS MP3 ?
- PRESS "ON/OFF" TO SWITCH ON THE UNIT.
- INSERT AN MP3 CD INTO THE PLAYER AND CLOSE THE CD DOOR.
- PRESS THE KEY.
- THE DISK WILL SPIN AND THEN PLAYBACK THE FIRST SONG (TRACK), THE
DISPLAY WILL INDICATE THE CURRENT TRACK NO. (“001” IF IT IS THE FIRST
TRACK) AS WELL AS THE PLAY TIME OF THAT TRACK IN MINUTES AND SECONDS.
- AT ANYTIME DURING PLAYBACK, PRESS KEY TO PAUSE
OPERATION OF THE UNIT. PRESS KEY TO RESUME
OPERATION AT THE SAME TRACK & POSITION.
- AT ANYTIME DURING PLAYBACK, PRESS AND RELEASE OR
TO SKIP FORWARDS OR BACKWARDS BY ONE TRACK.
- AT ANYTIME DURING PLAYBACK, PRESS AND HOLD OR
TO REVIEW (FAST REWIND) OR CUE (FAST FORWARDS) THE CURRENT TRACK.
- AT ANYTIME DURING PLAYBACK, PRESS AND HOLD KEY FOR 1
SECOND. THE DISPLAY WILL SHOW THE FILE NAME (SONG NAME) INFORMATION.
KEY
HOW TO PLAY MP3 DISCS
PLAY
PLAY
PLAY
FIND
NEXT BACK
NEXT BACK
E-12
PROGRA MMING THE CD- PLAYER
- THE CD PLAYER CAN BE PROGRAMM ED TO PLAY ANY SEQUENCE OF UPTO 64
TRACKS, AS DESIRED.
- ALWAYS PRESS THE KEY BEFORE STARTING THE PROG RAMMING.
- PRESS THE KEY ONCE, THE DISPLAY WILL SHOW THE “MEMORY”
SYMB OL TO INDICATE THAT THE SET IS NOW IN “MEMORY PROGRAMM ING MO DE”.
- PRESS THE OR TO SELECT THE TRACK (SONG)
NUMB ER YOU WISH TO BE STORED IN THE CURRENT MEMORY (PROG RAM)
POSITION.
- PRESS THE KEY TO CONFIRM YOU R SELECTION .
- REPEAT THE PREVIOU S 2 STEPS, EACH TIME SELECTING ANY TRACK NUMBER
OF YOUR CHOI CE TO BE STO RED IN SUCCESSIVE (PROG RAM) POSITIONS.
- AFTER A MAXIMU M OF 64 SONGS (OR LESS) HAVE BEEN SELECTED AS
DESCRIBED ABOVE, PRESS KEY, THE DISPLAY WI LL NOW SHOW
MEMO RY TO INDICATE YOU HAVE SAVED A PROGRAM-ME MO RY.
- PRESS KEY, THE CD-PLAYER WILL PLAYBACK THE “SAVED SEQUENCE” IN
THE PROG RAM MEMORY.
- TO CLEAR (CANCEL) THE ENTIRE PROGRAM WHICH IS STORED IN THE
MEMO RY, SIMP LY PRESS KEY, THIS WILL RESET THE ME MO RY &
CLEAR THE PROGRAM.
STOP
PROGRAM
PROGRAM
PROGRAM
PLAY
STOP
NEXT BACK
FOR NORMAL CD-AUDIO DISCS:
- PRESS THE OR TO SELECT THE ALBUM (FOLDER DIRECTORY)
NUMB ER WHICH CONTAINS THE SONG YOU WISH TO SELECT
- PRESS THE KEY TO CONFIRM
- PRESS THE OR TO SELECT THE TRACK (SONG) NUMBER
YOU WISH TO TO BE STORED IN THE CURRENT MEMORY (PROGRAM) POS ITION .
- PRESS THE BUTTON TO CONFIRM YOUR SELECTION .
- REPEAT THE PREVIOUS 4 STEPS, EACH TIME SELECTING ANY AL BUM AND TRACK
NUMB ER OF YOUR CHOI CE TO BE STORED IN SUCCESSIVE (PROG RAM) POSITIONS.
- AFTER A MAXIMU M OF 64 SONGS (OR LESS) HAVE BEEN SELECTED AS
DESCRIBED ABOVE, PRESS KEY, THE DISPLAY WI LL NOW SHOW
MEMO RY TO INDICATE YOU HAVE SAVED A PROG RAM-MEMORY.
- PRESS KEY, THE CD-PLAYER WILL PLAYBACK THE “SAVED SEQUENCE”
IN THE PROG RAM MEMORY.
- TO CLEAR (CANCEL) THE ENTIRE PROGRAM WHICH IS STORED IN THE
MEMO RY, SIMP LY PRESS KEY, THIS WILL RESET THE ME MO RY &
CLEAR THE PROGRAM.
FOR CD-MP3 DATA DISCS:
PROGRAM
NEXT BACK
NEXT BACK
PROGRAM
PROGRAM
PLAY
STOP
- THE EXACT LENGTH OF RECORDING TIME DEPENDS ON THE
“COMPRESSION RATE” OF THE MP3 SONG YOU HAVE DOWNLOADED.
- COMPRESSION RATE IS SPECIFIED IN “KBPS” (KILOBITS PER SECOND). FOR
EXAMPLE : “128 KBPS”: THE HIGHER THIS NUMBER, THE BIGGER THE MP3 FILE
SIZE (THE BETTER THE SOUND QUALITY) AND THE LOWER THE RECORDING
TIME ON A CD-R. NORMALLY BASED ON 128 KBPS, YOU SHOULD HAVE
APPROX. 250-300 MINUTES OF RECORDING TIME ON A CD-R.
- MP3 SONGS CAN BE RECORDED WITH SOME “TEXT INFORMATION” AS PART
OF THE SAME FILE. IT CONSISTS OF (AMONG OTHER DETAILS:)
- FILE NAME (SONG NAME)
- ARTIST NAME
- YOUR CD-MP3 PLAYER CAN LOCATE (“FIND”) A SONG ON AN MP3-CD DISC FROM
THE "FILE NAME", THEREFORE YOU SHOULD TRY TO NAME ALL YOUR MP3 FILES WITH
THE ACTUAL NAME OF THE SONG THAT IT CONTAINS.
- THERE ARE BASICALLY 2 WAYS TO MAKE AN MP3-CD WITH YOUR FAVORITE
SONGS :
- DOWNLOAD MP3 SONGS FROM INTERNET & BURN THEM ON A
CD-R DISC ON YOUR COMPUTER.
- CONVERT CD-AUDIO FILES (FROM A NORMAL MUSIC CD) ONTO
YOUR COMPUTER INTO MP3 FORMAT, USING A KIND
SOFTWARE CALLED “CD-RIPPER”.
(WHICH IS FREEWARE/SHAREWARE ON INTERNET).
TEXT DISPLAY MODE (id3 display)
- THIS UNIT IS CAPABLE OF DISPLAYING THE "TEXT INFORMATION" (id3 TAG) OF AN MP3
SONG ON THE LCD DISPLAY.
- TO SWITCH ON THIS FUNCTION, SIMPLY PRESS & HOLD THE KEY FOR 3
SECONDS.
- TO SWITCH BACK TO NORMAL DISPLAY MODE (TO DISPLAY TRACK NUMBER, etc.),
PRESS & HOLD THE KEY AGAIN FOR 3 SECONDS.
FIND
FIND

E-13
E-14
- WI TH AN Y SELECTED ALPHABET, THERE MIGHT BE SEVERAL SON GS ON THE
DISC (WH ICH BEGIN WI TH THE SAME ALPHABET). TO SEARCH FOR ALL SON GS
BEGI NNING WITH A PART ICULAR AL PHABET, PRESS AND “HOLD” THE
OR KEYS (FOR 2 SECONDS) UNTIL THE “FIND” STOPS FLASHING
IN THE DISPLAY.
NEXT
BACK
- ONCE THE "FIND" SYMBOL STOPS FLASHING, PRESS THE KEY TO
DISPLAY THE NEXT SON G STARTING WI TH SAME ALPHABET. REPEAT UNTIL
DESIRED SON G IS LOCATED.
- AT ANYTIME , WHEN YOU HAVE LOCATED A DESIRED SONG (AS SHOW N ON SCREEN)
JUST PRESS “PLAY” TO LISTEN TO IT.
- TO EXIT THE “FIND” MODE PRESS THE KEY TWICE UNTIL THE “FIND”
S YMB OL DI SAPP EAR S FR OM T H E DI SPLAY.
FIND
FIND
- MP3 FILES (SON GS) CAN BE ORGANIZED INTO FOL DERS (DIRECTORIES) WH EN YOU
RECORD THEM ON TO A CD-R DISC. EACH FOLDER IS CALLED AN "ALBUM" AN D
YOU CAN (FOR EXAMPLE) ORGANIZE YOUR ALBUMS ON A DISC SO THAT EACH ALBUM
CONTAINS SONGS BY A PARTICULAR ART IST, OR ALTERNATIVELY, BY A DIFFERENT
GENRE OR TYPE. YOU CAN ORGA NIZE SONGS & ALBUMS IN AN Y WAY YOU WISH
SO THAT YOU CAN LOC ATE & PLAY BACK THOSE SONGS WI TH GREATER EASE &
CONVENIENCE.
- TO SEARCH FOR SONGS WITHIN A PARTICULAR ALBUM, PRESS THE KEY
TWI CE WH EN AN MP3-CD IS PLAYING (OR STO PPED).
- THE "FIND" & "ALBUM" SYMB OLS WILL ACTIVATE IN THE DISPLAY, TOGETHER WITH
THE NUMB ER "1". THIS IS THE "ALBUM NUMBER" (IT INDICATES THE NUMBER OF
THE FOLDER ON THE DISC).
FINDING (SEARCHING) MP3 SONGS BY ALBUM (FOLDER)
NEXT
FRUITS . . . . . . . .
NAME OF ALBUM
(FOLDER)
ALBUM
NUMBER
EXAMPLE:
01
PRESS ONCE
- PRESS or TO ADVANCE THE ALBUM NUMBER
(01 02 03 ...). THE NAME OF EACH ALBUM (THE DIRECTORY NAME) WILL
APPEAR IN THE LOW ER PART OF THE DISPLAY FOR EACH SELECTED ALBUM NUMB ER.
NEXT BACK
FIND ALBUM
NEXT
VEGETABLES. . . . ..
ALBUM
NUMBER
02
NAME OF ALBUM
(FOLDER)
PRESS ONCE
ETC ...
FIND ALBUM
- WH EN THE DESIRED AL BUM NAME APPEARS ON SCREEN, "PRESS & HOLD"
THE KEY (FOR 2 SECON DS) UNTIL THE "ALBUM"SYMBOL DISAPPEARS.
THIS WI LL OP EN THE SELECTED ALBUM & ALLOWS YOU TO DISPLAY ALL THE SONGS
CONTAINED INSIDE THAT ALBUM SO THAT YOU CAN SELECT THE DESIRED SONG
BY USING THE KEY & PLAY IT BY USING THE "PLAY" KEY.
ALBUM
ALBUM
NEXT
FINDING (SEA RCHI NG) MP3 SONGS BY SONG NAME
- AT STO P OR PLAY MODES, PRESS KEY ONCE.
- THE “FIND” SYMBOL WILL “FLASH” IN THE DISPLAY, AND THE LETTER “A” WILL BE
SHOW N.
THIS IS THE “SEARCH ALPHABET”.
- PRESS OR KEYS TO ADVANCE THE
“SEARCH ALPHABET” (A B C D...) TO SELECT THE DESIRED SEARCH ALPHABET.
- AT EVERY SELECTED “SEARCH ALPHABET” THE LOWER PART OF THE DISPLAY
WILL SHOW THE NAME OF THE FIRST SON G BEGI NNING WI TH THAT SELECTED
ALPHABET, ON THE DISC.
FIND
A -- APPLE . . . . .
NAME OF SONG
(MP3 FILE)
SEARCH
ALPHABET
EXAMPLE:
PRESS ONCE
FIND SYMBOL
NEXT BACK
NEX T
B -- BANANA . . .
NAME OF SONG
(MP3 FILE)
SEARCH
ALPHABET
FIND SYMBOL
PRESS ONCE
NEX T
ETC...
AT "STOP" OR "PLAY"
MODE PRESS ONCE
FIN D
NEXT
NEXT

USB
E-15
CARROT... . . . ..
NAME OF 1st SONG IN
THE SELECTED ALBUM
01
PRESS & RELEASE REPEATEDLY
TO SCROLL THROUGH ALL SONGS
CONTAINED INSIDE THE SELECTED ALBUM
VEGETABLES. . . . ..
ALBUM
NUMBER
02
ALBUM NAME
(WHICH YOU
WANT TO OPEN)
THIS WILL
DISAPPEAR AFTER
2 SECONDS
ALBUM
PRESS & HOLD FOR 2 SECS. !
NEXT
TOMATO... . . . ..
NAME OF DESIRED SONG IN
THE SELECTED ALBUM
01
PRESS THE "PLAY" KEY TO PLAY
THE SONG DISPLAYED.
NEXT
- TO EXIT THE "FIND" MODE PRESS THE KEY ONCE UNTIL THE "FIND"
SYMB OL DISAPPEARS FROM THE DISPLAY.
FIND
E-16
3D-VIRTU AL SURR OUND
USB FLASH DRI VE MP3 PLAYBACK
- THIS UNIT IS EQUIPPED WITH A USB SOCKET WHICH CAN ACCEPT AND PLAY
MP3 FILES STORED ON STANDARD USB FLASH DRIVES (ALSO KNOWN AS
"PEN DRIVES") WHICH AR E FOR MEMORY STORAGE. (COMPATIBLE WI TH USB
VERSION 1.1 & 2.0).
- TO UTILIZE THIS FUNCTION PRESS THE "FUNCTION" KEY REPEATEDLY UNTIL
THE DISPLAY SHOW S "CARD-USB", & THEN INSERT A USB FLASH DRIVE INTO
THE USB SOC KET
- PRESS OR TO SKIP FORWAR D OR BACKWARDS TO SELECT
THE DESIRED MP 3 FILE ON THE USB FLASH MEMORY DRIVE.
- PRESS TO START PLAY BACK OF THE SELECTED SONG.
3D-VIRTU AL SURR OUND
REPEAT PLAYBAC K FUNCTION
- AT ANYTIME DURING PLAYBACK:
- PRESS KEY REPEATEDLY TO SELECT
= TO REPEAT THE CURRENT TRACK
= TO REPEAT ALL TRACK (FULL CD)
= TO REPEAT ALL SON GS FROM CURRENTLY SELECTED
ALBUM( DIRECTORY)
REPEAT 1
REPEAT AL L
REPEAT AL BUM
REPEAT
NEXT BACK
PLAY
DISPLAYING THE SONG NAME (id3)
REMEMBER TO PRESS & HOLD THE KEY FOR 3 SECONDS TO SWITCH ON
THE "TEXT DISPLAY MODE" (TO DISPLAY id3 TAG INFORMATION OF THE SONG ON
THE LCD DISPLAY).
FIND
SONG NUMBER
(WITHIN THIS SELECTED
ALBUM)
FUNCTION
ALWAYS SELECT THE "CARD-USB"
MODE FIRST (USING KEY)
BEFORE INSERTING A USB FLASH
DRIVE.
ALTH OUGH TH IS PRO DUC T IS
FULLY COMPATIBLY WITH USB 1.1
& 2.0 STANDARDS, A SMALL
PE RCE NTAGE (AB O UT 5% ) OF
US B FLA SH DR IVE S M IGH T NO T
BE R EAD ABLE , DUE T O TH OS E
US B-FL AS H DRIVE MAN UFAC TUR ERS
NO N-C OMP LIA NCE WITH TH E FU LL
(OFFICIA L) USB 1.1 / 2.0 STANDARDS.
IMPORTANT
NOTE:

USING THE AUDIO LINE IN CONNECTION (DVD/ AUX)
- YOU CAN CONNECT THE AUDIO OUTPUT OF AN EXTERNAL DEVICE SUCH AS A
DVD PLAYER TO THIS UNIT, TO LISTEN TO THE SOUND OF THAT DEVICE (DVD)
THROUGH THE HIGH QUALITY AMPLIFIER OF THIS MUSIC SYSTEM.
- TO CONNECT THE EXTERNAL DEVICE (eg. DVD PLAYER) PLEASE USE A
STANDARD RCA CABLE TO CONNECT THE "AUDIO LINE-OUT" OF THE DEVICE
(LEFT AND RIGHT CHANNELS) TO THE "AUX/DVD AUDIO LINE-IN" RCA JACKS
(LEFT AND RIGHT) ON THE REAR PANEL OF THIS UNIT.
- SWITCH THE FUNCTION SELECTOR TO "AUX" ON THE FRONT PANEL.
- MAKE SURE THAT THE SPEAKERS ARE CONNECTED TO THE MAIN UNIT.
- SWITCH ON THE POWER OF THE MAIN UNIT AND THE EXTERNAL DEVICE
(DVD PLAYER).
- START PLAYBACK OF THE EXTERNAL DEVICE (DVD) AND ADJUST THE VOLUME
CONTROL OF THE MAIN UNIT TO THE DESIRED LEVEL.
- REMEMBER TO SWITCH OFF THE POWER OF THE MUSIC SYSTEM (MAIN UNIT)
WHEN YOU ARE FINISHED USING THE EXTERNAL DEVICE.
ANTI-SKI P (ANTISHOCK) FUNCTION [ESP]
- THIS UNIT HAS A BUILT-IN DIGITAL ANTI-SKIP FUNCTION WHICH PREVENTS
CD "SKIPPING" WHEN THE UNIT IS PHYSICALLY MOVED OR SUBJECTED TO
VIBRATIONS FOR UP TO 100 SECONDS.
- WHENEVER ANY CD OR CD-MP3 DISC IS PLAYED , THE DISPLAY WILL
INDICATE A FLASHING SYMBOL FOR ABOUT 50 SECONDS. THIS
MEANS THAT THE ANTI-SKIP MEMORY IS BEING FILLED UP (BUT IS NOT
YET FULL). THE ANTI-SHOCK PROTECTION IS ALREADY ACTIVE (IN USE) AT
THIS TIME, BUT IS NOT YET UP TO THE MAXIMUM 100 SECONDS CAPACITY.
- ONCE THE SYMBOL STOPS FLASHING, THE ANTI-SHCOK MEMORY IS
FULL & THE UNIT NOW PROVIDES ANTI-SKIP PROTECTION FOR 100
SECONDS OF VIBRATION.
- PLEASE NOTE THAT THE ANTI-SKIP FUNCTION ONLY PROTECTS AGAINST
NORMAL VIBRATION OR MINOR MOVEMENT. SEVERE OR STRONG SHOCKS/
VIBRATIONS TO THE UNIT MAY STILL CAUSE SKIPPING.
ESP
ESP
E-17 E-18
SPECIFICATIONS
AC-POWER SUPPLY : ...................................... AC 230V , 50 Hz
AC-POWER CONSUMPTION : ..........................32W
REMOTE CONTROL UNIT : ................................3V (AAA SIZE/ UM-4/ LR03/ R03G x 2 PCS)
(BATTERIES NOT INCLUDED)
SPEAKER : ......................................................... 4” x 2 WOOFER + 1½” X 2 TWEETER
SPEAKER CAPACITY POWER : .........................@ 4 Ohm
AMPLIFIER MAXIMUM POWER : ....................... 10 W
~
CONNECTING AN EXTERNAL POWERED SUBWOOFER
(NOT INCLUDED)
- THIS UNIT HAS A BUILT IN SUBWOOFER CONNECTION WHICH CAN BE
CONNECTED TO ANY STANDARD POWERED SUBWOOFER.
- BY CONNECTING TO A POWERED SUBWOOFER, THE LOW FREQUENCY
(BASS SOUND) CAN BE STRONGLY ENHANCED TO PROVICE A MUCH RICHER
AND DEEPER SOUND TO YOUR MUSIC.
- TO USE THIS FACILITY, SIMPLY CONNECT ANY STANDARD POWERED
SUBWOOFER (EASILY AVAILABLE FROM MOST MUSIC EQUIPMENT SHOPS)
USING THE RCA JACK ON THE REAR PANEL OF THE MAIN UNIT.
- SWITCH ON THE POWERED SUBWOOFER.
- PLAY ANY MUSIC SOURCE (CD or RADIO or AUX) AS USUAL.
- YOU WILL IMMEDIATELY NOTICE THE DEEPER SOUND, WHICH CAN BE
FURTHER ENHANCED BY SWITCHING ON THE "SUPER BASS" FUNCTION ON
THE MAIN UNIT.
- PLEASE NOTE THAT THE SPEAKERS SHOULD BE CONNECTED AS USUAL TO
THE MAIN UNIT, WHEN USING A SUBWOOFER.
- PLEASE NOTE THAT "PASSIVE" (NON-POWERED) SUBWOOFERS WILL NOT
WORK WITH THIS UNIT.
THE APP ARATUS SHOUL D NOT BE EXPOS ED TO DRI PPING OR SPL ASHI NG
AND NO OBJE CTS FI LLED WITH LIQUIDS SHOUL D BE PLAC ED ON THE
APPARATUS.
THE MARKI NG AND RATING LABE L IS LOCATED AT REAR ENCLOSURE OF
THE APPARATUS.
THE MAINS PLUG IS USED AS THE DISCONNE CT DEVI CE AND IT SHALL
REMAI N READI LY OPERABLE. TO BE COMPLE TELY DISCONNE CTED THE
POWER INPUT, THE MAINS PLUG OF THE APPARATUS SHAL L BE
DISCONNE CTED FROM THE MAI NS COMPLE TELY. THE MAINS PLUG
SHOUL D NOT BE OBSTR UCTE D OR SHOULD BE EASI LY ACCES SED
DURING INTENDED USE.
RANDOM-PLAY FUN CTION
- THE UNIT IS EQU IPPED WITH A SPECIAL FUNCTION WH ICH ALLOWS YOU TO
LISTEN TO ALL THE TRACKS (SONGS) ON A CD IN “RANDOM” ORDER.
- TO ACTIVATE THIS FUNCTION, SIMP LY PRESS THE KEY ON CE, THE
DISPLAY SHOW “RND”.
- TO CANCEL RANDOM-PLAY FUNCTION, SIMPLY PRESS KEY ON CE.
RANDOM
RANDOM
UNDER THE INFLUENCE OF ELECTROSTATIC PHENOMENON, THE PRODUCT
MAY MALFUNCTION AND REQUIRE USER TO POWER RESET.

E-19
- INCLU DED 1 PC STAND FOR THE MAIN UNI T ( )
FIXING THE BASE TO THE MAI N UNI T:
- INCLU DED 2 PCS STAND FOR THE SPEA KERS ( )
WHEN THESE
ARROWS ARE ALIGNED
THE BASE IS PROPERLY
INSTALLED ONTO MAIN UNIT
SYSTEM SET UP PROCEDURE
A. AS A "SHELF SYSTEM" (TABLE TOP USE)
1. PLACE THE STAND UNDER
THE MAIN UNI T OR SPEA KERS
2. SLIDE THE STAND UPWARD
(SEE DIAGRAM BELOW).
3. STOP WHEN ARROWS ARE ALI GNED (SEE DIAGRAM) .
THE STAND IS NOW LOCK ED TO MAI N UNIT OR SPEAKERS .
(TO REL EASE THE STAND FROM THE MAI N UNIT OR SPEA KERS, SLI DE THE
STAND DOWNW ARDS (OPPOS ITE DI RECTION) UNTI L IT BECOME S
RELEASE D.
CLICK
