Aurora DXW-2 User manual

i
Manual Number: 131120
Firmware: v1.13 & above
USERS GUIDE
DXW-2 Series
2 Gang Decora®HDBaseT Wall Plate
Transmitter
DXW-2E
DXW-2
DXW-2EU / DXW-2EUH

i
User Guide
SAFETY INSTRUCTIONS
Please review the following safety precautions. If this is the first time using this model, then read this manual
before installing or using the product. If the product is not functioning properly, please contact your local
dealer or Aurora for further instructions.
The lightning symbol in the triangle is used to alert you to the presence of dangerous voltage
inside the product that may be sufficient to constitute a risk of electric shock to anyone opening
the case. It is also used to indicate improper installation or handling of the product that could
damage the electrical system in the product or in other equipment attached to the product.
The exclamation point in the triangle is used to alert you to important operating and maintenance
instructions. Failure to follow these instructions could result in injury to you or damage to the
product.
Be careful with electricity:
Power outlet: To prevent electric shock, be sure the electrical plug used on the product power cord
matches the electrical outlet used to supply power to the Aurora product. Use only the power adapter
and power connection cables designed for this unit.
Power cord: Be sure the power cord is routed so that it will not be stepped on or pinched by heavy
items.
Lightning: For protection from lightning or when the product is left unattended for a long period,
disconnect it from the power source.
.
Also follow these precautions:
Ventilation: Do not block the ventilation slots if applicable on the product or place any heavy object on
top of it.
Blocking the air flow could cause damage. Arrange components so that air can flow freely. Ensure that
there is adequate ventilation if the product is placed in a stand or cabinet. Put the product in a properly
ventilated area, away from direct sunlight or any source of heat.
Overheating: Avoid stacking the Aurora product on top of a hot component such as a power amplifier.
Risk of Fire: Do not place unit on top of any easily combustible material, such as carpet or fabric.
Proper Connections: Be sure all cables and equipment are connected to the unit as described in this
manual.
Object Entry: To avoid electric shock, never stick anything in the slots on the case or remove the cover.
Water Exposure: To reduce the risk of fire or electric shock, do not expose to rain or moisture.
Cleaning: Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the
device before cleaning.
ESD: Handle this unit with proper ESD care. Failure to do so can result in failure.
FCC
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired
operation.
Trademarks
All trademarks in this document are the properties of their respective owners.

ii
User Guide
TABLE OF CONTENTS
PACKAGE CONTENTS.............................................................................................................1
INTRODUCTION........................................................................................................................2
About..................................................................................................................................................... 2
Features................................................................................................................................................ 2
Front DXW-2, DXW-2E, DXW-2EU, DXW-2EUH................................................................................. 3
Rear Panel DXW-2, DXW-2E, DXW-2EU, DXW-2EUH ....................................................................... 4
APPLICATIONS.........................................................................................................................5
Example 1 Typical DXW-2 Transmitter to RX Receiver........................................................................ 5
Example 2 DXB-8 Button Wall Control to DXW-2................................................................................. 6
Example 3 DXW-2EU Connected to DXE-USB-H1.............................................................................. 7
Example 4 DXW-2EUH Connected to DXE-USB-D1P......................................................................... 8
OPERATION..............................................................................................................................9
Source Selection................................................................................................................................... 9
Auto-Sense........................................................................................................................................... 9
EDID Handling.................................................................................................................................... 10
AWV™ (Audio without Video) ............................................................................................................. 10
Factory Reset...................................................................................................................................... 10
SERIAL COMMANDS..............................................................................................................11
RS-232 Commands .............................................................................................................................11
RS-232 Command Usage................................................................................................................... 12

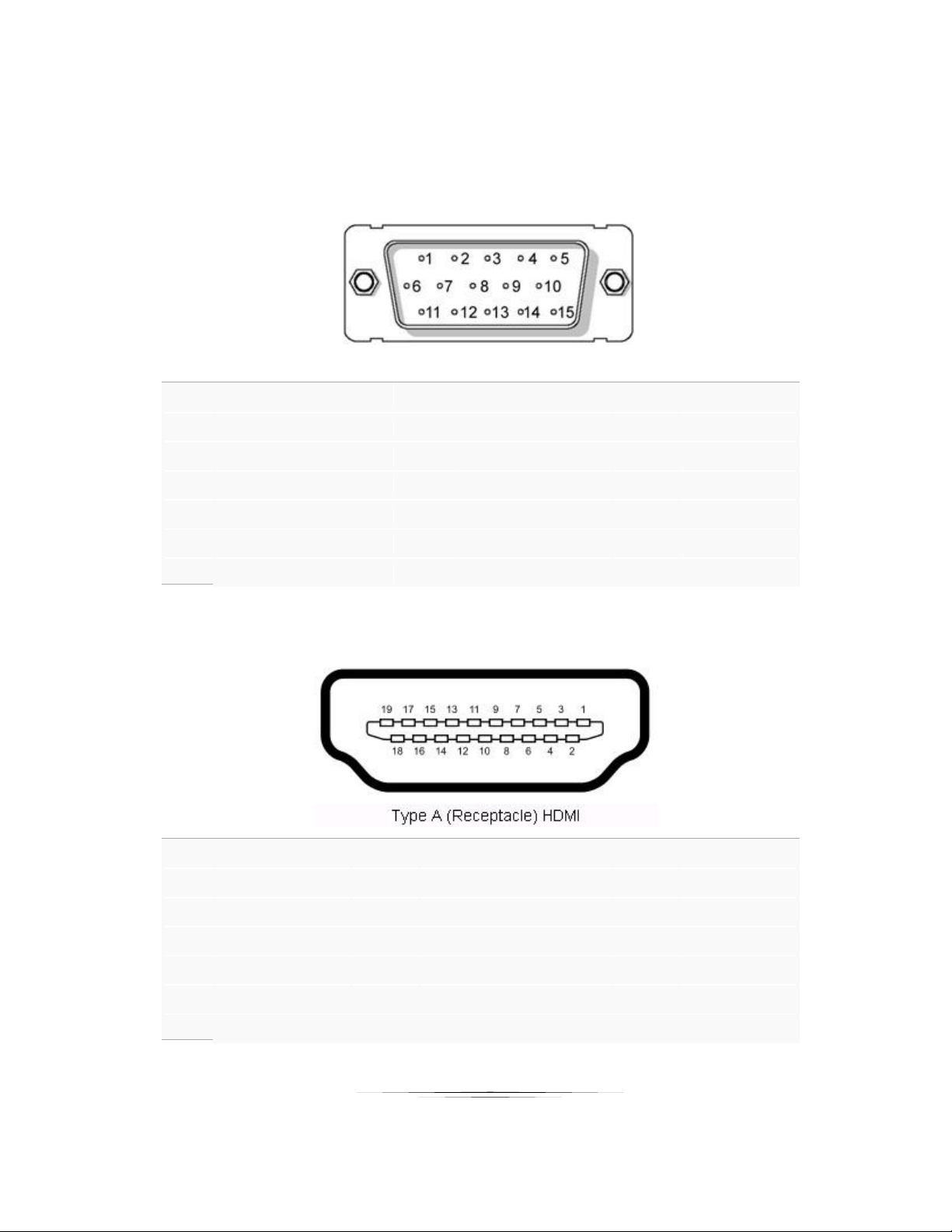

CONNECTOR PIN DEFINITION..............................................................................................13
VGA DB15HD ..................................................................................................................................... 13
HDMI................................................................................................................................................... 13
CAT5e/6/6A......................................................................................................................................... 14
APPENDIX 1 Troubleshooting...........................................................................................15
APPENDIX 2 Firmware Update..........................................................................................16
DXW-2 Update Utility.......................................................................................................................... 16
.................................................................................................................................................16
APPENDIX 3 Supported Timing ........................................................................................17
VGA Port Supported Timing................................................................................................................ 17
APPENDIX 4 Technical Specifications..............................................................................18
APPENDIX 5 Cabling .........................................................................................................20
APPENDIX 6 Warranty .......................................................................................................21

1
User Guide
PACKAGE CONTENTS
Please make sure the following items are included within your package. Contact your dealer if any items
are missing or damaged.
DXW-2-W (White) or DXW-2-B (Black)
2 Gang Decora®Paintable White or Black Wall Plate Accordingly.
USB Type A male to Type A Male (DXW-2EUH model only)
Optional Accessories
PS0053-1 24v DC 15.5 Watt power Supply
PS0062-1 24v DC 24 Watt power Supply
CA0054-1 8” VGA to 4 RCA Adaptor cable (YPbPr and Composite Video)
DXB-8 Button Backlit Wall Controller Panel available in black or white.
DXE-USB-H1 USB Host side (PC) extender unit for DXW-2EU.
DXE-USB-D1P USB Device side extender unit with 24v DC power supply for DXW-2EUH
Compatible HDBaseT Receivers
The DXW-2 Series is an HDBaseT technology product and should work with other HDBaseT receivers.
Please note if product does not supply POE remotely local 24v DC power supply (PS0053-1) must be
used. DXW-2 models will be limited to the capabilities of the receiver accordingly.
DXE-CAT-RX1 (Recommended for DXW-2 Model Only)
DXE-CAT-RX2 (Recommended for DXW-2, 2E, or 2EU)
DXE-CAT-RX3 / RX3L / RX3-A / RX3L-A (Recommended for DXW-2, 2E, or 2EU)
DXCI-4-HDBT1 (Recommend for DXW-2 Model Only)
DXCI-4-HDBT2E (Recommended for DXW-2, 2E, & 2EU)
Note: Go to www.auroramm.com for latest manual and firmware

2
User Guide
INTRODUCTION
About
The DXW-2 Series available in white or black are 2 gang multi-input Decora®style wall plates
with HDBaseT CAT transmitter. Its ability to convert VGA (YPbPr, S-Video, Video) with audio to
HDMI locally and transmit the signal up to 600ft sets this unit apart from the competition. The
sources are remotely selectable via RS-232 commands sent through the matching receiver
device (DXE-CAT-RX, DXM Matrixes, etc). In addition, there is a LAN port (DXW-2E, DXW-2EU)
for connection to the network without requiring a separate wall plate. THE DXW-2EU has two
USB ports for powering USB devices and transmitting 480Mbps up to 220ft independently to a
different location. The DXW-2 Series can be remotely powered by the receiver device and also
has the ability to transmit IR signals via the sensor window on the front of the unit for remote
control of IR controllable devices. Overall, the DXW-2 saves money and simplifies an installation
by combining the functionality of a switcher, converter, and extender into one neat package.
Features
1 HDMI Input with Audio for DVI
1 VGA with Audio Converted to HDMI
VGA can Accept YPbPr, S-Video, & Video
1 LAN Connector (DXW-2E, DXW-2EU)
HDBaseT 600ft (183m) Extension
2 USB 2.0 Ports (DXW-2EU)
USB Extends Independently 220ft
1 IR Receiver (40ft Range)
Auto Sense, Buttons, RS-232 for Source Select
Buttons Backlight (Red, Green, Blue)
HDCP Compliant
Remote or Local Power
Fits in Standard 2 Gang Outlet Box
Low Depth for Floor & Table Boxes
Warning: Do not plug RJ-45 HDBaseT output to non-HDBaseT compliant devices or damage may occur to
either product.

3
User Guide

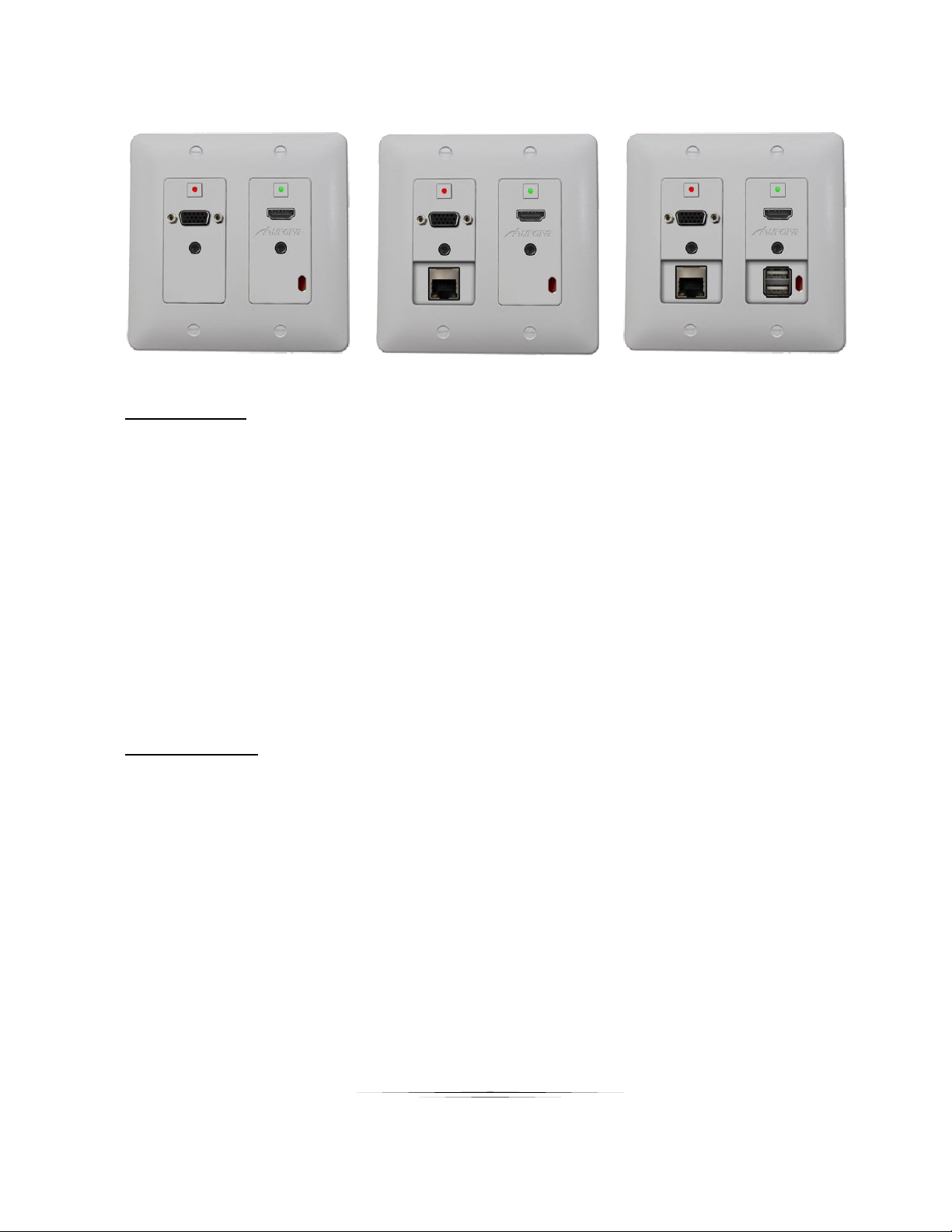

Front DXW-2, DXW-2E, DXW-2EU, DXW-2EUH
DXW-2 DXW-2E DXW-2EU / DXW-2EUH
Front Left Side
Button –The backlit button (red, green, or blue) will select the left side source.
DB15 VGA Connector –VGA up to 1080p can be input. Through the use of a breakout cable
YPbPr, Video, and S-Video can also be input. The DXW-2 will check for VGAsignal, if no
signal, YPbPr, then Composite Video, and finally S-Video. When switching back and forth the
DXW-2 will remember the last source selected for faster switching. All analog sources will be
converted to HDMI and sent HDBaseT to the receiver unit. Note: See appendix for pin out
information.
3.5mm TRS Connector –Audio for the VGA connector sources to be embedded in HDMI
RJ-45 LAN Connector (DXW-2E & DXW-2EU) –10/100 LAN via HDBaseT receiver unit.
Must use DXE-CAT-RX2 or RX3 for LAN function. Note only yellow LED is active and will
light solid when link and blink with activity.
Front Right Side
Button –The backlit button (red, green, or blue) will select the right side source.
HDMI Connector –Use with HDMI or DVI sources like Blu-ray players, laptops, etc.
3.5mm TRS Connector –Audio for DVI source to embed and turn into HDMI.
Dual USB Connector (DXW-2EU / 2EUH) –USB 2.0 480Mbps and supplies up to 1Aof
power between both ports. Note the power comes from the HDBaseT extender or local
supply not the USB extender. Great for charging port of USB devices like phones and certain
tablets. If used for extender it must be used with DXE-USB-H1 (2EU) or DXE-USB-D1
(2EUH) and can go up to 220ft separate of the HDBaseT CAT cable. Please note iPhone®&
iPad®devices require use of DXE-USB-H1 (2EU model only) connected to PC in order to
charge or maintain power (iPad®).
IR Remote Window –Can receive IR remotes at 38kHz and transmit to other end. Receives
signals up to 40ft away.

4
User Guide

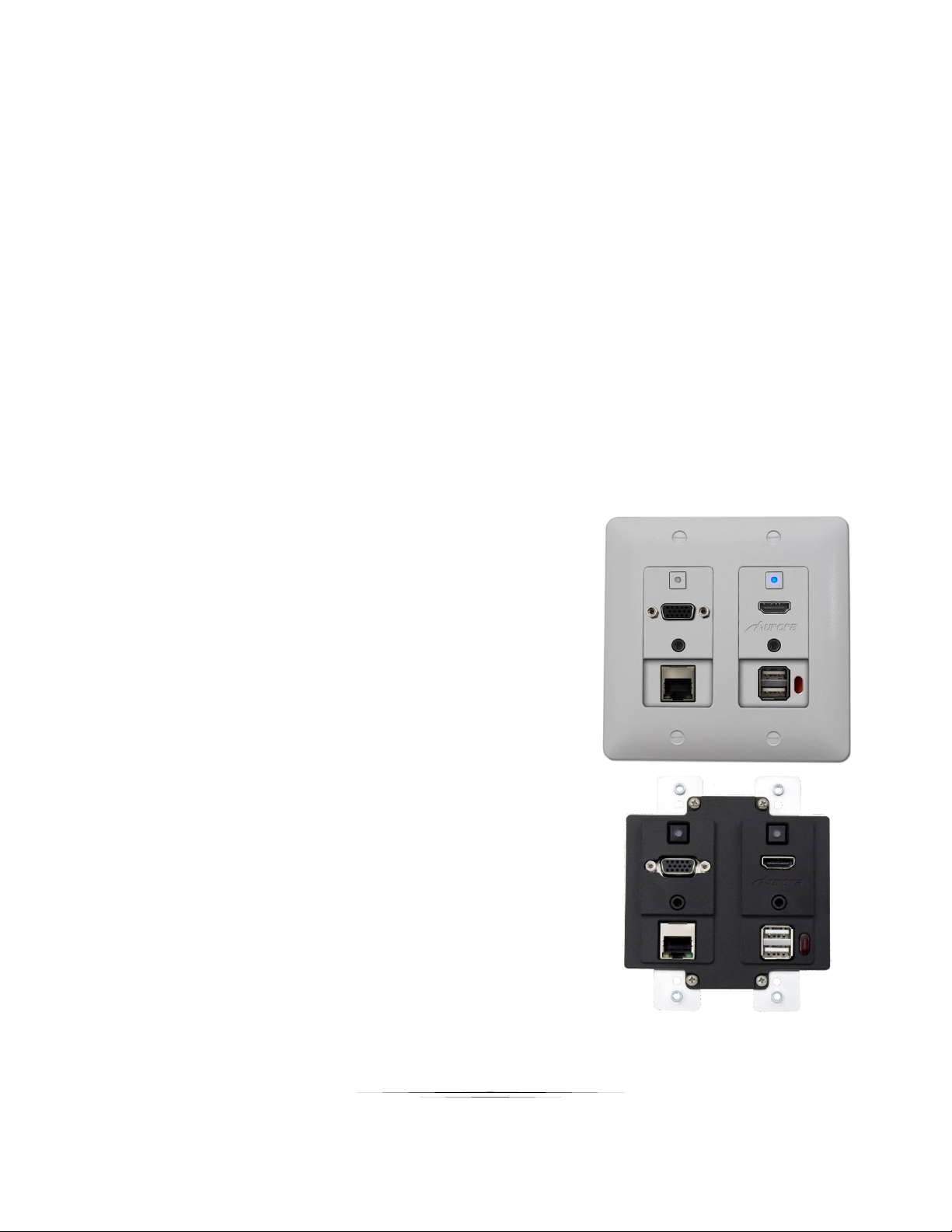

Rear Panel DXW-2, DXW-2E, DXW-2EU, DXW-2EUH
.
Rear Connections
24V DC –Power connector for 24VDC power supply. If remote device can supply power over
HDBaseT then the local power is not required. Currently all receiver types from Aurora supply
power over the HDBaseT.
HDBaseT –CAT 5e/6/6A cables can be used. For longest distance over 600ft use CAT 6A
shielded. This connector is right angle for low depth applications.
RS-232 –Connect RS-232 device up to 115k baud. Note there is a 5v line as it is designed to
power the DXB-8 8 button wall plate. Note: The DXW-2EUH model will use RS-232 RX as a
detect line for USB extender but the TX will still work for RS-232.
USB Extender –The black 4 pin 3.5mm Euro style connector is a separate extender to work
with the DXE-USB-H1 for 2EU model or DXE-USB-D1P for 2EUH model. It will work up to
220 feet with CAT 6 cable allowing the PC to be located elsewhere from the video.
Note: Some 2 gang electrical boxes or mud rings have curved or beveled corners that may
prevent the DXW-2 from properly fitting. Make certain to use a brand that fits the full
dimensions listed in the specification section.

5
User Guide
APPLICATIONS

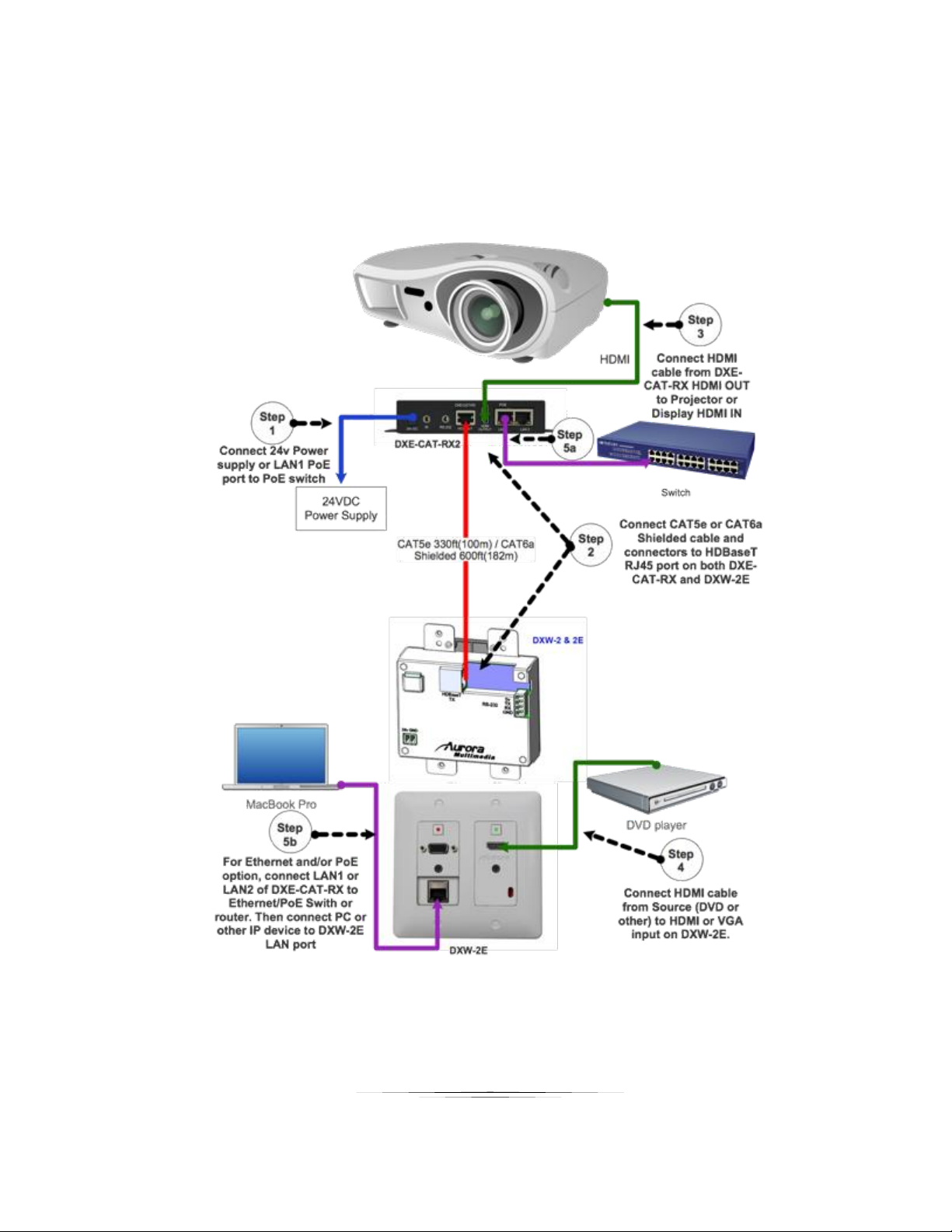

Example 1 Typical DXW-2 Transmitter to RX Receiver

6
User Guide

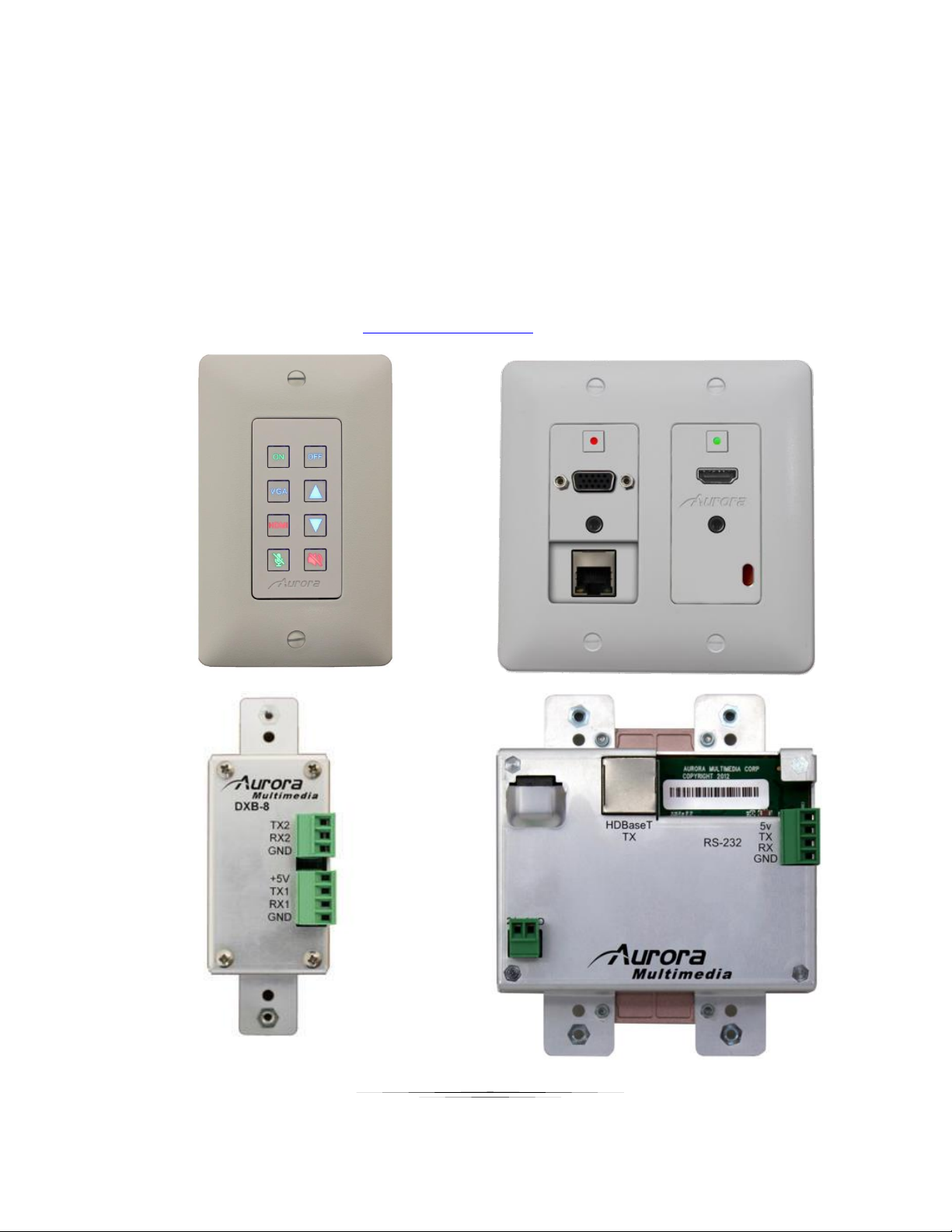

Example 2 DXB-8 Button Wall Control to DXW-2
DXB-8 wall controller connected to the DXW-2 series. The DXB-8 serial port will
connect and draw power from the DXW-2 via the 4 pin RS-232 connection. Any serial
command can be programmed into the DXB-8 at any baud rate and sent through the
DXW-2 to the DXE-CAT-RX receivers. This allows not only the switching of the DXW-2
to be controlled but the remote display device as well. Make certain the baud rates are
set the same on the DXW-2 and the DXB-8. More information on the DXB-8 can be
found on the Aurora website www.auroramm.com

7
User Guide
Example 3 DXW-2EU Connected to DXE-USB-H1
The DXE-USB-H1 (Host Unit) will be located by the computer using the Mini USB Type
B to USB Type A Male cable that is supplied with the DXE-USB-H1. The 24v DC is not
required to be connected when used with the DXW-2EU. Power will be drawn from the
computer. The DXW-2EU will supply 5v to the USB connectors for local charging even if
the DXE-USB-H1 is not connected as it derives its power from the HDBaseT
connection. Please note many tablet devices have proprietary charging circuits and may
not fast charge.

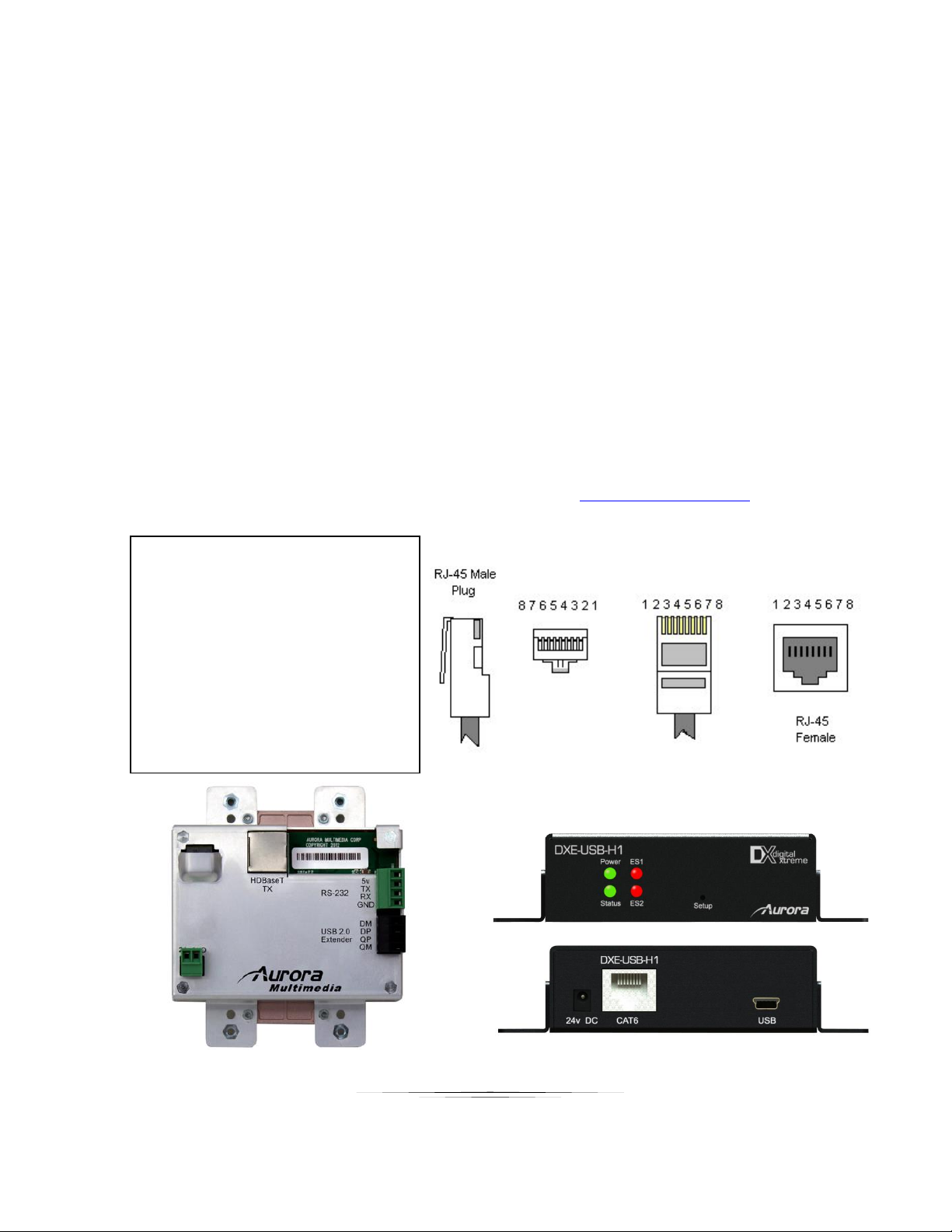

The RJ-45 of the DXE-USB-H1 will connect to the DXW-2EU USB 2.0 3.5mm black
connector and the RS-232 3.81mm green connector (power & ground only). The pin-out
for the RJ-45 is noted below.
More information on the DXE-USB-H1 can be found at www.auroramm.com
1- DM
2- DP
3- 24V DC (Do not connect)
4- Host Detect (Do not connect)
5- Device Detect (Connect to 5V)
6- GND
7- QM
8- QP
