Aussie Traveller 41307000500080 Guide

Models: 400x450 / 700x500
More information https://www.caravansplus.com.au

03
Name of main part
04
Use of roof windows
Notes
05
Product Size 09
Packing List 10
Installation of roof windows 12
Use
400x450
Installation
Installation Precautions 11
16
Installation Diagram -
18
Product Size
Notes
19
Use & Installation
700x500
Warranty Statement 20
Table of Contents
1
More information https://www.caravansplus.com.au

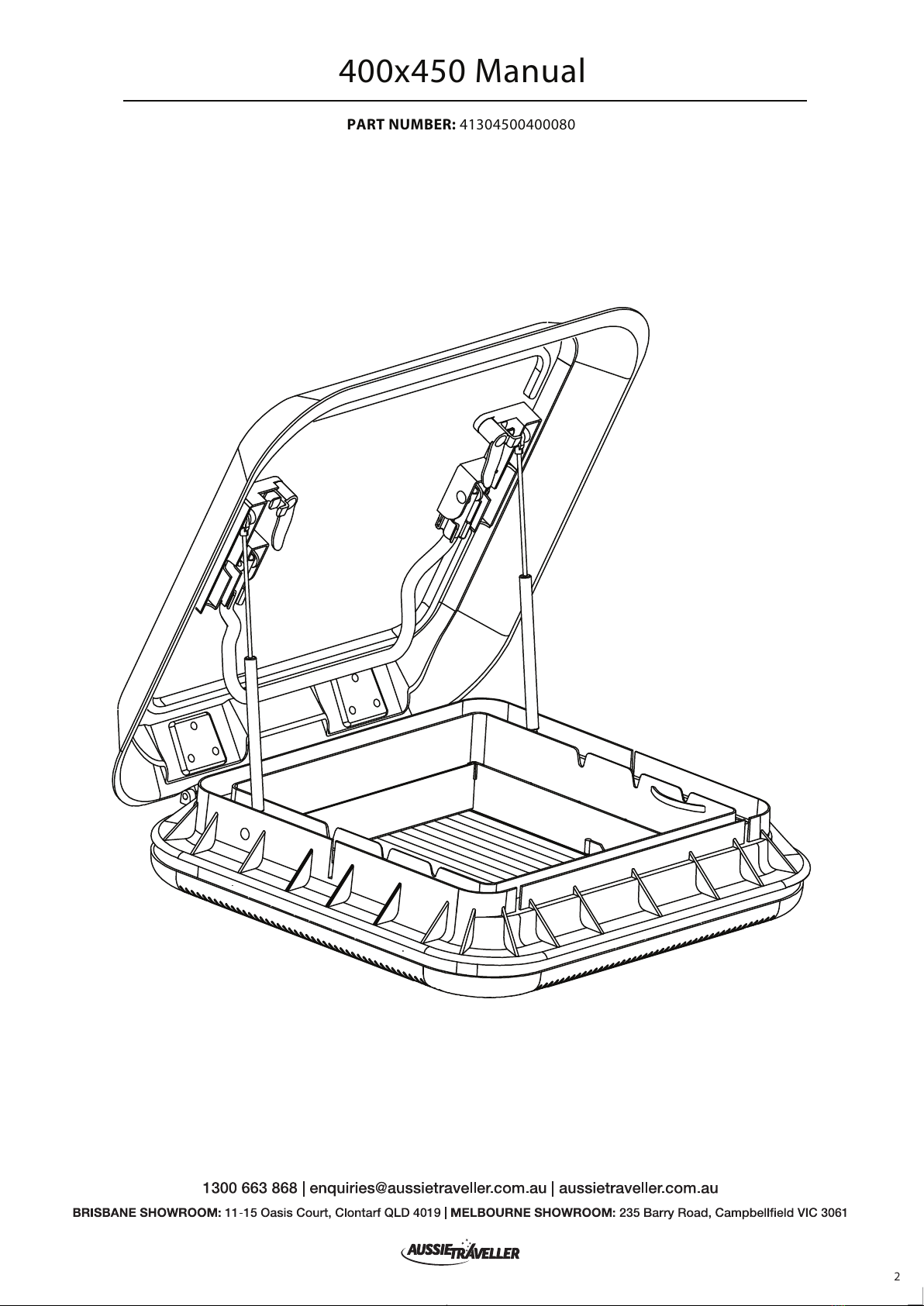

400x450 Manual
PART NUMBER: 41304500400080
2
More information https://www.caravansplus.com.au

Name of main part
1
2
3
4
6
5
7
9
10 8
11
12
1
2
3
4
5
6
Roof window
7
8
9
10
11
12
3
More information https://www.caravansplus.com.au

Notes
4
More information https://www.caravansplus.com.au

Use of Roof Windows
Curtains and Lights
Switch
5
More information https://www.caravansplus.com.au

Use of Roof Windows
B
A
C
Open the dome60°6
More information https://www.caravansplus.com.au

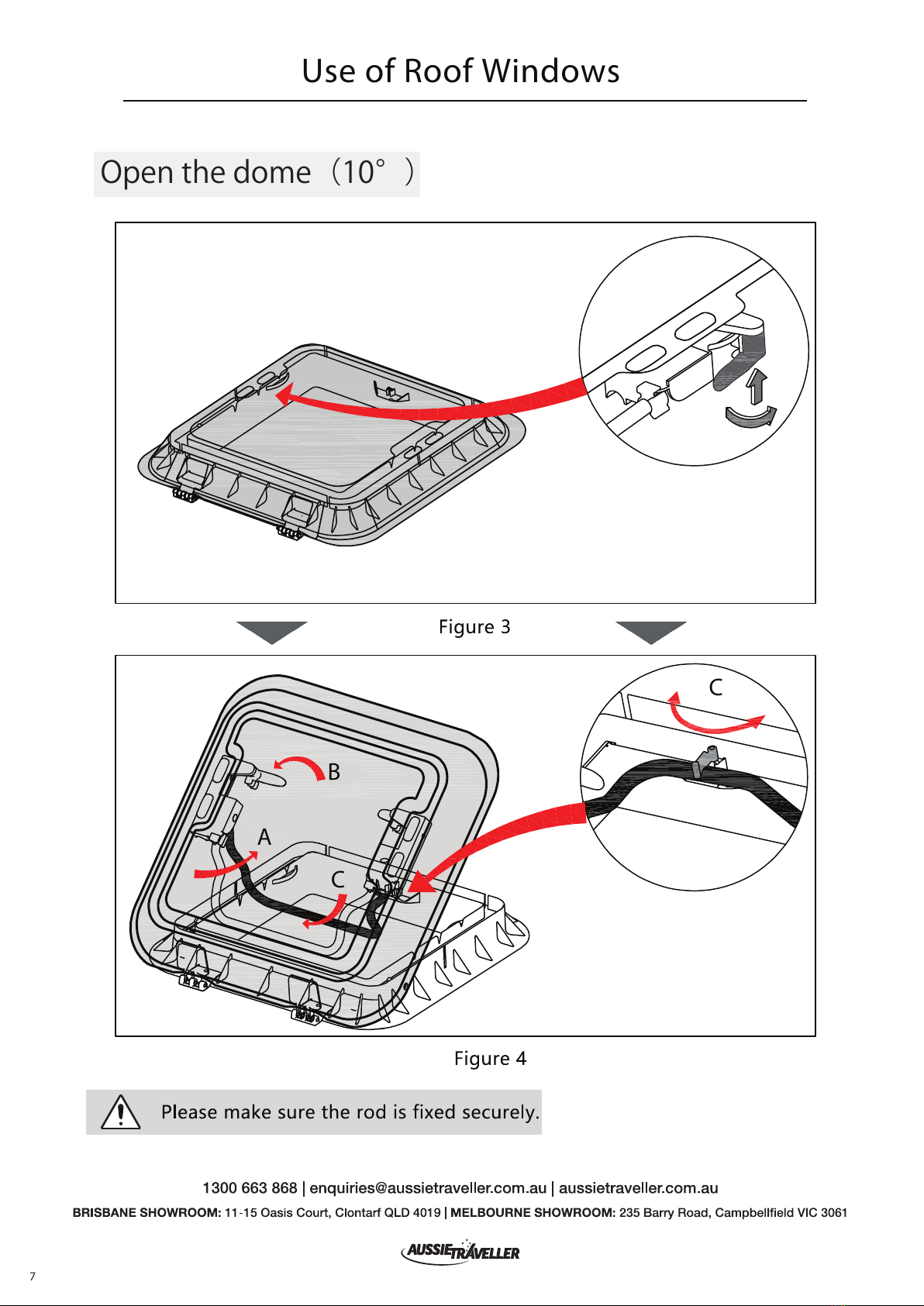

Use of Roof Windows
C
B
A
C
7
More information https://www.caravansplus.com.au

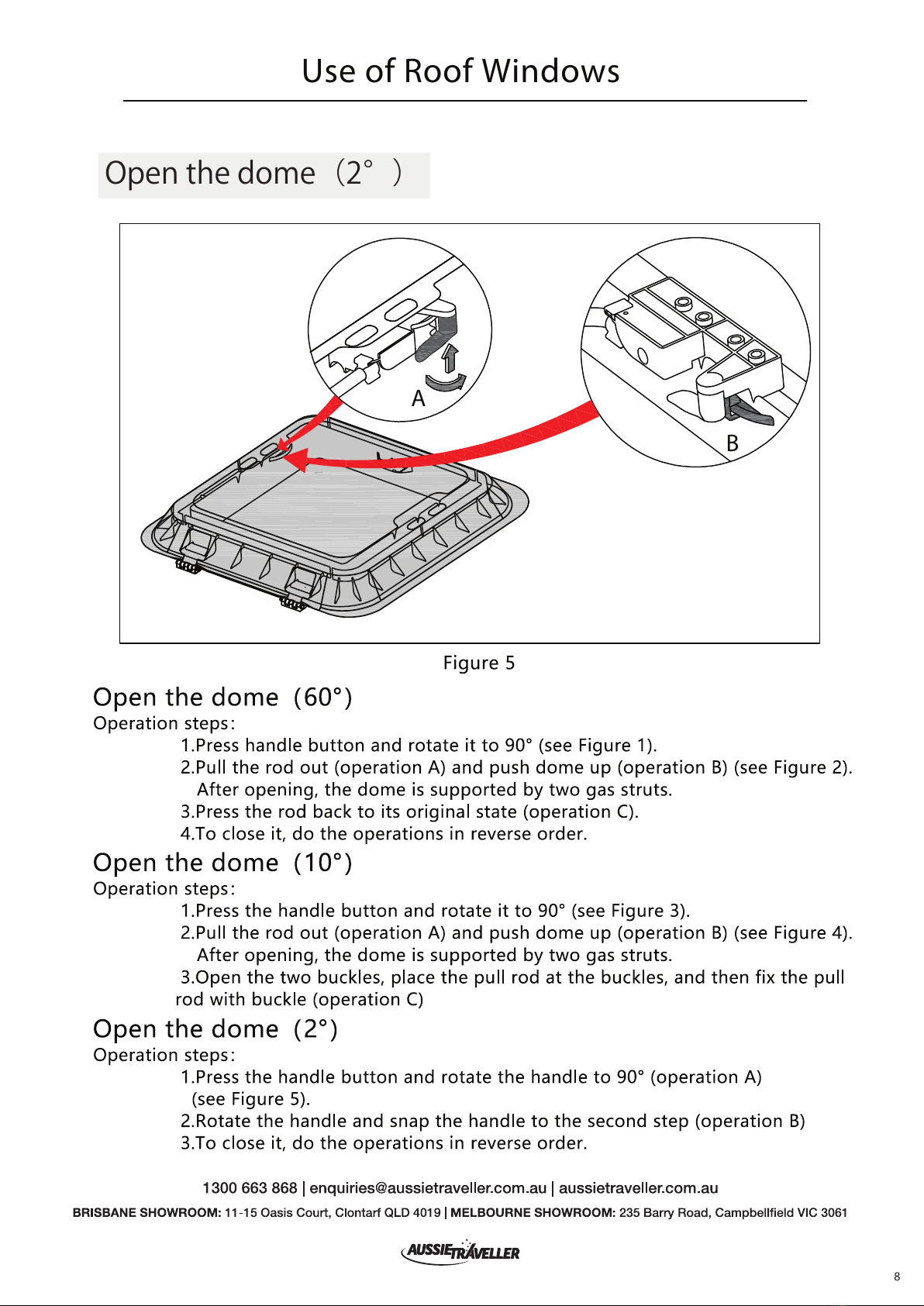

Use of Roof Windows
A
B
8
More information https://www.caravansplus.com.au

Product Size
60°
(526) (525)
(400) (450)
(578)
(573)
(33)
(105)
4×R15
402
452
Unitmm
Roof
Thickness of installation wall 25-60mm
Hole Size
9
More information https://www.caravansplus.com.au

Packing List
ST3.5×30
cross pan head screws
lamp cover
ST4×12
Cross large pan head screws
Roof Windows Use r & In stallation Manuals
󰛍฀󰀞&฀Model:3J-RW-3
:3J-RW-3
Large Installation block
ST3.5×30
Cross countersunk head screws
Roof window Small Installation block
Instruction manual
The package is suitable for 35mm wall thickness.
10
More information https://www.caravansplus.com.au

Installation Precautions
Spec.
No.
2
3
4
5
6
7
1
Name
Mounting screw specification table
25-29mm
30-35mm
36-38mm
39-45mm
46-51mm
52-57mm
58-60mm
Note
Not included
ST3.5×25
ST3.5×30
ST3.5×35
ST3.5×40
ST3.5×45
ST3.5×50
ST3.5×55
included in List
Not included
Not included
Not included
Not included
Not included
9
10
825-29mm
30-35mm
36-38mm
39-45mm
46-51mm
52-57mm
58-60mm
Not included
included in List
Not included
Not included
Not included
Not included
Not included
ST3.5×25
ST3.5×30
ST3.5×35
ST3.5×40
ST3.5×45
ST3.5×50
ST3.5×55
11
12
13
14
Installation precautions:
1.The power is 12V DC.
2. The roof window is only suitable for flat roofs ( maximum inclination angle 15°).
3. When installing roof window, select appropriate self-tapping screws according to
the thickness of roof(see the table below).
4. Be careful not to damage the interior components and structures (especially the
power cord) when opening holes in the roof.
Suitable
wall thickness
Stainless Steel cross
pan head screws
cross countersunk
head screws
cross countersunk
head screws
cross countersunk
head screws
cross countersunk
head screws
cross countersunk
head screws
cross countersunk
head screws
cross countersunk
head screws
Stainless Steel cross
pan head screws
Stainless Steel cross
pan head screws
Stainless Steel cross
pan head screws
Stainless Steel cross
pan head screws
Stainless Steel cross
pan head screws
Stainless Steel cross
pan head screws
11
More information https://www.caravansplus.com.au

Installation of Roof Windows
452mm
402mm 50mm
Please pay attention to the thickness of the wall before installing.
This package is suitable for 35mm wall thickness.
Please apply glue according to the instructions for use of the sealant.
Driving direction
12
More information https://www.caravansplus.com.au

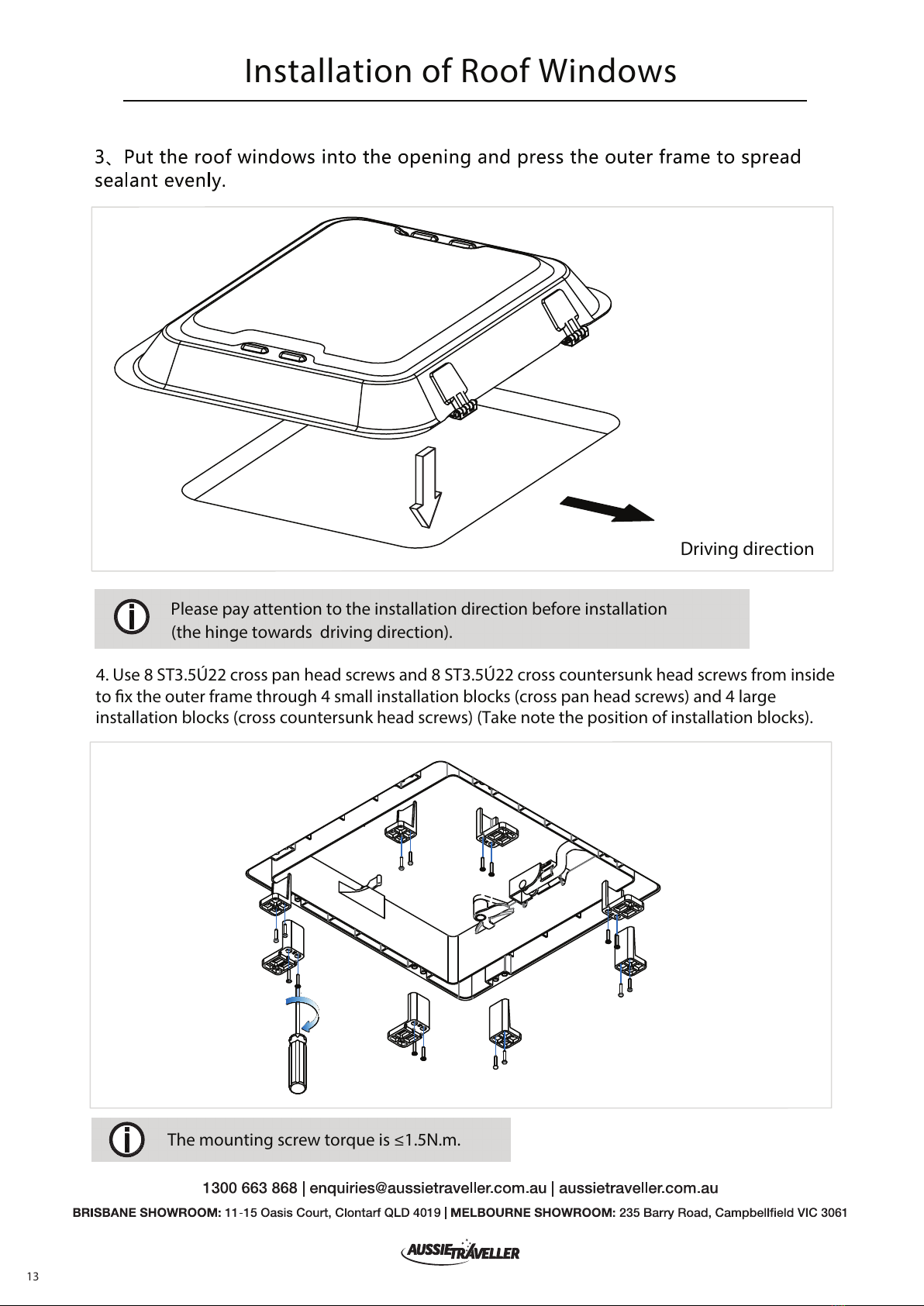

Installation of Roof Windows
4. Use 8 ST3.5Ú22 cross pan head screws and 8 ST3.5Ú22 cross countersunk head screws from inside
to fix the outer frame through 4 small installation blocks (cross pan head screws) and 4 large
installation blocks (cross countersunk head screws) (Take note the position of installation blocks).
Please pay attention to the installation direction before installation
(the hinge towards driving direction).
The mounting screw torque is ≤1.5N.m.
Driving direction
13
More information https://www.caravansplus.com.au

5. Fix the inner frame to the outer frame with 8 ST4Ú12 cross large pan head screws from
the inside.
The mounting screw torque is ≤1.5N.m.
4
Please tear off the protective film on the top of the glass in time.
After installation, please check if the light is working properly.
Installation of Roof Windows
14
More information https://www.caravansplus.com.au

Model: 700x500
700x500 Manual
PART NUMBER: 41307000500080
15
More information https://www.caravansplus.com.au

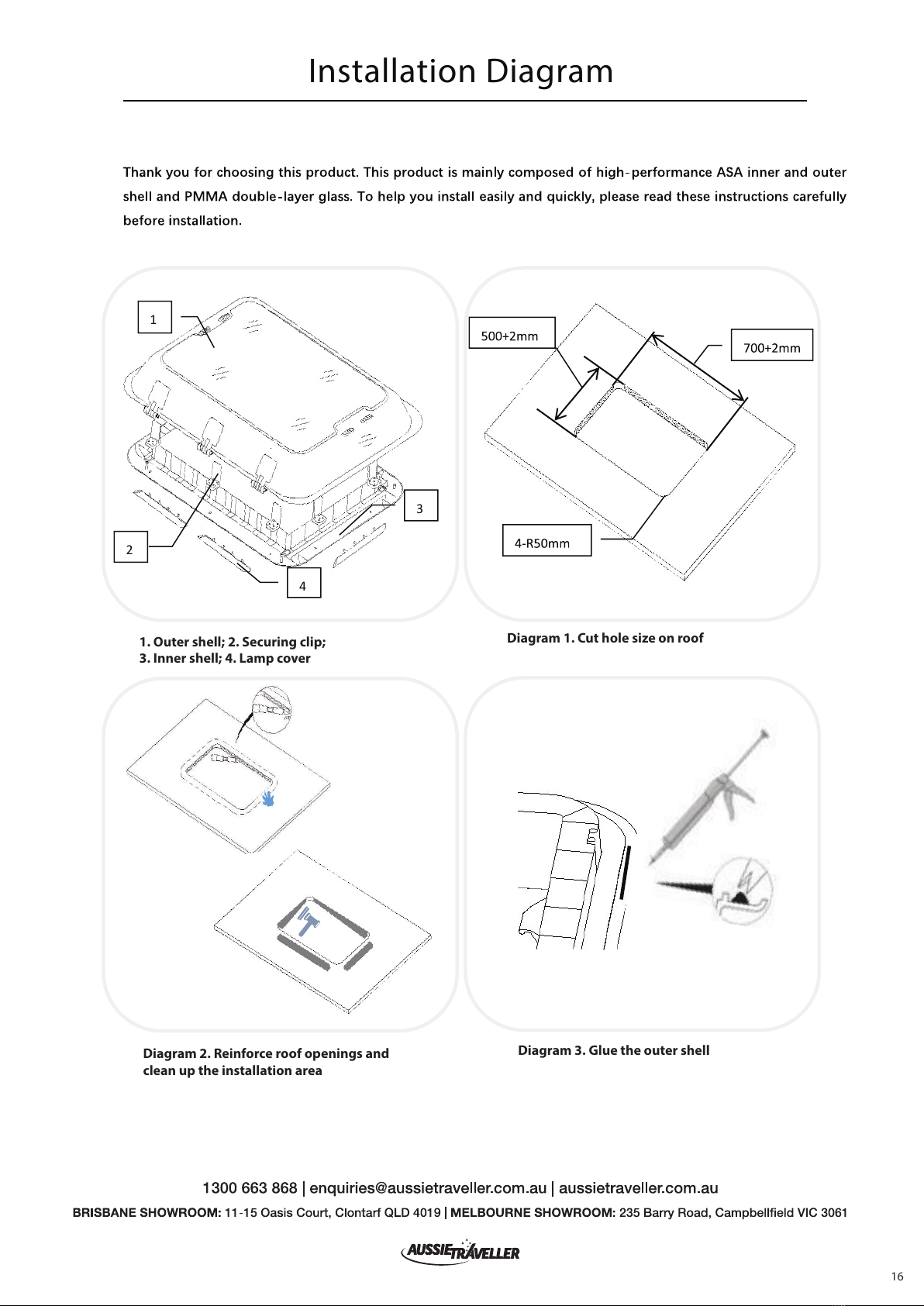

1. Outer shell; 2. Securing clip;
3. Inner shell; 4. Lamp cover
Diagram 1. Cut hole size on roof
Diagram 2. Reinforce roof openings and
clean up the installation area
Diagram 3. Glue the outer shell
Installation Diagram
1
3
2
4
16
More information https://www.caravansplus.com.au

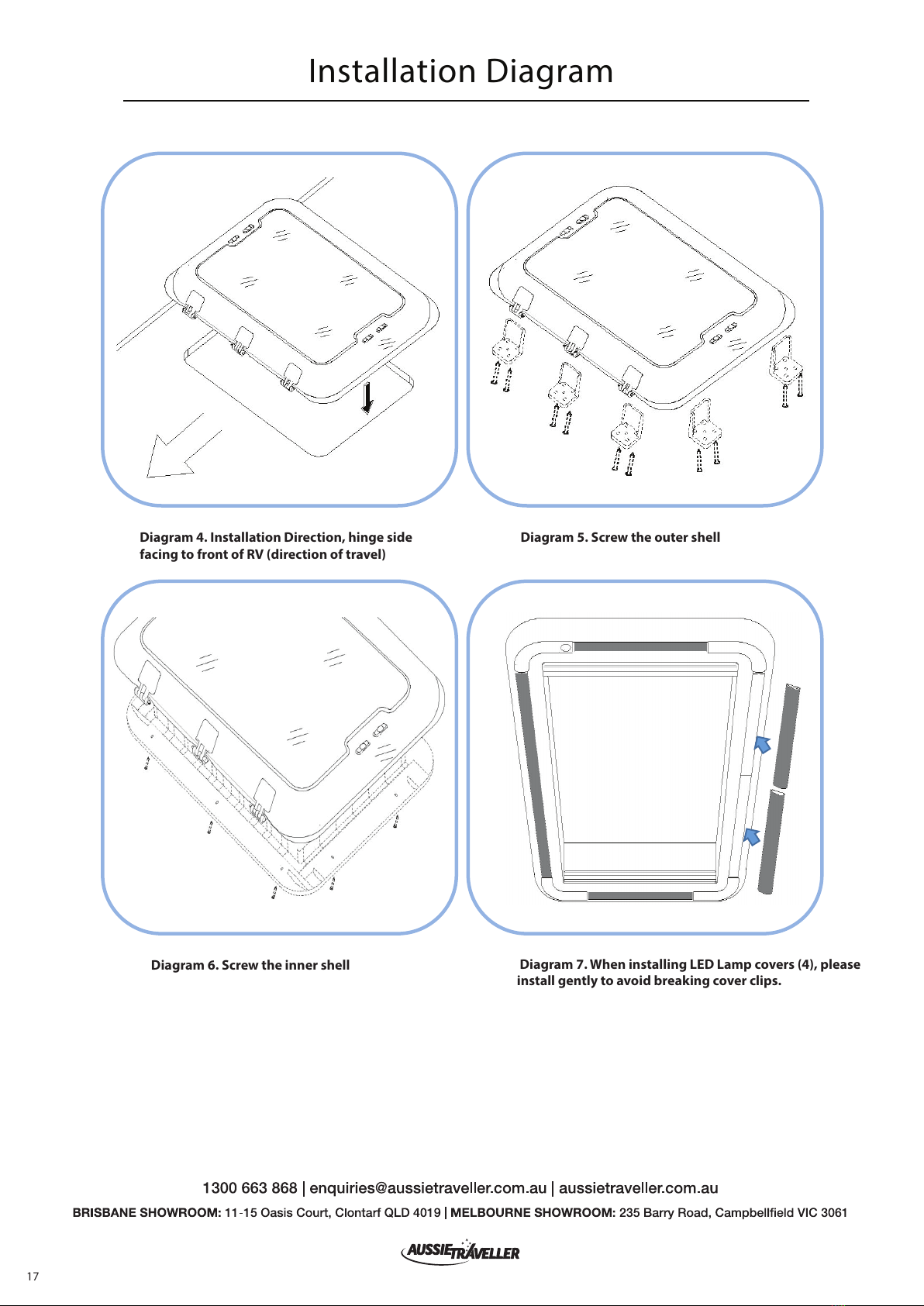

Diagram 4. Installation Direction, hinge side
facing to front of RV (direction of travel)
Diagram 5. Screw the outer shell
Diagram 7. When installing LED Lamp covers (4), please
install gently to avoid breaking cover clips.
Diagram 6. Screw the inner shell
Installation Diagram
17
More information https://www.caravansplus.com.au

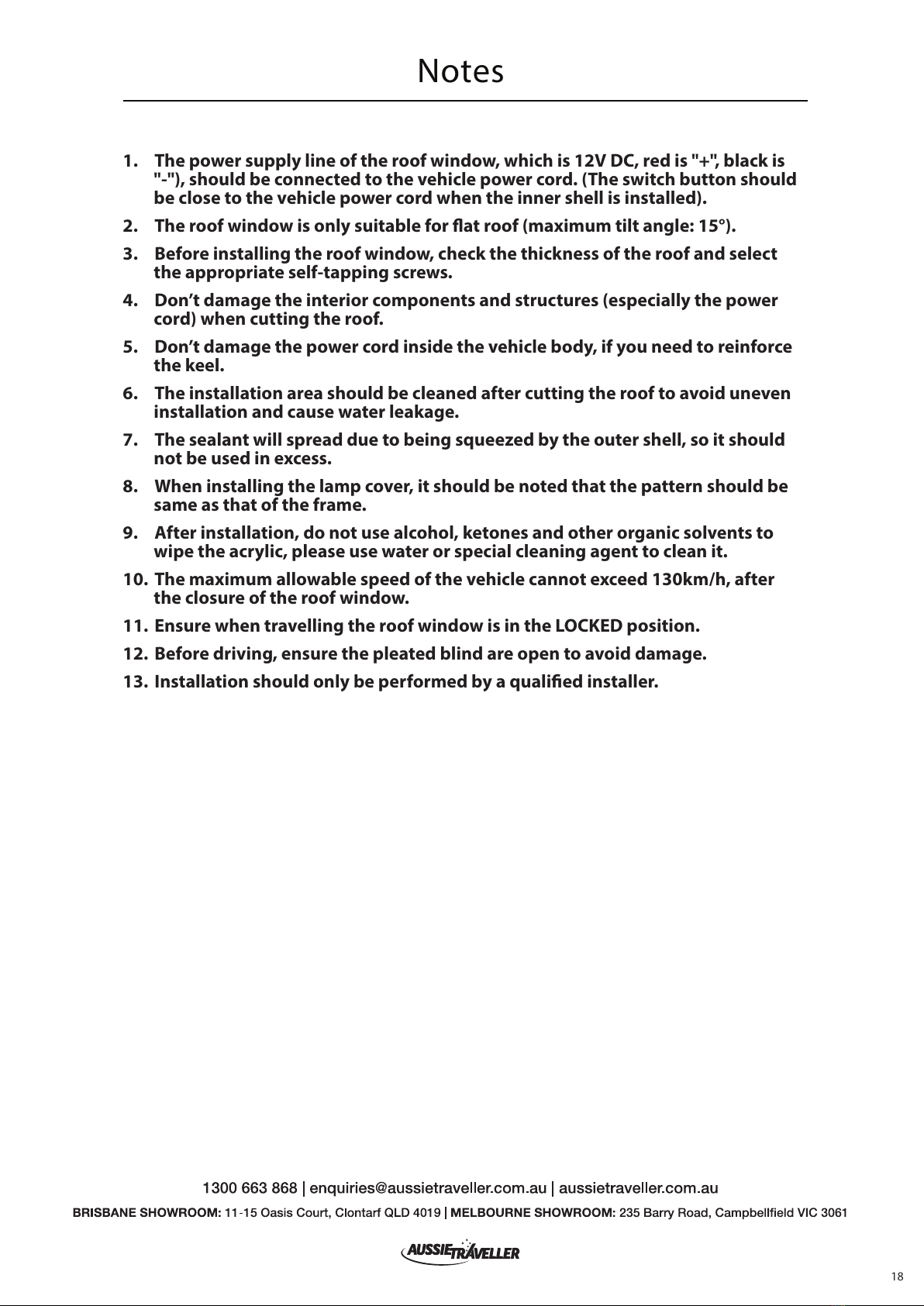

1. The power supply line of the roof window, which is 12V DC, red is "+", black is
"-"), should be connected to the vehicle power cord. (The switch button should
be close to the vehicle power cord when the inner shell is installed).
2. The roof window is only suitable for flat roof (maximum tilt angle: 15°).
3. Before installing the roof window, check the thickness of the roof and select
the appropriate self-tapping screws.
4. Don’t damage the interior components and structures (especially the power
cord) when cutting the roof.
5. Don’t damage the power cord inside the vehicle body, if you need to reinforce
the keel.
6. The installation area should be cleaned after cutting the roof to avoid uneven
installation and cause water leakage.
7. The sealant will spread due to being squeezed by the outer shell, so it should
not be used in excess.
8. When installing the lamp cover, it should be noted that the pattern should be
same as that of the frame.
9. After installation, do not use alcohol, ketones and other organic solvents to
wipe the acrylic, please use water or special cleaning agent to clean it.
10. The maximum allowable speed of the vehicle cannot exceed 130km/h, after
the closure of the roof window.
11. Ensure when travelling the roof window is in the LOCKED position.
12. Before driving, ensure the pleated blind are open to avoid damage.
13. Installation should only be performed by a qualified installer.
Notes
18
More information https://www.caravansplus.com.au

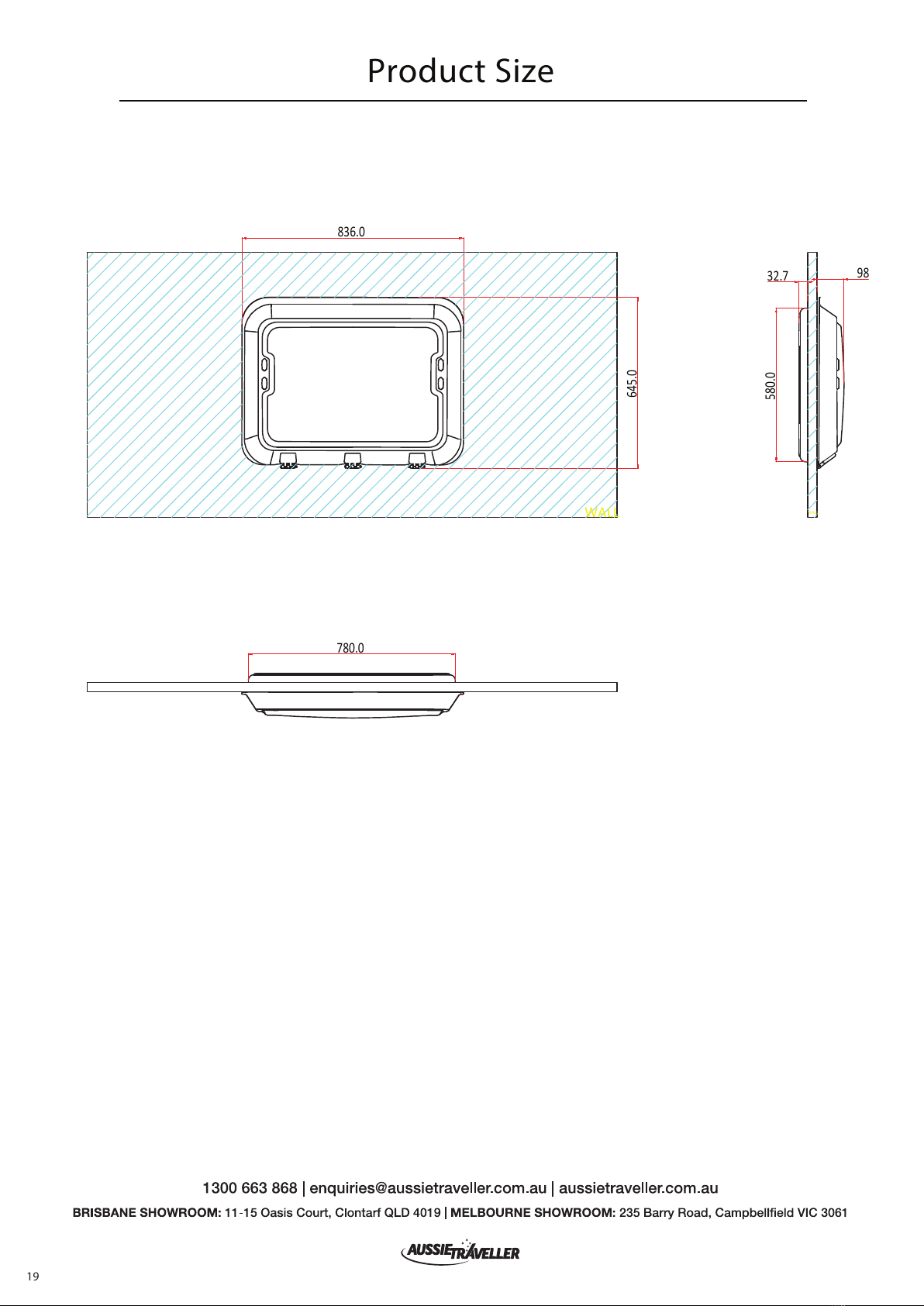

836.0
645.0
98
32.7
WALL
WALL
580.0
780.0
Product Size
19
