Austro Flamm WOODY User manual

WOODY / WOODY Xtra
1deutsch
Keep these instructions for future reference.
Benutzerhandbuch / manual / manuale / manuel
Fig. 1
User instructions
WOODY

english 2WOODY / WOODY Xtra
Must use hardwood only.
CONTENTS
1. Technical Data
2. Important Information
3. Correct operation of your stove
4. The main spare parts list
5. Warranty

english 3WOODY / WOODY Xtra

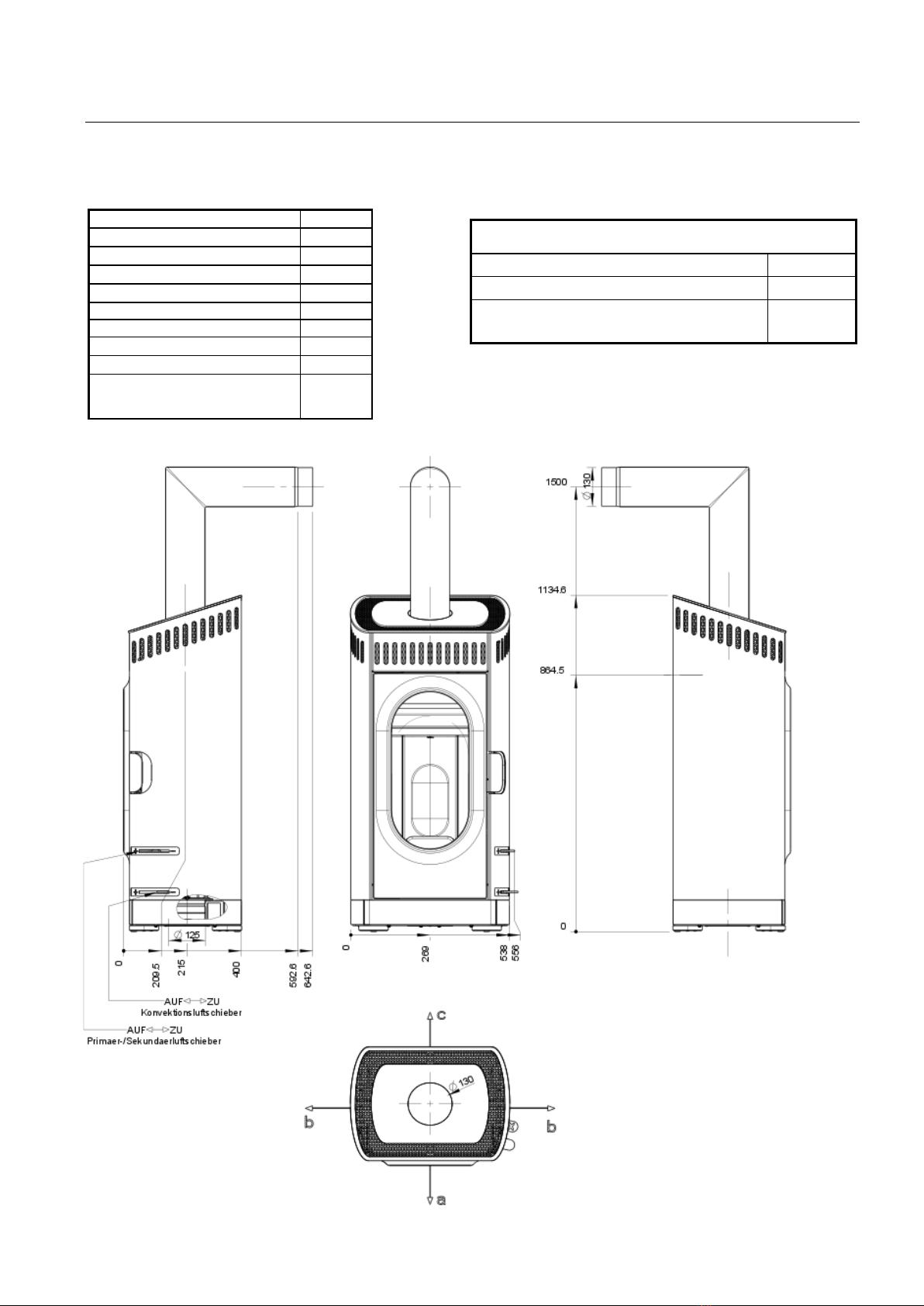

TECHNICAL DATA
The stove must use its own dedicated flue to the cowl, and not share the exit with any other appliance. The flue required is
diameter 6” / 152mm, the unit requires an adaptor to 130mm spigot opening. The appliance or flue system must not be
modified in any way without the written approval of the manufacturer.
Fig. 1
TECHNICAL DATA
WOODY
Height [mm]
1036
Width [mm]
538
Depth [mm]
400
Weight [kg]
142
Flue pipe outlet-Ø [mm]
130
Nominal thermal output [kW]
5.5
Max. thermal capacity [kW]
7.0
Min. heating capacity [kW]
3.6
Room heating capacity (depen-
ding on building insulation) [m³] 65–165
Outside Air Supply Duct Connection
Outer Spigot Dimensions (connect through
b)
125mm
Rectangle opening for adapting to rear 120 x 60mm
Rear Blanking Plate for Rear Outside air – to
access rectangle opening 140mm

WOODY / WOODY Xtra
4deutsch

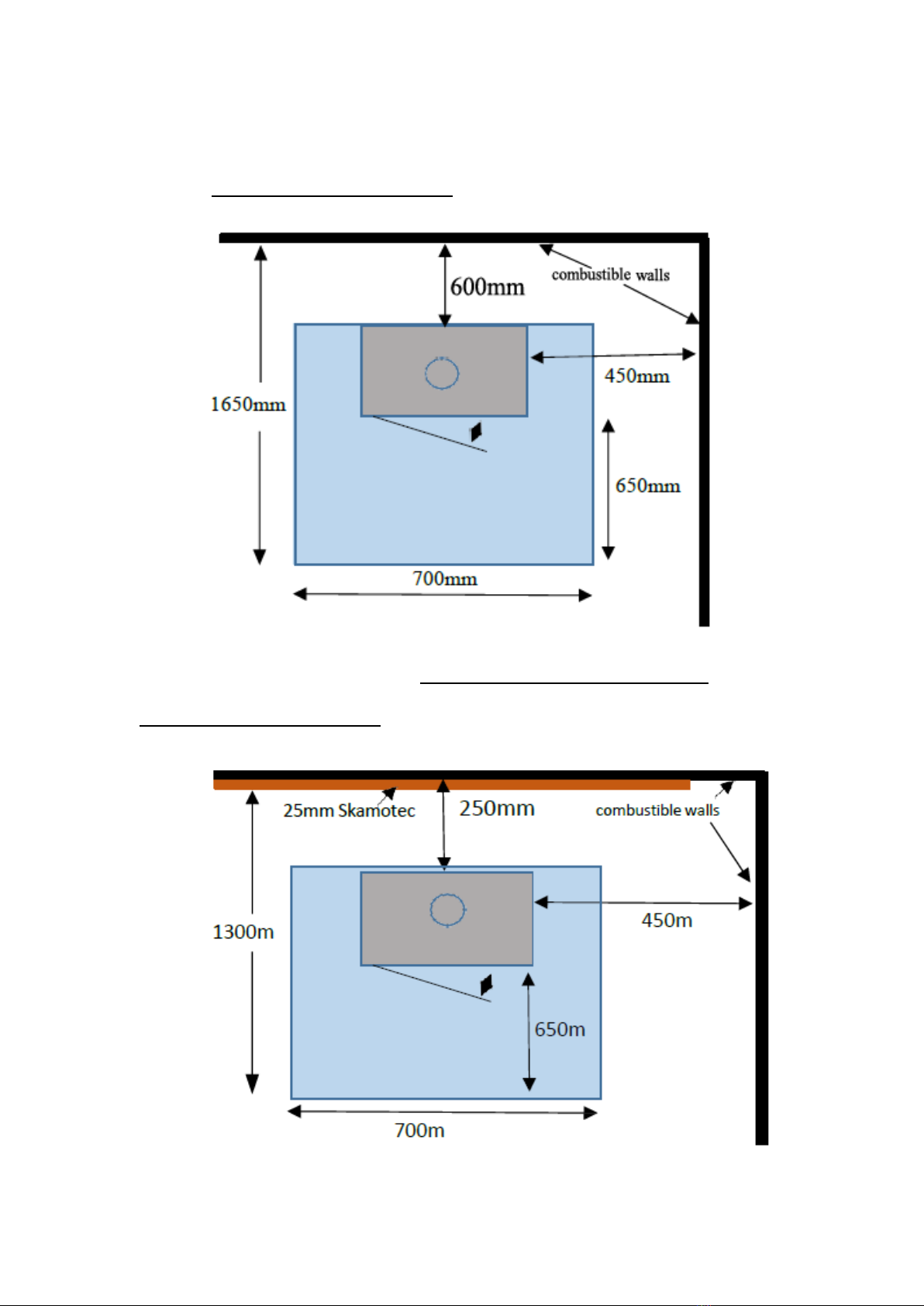

1. Hearth requirement for unit parallel to the rear wall, with no extra shielding for the unit, with
a solid 8” decorative flue shield below the ceiling. Rear clearance of 600mm, with hearth
depth of 1650mm from the Rear wall. And side clearance of 450mm from the heater to
any combustible materials
2. Hearth requirement for unit parallel to the rear wall, with a wall shield of 25mm thick Skamol
board, centred behind the heater, 1200mm wide and 1800mm high,with a solid 8”
decorative flue shield below the ceiling. Rear clearance of 250mm, with hearth depth of
1300mm from the Rear wall. And side clearance of 450mm from the heater to any
combustible materials.
Skamol Wall Shield shown at 1200mm Wide x 1800mm High

WOODY / WOODY Xtra
5deutsch
1. IMPORTANT INFORMATION
The installation and operation information given here is of
general nature. National and European standards, local and
building regulations as well as fire prevention laws must be
observed during the operation of the stove.
General safety instructions for the
operation of your stove
•Read the entire manual before starting up your stove
thoroughly and observe the caution notices.
•Your heating unit must not be moved without approved
means of transport with sufficient load-bearing capacity.
•Your heating unit is not suitable to be used as a stand or
as a ladder.

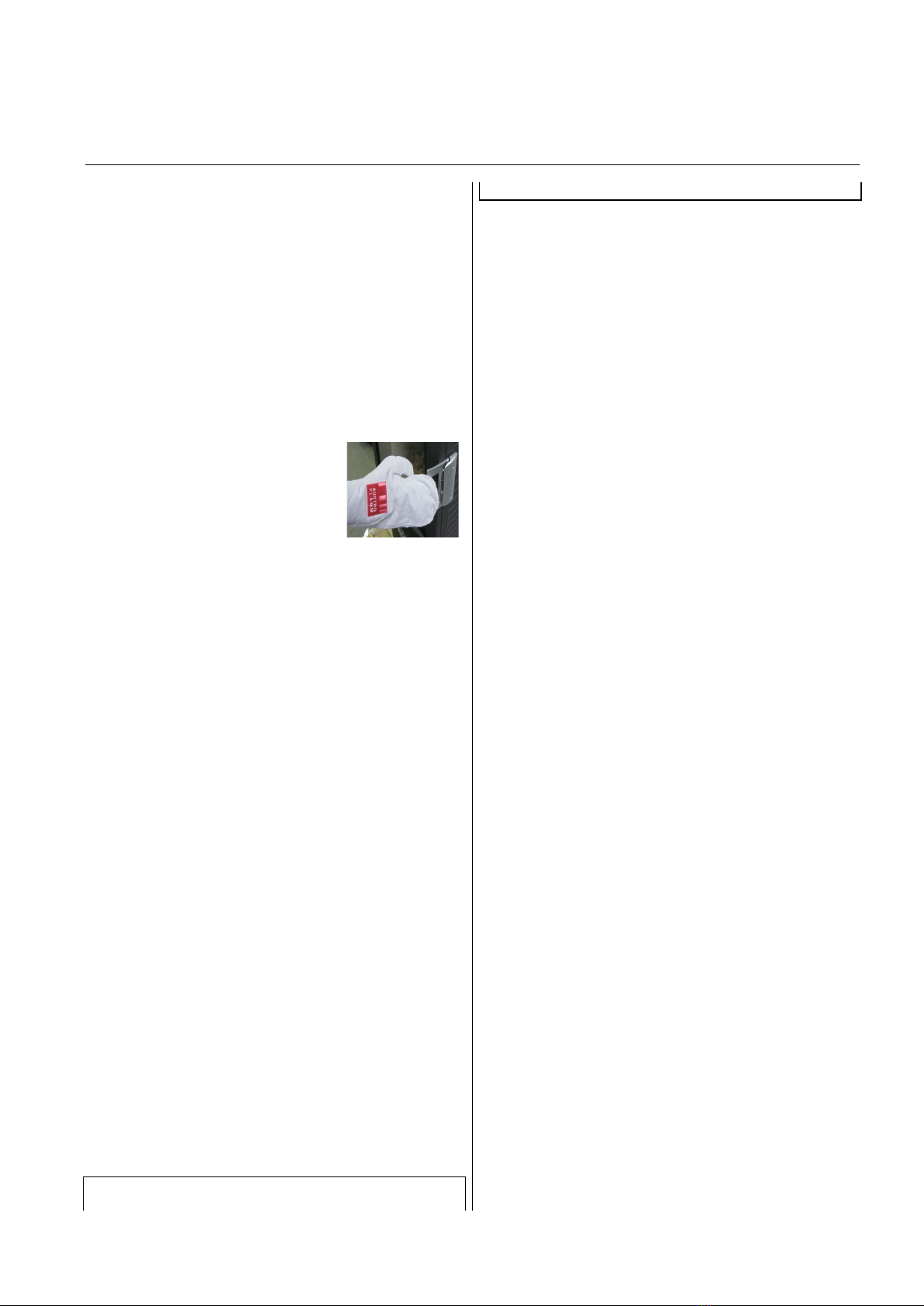

•Please keep in mind that your
stove’s surface heats up considerably
during operation. We therefore
recommend wearing a safety mitten
when operating your stove.
•Attention – stove varnish is no rust prevention!
•Make your children aware of this particular danger and
keep them at a distance from the heating unit whenever it is
in operation.
•Only burn approved fuels and materials as listed in the
chapter “Clean Burning”.
•The burning or placing of flammable or explosive
materials, like empty spray cans, etc. into the firebox as well
as the storage of such materials in the immediate vicinity of
your heating unit is strictly forbidden due to the danger of
explosion.
•Do not wear loose or flammable clothing when adding fuel
to the fire.
•Placing non-heat-resistant objects on the heating unit or
in the vicinity of the heating unit is forbidden.
•Do not lay laundry onto the stove for drying. Laundry hung
up to dry must be kept at a safe distance from the stove
because of the danger of fire.
•The wood stove is not suitable for long term heating.
•During the operation of your heating unit it is forbidden to
use flammable or explosive materials in the same or an
adjacent room to the one in which your heating unit is located.
•The appliance must be operated with the stove door
closed.
•The stove door and all fittings for adjusting the stove must
be closed, if the appliance is out of use.
Setting up your stove
Required safety distances (Minimum distances –
see name plate - in Fig. 1)
a > 1200 mm – towards the front in the radiated area
b > 450 mm – to the side
c > 600 mm – to the back
Make sure that the room in which the stove is set up has at
least one door or window into the outside or is directly
adjacent to such a room. Other fireplaces and extractor
hoods must not be operated in the same room as the stove.
Floor load capacity
Make sure that the load capacity of the supporting
construction is sufficient to carry the weight of the entire unit,
before the heating unit is installed.
Combustion air
Being the user of the stove you must take care of a sufficient
combustion air supply. Sealed-up windows and doors may
not allow a sufficient combustion air supply or disturb the
draught behaviour of your stove. Please ensure the additional
supply of fresh combustion air if necessary. For details please
consult your specialist retailer. Make sure that the
combustion air intakes are not blocked!
Stove pipe connection
For your own safety stringent laws apply for connecting the
stove pipes to the chimney. Your professional dealer or
distributor knows these laws. Please have your certified
retailer carry out the connection of your stove.
Subject to technical and optical modifications. Formatting and printing errors excepted.

WOODY / WOODY Xtra 6english
WARNING: THE APPLIANCE & FLUE SYSTEM SHALL BE INSTALLED IN ACCORDANCE
WITH AS/NZS 2918:2001 AND THE APPROPRIATE REQUIREMENTS OF THE RELEVANT
BUILDING CODE OR CODES.
WARNING: APPLIANCES INSTALLED IN ACCORDANCE WITH THIS STANDARD SHALL
COMPLY WITH THE REQUIREMENTS OF AS/NZS 4013:2014 WHERE REQUIRED BY THE
REGULATORY AUTHORITY, I.E. THE APPLIANCE SHALL BE IDENTIFIABLE BY A
COMPLIANCE PLATE WITH THE MARKING “TESTED TO AS/NZS 4013:2014”.
ANY MODIFICATION OF THE APPLIANCE THAT HAS NOT BEEN APPROVED IN
WRITING BY THE TESTING AUTHORITY IS CONSIDERED TO BE IN BREACH OF THE
APPROVAL GRANTED FOR COMPLIANCE WITH AS/NZS 4013:2014.
CAUTION: MIXING OF APPLIANCE OR FLUE SYSTEM COMPONENTS FROM DIFFERENT
SOURCES OR MODIFYING THE DIMENSIONAL SPECIFICATION OF COMPONENETS
MAY RESULT IN HAZARDOUS CONDITIONS. WHERE SUCH ACTION IS CONSIDERED,
THE MANUFACTURER SHOULD BE CONSULTED IN THE FIRST INSTANCE.
CAUTION: CRACKED AND BROKEN COMPONENTS, e.g. GLASS PANELS OR CERAMIC
TILES, MAY RENDER THE INSTALLATION UNSAFE.
1. WARNING: ANY MODIFICATION OF THE APPLICANCE THAT HAS NOT BEEN
APPROVED IN WRITING BY THE TESTING AUTHORITY IS CONSIDERED AS
BREACHING AS/NZS 4013.
2. WARNING: DO NOT US FLAMMABLE LIQUIDS OR AEROSOLS TO START OR
REKINDLE THE FIRE.
3. WARNING: DO NOT US FLAMMABLE LIQUIDS OR AEROSOLS IN THE VICINITY
OF THIS APPLICANCE WHEN IT IS OPERATING.
4. WARNING: DO NOT STORE FUEL WITHIN THE HEATER INSTALLATION
CLEARANCES.
5. WARNING: WHEN OPERATING THIS APPLICANCE AS AN OPEN FIRE USE A
FIRE SCREEN.
6. WARNING: OPEN AIR CONTROL (AND DAMPER WHEN FITTED) BEFORE
OPENING FIRING DOOR.
7. CAUTION: THIS APPLIANCE SHOULD NOT BE OPERATED WITH A CRACKED
GLASS.
8. CAUTION: THIS APPLIANCE SHOULD BE MAINTAINED AND OPERATED AT ALL
TIMES IN ACCORDANCE WITH THESE INSTRUCTIONS.
9. CAUTION: THE USE OF SOME TYPES OF PRESERVATIVE-TREATED WOOD AS
A FUEL CAN BE HAZARDOUS.

english 7WOODY / WOODY Xtra
2. CORRECT OPERATION OF YOUR STOVE
Approved fuels
Dry, well cured and natural wood (hardwood).
Maximum amount of fuel
Maximum amount of fuel to be added: 1,6 kg wood. Larger
amounts of fuel can lead to overheating and thus damage the
stove.
Clean burning
The wood must be dry (relative wood moisture < 15%) and
untreated and the right amount of wood must be burned in
order to ensure a clean fire that releases only small amounts
of emissions.
Startup procedures
During the first 3-4 operations - at nominal heat output - there
may be some odour development and the paint has not yet
hardened.
Making a fire
For the correct and safe operation of your stove please pay
attention of the chimney developing the necessary feed
pressure. This must especially be considered before the
initial operation (or e.g. after the summer heating break) and
during the mid-season heating periods (e.g. at strong wind,
etc.).
If there is not enough feed pressure, please light only some
paper or small kindling first, in order to “warm up” the stove
and the chimney.
The air inlet must not be covered or closed.
Clean grate, empty ash drawer if necessary (watch out for
ambers!)!

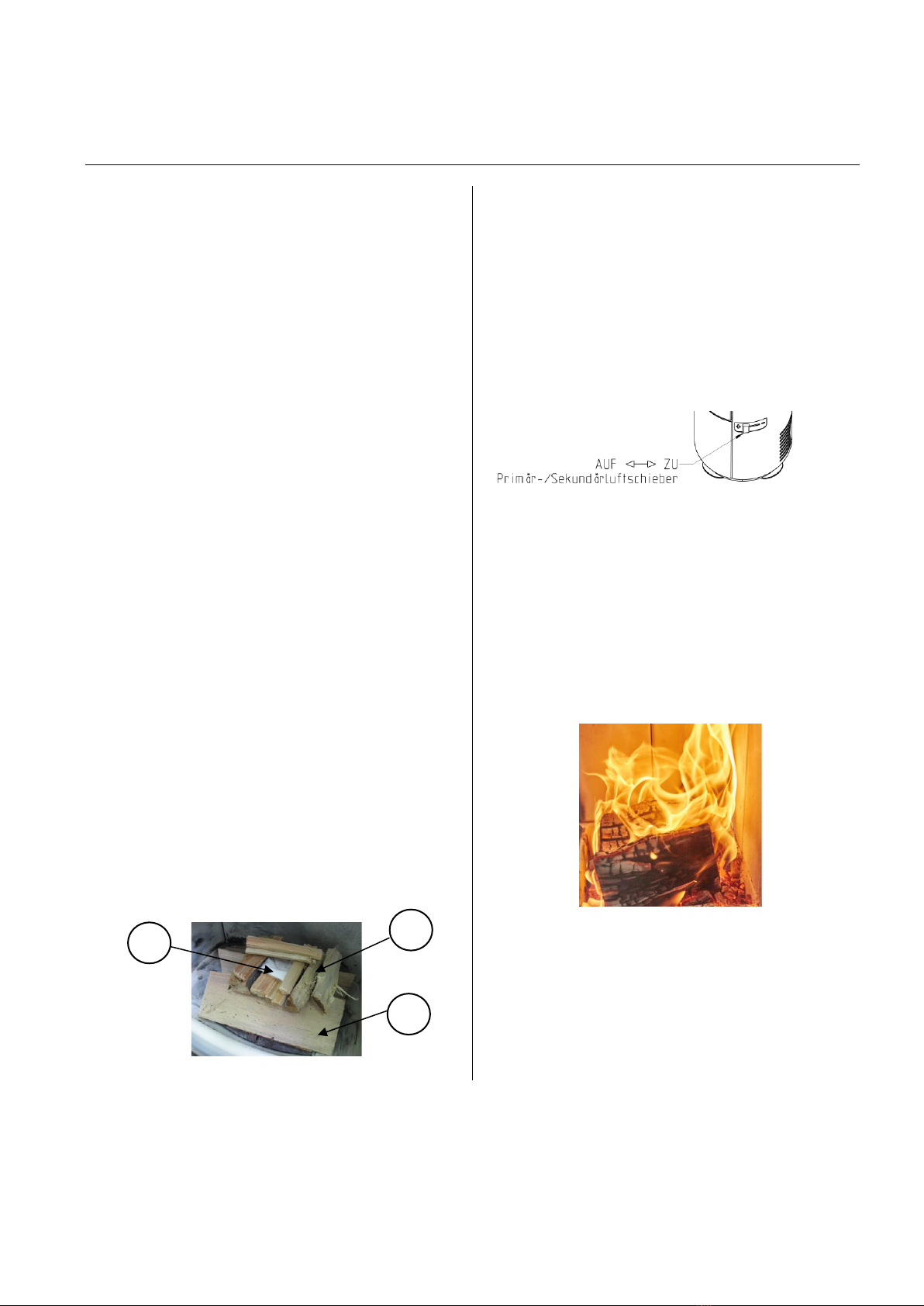

Position the lever for the combustion air to the open (“AUF”)
position (see fig.2 and 4).
Place 2-3 logs (approx. 1,2 kg in total) crossways in the
combustion chamber (1) with sufficient distance from each
other (min. 2 cm), on top of that place some softwood
chippings (approx. 0,7 kg) (2) and some ignition aid and light.
(3) (see fig. 3)
Close the door!
We recommend to let the first load burn down without
changing the air lever position.
As soon as no visible flames are left (only embers in the
combustion chamber), you can put another load of logs
(approx. 1,6 kg) in the combustion chamber if desired. (see
fig. 5)
When reloading the stove please repeat the procedure as
mentioned under “first lighting”: air lever top position (= open),
open door carefully, place logs, close door.
Fig. 4: air knob
After a few minutes, when the logs burn well on all sides
(bright, high flames), you can adjust the heat output with the
air lever (lever on top position = maximum heat output), the
flames should be yellow and never look blueish or have black
tips (otherwise add more air) – see fig. 4. Never close air
supply completely during operation. (danger of flash-fire!)
The stove door may be opened only for refuelling or disposing
of ashes and is to be closed again afterwards.
Figure 5
symbol figures
symbol figures
2
1
3
Figure 3:ignite the fire

english 8WOODY / WOODY Xtra
Heating in-between seasons
If you heat the stove in between seasons, when the outside
temperatures are higher, the flue gases may not be able to
escape completely and this may lead to disturbances in the
chimney draught, especially if the temperatures are rising
suddenly. The stove has to be charged with less wood then
and the primary air has to be increased so that the wood can
burn down faster (with visible flames) and thus the chimney
draught can stabilize.
Chimney fire
A chimney fire may occur, due to sooting and deposits in the
chimney, if impropes or humid fuel is used. In case of a
chimney fire close all air inlets on the fireplace/chimney
immediately and call the fire brigade. Please have an expert
inspect your chimney for cracks and air-tightness after the
burning out of the chimney.

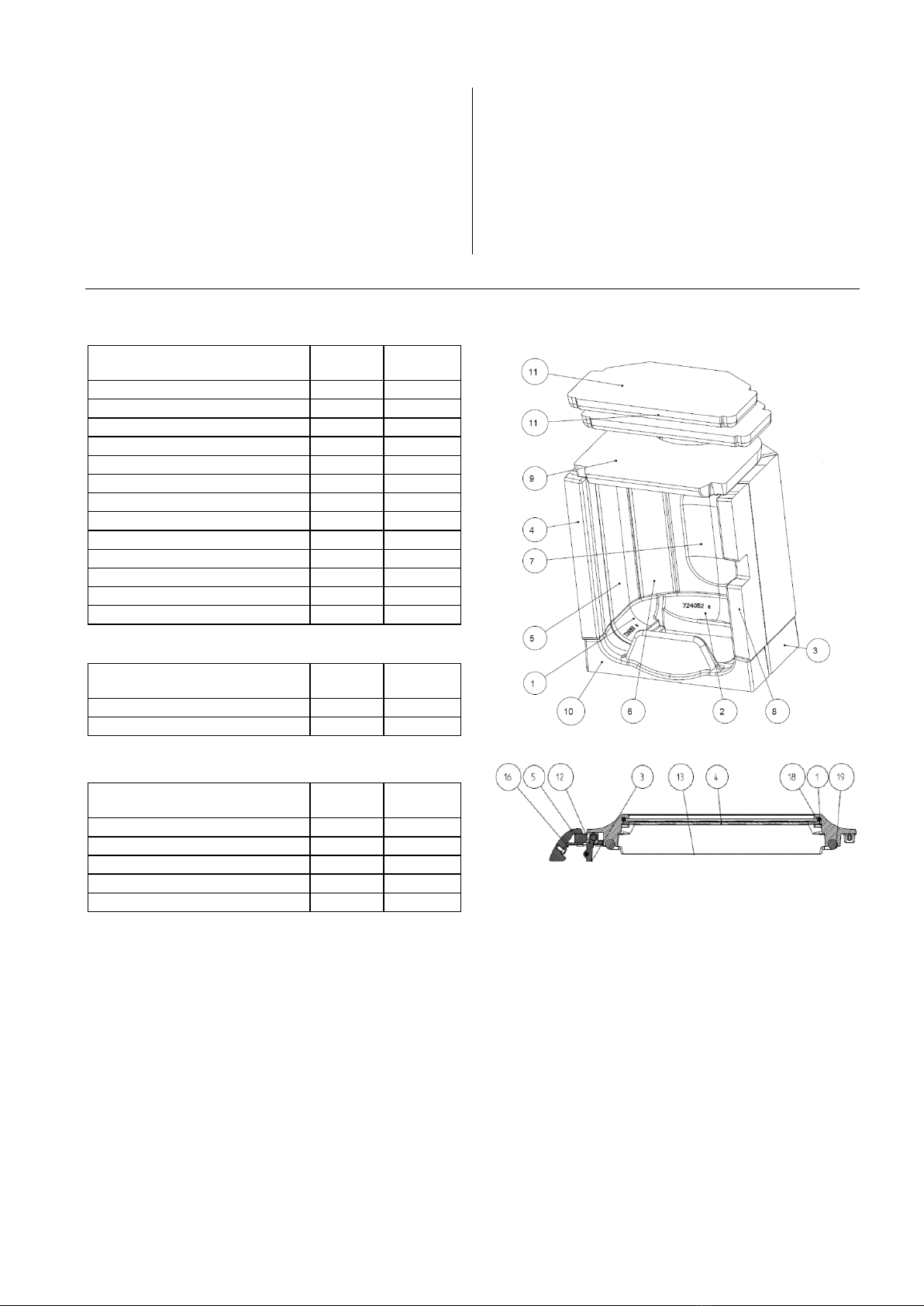

3. THE MOST IMPORTANT SPARES—OVERVIEW
Keramott
Description
No.drawing
Part
number
Grate
724079
Keramott bottom left
1
724051
Keramott bottom rear
2
724052
Keramott bottom right
3
724056
Keramott wood retainer
10
724259
Keramott rear
7
724255
Keramott corner
6
724254
Keramott lateral left
4
724251
Keramott lateral right
8
724256
Keramott baffle 1
11
724288
Keramott baffle
9
724258
Keramott middle
5
724253
Gaskets
Description
No.drawing
Part
number
Gasket Ø6; L=1411 mm
1
710696
Gasket Ø14; L=2014 mm
2
714223
Other parts
Accessories
You can obtain floor plates of glass or steel or care products from your certified dealer.
IMPORTANT:Have defective parts replaced by your certified dealer. This will guarantee that your stove functions properly
and safely.
The fireplace must not be attered.
Maintenance
To clean the glass, please use a specialised product such as Thermohit glass cleaner. Lacquered surfaces are to be cleaned
only with a cloth (may be damp). Special cleaning agents should also be used for stainless steel surfaces. Only gaskets in
good order ensure the proper function of your stove!
Cleaning
The stove, flue outlets and smoke pipes should be cleaned and inspected for deposits every year – if necessary more often,
e.g. after the cleaning of the chimney. The chimney also has to be cleaned regularly by the chimneysweeper. Your
chimneysweeper will inform you of the necessary inspection intervals. An expert should inspect the stove annually.
Description
No.drawing
Part
number
Door complete
13
724321
Door glass
4
724329
Door handle
5
724335
Glass cleaner ½ litre
--
640070
Stove lacquer
--
650002

WOODY / WOODY Xtra 9english
SPECIAL FEATURES WOODY Xtra
Xtra heat storing technology
The model WOODY Xtra have been equipped with the unique Xtra heat storing technology. This technology is based on the
patented Heat Memory System, but also on the special flue gas guidance and the convection air which can be regulated or
shut off completely. Consequently a fast heating system is being combined with an extraordinarily efficient heat storing.
The convection air can be regulated according to demand with the attached lever (see picture). The more the convection air
outlets of the top plate are open, the faster heat but less heat storing can be reached. A closed top plate will however lead to
slow heat and longer heat storing.
Konvektionsluftschieber = convection air lever
Our hint: while the fire still burns let the convection air outlets open; close them after the fire has burnt down in order to reach
a steady heat emission.
Operation with external air supply
WOODY Xtra can be operated with an external air connection. If the combustion air is being supplied directly to the furnace
by an air-tight pipe including closing mechanism from the outside, then the stove may be used in residential property with
mechanical ventilation.
If the stove in being used like that, a multiple stove installation on the same chimney is forbidden.
problem
possible reason
solution
door glass gets sooty too fast
bad chimney draught
generally: door glasses must be cleaned with
Austroflamm glass cleaner from time to time
(depending on the frequency of use)
contact your chimney sweep (elongate
chimney/draught metering)
incorrect use of the combustion air
supply lever
please operate air lever according to user's
instructions (if secondary air is closed, the door glass
soots rather fast)
wood logs are too large keep to the max. fuel quantity according to user's
instruction
operating temperature was not
reached
more fuel, use dry wood (< 15 % residual moisture),
attend air regulation
stove does not get enough
combustion air
chimney draught not sufficient contact your chimney sweep (elongate
chimney/draught metering)
stove is sooted inside more fuel, use dry wood (< 15 % residual moisture),
attend air regulation
stove smells strongly and there is
smoke on the outside surface
baking phase of the varnish there may be some odour development during the
first operations
stove is dusty/dirty cleaning before the heating season starts!
exhaust gas emission while
putting more wood on the fire and
during operation
chimney draught no sufficient, flue
pipe connection leaky
inspect joints and seal up again if necessary
check chimney draught, examine operating - for info
video follow:
http://www.austroflamm.com/de/Video/index.html
the stove door was opened before
the wood has burnt down to
embers
put more fuel wood into the combustion chamber
only if there are only embers left (no more visible
flame)

MODEL - WOODY
075002
SERIAL NO:
WHEN TESTED IN ACCORDANCE WITH AS/NZS4012:2014
& AS/NZS4013:2014
MAXIMUM AVERAGE HEAT OUTPUT
BURNING HARDWOOD 5.5kW
OVERALL AVERAGE EFFICIENCY BURNING HARDWOOD
64%
PARTICULATE EMISSIONS FACTOR
1.0g/kg
TESTED BY
AUSTRALIA SOLID FUEL TESTING
3 GARDEN STREET MORWELL
VIC 3840 AUSTRALIA
TEST REPORT NO
ASFT17118
DATED: 22/12/2017
IMPORTED BY:
CASTWORKS 57
INDUSTRIAL DRIVE
BRAESIDE VIC 3195,
AUSTRALIA.
MANUFACTURED BY:
AUSTROFLAMM
AUSTROFLAMM-
PLATZ 1
A-4631 KRENLBACH
AUSTRIA

WOODY / WOODY Xtra 11 français
Guarantee
We guarantee full functionality of the stove carcass for 6
years and all stove components made of steel or cast iron
for a full two years from the date of purchase. Steel and
cast-iron components which show defect in materials or
workmanship during the guarantee period shall be
replaced with new components.
We do not guarantee wearable components (such as
Keramott, gaskets, floor grid), surface coatings, lacquer,
glass and ceramics.
Conditions of the Guarantee:
1. Your AUSTROFLAMM stove was installed by a
certified professional and is operated in accordance
with the operator’s manual.
2. Claims to the guarantee shall be subject to a
completely filled-out Guarantee Card and submittal of
the original invoice issued by a certified
AUSTROFLAMM sales agent.
IMPORTANT: Our guarantee includes the free
provision of spare parts. Labour and call-out fees for
disassembly and assembly as well as shipping and
handling charges are not included. An unjustified claim
under guarantee will be redebited to the operator.
--------------------------------------------------------------------------------------------------------------------------------
Im Garantiefall herausschneiden und Ihrem AUSTROFLAMM-Fachhändler vorlegen!
In the event of claims to the guarantee, separate here and present this proof of purchase to your certified AUSTROFLAMM dealer.
GARANTIE / GUARANTEE / GARANZIA / GARANTIE
Date of purchase:
Name of model:
W O O D Y / W O O D Y X T R A
Serien No.
(see manufacturer’s plate)
Dealer’s Stamp
Installed by:
Customer :
Per:
Mark
