Autel TPMS501B User manual

Content
1、Important statement-----------------------------01
2、Working principle--------------------------------02
3、Product list----------------------------------------02
4、Installation instructions-------------------------03
5、Working mode------------------------------------06
6、Parameter setting-------------------------------09
7、Technical parameter----------------------------14
8、FAQ------------------------------------------------14

- 01 -
1. Important statement
1.1 Welcome to use Carxpert tire pressure monitoring system. The
installation proposal of this product is operated by professionals and
equipment. Please read this manual carefully before installing this product
to ensure correct installation and use.
1.2 This product is suitable for radial tires and aluminum alloy rim with a
standard pressure of ≤3.0 bar, not for steel rim.
1.3 The solar panel is only for charging assistance. Light intensity needs to
meet certain conditions to maintain charging. Indoor, cloudy, glass film,
display angle, interior temperature of more than 55 ℃will affect solar
charging. When the display is low, charge the display with a USB cable to
keep the battery in optimal use.
1.4 This product can monitor the air pressure and temperature of the car
tires and remind the owner to take timely measures to eliminate hidden
dangers when there is abnormal air pressure temperature, but cannot
prevent traffic accidents and the occurrence of flat tires, users should still
regularly check the following conditions: Whether the depth has reached
the wear limit, whether the tire has bruises, unilateral wear, breaks, cracks,
perforation and other defects.
1.5 If subjected to electromagnetic interference, it may cause unstable
signal reception, affecting the normal use of this product
1.6 It is prohibited for the customer to remove, modify, change products or
any other operations, with which the product may not work properly. The
customer will take the responsibility.
1.7 For your safety and passenger safety, do not place the display on the
airbag. The anti-slip mat only provides auxiliary fixing, in order to better
secure the display, it is recommended to use 3M double-sided adhesive to
fix (can be purchased separately).

3. Product list
Anti-slip mat X1
Instruction manualX1 Warning labelX4
Instruction
manual
- 02 -
1.8 Specifications and technical parameters may be changed due
to upgrades and other reasons, resulting in inconsistence with the
instruction manual. Please prevail in kind and manufacturers
reserve the right to explain.
2. Working principle
The tire pressure monitoring system, referred to as TPMS, works by
monitoring the internal pressure and temperature of the tire through a
sensor mounted on the tire, and transmitting the collected data information
to the display installed in the cab by using radio frequency technology.
TPMS can monitor the tire pressure and temperature information in real
time, and provide early warning of abnormal conditions such as low
pressure, high pressure and high temperature of the tires, reminding the
owner to take corresponding effective measures, thus playing a role of
safety assistance, so as to achieve safer, more reliable, more comfortable
and more economical travel.
DisplayX1 D SensorX4 X SensorX4 C SensorX4
USB cableX1
Attention
Sen sor Ins ide

" "key
- 03 -
4. Installation instruction
4.1 Display installation
Tips:
Recommended place of display installation
"+"key USB charging port
Long press the "-" key for 3 seconds to turn on/off, use anti-slip mat to
securely place on the dashboard for easy observation and sunlight. The
monitor is turned on in advance. The tire data will be displayed in turn
when the sensor is installed. Each parameter of the display has been set
at the factory. Users generally don’t need to set up again.
1. After turning on the vehicle, it will go to sleep after being stationary for
more than 120 seconds to save power. It will automatically turn on when
the vehicle is running or there is vibration.
2. The anti-slip mat can be restored to stickiness after being washed with
water and dried.

- 04 -
① Strip the tire from the wheel ② Remove the valve of the car
4.2 Sensor installation(take D sensor as a sample)
Front left AFront right B
Each sensor is labeled with a corresponding position, such as left front
wheel A, right front wheel B, right rear wheel C, and left rear wheel D,
which must be accurately installed on the corresponding hub. After
installation, attach a warning label near the rim of the sensor.
Left rear DRight rear C
③Clean the valve hole ④ Install the sensors

- 05 -
Precautions:
CEMB
ER60
⑥ Sample of installation ⑤ Use M11 socket to lock nut
with torque 5 N.M
⑦ Check tire dynamic balance ⑧ Replace the tire
a. The installation angle of the sensor electronic module must be parallel to
the rim, which is more conducive to ensuring continuous work and
accuracy. The specific location is as follows:
parallel

The display has a built-in rechargeable polymer battery. When the solar
light reaches the charging condition, the solar icon" " is illuminated. If
the battery is not fully charged, the solar power is automatically charged.
When charging, the scroll bar in the battery icon " " is beating. When
the battery icon " " is displayed, please remove the monitor and charge
it with a USB cable. When it is fully charged, it displays " ".
- 06 -
Tips:
5. Working mode
5.2 Display charging

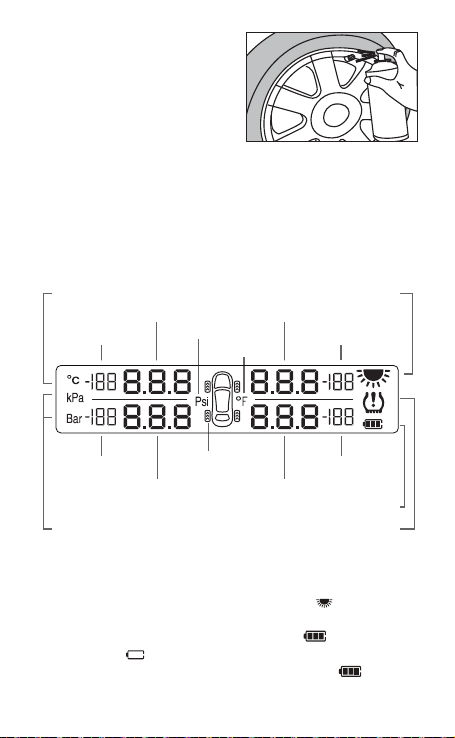

5.1 Display screen
Front left temp
Temperature unit Solar charging icon
Pressure unit
Display power icon
Tire alarm icon
Tire position icon
b. After the sensor installation is
complete, check the tires for air
leaks and spray the valve nozzle
with foam water to confirm. If the air
leaks, please adjust the valve angle
or clean the rim hole.
If there is no data displayed after installation, please inflate or deflate the
corresponding tire or drive a certain distance at a speed of more than 30
kilometers per hour for normal display.
Pressure unit
Front left pressure Front right pressure
Front right temp
Left rear temp Right rear temp
Left rear pressure Right rear pressure
Temperature unit

When the display detects a tire pressure lower than the alarm value,
trigger tire pressure alarm. Alarm icon“ ” flashes at the same time
as the tire pressure value of the tire, and alarm sound “di…di…di…”is
heard, as shown in the left front wheel low pressure alarm.
- 07 -
5.3 Display backlight mode
5.4 Alarm status
When the display detects a tire pressure higher than the alarm value,
trigger tire pressure alarm. Alarm icon“ ”and tire pressure value
flash at the same time and emit alarm sound “di…di…di…” The picture
shows high pressure alarm for the left front wheel.
Abnormal
High
pressure
alarm
Icon & Description
Low
pressure
alarm
Tips:
After the display goes to sleep or is turned off, the solar panel will continue
to work. When the temperature inside the car exceeds 55 °C, the display
will automatically stop charging to protect the battery and safety.
The light adjustment can be automatic or manual, subject to actual product
model. No setting is required for automatic adjustment. For manual
adjustment, press the "-" key to adjust the backlight brightness, which is
divided into low, medium and high-end, the higher the brightness, The
shorter the battery life.
When the tire pressure or temperature exceeds the default factory value or
set value, the system will automatically issue an alarm sound “di…di…-
di…” Press any key to cancel the alarm sound, but the corresponding tire
icon, pressure value, temperature value and alarm icon remain blinking
until all tire failures are resolved.

When the monitor detects a low battery in a tire sensor, the alarm icon
“ ”, Tire position icon, tire pressure value flash at the same time, and
emits alarm sound “di…di…di…” The picture shows sensor Low
battery alarm for the right rear wheel.
When the monitor detects a tire temperature exceeding the alarm
value, the tire temperature alarm is triggered. The alarm icon“ ”
flashes at the same time and emits alarm sound “di…di…di…”. The
picture shows high temperature alarm for the left front wheel.
- 08 -
High
temper-
ature
alarm
Sensor
battery
low
battery
alarm
Display
battery
low
battery
alarm
Icon & DescriptionAbnormal
When the battery power in the display is low, the battery icon
appears as" ", Please charge with USB cable in time.

- 09 -
6.1 Standard inflation pressure setting
6. Parameter settings
8. Short press the "+" button once, the number will flash at this time.
9. Short press the "-" key to adjust the 2P value, the adjustment range is
0.2-2.8Bar, after adjustment, short press the "+" key to save.
10. Long press the "+" button, release it after a beep, and exit to the standby state.
At this time, drive the car and the data will be updated.
Please follow the tire pressure value in the vehicle manual to inflate the
tire. High pressure alarm value = tire pressure value X 125%; low pressure
alarm value = tire pressure value X 75%; High temperature alarm
value=80℃.
Icon& Description
3. Short press the "+" button once, the number will flash at this time.
4. Short press the "-" key to adjust the 1P value, the adjustment range is
0.2-2.8Bar, after adjustment, short press the "+" key to save.
5. Long press the "+" button, release it after sound “di...”, and exit to the standby
state. At this time, the front wheel adjustment is completed, and the next step is
to continue the adjustment of the pressure value of the rear wheel.
6. Long press the "+" key, release it after sound “di...” to enter the setting mode.
7. Short press the "-" key 3 times to enter the rear wheel pressure setting "2P"
option, as shown in the figure below:
1. Long press the "+" key, release it after a beep to enter the setting mode.
2. Short press the "-" key twice to enter the front wheel pressure value setting "1P"
option, as shown below:

- 10 -
6.2 High temperature alarm setting
Icon& Description
3. Short press the "+" button once, the number will flash at this time.
4. Short press the "-" key to adjust to the required alarm value (55℃≦alarm value
≦85℃), Short press "+" key to save.
5. Long press the "+" key, release it after sound “di...” to exit to the standby state.
At this time, drive the car and the data will be updated.
1. Long press the "+" key, release it after sound “di...” to enter the setting mode.
2. Short press the "-" key 4 times to enter the "HI" option, as shown below:

- 11 -
Icon& Description

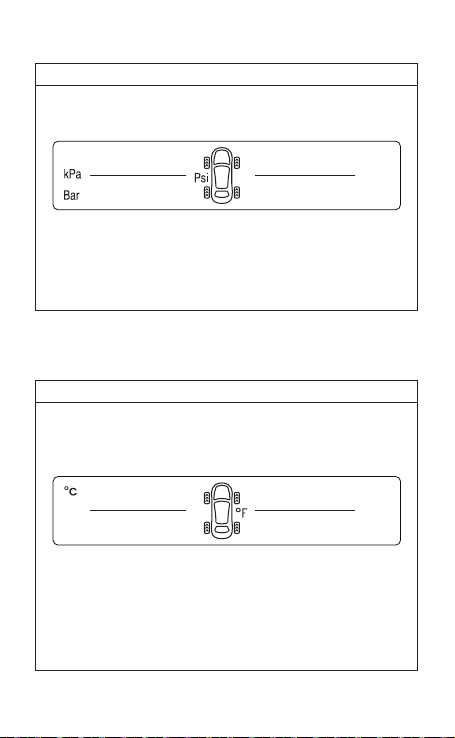

6.3 Pressure unit setting
Icon& Description
6.4 Temperature unit setting
3. Short press the "+" key once, the temperature unit flashes at this time.
4. Short press "-" key to adjust to the required temperature unit, short press "+" key
to save.
5. Long press the "+" key, release it after sound “di...” to exit to the standby state,
at this time, drive the car and the data will be updated.
1. Long press the "+" key, release it after sound “di...” to enter the setting mode.
2. Short press the "-" key once to enter the temperature unit interface, as shown in
the figure below:
2. Short press the "+" key once, the pressure unit flashes at this time.
3. Short press "-" key to adjust to the required pressure unit, short press "+" key to
save.
4. Long press the "+" key, release it after sound “di...” to exit to the standby state,
at this time, drive the car and the data will be updated.
1.Long press the "+" button, release it after sound “di...” to enter the pressure unit
interface, as shown below:

- 12 -
Icon& Description
6.5 Tire switch setting
6.6 Matching settings
When a new sensor or display is replaced, it needs to be identified through
matching before it can be used normally.
When replacing the display, all 4 tires need to be matched.
When replacing the sensor, you only need to match the corresponding tire.
5. Long press the "+" key, release it after sound “di...” to exit to the standby state,
at this time, drive the car and the data will be updated.
3. Short press the "+" key to select the tire to be interchanged, 1 is the left front
wheel, 2 is the right front wheel,3 is the left rear wheel, 4 is the right rear wheel,
the number of the selected tire will flash.
4. After selecting the left front wheel, short press the "-" key to change the number
1 to 2, then short press the "+" key to select the right front wheel, short press the
"-" key to change the number 2 to 1, as shown in the figure below:
1. Long press the "+" key, release it after sound “di...” to enter the setting mode.
2. Short press the "-" key 5 times to enter the transposition setting interface, as
shown in the figure below.
If the user needs to change the tire, there is no need to re-assemble and
disassemble the sensor, only the tire change operation can be performed
on the display. The specific operation of tire rotation is as follows (take
the front left and the front right wheels as an example):

- 13 -
Icon& Description
Factory default
Tire pressure value 2.4Bar
High temperature alarm value 80℃
Pressure unit
Temperature unit
6.7 Restore factory defaults
The display has been set up various parameters before leaving the factory,
users generally do not need to set up.
If you need to restore the factory
defaults, when the power is off, press
and hold the "-" key to turn on the
display. When the display shows the
full-screen number, immediately
release the "-" key, and then press
and hold the "+" key immediately,
and you will hear a beep, then
release the "+" key, the display
parameters will be restored to the
factory default values, at this time,
drive the car and the data will be
updated.
Bar
Bar
℃
Temperature unit
Backlight brightness Low
1.Short press "+" key 5 times to enter the matching interface, as shown below:
2.Short press the "-" key to select the tire position of the sensor to be replaced,
when “---“ flashes, inflate and deflate the tires, and the tire pressure data will be
displayed after sound “di...” on the display, indicating that the match is successful,
as shown below:
3. Continue to short press the "-" key to select other tire positions to match
according to the above procedure..
4. After the matching is completed, long press the "+" button, release it after
sound “di...”, and exit to the standby state, at this time, drive the car and the data
will be updated.

- 14 -
7. Technical parameter
8. FAQ
Display
Storage temperature
Working frequency
Working temperature
Working current
Charging current
Working humidity
Input voltage
Sensitivity
Polymer lithium
battery capacity
Sensor
Working
voltage
Emission
current
Air pressure
range
Air pressure
accuracy
Temperature
accuracy
Temperature
Frequency
Battery live
Product
weight
-30℃～85℃
433 MHz
-20℃～80 ℃
7mA
500mA/5V
MAX95%
5V
-110dBm
500mA·H
2.0～3.6V
1～6.6mA
0～3.5Bar
±0.1Bar
(-20℃～85℃)
±3℃(-20℃～70℃)
-40℃～125℃
433MHz
1. How long can the display be fully charged with solar charging?
Answer: When the solar charging icon appears, it can be filled in about
3-5 days on a sunny day and 8-12 days on a cloudy day in an unobstructed
and still condition. It cannot be charged on a rainy day or at night. In
summer, if the inside of the car is tightly closed and exposed to sunlight,
charging will stop when the temperature inside the car exceeds 55
degrees, mainly to protect the battery.
2. After installation, why does the display not display tire data?
Answer: Before installing the sensor, please turn on the display first, so
that you can receive data after installing the sensor. Or you can receive the
data by driving a distance at a speed of more than 30 kilometers per hour.
If the tire data is still not displayed, you need to rematch.
≥3years (drive for 2hours/day)
22g (including valve )

- 15 -
3. Why the tire data of a certain monitor is not updated for a long time?
Possible causes: (1) Electromagnetic interference exists in the location or
environment. For example, some recorders and navigators have
electromagnetic interference. Please change the location (far away from
the interference source) to solve the problem. (2) The sensor is damaged
or its life is exhausted. Inflate and deflate the faulty tire to observe whether
there is any data update on the display. If there is no update, replace the
sensor.
4.Under what circumstances does the display switch on and off automati-
cally?
Answer: When the display is stationary for more than 120 seconds, it will
automatically turn off (black screen) to save energy. For example, during
the red light period, when the vehicle is driving or you tap the display with
your hand, it will automatically turn on.
5. The monitor can't be turned on just after being installed or after using it
for a while?
Answer: It may be that the display has insufficient battery power. It is
recommended to use the USB cable (the charging port is common to most
mobile phone chargers) to fully use it.
6.When the temperature inside the car is high/low, the screen appears
black/ghost?
Answer: The temperature inside the car is too high (such as exposure,
higher than 55 degrees), the display will be black, and the temperature
inside the car is too low (such as winter, below -20 degrees). It won’t affect
the alarm function. After the temperature inside the car returns to normal,
the display will return to normal display.
7. Why does the temperature/pressure of my tires keep changing?
Answer: During the running of the vehicle, the temperature/air pressure of
the tire is always affected by the thermal expansion and contraction,
weather, load, braking, and road conditions. Therefore, the temperature/air
pressure change of the tire is normal. This system truly reflects you tire
condition.

- 16 -
8.Where can I find the standard inflation pressure of a tire?
Answer: Generally you can find it in the doorpost, fuel tank cover, glove
box, and vehicle manual.
9.Is the tire imbalance large after installing the sensor?
Answer: The sensor uses a miniature module, and the weight (including
the valve) is only about 22 grams. Its imbalance is much smaller than
similar products.
10.Can I use chemicals such as tire repair fluid?
Answer: No, because the sensor may be corroded.
