Auto Ingress Rotary Arm User manual

Installation Manual
Swing Gate Operator
SCISSOR ARM
Automatic Entrence Solution Provider
ROTARY ARM
24 x 7 Service Support +91 755 00 22 007 | +91 733 88 52 901 – 905
DESIGN |MANUFACTURE |SALES |SERVICE

2
Australian
Technology
• Wrongoperationmayresultininjuryorevendeathtotheuser.
• Wrongoperationmayresultininjuryorphysicaldamagetotheoperator.
• Thisoperatorneedstobeconnectedwithstabilisedanduninterruptedpowersupplyforsafety
ofmicro-controllerunitandtheoperator.
• Installation and adjustment must be carried out according to the Installation Manual.
Carelessnessininstallationandadjustmentmayresultinaccidentssuchasfire,electricshocks
orfalloff.
• Duringtheinstallationdonotallowthepedestrianstopassthroughtheautomaticgateor
approachtheworksite.Becauseanytoolsorpartsfalloffduringtheinstallationmayresultin
injurytothepedestrians.
• Don’tremodeltheparts,otherwisefire,electricshocksorfallmayoccur.
• Don’tusethepowerbeyondthestipulatedvoltageorfrequency,otherwisefireorelectric
shocksmayoccur.
• Dofixupauxiliarysafetybeamsensortoensurethedetectingrangeforthewalkingareaof
thegateleaf,otherwisethepassers-bymaybecollidedorsqueezedbythegateleaf,causing
injury.
Thankyouforyourpurchaseofourautomaticgateequipment.
Yourautomaticgateoperatorhasbeendesignedandmanufacturedtocomplywithstringent
safetyrequirementsforcompliancetotheAustralianstandard.
Itisessentialthatyoumakeyourselffamiliarwithandatleastonceaweekormoreregularlycheck
thesafetyfeaturesofthegatetoensuresafetyoftheusers.Ifyoufindthatthegateoperatoris
unsafethenitmustberenderedtoasafeconditionbyeitherleavingitfullyopenorfullyshut.
Always engage Auto Ingress authorized service technician for periodic inspections and
maintenanceofthisequipment.
We recommend services every quarter of the year to ensure safety of users and longevity of
operatorlifecycle.
Inaccordance withthesafetyand maintenancerequirementsofthisequipment,AutoIngress
has developed a set of procedures to ensure optimum safety and long term reliability of this
installation.
Safety Precautions
IMPORTANT SAFETY MESSAGE

3
Australian
Technology
• Don’tuseagateleafthatexceedsthespecifiedweight,otherwiseitwillcausefailure.
• If you chose the electromagnetic lock, don‘t use it in an environment beyond an
ambienttemperature,otherwiseitwillcausemalfunction.
• The graphic drawings and specifications in this manul are for reference only. You
shouldrelyuponrealobjects.Productdesignesaresubjecttochangewithoutnotice.
• CAUTION!For personalsafety, itis importantto followall theinstructions carefully.
Incorrectinstallationormisuseoftheproductmaycauseseriousharmtopeople.
• Don’tusethegateinaplacesubjecttodampness,vibrationorcorrosivegas,otherwise
itmaycauseaccidentssuchasfire,electricshocksorfall.
• Makesurethatsuitablespacebeavailableafterthegateisopened,otherwiseuser’s
fingersmaybesqueezedbythegateleaf.
• Don‘tcutoffpowerwhenthegateisinoperation,otherwiseitmayresultinaccident
topassers-by.
• Pleasesticktheadhesivestickeronthegateleaffirmly.Ifnot,itmaycauseinjurytothe
passer-bywhodidn’tpayattentiontothegateleaf.
• Don’tconnectanexternalelectricdevicetothemicrocontrolerasitmaycausefire.
• Keeptheinstructionsinasafeplaceforfuturereference.
• This product was designed and manufactured strictly for the use indicated in this
document.AnyotherusagenotexpresslyindicatedinthisDocument,maydamage
theproductand/orbeasourceofdanger.
• Donotinstallthemachineinanareasubjecttoexplosionhazard.InflammabIegasses
orfumesareaserioussafetyhazard.
• Beforecarryingoutanyworkonthesystem,turnofftheelectricitysupply.
• Donotmakeanyalterationstothecomponentsoftheautomaticoperator.
• Donotallowchildrenorotherpeopletostandnearanymovingpartofthegatewhile
inoperation.
• Keeptransmitters awayfrom childrento preventthemachine frombeing activated
accidentally.
• Disconnectthesupplywhencleaningorothermaintenanceisbeingcarriedout,ifthe
applianceisautomaticallycontrolled.
• Theelectricalcordplugmustpluginingateoutletorwaterproofcoveroutlet.
Caution
Other Precautions

4
Australian
Technology
Scissor Arm Installation
Dimensions
: Motor
: Mounting bracket
: Straight arm
: Bending arm
: Front bracket
: Release
Installation
•Beforeusingthemachine,checkpowersupply,grounding,voltage,etc.
•Checkwhetheritisconnectedaccordingtothedemandofwiringdiagram.
•Thegateshouldbepulledeasilyandsmoothlymanuallywhentheoperator
isfittedandthegearsarereleased.
•TheproductmustbeinstalledbyAutoIngressauthorisedtechnician.

5
Australian
Technology
Installation dimensions
Standard installation layout
: Motor
: Control box
: Transmitters
: Photocell (Optional)
: Alarm lamp (Optional)

6
Australian
Technology
Fix the Motor’s
Fix the mounting bracket
Fix the straight arm
: Motor
: Straight arm
: M10 x20
: φ 10 Gasket
: Motor
: M8 x160
: Mounting bracket
: M8 nut

7
Australian
Technology
Connect the bending arm
Connect the Front Brackt
: Motor
: Straight arm
: M8 nut
: φ 8 Gasket
: Bending arm
: M8 x45
: Bending arm
: M8 nut
: φ 8 Gasket
: Front Bracketr
: Bending arm
: M8 x30

8
Australian
Technology
How to release
Fix the Front Brackt
: Gate
: Motor
: Relese
: Bending arm

9
Australian
Technology
Limit switch adjustment
Attention : lftheoperatormoveinanoppositionway,youshouldchange
theconnectionasfollow:
ThebillowingisaRightmotor’slimitswitchadjustment,Before
adjusting,releasethegears,andopenthegatemanually.For
leftmotor,alldirection,arecontrary.
Step I,Closethcdoorcompletely,andconfirmwhichoneistheCloseLimit
Blockaccordingtothesituation,thenloosenthescrewadjustoron
CloseLimitBlock.

10
Australian
Technology
Limit switch adjustment
Slep 2,Open the door completeIy,
and confirm which one is the
open Limit Block according to
the situation, then loosen the
screw adjustor on Open Limit
Block.
Slep 3,Couplethegears,turn on thepoweradjust more accuratelyby“Fine
adjustor”,thentightenthe“Screwadjustor”

11
Australian
Technology
Control Unit
(I)“LIGHT”foraFlashlamp,24VDC.
(2)“MOTOR1“,“MOTOR2”for2motors24VDC.
(3)“LIMIT1”,“LIMIT2”forthemagneticlimitswitchonmotor1,motor2.
(Itisusefulonlyforthemotorswithmagneticlimitswitch.)
(4)“PHOTOCELL”forinfraredprotectdevice.
(5)“BUTTON”forwallswitch.“PUSH1“controldouble-leafgate,step-by-step“PUSH2”controlsingleleaf
gatewhichmustbethepriorityofopeningonestep-by-step.
(6)“E_LOCK”forelectroniclock,Itcanbeconvectedwithelectroniclockwhichpoweris24VDC.
(7)Connection of motor for single-leaf : Ifthegateisonly1leaf,themotormustbeconnectedwith
“Motor1”,andthe“dip2”on“S5”mustbeOFF.
(8)Connection of motor for double-leaf : Ifthegateistwoleaves,first,itmustbeconfirmedwhichone
leafisthepriorityopenningone.Then,thepriorityopenningleafmustbeconnectedwith“MOTOR1”,
theotheroneisconnectedwith“MOTOR2”. Andthe“dip2”on“S5”mustbe“ON”.
Wiring Diagram

12
Australian
Technology
(OPEN FIRST)
(OPEN FIRST)

13
Australian
Technology
Rotary Arm Instalition
Dimensions
Installation
•Beforeusingthemachine,checkpowersupply,grounding,voltage,etc.
•Checkwhetheritisconnectedaccordingtothedemandofwiringdiagram.
•Thegateshouldbepulledeasilyandsmoothlymanuallywhentheoperator
isfittedandthegearsarereleased.
•TheproductmustbeinstalledbyAutoIngressauthorisedtechnician.

14
Australian
Technology

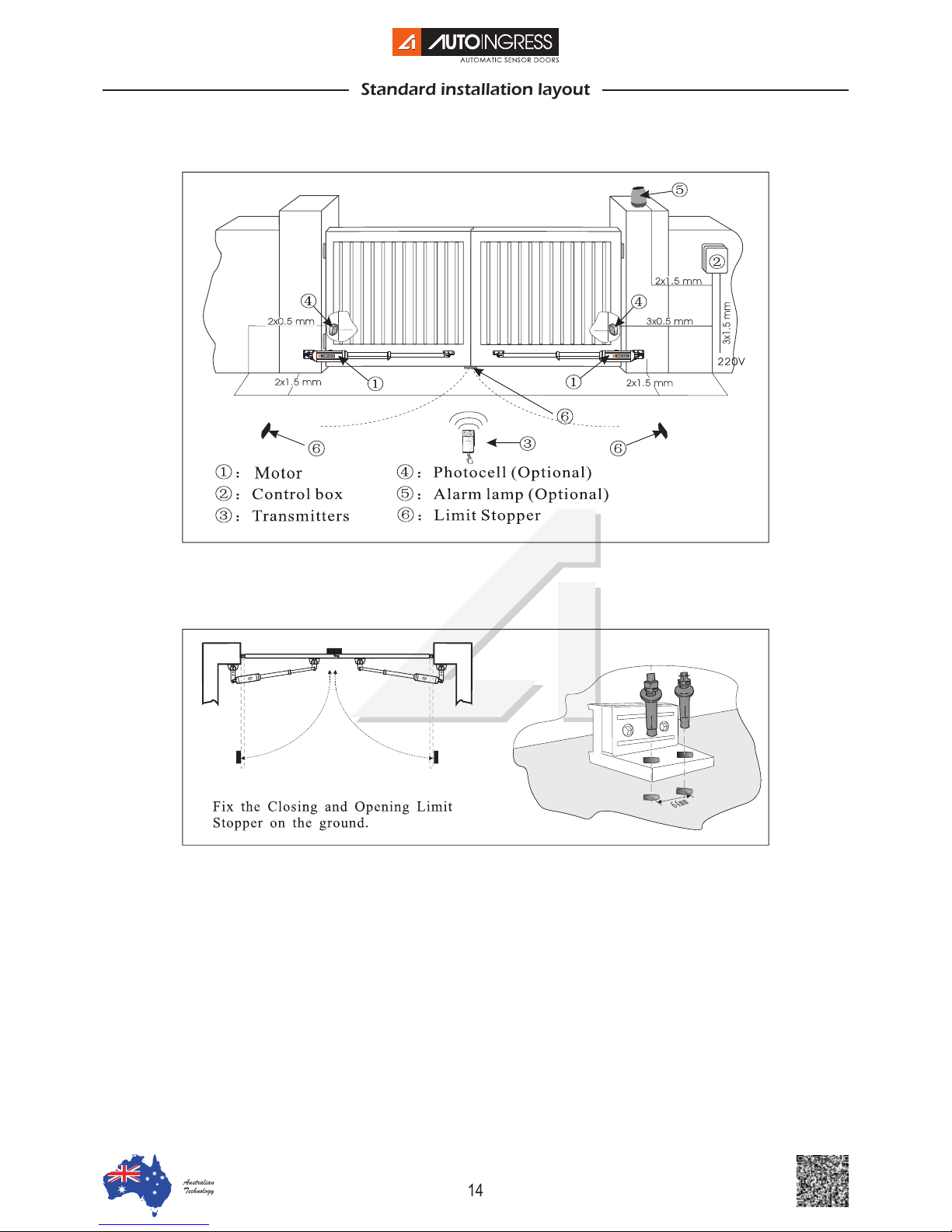

Standard installation layout

15
Australian
Technology
Installation dimensions
Installation

16
Australian
Technology

17
Australian
Technology

18
Australian
Technology
Control Unit
(I)“LIGHT”foraFlashlamp,24VDC.
(2)“MOTOR1“,“MOTOR2”for2motors24VDC.
(3)“LIMIT1”,“LIMIT2”forthemagneticlimitswitchonmotor1,motor2.
(Itisusefulonlyforthemotorswithmagneticlimitswitch.)
(4)“PHOTOCELL”forinfraredprotectdevice.
(5)“BUTTON”forwallswitch.“PUSH1“controldouble-leafgatewith“step-by-step”“PUSH2”controlssingle
leafgatewhichmustbethepriorityofopeningonewith“step-by-step”.
(6)“E_LOCK”forelectriclock,Itcanbeconnectedwithelectriclockwhichpoweris24VACor24VDC.
(7)Connection of motor for single-leaf : Ifthegateis1leaf,first,itmustbeconnectedwith“Motor1”,and
the“dip2”on“S4”mustbeOFF.
(8)Connection of motor for double-leaf : Ifthegateisthepriorityopenningleafmustbeconnectedwith
“MOTOR1”,theotheroneisconnectedwith“MOTOR2”. Andthe“dip2”on“S4”mustbe“ON”.
Wiring Diagram

19
Australian
Technology
Right Open First
Left Open First

20
Australian
Technology
Meaning of display
