Autoadapt Chair Topper User manual

Chair Topper
Autoadapt Hoisting and stowing
EN User manual

2Chair Topper Hoisting and stowing
Chair Topper
from Autoadapt!
The following manual is an important part of the product, providing you with
information on how to achieve maximum performance and safe operation. Keep the
manual in a safe place so that you can refer to it when necessary.
If you have any questions about your adaptation, please contact your installation
engineer. If you want to share your opinions about the product or the company with
us, you can register them on www.autoadapt.com/register. That way, you will be helping
us to become a better supplier.
Once again, thank you for placing your confidence in our products!
Autoadapt
Thank you for choosing a
Safe vehicle adaptation solutions
For your safety Autoadapt products are
designed and tested according to current
directives and standards.
S
A
F
E
V
E
H
I
C
L
E
A
D
A
P
T
A
T
I
O
N

3
Hoisting and stowing Chair Topper
EN
Index
Manufacturer certificate (declaration of conformity) at the end of the manual.
Safety
4
Operation
6
Emergency operation
8
Maintenance
14
Troubleshooting
17
Technical specification
19
Introduction for users
20

Safety decals located on Chair Topper /
4Chair Topper Hoisting and stowing
Safety

Please note that changing the wheels,
rims or other modifications to the
vehicle might aect the total height.
Combined height of vehicle and Chair Topper at the time of installation, ______________ cm.
My Chair Topper
5
Hoisting and stowing Chair Topper
EN
Safety

LOAD /
1. Open the vehicle door fully.
2. Transfer from wheelchair to the vehicle. Leave the wheelchair remaining completely
unfolded and facing toward the front of the vehicle. Lock the wheelchair brakes for safety.
3. Press the OUT button and carefully lower the hook. Release the button when the hook
has reached to desired height.
4. Position wheelchair at the predetermined position and insert the hook securely under
the wheelchair seat.
5. Press the IN button and carefully raise the wheelchair. Release the button when the
Chair Topper is fully closed.
UNLOAD /
1. Open the vehicle door fully.
2. Press the OUT button and carefully lower the wheelchair. Release the button when
the wheelchair has reached to ground level.
3. Remove the hook from the wheelchair.
4. Press the IN button and carefully raise the hook. Release the button when the
Chair Topper is fully closed.
BEFORE TRANSPORT /
1. Place the hand held control in its cradle to avoid accidental activation of the Chair Topper.
Operation
6Chair Topper Hoisting and stowing

Vehicle door
fully open
Wheelchair facing toward
the front of the vehicle
Ensure that the hook is
inserted all the way in.
7
Hoisting and stowing Chair Topper
EN
Operation

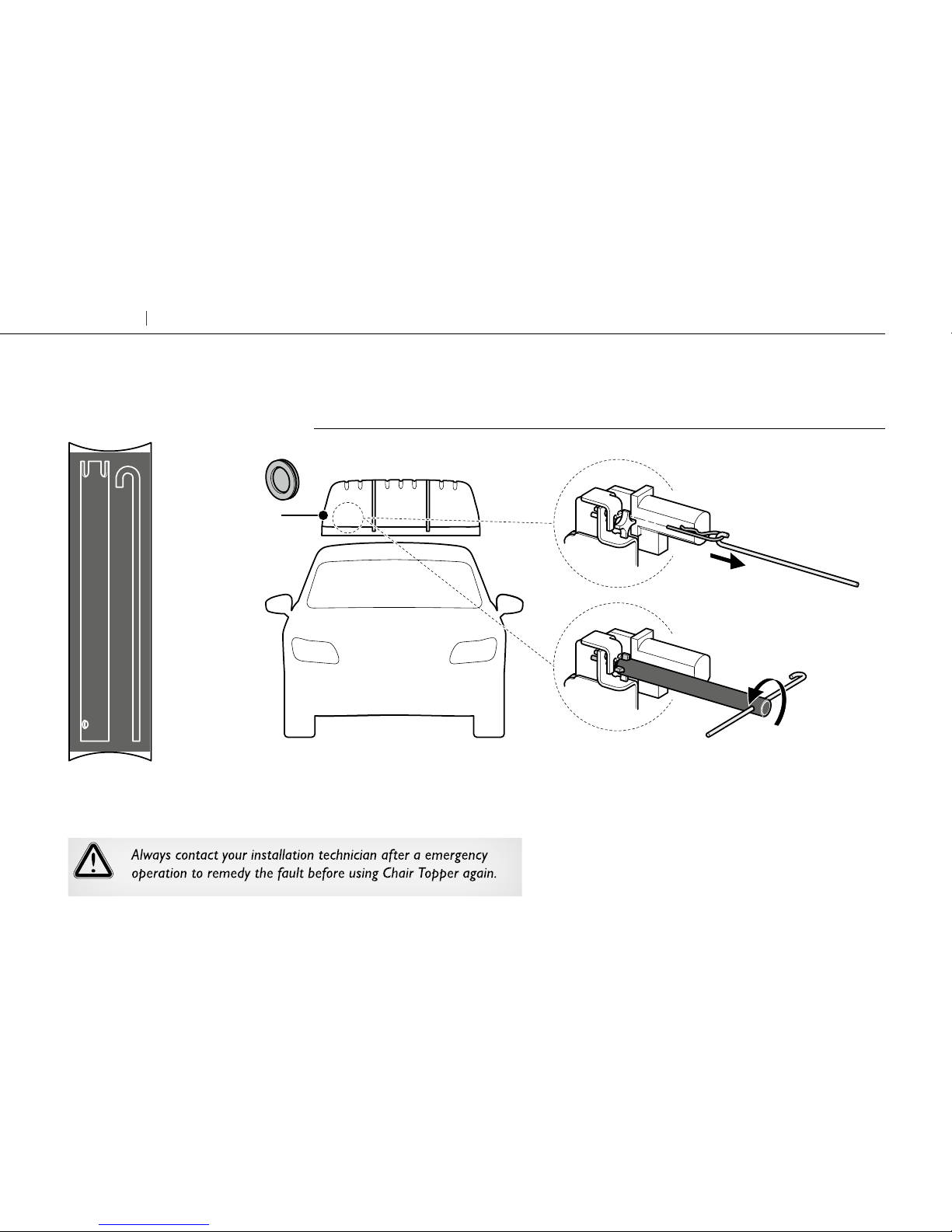

Use the emergency kit, supplied
with the Chair Topper, to easier
the emergency operation.
OUT
1 2
3
Use the supplied hook
to remove the lock pin
through hole in the cover.
Turn the knob 15 full
revolutions counter clock
wise. Use the slotted tube
to reach.
Remove the plug from the cover.
8Chair Topper Hoisting and stowing
Emergency operation

4Grab the cover and
pull the slide frame
out.
9
Hoisting and stowing Chair Topper
EN
Emergency operation

Use the supplied hook
to remove the lock pin.
DOWN
5
Use the emergency kit, supplied
with the Chair Topper, to easier
the emergency operation.
10 Chair Topper Hoisting and stowing

6
RISK OF BODILY INJURY AND MATERIAL DAMAGE
DANGER During this procedure the wheelchair will suddenly
drop and free fall from the Chair Topper. Unless held
by a person of adequate strenght, it may cause injury
to anyone in its path as well as cause damage to the
vehicle.
Turn the knob 15 full revolutions
counter clock wise. If necessary
use the slotted tube again.
11
Hoisting and stowing Chair Topper
EN
Emergency operation

UP and IN
Use the emergency kit, supplied
with the Chair Topper, to easier
the emergency operation.
7
Push in the slide frame until the fold frame is
in a horisontal position. Place the seat hook
and chains on fold frame. Continue to push
in the slide frame until it is fully closed.
12 Chair Topper Hoisting and stowing

8Turn knob 15 revolutions clock wise.
Use the slotted tube to reach.
13
Hoisting and stowing Chair Topper
EN
Emergency operation

Perform maintenance at the scheduled intervals according to the number of cycles or
elapsed time whichever comes first. Always contact your dealer for disassembly.
Wash and/or wax the ABS plastic in the same manner which you care for your vehicle.
4 weeks
or 100 cycles
Inspect all bearings for wear. Lubricate with light oil.
Fold linkage pivot points. Lubricate with light oil.
Remove and clean any debris or obstructions.
Inspect bearing mounting for proper securement. Correct and replace if needed.
Inspect mounting hardware (frame and topper securement). Make sure there are no loose or missing parts.
Replace, tighten or resecure as needed.
3 months
or 300
cycles
Repeat all checks listed in the 4 weeks or 100 cycles. Repeat maintenance procedures.
Inspect sprockets for securement, slippage, alignment or any damage. Replace, realign or resecure as needed.
Inspect chain channels (plastic for damage, securement or obstructions. Clean, correct or replace.
14 Chair Topper Hoisting and stowing
Maintenance

3 months
or 300 cycles
Inspect chain bolts and all chain connecting points. Inspect master links and chain blocks for positive securement
and/or possible damage. Replace, resecure or correct as needed.
Inspect chains for lubrication, damage, misalignment, binding or twisting. Lubricate with light oil.
Clean before lubricating - realign or correct any other conditions as needed.
Inspect chain boxes (up/down chain enclosure) for obstructions or damage. Clean or correct.
Inspect the side bearing channel on both sides for damage, securement or obstructions. Clean, resecure or correct
as needed.
Inspect all mounting hardware (securing framework, hearings, linkage, motors, etc.) for loos, damaged or missing
parts. Replace, tighten, adjust or realign as needed.
Inspect main wiring harness for possible damage, securement or poor electrical connections.
Correct, resecure or repair as needed.
Inspect control harness for possible damage; securement, or poor electrical connections.
Correct, resecure or repair as needed.
Inspect power cable for damage or poor connections. Correct or replace as needed.
Inspect ground wires damage, securement or poor connections. Correct, resecure or repair as needed.
Inspect the harness/wire socks attachment points on wind screen of vehicle.
Replace worn or missing cable tie/cable tie attachment feet.
Inspect fold springs to see if detached or worn. Correct or replace.
Inspect fold linkage for excessive wear, damage, lubrication and securement.
Lubricate with light oil, resecure or realign as needed.
Inspect pop rivets/washers (securing ABS plastic shell) to see if worn or missing. Replace or resecure as needed.
15
Hoisting and stowing Chair Topper
EN
Maintenance

1 year
or 1250 cycles
Repeat all checks listed in the two previous sections. Repeat maintenance procedures.
Inspect fuse holder and electrical connections. Correct as needed.
Inspect the channel on both sides for damage, securement or obstructions. Clean, resecure or correct as needed.
Lubricate black plastic bearing on three sides with a thin layer of AGS door-ease stick lubricant.
Inspect the two micro switches for possible damage, securement or poor electrical connections.
Replace, resecure or correct wiring connections as needed.
Inspect relays/relay blocks for possible damage, securement or poor electrical connections.
Replace, resecure or correct wiring connections as needed.
Inspect seals and gaskets to see if damaged, worn or missing. Correct as needed.
Inspect decals. Replace if worn, missing or illegible.
Internal moisture (from use during rain or snow). Leave open on dry day to dry interior.
16 Chair Topper Hoisting and stowing

Hand held control does not work................
Unusual noises heard during operation.....
- Check that the wiring to the hand held control is connected and undamaged.
- Check that the fuse is intact and that the vehicle battery is charged.
- Follow the instructions for “Emergency operation”.
- Do not use the Chair Topper. Contact your installation technician for an
overhaul.
17
Hoisting and stowing Chair Topper
EN
Troubleshooting
Troubleshooting

18 Chair Topper Hoisting and stowing
Model /
Serial number /
Year of manufacture /
Date of purchase /
Notes /
Contact details for the installation engineer /
Please contact your installation technician if you require further assistance or need to ask questions
about warranty. We recommend keeping the following information to hand at all times /

B D

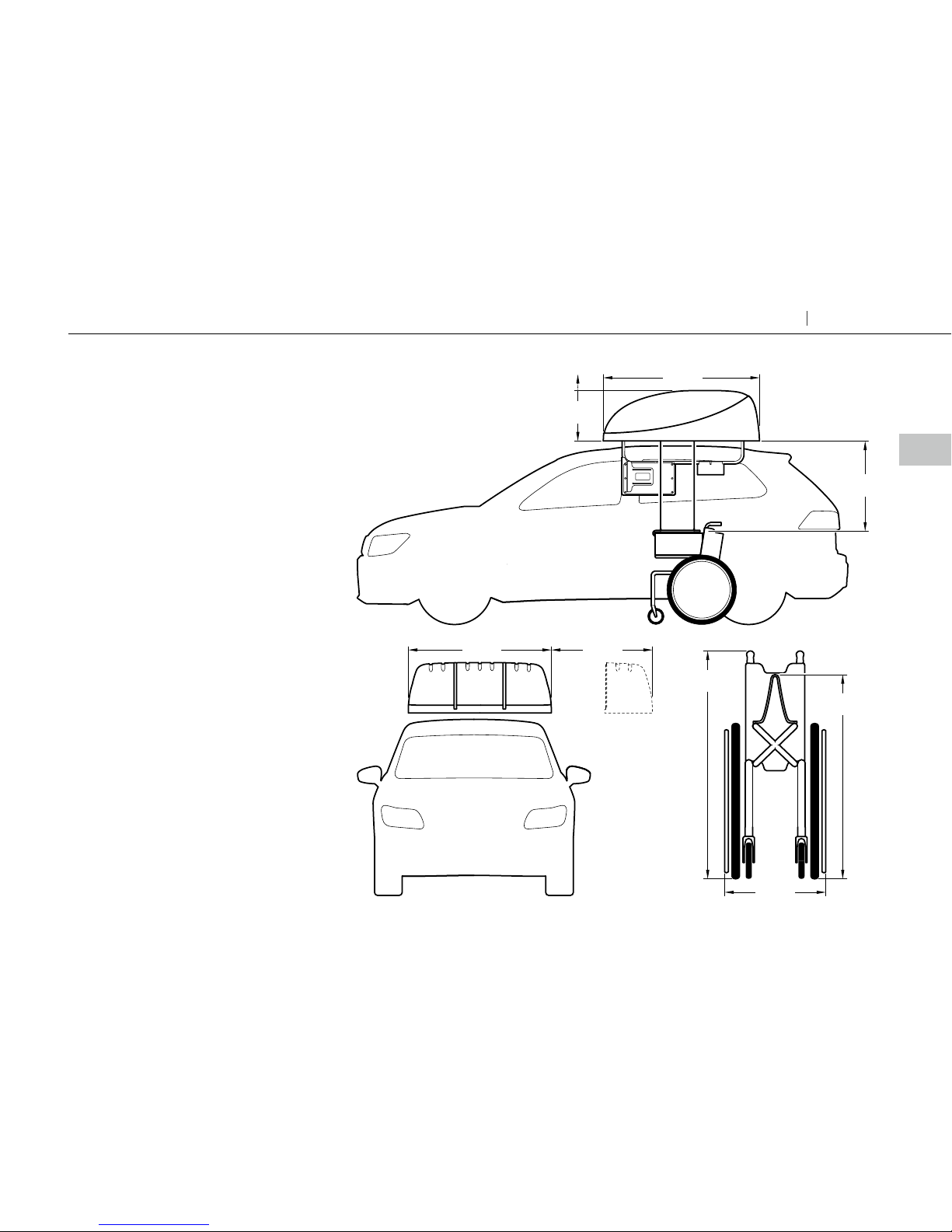

Dimensions
A, length ......................................................143 cm
B, width ........................................................ 131 cm
C, height..............................................46+10* cm
D, extension .................................................91 cm
E, chain lenght (200 cm with ext. kit)...109 cm
F, max folded height.................................93 cm
G, max folded apex height.................. 83 cm
H, max folded width................................35 cm
Product data
Lift capacity....................................................20 kg
Unit weight.....................................................55 kg
Fuse auto reset................................................15A
Motors..........................................................12VDC
Load cycle time..........................................30 sec
All weights and dimensions are for reference only.
*During operation the product extends an additional
10 cm in height.
A
C
E
F
G
H
19
Hoisting and stowing Chair Topper
EN
Technical specification
Technical specification

20 Chair Topper Hoisting and stowing
Date /
Name of dealer /
Signature, installation engineer Signature, user
Introduction for users
Autoadapt would like you, as a user, to feel secure and comfortable with your new
product. For that reason, it is your installer’s duty to go through the following with you /
• Safety
• Operation
• Emergency operation
If any questions about the product should come up later on, you are of course very
welcome to contact your installation technician again.
The above chapters have been gone through /
