Lippert RV Instruction Manual

RV Structural guidelines

Rev: 11.11.21 Page 2 CCD-0004203
TABLE OF CONTENTS
I-Beam (3/1/2021) 3
Stick and Tin 3
Stick and Tin Continued 4
Laminated Side Walls 4
Laminated Side Walls Continued 5
Crush Tube 6
Standard Crush Tubes/Riser Tubes ( 7/13/2021) 6
Crush Tubes Taller Than 2" including Extended Length Crush Tubes 6
The Extended Length Crush Tube 6
Chassis w/ Crush Tube 6
Draw Bar 7
Standard TT Draw Bar Engineering Guideline Rev. (6/15/2021) 7
Draw Bar 8
Toy Hauler TT Draw Bar Engineering Guidelines Rev: (6/15/2021) 8
Accepted Tube/I-Beam RV Engineering Guidelines Rev: (1/1/2020) 9
Outrigger 10
Engineering Guidelines Rev: (7/13/2021) 10
Hanger Support - Beam Stiener 11
Hanger Support Requirements (7/13/2021) 11
Axle Area - FHXM 12
Axle Area Full Height XMs Engineering Guidelines Rev: (1/1/2020) 12
Full Height Cross Member Requirements in the Axle Area 13
Upper Deck Main 14
Accepted Upper Deck RV Engineering Guidelines Rev: (3/1/2021) 14
Upper Deck Riser 15
Accepted Upper Deck RV Engineering Guidelines Rev: (3/1/2021) 15
Leveling 16
Accepted Leveling RV Engineering Guidelines - REV : (1/1/2020) 16
Accepted Travel Trailer Leveling RV Engineering Guidelines - REV : (1/1/2019) 17
Hydraulic Landing - Level Bracket 18
Accepted HYD Landing Gear and Leveling Bracket Supports Engineering Guidelines - REV: (3/1/2021) 18
5th Wheel Drop Gen set up. 19
Bumper Extension 20
Accepted Bumper Extension Engineering Guidelines - REV : (3/1/2021) 20
Slide-out Room Bar 21
Slide out/Room Bar Engineering Guidelines Rev: (3/1/2021) 21
Note: 22
Proprietary and Condential
The information contained in this document is the sole property of Lippert Components, Inc.
Any reproduction in parts or as a whole without the written permission of Lippert Components, Inc.
Is prohibited.

Rev: 11.11.21 Page 3 CCD-0004203
I-Beam (3/1/2021)
Stick and Tin
3.1 Stick and Tin Hung Glass Side Walls RV Engineering Guidelines
Conventional Travel Trailer
Max Main Rail
Length All
lengths are ≤
21' 25' 26' 27' 28' 29' 30' 31' 32' 33' 34' 35' 36' 37' 38' 39' 40' 41' 42'
252" 300" 312" 324" 336" 348" 360" 372" 384" 396" 408" 420" 432" 444" 456" 468" 480" 492" 504"
# Of Slides* Under 8K GVWR** Over 8K GVWR
0 6 6 6 6 8 8 8 8 8 8 8 8 8 8 10 10 10 12 12
1 6 8 8 8 8 8 8 8 8 10 10 10 10 10 10 10 10 12 12
2 8 8 8 8 10 10 10 10 10 10 10 12 12 12 12 12 12 12 12
3 10 10 10 10 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12
4 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12
3.3 Stick and Tin Hung Glass Side Walls RV Engineering Guidelines
Conventional 5th Wheel
Max Main Rail
Length All
lengths are ≤
21' 25' 26' 27' 28' 29' 30' 31' 32' 33' 34' 35' 36' 37' 38' 39' 40' 41' 42'
252" 300" 312" 324" 336" 348" 360" 372" 384" 396" 408" 420" 432" 444" 456" 468" 480" 492" 504"
# Of Slides*
0 8 8 8 8 8 8 10 10 10 10 10 10 10 10 12 12 12 12 12
1 8 8 8 8 8 10 10 10 10 10 10 10 10 10 12 12 12 12 12
2 8 8 8 8 10 10 10 10 10 10 10 10 10 10 12 12 12 12 12
3 8 8 10 10 10 10 10 10 10 12 12 12 12 12 12 12 12 12 12
4 10 10 10 10 10 10 12 12 12 12 12 12 12 12 12 12 12 12 12
3.2 Stick and Tin Hung Glass Side Walls RV Engineering Guidelines
Toy Hauler Travel Trailer
Max Main Rail
Length All
lengths are ≤
21' 25' 26' 27' 28' 29' 30' 31' 32' 33' 34' 35' 36' 37' 38' 39' 40' 41' 42'
252" 300" 312" 324" 336" 348" 360" 372" 384" 396" 408" 420" 432" 444" 456" 468" 480" 492" 504"
# Of Slides* Under 8K GVWR** Over 8K GVWR
0 6 6 8 8 8 10 10 10 10 10 10 10 10 10 12 12 12 12 12
1 6 8 8 8 10 10 10 10 10 10 10 12 12 12 12 12 12 12 12
2 8 8 8 10 10 10 10 10 10 12 12 12 12 12 12 12 12 12 12
3 10 10 10 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12
4 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12

Rev: 11.11.21 Page 4 CCD-0004203
Stick and Tin Continued
Laminated Side Walls
4.1 Stick and Tin Hung Glass Side Walls RV Engineering Guidelines
Toy Hauler 5th Wheel
Max Main Rail
Length All
lengths are ≤
21' 25' 26' 27' 28' 29' 30' 31' 32' 33' 34' 35' 36' 37' 38' 39' 40' 41' 42'
252" 300" 312" 324" 336" 348" 360" 372" 384" 396" 408" 420" 432" 444" 456" 468" 480" 492" 504"
# Of Slides*
0 8 8 8 8 8 8 10 10 12 12 12 12 12 12 12 12 12 12 12
1 8 8 8 8 8 10 10 12 12 12 12 12 12 12 12 12 12 12 12
2 8 8 8 8 10 10 12 12 12 12 12 12 12 12 12 12 12 12 12
3 8 8 10 10 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12
4 10 10 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12
4.2 Laminated Side Walls RV Engineering Guidelines
Conventional Travel Trailer
Max Main Rail
Length All
lengths are ≤
21' 25' 26' 27' 28' 29' 30' 31' 32' 33' 34' 35' 36' 37' 38' 39' 40' 41' 42'
252" 300" 312" 324" 336" 348" 360" 372" 384" 396" 408" 420" 432" 444" 456" 468" 480" 492" 504"
# Of Slides* Under 8K GVWR** Over 8K GVWR
0 6 6 6 6 8 8 8 8 8 8 8 8 8 8 10 10 10 12 12
1 6 6 8 8 8 8 8 8 8 10 10 10 10 10 10 10 10 12 12
2 8 8 8 8 8 8 10 10 10 10 10 10 10 10 12 12 12 12 12
3 8 8 8 10 10 10 10 10 10 12 12 12 12 12 12 12 12 12 12
4 10 10 10 10 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12
4.3 Laminated Side Walls RV Engineering Guidelines
Toy Hauler Travel Trailer
Max Main Rail
Length All
lengths are ≤
21' 25' 26' 27' 28' 29' 30' 31' 32' 33' 34' 35' 36' 37' 38' 39' 40' 41' 42'
252" 300" 312" 324" 336" 348" 360" 372" 384" 396" 408" 420" 432" 444" 456" 468" 480" 492" 504"
# Of Slides* Under 8K GVWR** Over 8K GVWR
0 6 6 6 8 8 8 10 10 10 10 10 10 10 10 12 12 12 12 12
1 6 8 8 8 8 10 10 10 10 10 10 10 12 12 12 12 12 12 12
2 8 8 8 8 10 10 10 10 10 10 12 12 12 12 12 12 12 12 12
3 8 8 10 10 10 12 12 12 12 12 12 12 12 12 12 12 12 12 12
4 10 10 10 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12

Rev: 11.11.21 Page 5 CCD-0004203
Laminated Side Walls Continued
5.1 Laminated Side Walls RV Engineering Guidelines Rev: 01.01.20
Conventional 5th Wheel
Max Main Rail
Length All
lengths are ≤
21' 25' 26' 27' 28' 29' 30' 31' 32' 33' 34' 35' 36' 37' 38' 39' 40' 41' 42'
252" 300" 312" 324" 336" 348" 360" 372" 384" 396" 408" 420" 432" 444" 456" 468" 480" 492" 504"
# Of Slides*
0 8 8 8 8 8 8 8 8 8 8 8 10 10 10 10 10 10 10 10
1 8 8 8 8 8 8 8 8 8 8 8 10 10 10 10 10 10 10 10
2 8 8 8 8 8 8 10 10 10 10 10 10 10 10 12 12 12 12 12
3 8 8 8 10 10 10 10 10 10 12 12 12 12 12 12 12 12 12 12
4 10 10 10 10 10 10 10 12 12 12 12 12 12 12 12 12 12 12 12
5.2 Laminated Side Walls RV Engineering Guidelines Rev: 01.01.20
Toy Hauler 5th Wheel
Max Main Rail
Length All
lengths are ≤
21' 25' 26' 27' 28' 29' 30' 31' 32' 33' 34' 35' 36' 37' 38' 39' 40' 41' 42'
252" 300" 312" 324" 336" 348" 360" 372" 384" 396" 408" 420" 432" 444" 456" 468" 480" 492" 504"
# Of Slides*
0 8 8 8 8 8 8 8 10 10 10 12 12 12 12 12 12 12 12 12
1 8 8 8 8 8 8 10 10 10 12 12 12 12 12 12 12 12 12 12
2 8 8 8 8 10 10 10 12 12 12 12 12 12 12 12 12 12 12 12
3 8 8 10 10 10 12 12 12 12 12 12 12 12 12 12 12 12 12 12
4 10 10 10 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12
Drop Deck Max Recommended Beam
Beam Size Max Drop Length
This dimension is measured from the front of the drop beam to the
front of the top stacked beam and does not include where the two
beams overlap. 24" of I-beam overlap is required.
6" 4.4# Beam 60" If GVWR is greater than 8K for a TT or 10K for a
5th wheel, then 8" 6.5# minimum
8" 6.5# Beam 101" If GVWR is greater than 18K, then 8" 10# minimum
8" 10# or 10" 8# Beam 142"
5.3 Units with a 1-¼" receiver hitch need to add 12" to current main rail length to determine I-beam size needed.
5.4 Units with a 2" receiver hitch or rear storage rack need to add 24" to current main rail length to
determine I-beam size needed.
A. * # Of Slides Include: In Frame Slide - In Wall Slide - Above Floor Slide - Outside Kitchen (excludes
slides in the upper deck).
- Outside Kitchen definition: if the opening in the sidewall is larger than 24 square feet or the
opening isn't fully framed inside the sidewall, then it must be counted as a slide out.
B. - Outside Kitchen examples of opening not being fully framed: bottom tube of sidewall removed/
cut out, main floors outside rail removed/cut out for outside kitchen to sit partially below floor.
5.5 Main rail length needs to include drop deck length.
5.6 When a 2" extended length crush tube is used, you can drop a main rail size. See notes in sec. 2.3 for
layout details.
C. ** If chassis meets length/slide count but doesn't meet the GVWR spec, then it must go up to 8"
I-beam size or use a 2" extended crush tube.

Rev: 11.11.21 Page 6 CCD-0004203
Crush Tube
Standard Crush Tubes/Riser Tubes ( 7/13/2021)
6.1 Need to extend a minimum of 2 ¼" past the end of the standard hangers and ½" past the end of
torsion hangers.
Set cross tubes ¼" in from the end of the crush tube.
2¼"2¼"
½"½"
354⁄"
40%
100%
Crush Tubes Taller Than 2" including Extended Length Crush Tubes
6.2 Standard length crush tubes ≤ 4" require a 2x2 - 11ga cross tube support at the front and rear of the
crush tube, also require two full height XMs in the axle area.
Note: Standard length crush tubes ≥ 5" require a 2x4 -11ga cross tube support at the front and rear of the
crush tube, also require two full height XMs in the axle area.
Note: Crush tube taller than 6" needs Lippert management approval.
The Extended Length Crush Tube
6.3 Start a minimum of 12" in front hanger or riser tube and extend 40% of the rear overhang. It also needs
to be rounded up to the nearest 12" increment.
Note: Extended length crush tubes ≥ 4" require a 2x2 - 11ga cross tube supports at the front and rear of
the axle area and extended length crush tubes ≥ 5" require a 2x4 - 11ga at the front and rear of the
axle area.
Chassis w/ Crush Tube
6.4 That are either a triple axle or using axles rated ≥ 8K, crush tube is required to be 7ga.
¼"
3"+
100%
382⁄"
40%
12"

Rev: 11.11.21 Page 7 CCD-0004203
Draw Bar
Standard TT Draw Bar Engineering Guideline Rev. (6/15/2021)
7.1 7.4
GVWR ≤ 50" BALL CENTER GVWR 54.5"-56" BALL CENTER
≤ 5,550 2X4 11GA ≤ 4,900 2X4 11GA
5,551 - 7,850 2X5 11GA 4,901 - 7,000 2X5 11GA
7,851 - 10,500 2X6 11GA 7,001 - 9,350 2X6 11GA
10,501 - 15,000 2X6 7GA 9,351 - 13,300 2X6 7GA
15,001 - 18,200 2X6 1/4GA 13,301 16,300 2X6 1/4GA
7.2 7.5
GVWR 50.5"-52" BALL CENTER GVWR 56.5"-58" BALL CENTER
≤ 5,300 2X4 11GA ≤ 4,800 2X4 11GA
5,301 - 7,550 2X5 11GA 4,801 - 6,700 2X5 11GA
7,551 - 10,000 2X6 11GA 6,701 - 9,000 2X6 11GA
10,001 - 14,000 2X6 7GA 9,001 - 12,900 2X6 7GA
14,001 - 17,500 2X6 1/4GA 12,901 -15,200 2X6 1/4GA
7.3 7.6
GVWR 52.5"-54" BALL CENTER GVWR 58.5"-60" BALL CENTER
≤ 5,150 2X4 11GA ≤ 4,600 2X4 11GA
5,151 - 7,250 2X5 11GA 4,601 - 6,500 2X5 11GA
7,251 - 9,700 2X6 11GA 6,501 - 8,700 2X6 11GA
9,701 - 13,800 2X6 7GA 8,701 - 12,500 2X6 7GA
13,801 -16,900 2X6 1/4GA 12,501 -15,200 2X6 1/4GA
For any guideline questions please contact: [email protected]

Rev: 11.11.21 Page 8 CCD-0004203
Draw Bar
Toy Hauler TT Draw Bar Engineering Guidelines Rev: (6/15/2021)
8.1 8.4
GVWR ≤ 50" BALL CENTER GVWR 54.5"-56" BALL CENTER
≤ 4,150 2X4 11GA ≤ 3,700 2X4 11GA
4,151 -5,900 2X5 11GA 3,701 - 5,250 2X5 11GA
5,901 - 7,850 2X6 11GA 5,251 - 7,000 2X6 11GA
7,851 - 11,200 2X6 7GA 7,001 - 10,000 2X6 7GA
11,201 - 13,700 2X6 1/4GA 10,001 - 12,200 2X6 1/4GA
8.2 8.5
GVWR 50.5"-52" BALL CENTER GVWR 56.5"-58" BALL CENTER
≤ 4,000 2X4 11GA ≤ 3,600 2X4 11GA
4,001 -5,650 2X5 11GA 3,601 - 5,050 2X5 11GA
5,651 - 7,550 2X6 11GA 5,051 - 6,750 2X6 11GA
7,551 - 10,800 2X6 7GA 6,751 - 9,650 2X6 7GA
10,801 - 13,100 2X6 1/4GA 9,651 -11,800 2X6 1/4GA
8.3 8.6
GVWR 52.5"-54" BALL CENTER GVWR 58.5"-60" BALL CENTER
≤ 3,850 2X4 11GA ≤ 3,450 2X4 11GA
3,851 - 5,450 2X5 11GA 4,101 - 4,900 2X5 11GA
5,451 - 7,250 2X6 11GA 4,901 - 6,550 2X6 11GA
7,251 - 10,400 2X6 7GA 6,551 - 9,350 2X6 7GA
10,401 -12,650 2X6 1/4GA 9,351 - 11,400 2X6 1/4GA
8.7 2x3 Draw bars require Lippert manager approval.
8.8 Please keep ball center to half inch increments.
8.9 Structural XMC can be used in place of tube draw bars in some instances; see Lippert management for
specific details.
8.10 Any chassis with I-beam mains and through mount drawbars where the GVWR/ball center requires
the drawbars to be the same height as the chassis mains, the chassis mains will need to go up a size or
change to undermount drawbar setup

Rev: 11.11.21 Page 9 CCD-0004203
Accepted Tube/I-Beam RV Engineering Guidelines Rev: (1/1/2020)
9.1 Non-Cargo - Hard Side Laminate Floors / Walls Tube & I-beam Chassis
Main Rail Length Feet <12' (camber
0-⁄") 13'-17' camber ⁄" 18'-22' (camber ⁄"-¼") 23'- 25' (camber ¼"-⁄")
Main Rail Length Inch. < 144" 145" - 215" 216" - 264" 265" - 300"
0 Slides 13ga/4" Tube 13ga/4" Tube 11ga/4" Tube 13ga/5" Tube or 6"
I-beam
(1) In-Wall Slide 13ga/4" Tube 11ga/4,13ga/5" Tube
or 6" I-beam
13ga/5" Tube or 6"
I-beam
11ga/5" Tube or 6"
I-beam
9.2 Non-Cargo - Wood Floors / Laminate Walls Tube & I-beam Chassis
Main Rail Length Feet <12' (camber
0-⁄") 13'-17' camber ⁄" 18'-22' (camber ⁄"-¼") 23'- 25' (camber ¼"-⁄")
Main Rail Length Inch. < 144" 144" - 215" 216" - 264" 265" - 300"
0 Slides 13ga/4" Tube 13ga/4" Tube 11ga/4",13ga/5"
Tube or 6" I-beam
13ga/5" Tube or 6"
I-beam
9.3 Non-Cargo - Stick & Tin Tube & I-beam Chassis
Main Rail Length Feet <12' (camber
0-⁄") 13'-17' camber ⁄" 18'-22' (camber ⁄"-¼") 23'- 25' (camber ¼"-⁄")
Main Rail Length Inch. < 144" 144" - 215" 216" - 264" 265" - 300"
0 Slides 13ga/4" Tube 11ga/4",13ga/5"
Tube or 6" I-beam
11ga/4",13ga/5"
Tube or 6" I-beam 11ga/5" or 6" beam
9.5 Pop Up Tent Campers
Main Rail Length Feet < 7.5' 7.5 - 16'
Main Rail Length Inch. <90" 91" - 192"
0 Slides 11ga/3" 13ga/4" Tube
For any guideline questions please contact: [email protected]
9.6 Please contact your current Lippert engineering team lead for all new tube chassis request.

Rev: 11.11.21 Page 10 CCD-0004203
Outrigger
Engineering Guidelines Rev: (7/13/2021)
10.1 Outrigger spacing should be 48" or less.
10.2 Need to have an outrigger on each end of the wheel well area.
10.3 Outrigger height needs to be greater than ½ the main rail height on I-beam frames and full height
on tube & XMC frames. Slide outriggers are an exception.
Slide Arms
Room Bar
FLOOR
A full length outrigger
should be located a maximum of
3" & 24" from notch in the main
floor at the beginning and end of
the slide-out opening
Must have two full length
outriggers in front of or behind
each slide-out.
Must have two full length
outriggers in front of or behind
each slide-out.
A minimum of two slide outriggers must be placed in the slide
out area. They need to be placed under the heaviest area
of the room. If the room is at least 144", a third outrigger is
required. Add an additional outrigger every 48" thereafter.
Must have two full length
outriggers in front of or behind
each slide-out.
Must have two full length
outriggers in front of or behind
each slide-out.
For a stick/tin build, we require a minimum of two slide
outriggers to be placed in the slide out area. They need
to be placed under the heaviest area of the room. If the
room is at least 72", a third outrigger is required. Add an
additional outrigger every 36" thereafter.
For a laminated build where rollers are mounted to the floor, we require a
minimum of two slide outriggers to be placed in the slide out area. They need
to be placed under the heaviest area of the room. If the room is at least 144", a
third outrigger is required. Add an additional outrigger every 48" thereafter.
Slide-out Room
FLOOR
A full length outrigger
should be located a maximum of
3" & 24" from notch in
the main floor at the beginning
and end of the slide-out opening
10.4 Through frame slide-out outrigger guidelines for stick and tin/hung glass & laminated sidewalls.
10.5 In wall floor slide-out outrigger guidelines for stick and tin/hung glass & laminated sidewalls.
10.6 For laminated builds where there is at least 6" of wall structure and rollers are mounted on the wall,
only standard outrigger placement will apply every 48".
10.7 If you have a 12 CU. FT. or larger refrigerator in a slideout, you are required to have two slide
outriggers centered under that section of the slideout, spaced no closer than 12” and no further than 36”.
If refer is near tires, both outriggers need to be placed as close as possible to the refer without causing tire
interference. All other slideout outrigger spacing is still applicable.
3" Max
24" Max
Slide-out Room
24" Max
3" Max

Rev: 11.11.21 Page 11 CCD-0004203
Hanger Support - Beam Stiffener
Hanger Support Requirements (7/13/2021)
11.1
11.2 Supplement Boot Hanger 102906 for Hanger 106184 and 103713.
All toy haulers and fifth wheels must use
a hanger support plate above each hanger
(except when a crush tube is used)
Supplement boot hanger 102906 for hanger 106184 and 103713
4¼"5¼" 3¼"
Hanger
Size/P/N
Max Weight
Rating
Use for center
hanger
Wide Stance
(34" spacing)
V-Brace
Requirements
Mount Direct
to I-beam?
2.25" (106182) None Does not work w/
all equalizers. If
you choose this
hanger, make sure
your equalizer is
compatible.
Yes w/crush tube,
no 5th wheels
None Yes
3.25" (106183) None YES Yes w/crush tube,
no 5th wheels
All triple axle setup,
TT with ≥7K axles,
5th wheel with
≥6K axles, wide
stance (34"hanger
spacing)
Yes
4.25" (106185) TT= None
5th Wheel =
11,999 lbs GVWR
YES Yes TT with 2x2
crush tube and ≥
4.4K axles, no 5th
wheels
Yes TT with = 4.4K
axles (excludes
single axle),
All 5th wheels
Yes
5.25" boot
(102906)
TT & 5th Wheel
with crush tube =
≤ 4.4K axles
Does not work w/
all equalizers. If
you choose this
hanger, make sure
your equalizer is
compatible.
N/A N/A Yes on TT with ≤
3.5K axles, but no
for 6" I-beam, no
on all 5th wheels.
Note: For tandem axles, if using different size hangers the taller hangers needs to be the center hanger.

Rev: 11.11.21 Page 12 CCD-0004203
Axle Area - FHXM
Axle Area Full Height XMs Engineering Guidelines Rev: (1/1/2020)
Defining the axle area
12.1 For all 5th wheels and all toy haulers with crush tube: area within the start of the crush tube to the
rear of the crush tube, not to exceed 12" on either side of the hanger. XM must be inside this area to count
as a XM in the axle area.
12.2 For all 5th wheels and all toy haulers: area starting 6" in front of the front hanger to 6" behind the rear
hanger. XM must be inside this area to count as a XM in the axle area.
12.3 For all conventional TT with or without a crush tube: area starting 12" in front of middle hanger to
rear of rear hanger.
Non Toy Hauler TT Axle Area
12" 12"
6" 6"
12"

Rev: 11.11.21 Page 13 CCD-0004203
Full Height Cross Member Requirements in the Axle Area
13.1 A full height XM is no shorter than ¾" less than the main rail height. It needs to be a RAXM, XMC, XMZ
and bottom flange must be full length.
13.2 Non toy hauler travel trailers require: 1 full height cross member in the axle area.
13.3 Travel trailers with spread axles (34" axle hanger spacing) require either: 2 full height cross members
in the axle area (one being within 6" of rear hanger) OR 1 full height cross member plus a crush tube.
13.4 Non toy hauler fifth wheels require: 2 full height cross members in the axle area.
13.5 All TT toy hauler frames require: 3 full height cross members in the axle area, unless using a ≥ 2x2
crush tube, then 2 full height cross members can be used.
13.6 All 5th wheel toy hauler frames require: 3 full height cross members in the axle area.
13.7 All tri-axle units require: 3 full height cross members in the axle area.
13.8 All units with a GVWR greater than 18K require: 3 full height cross members in the axle area.
13.9 Full height XMs in the axle area need to have a minimum of 18" spacing between them.
13.10 Frames with a torsion axle pod set up require the following full height XMs:
Minimum of 1 full height axle area cross member for fifth wheel
min. of 2 for toy haulers.

Rev: 11.11.21 Page 14 CCD-0004203
Upper Deck Main
Accepted Upper Deck RV Engineering Guidelines Rev: (3/1/2021)
* Laminated side wall guidelines only; for stick and tin or hung glass, please inquire with chassis
engineering.
14.1 Upper Deck Main Rail rating specifications
GVWR 0-1 UD Slides 2 UD Slides (front living)
≤10,000 LBS 2X5 - 11GA 2X5 - 7GA or 2x6 11GA
10,001 - 12,000 LBS 2X6 - 11GA 2X6-7GA or 6" 8.2lb Structural XMC
12,001 - 15,501 LBS 2X6 - 7GA or 6" 8.2lb Structural XMC 2X6-1/4GA or 6" 8.2lb Structural
XMC
15,501 - 18,000 LBS 2X6 - 1/4GA or 6" 8.2lb Structural XMC Double 2X6 mains - 7/11GA, 4x6
1/4ga, 2X8 - 11GA
18,001 - 21,000 LBS Double 2X6 mains - 7/11GA, 4x6 1/4ga,
2X8 - 11GA
2X8 - 7GA
>21,001 LBS 2X8 - 7GA 2X8 - 1/4GA
14.2 Upper Deck wall attachment requirements
# of Horizontal Attachment Points Stick & Tin Laminate
BETWEEN FRONT AND REAR HEADERS 1 1
BETWEEN REAR HEADER AND FRONT RISER 3 3
BETWEEN FRONT AND REAR RISERS 1 -
14.3 Upper Deck Main NOTES
* A laminated front shear wall is recommended for all applications.
* All 6" 8.2lb structural XMC mains only to be used in conjunction with square single header design.
* If using double mains, the inside main must have a 1.5" diam clearance lag hole.
14.4 Upper Deck Headers
GVWR Double Header** Single Header
≤10,000 LBS 2X5 11GA w/ shear wall or 2X5 7GA, 2X6
11GA
6X6 7GA
10,001 - 12,000 LBS 2X6 11GA 6X6 7GA
12,001 - 15,500 LBS 2X6 7GA 6X6 1/4GA
15,501 - 18,000 LBS 2X6 7GA or 2x8 7GA 6X6 1/4GA or 6X8 1/4GA
18,001 - 21,000 LBS 2X6 1/4GA or 2x8 7GA 6X6 1/4GA or 6X8 1/4GA
>21,001 LBS 2x8 7GA N/A
* Header supports should be one tube height shorter than the headers and should be 11ga.
* Keep header support tubes out of the radius in a radius front header UD.
* All 2x8 upper decks require 2x2 11ga tubes above pin box side plates where applicable.
** Radius/Miter headers need to go up one gauge/size.
Note: No holes in top or bottom of single header tube.

Rev: 11.11.21 Page 15 CCD-0004203
Upper Deck Riser
Accepted Upper Deck RV Engineering Guidelines Rev: (3/1/2021)
* Formed front and rear riser gusset with return flange must be used or have to go up a tube gauge.
15.1 Upper Deck Riser Cross Tube rating specifications
GVWR Front Rear
≤12,000 LBS 2X3 - 11GA 2X3 - 11GA
12,001 - 16,800 LBS 2X4 - 11GA 2X4 - 11GA
16,801 - 21,000 LBS 2X4 - 7GA 2X4 - 11GA
>18,000 LBS TOY HAULER 2X4 - 1/4GA 2X4 - 7GA
>21,001 LBS 2X4 - 1/4GA 2X4 - 7GA
15.2 Upper Deck Riser Cross Tube NOTES
* Long side of riser cross tube must be vertically oriented.
* Front riser cross tube to be 3/4" narrower than UD width.
* Rear riser cross tube to be 1/4" narrower than UD width.
* Gusset 794316 to be used to cap the ends of the front riser cross tube.
* Gusset 785150/785151 to be used on front and rear risers.
15.3 Upper Deck Risers
GVWR Front 0 Front Mitered Rear
≤12,000 LBS 2X4 11GA 2X4 11GA 2X3 11GA
12,001 - 16,800 LBS 2X4 11GA 2X5 11GA 2X4 11GA
16,801 - 21,000 LBS 2X5 11GA 2X6 11GA 2X5 11GA
>21,001 LBS 2X6 11GA 2X6 7GA 2X6 11GA
15.4 Upper Deck Riser NOTES
* Riser cross tubes must match above guidelines to use these risers.
* Front riser miters: 0°, 7°, 10°, 15° only.
* If distance between bottom of risers (outside to outside) is 20", or less inquire with Management.
* OEM must confirm riser heights and pin location to ensure fitment for all intended tow vehicles. Lippert can
provide assistance w/ body builder info as needed.

Rev: 11.11.21 Page 16 CCD-0004203
Leveling
Accepted Leveling RV Engineering Guidelines - REV : (1/1/2020)
16.1 8" minimum I-beam height unless approved by Lippert engineering.
16.2 Units with GVWR greater than 15,500 lbs. require a 6 point system and to be hydraulic leveling
system.
16.3 All hydraulic leveling systems must be 6 point systems.
16.4 Toy haulers must use 6 point systems.
16.5 On 4 point systems, center of rear jack can be a Maximum of 24" from rear axle hanger; should not be
mounted in departure angle.
16.6 On 6 point systems, center of rear jack can be a Maximum of 48" from rear axle hanger; should not be
mounted in departure angle.
16.7 Rear leveling brackets can be a minimum of 6" from axle hanger.
16.8 All jack brackets require two web stiffeners. (Ref pg. 18.2 for mounting options.)
Rear Leveling Jacks should be mounted directly across
from each other but can be offset a maximum of 14"
front to rear from each other if necessary.
Front (Leveling jacks in front of axles) can
be offset a maximum of 20" front to rear if
dimension 'B' is less than dimension 'A'
Sensor (BRAIN) plate
231775 Should be
mounted on bottom
flange of XM between
rear jacks or behind them
and as close as possible
When this distance is greater than 240" A 6 point system is required.
This Dimension must be greater
than dimension B
14"
Outside
20"
Outside
136"
Dimension B 164"
Dimension A
(300")

Rev: 11.11.21 Page 17 CCD-0004203
Accepted Travel Trailer Leveling RV Engineering Guidelines - REV : (1/1/2019)
17.1 Maximum GVWR 12,000 LBS for standard system; maximum GVWR 10,000 LBS for 4 C-jack system.
17.2 8" minimum I-beam height unless approved by Lippert engineering.
17.3 4 point electric leveling only.
17.4 Rear jack brackets require two web stiffeners. (Ref sec. 18.2 for mounting options.)
Front leveling jacks can be no
more than 60" max from front
head to center of jack
Rear leveling jacks should be mounted
directly across from each other but can
be offset a maximum of 14" front to rear
from each other if necessary.
Front sensor (BRAIN) plate 231775
should be mounted on bottom flange
of either FXM or the next XM back
Front sensor (BRAIN) plate
231775 should be mounted
on bottom flange of either
FXM or the next XM back
14" Outside
Maximum Spacing
240" 60"
MAX

Rev: 11.11.21 Page 18 CCD-0004203
Hydraulic Landing - Level Bracket
Accepted HYD Landing Gear and Leveling Bracket Supports Engineering Guidelines - REV: (3/1/2021)
18.1 HYD landing gear brackets should mount between 1/2" & 2 1/4" from front of I-beam.
½" 2¼"
18.2 Two web stiffeners are required per bracket.
18.3 Stiffeners need to be either a 13ga 1x2 XMC that extends the height of the web, or a 1" wide ¼ ga.
strap that is 2" shorter then the height of the I-beam.
Note: Below are some accepted mounting orientations.
18.4 All jack brackets require supports regardless of I-beam height.
If GVWR is ≤ 15.5K then 1x2 13ga tube must be used.
18.5 All rear leveling brackets should mount with I-beam flange
in slot of leveling bracket, unless otherwise approved by Lippert
engineering.

Rev: 11.11.21 Page 19 CCD-0004203
5th Wheel Drop Gen set up.
19.1 Drop Gen must use I-beam.
19.2 Landing gear bracket must be located in drop section.
2"
Two Full Height
3" x 1.5" 7GA Angle
The Drop GEN Mains
Must Use I-Beam
Jack BRKT Must Sit on Top of Bottom
I-Beam Flange
3"
One Full Height
3" x 1.5" 7GA Angle
Full Height Plate
2" Min Overlap
19.3 If landing gear bracket is located ≤ 2" from the bottom of the front of the drop Gen, a plate and a
single jack bracket support is required as shown.
19.4 If landing gear bracket is located ≥ 2.06" from the bottom of the front of the drop Gen, two jack
brackets supports are required as shown.

Rev: 11.11.21 Page 20 CCD-0004203
4"
Min
6"
Max

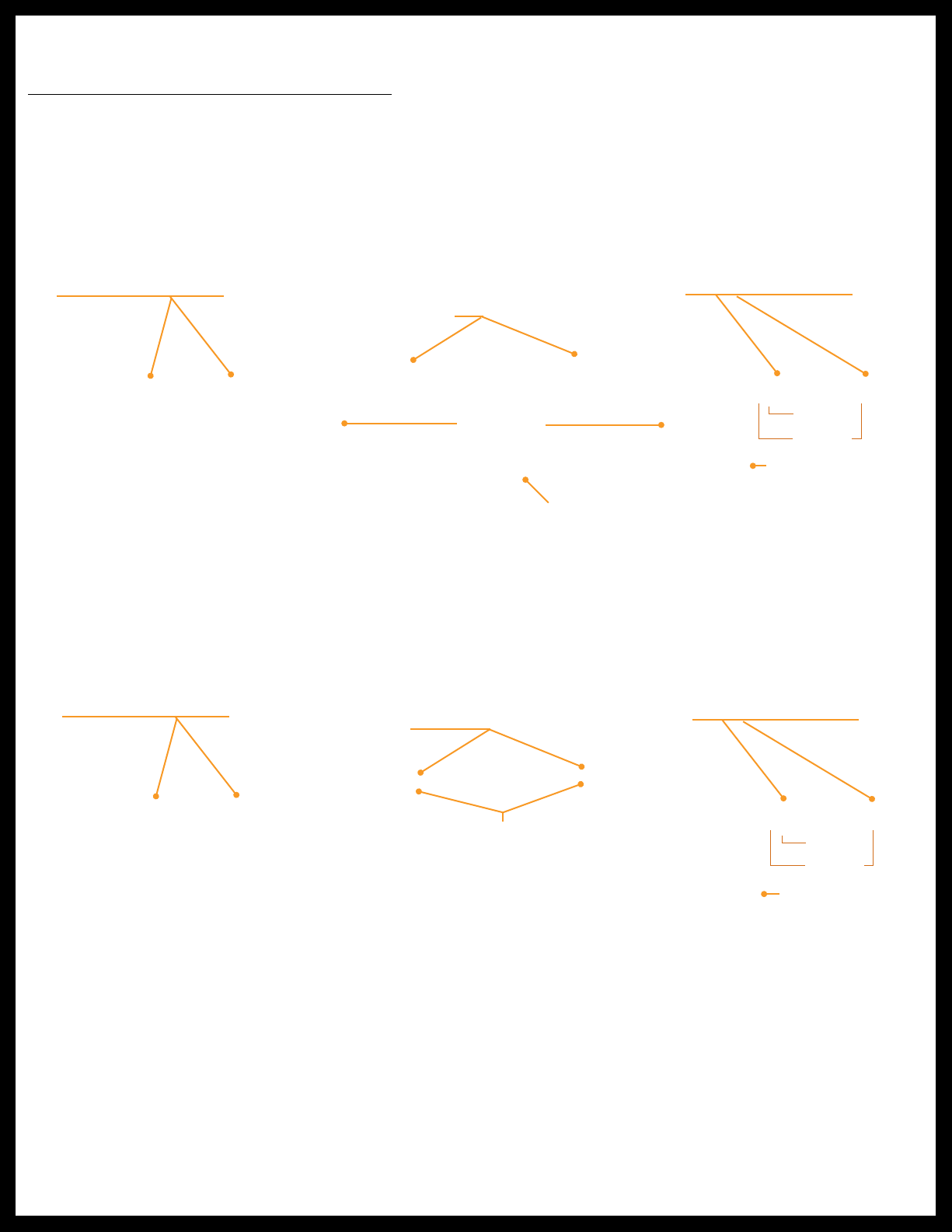

Bumper Extension
Accepted Bumper Extension Engineering Guidelines - REV : (3/1/2021)
20.1 Below is Lippert accepted bumper/extension mounting configurations.
20.2 If storage rack has a rating greater then 250#, needs Lippert manager approval.
20.3 Bumpers welded to the end of mains are to be flush to the top and require a
minimum 2" weld on top and 4" vertical weld.
Note: * Excludes park models
Note: ** For storage racks see section 5.4 for additional requirements.
Mount Bumper
Flush to Top I-beam
If distance is greater than 6" 2x4 11 GA tube must be used
6"
Max
2x4 13 GA
Minimum
STANDARD
2x4 11 GA Minimum
Extension Tubes can be
mounted on inside, outside,
or bottom of I-beam
Tow/Accessory Hitch
Extension Tubes must
mount to bottom of I-beam
NO EXTENSION
FOLD DOWN STORAGE/BIKE RACK 250 LB. MAX
TOW/ACCESSORY HITCH
12½"
Max
7" Min
2x4 11 GA
Minimum
7"
Min
