Autonics GP Series Installation instructions

© Copyright Reserved Autonics Co., Ltd. iii
GP-XGT (RS232)
Technical Support Manual

ii © Copyright Reserved Autonics Co., Ltd.

Preface
© Copyright Reserved Autonics Co., Ltd. 3
Preface
Thank you very much for selecting Autonics products.
Please familiarize yourself with the information contained in the Safety Precautions section
before using this product.
This user manual contains information about the product and its proper use, and should be kept
in a place where it will be easy to access.

Technical Support Manual Guide
4 © Copyright Reserved Autonics Co., Ltd.
Technical Support Manual Guide
Please familiarize yourself with the information in this manual before using the product.
This manual provides detailed information on the product's features. It does not offer any
guarantee concerning matters beyond the scope of this manual.
This manual may not be edited or reproduced in either part or whole without permission.
This manual is not provided as part of the product package. Please visit our home-page
(www.autonics.com) to download a copy.
The manual's content may vary depending on changes to the product's software and other
unforeseen developments within Autonics, and is subject to change without prior notice.
Upgrade notice is provided through our homepage.
We contrived to describe this manual more easily and correctly. However, if there are any
corrections or questions, please notify us these on our homepage.

Technical Support Manual Symbols
© Copyright Reserved Autonics Co., Ltd. 5
Technical Support Manual Symbols
Symbol Description
Supplementary information for a particular feature.
Failure to follow instructions can result in serious injury or death.
Failure to follow instructions can lead to a minor injury or product damage.
An example of the concerned feature's use.
※1 Annotation mark.

Safety Precautions
6 © Copyright Reserved Autonics Co., Ltd.
Safety Precautions
Following these safety precautions will ensure the safe and proper use of the product and
help prevent accidents, as well as minimizing possible hazards.
Safety precautions are categorized as Warnings and Cautions, as defined below:
Warning Failure to follow the instructions may lead to a serious injury
or accident.
Caution Failure to follow the instructions may lead to a minor injury or
accident.
Fail-safe device must be installed when using the unit with machinery that may cause
serious injury or substantial economic loss. (e.g. nuclear power control, medical equipment,
ships, vehicles, railways, aircraft, combustion apparatus, safety equipment, crime/disaster
prevention devices, etc.)
Failure to follow this instruction may result in personal injury, fire, or economic loss.
In case using the Graphic Panel touch switch for controlling, do not use the switch as an
emergency switches or those related to safety that may cause physical injury or property
damage in the event of a malfunction.
Failure to follow this instruction may result in personal injury, fire, or economic loss.
In case controlling other devices through Graphic Panel communication, and there is a
possibility of malfunction due to communication error, an alternative circuit must be
constructed.
Failure to follow this instruction may result in personal injury, fire, or economic loss.
Do not use the product in an area or an environment not specified in the manual.
Failure to follow this instruction may result in personal injury, fire, or economic loss.
Do not connect, repair, or inspect the unit while connected to a power source.
Failure to follow this instruction may result in electric shock or fire.
Do not disassemble or modify the unit. Please contact us if necessary.
Failure to follow this instruction may result in electric shock or fire.
Use the insulated trans to supply the rectified power.
Failure to follow this instruction may result in electric shock or fire.
Do not use over the rated power.
Failure to follow this instruction may result in electric shock or fire.
This product uses lithium battery, do not disassemble or burn up.
Failure to follow this instruction may result in explosion or fire.
Wire properly after checking power terminal polarity.
Failure to follow this instruction may result in fire or product malfunction

Safety Precautions
© Copyright Reserved Autonics Co., Ltd. 7
Please read all notes and cautions related to installation and wiring in the manual.
Failure to follow this instruction may result in electric shock or product malfunction.
Make sure the ground wire of Graphic Panel is wired separately from the ground wires of
other devices. Ground resistance must be less than 100Ω, and a lead wire of which
sectional area is over 1.25mm2should be used.
Failure to follow this instruction may result in electric shock or product malfunction.
When connecting Graphic Panel ports and constructing input/output, check the pin number
and terminal block before connecting.
Failure to follow this instruction may result in fire or product malfunction.
Tighten bolt on terminal block with specified tightening torque.
Failure to follow this instruction may result in short circuit, fire or product malfunction.
Do not press the surface of the touch panel with sharp or hard objects.
Failure to follow this instruction may result in touch panel damage.
Keep Graphic Panel at the specified temperature.
Failure to follow this instruction may result in LCD panel damage due to over the rated
temperature range.
Do not inflow dust or wire dregs into the unit.
Failure to follow this instruction may result in fire or product malfunction.
Do not use in an area with excessive humidity or temperature.
Failure to follow this instruction may result in product damage or shortening the life cycle of
the unit.
Do not close ventilating opening of this product.
Failure to follow this instruction may result in product damage due to increase inner heat.
Keep the product out of direct sunlight or excessive dust.
Failure to follow this instruction may result in product damage or shortening the life cycle of
the unit.
Do not use or store in a place with shock or vibration.
Failure to follow this instruction may result in product damage or shortening the life cycle of
the unit.
When liquid crystal from the broken LCD is smeared with skin, wash it for 15 minutes. If it is
gotten in the eye, wash it for 15 minutes and contact with the medical specialist for more
information.
Do not use water or oil-based detergent when cleaning the unit. Use dry cloth to clean the
unit.
Failure to follow this instruction may result in electric shock or fire.
Please separate as an industrial waste when disuse this unit.
To change the battery, contact the store or an authorized technician.
The manufacturer is not liable for damages that occur due to causes for which the
manufacturer is not responsible, damages that occur due to an extraordinary situation,
secondary damages, compensation for ac cidents, damages occurring on other products,
compensation for other processes, and damage and loss of opportunity to the user due a
malfunction of the product, regardless of the predictability of the accident.

Safety Precautions
8 © Copyright Reserved Autonics Co., Ltd.
Note that this device is KCC certified for commercial use. Make proper applications for the
product..

Table of Contents
© Copyright Reserved Autonics Co., Ltd. 9
Table of Contents
Preface .............................................................................................................................3
Technical Support Manual Guide .....................................................................................4
Technical Support Manual Symbols.................................................................................5
Safety Precautions ...........................................................................................................6
Table of Contents .............................................................................................................9
1System ....................................................................................................... 11
1.1 Version ............................................................................................................... 11
1.2 Connections....................................................................................................... 11
1.3 Communication cable connection and dimensions
(communication cable model: C3M5P01-D9F0-D9M0) .................................. 11
2GP-S070 Communication Setting ............................................................13
2.1 GP Editor Setting ...............................................................................................13
2.2 GP-S070 Setting................................................................................................15
2.3 XGT Setting .......................................................................................................17
3Examples ...................................................................................................21
3.1 GP-S070 Drawing..............................................................................................21
3.2 PLC Program .....................................................................................................21
3.3 GP-S070 –PLC device connection ...................................................................21
3.4 GP Editor Drawing .............................................................................................22
3.4.1 Numeral display.......................................................................................... 22
3.4.2 Numeral input ............................................................................................. 23
3.4.3 Touch key (Up key) .................................................................................... 24
3.4.4 Touch key (Down key)................................................................................ 25
3.4.5 Lamp .......................................................................................................... 26
3.4.6 Touch key (Reset key)................................................................................ 27
4Appendix....................................................................................................29
4.1 Serial setting ......................................................................................................29

Table of Contents
10 © Copyright Reserved Autonics Co., Ltd.

1 System
© Copyright Reserved Autonics Co., Ltd. 11
1System
1.1 Version
Software
Version
Note
GP Editor
V4.01 (build 023)
—
GP-S070 Firmware
V1.20
Release : 2016.01.26
Ms Windows
Windows 7
—
XG 5000
V4.07
Release : 2016.03.29
1.2 Connections
GP-S070-T9D6 XGK-CPUE, XGL-CH2A/B
1.3 Communication cable connection and dimensions
(communication cable model: C3M5P01-D9F0-D9M0)

1 System
12 © Copyright Reserved Autonics Co., Ltd.

2 GP-S070 Communication Setting
© Copyright Reserved Autonics Co., Ltd. 13
2GP-S070 Communication Setting
2.1 GP Editor Setting
1st Select [Project] –[New] on menu.
If you have the saved file, open the project at [Load].
2nd At GP/PLC Type dialog box, set GP/LP Type and CH1/2 Group/Type.
Item
Setting
GP / LP Type
GP-S070 T9D6
CH1 Group / Type
LS XGT SERIES /
XGK_EXT_Cnet
CH2 Group / Type
No Use

2 GP-S070 Communication Setting
14 © Copyright Reserved Autonics Co., Ltd.

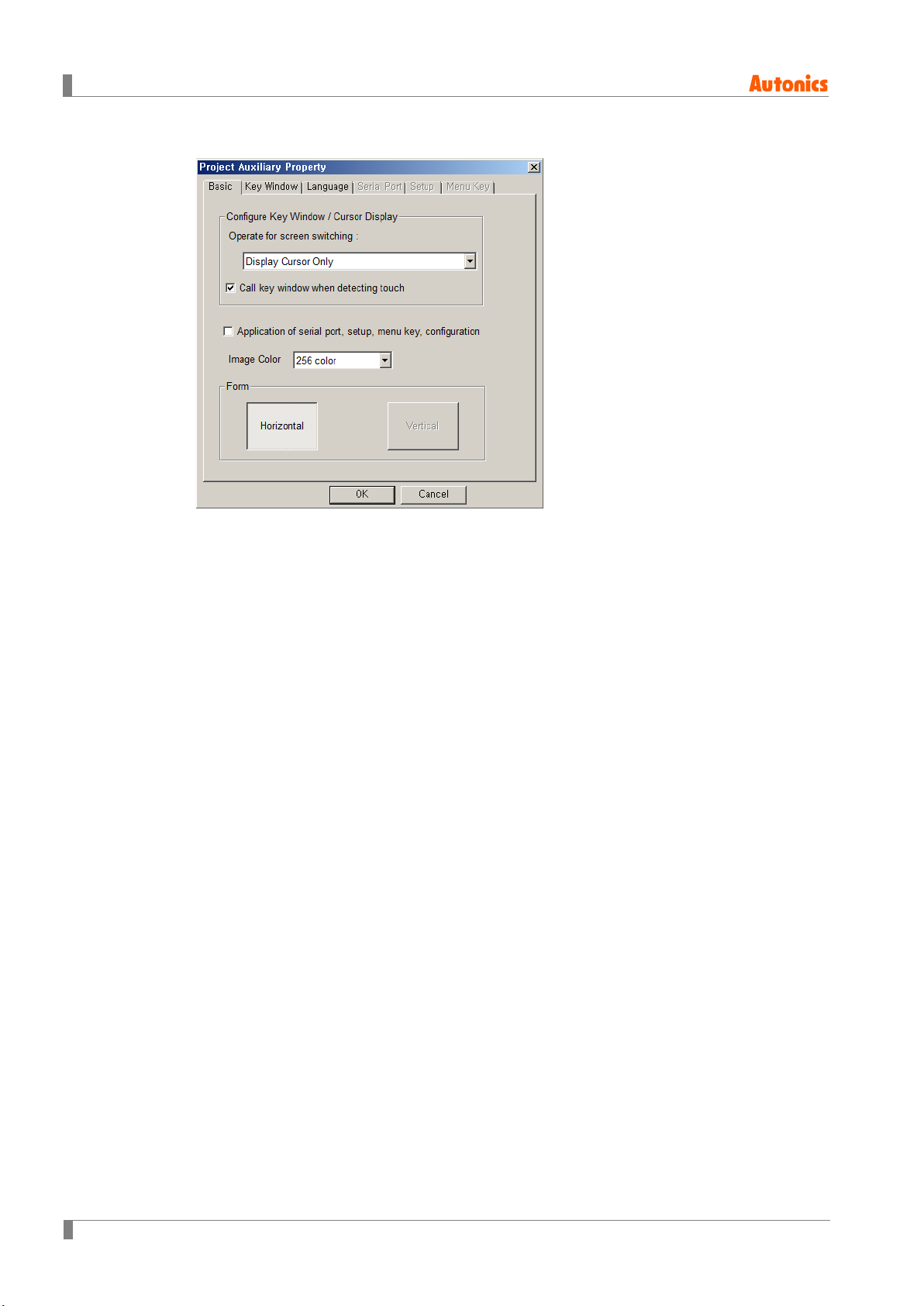

3rd At Project Auxiliary Property dialog box, click ‘OK’and it changes screen to draw.

2 GP-S070 Communication Setting
© Copyright Reserved Autonics Co., Ltd. 15
2.2 GP-S070 Setting
1st Touch top-left of the GP.
2nd Touch ‘Environment’.
3rd Touch ‘Serial Communication’.

2 GP-S070 Communication Setting
16 © Copyright Reserved Autonics Co., Ltd.
4th At serial communication, set as below. (GP address: 0)
PROTOCOL
PORT
CH1
XGK_EXT_Cnet V1.5M
RS-232C
SET
CH2
No Use
RS-422
SET
5th Touch right ‘SET’ and set as below.
Item
Setting
Note
Baud rate
19200
User setting
Flow control
XON/XOFF
Don’t care
Parity bit
None
User setting
Data bit
8-bit
User setting
Stop bit
1-bit
User setting

2 GP-S070 Communication Setting
© Copyright Reserved Autonics Co., Ltd. 17
2.3 XGT Setting

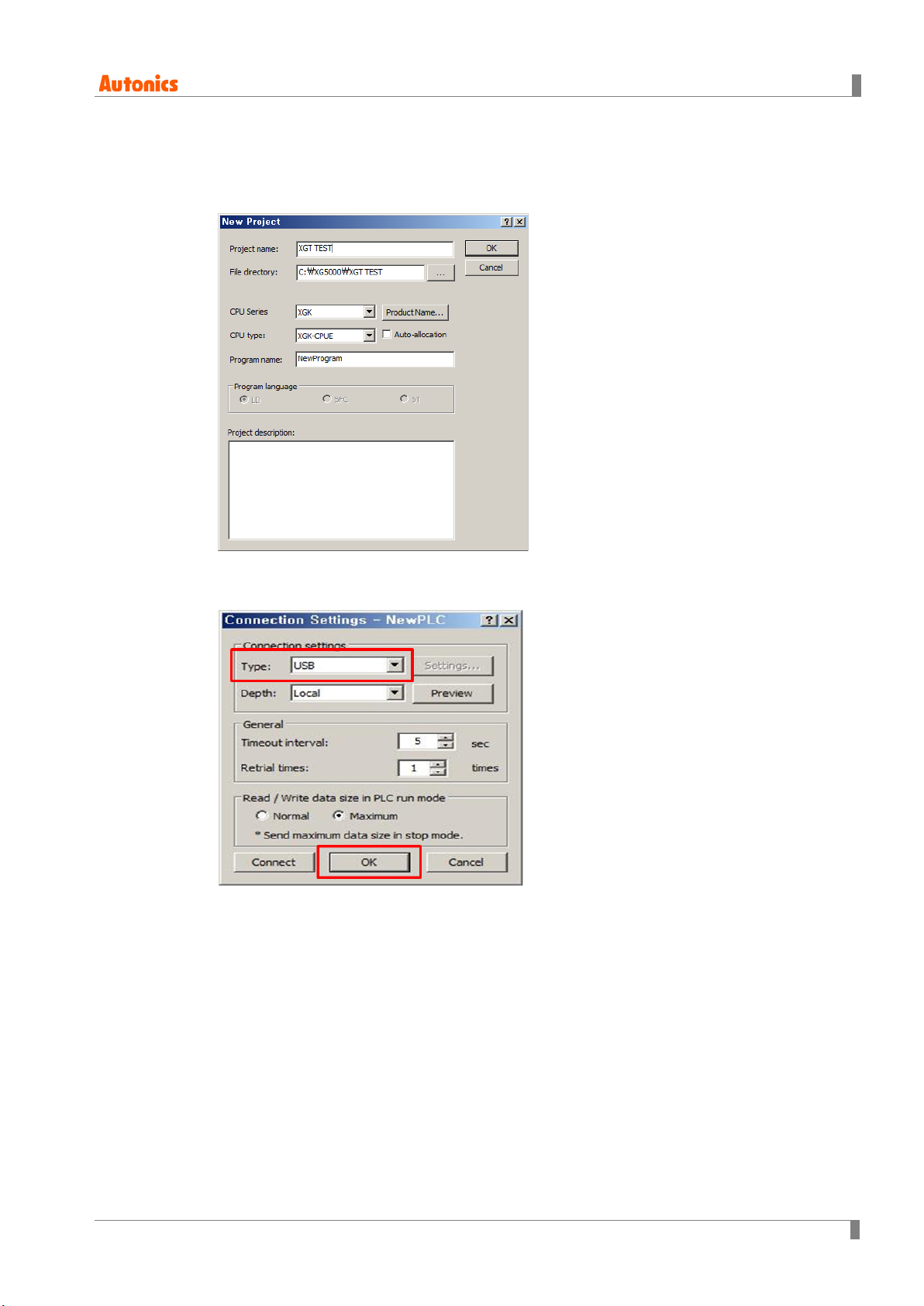

1st Run XG5000 and select [Project] –[New Project] on menu. Enter project name and select
CPU type at ‘New Project’ dialog box.
2nd Set connection method at [Online] – [Connection Settings]. This example is connection via
USB. After connecting, click [Online] – [Change Mode] – [Stop].

2 GP-S070 Communication Setting
18 © Copyright Reserved Autonics Co., Ltd.
3rd Enter [Online] – [Diagnosis] – [I/O Information] and click [I/O Sync]. When I/O synchronizing
is completed, it sets as same as the using module.
4th When I/O synchronizing is completed, you can check the added communication module
below standard network. Double-click the displayed communication module at right.

2 GP-S070 Communication Setting
© Copyright Reserved Autonics Co., Ltd. 19
5th ‘Standard Settings-Cnet’ dialog box appears. Set as below.
Item
Setting
Note
Standard
settings
Channel 1
Communication
type
RS-232 Fixed
Communication
speed
19200 User setting
Terminating
resistances
Disable Fixed
Station No.
1
User setting
Operation
mode
Channel 1 XGT server Mandatory
6th At advanced settings, set as below.
Item
Channel 1
Advanced
settings
Data bit
8
Stop bit
1
Parity bit
NONE

2 GP-S070 Communication Setting
20 © Copyright Reserved Autonics Co., Ltd.
7th Select [Online] –[Connect Settings] and set connection settings for PC and PLC
connection.
8th Download it via [Online] –[Write].
