Autoslide AWS-BATTERY User manual

COPYRIGHT OF AUTOSLIDE PTY LTD 7TH JUNE 2022
1
AUTOSLIDE PTY LTD
3/413, VICTORIA STREET, WETHERILL PARK 2174 NSW
AUSTRALIA
Specification
for Lithium-ion Battery
AUTOSLIDE AUTOSWING BATTERY
MODEL : AWS-BATTERY
Part Number ： DY-6S1P18650-2103C

COPYRIGHT OF AUTOSLIDE PTY LTD 7TH JUNE 2022
2
1、 Range of application
This specification applies to the battery production using Li-ion Pack.
Declaration: This product conforms the requirement of RoHS.
2、Battery model
2.1 Battery model：NiCoMn
2.2 Cell type and specification：18650（3.6V/3200mAh, cell resistance≤30±mΩ AC 1kHz）
3、 Battery pack basic function
Item
Performance
Remark
Standard discharge capacity
3.2Ah
-charge : 0.5C (1.55A), 25.2V,
0.02C(0.62A) up to current @ RT
- release charge: 0.2C (20A),15V
end voltage @ RT
Minimal discharge capacity
3.1Ah
-charge: 0.5C (1.55A), 25.2V,
0.02C(0.62A) up to current @ RT
- release charge: 0.2C (20A),15V
end voltage @ RT
Standard voltage
21.6V
Discharge protection voltage
2.8V±0.08V
Single string voltage protection
value
Charge voltage
25.2±0.05V
Charge mode
CC/CV
Charge protection voltage
Level 1：4.2±0.025VLevel2：
4.34.2±0.025V
Single string voltage protection
value, with secondary protection
Standard charge current
1.55A(Max≤2A)
The continuous current of the
charger is not more than 2A
Standard discharge current
3A
Maximum sustainable discharge
current 8A
Over discharging current protection
8A±1A
delay >1S
Short circuit protection
YES（Short circuit is not allowed）
Delay ＜0.4mS
power dissipation
≤50uA
working status

COPYRIGHT OF AUTOSLIDE PTY LTD 7TH JUNE 2022
3
4、Test condition
4.1、 Environmental condition:-
Unless otherwise specified,all test of this specification should be performed under standard
atmospheric condition:
Temperature：15℃～35℃;Relative humidity：45%～75%;Atmosphere pressure:86kPa～106kPa
4.2、Measure instrument and equipment requirement
Accuracy of measuring voltage instrument should not be less than level 0.5,resistance should be no less
than 10KΩ/V.
⚫Accuracy of measuring current instrument should not be less than level 0.5.
⚫the relative error of measuring time instrument is ±0.1%.
◼The current of constant current load is adjustable if it is within the power voltage range,the
current relative error is ±0.1%.
◼The current of constant current load is adjustable if it is within the power voltage range,the
current relative error is ±0.1%.
◼Charging power (or the charger) should be able to change to constant voltage charging after the
battery voltage achieve constant voltage value of charging voltage.

COPYRIGHT OF AUTOSLIDE PTY LTD 7TH JUNE 2022
4
5、Function and test method
Item
Test method
Criterion
Standard charge
CC/CV mode, in the condition that environment temperature
is(23±5)℃,charging source keep constant current charge with 0.2C
current until battery voltage reach25.2V,then turn to constant voltage
charge method until charge current is less than 0.02C(0.062A).
Capacity
After standard charge，Shelve battery at indoor temperature for 1h，
in the condition that environment temperature is (23±5)℃, constant
current discharge with 0.2C current until reach the cut-off voltage.
Capacity≥Minimal
discharge capacity
vibration refer to
UN38.3 Stands
1. The vibration shall be a sinusoidal waveform with a logarithmic
sweep between 7 Hz and 200 Hz and back to 7 Hz traversed in 15
minutes. This cycle shall be repeated 12 times for a total of 3 hours
for each of three mutually perpendicular mounting positions of the
cell. One of the directions of vibration must be perpendicular to the
terminal face.
2. From 7 Hz a peak acceleration of 1 gn is maintained until 18 Hz is
reached. The amplitude is then maintained at 0.8 mm (1.6 mm total
excursion) and the frequency increased until a peak acceleration of 8
gn occurs (approximately 50 Hz). A peak acceleration of 8 gn is then
maintained until the frequency is increased to 200 Hz.
No leakage,
No venting,
No disassembly,
No rupture and
No fire,
voltage≥90% before
testing
Overcharge
protection
Set the charge voltage of battery pack as 25.2V, charge with 0.5C
current, experiment time less than 24h, and stop charge when PCM
start to protect battery.
Protection function
work normally，no
liquid leakage、no air
leakage、no fracture、
no fire、no explosion
Over discharge
protection
Discharge battery pack with 0.8C current，experiment time less than
24h,and stop discharge when PCM start to protect battery.
Protection function
work normally, no
liquid leakage、no air
leakage、no fracture、
on fire、no explosion
Short circuit
protection
0.5h。After a full charge,short current the discharge positive and
negative pole 0.5h with an external circuit which resistance is no
more than 50mΩ.
After short circuit the
protection function is
normal
Recycle life
In the condition that environment temperature is （23±5）℃, standard
charge, and shelve for 1h, and constant current discharge with 0.2C
current to the cut-off voltage.
500 times discharge
capacity>70% initial
capacity of cells

COPYRIGHT OF AUTOSLIDE PTY LTD 7TH JUNE 2022
5
6、 Battery package diagram

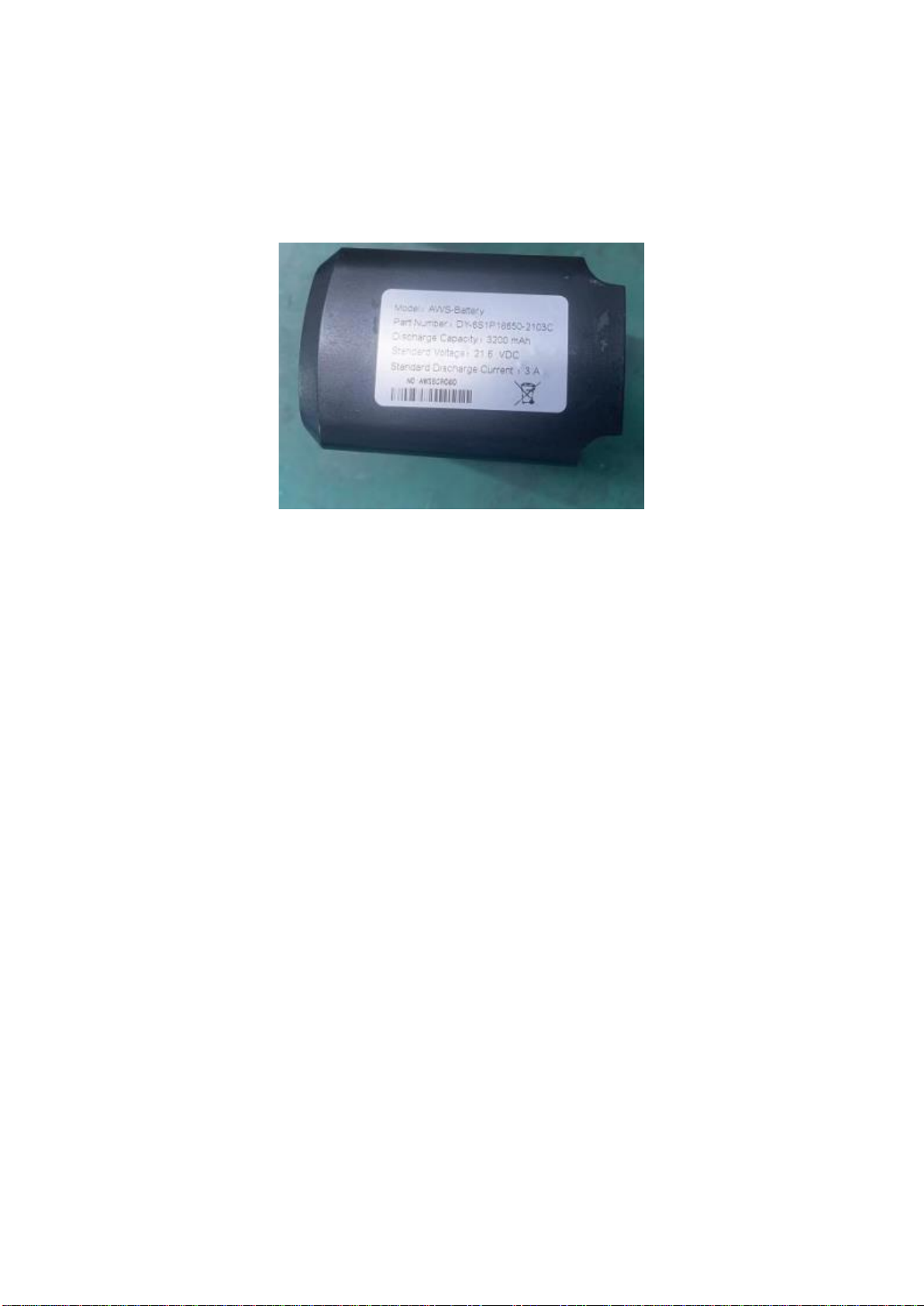

6.1 Battery pack picture
7、Transport
50%~60% Capacity, Battery should prevent vibration、impact、extrusion or exposed to the sun and rain, apply
to cars, trains, ships, aircraft and other ordinary vehicles transportation.
8、Storage
The battery should be stored at the clean, dry and ventilative indoor with a ambient temperature for - 10 ℃ ~
35 ℃，Relative humidity：45%～75%，should avoid contact with corrosive substances，keep away from fire
and heat source.
The process of storage battery charge once every three months.
It should follow the principle "first in first out" when storage cells are used for the work piece process and
batteries are delivered from storage.
9、Safety specification and instructions
Please read the instructions and battery surface marks carefully before use battery.
Please use battery in the normal and indoor environment
In use process, stay away from heat source and high voltage, prevent children playing with battery. Don't
throw it.
Don't short circuit the anode and cathode, don't disassembling battery one self, also don't let the battery be
affected with damp，lest produce risk.
Please store battery in good condition if not use it for a long time. Keep battery with a half charged state.
Please pack battery with non-conductive material to avoid direct contact with the metal and damage battery.
Please dispose waste battery safely, don't put into the fire or water.
10、Danger warning and notice

COPYRIGHT OF AUTOSLIDE PTY LTD 7TH JUNE 2022
6
Battery can avoid danger with protection agency and protection circuit inside. Inappropriate dismantling will
damage the protection function, and cause the battery heating, smoking, deformation or burn
Do not let the electrodes of the battery connected by metal, don't let the battery and metal stored or moved
together . If the battery is short circuit, there will be a large current and it will damage the battery, cause
battery heating, smoking, deformation or burn.
Heating and burning the battery will cause the battery spacer melting, security function is lost. Overheating
will make the battery heating, smoking, deformation or burn.
Don't use battery near the fire source or the environment more than 75 ℃. Overheating will cause internal
short circuit, heating, smoking, deformation or burn.
Don't wet battery or put battery into the water. Otherwise it will cause the battery internal protection function
loss and abnormal chemical reaction, battery may be heating, smoking, deformation or burn.
Avoid charging near the fire or under direct sun light. It will cause the battery internal protection function loss
and abnormal chemical reaction, battery may be heating, smoking, deformation or burn.
Use dedicated charger and properly charging
It is dangerous to charge the battery by non-dedicated charger，It will cause the battery internal protection
function loss and abnormal chemical reaction, battery may be heating, smoking, deformation or burn.
It is forbidden to cut into the battery with metal, hammering or throw the battery, or damage the battery with
other methods，otherwise it will cause the battery heating, smoking, deformation or burn
It is strictly forbidden to connect battery directly on the power socket
High voltage, large current will flow through the battery and damage it, or make it heating, smoking,
deformation or burn.
Don't use batteries for other none supporting tools
Inappropriate condition will damage the battery performance, reduce the life span, even will make the battery
heating, smoking, deformation or burn.
11.Other items
As above, it can be used as rules framework for battery product performance and stipulations of inspection to
supply and demand. If there is not new agreement in writing or change notification, then perform according
this.

COPYRIGHT OF AUTOSLIDE PTY LTD 7TH JUNE 2022
7
FCC Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
RF warning:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
FCC approved
