Introduction
www.avaccess.com 2 servic[email protected]
Introduction
Overview
4KIP100-KVM is a 4K IP based KVM Extender. It could extend 4K video (with zero
latency) and USB 2.0 signals over long distances, and it is a plug & play product.
Features
IP based, 1 Gigabit network support 4K video
Supports video resolution up to 4K@30Hz
Supports HDCP 1.4
Supports 7.1-channels audio
Supports EDID limited copy
Supports the distance up to 120m (395ft) with Cat 5e/6/6a/7 cable, with
network switch, the distance will be extended unlimitedly
Supports 3 USB 2.0 for full feature USB 2.0 applications
Supports 4-Pin DIP switch for more sets works in a same network, up to 16
sets
Package Contents
Before you start the installation of the product, please check the package
contents:
4KIP100-KVM x1
Power Supply (DC 12 V 1A) with US Plugs x1
Mounting Brackets (with Mounting Screws) x4
User Manual x1

Introduction
www.avaccess.com 3 servic[email protected]
Panel
Encoder
Front Panel
No. Name Description
1 LAN Connect to a decoder or an Ethernet Switch for
streaming media output.
2 Link LED On: The encoder is paired with the decoder
successfully.
3 Power LED On: The device is powered on.
Off: The device is powered off.
Rear Panel
1 DC 12V Connect to the DC 12V 1A power adapter provided.
2 HDMI In Connect to HDMI source such as a Blu-ray.
3 USB Host Connect a type A male to type B male USB cable
between this port and the USB port of a desktop or a

Introduction
www.avaccess.com 4 servic[email protected]
laptop. The encoder is USB 2.0 compliant.
4 Channel ID
This DIP switch consists of four manual switches, which
are used to route the encoder to decoder based on
their positions. For more information, see “Using DIP
Switch to Perform Routing”.
Note:
•
By default, each individual switch is in the up
position.
For the DIP switches in both encoder and decoder, you
must repower the encoder and decoder for the switch
setting changes to take effect.
Decoder
Front Panel
No. Name Description
1 USB Device Connect
to USB devices, e.g. keyboard, mouse and
Udisk.
2 Link LED On: The decoder is paired with the encoder
successfully.
3 Power LED On: The device is powered on.
Off: The device is powered off.

Introduction
www.avaccess.com 5 servic[email protected]
Rear Panel
1 DC 12V Connect to the DC 12V 1A power adapter provided.
2 LAN Connect to an encoder or an Ethernet Switch for
streaming media input.
3 HDMI Out Connect to display such as TV.
4 Channel ID
This DIP switch consists of four manual switches, which
are used to route the encoder to decoder based on
their positions. For more information, see“Using DIP
Switch to Perform Routing”.
Note:
By default, each individual switch is in the up
position.
For the DIP switches in both encoder and decoder,
you must repower the encoder and decoder for
the switch setting changes to take effect.

Using DIP Switch to Perform Routing
www.avaccess.com 6 servic[email protected]
Using DIP Switch to Perform
Routing
To route the signal from an encoder to a decoder, toggle each individual switches
of the DIP Switch in decoder to the same positions as these in encoder. If you
want to link the decoder to a different encoder, change the decoder switch
settings in the same way as how the encoder’s switch is positioned.
Note:
You must repower the encoder and decoder for the switch setting changes
to take effect.
One encoder can be only paired with one decoder individually in the same
network, i.e. only one set DIP switch of encoder and decoder can be set to
the same position.

Installation and Application
www.avaccess.com 7 servic[email protected]
Installation and Application
Brackets Installation
Note: Before installation, please ensure 4KIP100-KVM is disconnected from the
power source.
Steps to install the device in a suitable location

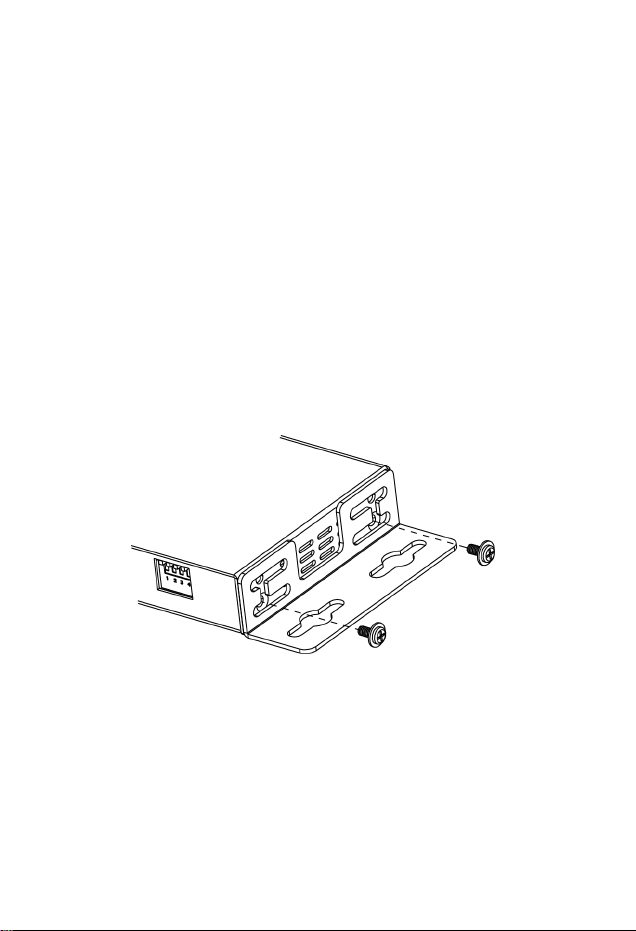

1. Attach the installation bracket to the enclosure using the screws that were
provided in the package separately. The bracket height can be adjusted
up/down or bracket face up or down.
2. The bracket is attached to the enclosure as shown.
3. Repeat steps 1-2 for the other side of the unit.
4. Attach the brackets to the surface you want to hold the unit against using
the screws (provided by others).
5. Repeat steps 1-4 to install the receiver.

Installation and Application
www.avaccess.com 8 servic[email protected]
Typical Application

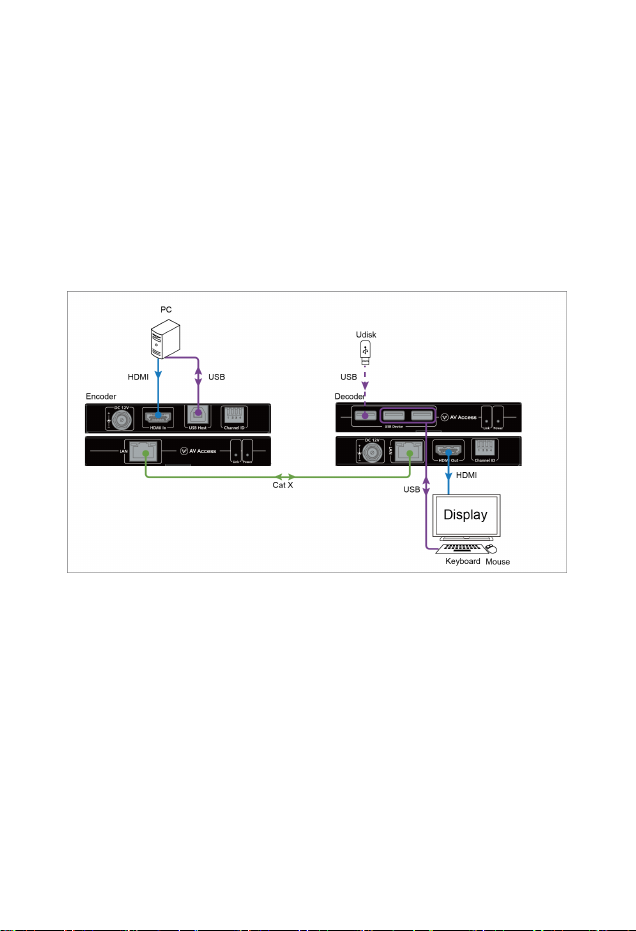

Application 1 - Connect directly
4KIP100-KVM could be connected directly with a Cat 5e or above cable. As a
normal extender set, it extends the HDMI and USB signals over a long distance up
to 120m/395ft.
Application 2 - Connect through Ethernet Switch
4KIP100-KVM could be connected through one or more network switches. With
the 4-Pin DIP switch, it could connect up to 16 extender sets in a same network
without the VLAN settings, extend the HDMI and USB signals to an unlimited
distance.
Note：
HDMI cables’ length must be within 15m/49ft.
One encoder can be only paired with one decoder individually in the same
network, i.e. only one set DIP switch of encoder and decoder can be set to
the same position.

Installation and Application
www.avaccess.com 9 servic[email protected]

Specification
www.avaccess.com 10 servic[email protected]
Specification
Encoder
Technical
Input/Output
1 x HDMI IN (19-pin female HDMI Type-A)
1 x USB HOST (female USB Type-B)
1 x 4-Pin DIP Switch
1 x DC 12V connector with locking
1 x LAN (RJ45)
Input Signal Type HDMI 1.4b
Input Resolution
Supported
640x4808, 800x6008,10, 1024x7688,10,
1280x7206,7,8,9,10, 1280x7688,10, 1280x8008,10,
1280x9608,10, 1280x10248,10, 1360x7688,
1366x7688, 1440x9008,10, 1600x9008,
1600x12008, 1680x10508,10,
1920x10801,2,3,4,5,6,7,8,9,10, 1920x12008,
3840x2160P2,3,5, 4096x2160P2,3,5
1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at
29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94
Hz, 8 = at 60 Hz, 9 = at 100 Hz, 10 = at 120 Hz
Input Audio Format
Supported
PCM 2.0 / 2.1 / 5.1 / 7.1, Dolby Digital 5.1 ch, Dolby
Digital Plus, Dolby TrueHD, DTS 5.1 ch, DTS-HD
High Resolution Audio, DTS-HD Master Audio
Maximum Data Rate 9 Gbps
Maximum Pixel Clock 300 MHz
Output Signal Type Compressed IP streams
Transmission Distance Cat 5e or above: 120m/395ft
HDMI: 15m/49ft

Specification
www.avaccess.com 11 servic[email protected]
General
Operating Temperature 0 to + 45°C (32 to + 113 °F), 10% to 90%,
non-condensing
Storage Temperature -20 to +70°C (-4 to +158 °F), 10% to 90%,
non-condensing
ESD Protection
Human Body Model:
±8kV (air-gap discharge)/
±4kV (contact discharge)
Power Supply DC 12V 1A
Power Consumption <2.5 W
Unit Dimensions
(W x H x D)
112mm × 17.8mm × 65.2mm / 4.41’’ × 0.70’’ ×
2.57’’
Unit Weight
(without accessories) 0.18kg/0.40lb
Decoder
Technical
Input/Output
1 x LAN (RJ45)
1 x HDMI OUT (19-pin female HDMI Type-A)
3 x USB DEVICE (female USB Type-A)
1 x 4-Pin DIP Switch
1 x DC 12V connector with locking
Input/Output Signal Type Compressed IP streams
Output Resolution
Supported
640x4808, 800x6008,10, 1024x7688,10,
1280x7206,7,8,9,10, 1280x7688,10, 1280x8008,10,
1280x9608,10, 1280x10248,10, 1360x7688,
1366x7688, 1440x9008,10, 1600x9008,
1600x12008, 1680x10508,10,
1920x10801,2,3,4,5,6,7,8,9,10, 1920x12008,
3840x2160P2,3,5, 4096x2160P2,3,5

Specification
www.avaccess.com 12 servic[email protected]
1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at
29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94
Hz, 8 = at 60 Hz, 9 = at 100 Hz, 10 = at 120 Hz
Output Audio Format
Supported
PCM 2.0 / 2.1 / 5.1 / 7.1, Dolby Digital 5.1 ch, Dolby
Digital Plus, Dolby TrueHD, DTS 5.1 ch, DTS-HD
High Resolution Audio, DTS-HD Master Audio
Maximum Data Rate 9 Gbps
Maximum Pixel Clock 300 MHz
Transmission Distance Cat 5e or above：120m/395ft
HDMI: 15m/49ft
USB Consumption Recommended no more than 0.5A per USB port
General
Operating Temperature 0 to + 45°C (32 to + 113 °F), 10% to 90%,
non-condensing
Storage Temperature -20 to +70°C (-4 to +158 °F), 10% to 90%,
non-condensing
ESD Protection
Human Body Model:
±8kV (air-gap discharge)/
±4kV (contact discharge)
Power Supply DC 12V 1A
Power Consumption < 4W (without USB Consumption)
Unit Dimensions
(W x H x D)
112mm × 17.8mm × 65.2mm / 4.41’’ × 0.70’’ ×
2.57’’
Unit Weight
(without accessories) 0.18kg/0.40lb

Trouble Shooting
www.avaccess.com 13 servic[email protected]
Trouble Shooting
Steps of Regular Troubleshooting Routine
1Power: Please make sure the source, display and 4KIP100-KVM are powered
on.
2Indicator: Please make sure all LED indicators of 4KIP100-KVM are normal
according to user manual.
3Devices: Please make sure picture can be shown normally when connecting
source to display device directly.
4Cable: Plug in and out HDMI/Cat X/USB cable or try another HDMI/Cat
X/USB cable.
Cat 5e or above cable is recommended.
Please make sure Cat X cable is less than 120m/395ft when use the kit as
an extender, and HDMI Cable is less than 15m/49ft.
Please make sure the two connectors of one Cat X cable are same
standard (IEEE 568B).
5Compatibility: Please test other source and display devices to determine if
it is a compatibility issue.
Typical questions
How to deal with cutting off when you connect USB device to decoder?
Please make sure your USB device is working normally.
Please insert the power adapter to decoder power port instead of encoder
since the PoE not enough to power on your USB device such as hard disk.

Warranty
www.avaccess.com 14 servic[email protected]
Warranty
Products are backed by a limited 1-year parts and labor warranty. For the
following cases AV Access Technology Limited shall charge for the service(s)
claimed for the product if the product is still remediable and the warranty card
becomes unenforceable or inapplicable.
1. The original serial number (specified by AV Access Technology Limited)
labeled on the product has been removed, erased, replaced, defaced or is
illegible.
2. The warranty has expired.
3. The defects are caused by the fact that the product is repaired, dismantled
or altered by anyone that is not from an AV Access Technology Limited
authorized service partner. The defects are caused by the fact that the
product is used or handled improperly, roughly or not as instructed in the
applicable User Guide.
4. The defects are caused by any force majeure including but not limited to
accidents, fire, earthquake, lightning, tsunami and war.
5. The service, configuration and gifts promised by salesman only but not
covered by normal contract.
6. AV Access Technology Limited preserves the right for interpretation of these
cases above and to make changes to them at any time without notice.
Thank you for choosing products from AV Access.

AV Access Technology Limited
V1.0.1
