AV Access HDEX40-L User manual

HDEX40-L
50m 1080P HDMI Extender
User Manual

Disclaimers
The information in this manual has been carefully checked and is believed to be
accurate. AV Access Technology Limited assumes no responsibility for any
infringements of patents or other rights of third parties which may result from its
use.
AV Access Technology Limited assumes no responsibility for any inaccuracies that
may be contained in this document. AV Access Technology Limited also makes no
commitment to update or to keep current the information contained in this
document.
AV Access Technology Limited reserves the right to make improvements to this
document and/or product at any time and without notice.
Copyright
Copy, Reproduce, Distribute and/or Edit of this document or part of it as well as
utilization of its contents and communication thereof to others without express
authorization are prohibited. Offenders will be held liable for payment of damages.
All rights created by patent grant or registration of a utility model or design patent
are reserved. Copyright ©2017 AV Access Technology Limited All rights reserved.
Trademarks Notice
All products or service names mentioned in this document may be trademarks of
the companies with which they are associated.
Contact Us
Business inquiry: [email protected]
Technical problems: [e-mail]

Important Safety Instructions
Do not expose this device to rain, moisture, dripping or splashing. No objects
filled with liquids, such as vases, shall be placed on the device.
Do not install or place this unit in a bookcase, built-in cabinet, or in another
confined space. Ensure the unit is well ventilated.
To prevent risk of electric shock or fire hazard due to overheating, do not
obstruct the unit’s ventilation openings with newspapers, tablecloths,
curtains, or similar items.
Do not install near any heat sources such as radiators, heat registers, stoves,
or other device (including amplifiers) that produce heat.
Do not place sources of naked flames, such as lighted candles, on the unit.
Clean this device only with dry cloth.
Unplug this device during lightning storms or when unused for long periods
of time.
Protect the power cord from being walked on or pinched, particularly at
plugs.
Only use attachments / accessories specified by the manufacturer.
Refer all servicing to qualified service personnel.

www.avaccess.com 1 [e-mail]
Table of Contents
Introduction..........................................................................................................2
Overview .................................................................................................................................. 2
Features .................................................................................................................................... 2
Package Contents.................................................................................................................. 3
Panel .......................................................................................................................................... 4
Transmitter ..................................................................................................................... 4
Receiver........................................................................................................................... 5
Installation and Application.................................................................................6
Brackets Installation.............................................................................................................. 6
Steps to install the device in a suitable location................................................. 6
IR Cable Operation ................................................................................................................ 7
Cable Type ...................................................................................................................... 7
Using the IR Emitter..................................................................................................... 7
Application ............................................................................................................................ 10
Specifications .....................................................................................................11
Trouble Shooting................................................................................................12
Warranty .............................................................................................................13

Introduction
www.avaccess.com 2 [e-mail]
Introduction
Overview
HDEX40-L is a 50m 1080P cost-effective HDMI extender, and offers the extension
of full HD video, 2CH audio and IR pass through up to 50m/164ft along a single
Cat X cable. With a feature set including transmission of uncompressed 1080p HD
video@60Hz, stereo audio, one-way IR pass through and PoC (Power over Cat X
cable).
With the PoC inside, the receiver can be powered by transmitter without
additional power adaptor. It offers the added benefit of an incredibly low-profile
for a greatly reduced form factor behind the screen for even more convenience
and ease of installation at the display zone.
The Receiver offers manual EQ DIP settings to adjust transmissions by distance for
optimal signal delivery to the display.
Features
Simple and cost-effective HDMI Extender
Uncompressed 1080P/60Hz up to 50 meters over Cat 6/6a/Cat 7 cable
Uncompressed 1080P/60Hz up to 40 meters over Cat 5e cable
HDMI 1.3b and HDCP1.4 compliance
Independent HDMI equalization adjustment button on receiver.
IR pass through from receiver to transmitter
Built-in PoC, receiver can be powered by transmitter
Built-in ESD: ±8kV (air-gap discharge) & ±4kV (contact discharge)
Built-in Surge protection: Voltage ± 1kV
Compact size for easy installation.

Introduction
www.avaccess.com 3 [e-mail]
Simply stick to TV by Velcro Hook/Loop Tape
Package Contents
Before you start the installation of the product, please check the package
contents:
Transmitter x 1
Receiver x1
Power Adapter (DC 5V 1A) x1
IR Emitter x1
IR Receiver (30 KHz ~ 50 KHz) x1
Mounting Brackets (with Screws) x 4
User Manual x 1

Introduction
www.avaccess.com 4 [e-mail]
Panel
Transmitter
1 2 3 4 5
No. Name Description
1 DC 5V
Power input.
Connect to the power adapter provided. The receiver
can be powered by transmitter.
2 Power LED
(Green)
ON: The transmitter is powered on.
OFF: The transmitter is powered off.
3 HDMI In Connect with HDMI source device
4 UTP Out Connect to the receiver via Cat X cable.
5 IR Out Connect to the IR emitter cable provided.

Introduction
www.avaccess.com 5 [e-mail]
Receiver
1 2 3 5
46
No. Name Description
1 USB 5V Connect to USB device to power for the receiver.
2 Power LED
(Green)
ON: The receiver is powered on.
OFF: The receiver is powered off.
3 HDMI Out Connect an HDMI display.
4 EQ
Manual EQ DIP Switch: adjust the maximum
transmission distance to 30m or 50m manually.
30m: The length of Cat X cable connected is less than or
equal to 30m;
50m: The length of Cat X cable connected is more than
30m and less than or equal to 50m;
5 UTP In Connect to transmitter via Cat X cable.
6 IR In Connect to IR receiver cable provided.

Installation and Application
www.avaccess.com 6 [e-mail]
Installation and Application
Brackets Installation
Note: Before installation, please ensure HDEX40-L is disconnected from the
power source.
Steps to install the device in a suitable location
1. Attach the installation bracket to the enclosure using the screws that were
provided in the package separately. The bracket height can be adjusted
up/down or bracket face up or down.
2. The bracket is attached to the enclosure as shown.
3. Repeat steps 1-2 for the other side of the unit.
4. Attach the brackets to the surface you want to hold the unit against using
the screws (provided by others).
5. Repeat steps 1-4 to install the receiver.

Installation and Application
www.avaccess.com 7 [e-mail]
IR Cable Operation
Cable Type
IR Emitter: Connect to the "IR Out" port of the device.
Broadband IR Receiver (30-50 KHz): connect to the "IR In" port of the device.
Using the IR Emitter
1. Insert the IR emitter plug into the “IR Out” jack located on the transmitter or
receiver.
2. Example 1: Attach the IR emitter head directly with the adhesive tape
provided near the IR receiver window (e.g. at the distance of 1cm) on the
device you want to control.
IR Receiver
IR Emitter
Controlled Device
Example 2: You can also place the IR emitter in front of the IR receiver
window on the controlled device.

Installation and Application
www.avaccess.com 8 [e-mail]
IR Receiver
IR Emitter
Controlled Device
IR Signal Emission
Example 3: When connected to control system, ensure the IR emitter is over
against the IR receiver's front side instead of its flat side (see below picture):
IR Receiver IR Emitter
Flat Side
Transmitter
(Receiver)
Control
System
IR Receiver IR Emitter
Flat Side
Transmitter
(Receiver)
Control
System
Please refer to your device's user guide to find out where the IR receiver is
on your connected device.
For example, the IR receiver for Apple TV/Amazon Fire TV/TIVO BOLT is
shown as below:

Installation and Application
www.avaccess.com 9 [e-mail]

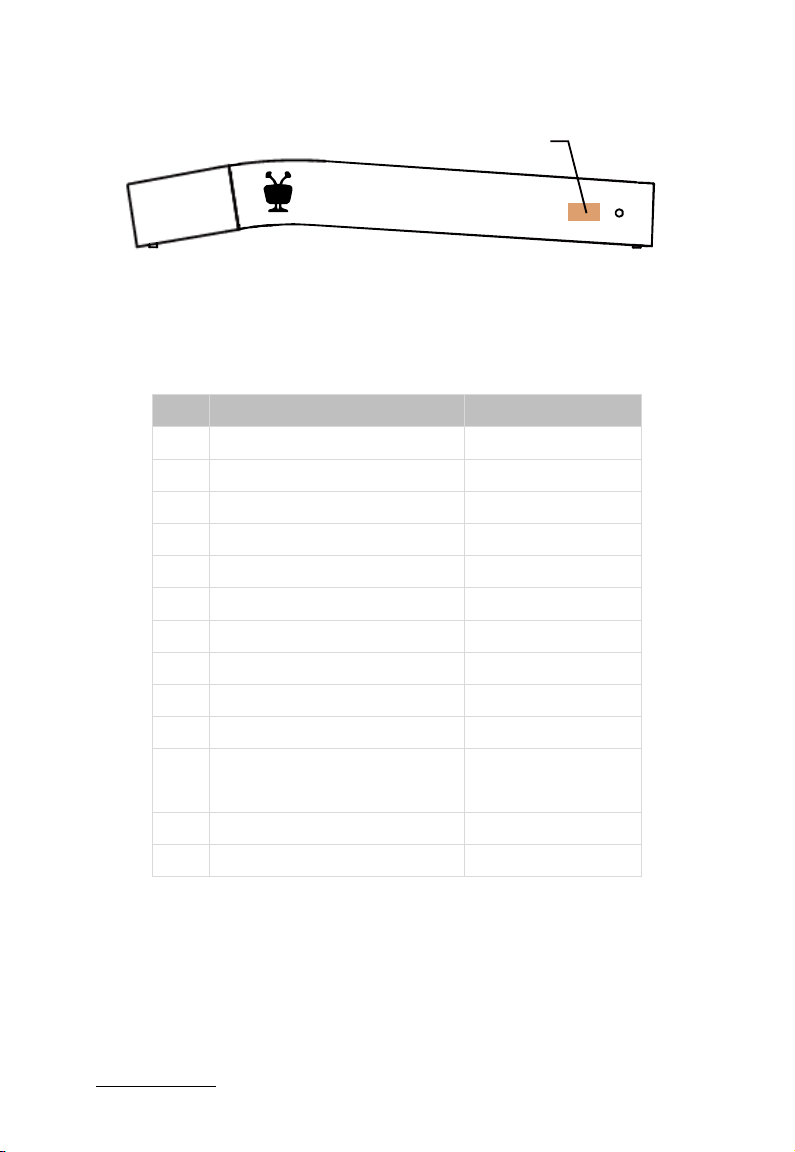

IR Receiver
TIVO BOLT
Note: Products from AV Access do not support Bluetooth control, the introduction
above applies to device with IR control capability only. Here is a list about
different devices' control method.
No. Device Control Method
1 NVDIA 2571 Player Bluetooth/USB
2 Amazon Fire TV with UHD HDR Bluetooth
3 Amazon Fire TV IR
4 ROKU Ultra Player Bluetooth
5 Apple TV 3rd IR
6 Apple TV 4th IR
7 Apple 4K TV 5th Bluetooth
8 Xbox one S Bluetooth/USB
9 Xbox one X Bluetooth/USB
10 TIVO BOLT IR
11 NINTENDO SWITCH HAC-001
Game Console Bluetooth/USB
12 PS4 Pro Bluetooth/USB
13 Blu-ray Player IR

Installation and Application
www.avaccess.com 10 [e-mail]

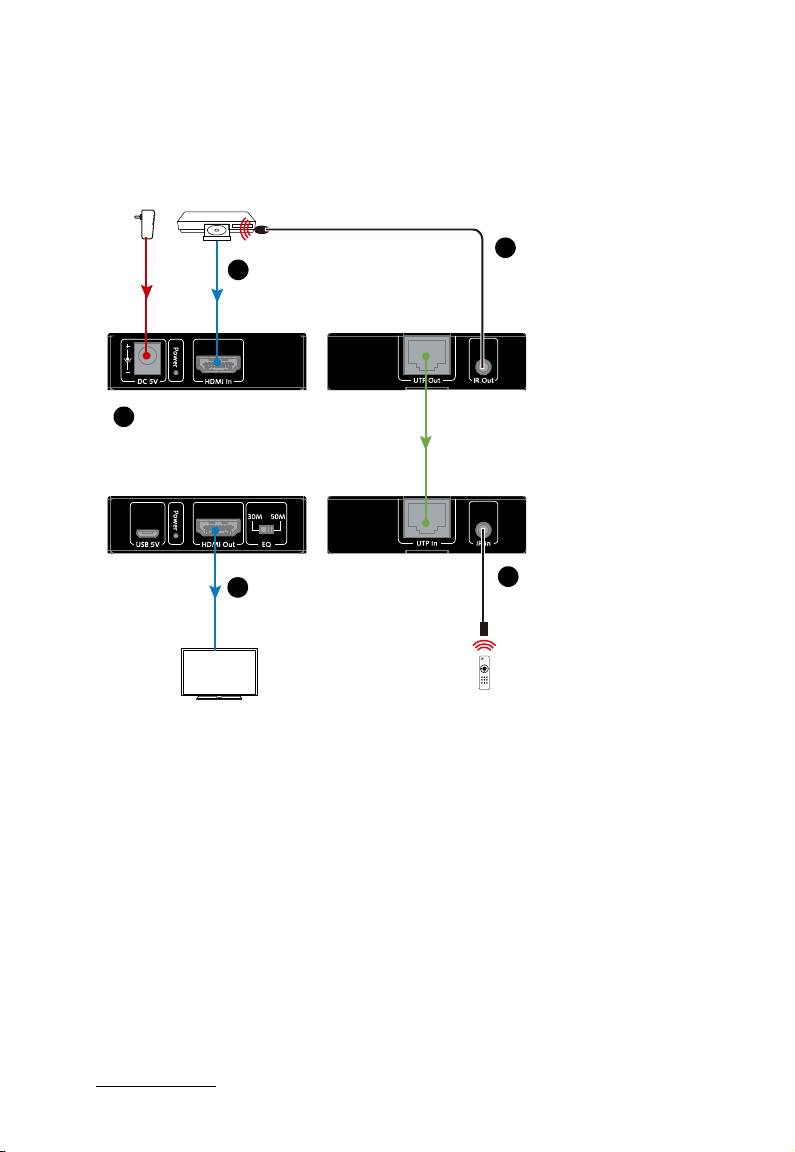

Application
Display
Power Supply Blu-rayPlayer
Remote
1
Connect an HDMI source
to HDMI In port of N595
2
Switch EQ to 30m or 50m, use single
Cat X cable to connect the transmitter
and receiver.
Note: Make sure Cat X cable is no more
than 30 or 50 meters according to EQ switch
you selected.
3
Connect a display to
HDMI Out port of N596
4
Connect IR Emitter cable
to IR Out Port of N595
5
Connect IR Receiver cable
to IR In Port of N596
Transmitter
Receiver
Installation requirements
HDMI source devices: With HDMI output interface, DVD, PS3, STB, PC etc.
Display devices: With HDMI input port, SDTV, HDTV, projector etc.
Cat X cables: UTP/STP Cat5e/6/6a cable, which following the standard of
IEEE-568B.

Specifications
www.avaccess.com 11 [e-mail]
Specifications
Technical
Video Signal Type HDMI 1.3b with HDCP 1.4
Input/Output Resolution Support
1920x1080I8, 1920x1080P8, 1080x720P8,
720x568P8, 720x568I8,720x480P8,
720x480I8,
1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz,
4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz,
7 = at 59.94 Hz, 8 = 60 Hz;
Audio Format Supported PCM 2.0
Max Data Rate 6.75 Gbps
General
Operating Temperature 0°C to + 45°C (32 to + 113 °F)
Storage Temperature -20 to +70°C (-4 to + 158 °F)
Humidity 20% to 90%, non-condensing
Power Consumption
(Maximum) 2.5W (pair)
Device Dimensions
(W x H x D)
70 mm ×20 mm ×70.2 mm/
2.75'' x 0.79'' x 2.76''
Product Weight Transmitter/Receiver: 0.2kg/0.44lb
Transmission Distance
Cable Type Range Supported Video
HDMI Input/Output: 5m/16ft 1080P@60Hz
Cat 5e 40m/131ft 1080P@60Hz
Cat 6/6a/7 50m/164ft

Trouble Shooting
www.avaccess.com 12 [e-mail]
Trouble Shooting
Steps of Regular Troubleshooting Routine
1Power: Please make sure all devices are powered on. (source, extender,
display devices)
2Indicator: Please make sure LED indicators of transmitter and receiver are
normal according to user manual.
3Devices: Please make sure picture can be shown normally when connecting
source to display devices directly.
4Cable: Plug in and out HDMI/Cat X/USB cable or try another HDMI/Cat
X/USB cable.
Cat 5e/6/6a cable is recommended.
Please make sure Cat X cable is less than 50m/164ft.
Please make sure the two connectors of one Cat X cable are same
standard (IEEE 568B).
5Compatibility: Please test other source and display devices to determine
whether it is a compatibility issue.
Typical Questions
How to deal with cutting off when you connect USB device to receiver?
Please make sure your USB device is working normally.
Please insert the power adapter to receiver power port instead of
transmitter since the PoE is not able to power on your USB device such
as hard disk.

Warranty
www.avaccess.com 13 [e-mail]
Warranty
Products are backed by a limited 1-year parts and labor warranty. For the
following cases AV Access Technology Limited shall charge for the service(s)
claimed for the product if the product is still remediable and the warranty card
becomes unenforceable or inapplicable.
1. The original serial number (specified by AV Access Technology Limited)
labeled on the product has been removed, erased, replaced, defaced or is
illegible.
2. The warranty has expired.
3. The defects are caused by the fact that the product is repaired, dismantled
or altered by anyone that is not from an AV Access Technology Limited
authorized service partner. The defects are caused by the fact that the
product is used or handled improperly, roughly or not as instructed in the
applicable User Guide.
4. The defects are caused by any force majeure including but not limited to
accidents, fire, earthquake, lightning, tsunami and war.
5. The service, configuration and gifts promised by salesman only but not
covered by normal contract.
6. AV Access Technology Limited preserves the right for interpretation of these
cases above and to make changes to them at any time without notice.
Thank you for choosing products from AV Access.

AV Access Technology Limited
V1.0.1
