Application Notes for Valcom Talkback IP Speakers with
Avaya IP Office –Issue 1.0
Abstract
These Application Notes describe the configuration steps required for the Valcom Talkback IP
Speaker devices to successfully interoperate with Avaya IP Office. The Valcom Talkback IP
Speakers are SIP-based devices that integrate with Avaya IP Office as a SIP endpoint.
The following Valcom Talkback IP Speakers were compliance tested: VIP-148L, VIP-160,
VIP-172L, VIP-422 and VIP-431-DS.
Information in these Application Notes has been obtained through DevConnect compliance
testing and additional technical discussions. Testing was conducted via the DevConnect
Program at the Avaya Solution and Interoperability Test Lab.

MJH; Reviewed:
SPOC 12/6/2010
Solution & Interoperability Test Lab Application Notes
©2010 Avaya Inc. All Rights Reserved.
2 of 17
Valcom-Spkr-IPO
1. Introduction
These Application Notes describe the configuration steps required for the Valcom Talkback IP
Speakers to successfully interoperate with Avaya IP Office. The Valcom Talkback IP Speakers
are SIP-based devices that integrate with Avaya IP Office as a SIP endpoint. The following
Valcom Talkback IP Speakers were compliance tested:
VIP-148L
VIP-160
VIP-172L
VIP-422
VIP-431-DS
When the call button is pressed on a Valcom Talkback IP Speaker, the device initiates a call to a
preconfigured destination that resides on Avaya IP Office, and provides hands-free two-way
communication.
1.1. Interoperability Compliance Testing
The interoperability compliance test plan included feature and serviceability test cases.
The feature testing covered SIP registration, basic calls, display verification, hold/reconnect,
conferences, transfers, media shuffling, audio codec negotiation, and coverage call scenarios.
The serviceability testing focused on verifying the ability of the Valcom Talkback IP Speakers to
recover from adverse conditions, such as a disconnect and reconnect of the Ethernet cable to the
device, and Avaya IP Office reboots.
1.2. Support
Technical support for Valcom can be obtained through the following:
Phone: (800) VALCOM1
Email: [email protected]

MJH; Reviewed:
SPOC 12/6/2010
Solution & Interoperability Test Lab Application Notes
©2010 Avaya Inc. All Rights Reserved.
3 of 17
Valcom-Spkr-IPO
2. Reference Configuration
The Valcom Talkback IP Speakers were configured as SIP endpoints that registered with Avaya
IP Office. When the call button is pressed on each of the Valcom Talkback IP Speakers, the
Speaker initiates a call to a preconfigured destination that resides on Avaya IP Office, and
provides hands-free two-way communication. The Valcom Talkback IP Speakers were
configured on the 10.64.20.0/24 subnet, while all the other Avaya IP equipment was configured
on the 10.64.21.0/24 subnet.

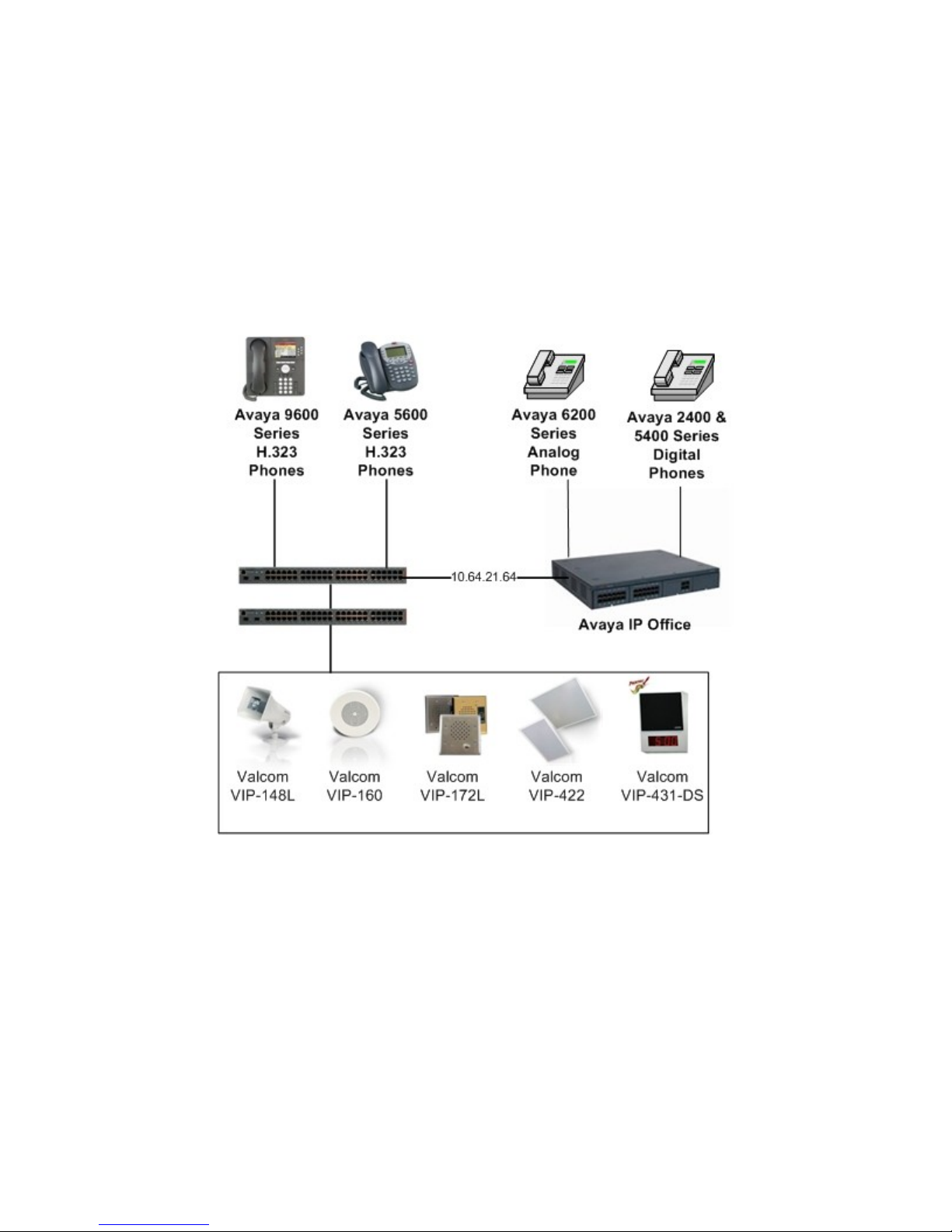

Figure 1: Valcom Talkback IP Speakers with Avaya IP Office

MJH; Reviewed:
SPOC 12/6/2010
Solution & Interoperability Test Lab Application Notes
©2010 Avaya Inc. All Rights Reserved.
4 of 17
Valcom-Spkr-IPO
3. Equipment and Software Validated
The following equipment and software were used for the sample configuration provided:
Equipment
Software
Avaya IP Office 500
6.0 (8)
Avaya IP Office 500 Phone Expansion
Module Analog POTS 30 V2
6.0 (8)
Avaya IP Office Manager (Windows PC)
8.0 (8)
Avaya 5610SW IP Telephone (H.323)
2.9.1
Avaya 9620 IP Telephone (H.323)
3.002
Avaya 2420 Digital Telephone
R6 Firmware
Avaya 5420 Digital Phone
R6 Firmware
Avaya 6210 Analog Telephone
n/a
Valcom Talkback IP Speakers
VIP-148L
VIP-160
VIP-172L
VIP-422
VIP-431-DS
2.17

MJH; Reviewed:
SPOC 12/6/2010
Solution & Interoperability Test Lab Application Notes
©2010 Avaya Inc. All Rights Reserved.
5 of 17
Valcom-Spkr-IPO
4. Configure Avaya IP Office
This section describes the steps required for to configure SIP extensions and users on IP Office.
IP Office is configured via the IP Office Manager program. Log into the IP Office Manager PC
and select Start Programs IP Office Manager to launch the Manager application.
Log into the Manager application using the appropriate credentials.
4.1. Administer Extensions

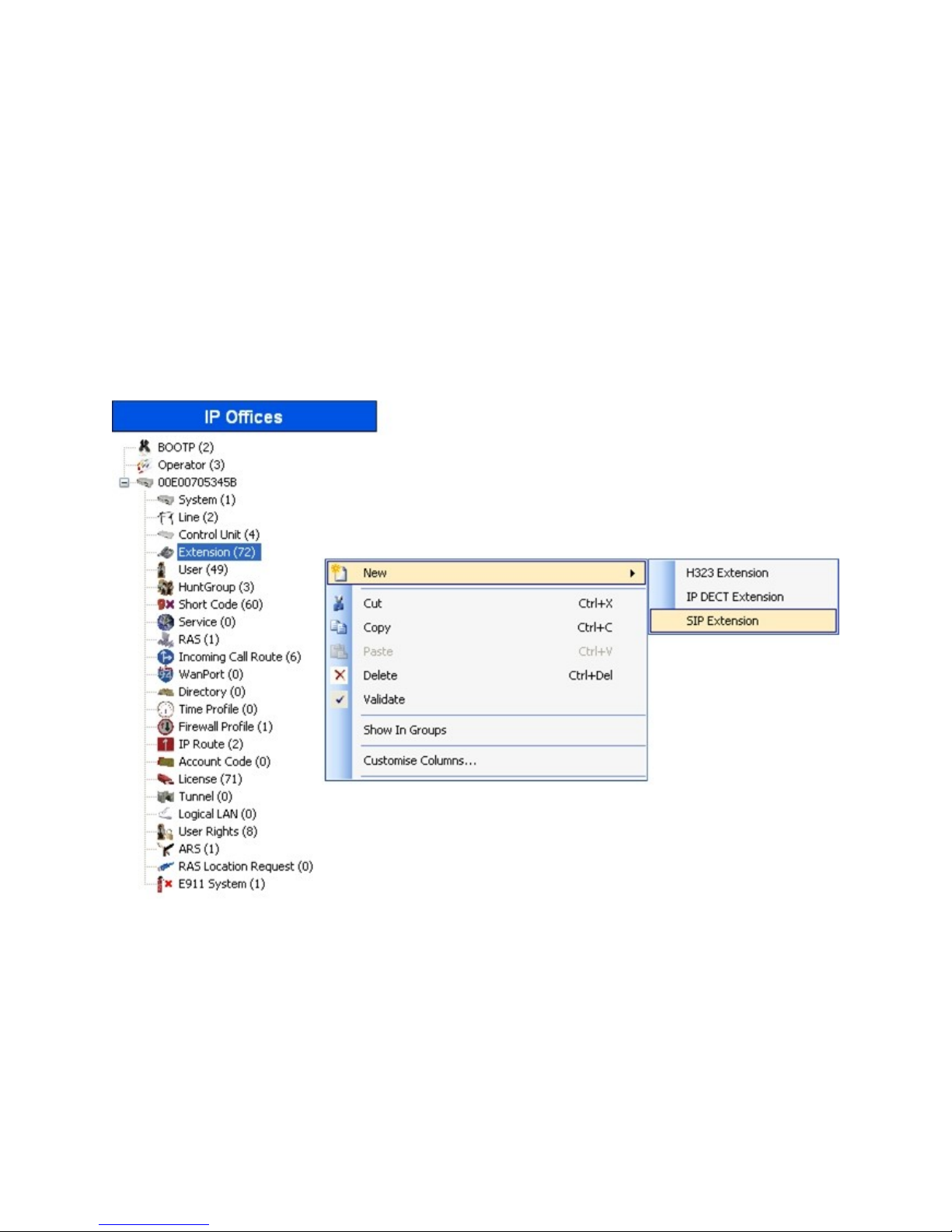

Create an extension for a Valcom Talkback IP Speaker. Right-click on Extension in the left
panel menu, and select New SIP Extension.

MJH; Reviewed:
SPOC 12/6/2010
Solution & Interoperability Test Lab Application Notes
©2010 Avaya Inc. All Rights Reserved.
6 of 17
Valcom-Spkr-IPO

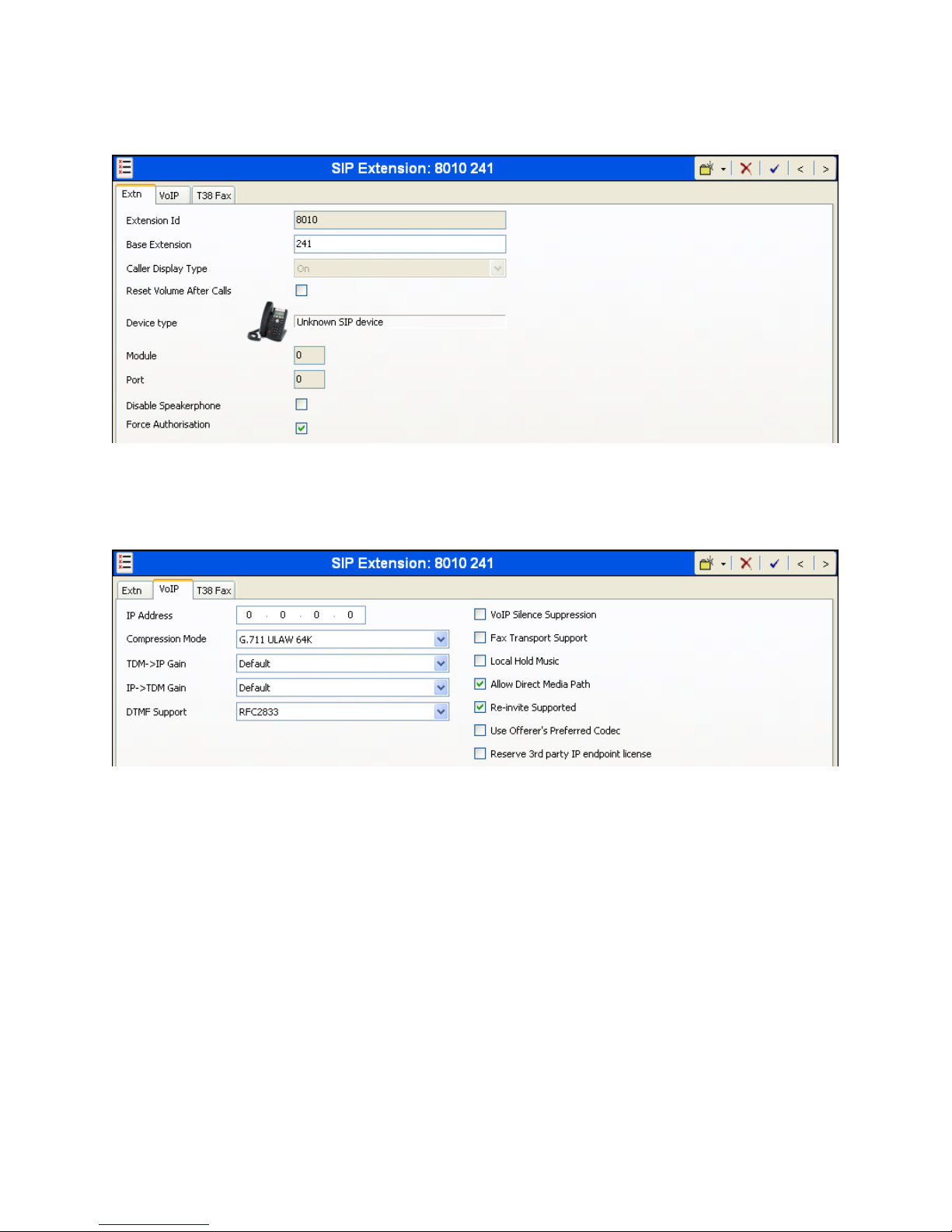

On the Extn tab, enter a valid Base Extension.
On the VoIP tab, select G.711 ULAW 64K for Compression Mode and RFC2833 for DTMF
Support.
Click the OK button on the bottom of the screen (not shown).

MJH; Reviewed:
SPOC 12/6/2010
Solution & Interoperability Test Lab Application Notes
©2010 Avaya Inc. All Rights Reserved.
7 of 17
Valcom-Spkr-IPO
4.2. Administer Users

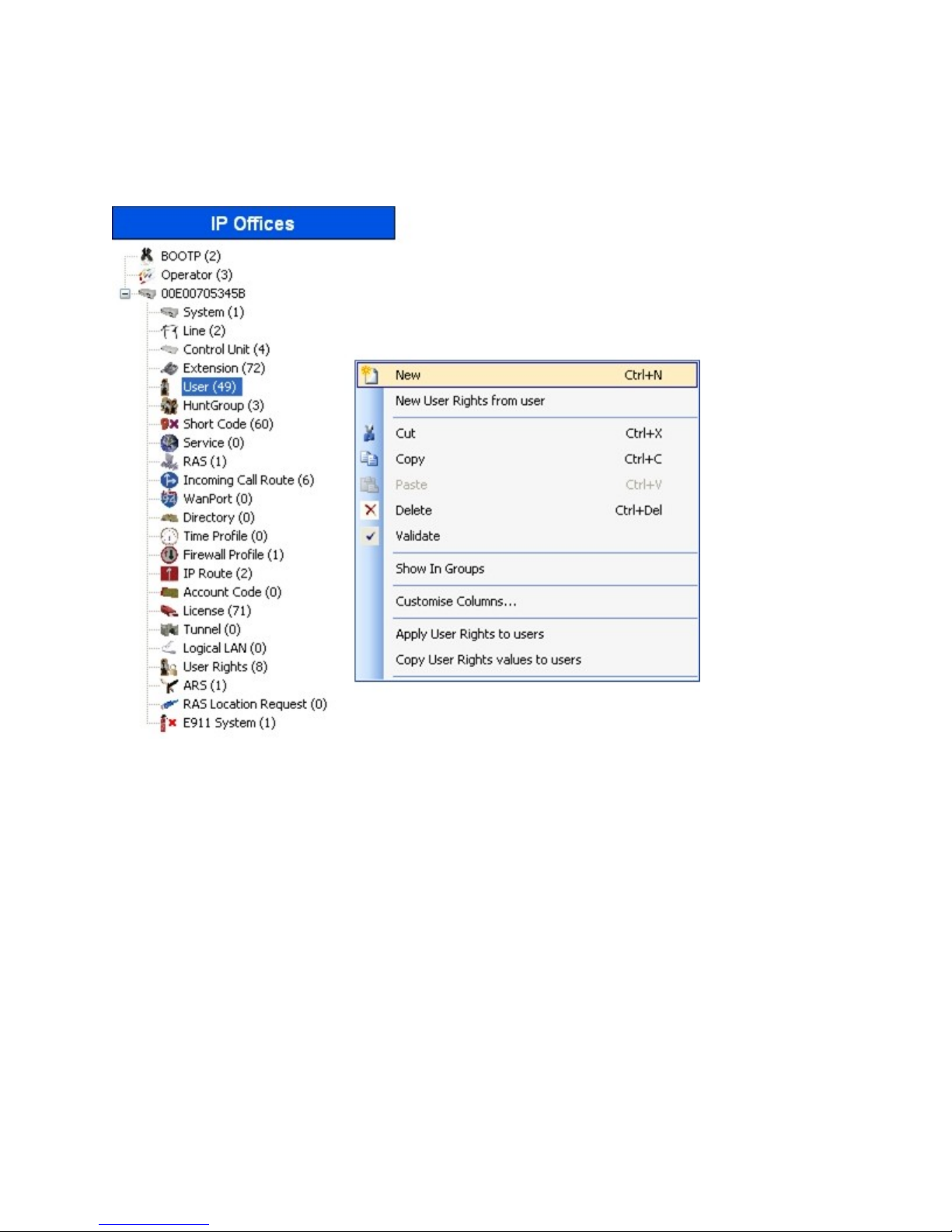

Create a user for a Valcom Talkback IP Speaker. Right-click User from the left panel and select
New.

MJH; Reviewed:
SPOC 12/6/2010
Solution & Interoperability Test Lab Application Notes
©2010 Avaya Inc. All Rights Reserved.
8 of 17
Valcom-Spkr-IPO
Under the User tab, enter the following values for the specified fields, and retain the default
values in the remaining fields.
Name Enter a desired name.
Full Name Enter a descriptive name.
Extension Enter the extension configured in Section 4.1.

MJH; Reviewed:
SPOC 12/6/2010
Solution & Interoperability Test Lab Application Notes
©2010 Avaya Inc. All Rights Reserved.
9 of 17
Valcom-Spkr-IPO
Under the Telephony Supervisor Settings tab, enter the following value for the specified
field, and retain the default values in the remaining fields.
Login Code Enter the desired login code.
Click the OK button on the bottom of the screen and repeat the procedures in Sections 4.1 and
4.2 for each of the Valcom Talkback IP Speakers.
After making the changes, click File Save Configuration to push the changes to the IP Office
system and have them take effect. Changes will not take effect until this step is completed.
** NOTE ** This may cause a reboot of Avaya IP Office causing service disruption.

MJH; Reviewed:
SPOC 12/6/2010
Solution & Interoperability Test Lab Application Notes
©2010 Avaya Inc. All Rights Reserved.
10 of 17
Valcom-Spkr-IPO
5. Configure Valcom Talkback IP Speakers
This section provides the procedures for configuring Valcom Talkback IP Speakers. The
information shown is the minimum for configuring the Valcom device. Complete configuration
details may be found in the Valcom documentation listed in Section 9. The procedures include
the following areas:
Launch setup tool
Administer properties
Administer network
Administer SIP
5.1. Launch Setup Tool

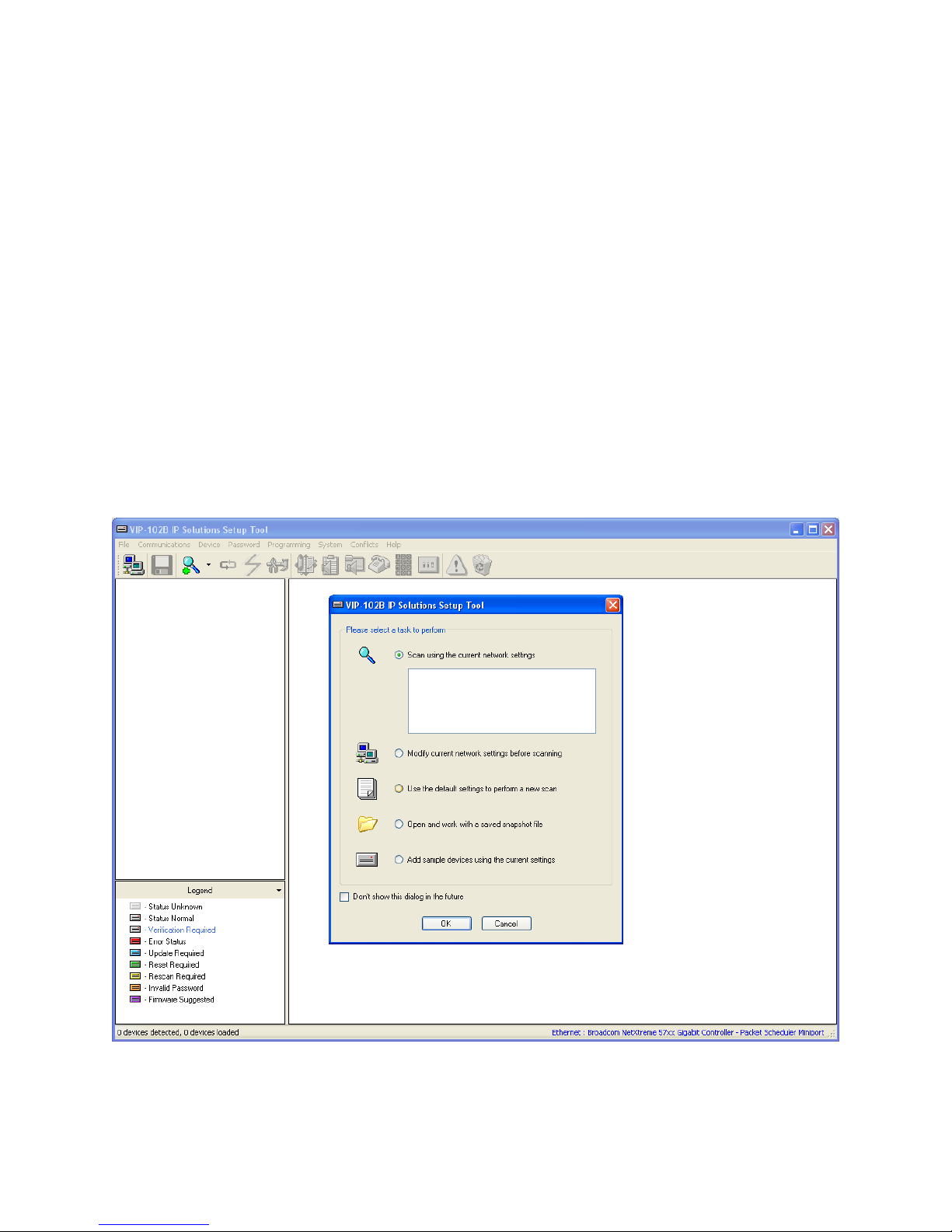

From a PC running the Valcom VIP-102B IP Solutions Setup Tool application, select Start 
All Programs Valcom IP Solutions VIP-102B IP Solutions Setup Tool. The VIP-102B
IP Solutions Setup Tool screen is displayed. Retain the default values and click OK to scan for
Valcom devices.

MJH; Reviewed:
SPOC 12/6/2010
Solution & Interoperability Test Lab Application Notes
©2010 Avaya Inc. All Rights Reserved.
11 of 17
Valcom-Spkr-IPO
At the conclusion of the scan, the VIP-102B IP Solutions Setup Tool screen is updated with the
discovered Valcom Talkback IP Speakers as shown below.

MJH; Reviewed:
SPOC 12/6/2010
Solution & Interoperability Test Lab Application Notes
©2010 Avaya Inc. All Rights Reserved.
12 of 17
Valcom-Spkr-IPO

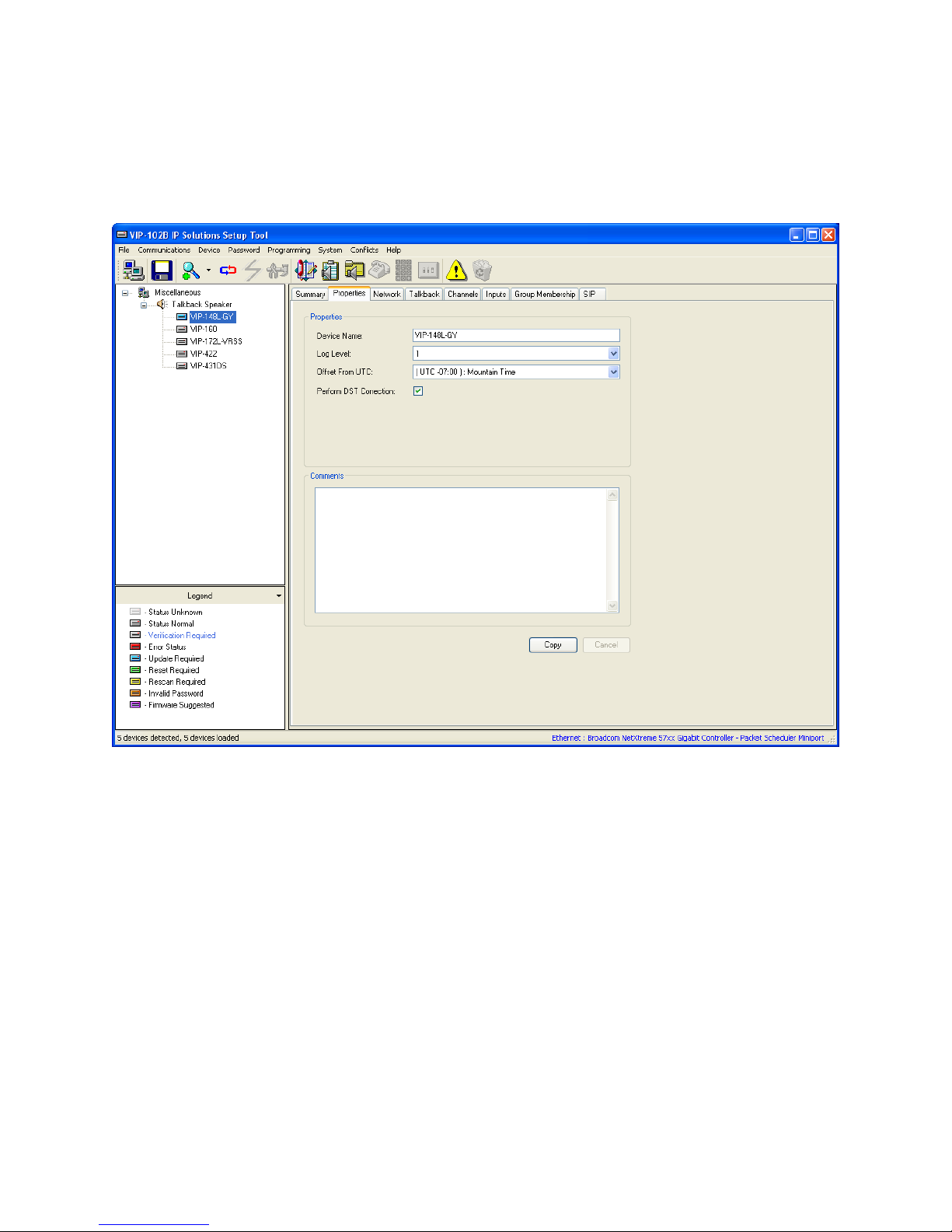

5.2. Administer Properties
Select a speaker from the left pane to display the configuration tabs in the right pane. Select the
Properties tab, and enter a descriptive Device Name. Select the appropriate time zone in the
Offset From UTC field, and enter any desired Comments.

MJH; Reviewed:
SPOC 12/6/2010
Solution & Interoperability Test Lab Application Notes
©2010 Avaya Inc. All Rights Reserved.
13 of 17
Valcom-Spkr-IPO

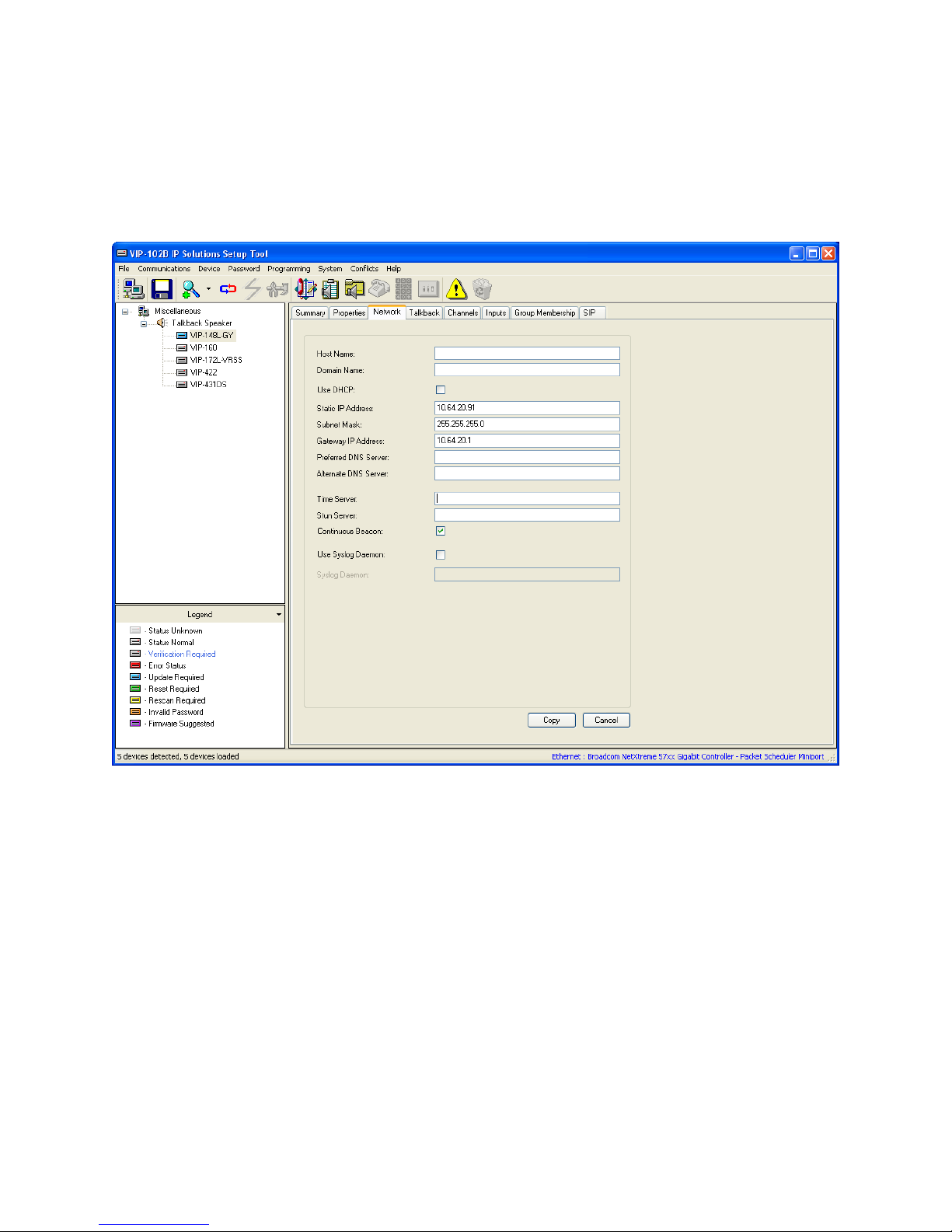

5.3. Administer Network
Select the Network tab. Enter the proper values for Static IP Address, Subnet Mask, and
Gateway IP Address fields for the network configuration. The default values in the remaining
fields may be retained.

MJH; Reviewed:
SPOC 12/6/2010
Solution & Interoperability Test Lab Application Notes
©2010 Avaya Inc. All Rights Reserved.
14 of 17
Valcom-Spkr-IPO

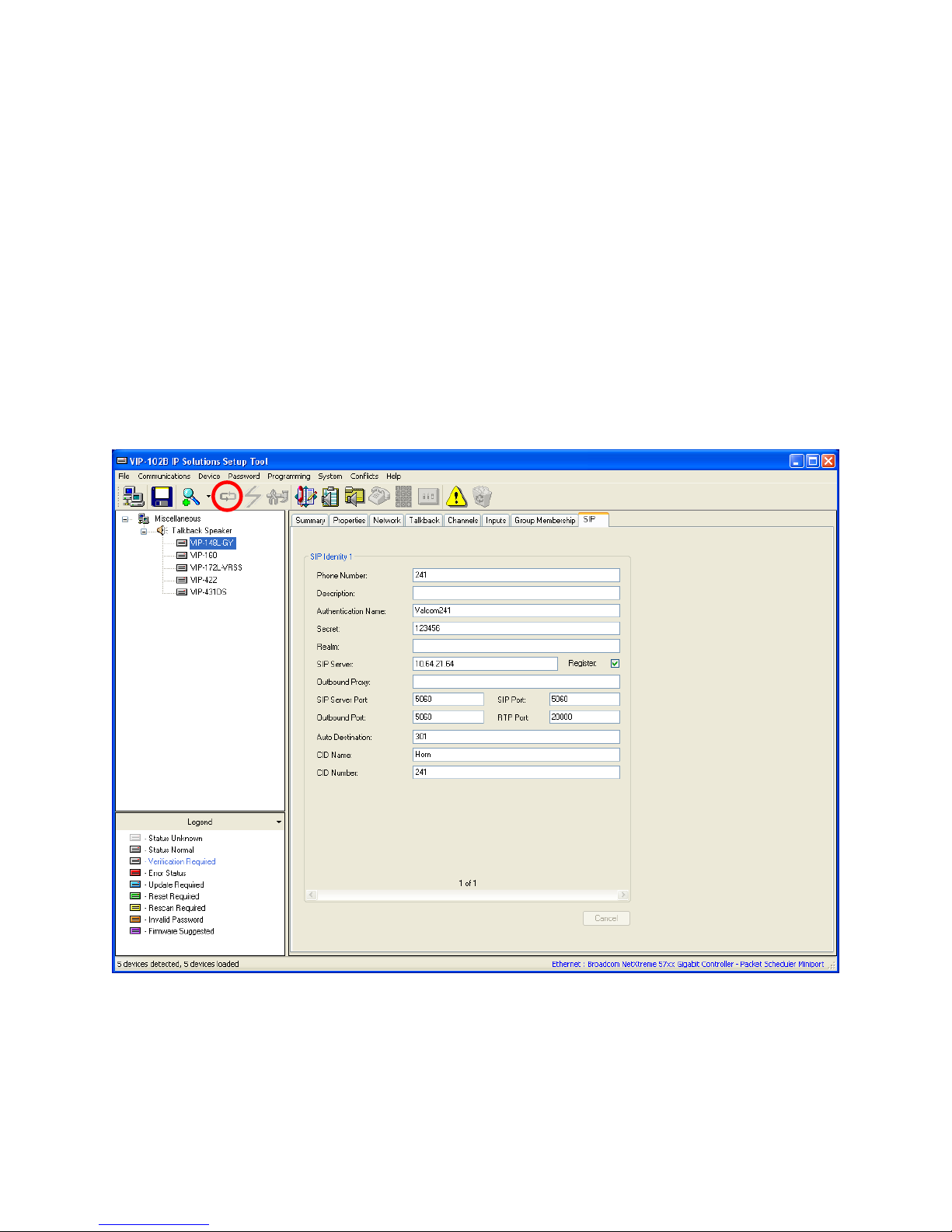

5.4. Administer SIP
Select the SIP tab. Enter the following values for the specified fields, and retain the default
values for the remaining fields.
Phone Number: Enter the “Base Extension” from Section 4.1.
Authentication Name: Enter the “Name” from Section 4.2.
Secret: Enter the “Login Code”from Section 4.2.
SIP Server: Enter the IP address of Avaya IP Office.
Register: Check this field.
Auto Destination: Enter the desired destination for calls initiated from this device.
CID Name: Enter a descriptive name.
CID Number: Enter the Caller-ID number (e.g. extension of device).
Repeat the procedures in Sections 5.2 through 5.4 for each Valcom Talkback IP Speaker. Click
on the Update Changed Devices icon circled above. The Reset Required dialog box will
appear as shown below. Click Yes to reset the updated devices.

MJH; Reviewed:
SPOC 12/6/2010
Solution & Interoperability Test Lab Application Notes
©2010 Avaya Inc. All Rights Reserved.
15 of 17
Valcom-Spkr-IPO
6. General Test Approach and Test Results
The feature test cases were performed manually. The call button was pressed on each Valcom
Talkback IP Speaker to test the connection to different destinations on Avaya IP Office, and
manual call controls from the destination were exercised to verify proper interactions with
features such as “transfer”and “conference”.
The serviceability test cases were performed manually by disconnecting and reconnecting the
LAN cables to the Valcom Talkback IP Speakers. Additionally, the Avaya IP Office server was
rebooted to verify the Valcom Talkback IP Speakers were able to properly register and function
normally after the server recovered.
All feature test cases were executed and passed with the following observations:
When shuffling (Allow Direct Media Path) was enabled on Avaya IP Office, calls
involving the Valcom Talkback IP Speakers did not shuffle.

MJH; Reviewed:
SPOC 12/6/2010
Solution & Interoperability Test Lab Application Notes
©2010 Avaya Inc. All Rights Reserved.
16 of 17
Valcom-Spkr-IPO
7. Verification Steps
This section provides the tests that can be performed to verify proper configuration of Avaya IP
Office and the Valcom Talkback IP Speakers.
7.1. Verify Valcom Talkback IP Speakers
Press the call button on each of the Valcom Talkback IP Speakers and verify that the “Auto
Destination”specified in Section 5.4 rings. Answer the call at the destination, and verify that the
call is connected with a two-way talk path.
8. Conclusion
These Application Notes describe the configuration steps required for Valcom Talkback IP
Speakers to successfully interoperate with Avaya IP Office.
9. Additional References
This section references the product documentation relevant to these Application Notes.
1. IP Office 6.0 Documentation CD - English, February 2010, available at
http://support.avaya.com
2. Valcom Talkback IP Speaker documentation is available at http://www.valcom.com
3. Valcom VIP-102B IP Solutions Setup Tool Reference Manual is available at
http://www.valcom.com
