Application Notes for Integrated Research PROGNOSIS IP
Telephony Manager 9.6 with Avaya Aura® Communication
Manager - Issue 1.0
Abstract
These Application Notes describe the procedures for configuring Integrated Research
PROGNOSIS IP Telephony Manager 9.6 to interoperate with Avaya Aura® Communication
Manager 6.0.1.
PROGNOSIS IP Telephony Manager is a performance management solution for multi-vendor
IP telephony solutions. PROGNOSIS IP Telephony Manager provides visibility of Avaya and
other vendor’s IP Telephony solutions from a single console. Targeted at multi-site enterprises
and managed service providers of IP telephony solutions, PROGNOSIS IP Telephony
Manager offers a multi-customer, multi-PBX perspective, enabling a significant reduction in
complexity when managing complex IP telephony environments.
PROGNOSIS integrates directly to Communication Manager using Secure Shell (SSH). At the
same time, it processes Real-time Transport Control Protocol (RTCP) and Call Detail
Recording (CDR) information from Communication Manager.
Information in these Application Notes has been obtained through DevConnect compliance
testing and additional technical discussions. Testing was conducted via the DevConnect
Program at the Avaya Solution and Interoperability Test Lab.

JC; Reviewed:
SPOC 6/16/2011
Solution & Interoperability Test Lab Application Notes
©2011 Avaya Inc. All Rights Reserved.
2 of 30
IPTM96-CM601
1. Introduction
These Application Notes describe the compliance tested configuration used to validate Integrated
Research PROGNOSIS IP Telephony Manager with Avaya Aura® Communication Manager.
The PROGNOSIS IP Telephony Manager is based on the PROGNOSIS product-family
architecture for the scalable monitoring of business critical systems. The PROGNOSIS product
consists of:
One or more PROGNOSIS Monitoring Nodes (Server Nodes). These are servers used by
the PROGNOSIS product to collect, relay and store information collected from
Communication Manager.
The PROGNOSIS GUI is a Microsoft Windows client program which is used to connect
to a PROGNOSIS Monitoring Node and display the information collected by the
Monitoring Node. The PROGNOSIS GUI may either be installed on a Monitoring Node
or on a separate computer.
The PROGNOSIS IP Telephony Manager product uses three methods to monitor a
Communication Manager system.
System Access Terminal (SAT) - The PROGNOSIS IP Telephony Manager uses a pool
of SSH connections to the SAT using the IP address of the Avaya Server. By default, the
solution establishes three concurrent SAT connections to the Communication Manager
system and uses the connections to execute SAT commands.
Real Time Transport Control Protocol (RTCP) Collection - The PROGNOSIS IP
Telephony Manager collects RTCP information sent by the Avaya IP Media Processor
(MEDPRO) boards, media gateways, IP Telephones and IP Softphones.
Call Detail Recording (CDR) Collection - The PROGNOSIS IP Telephony Manager
collects CDR information sent by Communication Manager.
2. General Test Approach and Test Results
The general test approach was to use PROGNOSIS GUI to display the configurations of the
Communication Manager systems and verify against what is displayed on the SAT interface. The
SAT interface is accessed by using either telnet or Secure Shell (SSH) to the Avaya S8800 and
S8300D Servers. Calls were placed between various Avaya endpoints and PROGNOSIS GUI
was used to display the RTCP and CDR information collected.

JC; Reviewed:
SPOC 6/16/2011
Solution & Interoperability Test Lab Application Notes
©2011 Avaya Inc. All Rights Reserved.
3 of 30
IPTM96-CM601
2.1. Interoperability Compliance Testing
For feature testing, PROGNOSIS GUI was used to view the configurations of Communication
Manager such as port networks, cabinets, media gateways, ESS, LSP, trunk groups, route
patterns, CLAN, MEDPRO and DS1 boards, IP network regions, stations, processor occupancy,
alarm and error information. During testing, a call generator was used to load the
Communication Manager systems by placing incoming calls through two E1 ISDN-PRI trunks to
the system in Site A and terminating the calls as IP stations on the system in Site B. For the
collection of RTCP and CDR information, the endpoints included Avaya IP, digital and analog
telephones, Avaya A175 Desktop Video Device and Avaya one-X® Communicator users. The
types of calls made included intra-switch calls, inbound/outbound inter-switch IP trunk calls,
transferred calls and conference calls.
For serviceability testing, reboots were applied to the PROGNOSIS IP Telephony Manager
Server and Avaya Servers to simulate system unavailability. Interchanging of the Avaya S8800
Servers and failover to ESS and LSP were also performed during testing.
2.2. Test Results
All test cases passed successfully.
2.3. Support
For technical support on Integrated Research PROGNOSIS IP Telephony Manager, contact the
Integrated Research Support Team at:
Hotline: [phone]
Email: [e-mail]

JC; Reviewed:
SPOC 6/16/2011
Solution & Interoperability Test Lab Application Notes
©2011 Avaya Inc. All Rights Reserved.
4 of 30
IPTM96-CM601
3. Reference Configuration
Figure 1 illustrates the test configuration used to verify Integrated Research PROGNOSIS IP
Telephony Manager interoperability with Communication Manager. It consists of a
Communication Manager system running on a pair of Avaya S8800 Servers with two Avaya
G650 Media Gateways, an Avaya G430 Media Gateway with Avaya S8300D Server as a Local
Survivability Processor (LSP) and an Avaya G250-BRI Media Gateway. An Enterprise
Survivable Server (ESS) running on Avaya S8800 Server was also configured for failover
testing. A second Communication Manager system runs on an Avaya S8300D Server with an
Avaya G450 Media Gateway. Both systems have Avaya IP (H.323 and SIP), digital and analog
telephones, and Avaya one-X®Communicator users configured for making and receiving calls.
IP Trunks connect the two systems together to allow calls between them. Avaya Aura® System
Manager and Avaya Aura® Session Manager provided SIP support to the Avaya SIP telephones
and Avaya A175 Desktop Video Device. Integrated Research PROGNOSIS IP Telephony
Manager was installed on a server running Microsoft Windows Server 2003 with Service Pack 2.
Both the Monitoring Node and GUI software are installed on this server. The Avaya 4548GT-
PWR Ethernet Routing Switch provides Ethernet connectivity to the servers, media gateways
and IP telephones.
Figure 1: Test Configuration

JC; Reviewed:
SPOC 6/16/2011
Solution & Interoperability Test Lab Application Notes
©2011 Avaya Inc. All Rights Reserved.
5 of 30
IPTM96-CM601
4. Equipment and Software Validated
The following equipment and software were used for the sample configuration provided:
Equipment
Software
Avaya S8800 Servers
Avaya Aura® Communication Manager
6.0.1
(Service Pack 1.01 00.1.510.1-18857)
Avaya G650 Media Gateways
- TN2312BP IP Server Interface
- TN799DP C-LAN Interface
- TN2302AP IP Media Processor
- TN2602AP IP Media Processor
- TN2214CP Digital Line
- TN793CP Analog Line
- TN2464BP DS1 Interface
- TN2464CP DS1 Interface
-
HW07, FW053 and
HW15 FW054
HW01, FW039 and
HW01 FW040
HW20 FW121 and
HW20 FW117
HW02 FW058 and
HW02 FW041
HW08 FW015
HW09 FW010
HW05 FW024
HW02 FW024
Avaya G250-BRI Media Gateway
30.18.1
Avaya G430 Media Gateway
- MM712AP DCP MM
- MM714AP Analog MM
- MM711AP Analog MM
- MM710AP DS1 MM
31.18.1
HW04 FW009
HW04 FW073
HW31 FW093
HW05 FW021
Avaya S8300D Server as LSP
6.0.1
(Service Pack 1.01 00.1.510.1-18857)
Avaya S8800 Server as ESS
6.0.1
(Service Pack 1.01 00.1.510.1-18857)
Avaya S8300D Server
Avaya Aura® Communication Manager
6.0.1
(Service Pack 1.01 00.1.510.1-18857)
Avaya G450 Media Gateway
- MM722AP BRI Media Module (MM)
- MM712AP DCP MM
- MM714AP Analog MM
- MM717AP DCP MM
- MM710BP DS1 MM
31.18.1
HW01 FW008
HW07 FW009
HW10 FW093
HW03 FW009
HW11 FW049
Avaya Aura® System Manager
6.1 Service Pack 2
Avaya Aura® Session Manager
6.1 Service Pack 2
Avaya 9600 Series IP telephones
- 9630, 9640, 9650, 9670G
3.1 SP2 (H.323) or
2.6 SP4 (SIP)
Avaya 1608 IP telephones
1.300B (H.323)
Avaya 6221 analog telephones
-

JC; Reviewed:
SPOC 6/16/2011
Solution & Interoperability Test Lab Application Notes
©2011 Avaya Inc. All Rights Reserved.
6 of 30
IPTM96-CM601
Equipment
Software
Avaya digital telephones
- 1416
- 2420
SP1
-
Avaya A175 Desktop Video Device
1.0
Avaya one-X® Communicator
6.0 SP1 (H.323)
Avaya 4548GT-PWR Ethernet Routing
Switch
V5.4.0.008
Integrated Research PROGNOSIS IP
Telephony Manager
9.6.1 Patch 11
5. Configure Communication Manager
This section describes the steps needed to configure Communication Manager to interoperate
with Integrated Research PROGNOSIS IP Telephony Manager. This includes creating a login
account and a SAT User Profile for PROGNOSIS to access Communication Manager and
enabling RTCP and CDR reporting. The steps are repeated for each Communication Manager
system, ESS and LSP Servers.
5.1. Configure SAT User Profile
A SAT User Profile specifies which SAT screens may be accessed by the user assigned the
profile and the type of access to each screen. As PROGNOSIS IP Telephony Manager does not
modify any system configuration, create a SAT User Profile with limited permissions to assign
to the PROGNOSIS login account.
Step
Description
1.
Enter the add user-profile ncommand, where nis the next unused profile number. Enter
a descriptive name for User Profile Name and enable all categories by setting the Enbl
field to y. In this configuration, the user profile 21 is created.
add user-profile 21 Page 1 of 41
USER PROFILE 21
User Profile Name: IPTM
This Profile is Disabled? n Shell Access? n
Facility Test Call Notification? n Acknowledgement Required? n
Grant Un-owned Permissions? n Extended Profile? n
Name Cat Enbl Name Cat Enbl
Adjuncts A y Routing and Dial Plan J y
Call Center B y Security K y
Features C y Servers L y
Hardware D y Stations M y
Hospitality E y System Parameters N y
IP F y Translations O y
Maintenance G y Trunking P y
Measurements and Performance H y Usage Q y
Remote Access I y User Access R y

JC; Reviewed:
SPOC 6/16/2011
Solution & Interoperability Test Lab Application Notes
©2011 Avaya Inc. All Rights Reserved.
7 of 30
IPTM96-CM601
Step
Description
2.
On Pages 2 to 41 of the USER PROFILE forms, set the permissions of all objects to rm
(read and maintenance). This can be accomplished by typing rm into the field Set All
Permissions To. Submit the form to create the user profile.
add user-profile 21 Page 2 of 41
USER PROFILE 21
Set Permissions For Category: To: Set All Permissions To: rm
'-'=no access 'r'=list,display,status 'w'=add,change,remove+r 'm'=maintenance
Name Cat Perm
aar analysis J rm
aar digit-conversion J rm
aar route-chosen J rm
abbreviated-dialing 7103-buttons C rm
abbreviated-dialing enhanced C rm
abbreviated-dialing group C rm
abbreviated-dialing personal C rm
abbreviated-dialing system C rm
aca-parameters P rm
access-endpoints P rm
adjunct-names A rm
administered-connections C rm
aesvcs cti-link A rm
aesvcs interface A rm

JC; Reviewed:
SPOC 6/16/2011
Solution & Interoperability Test Lab Application Notes
©2011 Avaya Inc. All Rights Reserved.
8 of 30
IPTM96-CM601
5.2. Configure Login Group
Create an Access-Profile Group to correspond to the SAT User Profile created in Section 5.1.
Step
Description
1.

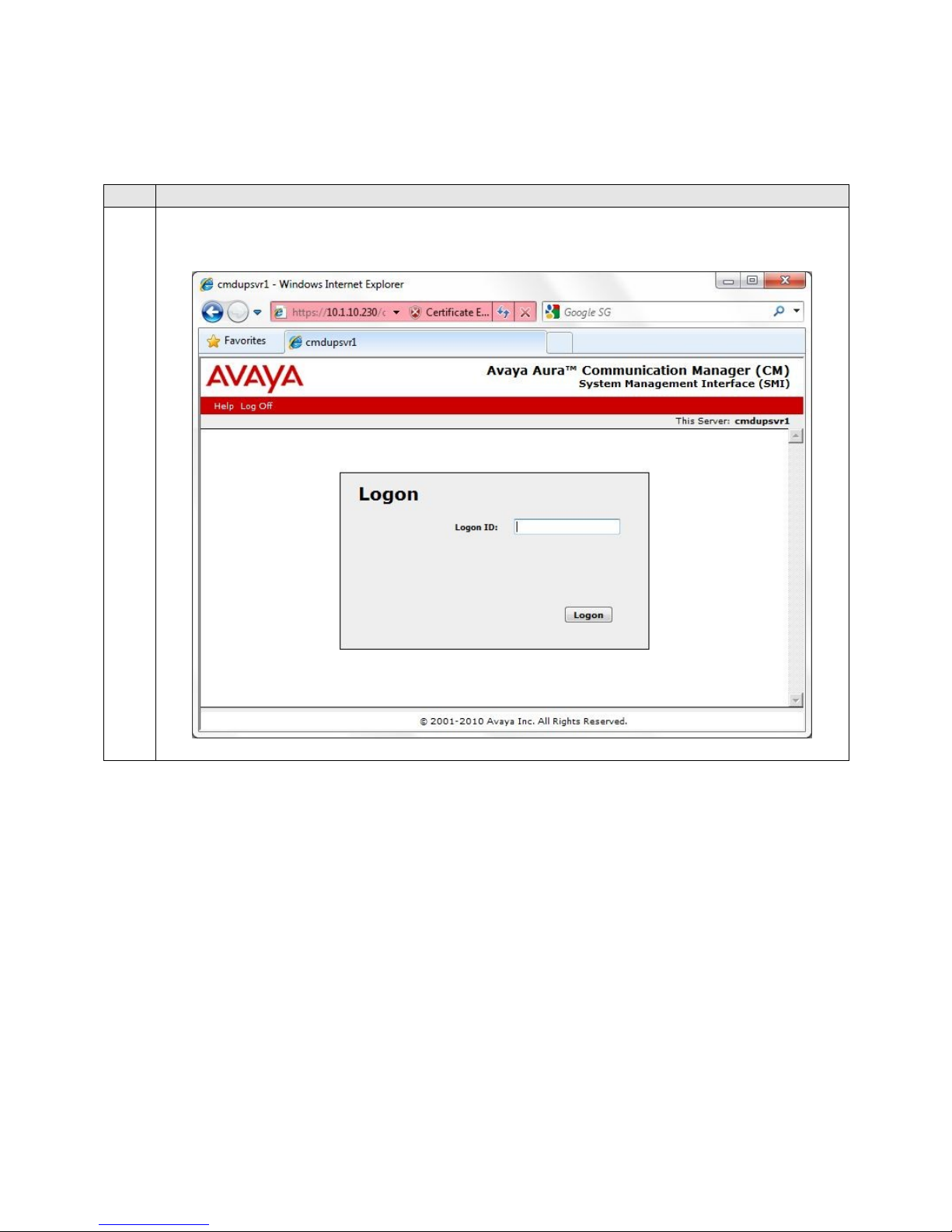

Using a web browser, enter https://<IP address of Avaya Server> to connect to the Avaya
Server being configured and log in using appropriate credentials.

JC; Reviewed:
SPOC 6/16/2011
Solution & Interoperability Test Lab Application Notes
©2011 Avaya Inc. All Rights Reserved.
9 of 30
IPTM96-CM601
Step
Description
2.

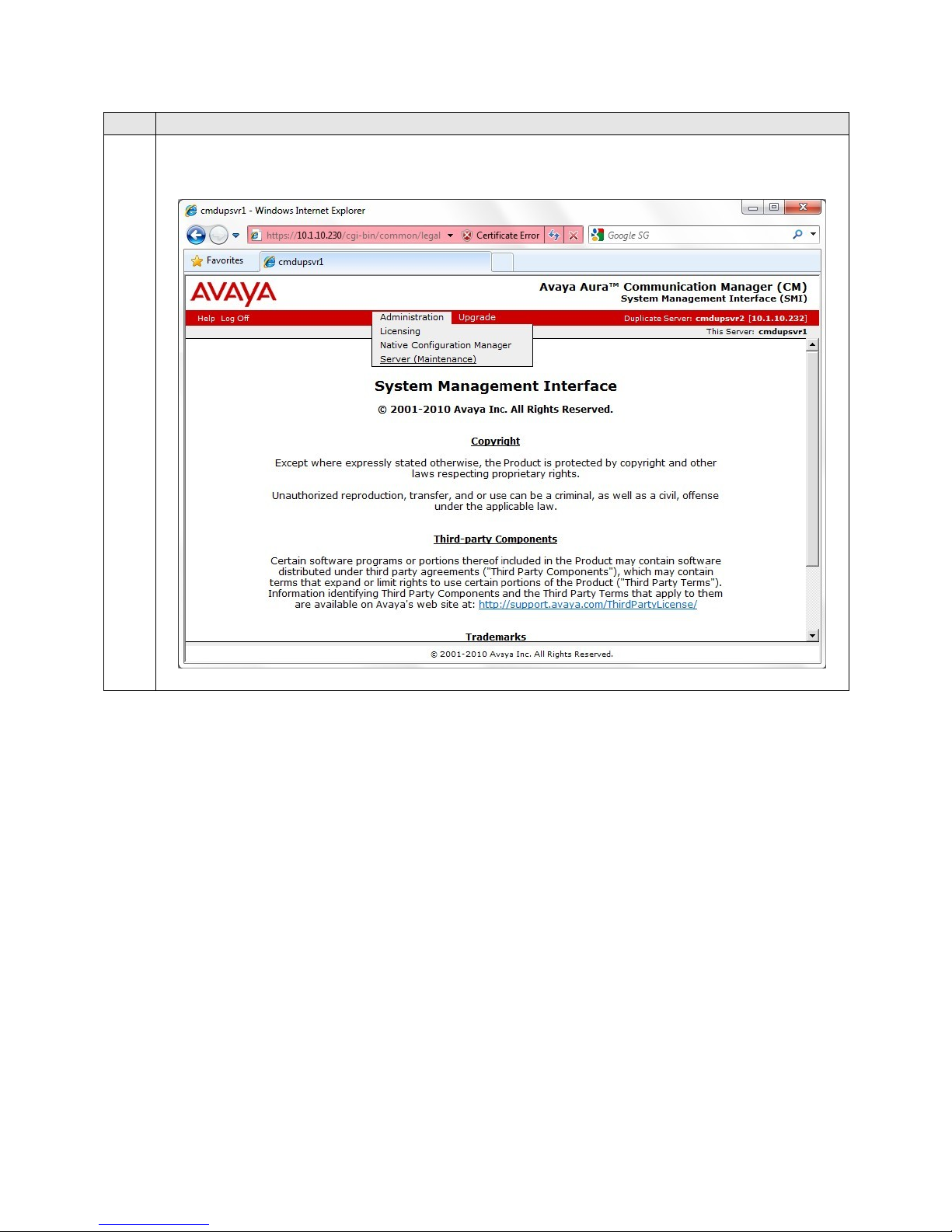

Click Administration > Server (Maintenance). This will open up the Server
Administration Interface that will allow the user to complete the configuration process.

JC; Reviewed:
SPOC 6/16/2011
Solution & Interoperability Test Lab Application Notes
©2011 Avaya Inc. All Rights Reserved.
10 of 30
IPTM96-CM601
Step
Description
3.
From the navigation panel on the left side, click Administrator Accounts under
Security. Select Add Group and click Submit.

JC; Reviewed:
SPOC 6/16/2011
Solution & Interoperability Test Lab Application Notes
©2011 Avaya Inc. All Rights Reserved.
11 of 30
IPTM96-CM601
Step
Description
4.

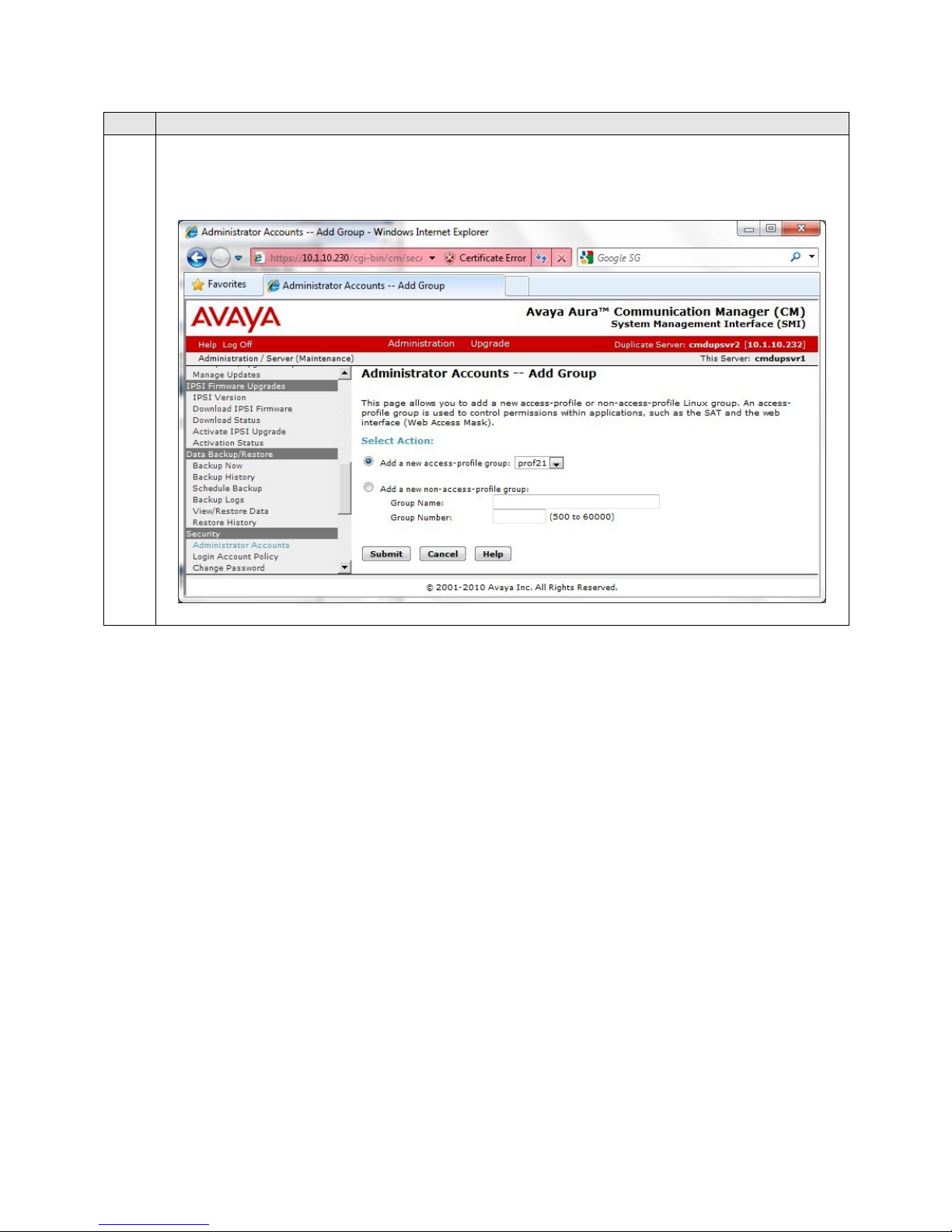

Select Add a new access-profile group and select prof21 from the drop-down box to
correspond to the user-profile created in Section 5.1 Step 1. Click Submit. This
completes the creation of the login group.

JC; Reviewed:
SPOC 6/16/2011
Solution & Interoperability Test Lab Application Notes
©2011 Avaya Inc. All Rights Reserved.
12 of 30
IPTM96-CM601
5.3. Configure Login
Create a login account for PROGNOSIS to access the Communication Manager SAT.
Step
Description
1.
From the navigation panel on the left side, click Administrator Accounts. Select Add
Login and SAT Access Only to create a new login account with SAT access privileges
only. Click Submit.

JC; Reviewed:
SPOC 6/16/2011
Solution & Interoperability Test Lab Application Notes
©2011 Avaya Inc. All Rights Reserved.
13 of 30
IPTM96-CM601
Step
Description
2.
For the field Login name, enter a login to be used by PROGNOSIS. In this configuration,
the login iptm is created. Configure the other parameters for the login as follows:
Primary group: Select users [Limits the permissions of the login]
Additional groups (profile): prof21 [Select the login group created in Section
5.2 Step 4.]
Select type of authentication: Select Password [Uses a password for
authentication.]
Enter password or key / Re-enter password or key [Define the password.]
Force password/key change on next login: Select No
Click Submit to continue. This completes the configuration of the login.

JC; Reviewed:
SPOC 6/16/2011
Solution & Interoperability Test Lab Application Notes
©2011 Avaya Inc. All Rights Reserved.
14 of 30
IPTM96-CM601
5.4. Configure RTCP Monitoring
To allow PROGNOSIS IP Telephony Manager to monitor the quality of IP calls, configure
Communication Manager to send RTCP reporting to the IP address of the PROGNOSIS server.
This is done through the SAT interface.
Step
Description
1.
Enter the change system-parameters ip-options command. In the RTCP MONITOR
SERVER section, set Server IPV4 Address to the IP address of the PROGNOSIS IP
Telephony Manager server. Set IPV4 Server Port to 5005 and RTCP Report Period
(secs) to 5.
change system-parameters ip-options Page 1 of 3
IP-OPTIONS SYSTEM PARAMETERS
IP MEDIA PACKET PERFORMANCE THRESHOLDS
Roundtrip Propagation Delay (ms) High: 800 Low: 400
Packet Loss (%) High: 40 Low: 15
Ping Test Interval (sec): 20
Number of Pings Per Measurement Interval: 10
Enable Voice/Network Stats? n
RTCP MONITOR SERVER
Server IPV4 Address: 10.1.10.124 RTCP Report Period(secs): 5
IPV4 Server Port: 5005
Server IPV6 Address:
IPV6 Server Port: 5005
AUTOMATIC TRACE ROUTE ON
Link Failure? y
H.323 IP ENDPOINT
H.248 MEDIA GATEWAY Link Loss Delay Timer (min): 5
Link Loss Delay Timer (min): 5 Primary Search Time (sec): 75
Periodic Registration Timer (min): 20
Short/Prefixed Registration Allowed? N
2.
Enter the change ip-network-region ncommand, where nis IP network region number
to be monitored. On Page 2, set RTCP Reporting Enabled to yand Use Default Server
Parameters to y.
Note: Only one RTCP MONITOR SERVER can be configured per IP network region.
change ip-network-region 1 Page 2 of 20
IP NETWORK REGION
RTCP Reporting Enabled? y
RTCP MONITOR SERVER PARAMETERS
Use Default Server Parameters? Y
3.
Repeat Step 2 for all IP network regions that are required to be monitored.

JC; Reviewed:
SPOC 6/16/2011
Solution & Interoperability Test Lab Application Notes
©2011 Avaya Inc. All Rights Reserved.
15 of 30
IPTM96-CM601
5.5. Configure CDR Monitoring
To allow PROGNOSIS IP Telephony Manager to monitor the CDR information, configure
Communication Manager to send CDR information to the IP address of the PROGNOSIS server.
Step
Description
1.
Enter the change ip-interface procr command to enable the processor-ethernet interface
on the Avaya Server. Set Enable Interface to y. This interface will be used by
Communication Manager to send out the CDR information.
change ip-interface procr Page 1 of 2
IP INTERFACES
Type: PROCR
Target socket load: 19660
Enable Interface? yAllow H.323 Endpoints? y
Allow H.248 Gateways? y
Network Region: 1 Gatekeeper Priority: 5
IPV4 PARAMETERS
Node Name: procr IP Address: 10.1.10.230
Subnet Mask: /24
2.
Enter the change node-names ip command to add a new node name for the PROGNOSIS
server. In this configuration, the name iptm is added with the IP address specified as
10.1.10.124. Note also the node name procr which is automatically added.
change node-names ip Page 1 of 2
IP NODE NAMES
Name IP Address
CLAN-01a02 10.1.50.21
CLAN-01a03 10.1.50.22
CLAN-02a02 10.1.10.21
DefaultRouter 10.1.50.1
MEDPRO-01a07 10.1.50.31
MEDPRO-01a08 10.1.50.32
MEDPRO-01a09 10.1.50.33
MEDPRO-02a13 10.1.10.31
MEDPRO-02a14 10.1.10.32
VAL-01a11 10.1.50.41
cm6ess 10.1.10.239
default 0.0.0.0
iptm 10.1.10.124
procr 10.1.10.230
procr6 ::
router10 10.1.10.1

JC; Reviewed:
SPOC 6/16/2011
Solution & Interoperability Test Lab Application Notes
©2011 Avaya Inc. All Rights Reserved.
16 of 30
IPTM96-CM601
Step
Description
3.
Enter the change ip-services command to define the CDR link. To define a primary CDR
link, the following information should be provided:
Service Type:CDR1 [Note: If needed, a secondary link can be defined by setting
Service Type to CDR2.]
Local Node: procr [Note: Communication Manager will use the processor-
ethernet interface to send out the CDR.]
Local Port: 0 [Note: The Local Port is set to 0 because Communication Manager
initiates the CDR link.]
Remote Node: iptm [Note: The Remote Node is set to the node name previously
defined in Step 1.]
Remote Port: 50000 [Note: The Remote Port may be set to a value between 5000
and 64500 inclusive. 50000 is the default port number used by PROGNOSIS and
the PROGNOSIS server uses the same port number for all Avaya Servers sending
CDR information to it.]
change ip-services Page 1 of 3
IP SERVICES
Service Enabled Local Local Remote Remote
Type Node Port Node Port
CDR1 procr 0 iptm 50000
On Page 3 of the IP SERVICES form, disable the Reliable Session Protocol (RSP) for the
CDR link by setting the Reliable Protocol field to n.
change ip-services Page 3 of 3
SESSION LAYER TIMERS
Service Reliable Packet Resp Session Connect SPDU Connectivity
Type Protocol Timer Message Cntr Cntr Timer
CDR1 n30 3 3 60

JC; Reviewed:
SPOC 6/16/2011
Solution & Interoperability Test Lab Application Notes
©2011 Avaya Inc. All Rights Reserved.
17 of 30
IPTM96-CM601
Step
Description
4.
Enter the change system-parameters cdr command to set the parameters for the type of
calls to track and the format of the CDR data. The following settings were used during the
compliance test.
CDR Date Format: month/day
Primary Output Format: unformatted [Note: This value is used to configure
PROGNOSIS in Section 5 Step 3.]
Primary Output Endpoint: CDR1
The remaining parameters define the type of calls that will be recorded and what data will
be included in the record. See Reference [2] for a full explanation of each field. The test
configuration used some of the more common fields described below.
Use Legacy CDR Formats? y[Note: Specify the use of the Communication
Manager 3.x (“legacy”) formats in the CDR records produced by the system.]
Intra-switch CDR: y [Note: Allows call records for internal calls involving
specific stations. Those stations must be specified in the INTRA-SWITCH-CDR
form.]
Record Outgoing Calls Only? n [Note: Allows incoming trunk calls to appear in
the CDR records along with the outgoing trunk calls.]
Outg Trk Call Splitting? y [Note: Allows a separate call record for any portion
of an outgoing call that is transferred or conferenced.]
Inc Trk Call Splitting? n [Note: Do not allow a separate call record for any
portion of an incoming call that is transferred or conferenced.]
change system-parameters cdr Page 1 of 1
CDR SYSTEM PARAMETERS
Node Number (Local PBX ID): 1 CDR Date Format: month/day
Primary Output Format: unformatted Primary Output Endpoint: CDR1
Secondary Output Format: Secondary Output Endpoint:
Use ISDN Layouts? n Enable CDR Storage on Disk? n
Use Enhanced Formats? n Condition Code 'T' For Redirected Calls? n
Use Legacy CDR Formats? y Remove # From Called Number? n
Modified Circuit ID Display? n Intra-switch CDR? y
Record Outgoing Calls Only? nOutg Trk Call Splitting? y
Suppress CDR for Ineffective Call Attempts? y Outg Attd Call Record? y
Disconnect Information in Place of FRL? n Interworking Feat-flag? n
Force Entry of Acct Code for Calls Marked on Toll Analysis Form? n
Calls to Hunt Group - Record: member-ext
Record Called Vector Directory Number Instead of Group or Member? n
Record Agent ID on Incoming? n Record Agent ID on Outgoing? y
Inc Trk Call Splitting? n
Record Non-Call-Assoc TSC? n Call Record Handling Option: warning
Record Call-Assoc TSC? n Digits to Record for Outgoing Calls: dialed
Privacy - Digits to Hide: 0 CDR Account Code Length: 15

JC; Reviewed:
SPOC 6/16/2011
Solution & Interoperability Test Lab Application Notes
©2011 Avaya Inc. All Rights Reserved.
18 of 30
IPTM96-CM601
Step
Description
5.
If the Intra-switch CDR field is set to yon Page 1 of the CDR SYSTEM
PARAMETERS form, then enter the change intra-switch-cdr command to define the
extensions that will be subjected to call detail recording. In the Assigned Members field,
enter the specific extensions whose usage will be tracked with the CDR records.
change intra-switch-cdr Page 1 of 3
INTRA-SWITCH CDR
Assigned Members: 8 of 5000 administered
Extension Extension Extension Extension
10001
10002
10003
10004
10005
10006
10007
10008
6.
For each trunk group for which CDR records are desired, verify that CDR reporting is
enabled. Enter the change trunk-group n command, where nis the trunk group number,
to verify that the CDR Reports field is set to y. Repeat for all trunk groups to be reported.
change trunk-group 6 Page 1 of 21
TRUNK GROUP
Group Number: 6 Group Type: sip CDR Reports: y
Group Name: SIP Trunk to SM6 COR: 1 TN: 1 TAC: #06
Direction: two-way Outgoing Display? y
Dial Access? n Night Service:
Queue Length: 0
Service Type: tie Auth Code? n
Member Assignment Method: auto
Signaling Group: 6
Number of Members: 20

JC; Reviewed:
SPOC 6/16/2011
Solution & Interoperability Test Lab Application Notes
©2011 Avaya Inc. All Rights Reserved.
19 of 30
IPTM96-CM601
6. Configure Integrated Research PROGNOSIS IP Telephony
Manager
This section describes the configuration of PROGNOSIS IP Telephony Manager required to
interoperate with Communication Manager.
Step
Description
1.

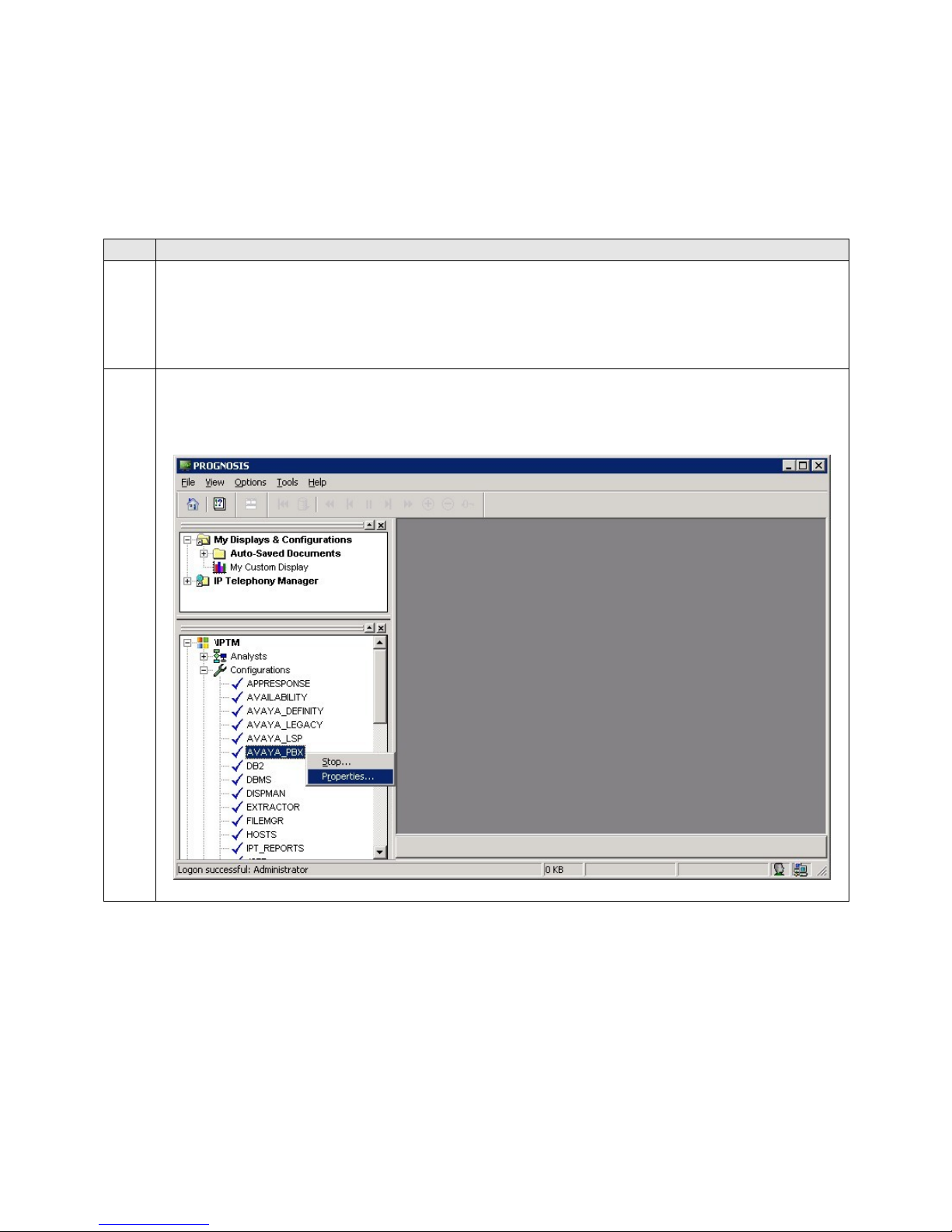

On PROGNOSIS IP Telephony Manager server, click Start > All Programs >
PROGNOSIS IP Telephony Manager > IP Telephony Manager GUI to start the IP
Telephony Manager GUI application. Enter a valid Windows user account and password
to log in.
2.
To configure the Communication Manager systems to be monitored, expand
Configurations of the Monitoring Node, right-click on AVAYA_PBX and select
Properties.

JC; Reviewed:
SPOC 6/16/2011
Solution & Interoperability Test Lab Application Notes
©2011 Avaya Inc. All Rights Reserved.
20 of 30
IPTM96-CM601
Step
Description
3.
In the Configuration tab, add an entry for each Communication Manager system to be
managed. The template to add a system is provided in the PROGNOSIS GUI application.

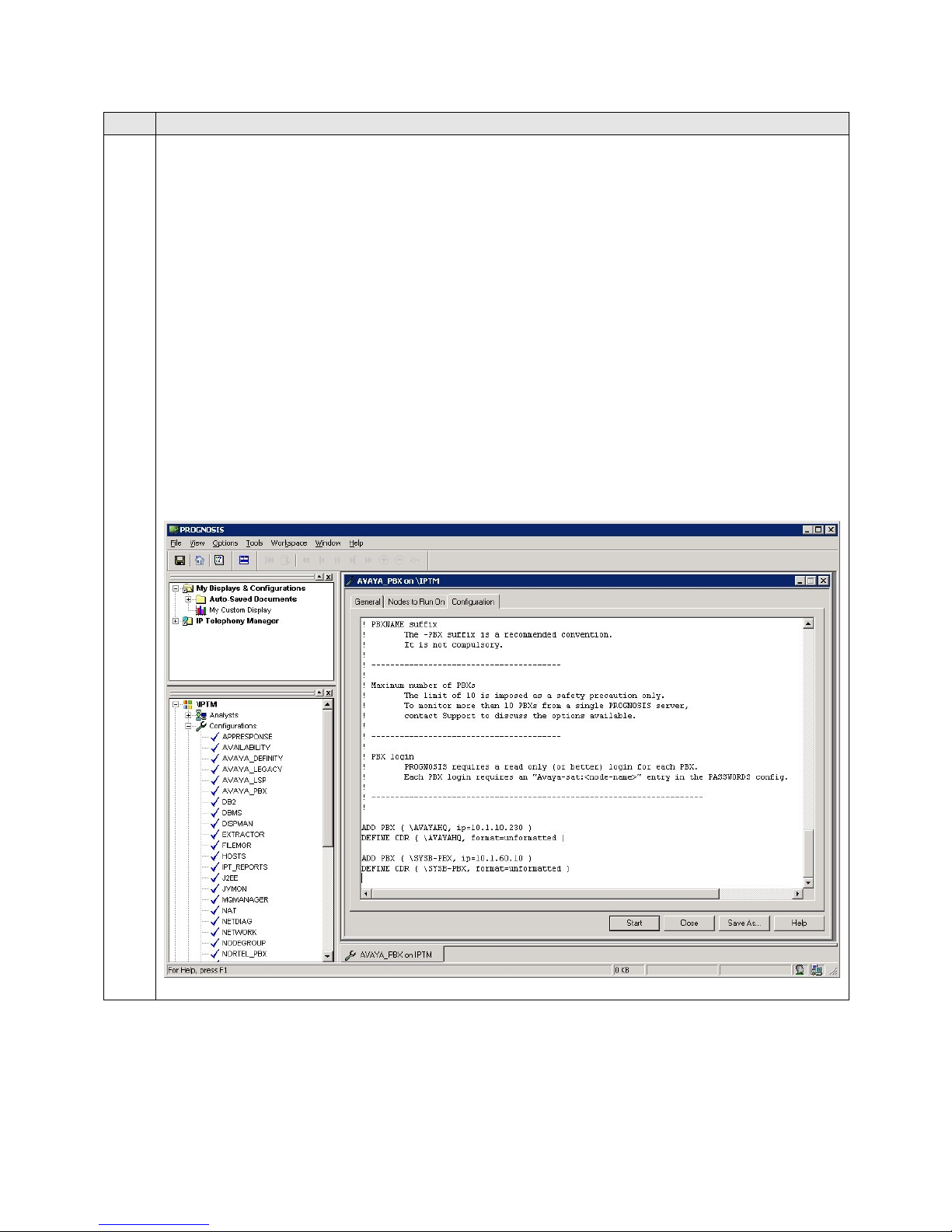

In this test configuration, the following entries are added for the two Communication
Manager systems with the names AVAYAHQ and SYSB-PBX and with the IP addresses
of the Avaya Servers 10.1.10.230 and 10.1.60.10 respectively. The PROGNOSIS
Monitoring Node will use SSH to connect to port 5022 of the Avaya Servers.
ADD PBX ( \AVAYAHQ, ip=10.1.10.230 )
ADD PBX ( \SYSB-PBX, ip=10.1.60.10 )
Define the CDR format to match the settings configured on Communication Manager in
Section 5.5 Step 2 and 3 respectively.
DEFINE CDR ( \AVAYAHQ, format=unformatted )
DEFINE CDR ( \SYSB-PBX, format=unformatted )
Click Start to proceed.
