USER INSTRUCTIONS
The trailer is designed and constructed to provide a portable, comfortable and sturdy addition
to your outdoor ventures. Please read the instruction and all warnings carefully before using and
keep the instruction for future reference.
IMPORTANT
PASSENGERS AND RIDERS SHOULD ALWAYS WEAR
PROPERLY FITTING, APPROVED CYCLING HELMETS
WARNING
Failure to follow these warnings and assembly instructions could result in serious injury or death.
• Maximum weight capacity for one child is 22kg(50lb), and for two children is 40kg(88lb).
• Not for use with children under 12 months or over 5 years of age or with an upper body
height of 595mm(23.5”).
• Children must be able to hold up head with helmet on.
• Do not carry more than two children.
• Do not place more than 5kg(11.0lb) in storage compartment.
• Do not exceed 16Km/H(10M/H) maximum speed.
• Do not install a car seat or any other seating device to this trailer.
• Do not make any modications to the trailer.
• The trailer/stroller will become unstable if the manufacturer’s assigned load is exceeded.
• Accessories or parcels placed in trailer may cause it to change balance and become unstable.
• Children must always fasten safety belts and wear bike helmets.
• Always instruct children NOT TO rock, bounce, or lean.
• Never leave children unattended in or around the trailer/jogger.
• The trailer/stroller is not suitable for running or skating.
• Put on all brakes and fasten parking straps whenever you park the trailer/stroller
• Never allow children to assemble, fold, or disassemble this unit.
• Periodically re-check all fasteners to make sure they are tight.
PRE-RIDE SAFETY CHECK
• Check to ensure hitch connector and safety strap are secured.
• BUCKLE UP! Check seat harness and secure all baggage.
• Check TIRE AIR PRESSURE. Inspect bike and trailer condition before each use.
• HELMETS ON! Ensure rider and child helmets are on and secure.
RIDING TIPS
• Ride slower than you would if you were without the trailer.
• You will require extra stopping distance. Use your brakes early. Take corners very gradually.
• Use on smooth roads only. Do not ride over curbs, potholes or off road.
• Always use the ag supplied with the trailer to allow others to see you.
SAFETY GUIDELINES
THINK SAFETY FIRST. Check the working conditions of both bike and trailer before each use.
If you discover broken components, misalignments or missing parts, correct the problem prior to
use. Please refer to all warning and guidelines for the proper use of this trailer. Be aware of what
is necessary to safely control the bike-trailer combination.
PLEASE FOLLOW THESE SAFETY GUIDENLINES WHEN USING YOUR TRAILER:
• Inspect the trailer and its parts before and after each use. Proper care and maintenance of
the trailer are essential to safety.
• When assembling the trailer, make sure that the wheels are correctly and securely installed as
described in the assembly instructions. Inate the tires to the desired pressure and check the
pressure before each use. Over-ination may cause the trailer to bounce or turn over. Use only
tires with street tread and not with BMX or knobby tread.
• Attach the hitch connector securely to the bicycle frame. The connector should be tightened

3
and the safety strap wrapped around the stay and the hook snapped into the D-ring
• The person riding the towing bicycle should be at least 16 years of age & in good physical condition.
• Be sure that the bicycle used with the trailer is in good working condition and has good brakes.
A bicycle shop can help you with inspection and maintenance. It is recommendable to equip the
towing bicycle with rear-view mirrors. At dusk or dawn, the lights must always be switched on.
• Do not overload the trailer. The load limit for cargo and/or passengers is 45kg (100lb). Position
the load as low as possible and center it within the trailer (front to rear and left to right). Any
extra gear should be placed towards the rear. All loads should be secured so that it does not
shift. IMPORTANT: Instruct children riding in the trailer not to bounce, rock or lean; such
movements may cause the trailer to lean or ip. The tow-bar must not bear any extra load.
• Do not attempt to install other seating systems in the trailer. It is not designed for car seats,
stroller seats, infant beds, or any other type of seating. Use of any seating system other than
the original equipment seat will void the warranty, and may result in damage to the trailer or
injury of the passengers.
• Pulling this trailer affects the operation of the bicycle. Stopping, starting and turning are
affected, depending on the weight of the cargo. To familiarize yourself with the changes,
load the trailer to capacity and practice in a safe area. Do not use your trailer until you have
become accustomed to how it affects your bicycle handling.
• SUFFOCATION WARNING: Plastic bags can be dangerous. To avoid danger of suffocation,
keep plastic bags away from babies and children.
SAFETY TIPS FOR RIDING
• Before using, be sure the trailer is correctly assembled according to the manufacturer’s
instructions.
• Before attaching this trailer to your bicycle, please have your bicycle inspection by a qualied
bicycle mechanic for compatibility.
• Before each ride, ensure the attached trailer does not interfere with braking, pedaling or
steering the bicycle.
• Make sure your bike brakes work properly. Braking distance is increased when pulling a trailer.
• A bicycle with trailer attached requires a wide turning radius! Do not turn sharply.
• When pulling one child in the trailer, seat him/her in the center.
• Never remove protective canopy when pulling children in the trailer.
• Never pull or push the trailer/stroller at night without adequate lighting and reectors, obey all
local legal requirements for lighting and reectors.
• Always use the safety ag when pulling this trailer.
• A reector that complies with the homologated regulations shall be visible on the trailer.
• Install a rearview mirror on your bike to check on children in trailer.
• Be aware of exposure hazards such as wind-chill and heat exhaustion by less-active trailer
passengers in prolonged exposure in colder temperatures, or by extended periods in warmer
temperatures without adequate ventilation and hydration.
• Use extra caution when turning on uneven pavement, and going downhill.
• Do not ride over curbs. Avoid bumps and holes. Always signal your turns.
• Do not travel on the highways, busy streets or in areas unsafe for bicycling.
• Do not use trailer in snow or icy conditions.
• Do not travel or descend at high speeds.
• Do not exceed 16Km/H(10 M/H), because high speeds adversely affect your ability to control
the bike and to notice road irregularities.
• Do not allow any of the child’s body, clothing, shoe laces, or toys to come in contact with
moving parts.
SAFETY RECOMMENDATIONS FOR PASSENGERS:
The safety of your child is of great concern. The trailer seat is intended for passengers older than
12 months and able to wear an approved helmet. Your children must be able to hold their heads
upright. Check with your pediatrician to make sure your child’s development makes him or her a
suitable passenger in this trailer. Make sure that your child is seated securely and the harness is
properly engaged. The child’s sitting height should be below the crossbar, and the correct shoulder
strap height must be used.

4
EXPLODED VIEW FOR CLARIFICATION ONLY
PART LIST
NUMBER NAME QUANTITY NUMBER NAME QUANTITY
1Base Tube 1 9 Reector 2
2Side Tube 6 10 Safety Pin 3
3Axle 1 11 20” Rear Wheel 2
4Hitch Arm 1 12 Spoke Reector 2
5Hitch Clamp 1 13 Fabric Bottom 1
6Button hook 2 14 Mesh Canopy 1
7Wheel Axle 1 15 Seat Pad 1
8Knob 1 16 Flagpole & Flag 1


5
FOLDING AND UNFOLDING OF THE TRAILER
Remove trailer and all components from carton and sort all contents. Unfold the retractable mesh
canopy of trailer by hand to the upright position. Insert the safety pins into the bottom sleeves.
Operate it in the opposite order to fold the frame.
CAUTION
The seat is not suitable for children under 12 months.
Ensure that the safety pins are secured with the spring clips.
WARNING
Immediately discard all plastic bags and plastic wrapping materials.
To prevent injury, please use extreme care when folding and unfolding the trailer.
OPENING & CLOSING THE CANOPY OR RAIN COVER
The retractable mesh canopy is designed to protect passengers and for passengers from ying
debris. The PVC wind/rain cover is designed to keep passengers and cargo dry and warm in
inclement weather.
Open and close the canopy with Velcro straps in front of trailer. Adjust the height of opening of
canopy with the strap. Position the wind/rain cover over top of trailer. Fasten the wind/rain
cover with elastic straps at corners and work it until it is fully covering the trailer. Operate it in the
opposite order to remove the cover. The wind/rain cover can be placed in the rear compartment.
CAUTION
It is strongly recommended that children’s eyes are protected from flying insects and airborne
particles when pulling trailer. Suitable protection includes:
SUNGLASSES, EYE GLASS, INSECT SCREEN OR PVC WINDOW ON THE CANOPY.

6
WARNING
To protect children from flying objects during pulling, always close the retractable mesh canopy.
When using the wind/rain cover make sure there is proper ventilation for the children inside.
Passengers can become hot inside fully closed trailer during very hot weather. Please make sure
to open the roll-up vents to prevent overheating.
SECURING AND REMOVING THE CHILDREN & PARCELS
When you secure the children in the seat or remove the children from the seat, always check if
the trailer is stably connected with the bike.
Open the canopy and place the children in the proper position and close the canopy.
Make sure to use the seat belts and shoulder straps.
The harness system is designed to keep your passengers immobilized and secure during
transport. The harness is designed to accommodate one or two children.
• Disconnect shoulder strap clips from crotch strap D-ring.
• Place child in seat. If carrying a single passenger, place child in the middle of the trailer seat.
• Put one strap over each shoulder and connect to the D-ring of the crotch strap.
• Adjust shoulder crotch straps to be snug and secure.
• Fasten lap belt and tighten securely.
Never ride without securing passengers in the Five Point Harness. Unrestrained passengers can
affect bike handling; and they may be more likely to be injured in the event of an accident.
U p p e r H e i g h t S t r a p S h o u l d e r S t r a p
L o w e r H e i g h t S t r a p W a i s t S t r a p
Crotch Strap
Open the rear of top cover and x the parcels in the storage compartment and close the top cover.
CAUTION
The head without helmet shall have a minimum distance of 40 mm and no contact to any interior
surface of the roof. It is recommended that a helmet according to EN 1078 should be worn.
Always adjust shoulder straps & waist seat belts to a secure/snug position for child. When pulling
one child in the trailer, seat him/her in the center.
WARNING
Avoid serious injury from falling or sliding out. Always use seat belt. Child may slip into leg
openings and strangle. Never use in reclined carriage positions. Do not carry extra children or
parcels on the trailer.


CrotchStrap

7
ATTACHING AND REMOVING THE WHEELS
Lift the rear of the frame enough to allow you to insert the hub axle into wheel axle of the trailer.
Insert the hub axle all the way by pushing on the hub until you hear an audible click. Check that the
axle is secured and inserted fully by grabbing the center of the hub and pulling away from trailer.
To remove the wheel, press the buttonhook underneath near the axle tube while pulling the wheel
away from trailer.
WARNING
For easy towing and safe handling, check tires often for proper inflation and wear.
Check tire pressure regularly and inflate tires to within the range shown on the tire sidewall.
ATTACHING THE REFLECTORS
Screw the reectors on the rear of trailer and the spoke reector on both sides of wheels.
Make certain to tighten these screws securely.
CAUTION
The reflectors that comply with the homologated regulations shall be visible on the rear of the trailer.
WARNING
Never use the trailer at night without adequate lighting and reflectors, obey all local legal
requirements for lighting and reflectors. The lighting and reflectors should be complied with the
homologated regulations.

8
INSERTING AND REMOVING THE FLAG
Assemble the two sections of the agpole together. Insert the agpole into the sewn sleeve on the
left rear corner of the trailer.
CAUTION
Always use the safety flag to maximize your visibility to other vehicles sharing
the road or path.
ATTACHING AND REMOVING THE HITCH ARM
Insert the hitch arm into the front casing and tighten the knob securely. Secure the safety pin into
the front casing.
To remove the hitch arm, operate it in the opposite order. The hitch arm can be placed in the
rear compartment.
WARNING
Do not use the trailer without proper installation of the safety pin.


9

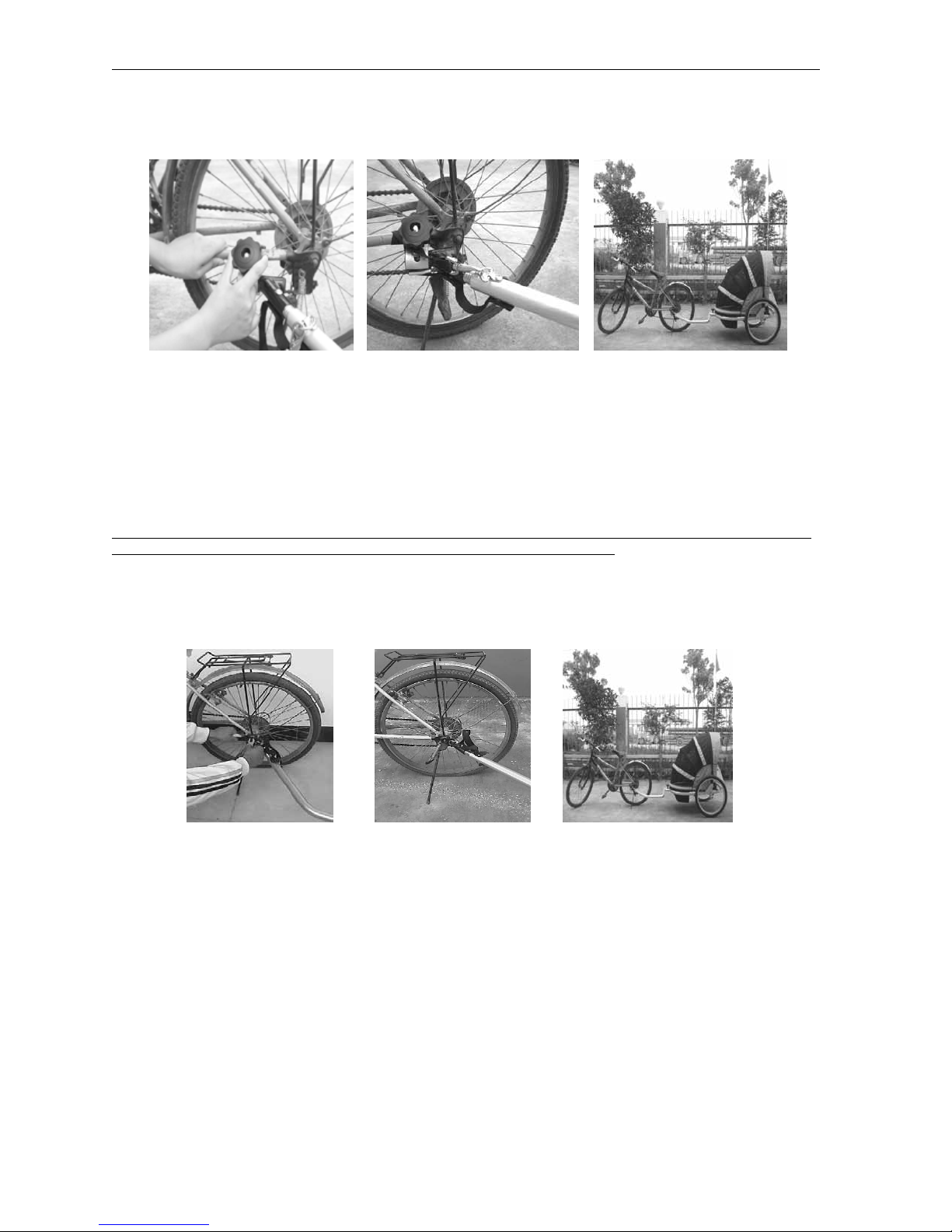

ATTACHING & REMOVING THE TRAILER TO/FROM CHAIN STAY
Fasten the clamp to the underside of the non-drive side chain stay(lower frame tube that runs
from the crank to the rear axle) tighten tension knob securely. Wrap the safety strap around the
chain stay of the bike and snap the hook into the D-ring attached to the trailer arm.
CAUTION
If the hitch interferes with your bike or other bike attachments, or if it does not tighten securely,
do not use. Contact your bike dealer for help with proper installation.
ATTACHING & REMOVING THE TRAILER TO/FROM REAR AXLE
(With optional AVENIR Axle Mount Hitch #72-27-008)
Fasten the hitch connector onto the rear axle using the hub axle nut or QR skewer. Attach the
hitch arm and connector on the hub axle with the safety pin. Wrap the safety strap around the
chain stay of the bike and securely fasten back to the D-ring attached to the hitch arm.
Operate it in the opposite order to remove the hitch arm from the bike.
PLEASE NOTE:
- Optional AVENIR Axle Mount Quick Release hitch part# 72-27-008
also available.
CAUTION
The height of the hitch clamp shall not exceed 400 mm above a road surface and the standard
drawbar load shall be between 30N and 80N.
WARNING
Ensure the safety pin is secured with the spring clip. Please ensure your bike is completely
compatible with the trailer. If the hitch interferes with your bike or other bike attachments, or if it
does not tighten securely, do not use. Contact your bike dealer for help with proper installation.

10
DISASSEMBLY, FOLDING AND STORAGE
For partial or complete disassembly, folding and storage, reverse the above-mentioned process.
Inspect the trailer and its parts before and after each use and storage. Check the working
conditions of both trailer and bike before each use.
Store trailer in a dry area under ambient conditions and always make sure trailer is dry before storing.
WARNING
To prevent color fading and eventual weakening of the fabrics or components, store the trailer out
of direct sunlight.
MAINTENANCE
From time to time, check your trailer for loose hardware, worn parts, torn material or stitching.
Repair or replace parts as needed. Over or under ination of tires may cause handling issues for
the trailer. Replace tires only with street tread and not with BMX or knobby tread.
We suggest to periodically clean all parts wipe dry and then let air dry, especially if you are
exposed to salt water, salt spray, beach sand etc.
CAUTION
Do not make any modifications to the trailer. Be sure that the trailer and bike are in good working
conditions. A bike dealer can help you with inspection and maintenance.
WARNING
Do not use cleaning solvents. Clean only with mild soap and water.
